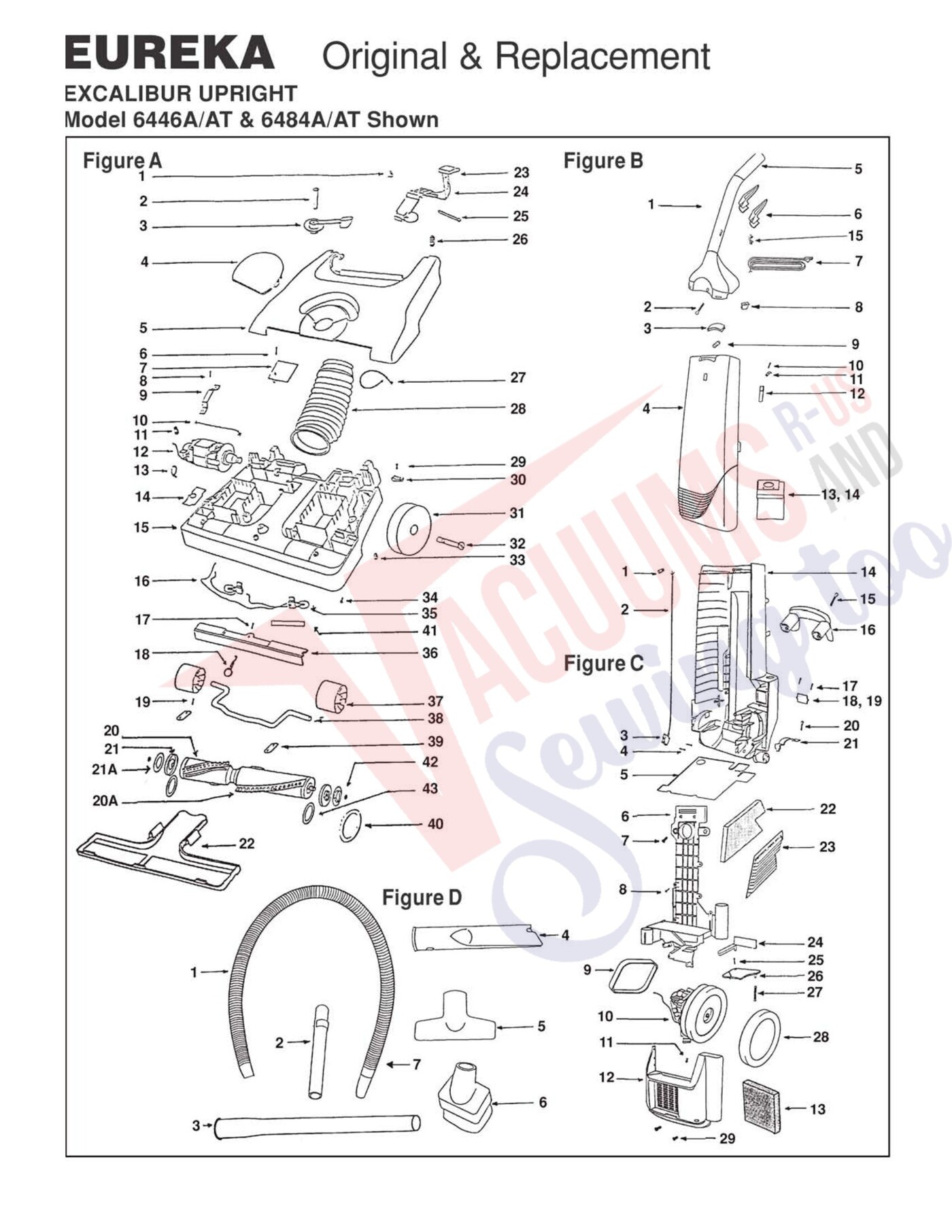

Schematic and parts book for Eureka 6446a, 6446at, 6484a, 6484at Excalibur upright. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Hardware Pkg. | 58068 | Not Available |
| 1 | Not Available | Push-On Nut | 54707 | Not Available |
| 1 | Not Available | Wire Nut | SS-3270 | Not Available |
| 1 | Not Available | Hose With Coupling Only | 54692-1 | Not Available |
| 1 | Not Available | Upper Handle Ass'y | 02119-1 | Not Available |
| 2 | Not Available | Height Adjustment Screw | 58244 | Not Available |
| 2 | Not Available | Upper Cord Ass'y W/Rocker Switch | 27522-1 | Not Available |
| 2 | Not Available | Wand With Bleeder 6484A/AT | 14990-1 | Not Available |
| 2 | Not Available | Wand With Bleeder 6446A/AT | 14990-2 | Not Available |
| 2 |  | SCREW, 10PK Part Number: 53238-37 for Eureka | 5323837 | $0.33Read more |
| 3 | Not Available | Adjustment Lever | 58327-1 | Not Available |
| 3 |  | MICRO SWITCH, INTERNAL EXCALIBUR Part Number: 27410 for Eureka | 27410 | $7.90Read more |
| 3 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $10.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Latch | 27514 | Not Available |
| 4 | Not Available | Adjustment Cover & Graphics 6484A/AT | 27483-5 | Not Available |
| 4 | Not Available | Adjustment Cover & Graphics 6446A/AT | 27483-4 | Not Available |
| 4 | Not Available | Screw | 53238-34 | Not Available |
| 4 | Not Available | Crevice Tool | 54355-3 | Not Available |
| 4 | Not Available | Bag Cover & Graphics 6446A/AT | 14882-4 | Not Available |
| 4 | Not Available | Bag Cover & Graphics 6484A/AT | 14882-5 | Not Available |
| 5 | Not Available | Hood & Graphics Ass'y 6484A/AT | 54705-3 | Not Available |
| 5 | Not Available | Hood & Graphics Ass'y 6446A/AT | 54705-2 | Not Available |
| 5 | Not Available | Motor Shield | 38410 | Not Available |
| 5 | Not Available | 1 Upholstery Nozzle | 54506- | Not Available |
| 5 | Not Available | Handle Grip | 35293-8 | Not Available |
| 6 | Not Available | Screw | 53238-4 | Not Available |
| 6 | Not Available | Dirt Chute Cover | 02016-1 | Not Available |
| 6 | Not Available | Dusting Brush | 54505-1 | Not Available |
| 6 | Not Available | Hose/Cord Clip | 27515-1 | Not Available |
| 7 | Not Available | Supply Cord | 27521-1 | Not Available |
| 7 | Not Available | Pulley Cover | 58323-1 | Not Available |
| 7 | Not Available | Screw | 53238-28 | Not Available |
| 7 | Not Available | Hose Ass'y Complete | 54691-1 | Not Available |
| 8 | Not Available | Rocker Switch | 38348-2 | Not Available |
| 8 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Screw | 53238-4 | Not Available |
| 9 | No Image | SPRING, BAG DOOR LATCH EXCALIBUR 5 PK Part Number: 54711 for Eureka | 54711 | $3.00Read more |
| 9 | Not Available | Motor Strap Figure C | 57879 | Not Available |
| 9 | No Image | GASKET, MIGHTY MITE Part Number: 55463 for Eureka | 55463 | $5.09Read more |
| 10 | Not Available | Screw | 53238-1 | Not Available |
| 10 | Not Available | Power Cord Ass'y 6484A/AT | 27541-1 | Not Available |
| 10 | Not Available | Power Cord Ass'y 6446A/AT | 27520-1 | Not Available |
| 10 | Not Available | Motor Ass'y - Suction | 54713 | Not Available |
| 11 | Not Available | Bag Indicator Clip | 56750 | Not Available |
| 11 | Not Available | Wire Nut | SS-3270 | Not Available |
| 11 | Not Available | Screw | 53238-28 | Not Available |
| 12 | Not Available | Bag Indicator | 37761-2 | Not Available |
| 12 | Not Available | Motor Ass'y - For Brush Roll | 54343-3 | Not Available |
| 12 | Not Available | Motor Cover | 58325-1 | Not Available |
| 13 | Not Available | Paper Bag - Style "Y" 3 Pk | 58183 | Not Available |
| 13 | Not Available | Paper Bag - Style "Y" 3 Pk DVC | ER-1425 | Not Available |
| 13 | Not Available | Wire Tie | 46713 | Not Available |
| 13 | Not Available | Final Filter | 27536 | Not Available |
| 14 | Not Available | Cloth Bag Commercial Style "Y" | 54686 | Not Available |
| 14 | Not Available | Wire Shield 6484A/AT | 58159 | Not Available |
| 14 | Not Available | Wire Shield 6446A/AT | 58421 | Not Available |
| 14 | Not Available | Rear Housing | 27414-1 | Not Available |
| 15 | Not Available | Strain Relief Bushing | 58393 | Not Available |
| 15 | Not Available | Base & Cam Ass'y | 54706-2 | Not Available |
| 15 | Not Available | Screw | 53238-28 | Not Available |
| 16 | Not Available | Lamp Socket 6484A/AT Only | 27376 | Not Available |
| 16 | Not Available | Carrying Handle | 14909-1 | Not Available |
| 17 | Not Available | Screw | 53238-4 | Not Available |
| 17 | Not Available | Screw | 53238-32 | Not Available |
| 18 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 18 | Not Available | Access Door | 14967-1 | Not Available |
| 19 | | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | GASKET, ACCESS DOOR EXCALIBUR UPRIGHTS Part Number: 14966 for Eureka | 14966 | $1.27Read more |
| 20 | Not Available | Brushroll Ass'y Wood | 54693-1 | Not Available |
| 20 | Not Available | Screw | 54669 | Not Available |
| 20A |  | BRUSH STRIP, EXCALIBUR C6446A/AT & SC6484A/AT Part Number: 547921 for Eureka | 547921 | $6.36Read more |
| 21 | No Image | END CAP, EXCALIBUR BRUSHROLL COMMERCIAL 6484A Part Number: 27335 for Eureka | 27335 | $1.82Read more |
| 21 | Not Available | Rear Housing Ass'y Clamp | 38243-1 | Not Available |
| 21A |  | COVER, BRUSHROLL END CAP SC6484 COMMERCIAL UPRIGHT Part Number: 27530 for Eureka | 27530 | $0.99Read more |
| 22 | Not Available | Bottom Plate | 02017-1 | Not Available |
| 22 |  | FILTER, SECONDARY UPRT EXCALIBUR 6400 SERIES Part Number: 27384 for Eureka | 27384 | $3.60Read more |
| 23 | Not Available | Foot Pedal Cap | 38407 | Not Available |
| 23 | Not Available | Filter Frame | 27385 | Not Available |
| 24 | No Image | HANDLE RELEASE PEDAL, EXCALIBUR Part Number: 27405 for Eureka | 27405 | $7.48Read more |
| 24 | Not Available | Diverter Valve Door 6484A/AT Only | 27666 | Not Available |
| 24 | Not Available | Plastic Diverter Valve & Rear Housing | 60141 | Not Available |
| 24 | Not Available | Metal Diverter Valve 6446A/AT | 27666 | Not Available |
| 25 | Not Available | Foot Pedal Pin | 58298 | Not Available |
| 25 | Not Available | Screw | 53238-33 | Not Available |
| 26 | Not Available | Spring | 54708 | Not Available |
| 26 | No Image | DIVERTER ARM, EXCALIBER Part Number: 27345 for Eureka | 27345 | $3.35Read more |
| 27 | Not Available | Cable Tie | 46713-2 | Not Available |
| 27 | Not Available | Spring | 54710 | Not Available |
| 28 | Not Available | Bellows | 14881-1 | Not Available |
| 28 | Not Available | Motor Fan Gasket 6484A/AT Only | 27463A | Not Available |
| 28 | Not Available | Motor Fan Gasket 6446A/AT | 27463 | Not Available |
| 29 | | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | Screw | 53238-35 | Not Available |
| 30 | Not Available | Cable Clamp | 58295 | Not Available |
| 31 | Not Available | Rear Wheel Repair Kit 6446A/AT Only | 26270-3 | Not Available |
| 32 | No Image | WHEEL AXLE, DREAM MACHINE UPRIGHT EXTRACTOR 2450A Part Number: 38392 for Eureka | 38392 | $6.66Read more |
| 33 | No Image | CLIP, REAR WHEEL EXCALIBAR Part Number: 54709 for Eureka | 54709 | $7.48Read more |
| 34 | Not Available | 11 Screw For Hood To Base (Replaces Metal Diverter Valve Only) | 53238- | Not Available |
| 35 | Not Available | Headlight Lamp 6484A/AT Only | 57940 | Not Available |
| 36 | Not Available | Lens 6484A/AT | 27374-1 | Not Available |
| 36 | Not Available | Lens 6446A/AT | 27374-2 | Not Available |
| 37 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Front Axle | 38457 | Not Available |
| 39 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 40 | Not Available | Belt | 30563 | Not Available |
| 40 | Not Available | Belt | ER-1000 | Not Available |
| 41 | Not Available | Sleeving | 58427 | Not Available |
| 42 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Felt Washer For: eureka,sanitaire | 49899 | $3.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
