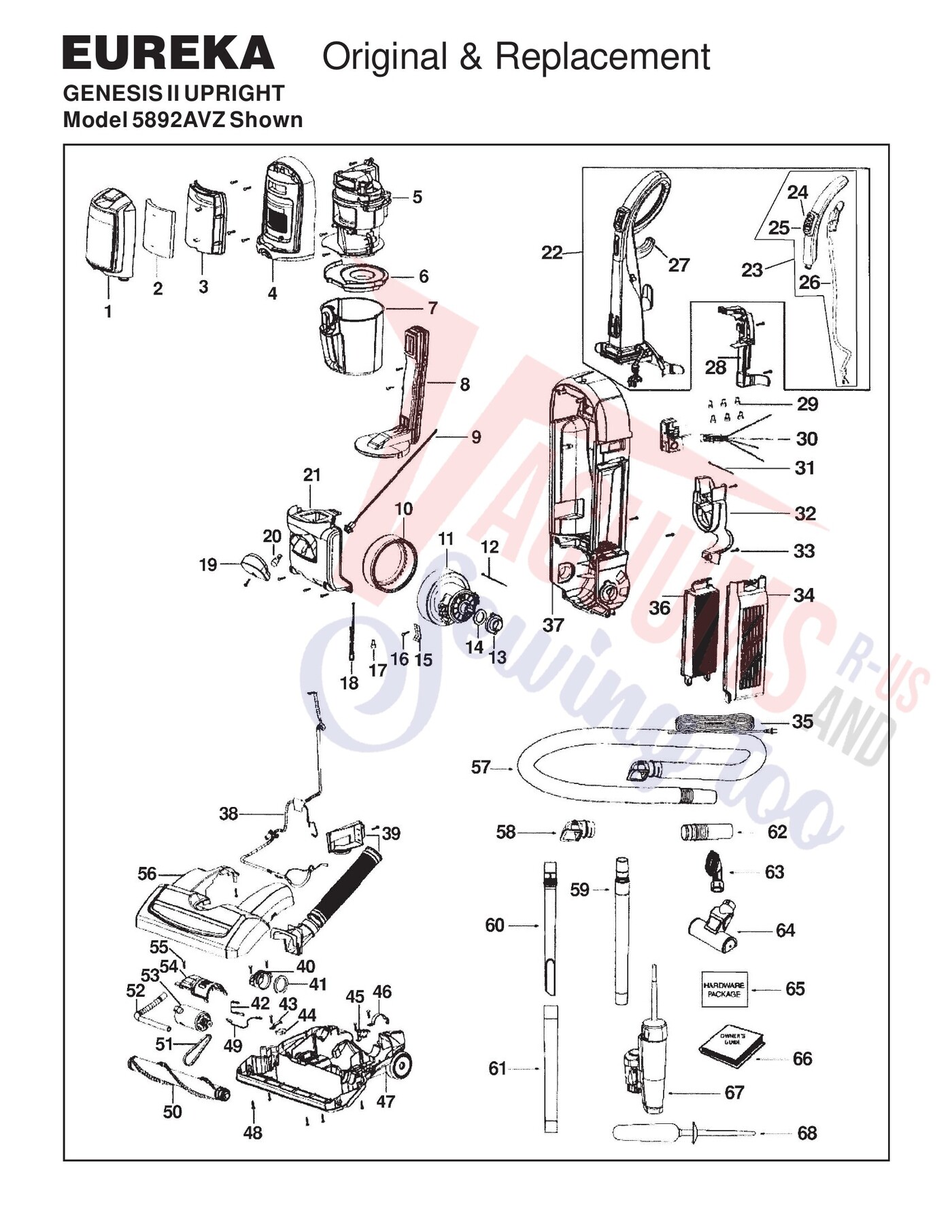

Schematic and parts book for Eureka 5892AVZ . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | GASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka | 71484 | $3.88Read more |
| XX |  | Gasket, Square Black Intake 5902AVZ Part Number: 71482 for Eureka | 71482 | $6.63Read more |
| 1 | Not Available | Filter Door | 74070-1 | Not Available |
| 2 | Not Available | Foam Filter | 74038 | Not Available |
| 3 | Not Available | Filter Ass’y | 73494 | Not Available |
| 4 | Not Available | Cyclone Cover Ass’y | 74069 | Not Available |
| 5 | No Image | HOUSING, UPPER W/DIRT CUP LID 5902 Part Number: 74068 for Eureka | 74068 | $23.32Read more |
| 6 | Not Available | Dust Cup Lid | 73500 | Not Available |
| 7 | Not Available | Dust Cup | 74072 | Not Available |
| 8 | Not Available | Air Tube E-72170-119N* Wheel Carriage | 74067 | Not Available |
| 9 | Not Available | Socket & Terminal Ass’y E-71478* Front Axle | 70701-2 | Not Available |
| 10 | Not Available | Motor Gasket E-72511* Front Wheel | 74026-119N | Not Available |
| 11 | Not Available | Motor Ass’y E-38590A* Rear Axle | 62075-2 | Not Available |
| 12 | Not Available | Cable Tie E-73432* Axle Bushing | 46713-3 | Not Available |
| 13 | Not Available | Motor Bushing E-54943* Spring | 74112-119N | Not Available |
| 14 | Not Available | Motor Hub Gasket E-72512-1* Rear Wheel | 74664-1 | Not Available |
| 15 | No Image | CLIP, THERMOSTAT 2903AE Part Number: 72443 for Eureka | 72443 | $4.55Read more |
| 16 | Not Available | Screw Package E-74776-119N* Handle Release | 61803-3 | Not Available |
| 17 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Thermostat & Terminal Ass’y E-73153* Base Felt | 73992-1 | Not Available |
| 19 | Not Available | Headlamp Lens E-72397-119N* Height Adj. Knob | 74025-313N | Not Available |
| 20 | Not Available | Headlight Bulb | 57940-3 | Not Available |
| 21 | Not Available | Motor Cover Ass’y | 74354-1 | Not Available |
| 22 | Not Available | Handle Ass’y Complete | 74074-1 | Not Available |
| 23 | Not Available | Switch Cover Ass’y (Incl. Items 24-26) | 74359-1 | Not Available |
| 24 | Not Available | Rocker Switch | 27871-1 | Not Available |
| 25 | Not Available | Speed Control Knob | 72400-344M | Not Available |
| 26 | Not Available | Upper Cord & Potentiometer | 73116 | Not Available |
| 27 | Not Available | Upper Cord Hook | 39977-119N | Not Available |
| 28 | No Image | COVER, CORD EXIT Part Number: 74111 for Eureka | 74111 | $13.74Read more |
| 29 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Rectifier & Lead Ass’y | 73134A | Not Available |
| 31 | Not Available | Cable Tie | 46713-3 | Not Available |
| 32 |  | Tool Pack, Lower 5800 Series Part Number: 71455119N for Eureka | 71455119N | $10.82Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Screw | 53238-27 | Not Available |
| 34 |  | COVER, FILTER 5892AVZ, 5902AVZ Part Number: 74363-1 for Eureka | 743631 | $11.89Read more |
| 35 | Not Available | Power Cord | 39584-8 | Not Available |
| 36 | Not Available | HEPA Filter Style HF5 | 61830 | Not Available |
| 36 | Not Available | HEPA Filter Style HF5 | ER-1833 | Not Available |
| 37 | Not Available | Rear Housing Ass’y | 74066 | Not Available |
| 38 | Not Available | Lower Jumper Cord | 73215 | Not Available |
| 39 | Not Available | Base Hose Ass’y | 72882 | Not Available |
| 40 | Not Available | Suction Cover | 72733-119N | Not Available |
| 41 | Not Available | Suction Cover Gasket | 72829A | Not Available |
| 42 | No Image | TERMINAL, W/WIRE Part Number: 39490-6 for Eureka | 394906 | $4.62Read more |
| 43 | Not Available | Circuit Protector Bracket | 72514 | Not Available |
| 44 | Not Available | Circuit Protector | 72401 | Not Available |
| 45 |  | ***USE E-59397-8 SWITCH, MICRO W/BRACKET 5892 Part Number: 59397-2 for Eureka | 593972 | $9.72Read more |
| 46 | Not Available | Motor Clamp | 74080 | Not Available |
| 47 | Not Available | Base Ass’y (Incl. * Items Below) | 62375-1 | Not Available |
| 48 | Not Available | Screw | 54669-6 | Not Available |
| 49 | No Image | TERMINAL, W/WIRE 5892 Part Number: 39490-7 for Eureka | 394907 | $7.77Read more |
| 50 | Not Available | Brushroll Ass’y | 62365-1 | Not Available |
| 51 | No Image | Right Plate, Side Skirt, TW050-W28-U | 39969 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | Not Available | Cooling Tube | 72827 | Not Available |
| 53 | Not Available | Motor & Pulley Ass’y | 62373-1 | Not Available |
| 54 | No Image | COVER, BRUSHROLL MOTOR 5892 Part Number: 73151 for Eureka | 73151 | $7.14Read more |
| 55 | Not Available | Screw | 53238-27 | Not Available |
| 56 | Not Available | Hood Ass’y | 62374-1 | Not Available |
| 57 | Not Available | Hose Ass’y | 61865-6 | Not Available |
| 58 |  | Adapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka | 71725313N | $8.59Add to cart Special order: ships in 2 to 4 weeks |
| 59 | No Image | Solenoid,Extractor,1/8 Orifice | 71492A | $971.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | Not Available | Wand - Crevice | 71956A-355N | Not Available |
| 61 | Not Available | Wand - Outer | 71973-119N | Not Available |
| 62 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $10.82Add to cart Special order: ships in 2 to 4 weeks |
| 63 |  | Dust Brush-Eureka - 7606 Combo
Sc5845 For: eureka,sanitaire | 609902 | $11.94Add to cart Special order: ships in 2 to 4 weeks |
| 64 | Not Available | Turbo Nozzle Ass’y | 28612A-1 | Not Available |
| 65 | Not Available | Hardware Pk. | 72892 | Not Available |
| 66 | Not Available | Owner’s Manual | 74227 | Not Available |
| 67 | Not Available | Electrostatic Duster Ass’y | 72293-4 | Not Available |
| 68 | Not Available | Duster | 73530 | Not Available |
