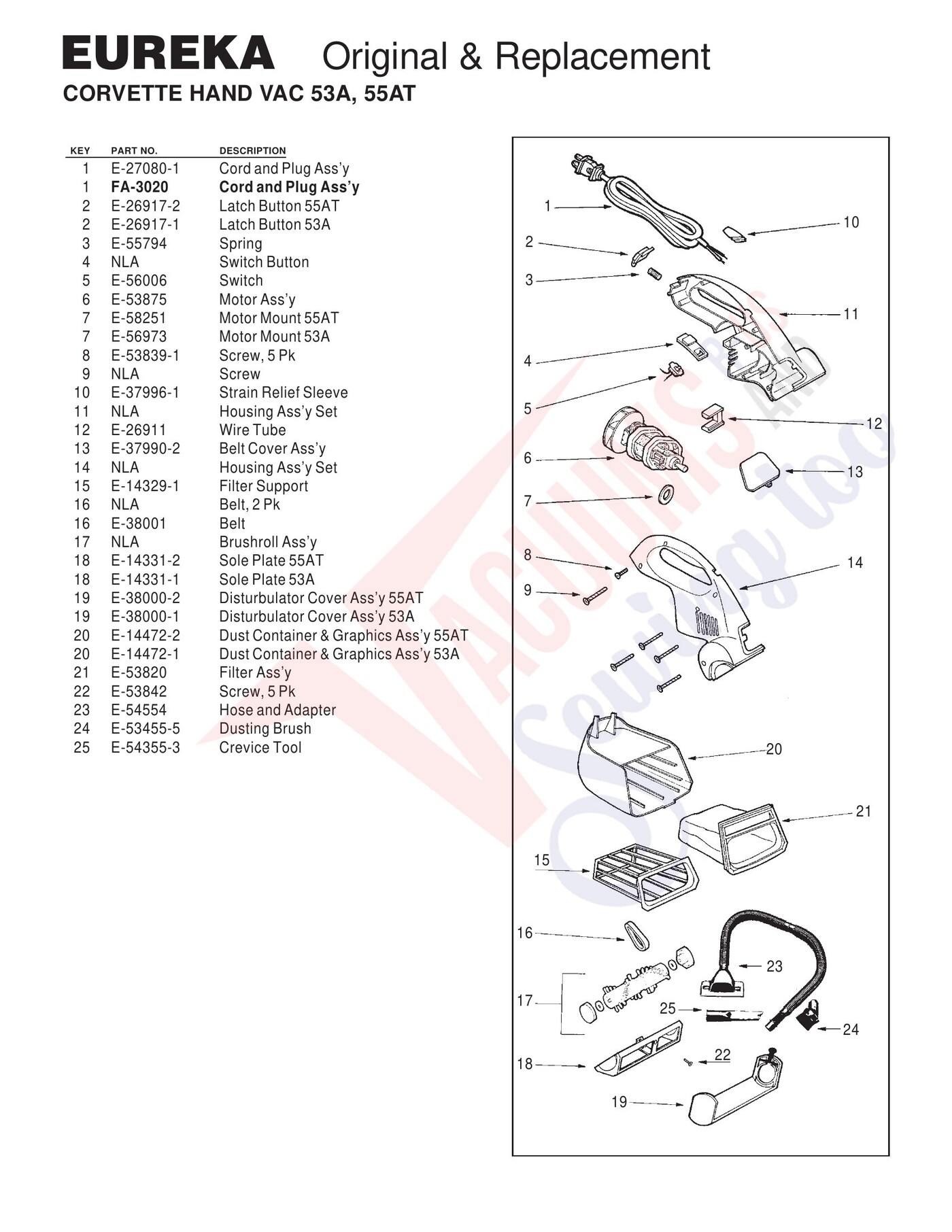

Schematic and parts book for Eureka 53A, 53at Corvette Hand Vac. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cord and Plug Ass’y | 27080-1 | Not Available |
| 1 | Not Available | Cord and Plug Ass’y | FA-3020 | Not Available |
| 2 | Not Available | Latch Button 55AT 1 | 26917-2 | Not Available |
| 2 | Not Available | Latch Button 53A 10 | 26917-1 | Not Available |
| 3 | Not Available | Spring 2 | 55794 | Not Available |
| 4 | Not Available | Switch Button | NLA | Not Available |
| 5 | Not Available | Switch 3 | 56006 | Not Available |
| 6 | Not Available | Motor Ass’y | 53875 | Not Available |
| 7 | Not Available | Motor Mount 55AT 11 | 58251 | Not Available |
| 7 | Not Available | Motor Mount 53A | 56973 | Not Available |
| 8 | Not Available | Screw 5 Pk | 53839-1 | Not Available |
| 9 | Not Available | Screw | NLA | Not Available |
| 10 | Not Available | Strain Relief Sleeve | 37996-1 | Not Available |
| 11 | Not Available | Housing Ass’y Set 5 | NLA | Not Available |
| 12 | Not Available | Wire Tube | 26911 | Not Available |
| 13 | Not Available | Belt Cover Ass’y | 37990-2 | Not Available |
| 14 | Not Available | Housing Ass’y Set 13 | NLA | Not Available |
| 15 | Not Available | Filter Support | 14329-1 | Not Available |
| 16 | Not Available | Belt 2 Pk 7 | NLA | Not Available |
| 16 | Not Available | Belt | 38001 | Not Available |
| 17 | Not Available | Brushroll Ass’y | NLA | Not Available |
| 18 | Not Available | Sole Plate 55AT 14 | 14331-2 | Not Available |
| 18 | No Image | BOTTOM PLATE, 53A HAND VAC Part Number: 14331-1 for Eureka | 143311 | $9.67Read more |
| 19 | Not Available | Disturbulator Cover Ass’y 55AT | 38000-2 | Not Available |
| 19 | Not Available | Disturbulator Cover Ass’y 53A | 38000-1 | Not Available |
| 20 | Not Available | Dust Container & Graphics Ass’y 55AT | 14472-2 | Not Available |
| 20 | No Image | DIRT CUP, HAND VAC 53A Part Number: 14472-1 for Eureka | 144721 | $20.44Read more |
| 21 | Not Available | Filter Ass’y | 53820 | Not Available |
| 22 | No Image | SCREW, BELT COVER PLATE 53A HAND VAC 5PK Part Number: 53842 for Eureka | 53842 | $2.65Read more |
| 23 | Not Available | Hose and Adapter | 54554 | Not Available |
| 24 | Not Available | Dusting Brush | 53455-5 | Not Available |
| 25 | Not Available | Crevice Tool 20 | 54355-3 | Not Available |
