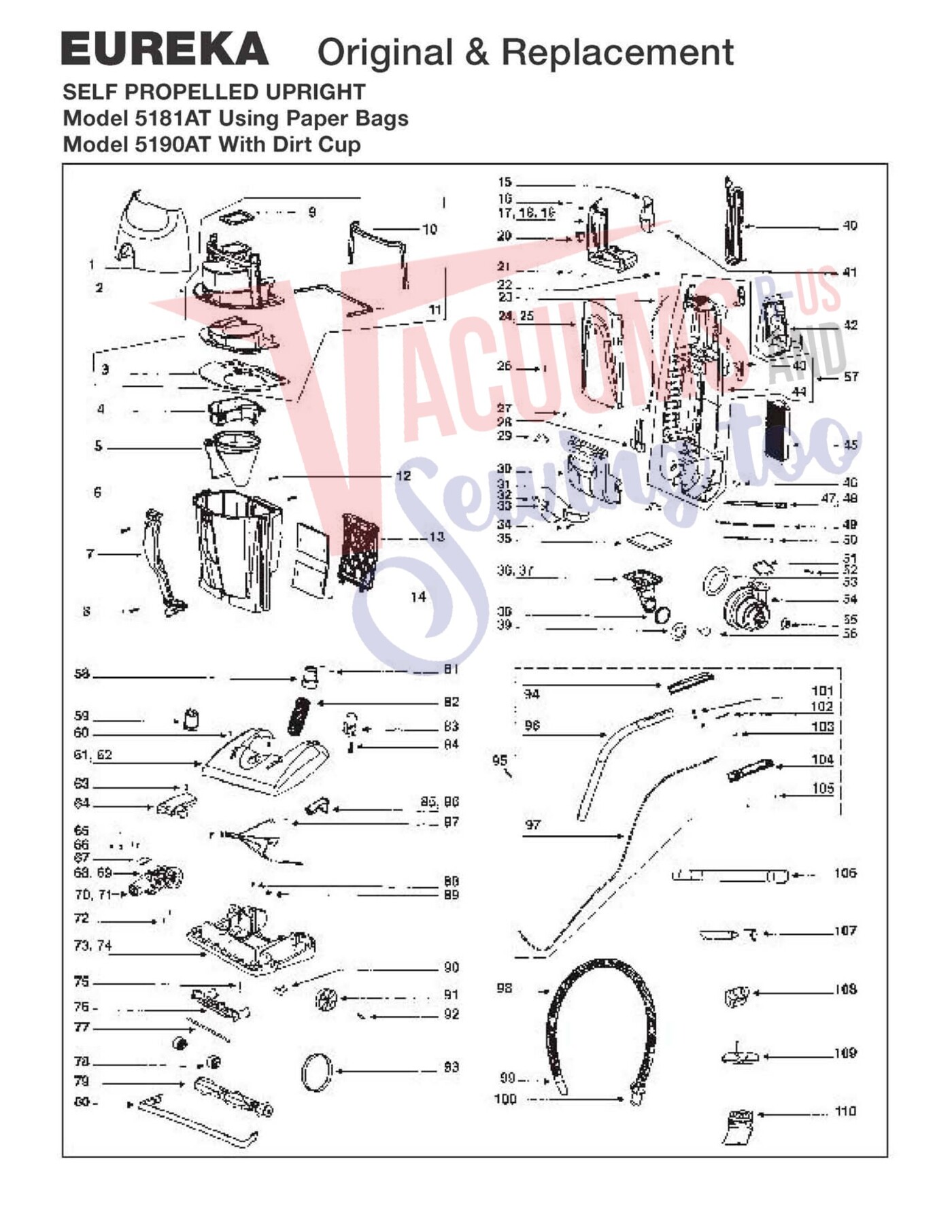

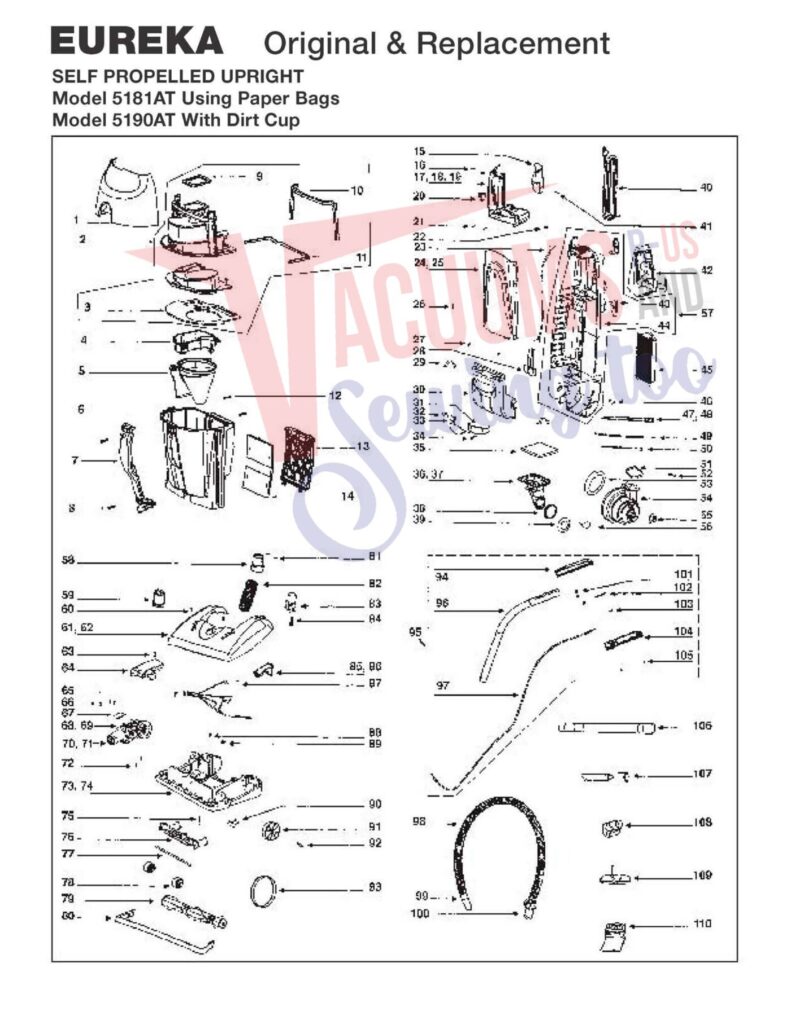

Schematic and parts book for Eureka 5181AT, 5190at . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Screw | 53238-4 | Not Available |
| XX | Not Available | Exhaust Filter Frame Only | 54777 | Not Available |
| 1 | Not Available | Cyclone Cover 5190AT | 60981-2 | Not Available |
| 2 | Not Available | Cyclone Assembly 5190AT | 60975-1 | Not Available |
| 3 | No Image | Hose Hanger Bracket | 39305 | $0.00Read more |
| 4 | Not Available | Filter Screen 5190AT | 28099B-333N | Not Available |
| 5 | Not Available | Cyclone Funnel 5190AT | 02311A-333N1 | Not Available |
| 6 | Not Available | Dirt Cup 5190AT | 60706-1 | Not Available |
| 7 | Not Available | Dirt Cup Grip 5190AT | 28131-288N | Not Available |
| 8 | Not Available | Screw 5190AT | 53197-1 | Not Available |
| 9 | No Image | Hose Hanger Bracket | 39305 | $0.00Read more |
| 10 | Not Available | Gasket 5190AT | 59595-2 | Not Available |
| 12 | Not Available | Screw 5190AT | 53197-1 | Not Available |
| 13 | Not Available | Filter Frame 5190AT | 28114-119N | Not Available |
| 14 | Not Available | Micron Cassette Filter 5190AT | 28115 | Not Available |
| 14 | Not Available | Micron cassette Filter - single 5190AT | ER-1820 | Not Available |
| 15 | Not Available | Wire Shield | 39033-119N | Not Available |
| 16 | Not Available | Screw | 53197-1 | Not Available |
| 17 | Not Available | Front Cover Assembly 5181 AT | 60974-3 | Not Available |
| 17 | Not Available | Front Cover Assembly 5190AT | 60974-1 | Not Available |
| 18 | No Image | GASKET, BAG DOOR 5180 Part Number: 59542-1 for Eureka | 595421 | $1.12Read more |
| 19 | Not Available | Name Plate | 39035 | Not Available |
| 20 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $8.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Screw | 53197-1 | Not Available |
| 22 | Not Available | Wire Nut | SS-3270 | Not Available |
| 23 | Not Available | Upper Wiring Harness | 28011 | Not Available |
| 24 | Not Available | Bag Cover Assembly 5181 AT | 60680-5 | Not Available |
| 25 | Not Available | Bag Cover Gasket 5181 AT | 59331SV | Not Available |
| 26 | Not Available | Screw | 53238-1 | Not Available |
| 27 | Not Available | Screw | 53197-1 | Not Available |
| 28 | Not Available | Air Duct Grill | 28425 | Not Available |
| 29 | Not Available | Clamp | 38420-2 | Not Available |
| 30 | No Image | COVER, MOTOR Part Number: 60788-7 for Eureka | 607887 | $26.93Read more |
| 30 | No Image | MOTOR COVER, 5190 Part Number: 54937-22 for Eureka | 5493722 | $14.64Read more |
| 31 | Not Available | Lens | 15072-313N | Not Available |
| 32 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 33 | Not Available | Headlight Socket | 38686-1 | Not Available |
| 34 | Not Available | Screw | 60068-2 | Not Available |
| 35 | No Image | BOTTOM HOUSING WALL MOUNT TASKFORCE | 39292 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | secondary Filter | ER-1810 | Not Available |
| 36 | Not Available | Air Duct | 15563A-119N | Not Available |
| 37 | Not Available | Air Duct Gasket | 59297SV | Not Available |
| 38 |  | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $3.17Read more |
| 39 | Not Available | Motor Intake Flange | 39023 | Not Available |
| 40 | Not Available | Cord | 38680-11 | Not Available |
| 41 | Not Available | Screw | 53197-1 | Not Available |
| 42 | No Image | TOOL CADDY, 5195 Part Number: 02283-119N for Eureka | 02283119N | $12.49Read more |
| 43 | Not Available | Cord Hook | 28013-119N | Not Available |
| 44 | Not Available | Screw | 53238-1 | Not Available |
| 45 | Not Available | H EPA Exhaust Filter Style HF3 2PK | 61500 | Not Available |
| 45 | Not Available | Micron Exhaust Filter 2 PK | 60801 | Not Available |
| 46 | Not Available | Wire Nut | SS-3270 | Not Available |
| 47 | Not Available | Thermo Cutoff | 59213 | Not Available |
| 48 | Not Available | Push-On Nut | 60613 | Not Available |
| 49 | Not Available | Lead Wire With Terminal Black | 59408-1 | Not Available |
| 50 | Not Available | Lead Wire With Terminal White | 59408-2 | Not Available |
| 51 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 52 | Not Available | Grommet | 27552B | Not Available |
| 53 | Not Available | Motor Support Gasket | 59319 | Not Available |
| 54 | Not Available | Motor & Shroud Assembly | NLA | Not Available |
| 55 | Not Available | Motor Grommet | 27552B | Not Available |
| 56 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 57 | Not Available | Rear Housing Assembly | 02282B-119N | Not Available |
| 58 | Not Available | Hose Cuff | 27468C-119N | Not Available |
| 59 |  | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.82Read more |
| 60 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | Not Available | Hood Assembly 5181AT | 60700-8 | Not Available |
| 61 | Not Available | Hood Assembly 5190AT | 60700-5 | Not Available |
| 62 | Not Available | Hood Gasket | 58586 | Not Available |
| 63 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | COVER, DRIVE 5197B Part Number: 39047-119N for Eureka | 39047119N | $2.97Read more |
| 65 | Not Available | Rectifier & Switch Assembly | 28102-1 | Not Available |
| 66 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | Yoke Seal | 39034 | Not Available |
| 68 | Not Available | Transmission Assembly | 60757B | Not Available |
| 69 | Not Available | Transmission Retaining Ring | 60756-1 | Not Available |
| 70 | Not Available | Drive Motor | 60758 | Not Available |
| 71 | Not Available | Motor Spacing Shield | 59587 | Not Available |
| 72 | Not Available | Screw | 53238-4 | Not Available |
| 73 | Not Available | Base Assembly 5181 AT | 60760-2 | Not Available |
| 73 | Not Available | Base Assembly 5190AT | 60760-3 | Not Available |
| 74 | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $3.11Read more |
| 75 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 | Not Available | 1 Front Wheel Carriage | 14993B-119N | Not Available |
| 77 | Not Available | Front Axle | 58206-1 | Not Available |
| 78 | Not Available | Front Wheel | 39173-119N | Not Available |
| 79 | Not Available | Brushroll | 54647 | Not Available |
| 80 | Not Available | Bumper | 15591-288N | Not Available |
| 81 | Not Available | Screw | 53197-1 | Not Available |
| 82 | Not Available | Nozzle Hose | 38479-2 | Not Available |
| 83 | Not Available | Handle Release Lever | 27467A-288N | Not Available |
| 84 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 85 | Not Available | Belt Cap With Gasket | 54376-2 | Not Available |
| 86 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 87 | Not Available | Screw | 53197-1 | Not Available |
| 88 | Not Available | Screw | 60761-1 | Not Available |
| 90 | | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 91 | Not Available | Rear Wheel | 27794-119N | Not Available |
| 92 | Not Available | Rear Axle | 58814 | Not Available |
| 93 |  | Motor 120 Volt Part Number 39266 for Simplicity Models BRIO | 39266 | $92.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | No Image | UPPER HANDLE & GRIP ASS'Y, 5160AT Part Number: 39101-2 for Eureka | 391012 | $9.96Read more |
| 95 | Not Available | Handle Assembly Complete | 15616-2 | Not Available |
| 96 | Not Available | Handle Tube Only - Upper | 15614-1 | Not Available |
| 97 | | Base Assembly w/Screws Part Number 39272 for Simplicity Models BRIO | 39272 | $18.69Read more |
| 98 | Not Available | Stretch Hose Assembly | 54646A-3 | Not Available |
| 99 | Not Available | Attachment End Coupling | 37057A-3 | Not Available |
| 100 | Not Available | Machine End Coupling | 28051A-119N1 | Not Available |
| 101 | Not Available | Neutral Lock | 36890-1 | Not Available |
| 102 |  | Handle, Black Complete Assembly FB-HD1T/ FB-MMPW Part Number: 53.175 for Fuller Brush | 53175 | $17.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 103 |  | Hdl Spg Spcr-Eureka Pwr Drive Models For: eureka,sanitaire | 53171 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 104 | Not Available | Handle Grip - Lower | 13337A-10 | Not Available |
| 105 | Not Available | Screw | 53238-4 | Not Available |
| 106 | Not Available | Nesting Wand Set | 58728B | Not Available |
| 107 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 108 | Not Available | Dust Brush | 54505-3 | Not Available |
| 109 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $8.79Read more |
| 110 |  | Eureka Victory AA Vacuum Cleaner Bags, DVC Replacement Brand, designed to fit Eureka Victory Upri... | 748167000159 | $9.89Add to cart |
| 110 | Not Available | Paper Bag Style "'AA" | ER-1471 | Not Available |
