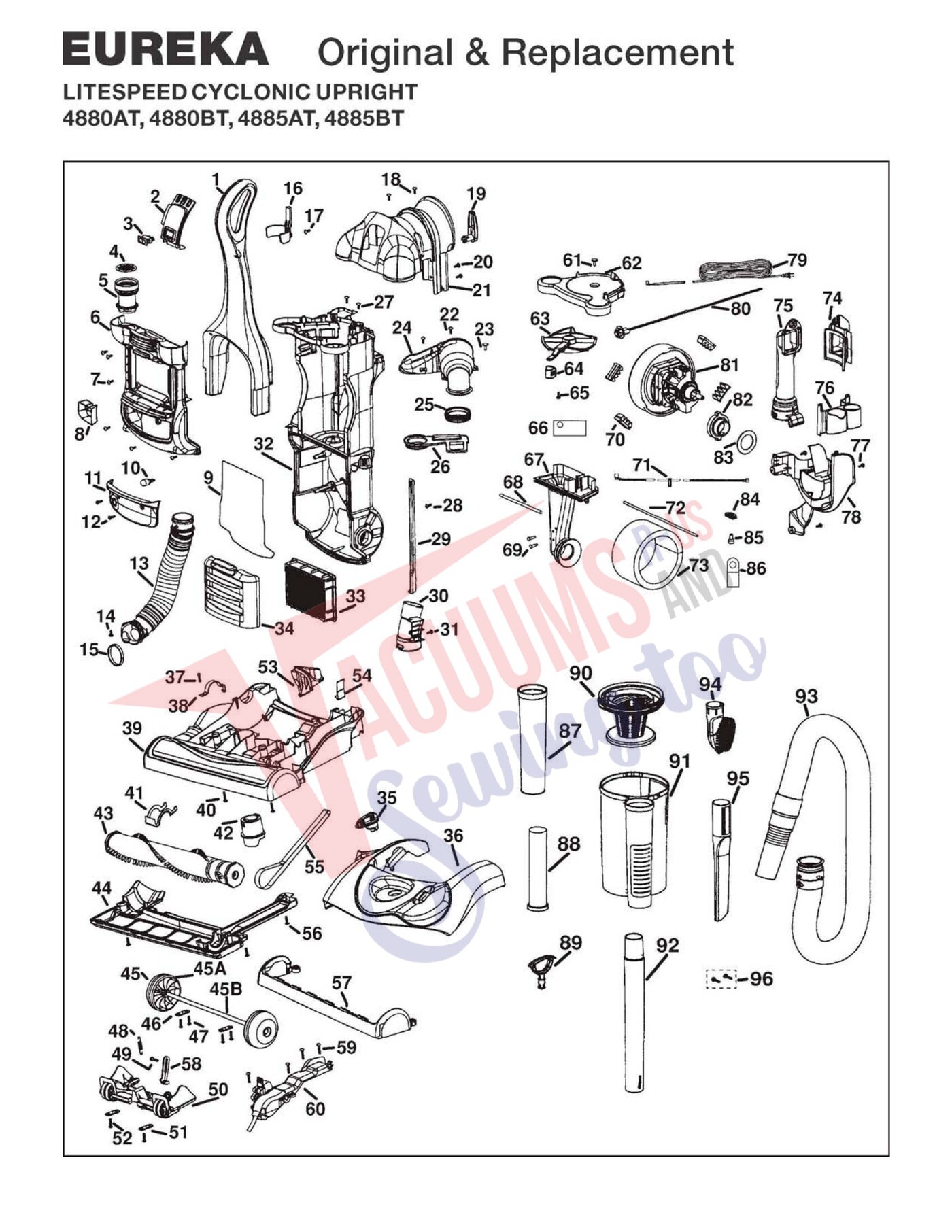

Schematic and parts book for Eureka 4880at, 4880bt, 4885at, 4885bt Litespeed cyclonic upright. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assembly | 70540-1 | Not Available |
| 2 | Not Available | Electronics Cover | 70561-313N | Not Available |
| 3 | Not Available | Switch 4880AT | 20873A | Not Available |
| 3 | Not Available | Switch 4880BT 4885BT | 39455-1 | Not Available |
| 3 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $8.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Motor Intake Screen E-70022-1 Front Axle | 71145 | Not Available |
| 5 | Not Available | Filter Tube Seal | 70612 | Not Available |
| 6 | Not Available | Motor Cover | 61773-1 | Not Available |
| 7 | Not Available | Screw | 53238-27 | Not Available |
| 8 | Not Available | Light Shield | 71339 | Not Available |
| 9 | Not Available | Bag Housing Gasket | 70055-1 | Not Available |
| 10 | Not Available | Light Bulb | 57940-2 | Not Available |
| 11 | Not Available | Lens | 70552-313N | Not Available |
| 12 | Not Available | Screw | 54669-3 | Not Available |
| 13 | Not Available | Connector Hose & Adaptor | 70588-1 | Not Available |
| 14 | Not Available | Screw | 53238-27 | Not Available |
| 15 | Not Available | Base Adaptor Seal | 70654 | Not Available |
| 16 | Not Available | Filter Tube Retainer | 70618-119N | Not Available |
| 17 | Not Available | Screw | 53238-27 | Not Available |
| 18 | Not Available | Screw | 60160 | Not Available |
| 19 | Not Available | Cord Release | 28013-119N | Not Available |
| 20 | Not Available | Screw | 53238-27 | Not Available |
| 21 | No Image | COVER, TOP 4880AT Part Number: 70543-355N for Eureka | 70543355N | $11.43Read more |
| 22 | Not Available | Screw | 53238-27 | Not Available |
| 23 | Not Available | Screw | 60160 | Not Available |
| 24 | Not Available | Cyclone Assembly | 70577 | Not Available |
| 25 | Not Available | Dirt Cup Gasket | 70770-119N | Not Available |
| 26 | Not Available | Cyclone Assembly Gasket | 70617-119N | Not Available |
| 27 | Not Available | Screw | 53238-7 | Not Available |
| 28 | Not Available | Screw | 53238-27 | Not Available |
| 29 | Not Available | Tube Cover | 70576-119N | Not Available |
| 30 | No Image | COUPLING, ADAPTOR LOWER HOSE 4880 Part Number: 70546-119N for Eureka | 70546119N | $2.45Read more |
| 31 | Not Available | Screw | 53238-27 | Not Available |
| 32 | Not Available | Rear Housing | 70550-119N | Not Available |
| 33 | Not Available | HEPA Filter Style HF2 | 61111 | Not Available |
| 33 | Not Available | HEPA Filter Style HF2 | ER-1832 | Not Available |
| 34 | Not Available | Filter Cover | 70557-3 | Not Available |
| 35 | Not Available | Height Adjustment Knob | 70031-333N | Not Available |
| 36 | Not Available | Hood | 61252-4 | Not Available |
| 37 | Not Available | Screw | 53238-27 | Not Available |
| 38 | Not Available | Clamp | 38420-2 | Not Available |
| 39 | Not Available | Base Assembly | 61253-4 | Not Available |
| 40 | Not Available | Screw | 53238-27 | Not Available |
| 41 |  | Mounting Ring, Motor EX-20 Part Number: 70039 for Compact | 70039 | $25.14Read more |
| 42 | Not Available | Height Adjustment Actuator | 70030-119N | Not Available |
| 43 | Not Available | Brushroll | 61250-1 | Not Available |
| 44 | Not Available | Bottom Plate | 70024ASV | Not Available |
| 45 | Not Available | Rear Wheel & Axle Assembly | 70026SV | Not Available |
| 45B | Not Available | Rear Axle | 70029-1 | Not Available |
| 46 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 47 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | Not Available | Screw | 60860 | Not Available |
| 50 | Not Available | Front Wheel Carriage Assembly | 70034-119N | Not Available |
| 51 | | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 52 | Not Available | Screw | 53238-27 | Not Available |
| 53 | Not Available | Handle Release | 70042-333N | Not Available |
| 54 | Not Available | Spring | 70043 | Not Available |
| 55 | Not Available | Belt Style R Kevlar | 61110 | Not Available |
| 56 | Not Available | Screw | 53238-8 | Not Available |
| 57 | Not Available | Furniture Guard | 70041-288N | Not Available |
| 58 |  | ARM, HEIGHT ADJUSTMENT 4870AT Part Number: 70199-119N for Eureka | 70199119N | $3.11Read more |
| 59 | Not Available | Screw | 53238-27 | Not Available |
| 60 | Not Available | Belt Tensioner | 70194CSV | Not Available |
| 61 | Not Available | Screw | 60160 | Not Available |
| 62 | Not Available | Platform Assembly | 71413-1 | Not Available |
| 63 | Not Available | Elevator Cam | 70573-119N | Not Available |
| 64 | Not Available | Elevator Knob | 70615-333N | Not Available |
| 65 | Not Available | Screw | 53238-4 | Not Available |
| 66 | Not Available | Cord Shield | 71720 | Not Available |
| 67 | Not Available | Air Duct Assembly | 70608-1SV | Not Available |
| 68 | Not Available | Gasket | 70055-3 | Not Available |
| 69 | Not Available | Plug | 71384 | Not Available |
| 70 | Not Available | Motor Support Gasket | 70085 | Not Available |
| 71 | Not Available | Wiring Harness | 70609 | Not Available |
| 72 | Not Available | Flexible Tube | 70651 | Not Available |
| 73 | Not Available | Sound Foam | 70652 | Not Available |
| 74 | Not Available | Dirt Sensor Housing Assembly | 70843-2 | Not Available |
| 75 | Not Available | Dirt Tube Assembly | 70622-1 | Not Available |
| 76 | Not Available | Wand & Crevice Tool Retainer | 70547-119N | Not Available |
| 77 | Not Available | Screw | 53238-27 | Not Available |
| 78 | Not Available | Tool Caddy | 70563-119N | Not Available |
| 79 | No Image | CORD, SMART VAC 4872 Part Number: 38680-27 for Eureka | 3868027 | $30.61Read more |
| 80 | Not Available | Socket Assembly | 71331-2 | Not Available |
| 81 | Not Available | Motor | 61256-1 | Not Available |
| 82 | Not Available | Motor Bushing | 70084 | Not Available |
| 83 | Not Available | Motor Hub Seal | 70665 | Not Available |
| 84 | Not Available | Grommet | 70621-288N | Not Available |
| 85 | Not Available | Wire Nut | SS-3270 | Not Available |
| 86 | Not Available | Cable Clamp | 57687-1 | Not Available |
| 87 |  | TUBE, PRE-MOTOR FILTER 4885 Part Number: 71681 for Eureka | 71681 | $44.00Read more |
| 88 | Not Available | Pre-Filter | 71643 | Not Available |
| 89 | Not Available | Filter Screen Handle | 70611-119N | Not Available |
| 90 |  | FILTER, SCREEN DIRT CUP LIGHTSPEED UPRT 4880 SER. Part Number: 71548 for Eureka | 71548 | $77.00Read more |
| 91 |  | Dirt Cup, Assembly Cyclonic Upright 4885 Part Number: 61498-1 for Eureka | 614981 | $24.60Read more |
| 92 | Not Available | Nesting Wand Assembly | 39186 | Not Available |
| 93 | Not Available | Hose Assembly | 61499-1 | Not Available |
| 94 |  | Dust Brush-Eureka - 7606 Combo
Sc5845 For: eureka,sanitaire | 609902 | $11.94Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 95 | Not Available | Crevice Tool | 28251-119N | Not Available |
| 96 | Not Available | Hardware Package | 71031 | Not Available |
