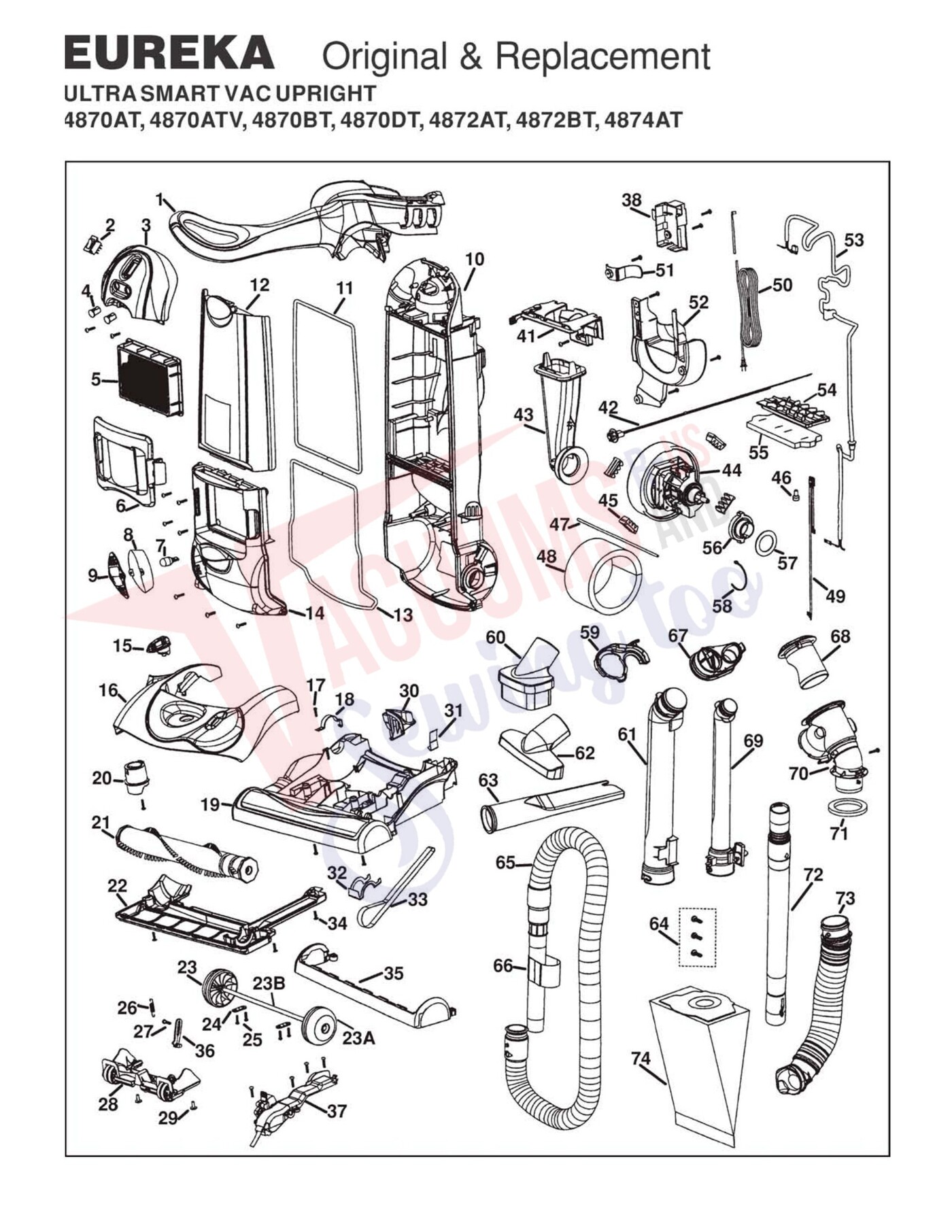

Schematic and parts book for Eureka 4870at, 4870atv, 4870dt, 4872at, 4872bt, 4874at Ultra smart vac upright. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX |  | HOOK, UPPER CORD 4870 UPRIGHT Part Number: 70493-119N for Eureka | 70493119N | $4.71Read more |
| XX | Not Available | Light Bulb 46 SS-3270 Wire Nut | HR-3500 | Not Available |
| XX | Not Available | Latch | 70096-333N | Not Available |
| XX | Not Available | Latch Spring 53 N/A Wiring Harness | 70097 | Not Available |
| XX | Not Available | Front Axle | 70022-1 | Not Available |
| 1 | Not Available | Upper Handle Assembly | 70023-1 | Not Available |
| 2 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $8.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Control Panel Assembly | 61254-1 | Not Available |
| 4 | Not Available | Order (E-61254-1) | N/A | Not Available |
| 5 | Not Available | HEPA Filter Style HF2 | 61111 | Not Available |
| 6 | Not Available | Filter Cover | 61255-1 | Not Available |
| 7 | Not Available | Light Bulb | 57940-2 | Not Available |
| 8 | Not Available | Light Shield | 70664 | Not Available |
| 9 | Not Available | Lens (Order E-70086-355N) | N/A | Not Available |
| 10 | Not Available | Rear Housing | 70049-119N | Not Available |
| 11 | Not Available | Bag Housing Gasket | 70055 | Not Available |
| 12 | Not Available | Bag Cover Assembly | 61259-1 | Not Available |
| 13 |  | Tristar Geared motor for power head genuine OEM ametek for models 2-51 & 2-101.2-51, 2-54, 2-... | 70081 | Original price was: $82.50.$19.80Current price is: $19.80.Read more |
| 14 | Not Available | Motor Cover Assembly | 70086-355N | Not Available |
| 15 | Not Available | Height Adjustment Knob | 70031-333N | Not Available |
| 16 | Not Available | Hood | 61252-1 | Not Available |
| 17 | Not Available | Screw | 53238-27 | Not Available |
| 18 | Not Available | Clamp | 38420-2 | Not Available |
| 19 | Not Available | Base Assembly | 61253-1 | Not Available |
| 20 | Not Available | Height Adjustment Actuator | 70030-119N | Not Available |
| 21 | Not Available | Brushroll | 61250-1 | Not Available |
| 22 | Not Available | Bottom Plate | 70024ASV | Not Available |
| 23 | Not Available | Rear Wheel & Axle Assembly | 70026 | Not Available |
| 23A | Not Available | Rear Wheel | 70027-119N | Not Available |
| 23B | Not Available | Rear Axle | 70029-1 | Not Available |
| 24 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 25 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Screw | 59800 | Not Available |
| 28 | Not Available | Front Wheel Carriage Assembly | 70034-119N | Not Available |
| 29 | Not Available | Screw | 60160 | Not Available |
| 30 | Not Available | Handle Release | 70042-333N | Not Available |
| 31 | Not Available | Spring | 70043 | Not Available |
| 32 |  | Mounting Ring, Motor EX-20 Part Number: 70039 for Compact | 70039 | $25.14Read more |
| 33 | Not Available | Belt Style R | 61110 | Not Available |
| 34 | Not Available | Screw | 54669-3 | Not Available |
| 35 | Not Available | Furniture Guard | 70041-228N | Not Available |
| 36 |  | ARM, HEIGHT ADJUSTMENT 4870AT Part Number: 70199-119N for Eureka | 70199119N | $3.11Read more |
| 37 | Not Available | Idler Clamp Assembly | 70194CSV | Not Available |
| 38 | Not Available | Cord Exit | 70408-119N | Not Available |
| 41 | Not Available | Bag Retainer | 70591-1SV | Not Available |
| 42 | Not Available | Socket & Terminal Assembly | 70701 | Not Available |
| 43 | Not Available | Air Duct Assembly | N/A | Not Available |
| 44 | Not Available | Motor Assembly | 61256-1 | Not Available |
| 45 | Not Available | Motor Gasket | 70085 | Not Available |
| 46 | Not Available | Wire Nut | SS-3270 | Not Available |
| 47 | Not Available | Flexible Tube | 70651 | Not Available |
| 48 | Not Available | Sound Foam | 70652 | Not Available |
| 49 |  | THERMOSTAT, 4870 Part Number: 39252-1 for Eureka | 392521 | $7.74Read more |
| 50 | Not Available | Cord | 38680-12 | Not Available |
| 51 | Not Available | Retainer Clip | 70852-119N | Not Available |
| 52 | No Image | TOOL PACK, ULTRA SMART VAC 4870 SERIES Part Number: 70337-119N for Eureka | 70337119N | $7.77Read more |
| 53 | Not Available | Wiring Harness | N/A | Not Available |
| 54 | Not Available | Filter Frame | 70853-119N | Not Available |
| 55 | Not Available | Motor Filter | 70082 | Not Available |
| 56 | Not Available | Motor Bushing | 70084 | Not Available |
| 57 | Not Available | Hub Gasket | 70665 | Not Available |
| 58 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 59 | Not Available | Cam Lock | 70448-119N | Not Available |
| 60 | Not Available | Dust Brush | 54505-3 | Not Available |
| 61 | Not Available | Dirt Tube Large | 61257-1 | Not Available |
| 62 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $8.79Read more |
| 63 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 64 | Not Available | Hardware Package | 70790 | Not Available |
| 65 | Not Available | Hose Assembly | 61247-1 | Not Available |
| 66 | Not Available | Hose Sleeve | 70873 | Not Available |
| 67 | Not Available | Bushing Seal | 70053 | Not Available |
| 68 | Not Available | Ventricle Connector | N/A | Not Available |
| 69 | Not Available | Dirt Tube Small | N/A | Not Available |
| 70 | Not Available | Ventricle Assembly | 70655-1 | Not Available |
| 71 | Not Available | Ventricle Gasket | 70244 | Not Available |
| 72 | Not Available | Nesting Wand Assembly | 58728B | Not Available |
| 73 | Not Available | Connector Hose & Adaptor | 70588-1 | Not Available |
| 74 | Not Available | Paper Bag Style RR 3 Pk | 61115 | Not Available |
| 74 |  | 9pk Eureka Style RR Microlined Vacuum Bags 61115 Boss Smart Vac 4800 Bag | 655295085050 | $15.60Add to cart |
