Schematic and parts book for Eureka 4388AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

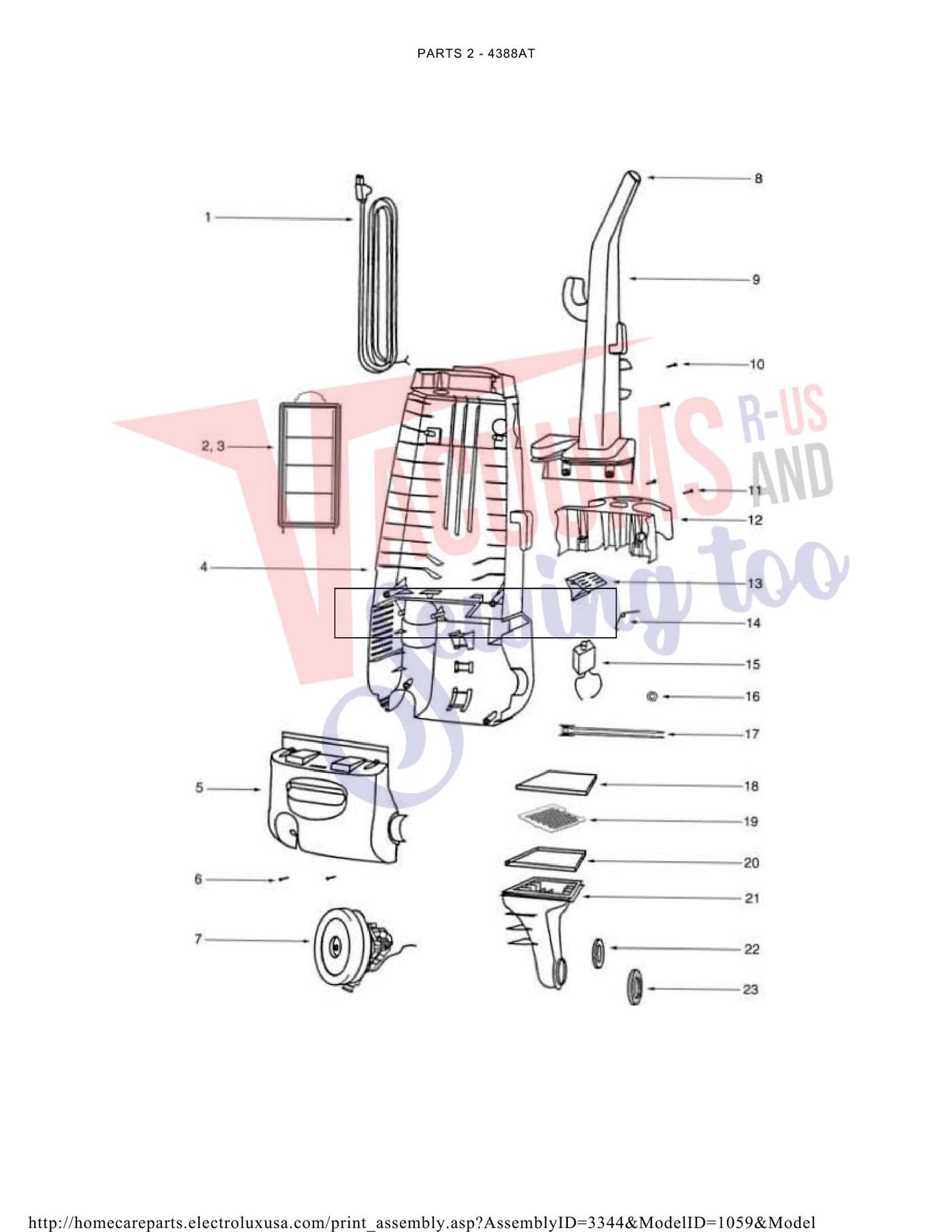

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-16 | Not Available |
| 2 | Not Available | FILTER FRAME & GRAPHICS A | 28456-6 | Not Available |
| 3 | Not Available | HEPA FILTER PKG - STYLE H | 61500 | Not Available |
| 4 | No Image | HOUSING, REAR 4640 Part Number: 71608A-119N for Eureka | 71608A119N | $25.45Read more |
| 5 | Not Available | MOTOR COVER ASSEMBLY - PK | 60788-21 | Not Available |
| 6 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 7 | Not Available | MOTOR ASSEMBLY - PACKAGED | 60261-11 | Not Available |
| 8 | Not Available | CAP - HANDLE | 38482A-119N | Not Available |
| 9 | Not Available | HANDLE & CAP ASSEMBLY | 71139-1 | Not Available |
| 10 | Not Available | SCREW PACKAGE | 54669-4 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53197-4 | Not Available |
| 12 | Not Available | TOOL CADDY | 15443B-119N | Not Available |
| 13 | Not Available | SWITCH - BUTTON | 27474C-288N | Not Available |
| 14 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 15 | Not Available | SWITCH - PUSHBUTTON | 28304A | Not Available |
| 16 | Not Available | RETAINING RING PKG | 60165-1 | Not Available |
| 17 | Not Available | THERMOSTAT & TERMINAL ASS | 39252-2 | Not Available |
| 18 | Not Available | MOTOR FILTER PACKAGE | 61333 | Not Available |
| 19 | Not Available | GRILLE - AIR DUCT | 28425 | Not Available |
| 20 | Not Available | GASKET - AIR DUCT | 59297SV | Not Available |
| 21 | Not Available | AIR DUCT | 15536A-119N | Not Available |
| 23 | Not Available | FLANGE - MOTOR INTAKE | 39023 | Not Available |
| # | Part image | Description | SKU | Price |

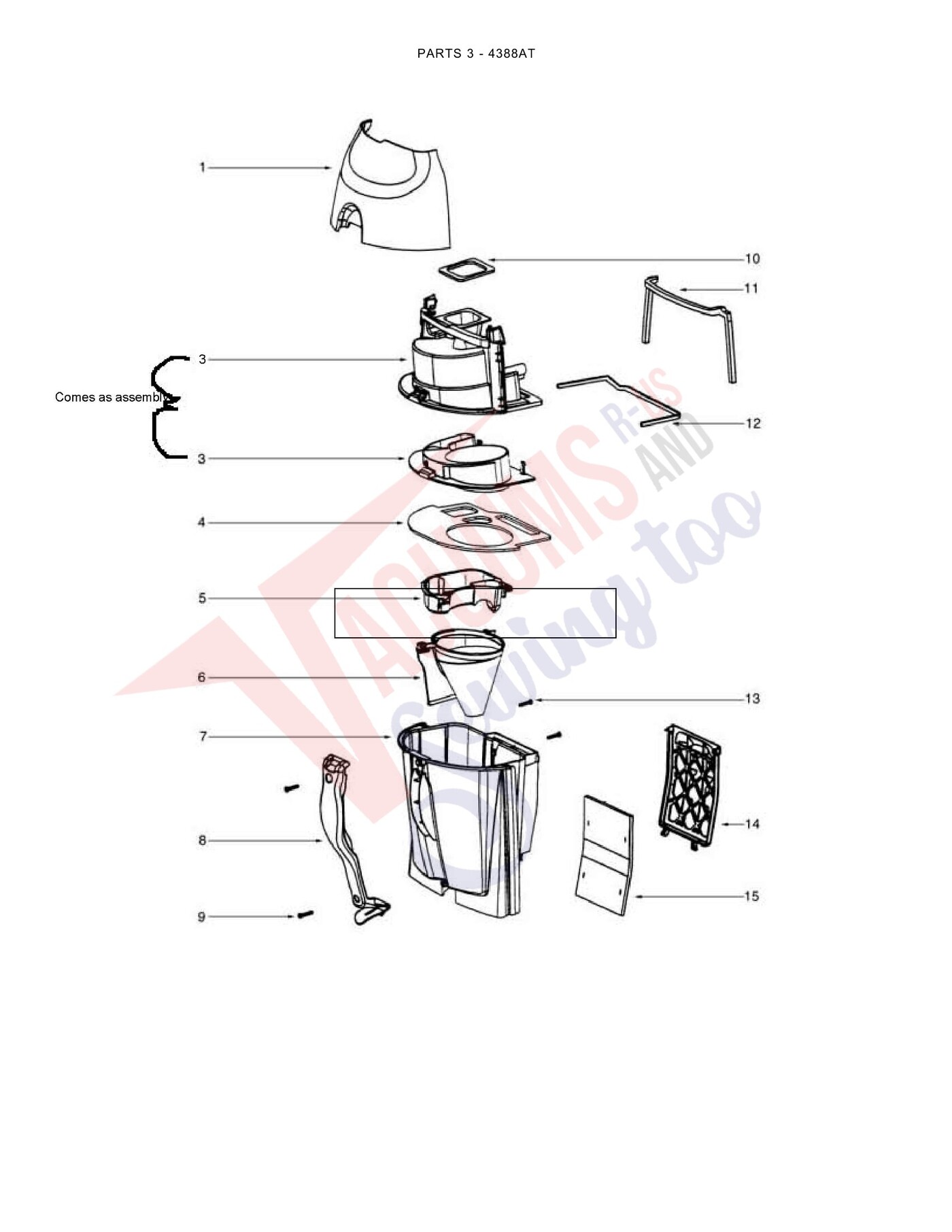

| 1 | Not Available | FRONT COVER ASSEMBLY - PK | 60704-38 | Not Available |
| 7 | Not Available | CYCLONIC CASSETTE ASSY | 60706-1 | Not Available |
| 7 | Not Available | GRIP - DIRT CUP | 28131-288N | Not Available |
| 8 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 12 | Not Available | GASKET - AIR DUCT | 59297-2SV | Not Available |
| 32 | Not Available | UPPER CYCLONE ASSY - PKGD | 60705-5 | Not Available |
| 43 | Not Available | CYCLONE GASKET SHEET | 39219B-1 | Not Available |
| 54 | Not Available | FILTER - SCREEN | 28099B-333N | Not Available |
| 110 | Not Available | FRAME - FILTER | 28114-119N | Not Available |
| 110 | Not Available | GASKET - CYCLONE | 59595-1 | Not Available |
| # | Part image | Description | SKU | Price |

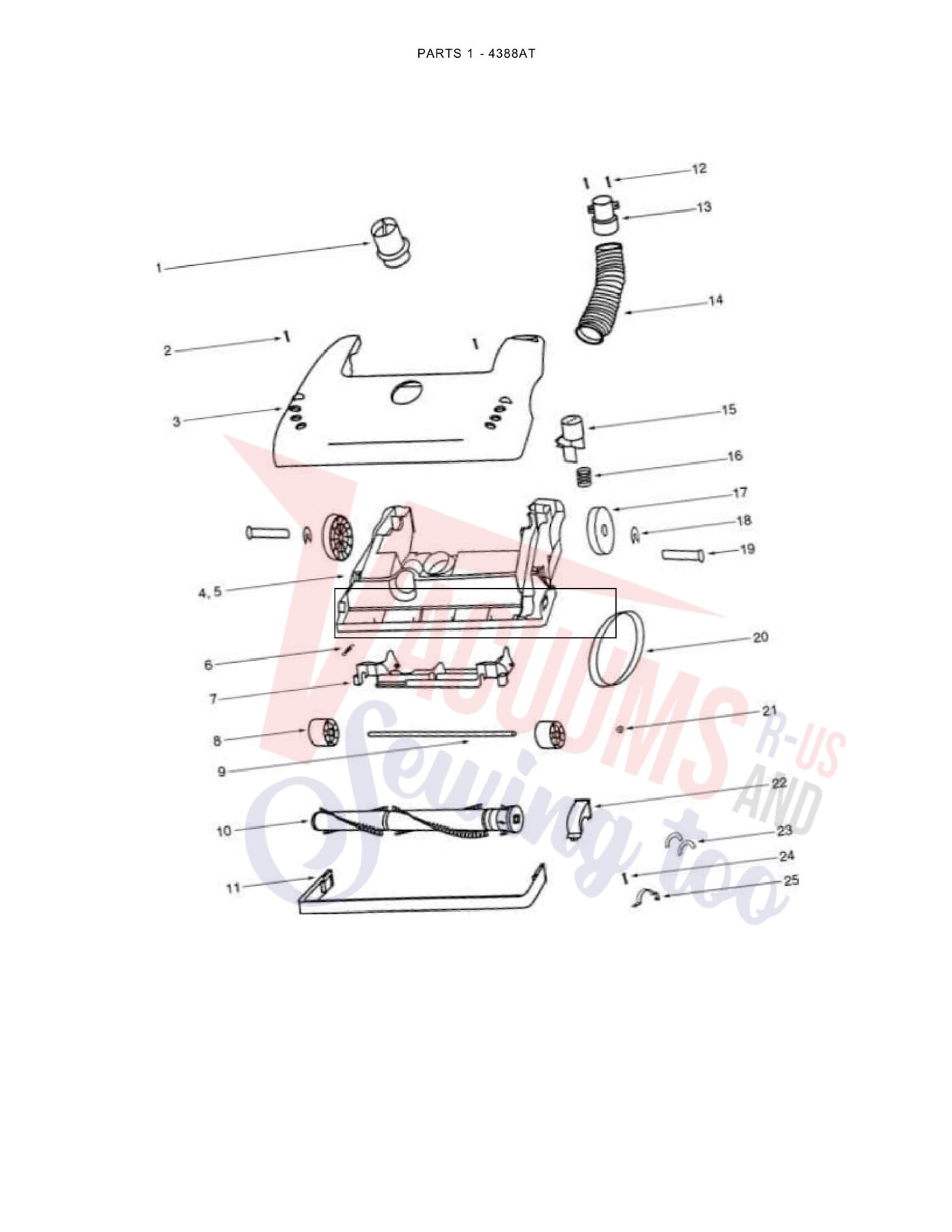

| 1 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $4.73Read more |
| 2 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 3 | Not Available | HOOD ASSEMBLY - PACKAGED | 54933-64 | Not Available |
| 4 | Not Available | BASE ASSEMBLY - CARTONED | 60843-10 | Not Available |
| 5 | Not Available | GASKET | 58506-1 | Not Available |
| 6 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | CARRIAGE - WHEEL | 14993C-119N | Not Available |
| 8 | Not Available | WHEEL - FRONT | 39173-119N | Not Available |
| 9 | Not Available | AXLE - WHEEL | 71551 | Not Available |
| 10 | Not Available | 12" DISTURBULATOR ASSY - | 60251-3 | Not Available |
| 11 | Not Available | GUARD - FURNITURE (12") | 15237A-288N | Not Available |
| 12 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 13 | Not Available | HOSE - COMPRESSION (PURCH | 38479-4 | Not Available |
| 14 | Not Available | RELEASE - HANDLE | 27467A-288N | Not Available |
| 15 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 16 | Not Available | WHEEL/BUSHING PACKAGE | 39260B-288N | Not Available |
| 17 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 18 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | BELT PKG ASSY-STYLE U EXT | 61120 | Not Available |
| 20 | Not Available | PUSH ON NUT PKG | 60613 | Not Available |
| 21 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 22 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 23 | Not Available | CLAMP | 38420-2 | Not Available |
| # | Part image | Description | SKU | Price |

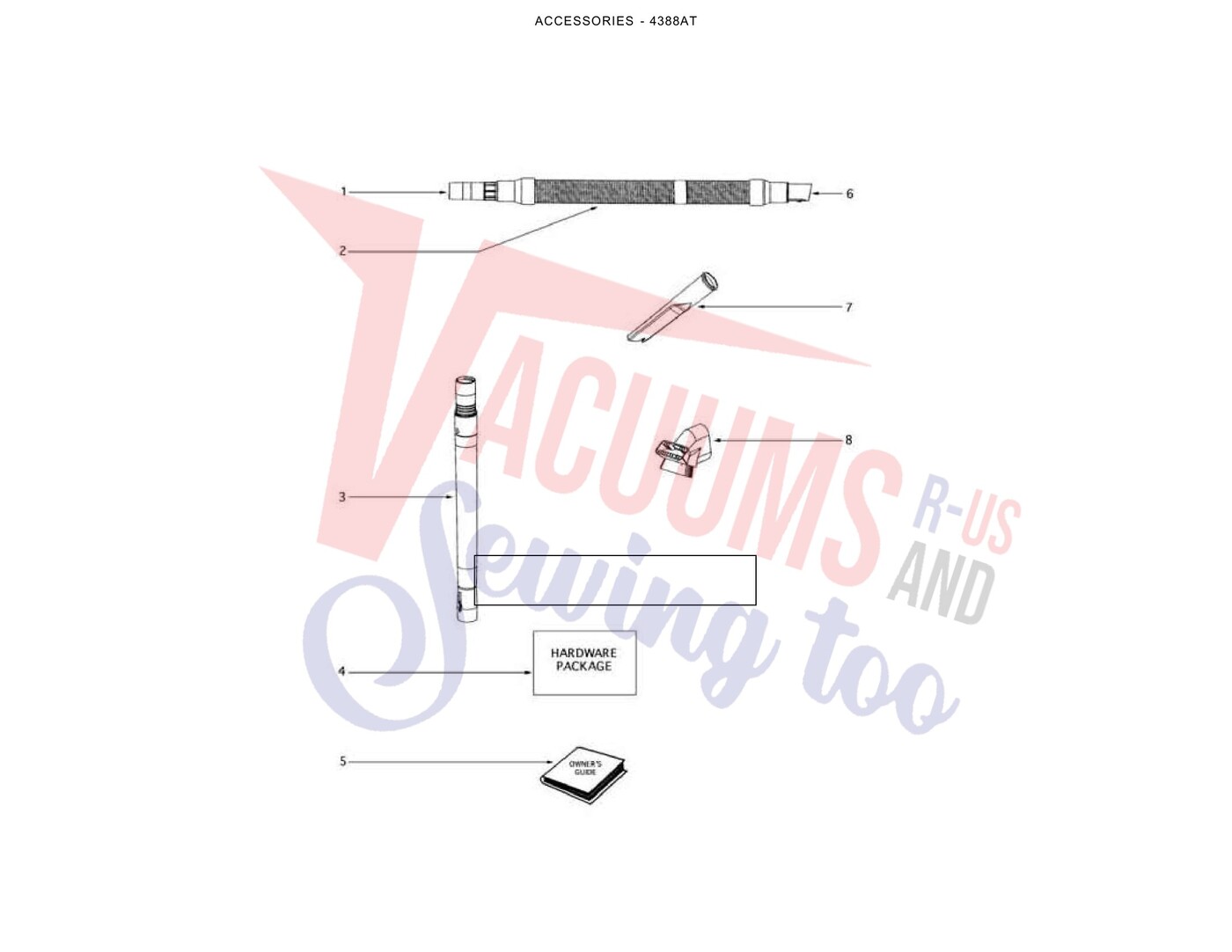

| 1 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 2 | Not Available | HOSE ASSEMBLY - CARTONED | 61028-1 | Not Available |
| 3 | Not Available | NESTING WAND ASSEMBLY | 58728B | Not Available |
| 4 | Not Available | SCREW PACKAGE | 58607 | Not Available |
| 5 | Not Available | OWNERS GUIDE | 70239B | Not Available |
| 6 | Not Available | B-119N ADAPTER - HOSE | 27461 | Not Available |
| 7 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 8 | Not Available | COMBINATION TOOL - PACKAG | 61037 | Not Available |
