Schematic and parts book for Eureka 4383AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

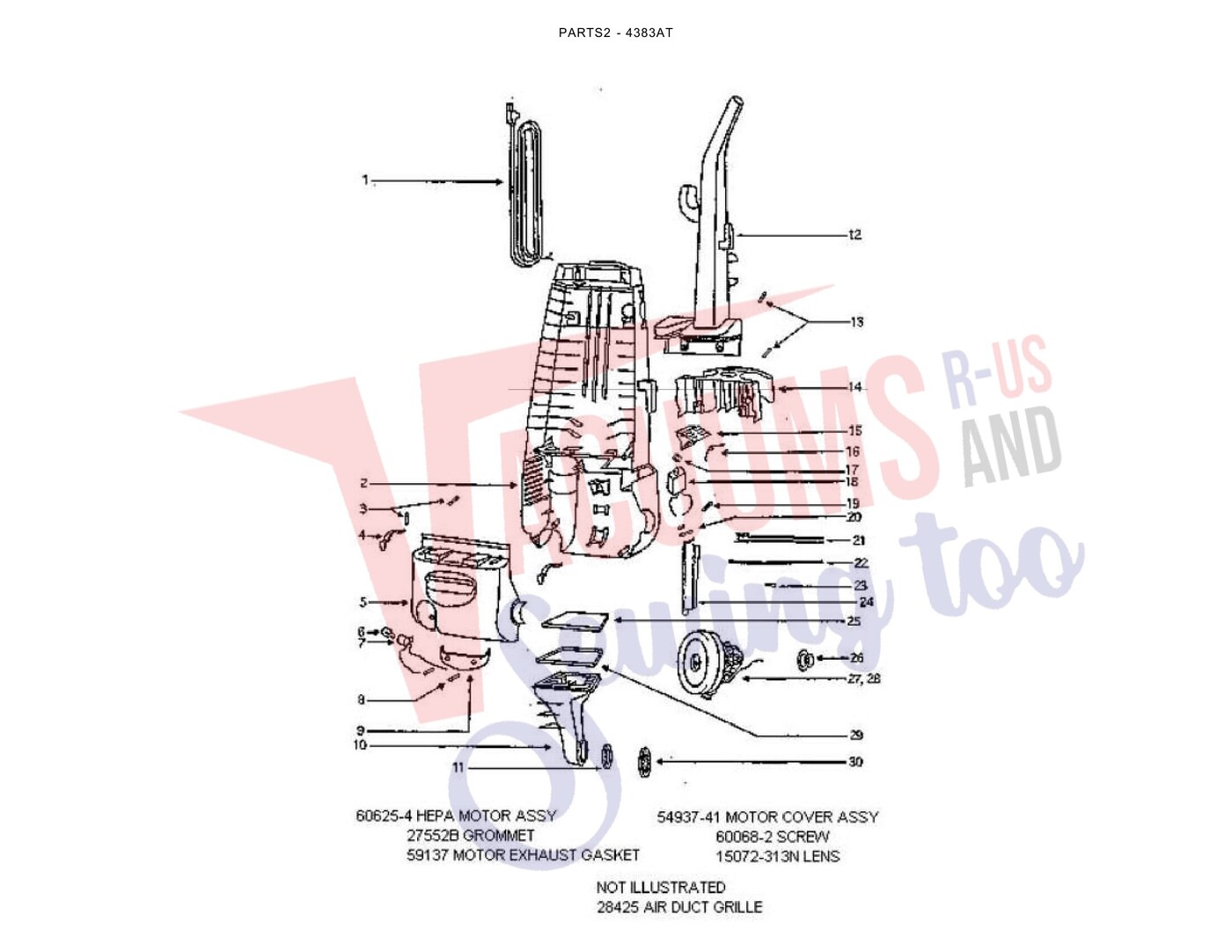

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LENS - MOTOR COVER | 15072-313N | Not Available |
| 2 | Not Available | HANDLE & CAP ASSEMBLY | 15352A-1 | Not Available |
| 3 | Not Available | DUCT - AIR | 15408B-119N | Not Available |
| 4 | Not Available | TOOL CADDY | 15443A-119N | Not Available |
| 6 | Not Available | SWITCH - BUTTON | 27474B-288N | Not Available |
| 7 | Not Available | GROMMET | 27552B | Not Available |
| 8 | Not Available | SWITCH - PUSHBUTTON | 28304A | Not Available |
| 9 | Not Available | GRILLE - AIR DUCT | 28425 | Not Available |
| 10 | Not Available | CLAMP | 38420-2 | Not Available |
| 11 | Not Available | HEADLAMP SCKT & TERMINAL | 38611 | Not Available |
| 12 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-16 | Not Available |
| 13 | Not Available | FLANGE - MOTOR INTAKE | 39023 | Not Available |
| 14 | Not Available | THERMOSTAT & TERMINAL ASS | 39252-2 | Not Available |
| 15 | No Image | BRUSH ASSY. CK14/2 PRO | 39334 | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 17 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 18 | Not Available | MOTOR COVER ASSY W/O LENS | 54937-41 | Not Available |
| 19 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 20 | Not Available | GASKET - AIR DUCT | 59297SV | Not Available |
| 21 | Not Available | ADAPTER - TUBE | 59361A | Not Available |
| 22 | Not Available | TUBE | 59362B | Not Available |
| 23 | Not Available | SCREW PACKAGE | 60068-2 | Not Available |
| 24 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 25 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | HEPA FILTER PACKAGE | 60285A | Not Available |
| 27 | Not Available | HEPA MOTOR & SHROUD ASSY | 60625-4 | Not Available |
| 28 | Not Available | REAR HOUSING - PKGD | 60703-2 | Not Available |
| 29 | Not Available | RETAINING RING PKG | 70521 | Not Available |

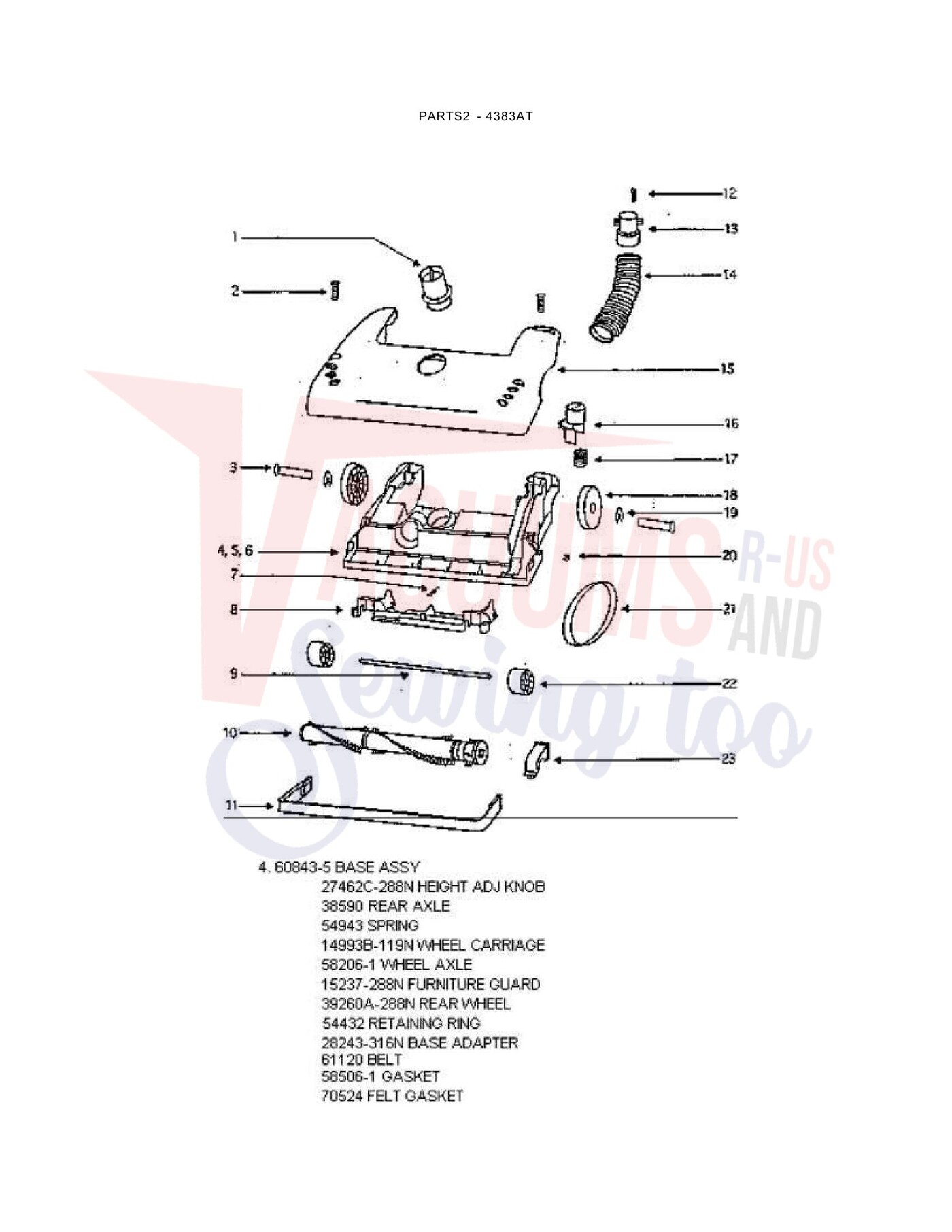

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE - WHEEL | 14993B-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE (12") | 15237-288N | Not Available |
| 3 | Not Available | OPERATOR - HEIGHT ADJUSTM | 27462C-288N | Not Available |
| 4 | Not Available | RELEASE - HANDLE | 27467A-288N | Not Available |
| 5 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 6 | Not Available | ADAPTER - BASE | 28243-316N | Not Available |
| 7 | Not Available | HOSE - COMPRESSION (PURCH | 38479-4 | Not Available |
| 8 | Not Available | AXLE - REAR | 38590 | Not Available |
| 9 | Not Available | WHEEL - FRONT | 39173-119N | Not Available |
| 10 | Not Available | WHEEL/BUSHING PACKAGE | 39260A-288N | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 12 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 13 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 14 | Not Available | HOOD ASSEMBLY - PACKAGED | 54933-40 | Not Available |
| 15 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 17 | Not Available | GASKET | 58506-1 | Not Available |
| 18 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 19 | Not Available | 12" DISTURBULATOR ASSY - | 60251-2 | Not Available |
| 20 | Not Available | PUSH ON NUT PKG | 60613 | Not Available |
| 21 | Not Available | BASE ASSEMBLY - CARTONED | 60843-5 | Not Available |
| 22 | Not Available | BELT PKG ASSY-STYLE U EXT | 61120 | Not Available |
| 23 | Not Available | GASKET - FELT | 70524 | Not Available |

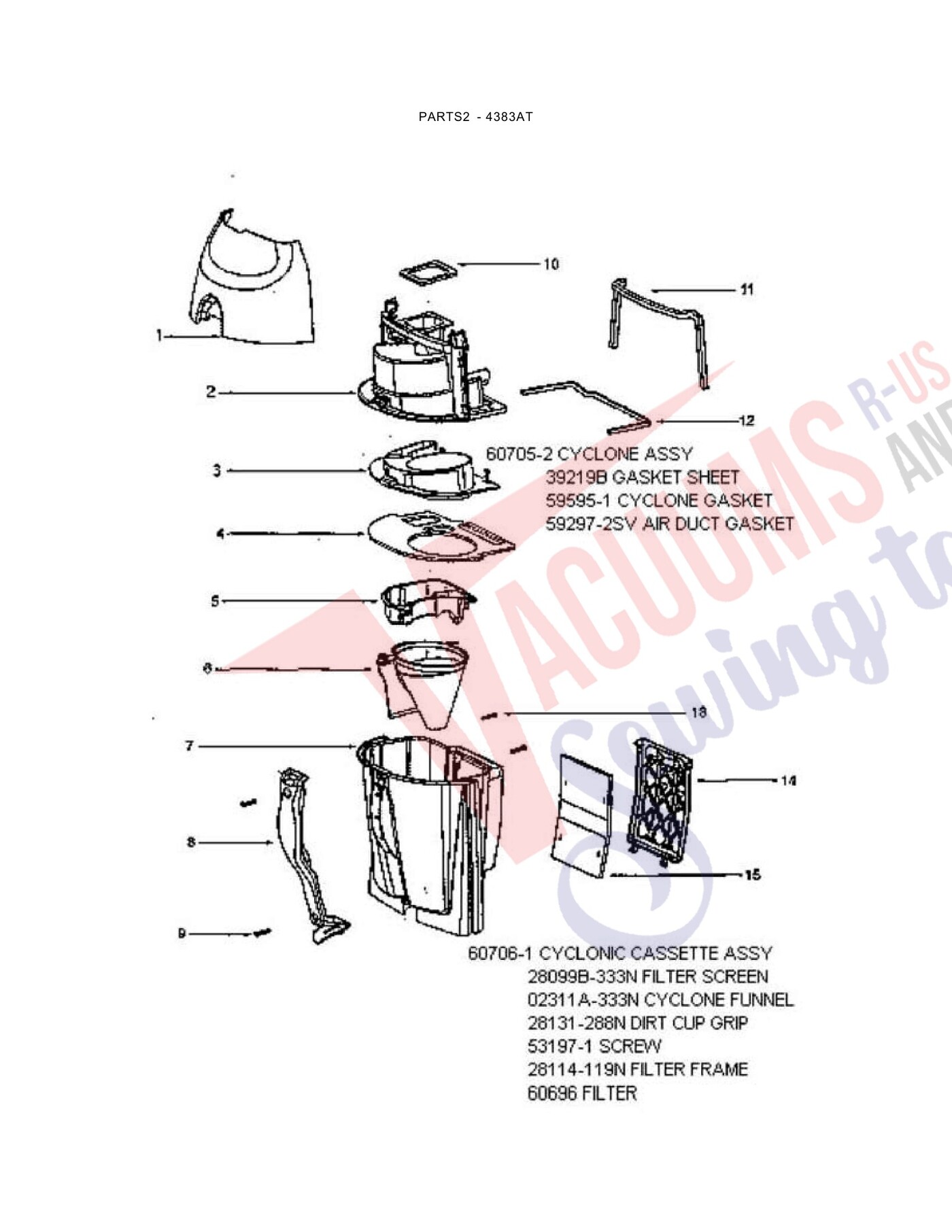

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FUNNEL & GASKET ASSEMBLY | 02311A-333N | Not Available |
| 2 | Not Available | FILTER - SCREEN | 28099B-333N | Not Available |
| 3 | Not Available | FRAME - FILTER | 28114-119N | Not Available |
| 4 | Not Available | GRIP - DIRT CUP | 28131-288N | Not Available |
| 5 | No Image | GASKET, SHEET 4481 Part Number: 39219B for Eureka | 39219B | $9.22Read more |
| 6 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 7 | Not Available | GASKET - AIR DUCT | 59297-2SV | Not Available |
| 8 | Not Available | GASKET - CYCLONE | 59595-1 | Not Available |
| 9 | Not Available | FILTER PACKAGE | 60696 | Not Available |
| 10 | Not Available | FRONT COVER ASSEMBLY - PK | 60704-22 | Not Available |
| 11 | Not Available | UPPER CYCLONE ASSY - PKGD | 60705-2 | Not Available |
| 12 | Not Available | CYCLONIC CASSETTE ASSY | 60706-1 | Not Available |

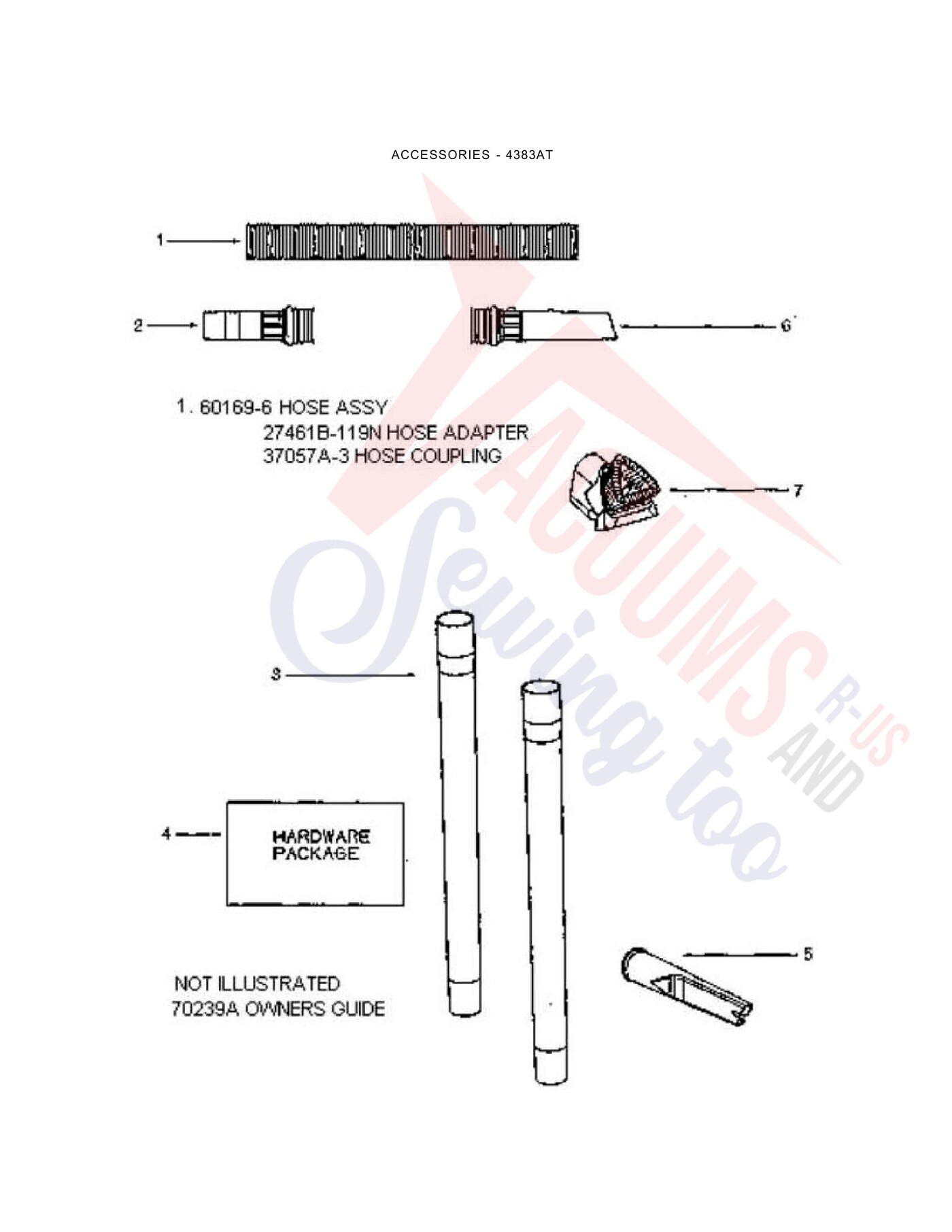

| # | Part image | Description | SKU | Price |
| 1 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 2 | Not Available | B-119N ADAPTER - HOSE | 27461 | Not Available |
| 3 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 4 | Not Available | SCREW PACKAGE | 58607 | Not Available |
| 5 | Not Available | NESTING WAND ASSEMBLY | 58728B | Not Available |
| 6 | Not Available | HOSE ASSEMBLY - CARTONED | 60169-6 | Not Available |
| 7 | Not Available | COMBINATION TOOL - PACKAG | 61037 | Not Available |
| 8 | Not Available | OWNER'S GUIDE | 70239A | Not Available |
