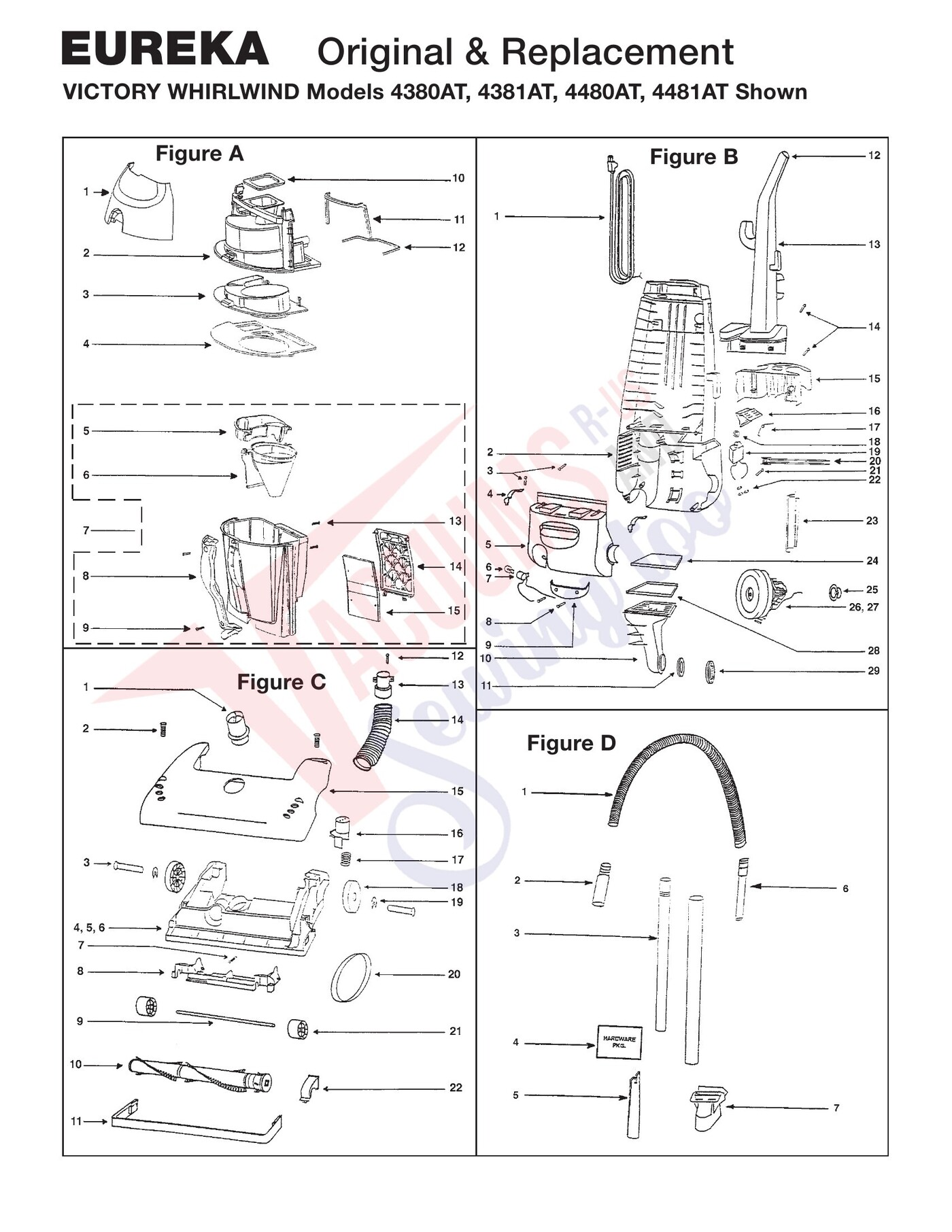

Schematic and parts book for Eureka 4380AT, 4381AT, 4480AT, 4481AT Victory Whirlwind. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Cord Release Hook 4480 | 38517-119N | Not Available |
| 1 | Not Available | Front Cover 4380 4481 | 60704-2 | Not Available |
| 1 | No Image | SPRING TENSION 96210 | 39121 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Front Cover 4480 | 60704-1 | Not Available |
| 1 | Not Available | Supply Cord | 38680-9 | Not Available |
| 1 | Not Available | Hose Ass’y | 60169-1 | Not Available |
| 2 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Upper Cyclone Ass’y | 60705-1 | Not Available |
| 2 | Not Available | Rear Housing | 60703-1 | Not Available |
| 2 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $4.76Read more |
| 3 | Not Available | Rear Axle | 38590 | Not Available |
| 3 | Not Available | Lower Cyclone | N/A | Not Available |
| 3 | Not Available | Screw | 53197-1 | Not Available |
| 3 | Not Available | Nesting Wand Set | 58728A | Not Available |
| 4 | Not Available | Base Ass’y 4380 | 54935-6 | Not Available |
| 4 | Not Available | Gasket Sheet | 39219 | Not Available |
| 4 | Not Available | Base Ass’y 4480 4481 | 60071-5 | Not Available |
| 4 | Not Available | Clamp | 38420-2 | Not Available |
| 4 | Not Available | Hardware Package Consists of 2 Screws | 58607 | Not Available |
| 5 | Not Available | Filter Screen | 28099-333N | Not Available |
| 5 | Not Available | Gasket (Base to Hood) 4380 4381 | 58506-1 | Not Available |
| 5 | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $3.11Read more |
| 5 | Not Available | Motor Cover 4380 4481 | 54937-21 | Not Available |
| 5 | Not Available | Motor Cover 4480 | 54937-20 | Not Available |
| 5 | Not Available | Crevice Tool | 54780 | Not Available |
| 6 | Not Available | Cyclone Funnel | 02311A-333N | Not Available |
| 6 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 6 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 6 | Not Available | Straight Wand | 27624-119N | Not Available |
| 7 | Not Available | Cyclonic Cassette Ass’y | 60706-1 | Not Available |
| 7 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Headlight Socket | 38611 | Not Available |
| 7 | Not Available | Dual Purpose Brush | 54784 | Not Available |
| 8 | Not Available | Dirt Cup Grip | 28131-288N | Not Available |
| 8 | Not Available | Dirt cup grip | ER-7025 | Not Available |
| 8 | Not Available | Wheel Carriage | 14993A-119N | Not Available |
| 8 | Not Available | Screw | 60068-2 | Not Available |
| 9 | Not Available | Screw | 53197-1 | Not Available |
| 9 | Not Available | Wheel Axle | 58206-1 | Not Available |
| 9 | Not Available | Lens | 15072-313N | Not Available |
| 10 | Not Available | Gasket Sheet | 39219 | Not Available |
| 10 | Not Available | Brushroll 12" 4380 4381 | 60251-1 | Not Available |
| 10 | Not Available | Brushroll 14" 4480 4481 | 54647 | Not Available |
| 10 | Not Available | Air Duct | 15408A-119N | Not Available |
| 11 | Not Available | Cyclone Gasket (11.5" Long) | 59595-1 | Not Available |
| 11 | Not Available | Furniture Guard 12" | 15237-288N | Not Available |
| 11 | Not Available | Furniture Guard 14" | 15234-288N | Not Available |
| 11 | Not Available | Motor Intake Gasket | 27171 | Not Available |
| 12 | No Image | GASKET, AIR DUCT 4380 4481 Part Number: 59297-2 for Eureka | 592972 | $2.44Read more |
| 12 | Not Available | Screw | 53197-1 | Not Available |
| 12 | Not Available | Handle Cap 4380 Figure D | 38482-119N | Not Available |
| 13 | Not Available | Screw | 53197-1 | Not Available |
| 13 | Not Available | Hose Cuff | 27468A-119N | Not Available |
| 13 | Not Available | Handle Ass’y 4380 | 15352-1 | Not Available |
| 13 | Not Available | Handle Ass’y 4480 | 15360-3 | Not Available |
| 14 | Not Available | Filter Frame | 28114-119N | Not Available |
| 14 | Not Available | Hose | 38479-2 | Not Available |
| 14 | Not Available | Screw | 53197-1 | Not Available |
| 15 | Not Available | Filter | 28115 | Not Available |
| 15 | Not Available | Hood Ass’y 4380 | 60708-1 | Not Available |
| 15 | Not Available | Hood Ass’y 4480 | 60707-1 | Not Available |
| 15 | Not Available | Hood Ass’y 4481 | 60707-2 | Not Available |
| 15 | Not Available | Tool Caddy | 15443-119N | Not Available |
| 16 | Not Available | Handle Release Pedal | 27467-288N | Not Available |
| 16 | Not Available | Switch Pedal | 27474B-288N | Not Available |
| 17 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 17 | Not Available | Torsion Spring | 60134 | Not Available |
| 18 | Not Available | Rear Wheel 4380 4381 | 27201-288N | Not Available |
| 18 | Not Available | Rear Wheel 4480 4481 | 27493-288N | Not Available |
| 18 | Not Available | Retaining Ring | 60165 | Not Available |
| 19 | Not Available | Retaining Ring | 54432 | Not Available |
| 19 | Not Available | Switch Ass’y | 15377-6 | Not Available |
| 20 | Not Available | Belt Package of 2 | 54312 | Not Available |
| 20 | Not Available | Belt | 38441 | Not Available |
| 20 | Not Available | Belt | ER-1035 | Not Available |
| 20 | Not Available | Thermal Cut Off | 59213 | Not Available |
| 21 | Not Available | Front Wheel | 38236A-119N | Not Available |
| 21 | Not Available | Screw | 53197-1 | Not Available |
| 22 | Not Available | Belt Cap Ass’y | 54376-2 | Not Available |
| 22 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | HEPA Filter | 60285 | Not Available |
| 24 | Not Available | Secondary Filter | 38469 | Not Available |
| 24 | Not Available | secondary Filter | ER-1810 | Not Available |
| 25 | Not Available | Grommet | 27552B | Not Available |
| 26 | Not Available | HEPA Motor & Shroud Ass’y | 60625-1 | Not Available |
| 27 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 28 | Not Available | Air Duct Gasket | 59297 | Not Available |
| 29 | Not Available | Motor Intake Flange | 39023 | Not Available |
