Schematic and parts book for Eureka 4337ATH . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

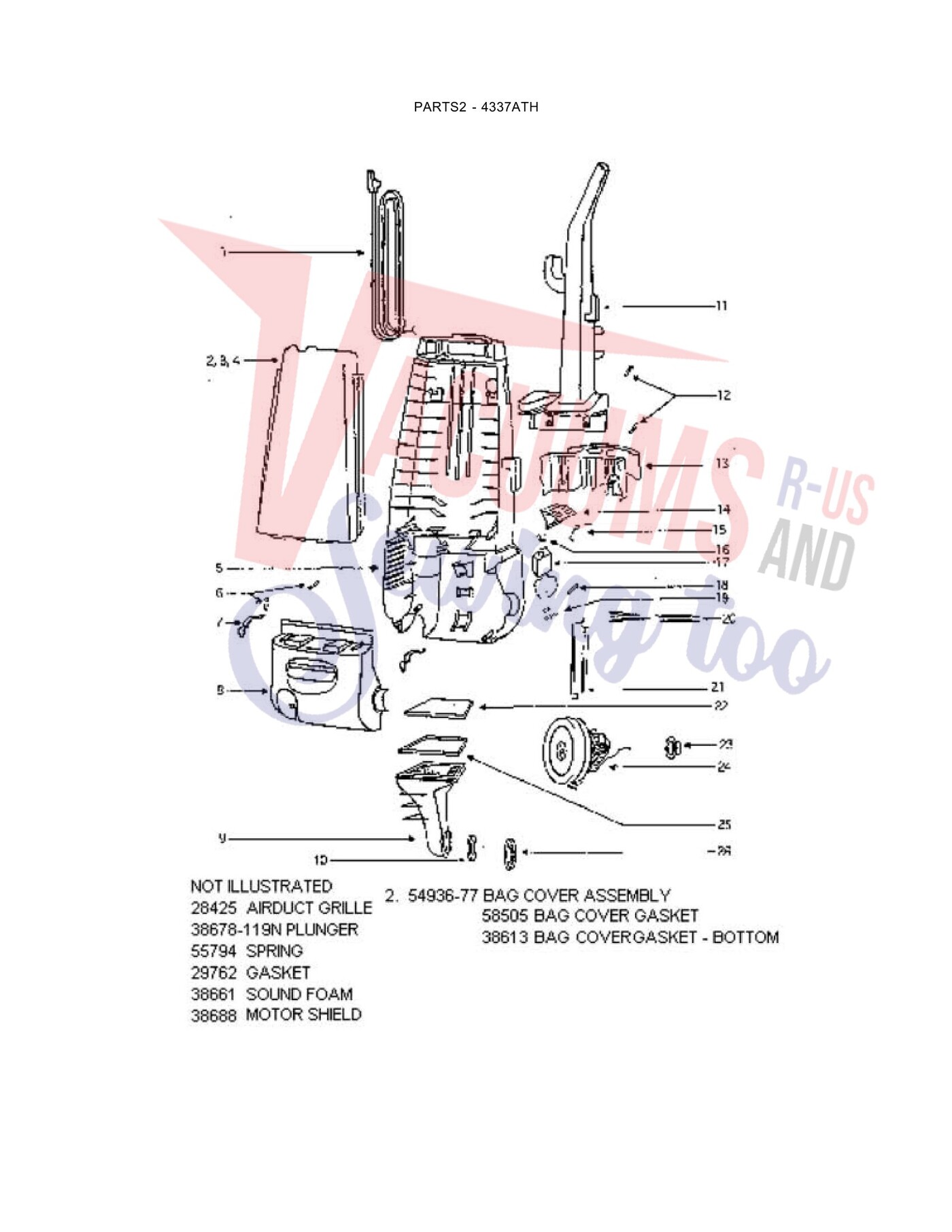

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CADDY - TOOL | 02093A-119N | Not Available |
| 2 | Not Available | AIR DUCT | 15536A-119N | Not Available |
| 3 |  | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $3.17Read more |
| 4 | Not Available | SWITCH - BUTTON | 27474C-288N | Not Available |
| 5 | Not Available | GROMMET | 27552B | Not Available |
| 6 | Not Available | GASKET (NLA) | 27962 | Not Available |
| 7 | Not Available | SWITCH - PUSHBUTTON | 28304A | Not Available |
| 8 | Not Available | GRILLE - AIR DUCT | 28425 | Not Available |
| 9 | Not Available | CLAMP | 38420-2 | Not Available |
| 10 | Not Available | GASKET | 38613 | Not Available |
| 11 | Not Available | EXHAUST - FILTER | 38614 | Not Available |
| 12 | Not Available | FOAM - SOUND | 38661 | Not Available |
| 13 | Not Available | PLUNGER | 38678-119N | Not Available |
| 14 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-16 | Not Available |
| 15 | Not Available | MOTOR SHIELD (NLA) | 38688 | Not Available |
| 16 | Not Available | FLANGE - MOTOR INTAKE | 39023 | Not Available |
| 17 | Not Available | THERMOSTAT & TERMINAL ASS | 39252-2 | Not Available |
| 18 | No Image | BRUSH ASSY. CK14/2 PRO | 39334 | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 20 | Not Available | BAG COVER ASSY - PACKAGED | 54936-77 | Not Available |
| 21 | Not Available | SPRING | 55794 | Not Available |
| 22 | Not Available | GASKET - BAG COVER | 58505 | Not Available |
| 23 | Not Available | GASKET - AIR DUCT | 59297SV | Not Available |
| 24 | Not Available | REAR HOUSING - PACKAGED | 60126-15 | Not Available |
| 25 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 26 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | MOTOR COVER ASSEMBLY - PK | 60788-22 | Not Available |
| 28 | Not Available | MOTOR ASSEMBLY - CARTONED | 60845 | Not Available |
| 29 | Not Available | RETAINING RING PKG | 70521 | Not Available |
| 30 | Not Available | HANDLE & CAP ASSEMBLY | 71139-1 | Not Available |

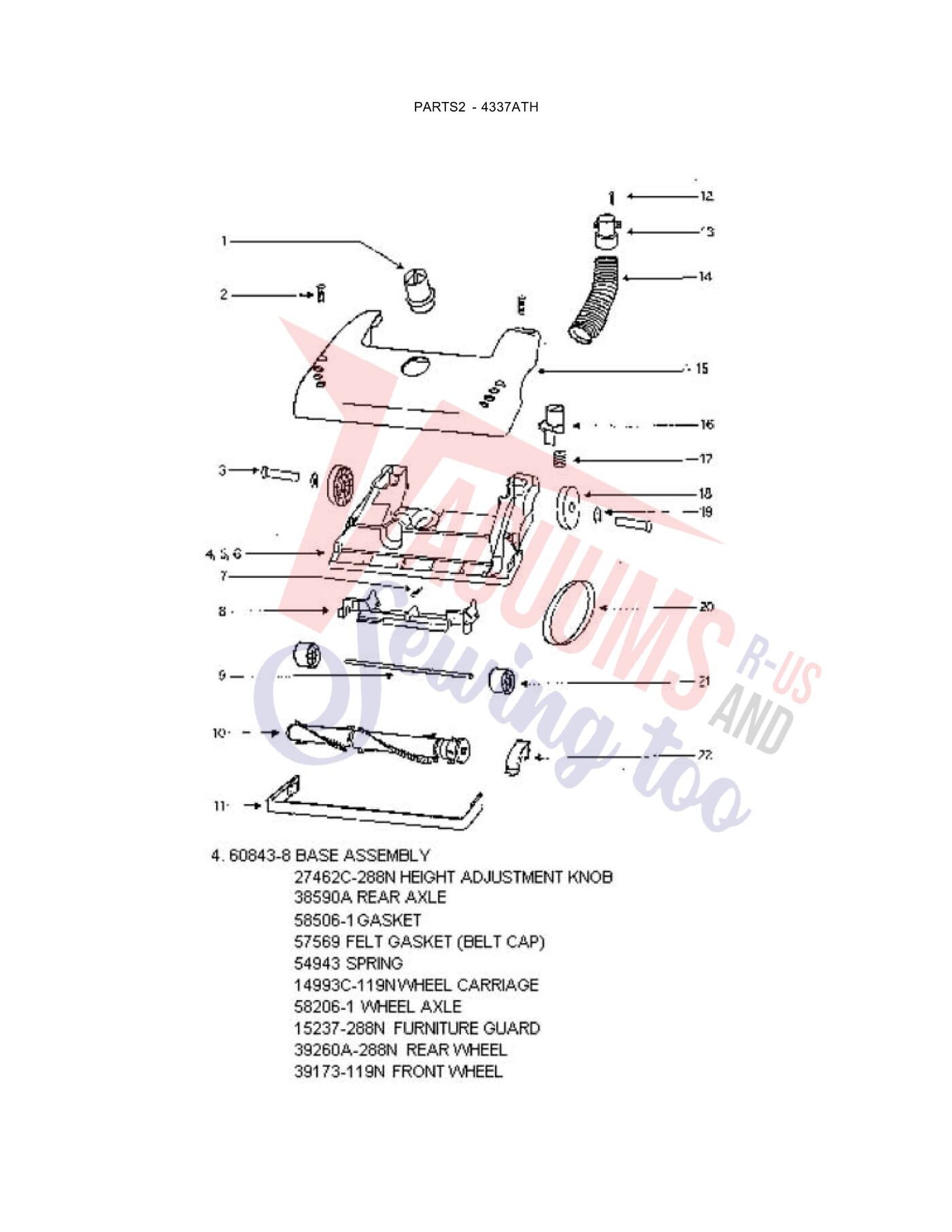

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE - WHEEL | 14993C-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE (12") | 15237-288N | Not Available |
| 3 | Not Available | OPERATOR - HEIGHT ADJUSTM | 27462C-288N | Not Available |
| 4 | Not Available | RELEASE - HANDLE | 27467A-288N | Not Available |
| 5 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 6 | Not Available | HOSE - COMPRESSION (PURCH | 38479-4 | Not Available |
| 7 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | WHEEL-FRONT use 39173A-119N | 39173-119N | Not Available |
| 9 | Not Available | WHEEL/BUSHING PACKAGE | 39260A-288N | Not Available |
| 10 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 11 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 12 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 13 | No Image | HOOD, 4337 UPRIGHT Part Number: 54933-49 for Eureka | 5493349 | $21.71Read more |
| 14 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 16 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 17 | Not Available | GASKET | 58506-1 | Not Available |
| 18 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 19 | Not Available | 12" DISTURBULATOR ASSY - | 60251-2 | Not Available |
| 20 | Not Available | BELT PACKAGE ASSEMBLY (U) | 54312B | Not Available |
| 21 | Not Available | BASE ASSEMBLY - CARTONED | 60843-8 | Not Available |

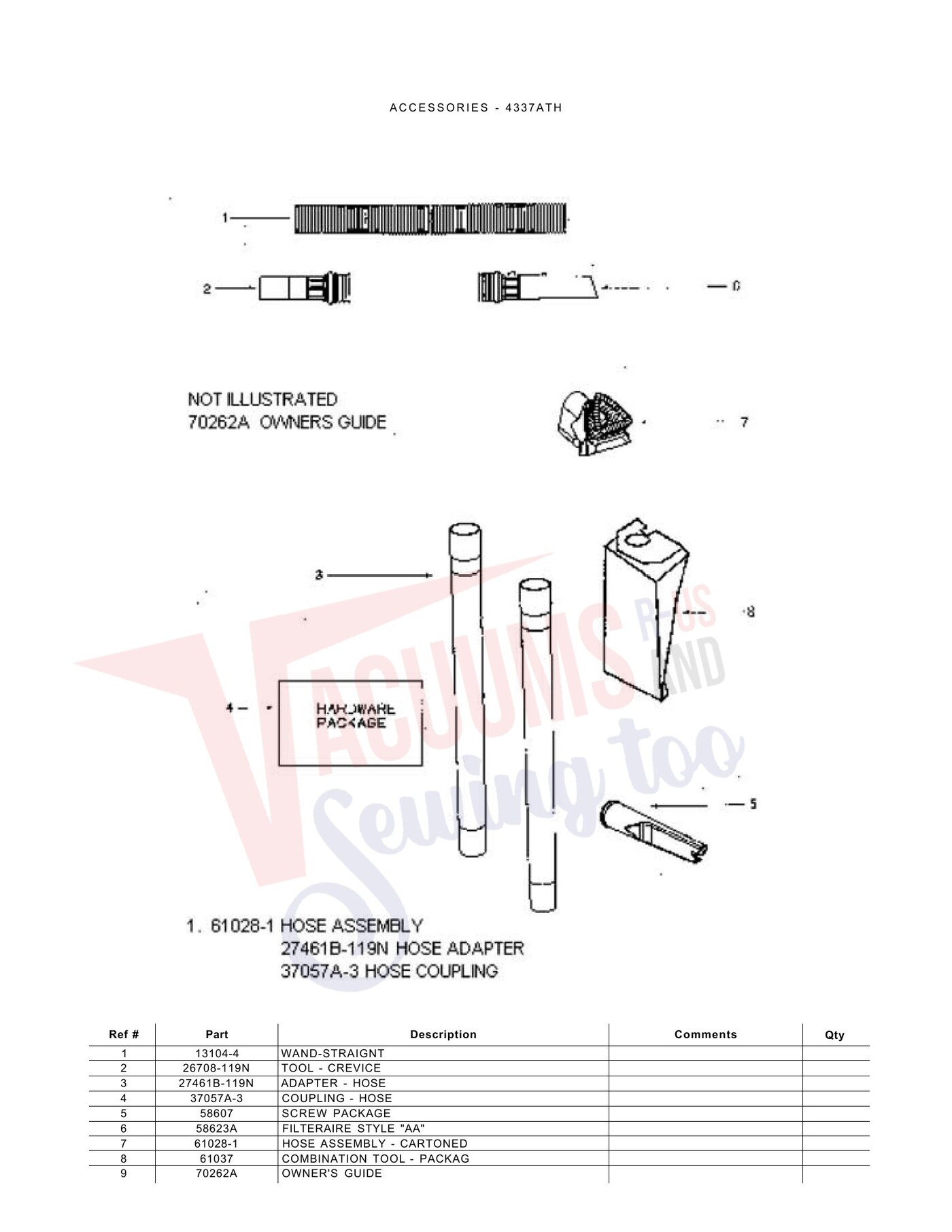

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WAND-STRAIGNT | 13104-4 | Not Available |
| 2 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 3 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $4.76Read more |
| 4 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 5 | Not Available | SCREW PACKAGE | 58607 | Not Available |
| 6 | Not Available | FILTERAIRE STYLE "AA" | 58623A | Not Available |
| 7 | Not Available | HOSE ASSEMBLY - CARTONED | 61028-1 | Not Available |
| 8 | Not Available | COMBINATION TOOL - PACKAG | 61037 | Not Available |
| 9 | Not Available | OWNER'S GUIDE | 70262A | Not Available |
