Schematic and parts book for Eureka 4335AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

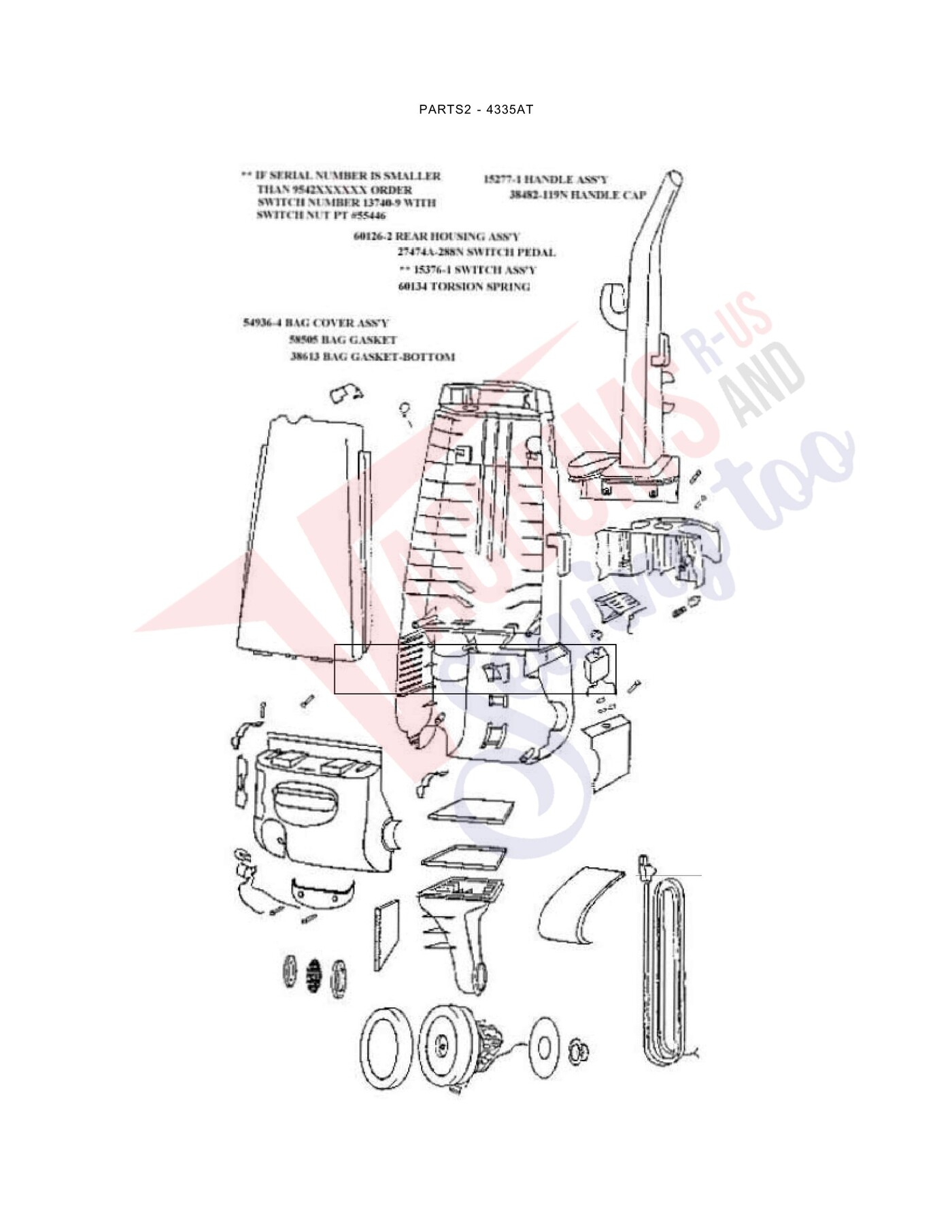

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CADDY - TOOL | 02093-288N | Not Available |
| 2 | Not Available | HANDLE & CAP ASSEMBLY | 15277-1 | Not Available |
| 3 | Not Available | SWITCH ASSEMBLY | 15376-1 | Not Available |
| 4 | Not Available | SWITCH - BUTTON | 27474A-288N | Not Available |
| 5 | No Image | GASKET, MOTOR VICTORY UPRIGHT Part Number: 27492 for Eureka | 27492 | $1.82Read more |
| 6 | Not Available | CLAMP | 38420-2 | Not Available |
| 7 | Not Available | FILTER - PRE-MOTOR | 38469 | Not Available |
| 8 | Not Available | CAP - HANDLE | 38482-119N | Not Available |
| 9 | Not Available | GASKET | 38613 | Not Available |
| 10 | Not Available | EXHAUST - FILTER | 38614 | Not Available |
| 11 | Not Available | MOTOR INTAKE FLANGE | 38638 | Not Available |
| 12 | Not Available | FOAM - SOUND | 38661 | Not Available |
| 13 | Not Available | GASKET - MOTOR INTAKE | 38663 | Not Available |
| 14 | Not Available | PLUNGER | 38678-119N | Not Available |
| 15 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-1 | Not Available |
| 16 | Not Available | MOTOR SHIELD | 38688 | Not Available |
| 17 | Not Available | SHIELD - REAR HOUSING | 38689 | Not Available |
| 18 | Not Available | TIE - CABLE | 46713-1 | Not Available |
| 19 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 20 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 21 | Not Available | WIRE SPLICE | 53214-2 | Not Available |
| 22 | Not Available | BAG COVER ASSY - PACKAGED | 54936-4 | Not Available |
| 23 | Not Available | SPRING | 55794 | Not Available |
| 24 | Not Available | GASKET - BAG COVER | 58505 | Not Available |
| 25 | Not Available | MOTOR ASSY -CTND | 60066 | Not Available |
| 26 | Not Available | MOTOR COVER - PKGD | 60067-1 | Not Available |
| 27 | Not Available | REAR HOUSING - PACKAGED | 60126-2 | Not Available |
| 28 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 29 | Not Available | RETAINING RING PKG | 60165 | Not Available |

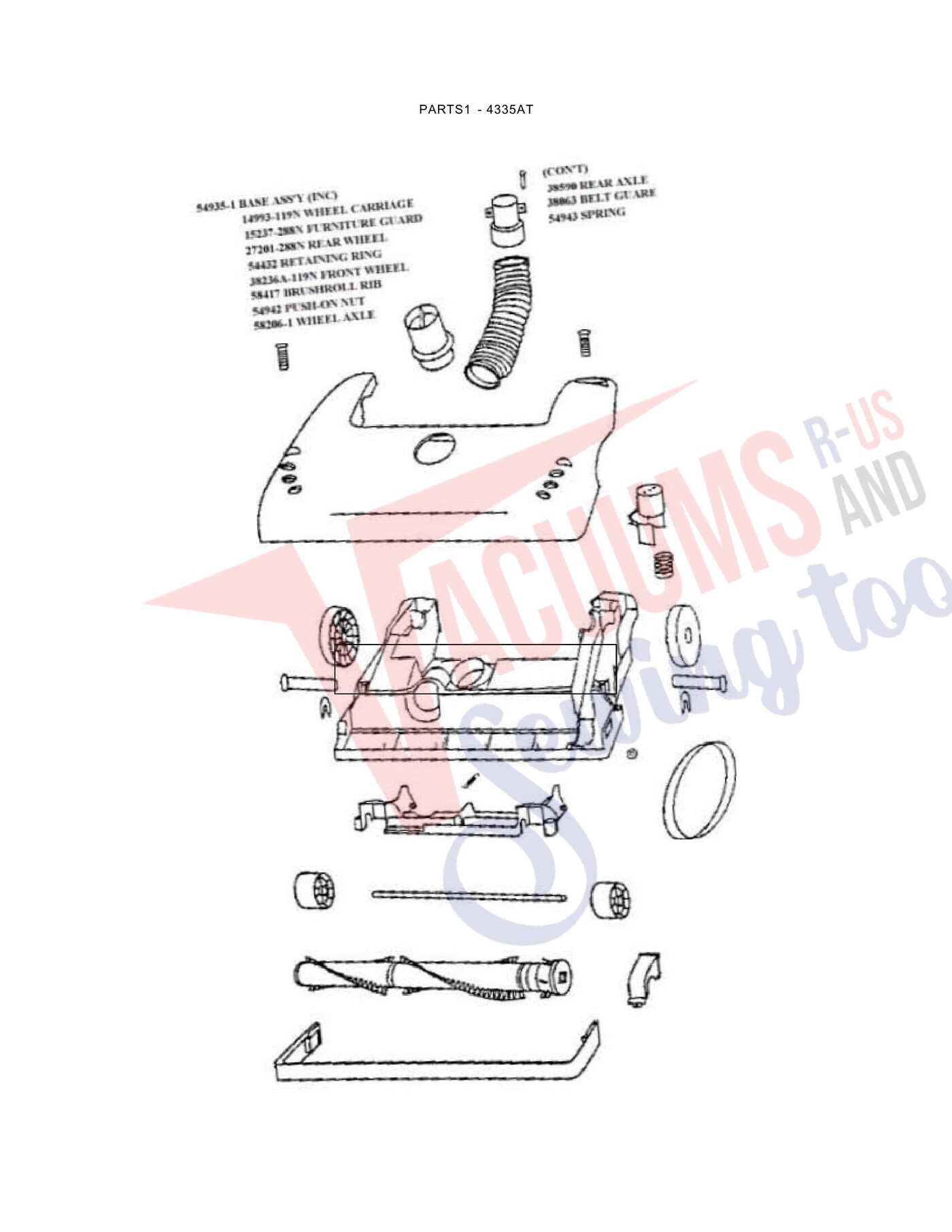

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE - WHEEL | 14993-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE (12") | 15237-288N | Not Available |
| 3 | Not Available | WHEEL - REAR | 27201-288N | Not Available |
| 4 | Not Available | OPERATOR - HEIGHT ADJUSTM | 27462-288N | Not Available |
| 5 | Not Available | RELEASE - HANDLE | 27467-288N | Not Available |
| 6 | Not Available | CUFF - HOSE | 27468A-119N | Not Available |
| 7 | Not Available | GUARD - BELT | 38063 | Not Available |
| 8 | Not Available | WHEEL - FRONT | 38236A-119N | Not Available |
| 9 | Not Available | HOSE - COMPRESSION (PURCH | 38479-1 | Not Available |
| 10 | Not Available | AXLE - REAR | 38590 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 12 | Not Available | BELT PACKAGE ASSEMBLY (U) | 54312 | Not Available |
| 13 | Not Available | BELT CAP & GASKET -PACKA | 54376-1 | Not Available |
| 14 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 15 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | HOOD ASSEMBLY - PACKAGED | 54933-1 | Not Available |
| 17 | Not Available | BASE ASSEMBLY - CARTONED | 54935-1 | Not Available |
| 18 | Not Available | 12" DISTURBULATOR ASSY - | 54941-1 | Not Available |
| 19 | Not Available | PUSH-ON NUT - PACKAGED | 54942 | Not Available |
| 20 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 22 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 23 | Not Available | COMPRESSION SPRING - PACK | 58371 | Not Available |
| 24 | Not Available | PACKAGE OF BRUSH ROLL RIB | 58417 | Not Available |
| 24 | Not Available | GASKET | 58506-1 | Not Available |

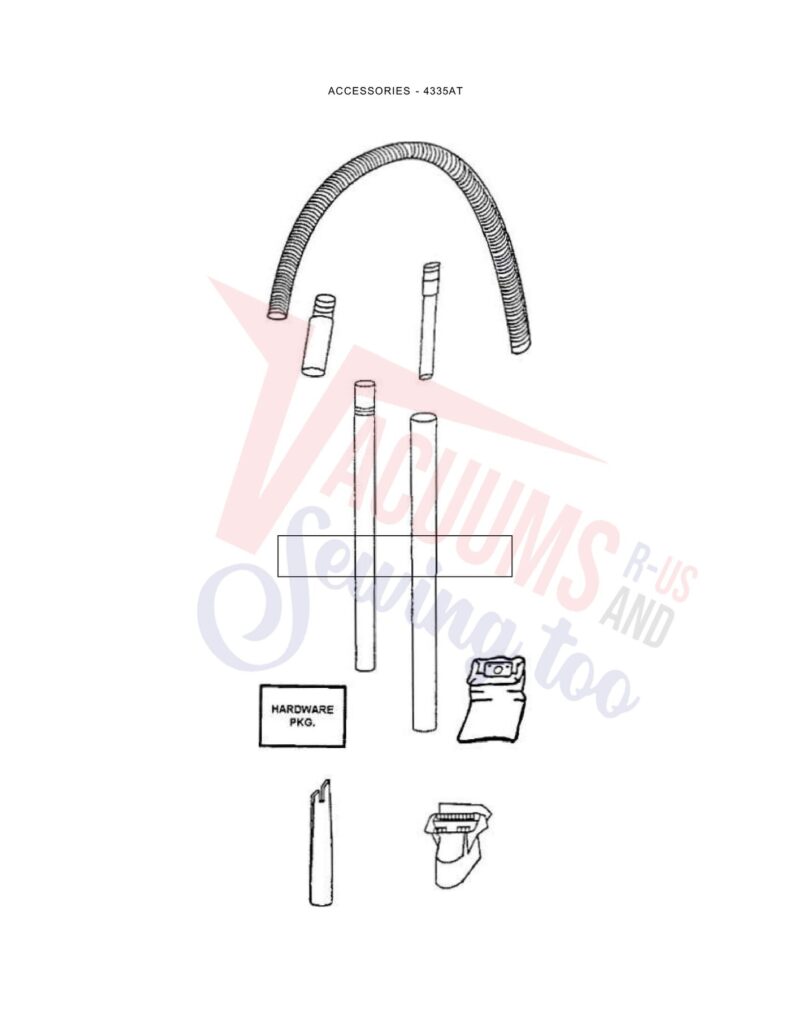

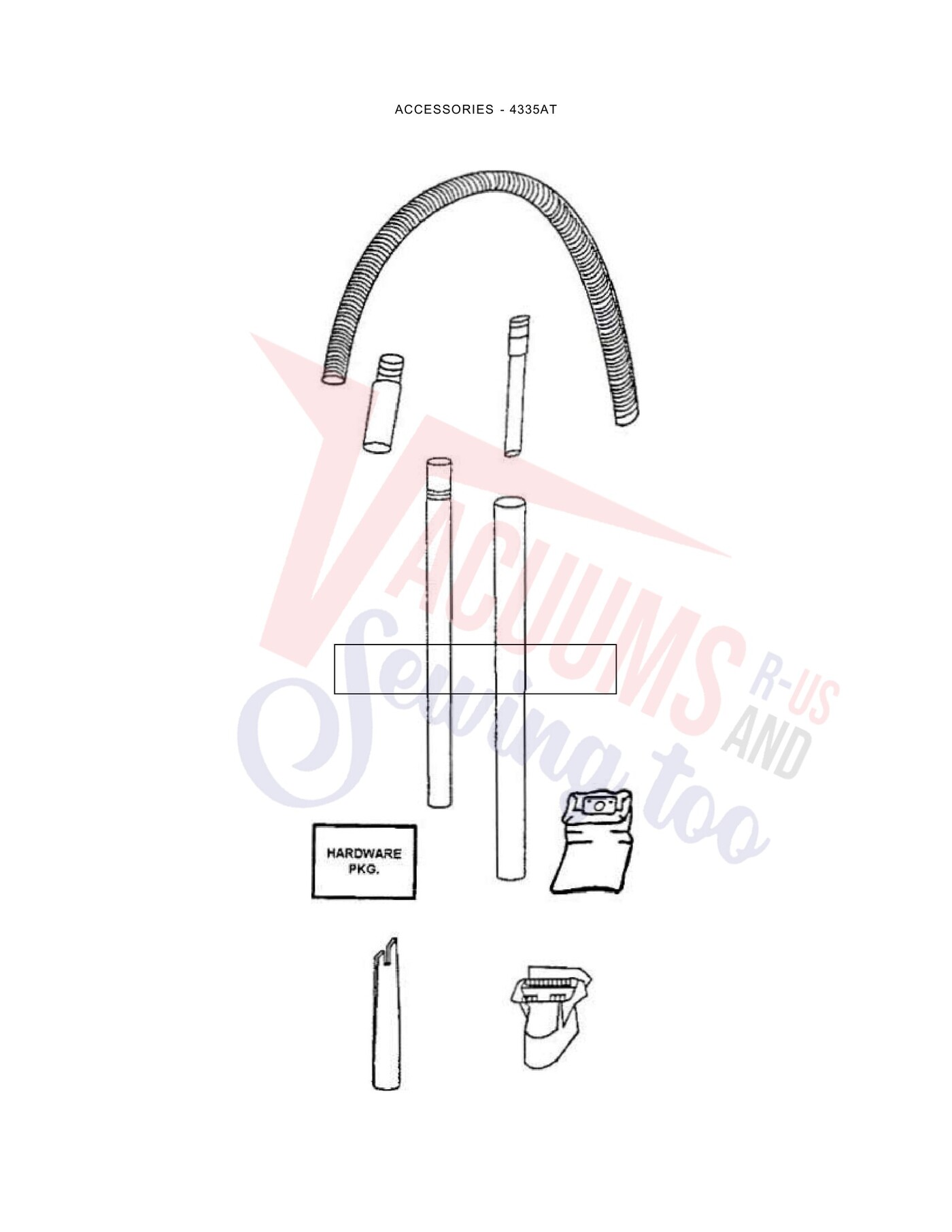

| # | Part image | Description | SKU | Price |
| 1 | Not Available | B-119N ADAPTER - HOSE | 27461 | Not Available |
| 2 | Not Available | TOOL - CREVICE | 54780 | Not Available |
| 3 | Not Available | COMBINATION TOOL - PACKAG | 54784 | Not Available |
| 4 | Not Available | HOSE ASSEMBLY - CARTONED | 54945A-1 | Not Available |
| 5 | Not Available | PAPER BAG PKG ASSY (STYLE | 58236 | Not Available |
| 6 | Not Available | SCREW PACKAGE | 58607 | Not Available |
| 7 | Not Available | NESTING WAND ASSEMBLY | 58728A | Not Available |
