Schematic and parts book for Eureka 4327AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

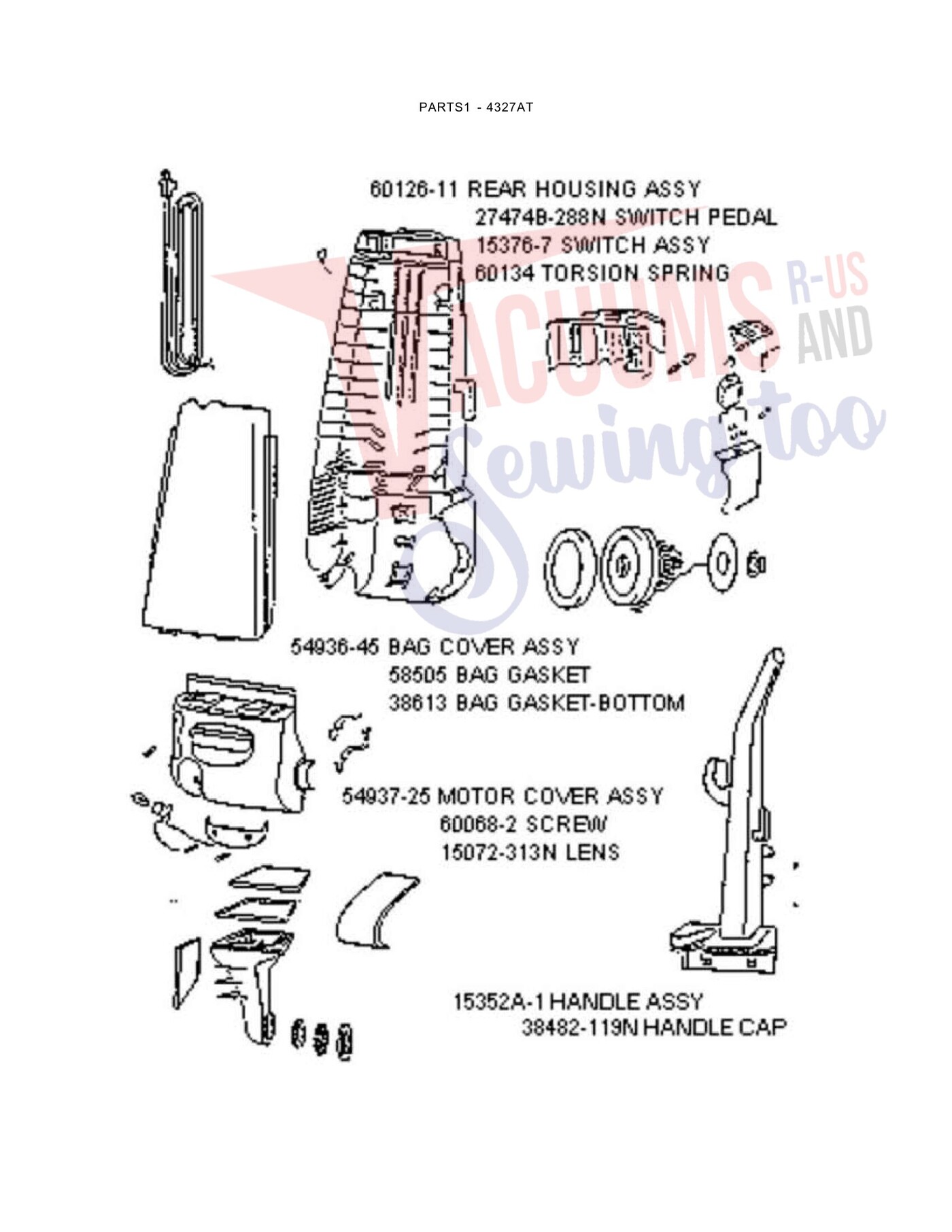

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CADDY - | 02093A-119N | Not Available |
| 2 | Not Available | LENS - MOTOR | 15072-313N | Not Available |
| 3 | Not Available | HANDLE | 15352A-1 | Not Available |
| 4 | Not Available | SWITCH | 15376-7 | Not Available |
| 6 | Not Available | SWITCH | 27474B-288N | Not Available |
| 7 | Not Available | GROMMET | 27552B | Not Available |
| 8 | Not Available | GASKET | 27962 | Not Available |
| 9 | Not Available | CLAMP | 38420-2 | Not Available |
| 10 | Not Available | FILTER - | 38469 | Not Available |
| 11 | Not Available | CAP - HANDLE | 38482-119N | Not Available |
| 12 | Not Available | HEADLAMP | 38611 | Not Available |
| 13 | Not Available | GASKET | 38613 | Not Available |
| 14 | Not Available | EXHAUST | 38614 | Not Available |
| 15 | Not Available | FOAM - SOUND | 38661 | Not Available |
| 16 | Not Available | PLUNGER | 38678-119N | Not Available |
| 17 | Not Available | SUPPLY | 38680-6 | Not Available |
| 18 | Not Available | MOTOR | 38688 | Not Available |
| 19 | Not Available | SHIELD - | 38689-2 | Not Available |
| 20 | Not Available | FLANGE | 39023 | Not Available |
| 21 | Not Available | TIE - CABLE | 46713-1 | Not Available |
| 22 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 23 | Not Available | SCREW | 53197-1 | Not Available |
| 24 | Not Available | BAG COVER | 54936-45 | Not Available |
| 25 | Not Available | MOTOR | 54937-25 | Not Available |
| 26 | Not Available | SPRING | 55794 | Not Available |
| 27 | Not Available | GASKET | 58505 | Not Available |
| 28 | Not Available | GASKET | 59297SV | Not Available |
| 29 | Not Available | SCREW | 60068-2 | Not Available |
| 30 | Not Available | REAR HOUSING | 60126-11 | Not Available |
| 31 | Not Available | TORS SPRING | 60134 | Not Available |
| 32 | Not Available | RETAINING | 60165 | Not Available |
| 33 | Not Available | AIR DUCT | 60189-2 | Not Available |
| 34 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | MOTOR | 60261-4 | Not Available |

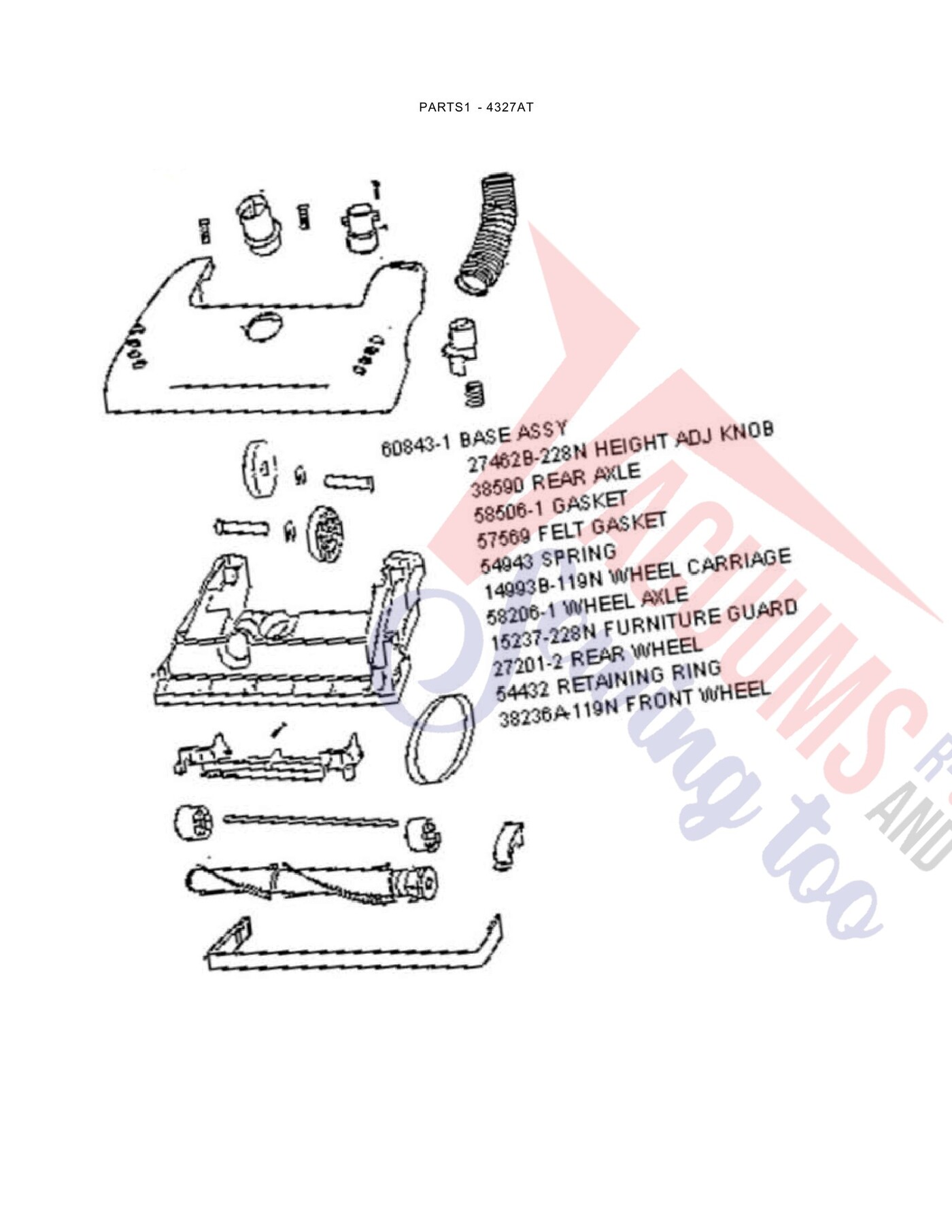

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE | 14993B-119N | Not Available |
| 2 | Not Available | GUARD - | 15237-288N | Not Available |
| 3 | Not Available | WHEEL/BUSHING | 27201-2 | Not Available |
| 4 |  | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.82Read more |
| 5 | Not Available | RELEASE | 27467-288N | Not Available |
| 6 | Not Available | HOSE CUFF | 27468C-119N | Not Available |
| 7 | Not Available | WHEEL - | 38236A-119N | Not Available |
| 8 | Not Available | HOSE - COMPRESSION | 38479-2 | Not Available |
| 9 | Not Available | AXLE - REAR | 38590 | Not Available |
| 10 | Not Available | SCREW | 53197-1 | Not Available |
| 11 | Not Available | BELTS BRAVO | 54312 | Not Available |
| 12 | Not Available | BELT CAP | 54376-2 | Not Available |
| 13 | Not Available | PACKAGE | 54432 | Not Available |
| 14 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | HOOD ASSEMBLY | 54933-15 | Not Available |
| 16 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 18 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 19 | Not Available | GASKET | 58506-1 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 21 | Not Available | BASE ASSEMBLY | 60843-1 | Not Available |
| 22 | Not Available | 12" DISTURBULATOR | 60844-1 | Not Available |

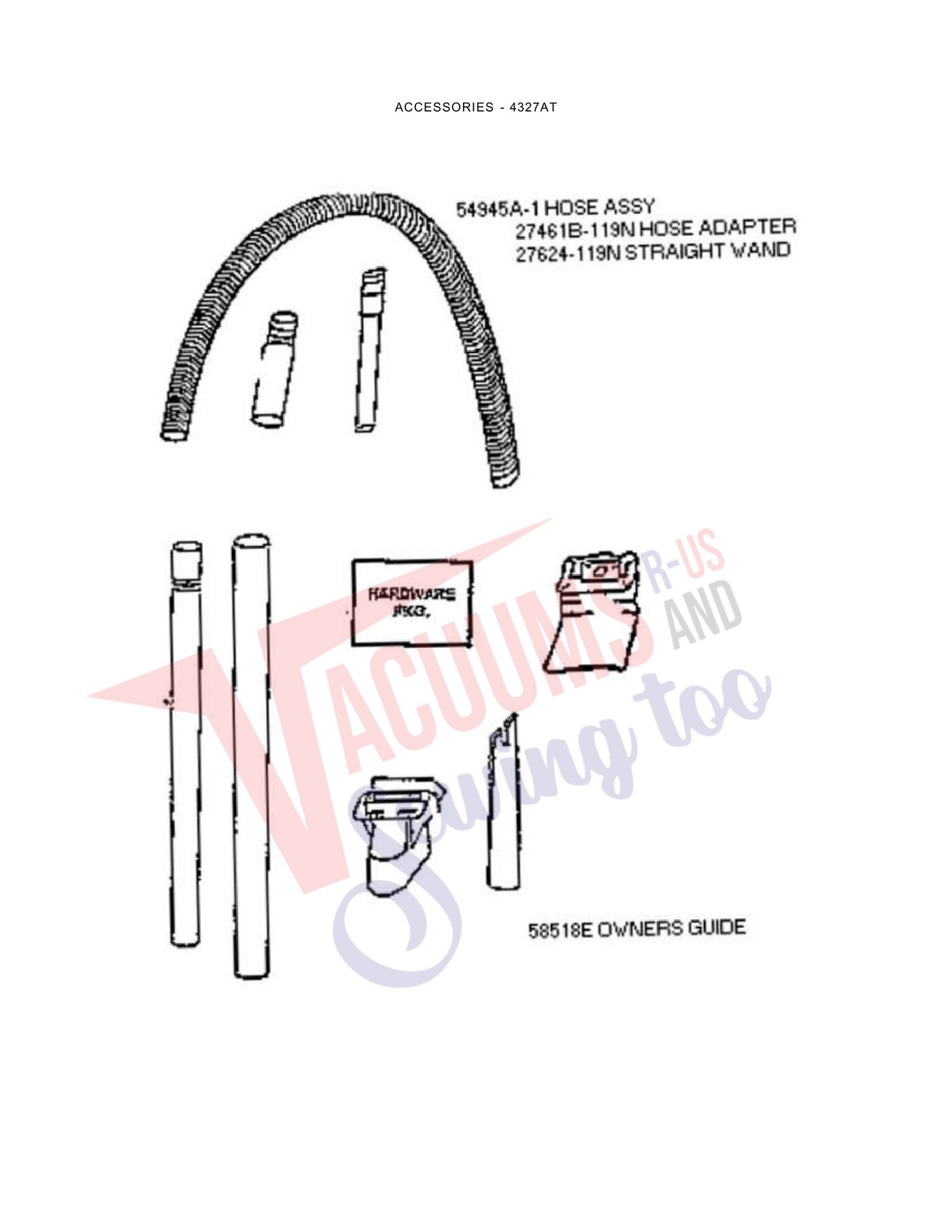

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WAND-STRAIGNT | 13104-4 | Not Available |
| 2 | Not Available | B-119N ADAPTER - HOSE | 27461 | Not Available |
| 3 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | TOOL - CREVICE | 54780 | Not Available |
| 5 | Not Available | COMBINATION TOOL - PACKAG | 54784 | Not Available |
| 6 | Not Available | HOSE ASSY(SUB 54945A-2) | 54945A-1 | Not Available |
| 7 | Not Available | PAPER BAG PKG ASSY (STYLE | 58236 | Not Available |
