Schematic and parts book for Eureka 4325AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

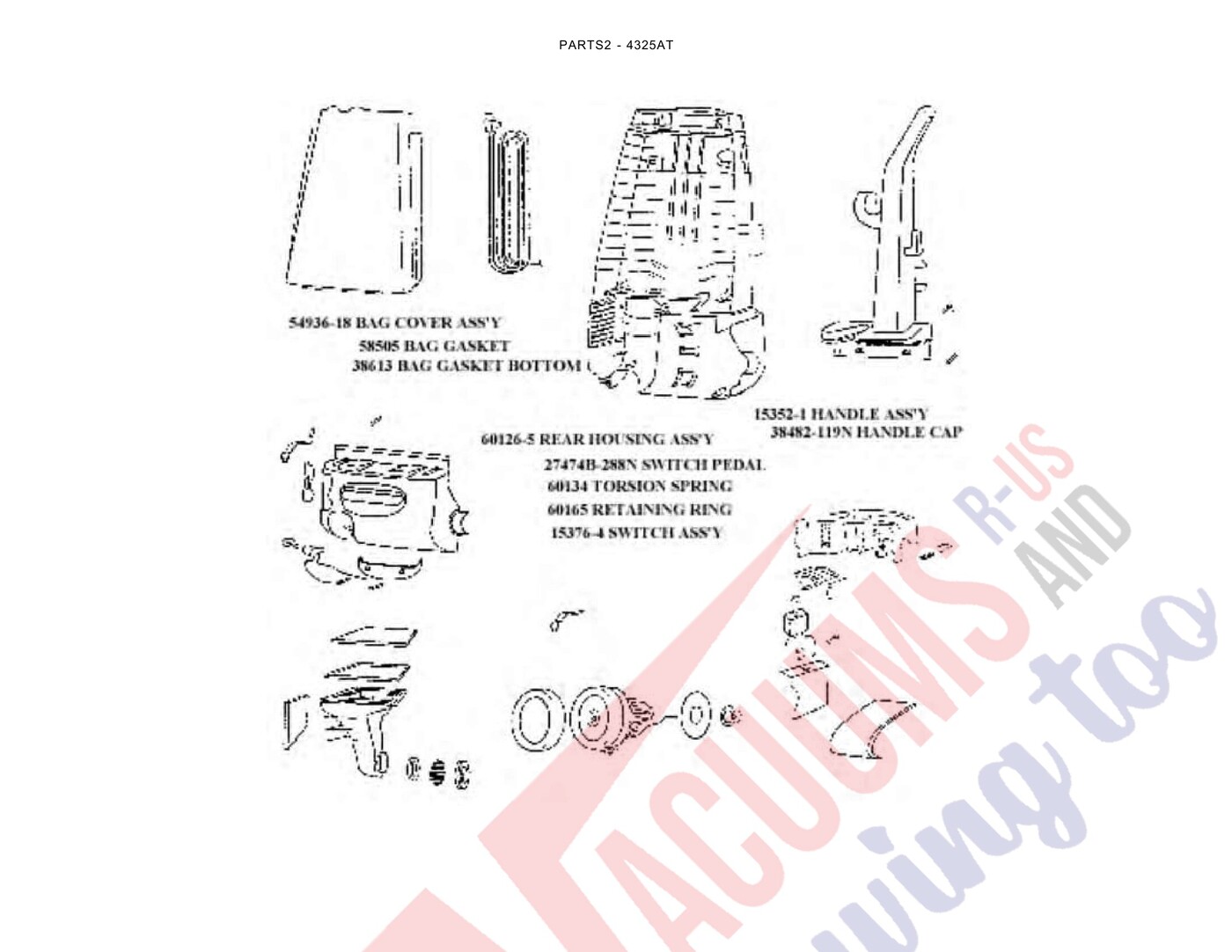

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CADDY - TOOL | 02093-288N | Not Available |
| 2 | Not Available | HANDLE & CAP ASSEMBLY | 15352-1 | Not Available |
| 3 | Not Available | SWITCH ASSEMBLY | 15376-4 | Not Available |
| 4 | Not Available | SWITCH - BUTTON | 27474B-288N | Not Available |
| 5 | Not Available | GASKET (NLA) | 27962 | Not Available |
| 6 | Not Available | CLAMP | 38420-2 | Not Available |
| 7 | Not Available | FILTER - SECONDARY(use 39334) | 38469 | Not Available |
| 8 | Not Available | CAP - HANDLE | 38482-119N | Not Available |
| 9 | Not Available | GASKET | 38613 | Not Available |
| 10 | Not Available | EXHAUST - FILTER | 38614 | Not Available |
| 11 | Not Available | MOTOR INTAKE FLANGE (NLA) | 38638 | Not Available |
| 12 | Not Available | FOAM - SOUND | 38661 | Not Available |
| 13 | Not Available | MOTOR INTAKE GASKET | 38663 | Not Available |
| 14 | Not Available | PLUNGER | 38678-119N | Not Available |
| 15 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-6 | Not Available |
| 16 | Not Available | MOTOR SHIELD | 38688 | Not Available |
| 17 | Not Available | SHIELD - REAR HOUSING | 38689-2 | Not Available |
| 18 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 19 | Not Available | BAG COVER ASSY - PACKAGED | 54936-18 | Not Available |
| 20 | Not Available | SPRING | 55794 | Not Available |
| 21 | Not Available | GASKET - BAG COVER | 58505 | Not Available |
| 22 | Not Available | AIR DUCT & GASKET ASSY | 58725 | Not Available |
| 23 | Not Available | REAR HOUSING - PACKAGED | 60126-5 | Not Available |
| 24 | Not Available | TORS SPRING PKG | 60134 | Not Available |
| 25 | Not Available | RETAINING RING PKG | 60165 | Not Available |
| 26 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | MOTOR ASSEMBLY - PACKAGED | 60261-2 | Not Available |
| 28 | Not Available | MOTOR COVER ASSEMBLY - PK | 60294-1 | Not Available |
| # | Part image | Description | SKU | Price |

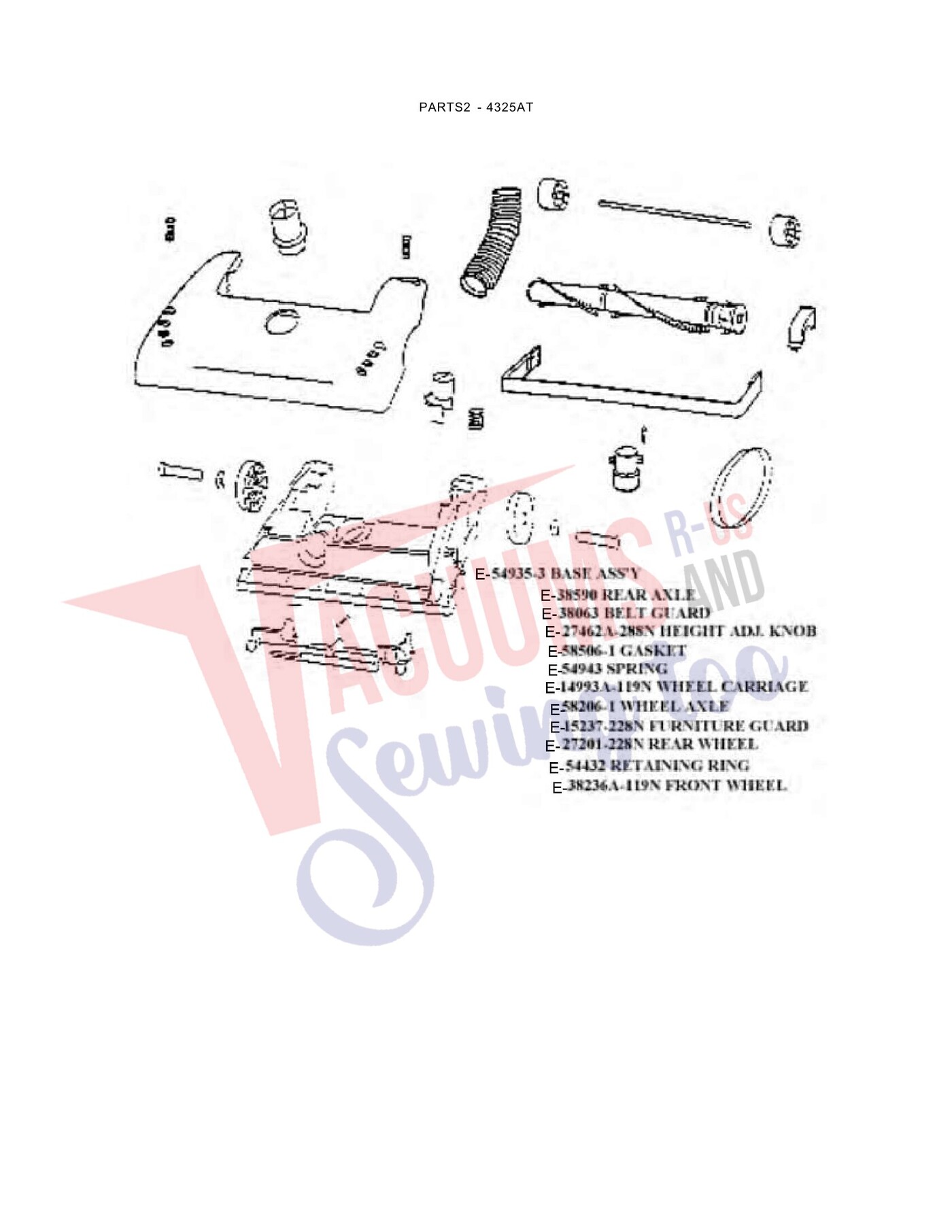

| 1 | Not Available | CARRIAGE - WHEEL | 14993A-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE (12") | 15237-288N | Not Available |
| 3 | Not Available | WHEEL-REAR PEPPERCORN | 27201-288N | Not Available |
| 4 | Not Available | OPERATOR - HEIGHT ADJUSTM | 27462A-288N | Not Available |
| 5 | Not Available | RELEASE - HANDLE | 27467-288N | Not Available |
| 6 | Not Available | CUFF-HOSE(SUB 27468B-119N) | 27468A-119N | Not Available |
| 7 | Not Available | GUARD - BELT | 38063 | Not Available |
| 8 | Not Available | WHEEL - FRONT | 38236A-119N | Not Available |
| 9 | Not Available | Discontinued use 38479-2 | 38479-1 | Not Available |
| 10 | Not Available | AXLE - REAR | 38590 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 12 | Not Available | BELTS BRAVO U PAK | 54312 | Not Available |
| 13 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 14 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 15 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | HOOD ASSEMBLY - PACKAGED | 54933-1 | Not Available |
| 17 | Not Available | BASE ASSEMBLY - CARTONED | 54935-3 | Not Available |
| 18 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 20 | Not Available | GASKET | 58506-1 | Not Available |
| 21 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 22 | Not Available | 12" DISTURBULATOR ASSY - | 60251-1 | Not Available |
| # | Part image | Description | SKU | Price |

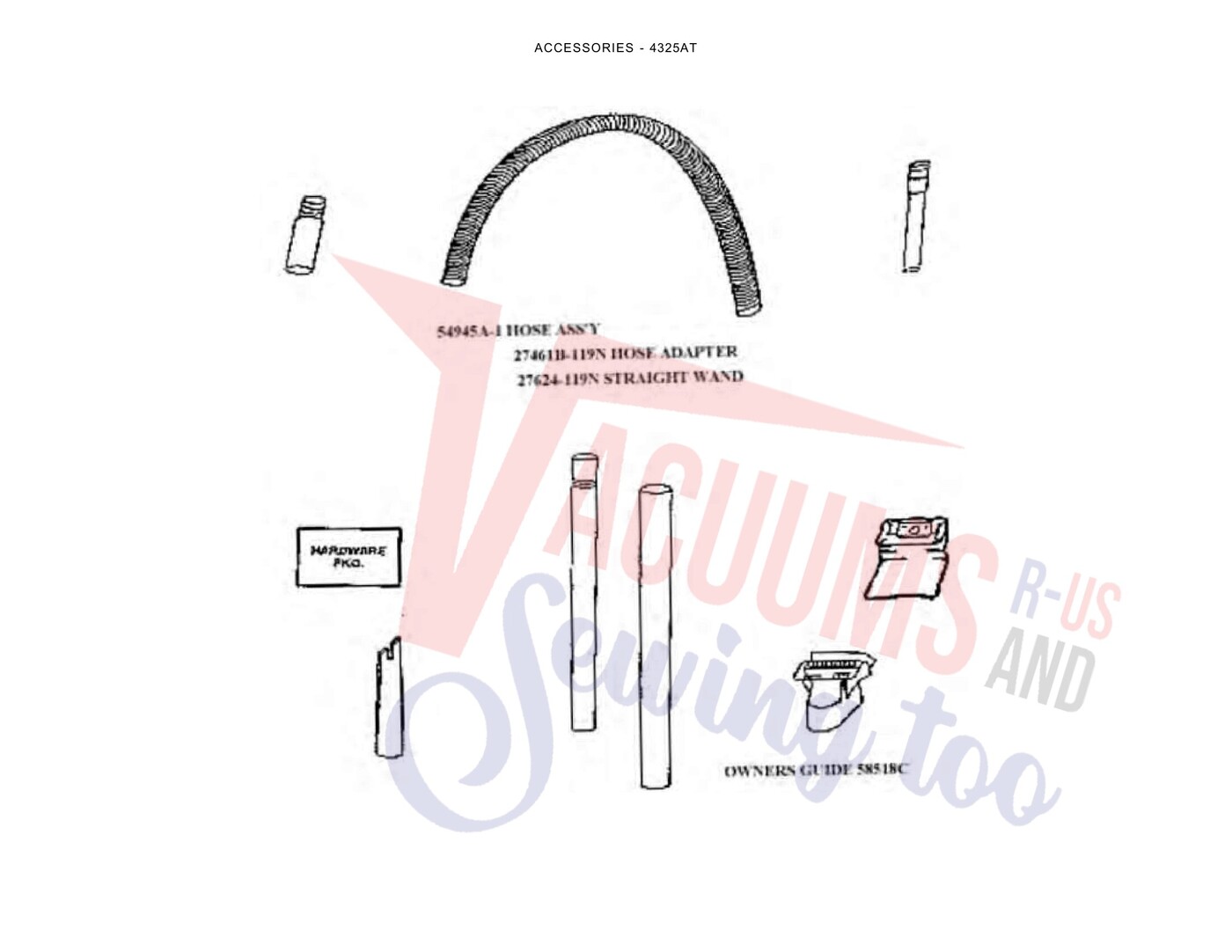

| 1 | Not Available | WAND-STRAIGNT | 13104-4 | Not Available |
| 2 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $4.76Read more |
| 3 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | TOOL - CREVICE | 54780 | Not Available |
| 5 | Not Available | COMBINATION TOOL - PACKAG | 54784 | Not Available |
| 6 | Not Available | HOSE ASSY(SUB 54945A-2) | 54945A-1 | Not Available |
| 7 | Not Available | PAPER BAG PKG ASSY (STYLE | 58236 | Not Available |
