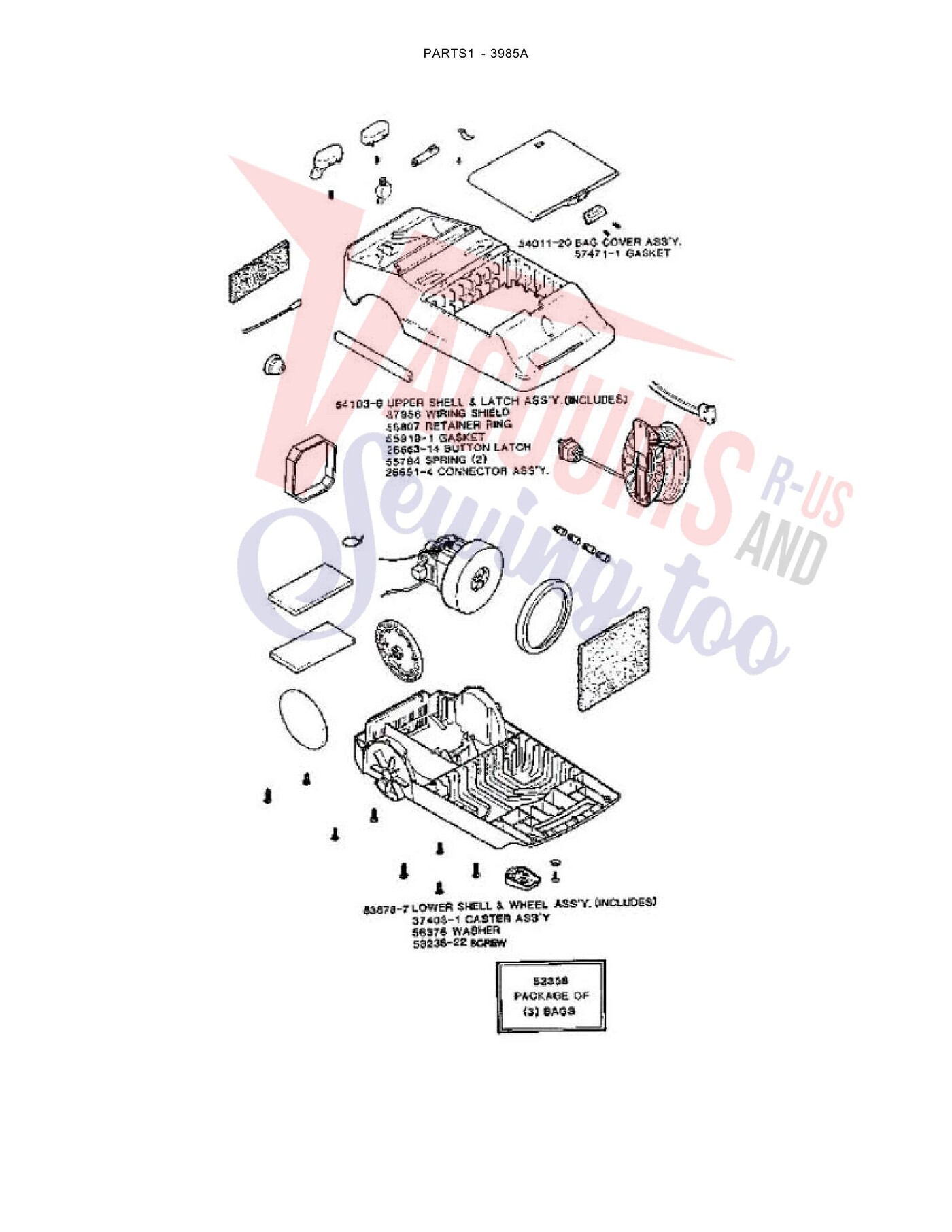

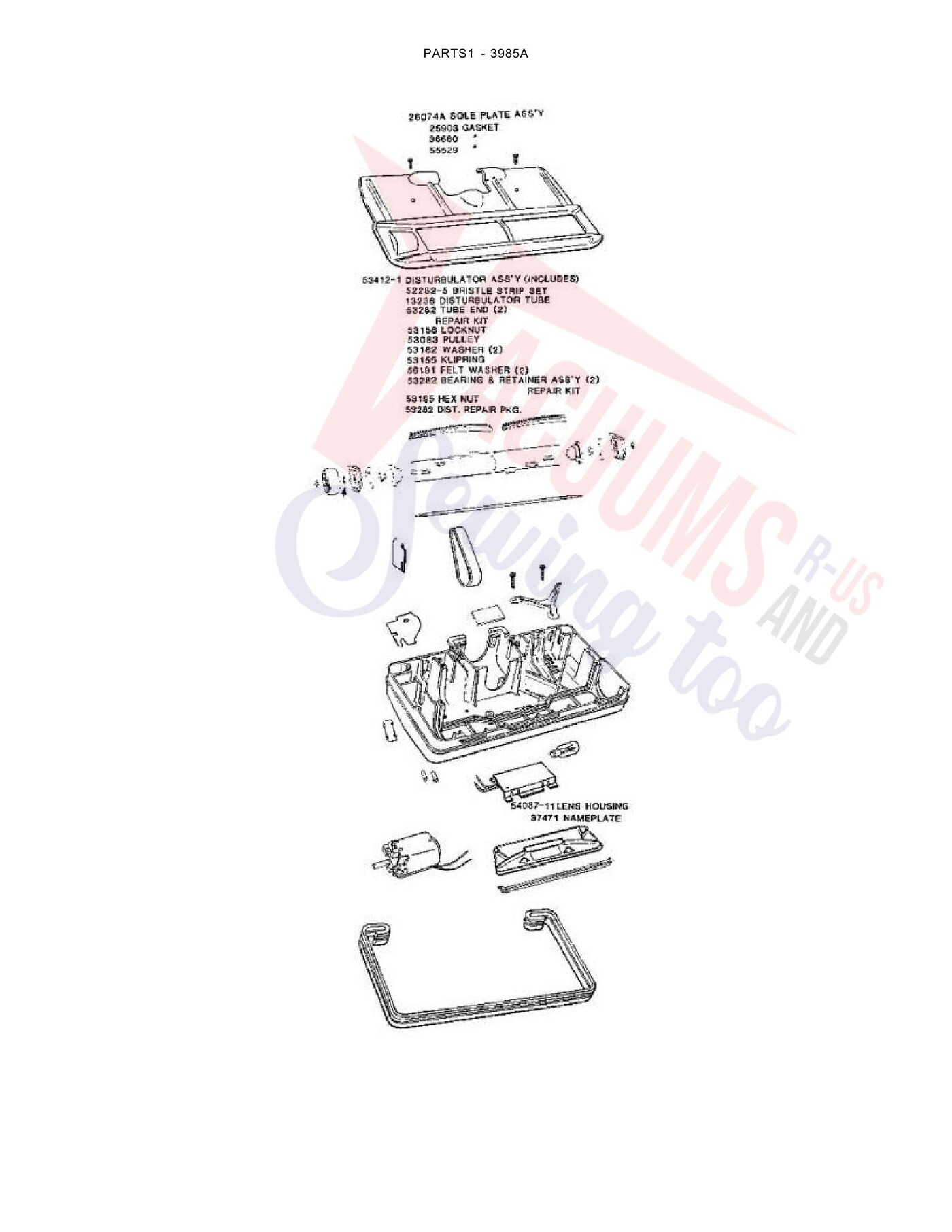

Schematic and parts book for Eureka 3985A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WHEEL - REAR | 26440-22 | Not Available |
| 2 | Not Available | BUTTON - SWITCH | 26649A-13 | Not Available |
| 3 | Not Available | BUTTON - CORD REEL | 26650-7 | Not Available |
| 4 | Not Available | CONNECTOR ASSY (26651 -3 | 26651-4 | Not Available |
| 5 | Not Available | BUTTON - LATCH | 26653-14 | Not Available |
| 6 | Not Available | GASKET - MOTOR MOUNTING | 26715 | Not Available |
| 7 | Not Available | CASTER | 37403-1 | Not Available |
| 8 | Not Available | FILTER-MOTOR | 37657 | Not Available |
| 9 | Not Available | Discontinued use 37710- (NLA) | 37710 | Not Available |
| 10 | Not Available | BAG INDICATOR ASSY | 37761-1 | Not Available |
| 11 | Not Available | CORD GUIDE (NLA) | 37781-1 | Not Available |
| 12 | Not Available | SOUND FOAM | 37966 | Not Available |
| 13 |  | Type V Eureka Replacement Bag Paper 3pk | 836301001541 | $6.99Add to cart |
| 14 | Not Available | TIE - CABLE (PURCHASED) | 53141 | Not Available |
| 15 | Not Available | SCREWS-PKG 10 (55372-1 | 53197-1 | Not Available |
| 16 | Not Available | Discontinued use 60192- (NLA) | 53214-2 | Not Available |
| 17 | Not Available | SCREW PKG (EW312-6T5Z | 53238-1 | Not Available |
| 18 | Not Available | SCREW PACKAGE | 53238-22 | Not Available |
| 19 | Not Available | MOTOR ASSY -CTND | 54292 | Not Available |
| 20 | Not Available | NUT - SWITCH (155437) | 55446 | Not Available |
| 21 | No Image | GASKET, MIGHTY MITE Part Number: 55463 for Eureka | 55463 | $5.09Read more |
| 22 | Not Available | SPRING | 55794 | Not Available |
| 23 | Not Available | SHELL GASKET use 58853-1 (NLA) | 55919-1 | Not Available |
| 24 | Not Available | WIRE TUBE (NLA) | 56326-1 | Not Available |
| 25 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 26 | Not Available | Discontinued use 56750- (NLA) | 56750 | Not Available |
| 27 | Not Available | Discontinued use 57471- (NLA) | 57471-1 | Not Available |
| 28 | Not Available | THERMOSTAT | 57580 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | use 13236-3 (NLA) | 13236 | Not Available |
| 2 | Not Available | GASKET - SOLE PLATE (NLA) | 25903 | Not Available |
| 3 | Not Available | WINDOW - BELT (155410) | 26028-1 | Not Available |
| 4 | Not Available | LENS | 26047 | Not Available |
| 5 | Not Available | GASKET - SOLE PLATE (NLA) | 36660 | Not Available |
| 6 | Not Available | COVER - GROUNDING (NLA) | 36954A | Not Available |
| 7 | Not Available | POWER HD LAMP ASSY | 37859-1 | Not Available |
| 8 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 9 | Not Available | GUARD-BELT (NLA) | 49110A | Not Available |
| 10 | Not Available | BELT PACKAGE ASSY - STYLE | 52201A | Not Available |
| 11 | Not Available | BRISTLE STRIP PACKAGE | 52282-5 | Not Available |
| 12 | Not Available | KLIPRING PACKAGE | 53155 | Not Available |
| 13 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | WASHER PACKAGE | 53182 | Not Available |
| 15 | Not Available | NUTS-HEX PACKAGE | 53195 | Not Available |
| 16 | Not Available | Discontinued use 60192- (NLA) | 53214-2 | Not Available |
| 17 | Not Available | SCREW PKG | 53238-20 | Not Available |
| 18 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |
| 19 | Not Available | DIST.REPAIR KIT( (53526 | 53282 | Not Available |
| 20 | Not Available | DISTURBULATOR ASSY - CRTN | 53412-1 | Not Available |
| 21 | Not Available | POWERHEAD MOTOR (155406) | 53419-1 | Not Available |
| 22 | Not Available | LENS HOUSING & GRAPHICS - | 54087-11 | Not Available |
| 23 | Not Available | HOUISNG & GRAPHICS ASSY - | 54090-11 | Not Available |
| 24 | Not Available | FELT WASHER (NLA) | 56191 | Not Available |

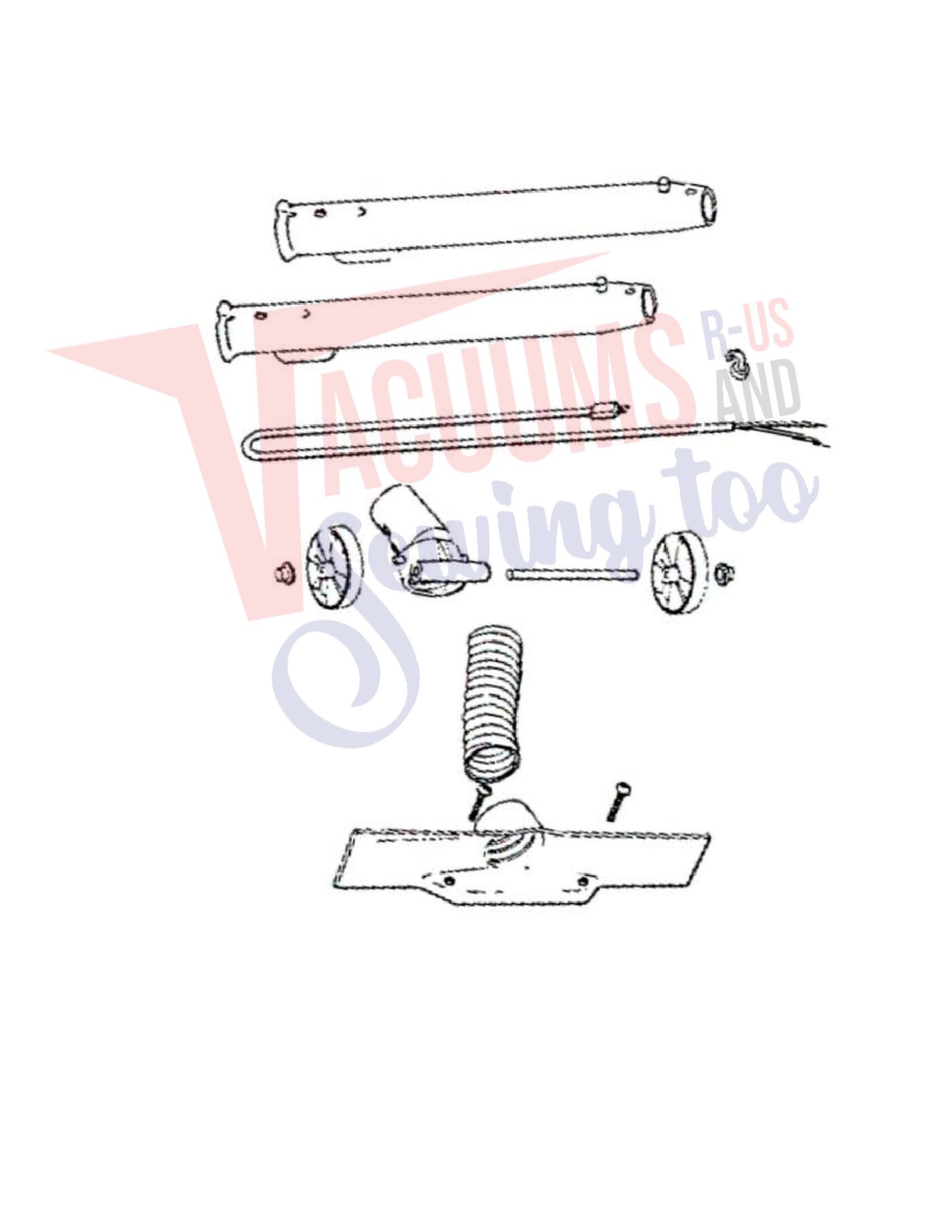

| # | Part image | Description | SKU | Price |
| 1 | Not Available | INLET DIVIDER (155310) | 12578B-1 | Not Available |
| 2 | Not Available | HOSE use 25789-2 (NLA) | 25789-1 | Not Available |
| 3 | Not Available | POLARIZED CORD & PLUG AS (NLA) | 35970-13 | Not Available |
| 4 | Not Available | WHEEL - BLACK | 36555-3 | Not Available |
| 5 | Not Available | HANDLE SOCKET ASSY | 36769-13 | Not Available |
| 6 | Not Available | STRAIGHT WAND ASSEMBLY | 36879-3 | Not Available |
| 7 | Not Available | AXLE - WHEEL (155314) | 48334 | Not Available |
| 8 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 9 | Not Available | AXLE BEARING PK (55505 (NLA) | 53200 | Not Available |
| 10 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |

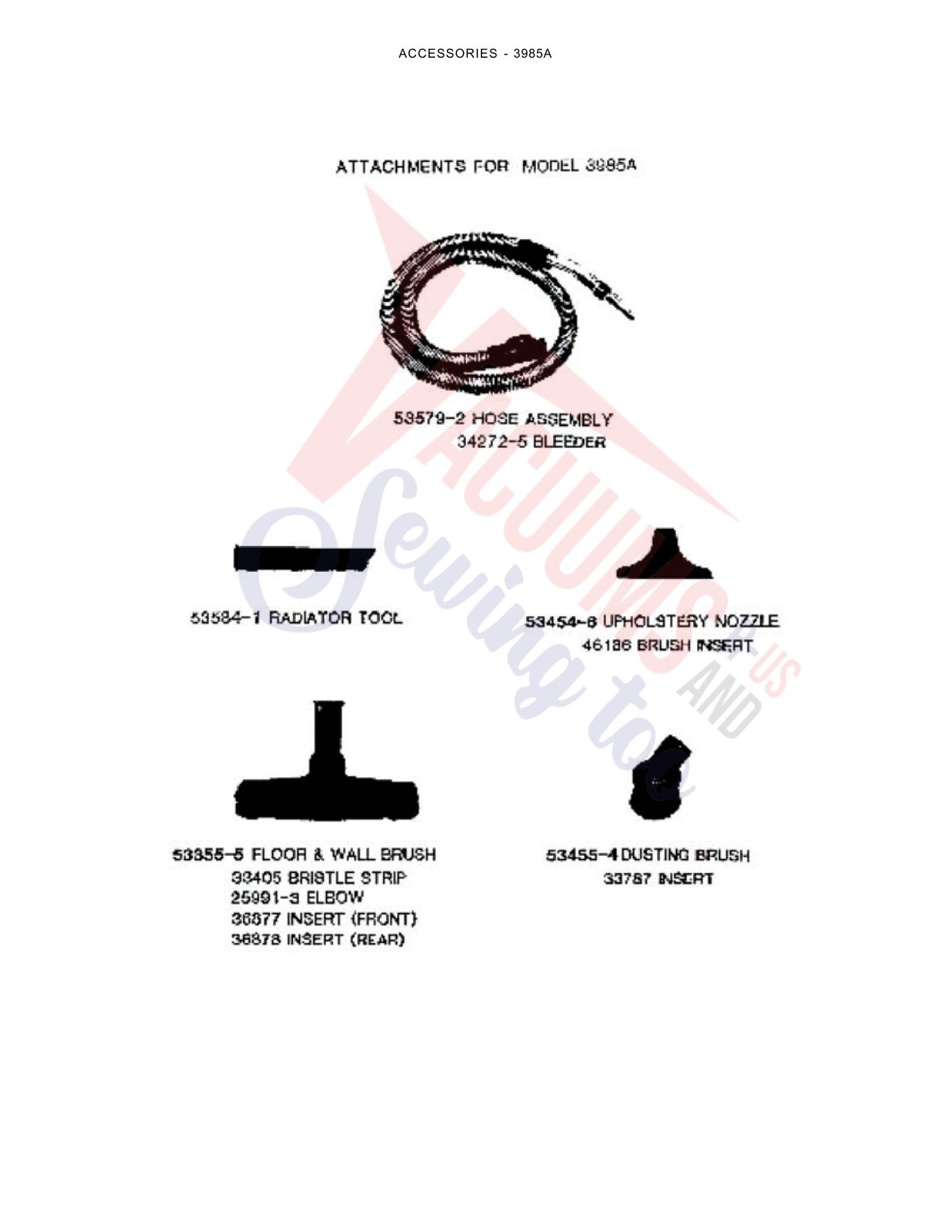

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ELBOW | 25991-3 | Not Available |
| 2 | Not Available | BR STRIP-FL & WALL BRUSH | 33405 | Not Available |
| 3 | No Image | BOLT 99672/PAS17BA | 33787 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | BLEEDER | 34272-5 | Not Available |
| 5 | Not Available | INSERT-FLOOR & WALL BRUSH | 36877 | Not Available |
| 6 | Not Available | INSERT-FLOOR & WALL BRUSH | 36878 | Not Available |
| 7 | Not Available | BRUSH (NLA) | 46186 | Not Available |
| 8 | Not Available | FLOOR & WL BRUSH & ELBOW- | 53355-5 | Not Available |
| 9 | Not Available | UPHOLSTERY NOZZLE ASSY - | 53454-6 | Not Available |
| 10 | Not Available | DUSTING BRUSH - PACKAGED | 53455-4 | Not Available |
| 11 | Not Available | HOSE ASSY | 53579-2 | Not Available |
| 12 | No Image | CREVICE TOOL, 3985A Part Number: 53584-1 for Eureka | 535841 | $7.51Read more |
