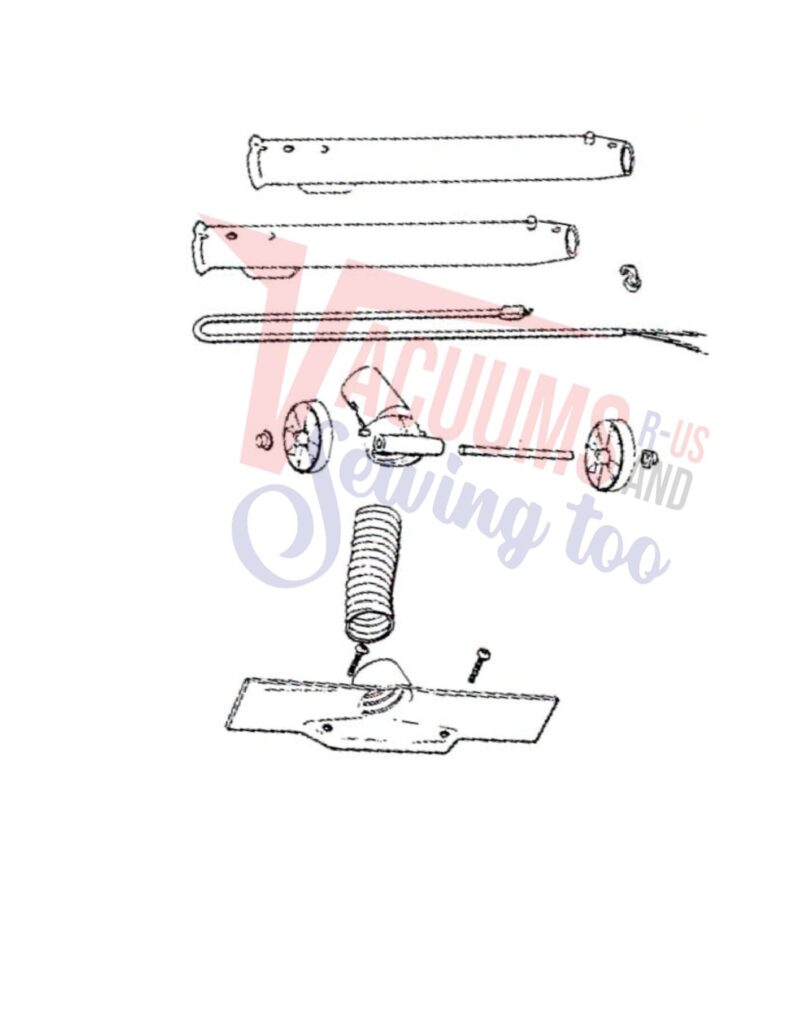

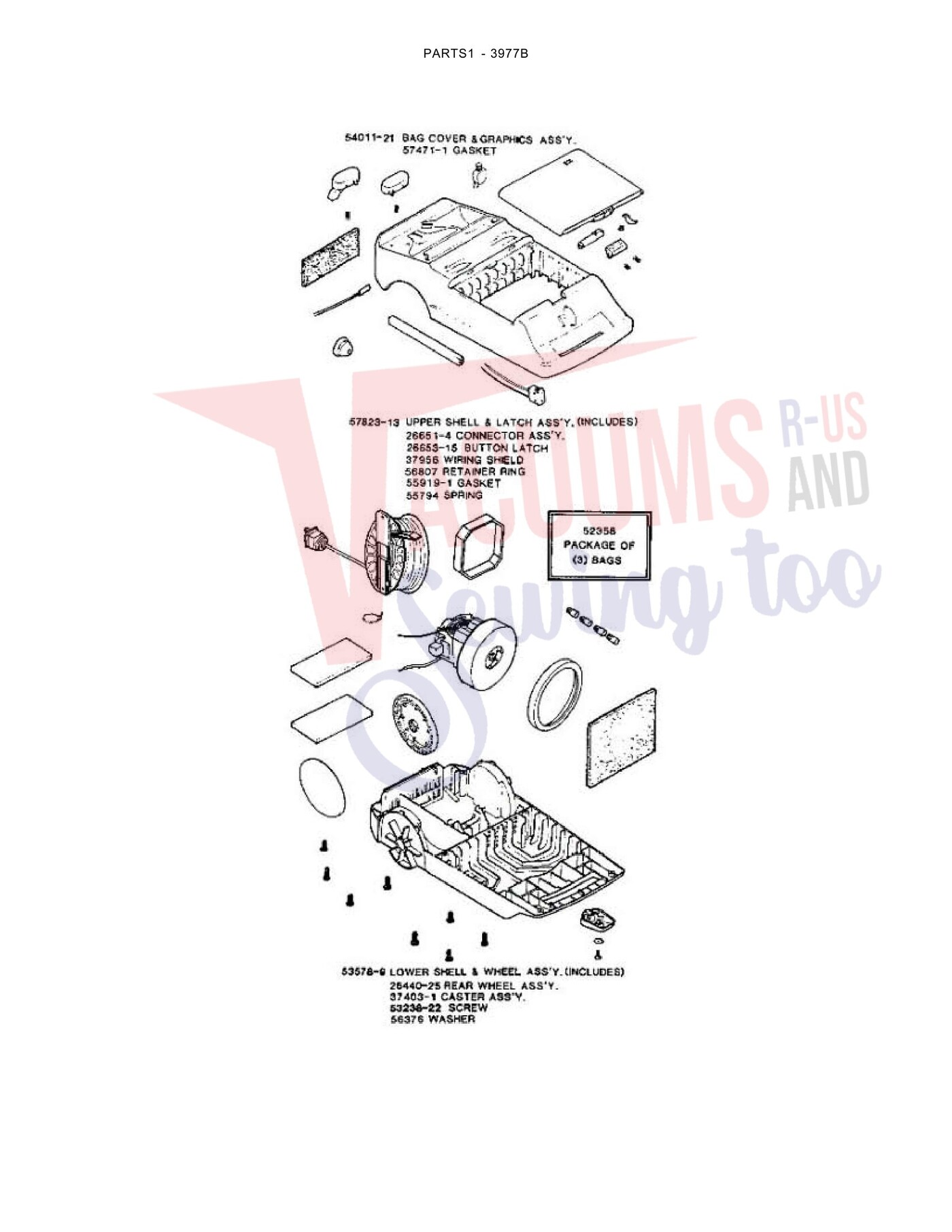

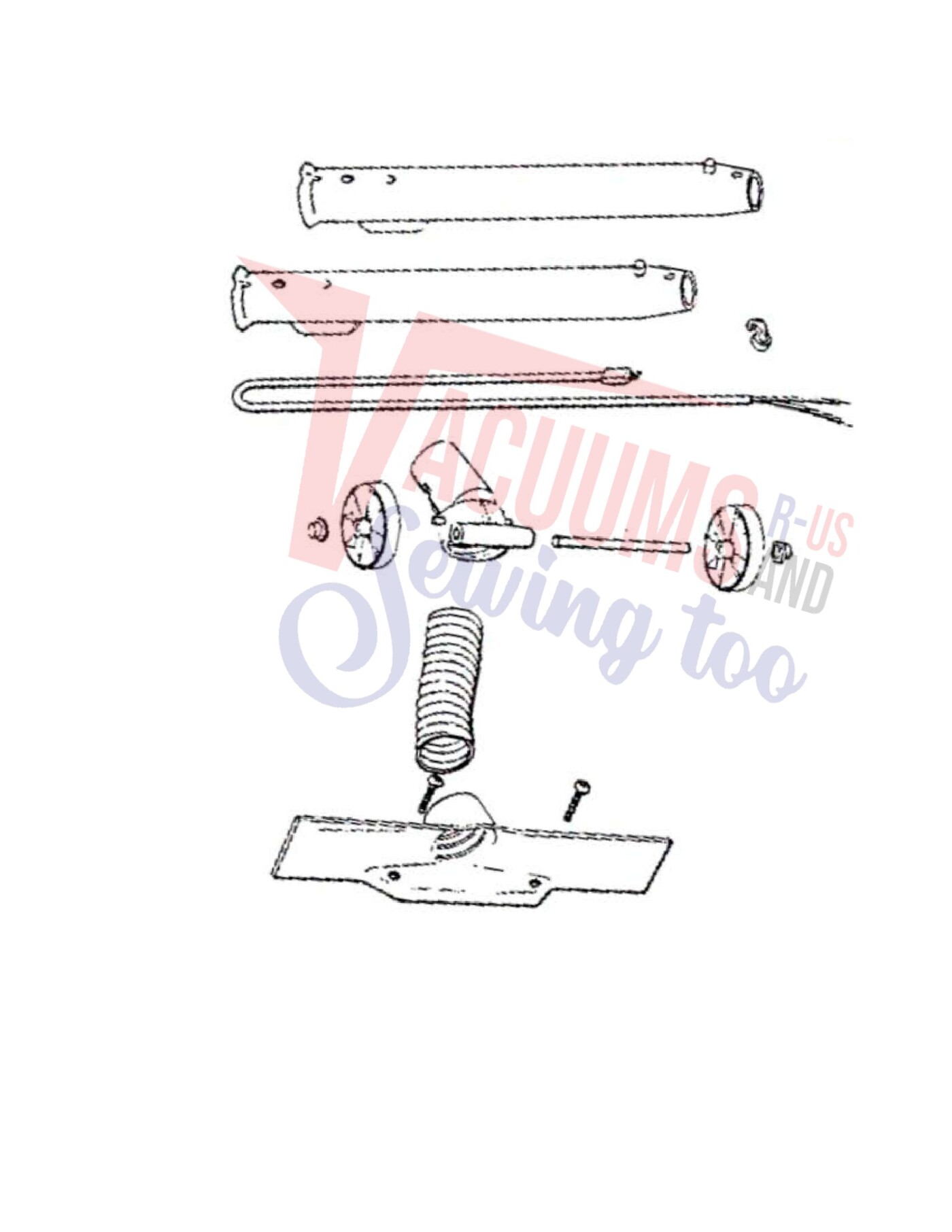

Schematic and parts book for Eureka 3977B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | CORD REEL, 3975B EXPRESS Part Number: 14656-5 for Eureka | 146565 | $94.82Read more |
| 2 | Not Available | WHEEL-REAR-BLACK | 26440-25 | Not Available |
| 3 | Not Available | BUTTON SW (26649A-18 | 26649A-14 | Not Available |
| 4 | Not Available | CORD REEL BUTTON (26650-9 | 26650-8 | Not Available |
| 5 | Not Available | CONNECTOR ASSY (26651 -3 | 26651-4 | Not Available |
| 6 | Not Available | BTN-LATCH-BLK (26653-4 | 26653-15 | Not Available |
| 7 | Not Available | GASKET - MOTOR MOUNTING | 26715 | Not Available |
| 8 | Not Available | SWITCH PUSH | 36341-2 | Not Available |
| 9 | Not Available | CASTER | 37403-1 | Not Available |
| 10 | Not Available | FILTER-MOTOR | 37657 | Not Available |
| 11 | Not Available | Discontinued use 37710-1 | 37710 | Not Available |
| 12 | Not Available | BAG INDICATOR ASSY | 37761-1 | Not Available |
| 13 | Not Available | CORD GUIDE (NLA) | 37781-1 | Not Available |
| 14 | Not Available | SOUND FOAM | 37966 | Not Available |
| 15 |  | Type V Eureka Replacement Bag Paper 3pk | 836301001541 | $6.99Add to cart |
| 16 | Not Available | TIE - CABLE (PURCHASED) | 53141 | Not Available |
| 17 | Not Available | SCREWS-PKG 10 (55372-1 | 53197-1 | Not Available |
| 18 | Not Available | Discontinued use 60192-1 | 53214-2 | Not Available |
| 19 | Not Available | SCREW PKG (EW312-6T5Z | 53238-1 | Not Available |
| 20 | Not Available | SCREW PACKAGE | 53238-22 | Not Available |
| 21 | Not Available | MOTOR ASSEMBLY - PACKAGED | 53376 | Not Available |
| 22 | Not Available | NUT - SWITCH (155437) | 55446 | Not Available |
| 23 | Not Available | SPRING | 55794 | Not Available |
| 24 | Not Available | SHELL GASKET use 58853-1 | 55919-1 | Not Available |
| 25 | Not Available | THERMOSTAT | 56146 | Not Available |
| 26 | Not Available | WIRE TUBE (NLA) | 56326-1 | Not Available |
| 27 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 28 | Not Available | Discontinued use 56750-1 | 56750 | Not Available |
| 29 | Not Available | Discontinued use 57471-2 | 57471-1 | Not Available |

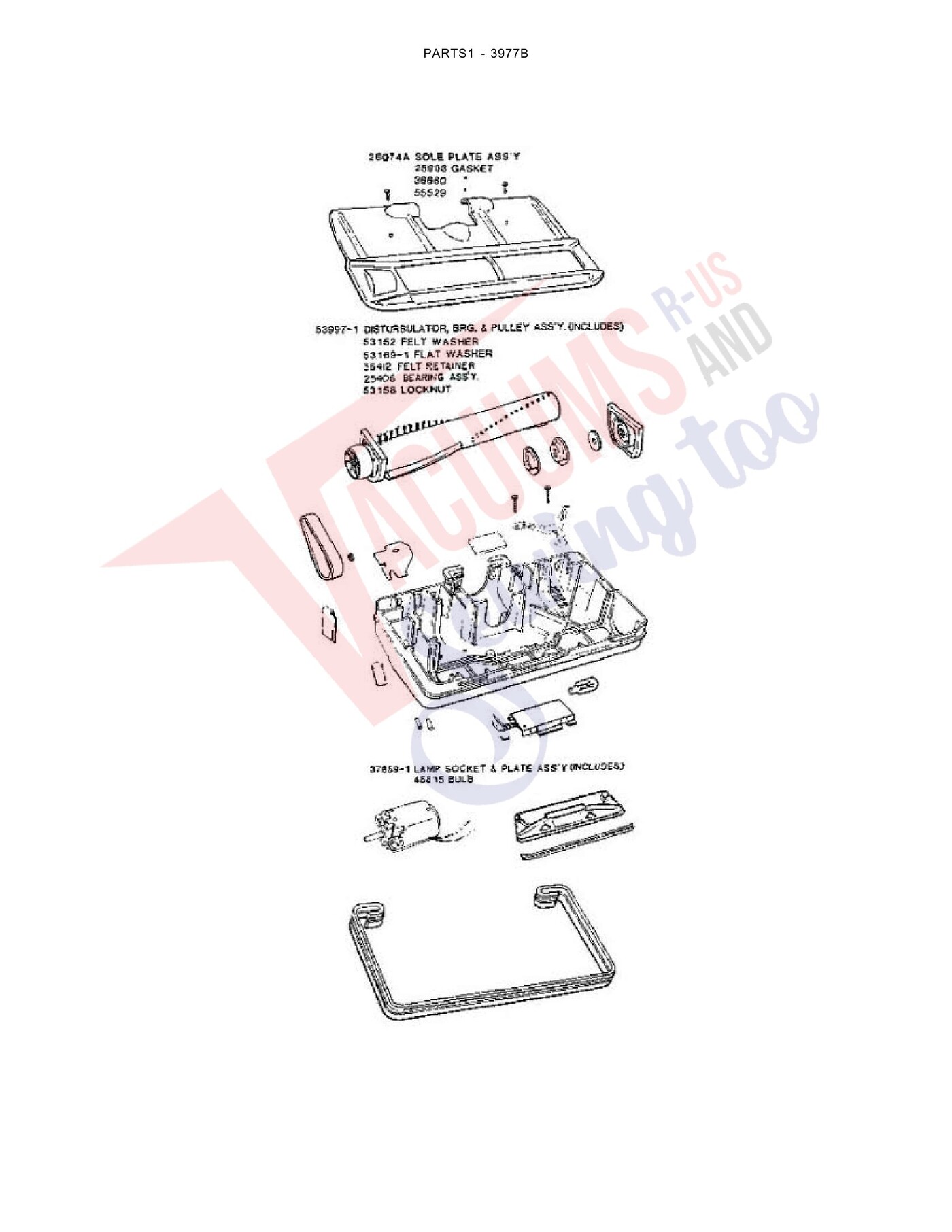

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DISTURBULATOR BRNG ASSY 155315 | 25406 | Not Available |
| 2 | Not Available | GASKET - SOLE PLATE (NLA) | 25903 | Not Available |
| 3 | Not Available | WINDOW - BELT (155410) | 26028-1 | Not Available |
| 4 | Not Available | LENS | 26047 | Not Available |
| 5 | Not Available | FURN GUARD 30 BRT WHITE (NLA) | 36237A-11 | Not Available |
| 6 | Not Available | RETAINER - FELT (NLA) | 36412 | Not Available |
| 7 | Not Available | GASKET - SOLE PLATE (NLA) | 36660 | Not Available |
| 8 | Not Available | COVER - GROUNDING (NLA) | 36954A | Not Available |
| 9 |  | Cleaner, Dry Carpet Pail 4Lbs Part Number: 37114 for Oreck | 37114 | $43.29Read more |
| 10 | Not Available | POWER HD LAMP ASSY | 37859-1 | Not Available |
| 11 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 12 | Not Available | GUARD-BELT (NLA) | 49110A | Not Available |
| 13 | Not Available | BELT PACKAGE ASSY - STYLE | 52201A | Not Available |
| 14 | Not Available | FELT WASHER PKG. | 53152 | Not Available |
| 15 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | WASHERS-PKG 10 (49591 | 53169-1 | Not Available |
| 17 | Not Available | Discontinued use 60192-1 | 53214-2 | Not Available |
| 18 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |
| 19 | Not Available | POWERHEAD MOTOR (155406) | 53419-1 | Not Available |
| 20 | Not Available | DISTR ASSY (155324) | 53997-1 | Not Available |
| 21 | Not Available | LENS HOUSING & GRAPHICS - | 54087-6 | Not Available |
| 22 | Not Available | HOUISNG & GRAPHICS ASSY - | 54090-6 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | INLET DIVIDER (155310) | 12578B-1 | Not Available |
| 2 | Not Available | HOSE | 25789-3 | Not Available |
| 3 | Not Available | POLARIZED CORD & PLUG ASS | 35970-13 | Not Available |
| 4 | Not Available | WHEEL - BLACK | 36555-3 | Not Available |
| 5 | Not Available | HDLE SOCKET ASY (NLA) (1 (NLA) | 36769-10 | Not Available |
| 6 | Not Available | STRAIGHT WAND ASSEMBLY | 36879-3 | Not Available |
| 7 | Not Available | AXLE - WHEEL (155314) | 48334 | Not Available |
| 8 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 9 | Not Available | AXLE BEARING PK (55505 (NLA) | 53200 | Not Available |
| 10 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |

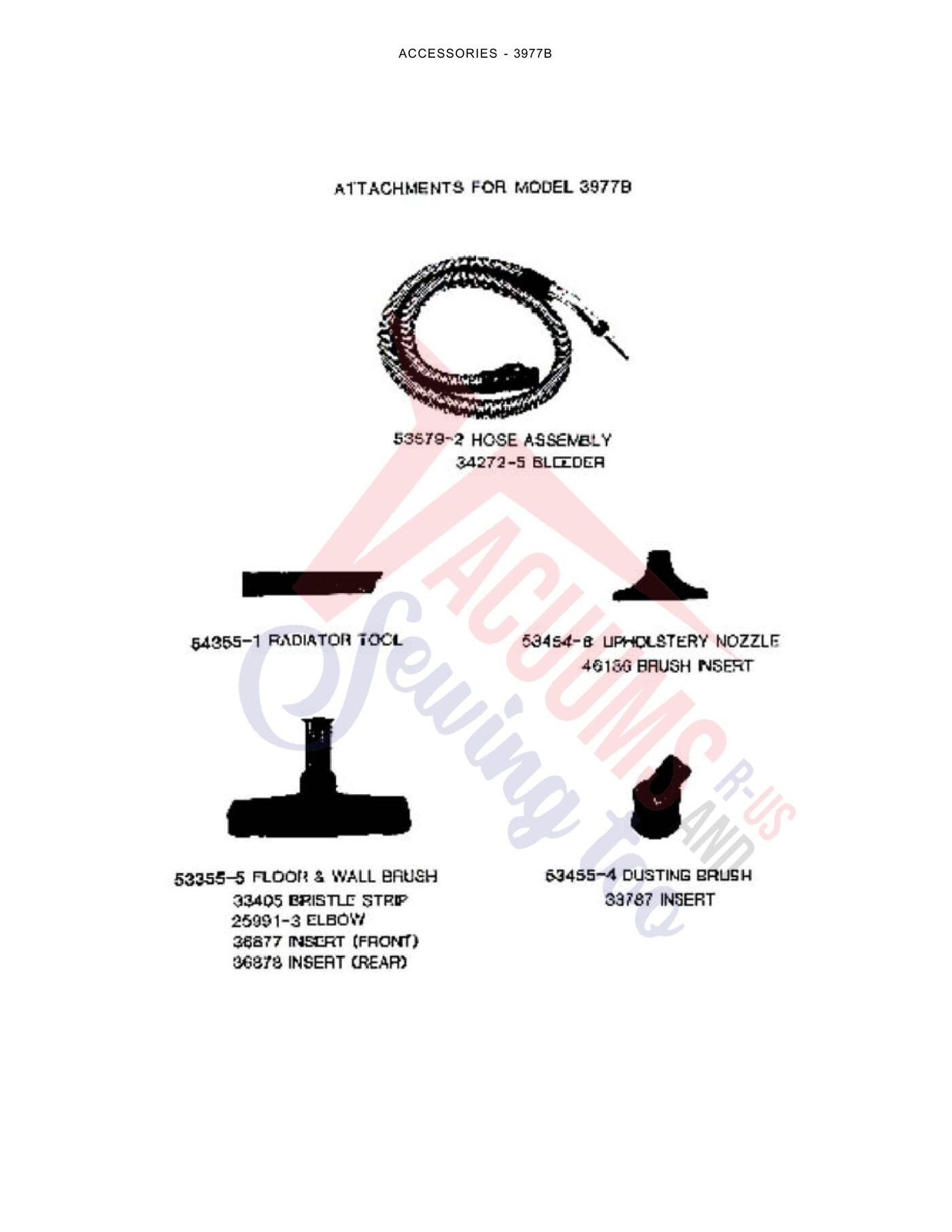

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ELBOW | 25991-3 | Not Available |
| 2 | Not Available | BR STRIP-FL & WALL BRUSH | 33405 | Not Available |
| 3 | No Image | BOLT 99672/PAS17BA | 33787 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | BLEEDER | 34272-5 | Not Available |
| 5 | Not Available | INSERT-FLOOR & WALL BRUSH | 36877 | Not Available |
| 6 | Not Available | INSERT-FLOOR & WALL BRUSH | 36878 | Not Available |
| 7 | Not Available | BRUSH (NLA) | 46186 | Not Available |
| 8 | Not Available | FLOOR & WL BRUSH & ELBOW- | 53355-5 | Not Available |
| 9 | Not Available | UPHOLSTERY NOZZLE ASSY - | 53454-6 | Not Available |
| 10 | Not Available | DUSTING BRUSH - PACKAGED | 53455-4 | Not Available |
| 11 | Not Available | HOSE ASSY | 53579-2 | Not Available |
| 12 | Not Available | TOOL - CREVICE | 54355-1 | Not Available |
