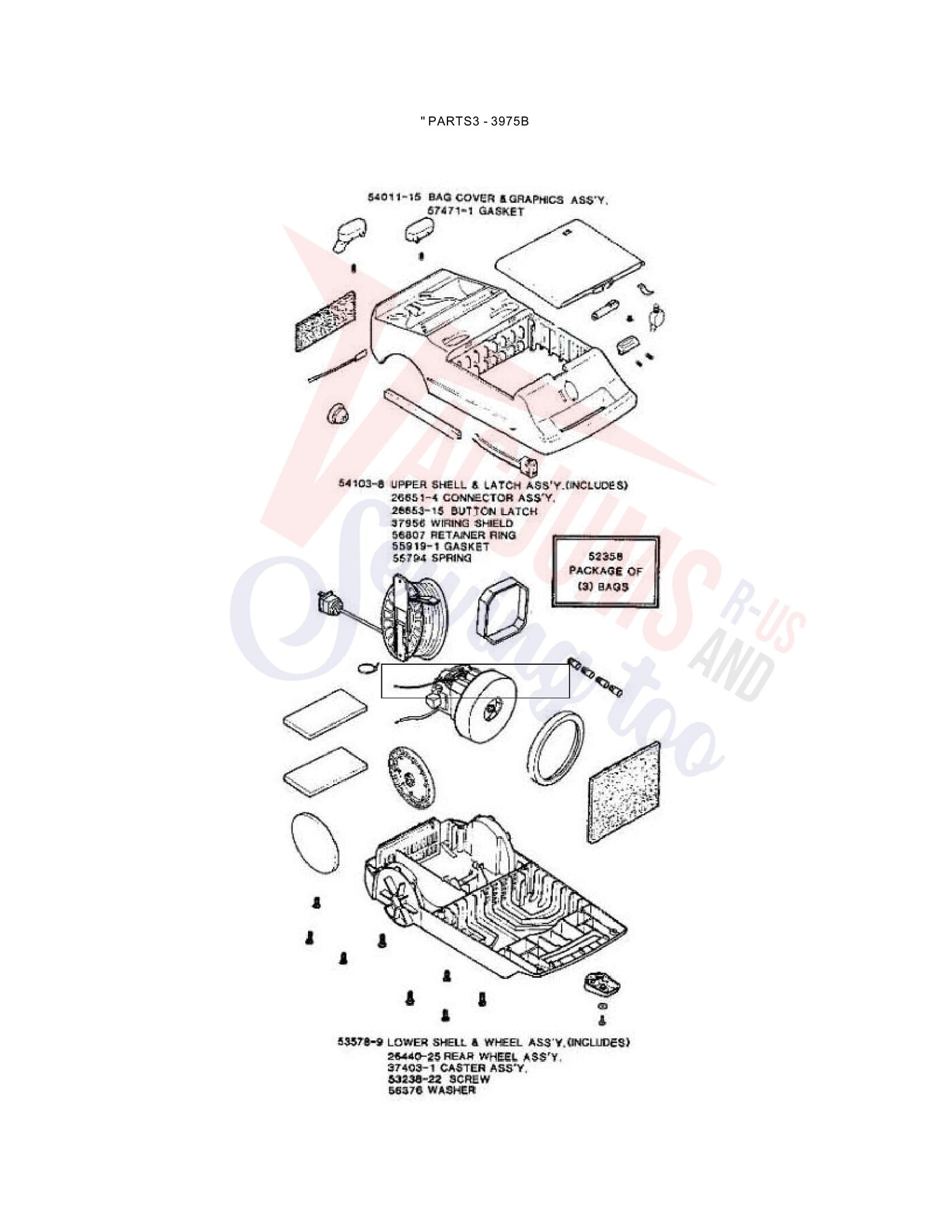

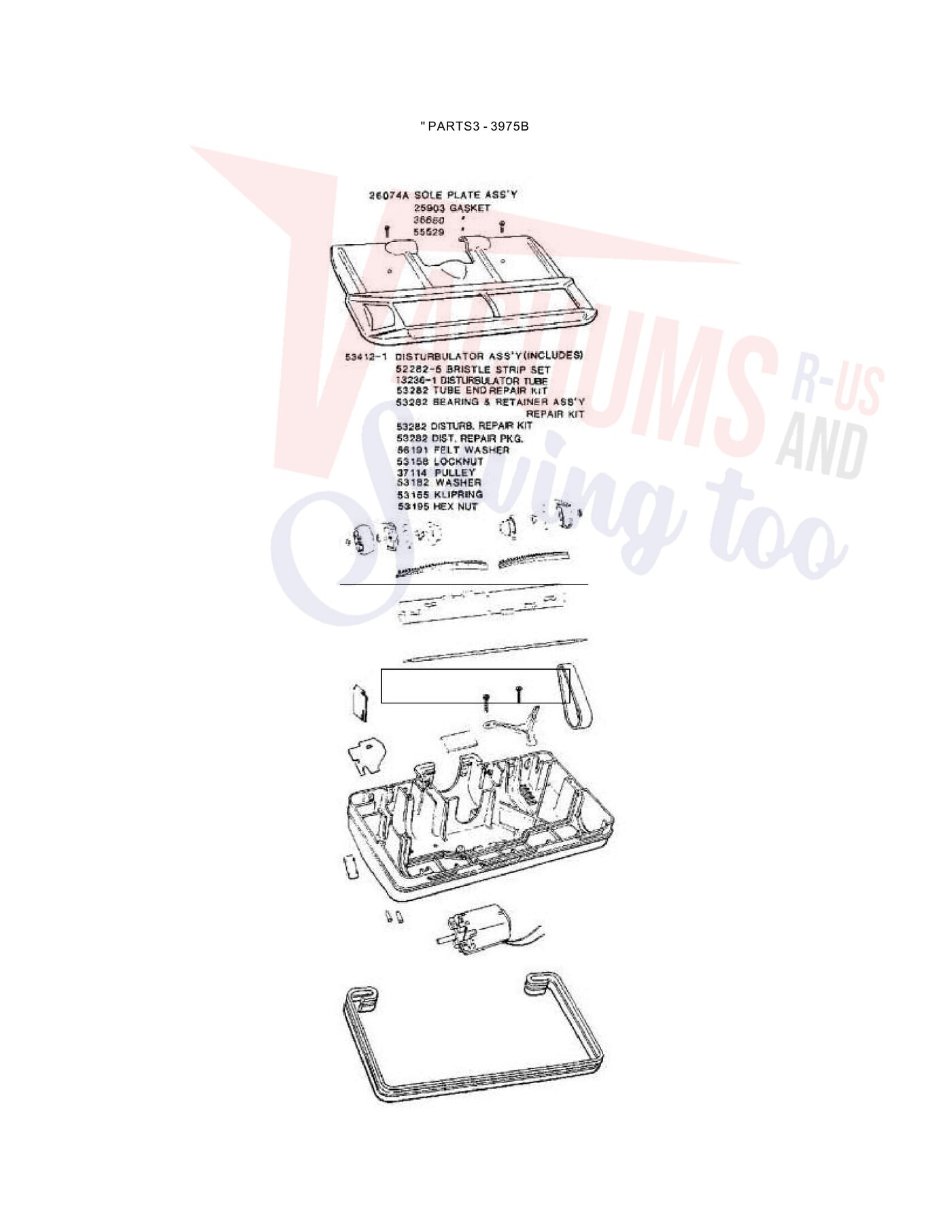

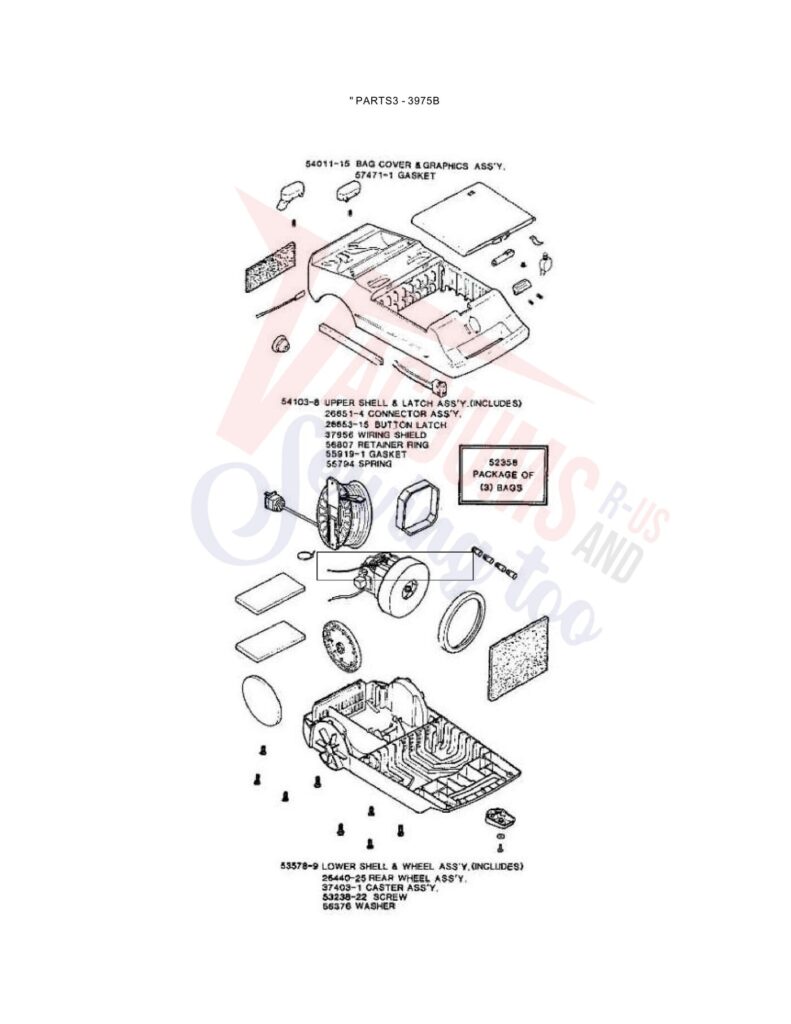

Schematic and parts book for Eureka 3975B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WHEEL - REAR | 26440-25 | Not Available |
| 2 | Not Available | BUTTON - SWITCH | 26649A-14 | Not Available |
| 3 | Not Available | BUTTON - CORD REEL | 26650-8 | Not Available |
| 4 | Not Available | CONNECTOR ASSEMBLY | 26651-4 | Not Available |
| 5 | Not Available | BUTTON - LATCH | 26653-15 | Not Available |
| 6 | Not Available | GASKET - MOTOR MOUNTING | 26715 | Not Available |
| 7 | Not Available | CASTER | 37403-1 | Not Available |
| 8 | Not Available | FILTER - MOTOR | 37657 | Not Available |
| 9 | Not Available | FILTER - EXHAUST | 37710 | Not Available |
| 10 | Not Available | BAG INDICATOR ASSEMBLY | 37761-1 | Not Available |
| 11 | Not Available | GUIDE - CORD | 37781-1 | Not Available |
| 12 | Not Available | SOUND FOAM | 37966 | Not Available |
| 13 |  | Type V Eureka Replacement Bag Paper 3pk | 836301001541 | $6.99Add to cart |
| 14 | Not Available | TIE - CABLE (PURCHASED) | 53141 | Not Available |
| 15 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 16 | Not Available | WIRE SPLICE | 53214-2 | Not Available |
| 17 | Not Available | SCREW PACKAGE | 53238-1 | Not Available |
| 18 | Not Available | SCREW PACKAGE | 53238-22 | Not Available |
| 19 | Not Available | MOTOR ASSEMBLY - PACKAGED | 53376 | Not Available |
| 20 | Not Available | NUT - SWITCH | 55446 | Not Available |
| 21 | No Image | GASKET, MIGHTY MITE Part Number: 55463 for Eureka | 55463 | $5.09Read more |
| 22 | Not Available | SPRING | 55794 | Not Available |
| 23 | Not Available | GASKET - SHELL | 55919-1 | Not Available |
| 24 | Not Available | THERMOSTAT | 56146 | Not Available |
| 25 | Not Available | TUBE - WIRE | 56326-1 | Not Available |
| 26 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 27 | Not Available | CLIP - BAG INDICATOR | 56750 | Not Available |
| 28 | Not Available | GASKET - SHELL | 57471-1 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | TUBE - DISTURBULATOR | 13236-1 | Not Available |
| 2 | Not Available | GASKET - SOLE PLATE | 25903 | Not Available |
| 3 | Not Available | WINDOW - BELT | 26028-1 | Not Available |
| 4 | Not Available | GUARD - FURNITURE | 36237A-13 | Not Available |
| 5 | Not Available | GASKET - SOLE PLATE | 36660 | Not Available |
| 6 | Not Available | COVER - GROUNDING | 36954A | Not Available |
| 7 |  | Cleaner, Dry Carpet Pail 4Lbs Part Number: 37114 for Oreck | 37114 | $43.29Read more |
| 8 | Not Available | GUARD - BELT | 49110A | Not Available |
| 9 | Not Available | BELT PKG ASSY (PH) | 52201A | Not Available |
| 10 | Not Available | BRISTLE STRIP PACKAGE | 52282-5 | Not Available |
| 11 | Not Available | KLIPRING PACKAGE | 53155 | Not Available |
| 12 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | WASHER PACKAGE | 53182 | Not Available |
| 14 | Not Available | NUT - HEX PACKAGE | 53195 | Not Available |
| 15 | Not Available | WIRE SPLICE | 53214-2 | Not Available |
| 16 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |
| 17 | Not Available | DISTURBULATOR REPAIR KIT | 53282 | Not Available |
| 18 | Not Available | DISTURBULATOR ASSY - CRTN | 53412-1 | Not Available |
| 19 | Not Available | MOTOR ASSEMBLY - CARTONED | 53419-1 | Not Available |
| 20 | Not Available | HOUSING & GRAPHICS ASSY - | 54039-6 | Not Available |
| 21 | Not Available | WASHER - FELT | 56191 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | INLET - DIVIDER | 12578B-1 | Not Available |
| 2 | Not Available | HOSE | 25789-3 | Not Available |
| 3 | Not Available | POLARIZED CORD & PLUG ASS | 35970-13 | Not Available |
| 4 | Not Available | WHEEL | 36555-3 | Not Available |
| 5 | Not Available | HANDLE SOCKET ASSY | 36769-9 | Not Available |
| 6 | Not Available | STRAIGHT WAND ASSEMBLY | 36879-3 | Not Available |
| 7 | Not Available | AXLE - WHEEL | 48334 | Not Available |
| 8 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 9 | Not Available | AXLE BEARINGS - PACKAGE | 53200 | Not Available |
| 10 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |

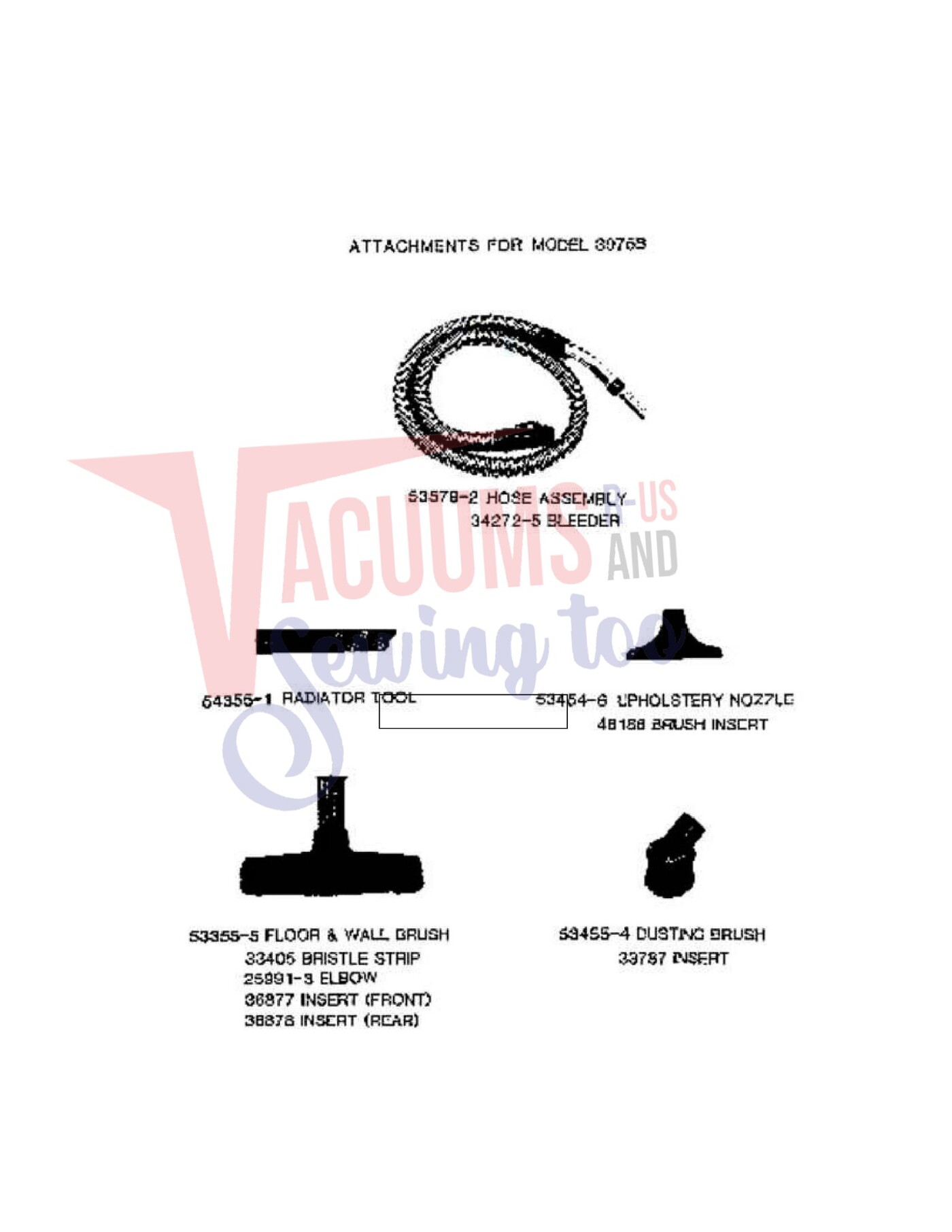

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ELBOW | 25991-3 | Not Available |
| 2 | Not Available | BRISTLE STRIP-FL & WALL B | 33405 | Not Available |
| 3 | No Image | BOLT 99672/PAS17BA | 33787 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | BLEEDER | 34272-5 | Not Available |
| 5 | Not Available | INSERT-FLOOR & WALL BRUSH | 36877 | Not Available |
| 6 | Not Available | INSERT-FLOOR & WALL BRUSH | 36878 | Not Available |
| 7 | Not Available | BRUSH | 46186 | Not Available |
| 8 | Not Available | FLOOR & WL BRUSH & ELBOW- | 53355-5 | Not Available |
| 9 | Not Available | UPHOLSTERY NOZZLE ASSY - | 53454-6 | Not Available |
| 10 | Not Available | DUSTING BRUSH - PACKAGED | 53455-4 | Not Available |
| 11 | Not Available | HOSE ASSEMBLY - CARTONED | 53579-2 | Not Available |
| 12 | Not Available | TOOL - CREVICE | 54355-1 | Not Available |
