Schematic and parts book for Eureka 370A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

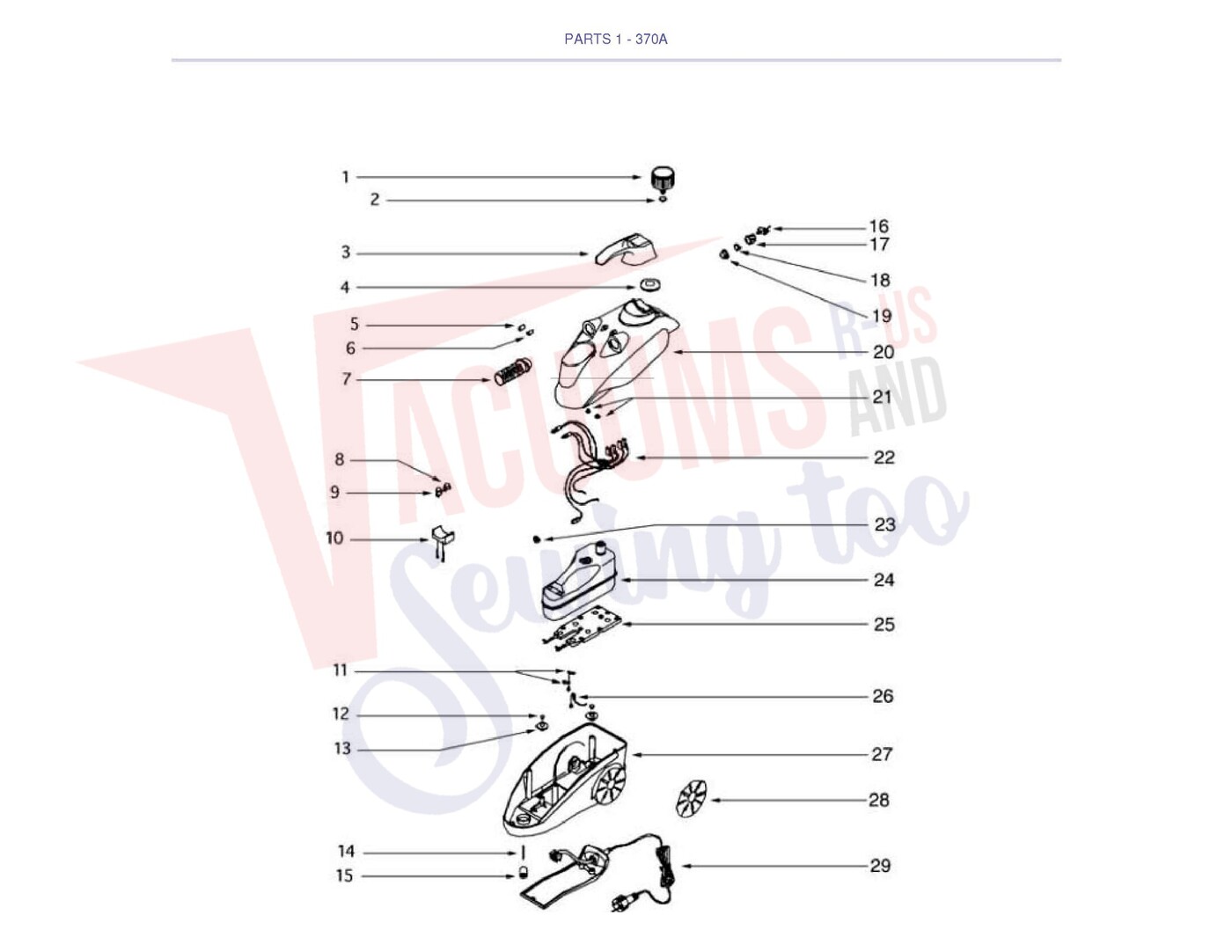

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CAP ASSEMBLY | 61320 | Not Available |
| 2 | Not Available | O-RING - PKGD | 61348 | Not Available |
| 3 | Not Available | HANDLE | 61321 | Not Available |
| 4 | Not Available | CAP GASKET | 61329 | Not Available |
| 5 | Not Available | ORANGE GEM | 61338 | Not Available |
| 6 | Not Available | GREEN GEM | 61339 | Not Available |
| 7 | Not Available | SLEEVE | 61336 | Not Available |
| 8 | Not Available | THERMOFUSE | 61340 | Not Available |
| 9 | Not Available | THERMOSTAT | 61152 | Not Available |
| 10 | Not Available | SLEEVE LOCK | 61337 | Not Available |
| 11 | Not Available | CLAMP -PKGD | 61359 | Not Available |
| 12 | Not Available | BOILER SUPPORT PAD - PACK | 61350 | Not Available |
| 13 | Not Available | SPACER -PKGD | 61357 | Not Available |
| 14 | Not Available | FRONT WHEEL PIVOT - PKGD | 61346 | Not Available |
| 15 | Not Available | FRONT WHEEL - PKGD | 61355 | Not Available |
| 16 | Not Available | SWITCH - ONE-POLE | 61360 | Not Available |
| 17 | Not Available | SWITCH BODY | 61533 | Not Available |
| 18 | Not Available | SWITCH (YELLOW) | 61534 | Not Available |
| 19 | Not Available | BOOT SWITCH | 61361 | Not Available |
| 20 | Not Available | UPPER BODY | 61330 | Not Available |
| 22 | Not Available | WIRING ASSEMBLY | 61341 | Not Available |
| 23 | Not Available | STRAP -PKGD | 61352 | Not Available |
| 24 | Not Available | BOILER ASSEMBLY | 61332 | Not Available |
| 25 | Not Available | HEATING PLATE ASSY | 61334 | Not Available |
| 26 | Not Available | GROUND WIRE | 61353 | Not Available |
| 27 | Not Available | LOWER BODY | 61331 | Not Available |
| 28 | Not Available | WHEEL/INSERT PACKAGE | 61874 | Not Available |
| 29 | Not Available | LOWER DOOR ASSY | 61335 | Not Available |

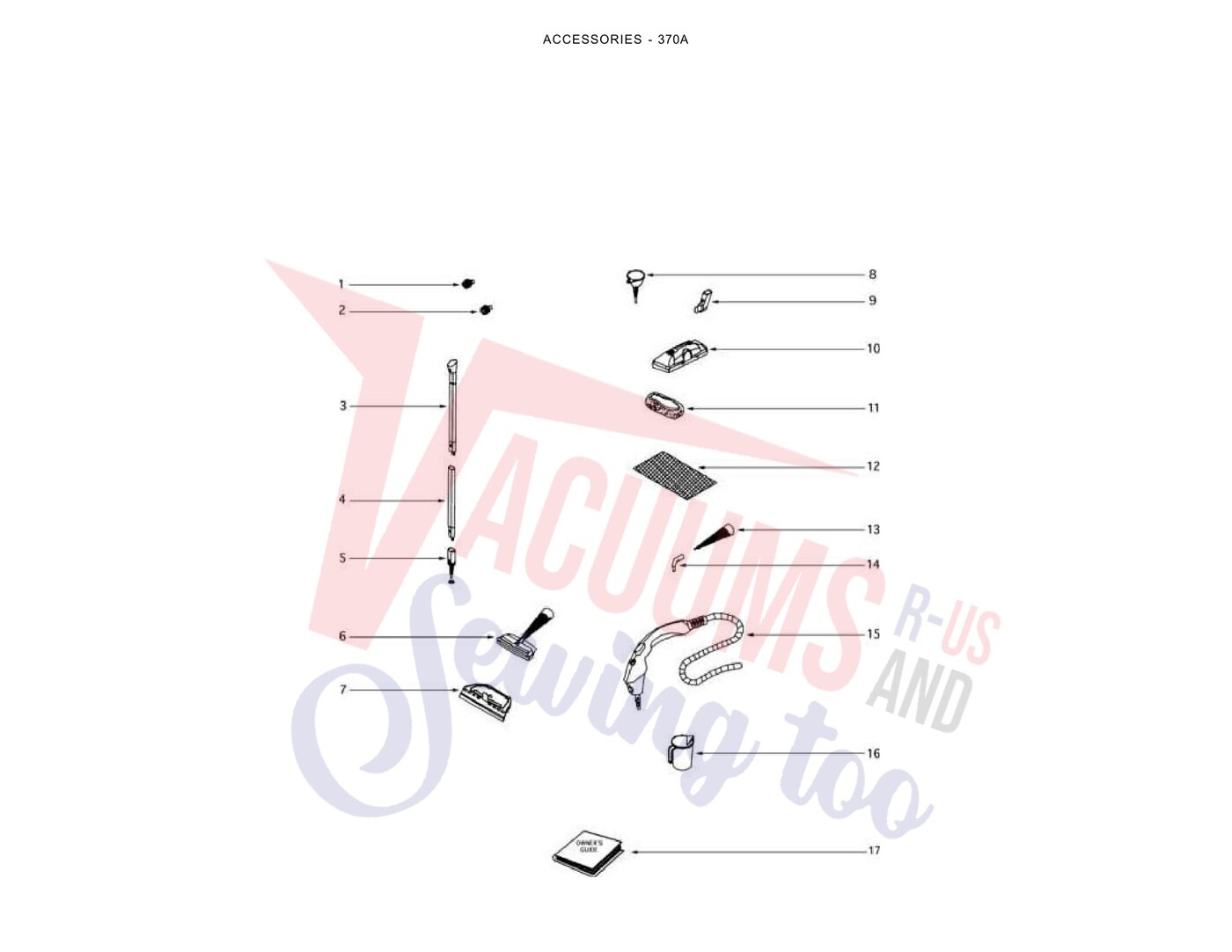

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BRUSH - NYLON | 61313 | Not Available |
| 2 | Not Available | BRUSH - BRASS | 61323 | Not Available |
| 3 | Not Available | EXTENSION ADAPTER ASSY | 61314 | Not Available |
| 4 | Not Available | LOWER WAND | 61342 | Not Available |
| 5 | No Image | ADAPTOR, GLASS CLEANING Part Number: 61327 for Eureka | 61327 | $20.16Read more |
| 6 | Not Available | UPHOLSTERY NOZZLE | 61017 | Not Available |
| 7 | Not Available | WINDOW CLEANER | 61018 | Not Available |
| 8 | Not Available | FUNNEL | 60741 | Not Available |
| 9 | Not Available | JOINT | 61343 | Not Available |
| 10 | Not Available | FLOOR TOOL | 61317 | Not Available |
| 11 | Not Available | CLOTH FOR UPHOLSTERY NOZZ | 61016 | Not Available |
| 12 | Not Available | FLOOR CLOTH - PACKAGED | 61345 | Not Available |
| 13 | Not Available | NOZZLE | 61020 | Not Available |
| 14 | Not Available | ANGULAR NOZZLE | 61015 | Not Available |
| 15 | Not Available | HOSE/NOZZLE ASSY - CTND | 61311 | Not Available |
| 16 | Not Available | MEASURING CUP | 61315 | Not Available |
| 18 | Not Available | TOOL BAG | 61814 | Not Available |
