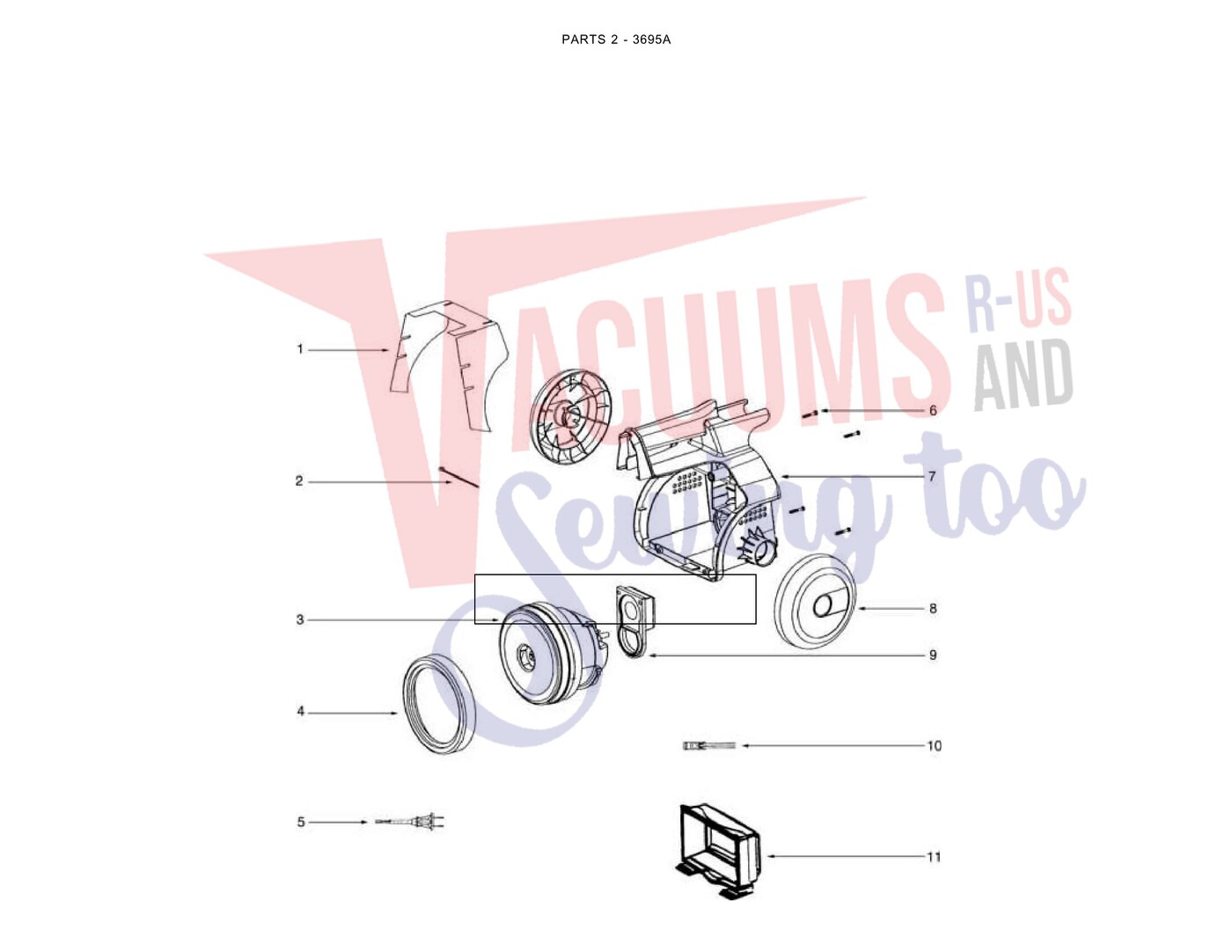

Schematic and parts book for Eureka 3695A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SHIELD - MOTOR HOUSING | 28614 | Not Available |
| 2 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 3 | Not Available | HEPA MOTOR ASSY - CARTONE | 60865-3 | Not Available |
| 4 | Not Available | GASKET - MOTOR MOUNTING | 28261 | Not Available |
| 5 | Not Available | CORD & TERMINAL ASSEMBLY | 39409-3 | Not Available |
| 6 | Not Available | SCREW PKG | 60610 | Not Available |
| 7 | Not Available | REAR HOUSING ASSEMBLY | 28008B-4 | Not Available |
| 8 |  | Wheel, Rear Mighty Mite 3600 | 15409A119N | $8.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | BUSHING - MOTOR | 28050 | Not Available |
| 10 | Not Available | THERMOSTAT & TERMINAL ASS | 39408-2 | Not Available |
| 11 | Not Available | HEPA FILTER - STYLE HF8 | 60666 | Not Available |

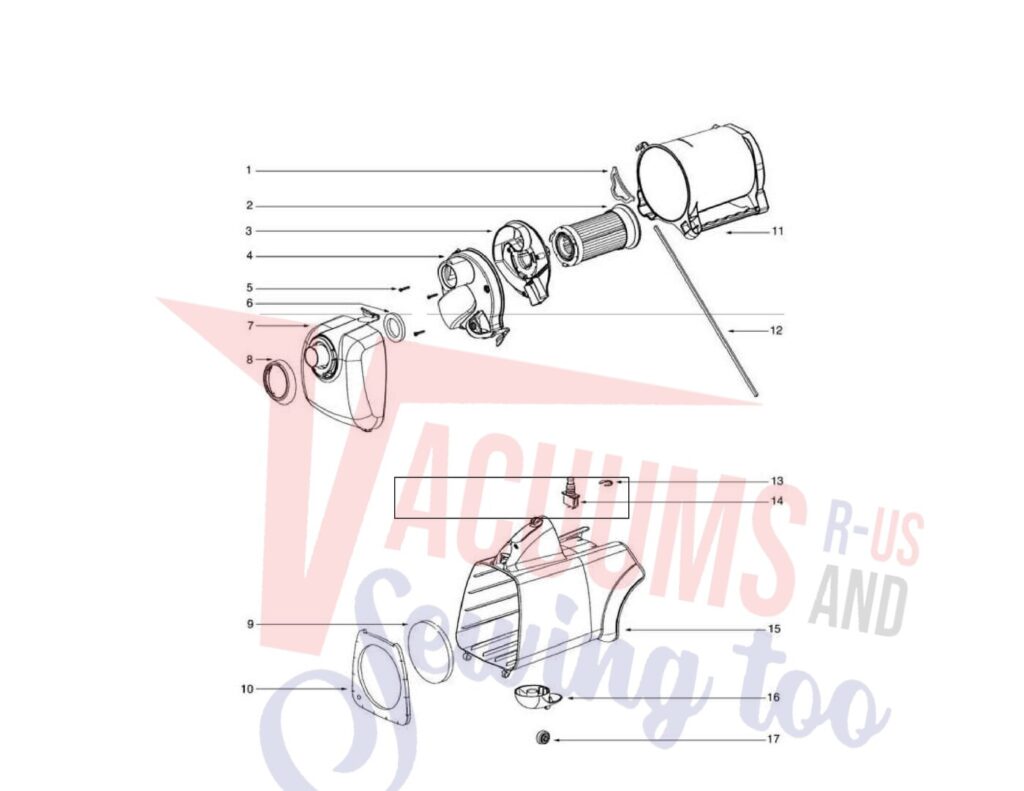

| # | Part image | Description | SKU | Price |
| 1 | Not Available | GASKET - LOWER PLENUM | 71075 | Not Available |
| 2 | Not Available | 700 DUST CUP FLTR (STYLEDCF1) | 61 | Not Available |
| 3 | Not Available | PLENUM - LOWER | 71071-288N | Not Available |
| 4 | Not Available | PLENUM - UPPER | 71070A-288N | Not Available |
| 5 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 6 | Not Available | GASKET - HOSE ADAPTER | 71103 | Not Available |
| 7 | Not Available | COVER - FRONT | 71073-119N | Not Available |
| 8 | Not Available | EXTENSION - FRONT COVER | 71130-119N | Not Available |
| 9 | Not Available | FILTER - MOTOR | 71078 | Not Available |
| 10 |  | DOOR, FILTER EXL Part Number: 71074 for Compact | 71074 | $70.26Read more |
| 11 | Not Available | 769 DUST CUP - CTND | 61 | Not Available |
| 12 | Not Available | GASKET - LOWER PLENUM | 39404 | Not Available |
| 13 | Not Available | RETAINING RING PKG | 60165-1 | Not Available |
| 14 | Not Available | SWITCH - PUSHBUTTON | 28304A-2 | Not Available |
| 15 | Not Available | HOUSING ASSEMBLY - PACKAG | 60487-18 | Not Available |
| 16 |  | Wheel & Hub Assy / Eureka 3670F Mighty Mite Can For: eureka,sanitaire | 388051 | $6.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | ***USE E-38805-1 WHEEL, FRONT CASTOR Part Number: 37409-1 for Eureka | 374091 | $6.24Read more |

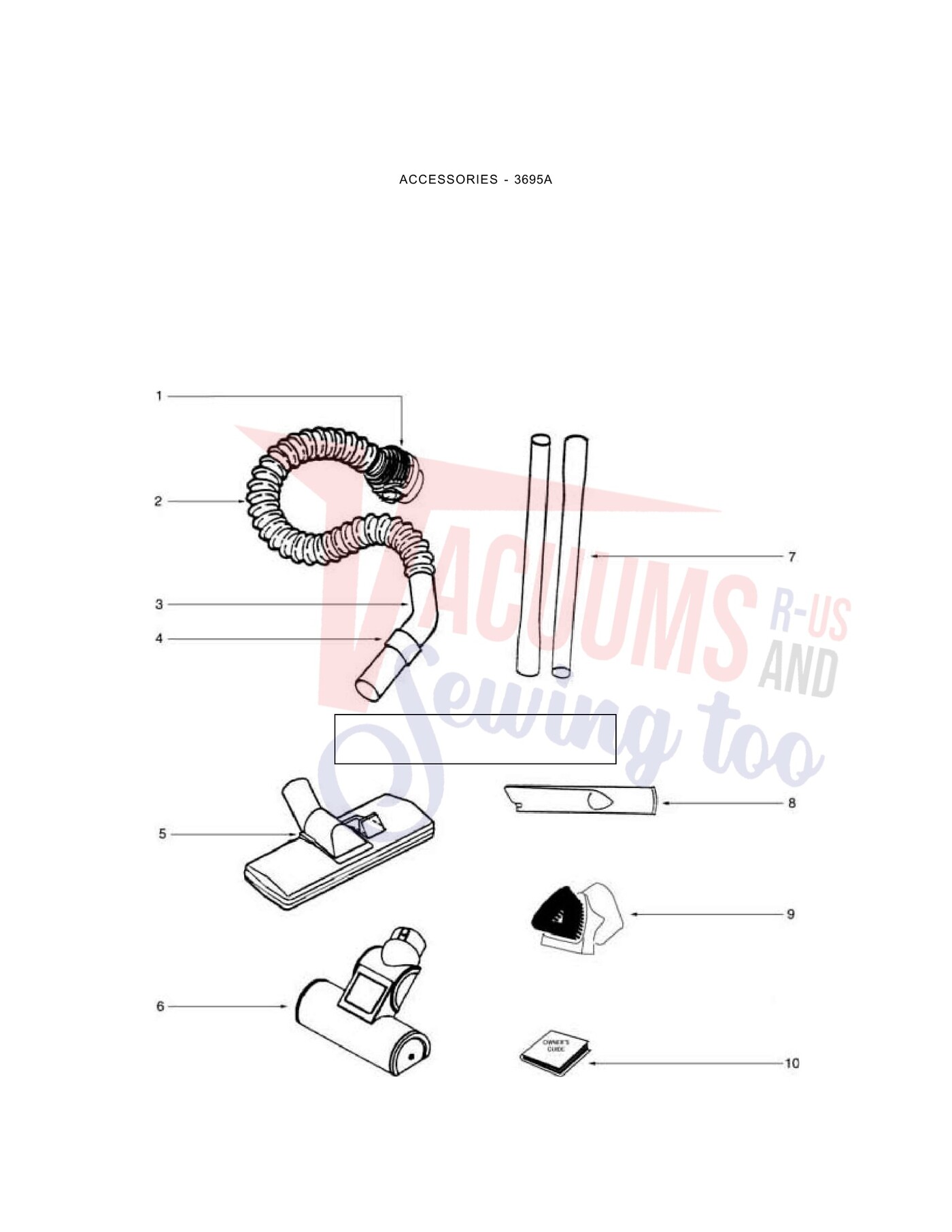

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COUPLING - HOSE | 71104-119N | Not Available |
| 2 | Not Available | HOSE ASSEMBLY - CARTONED | 60289-2 | Not Available |
| 3 |  | Wand, Curved for Mighty Might Part Number: 261933 for Eureka | 261933 | $21.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | BLEEDER | 37653-3 | Not Available |
| 5 | Not Available | DELUXE FLOOR NOZZLE ASSEM | 39134-6 | Not Available |
| 6 | Not Available | 775 TURBO NOZZLE ASSY (MODEL | 61 | Not Available |
| 7 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $10.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 9 | Not Available | COMBINATION TOOL - PACKAG | 61037 | Not Available |
| 10 | Not Available | OWNERS GUIDE | 71592 | Not Available |
