Schematic and parts book for Eureka 3281AZ . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

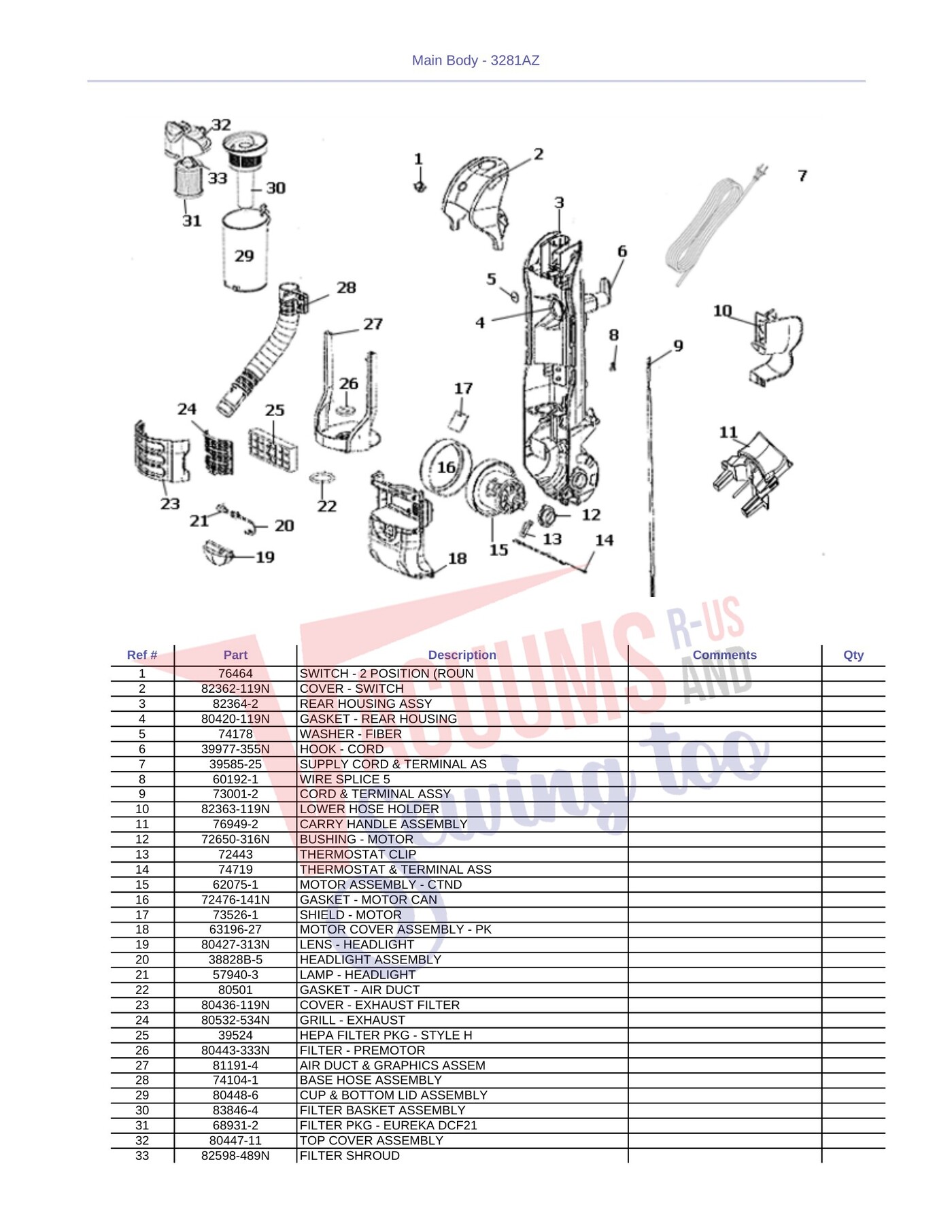

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWITCH - 2 POSITION (ROUN | 76464 | Not Available |
| 2 | Not Available | COVER - SWITCH | 82362-119N | Not Available |
| 3 | Not Available | REAR HOUSING ASSY | 82364-2 | Not Available |
| 4 | Not Available | GASKET - REAR HOUSING | 80420-119N | Not Available |
| 5 | Not Available | WASHER - FIBER | 74178 | Not Available |
| 6 | Not Available | HOOK - CORD | 39977-355N | Not Available |
| 7 | Not Available | SUPPLY CORD & TERMINAL AS | 39585-25 | Not Available |
| 8 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | CORD & TERMINAL ASSY | 73001-2 | Not Available |
| 10 | Not Available | LOWER HOSE HOLDER | 82363-119N | Not Available |
| 11 | Not Available | CARRY HANDLE ASSEMBLY | 76949-2 | Not Available |
| 12 | Not Available | BUSHING - MOTOR | 72650-316N | Not Available |
| 13 | No Image | CLIP, THERMOSTAT 2903AE Part Number: 72443 for Eureka | 72443 | $4.55Read more |
| 14 | Not Available | THERMOSTAT & TERMINAL ASS | 74719 | Not Available |
| 15 | Not Available | MOTOR ASSEMBLY -CTND | 62075-1 | Not Available |
| 16 | Not Available | GASKET - MOTOR CAN | 72476-141N | Not Available |
| 17 | Not Available | SHIELD - MOTOR | 73526-1 | Not Available |
| 18 | Not Available | MOTOR COVER ASSEMBLY -PK | 63196-27 | Not Available |
| 19 | Not Available | LENS - HEADLIGHT | 80427-313N | Not Available |
| 20 | Not Available | HEADLIGHT ASSEMBLY | 38828B-5 | Not Available |
| 21 | Not Available | LAMP - HEADLIGHT | 57940-3 | Not Available |
| 22 | Not Available | GASKET - AIR DUCT | 80501 | Not Available |
| 23 | Not Available | COVER - EXHAUST FILTER | 80436-119N | Not Available |
| 24 | Not Available | GRILL - EXHAUST | 80532-534N | Not Available |
| 25 | Not Available | HEPA FILTER PKG -STYLE H | 39524 | Not Available |
| 26 | Not Available | FILTER - PREMOTOR | 80443-333N | Not Available |
| 27 | Not Available | AIR DUCT & GRAPHICS ASSEM | 81191-4 | Not Available |
| 28 | Not Available | BASE HOSE ASSEMBLY | 74104-1 | Not Available |
| 29 | Not Available | CUP & BOTTOM LID ASSEMBLY | 80448-6 | Not Available |
| 30 | Not Available | FILTER BASKET ASSEMBLY | 83846-4 | Not Available |
| 31 | Not Available | FILTER PKG - EUREKA DCF21 | 68931-2 | Not Available |
| 32 | Not Available | TOP COVER ASSEMBLY | 80447-11 | Not Available |
| 33 | Not Available | FILTER SHROUD | 82598-489N | Not Available |

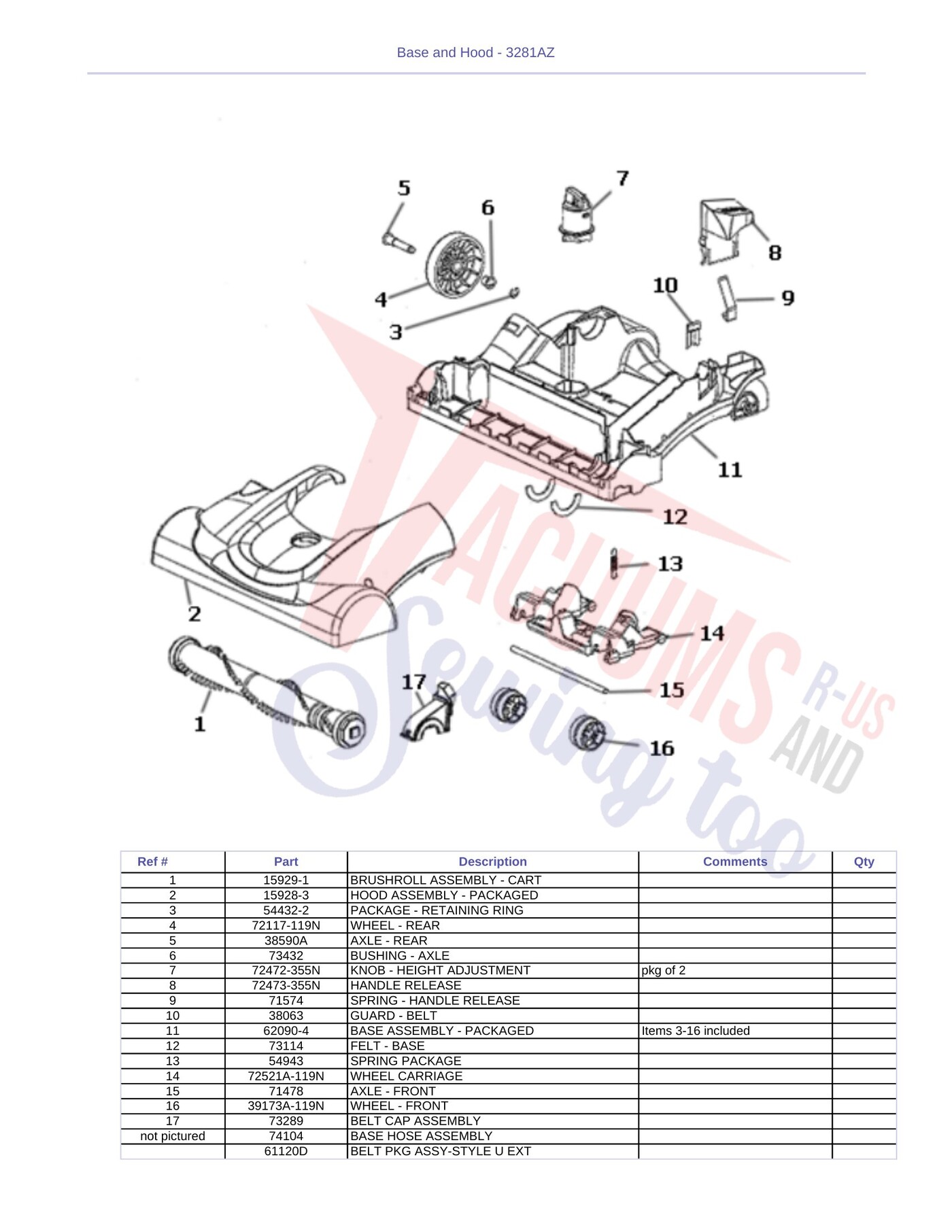

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BRUSHROLL ASSEMBLY -CART | 15929-1 | Not Available |
| 2 | Not Available | HOOD ASSEMBLY -PACKAGED | 15928-3 | Not Available |
| 3 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | WHEEL - REAR | 72117-119N | Not Available |
| 5 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | BUSHING - AXLE | 73432 | Not Available |
| 7 | Not Available | KNOB - HEIGHT ADJUSTMENT pkg of | 72472-355N | Not Available |
| 8 | Not Available | HANDLE RELEASE | 72473-355N | Not Available |
| 9 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | GUARD - BELT | 38063 | Not Available |
| 11 | Not Available | BASE ASSEMBLY -PACKAGED Items 3-16 included | 62090-4 | Not Available |
| 12 | Not Available | FELT - BASE | 73114 | Not Available |
| 13 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | WHEEL CARRIAGE | 72521A-119N | Not Available |
| 15 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | BELT CAP ASSEMBLY | 73289 | Not Available |
| 17 | Not Available | BELT PKG ASSY-STYLE U EXT | 61120D | Not Available |

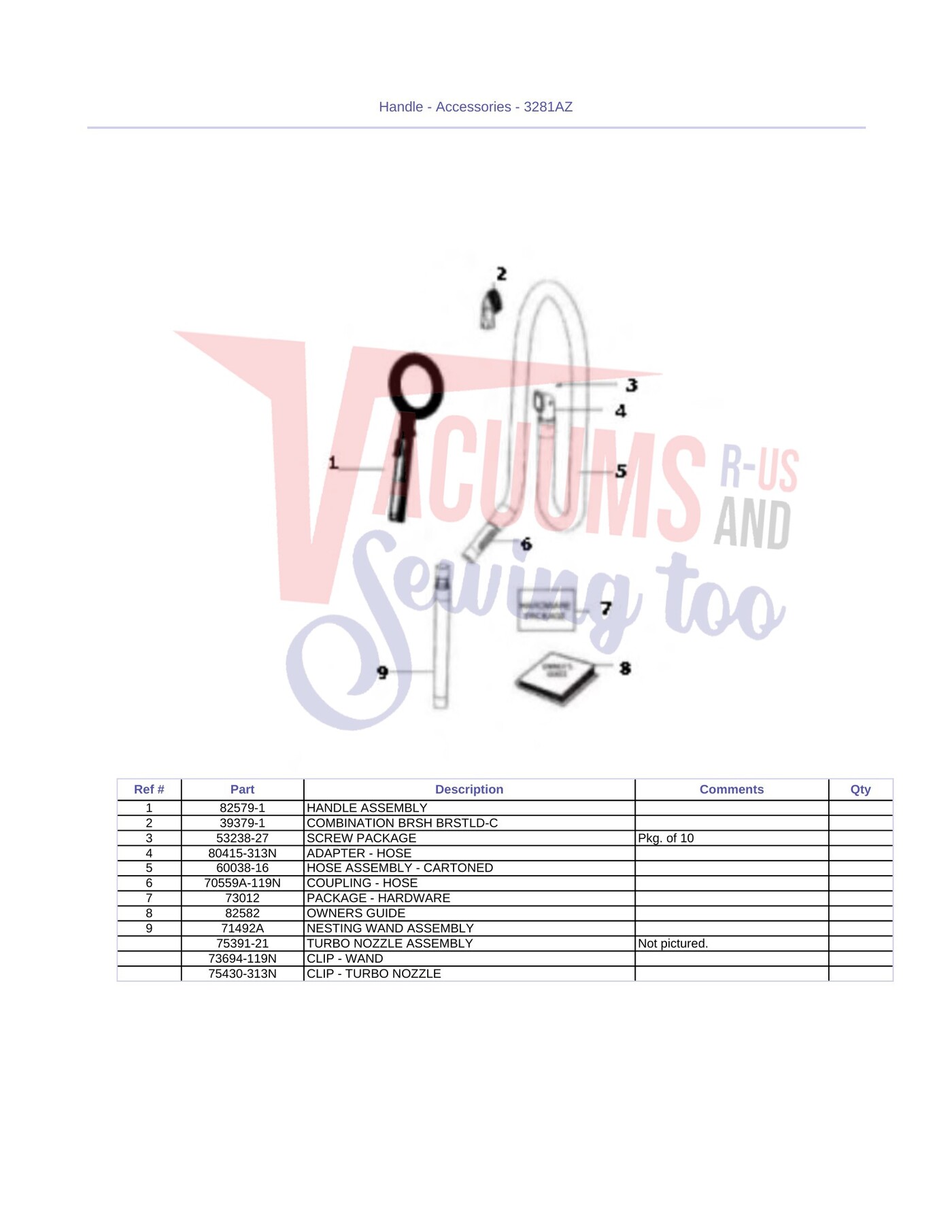

| # | Part image | Description | SKU | Price |
| 1 | No Image | HANDLE, UPPER 3281 Part Number: 82579-1 for Eureka | 825791 | $9.27Read more |
| 2 | Not Available | COMBINATION BRSH BRSTLD-C | 39379-1 | Not Available |
| 3 | Not Available | SCREW PACKAGE Pkg. of | 53238-27 | Not Available |
| 4 | Not Available | ADAPTER - HOSE | 80415-313N | Not Available |
| 5 | Not Available | HOSE ASSEMBLY -CARTONED | 60038-16 | Not Available |
| 6 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $10.82Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | PACKAGE - HARDWARE | 73012 | Not Available |
| 8 | Not Available | OWNERS GUIDE | 82582 | Not Available |
| 9 | No Image | Solenoid,Extractor,1/8 Orifice | 71492A | $971.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | TURBO NOZZLE ASSEMBLY Not pictured. | 75391-21 | Not Available |
| 9 | Not Available | CLIP - WAND | 73694-119N | Not Available |
| 9 | Not Available | CLIP - TURBO NOZZLE | 75430-313N | Not Available |
