Schematic and parts book for Eureka 3140D . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

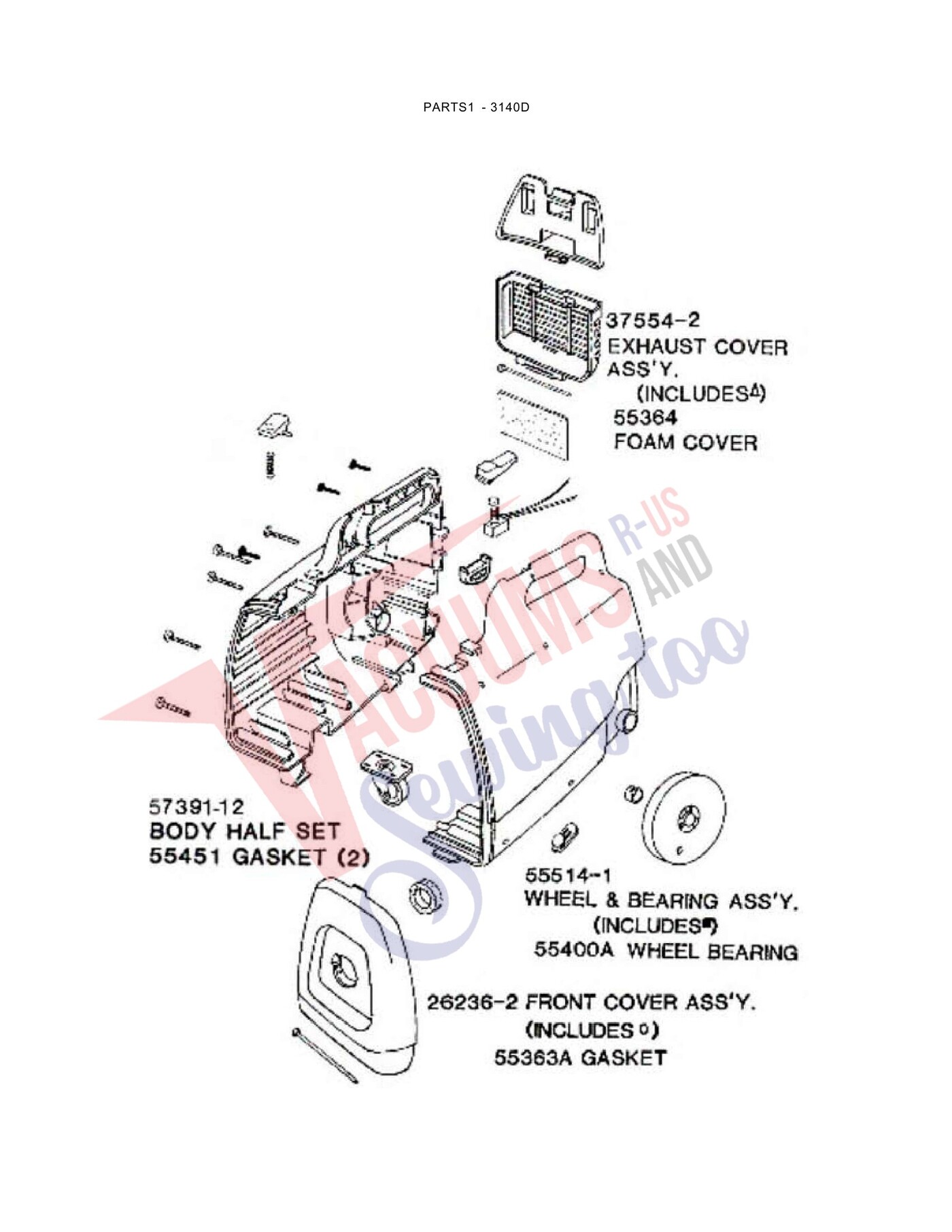

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUPPORT - TOOL | 13709-2 | Not Available |
| 2 | Not Available | HOOK - CORD RELEASE | 37115-2 | Not Available |
| 3 | Not Available | LATCH - COVER | 37116-2 | Not Available |
| 4 | Not Available | EXHAUST COVER ASSEMBLY | 37554-2 | Not Available |
| 5 | Not Available | SPRING - CARPET NOZZLE | 42797 | Not Available |
| 6 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 7 | Not Available | SCREW PACKAGE | 53197-2 | Not Available |
| 8 | Not Available | GASKET-FR COVER (NLA) | 55363A | Not Available |
| 9 | Not Available | PIN | 55399 | Not Available |
| 10 | Not Available | CASTER ASSY | 55406 | Not Available |
| 11 | Not Available | GASKET | 55451 | Not Available |
| 12 | Not Available | WHEEL - REAR | 55514-1 | Not Available |
| 13 | Not Available | SPACER - SWITCH | 55538 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | GASKET - MOTOR MOUNTING | 26190 | Not Available |
| 2 | Not Available | FILTER | 26197 | Not Available |
| 3 | Not Available | MOTOR ASSEMBLY - PACKAGED | 26673 | Not Available |
| 4 | Not Available | CORD & POLARIZED PLUG ASS | 36528-5 | Not Available |
| 5 | Not Available | PAPER BAG PKG ASSY (STYLE | 52318 | Not Available |
| 6 | Not Available | TIE - CABLE (PURCHASED) | 53141 | Not Available |
| 7 | Not Available | WIRE SPLICE | 53214-2 | Not Available |
| 8 | Not Available | SCREWS - PACKAGE | 53228-4 | Not Available |
| 9 | Not Available | GASKET | 55394 | Not Available |
| 10 | No Image | GASKET, MIGHTY MITE Part Number: 55463 for Eureka | 55463 | $5.09Read more |
| 11 | Not Available | THERMOSTAT | 56146 | Not Available |

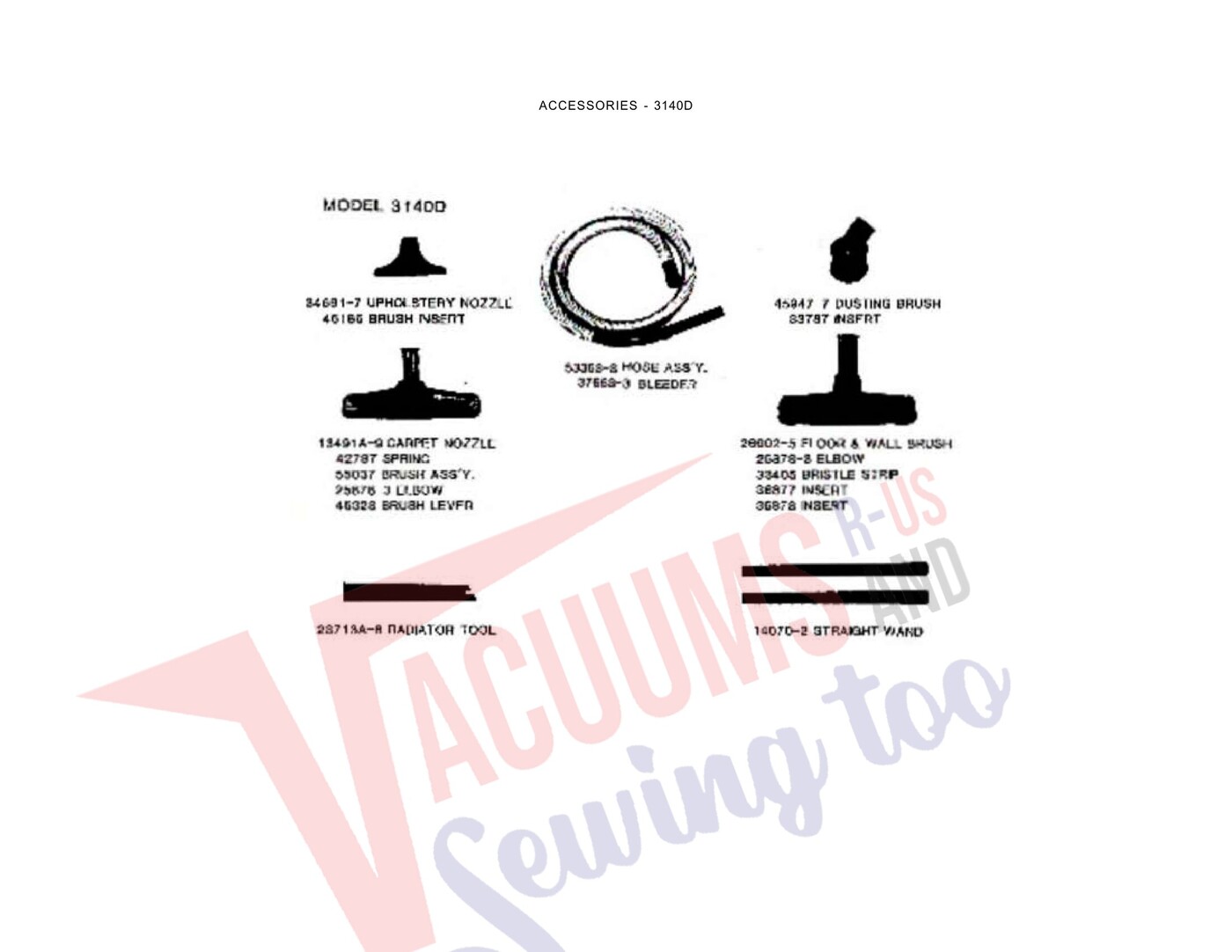

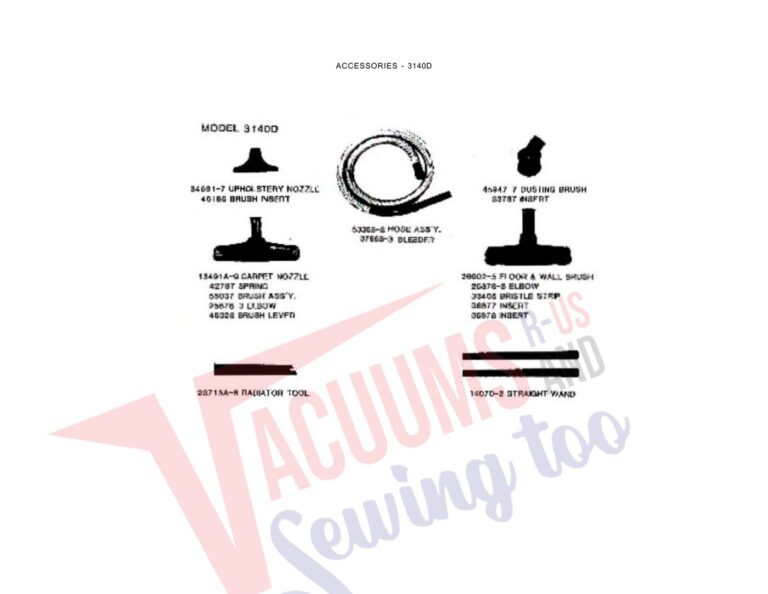

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Discontinued | 13491A-9 | Not Available |
| 2 | Not Available | WAND - | 14070-2 | Not Available |
| 3 | Not Available | TOOL - CREVICE | 23713A-8 | Not Available |
| 4 | Not Available | ELBOW | 25878-3 | Not Available |
| 5 | Not Available | FLOOR & | 26002-5 | Not Available |
| 6 | Not Available | BRISTLE | 33405 | Not Available |
| 7 | No Image | BOLT 99672/PAS17BA | 33787 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | UPHOLSTERY | 34691-7 | Not Available |
| 9 | Not Available | INSERT-FLOOR | 36877 | Not Available |
| 10 | Not Available | INSERT-FLOOR | 36878 | Not Available |
| 11 | Not Available | BLEEDER | 37653-3 | Not Available |
| 12 | Not Available | SPRING | 42797 | Not Available |
| 13 | Not Available | DUSTING | 45947-7 | Not Available |
| 14 | Not Available | BRUSH | 46186 | Not Available |
| 15 | Not Available | HOSE ASSEMBLY | 53363-3 | Not Available |
| 16 | Not Available | BRUSH INSERT | 55037 | Not Available |
