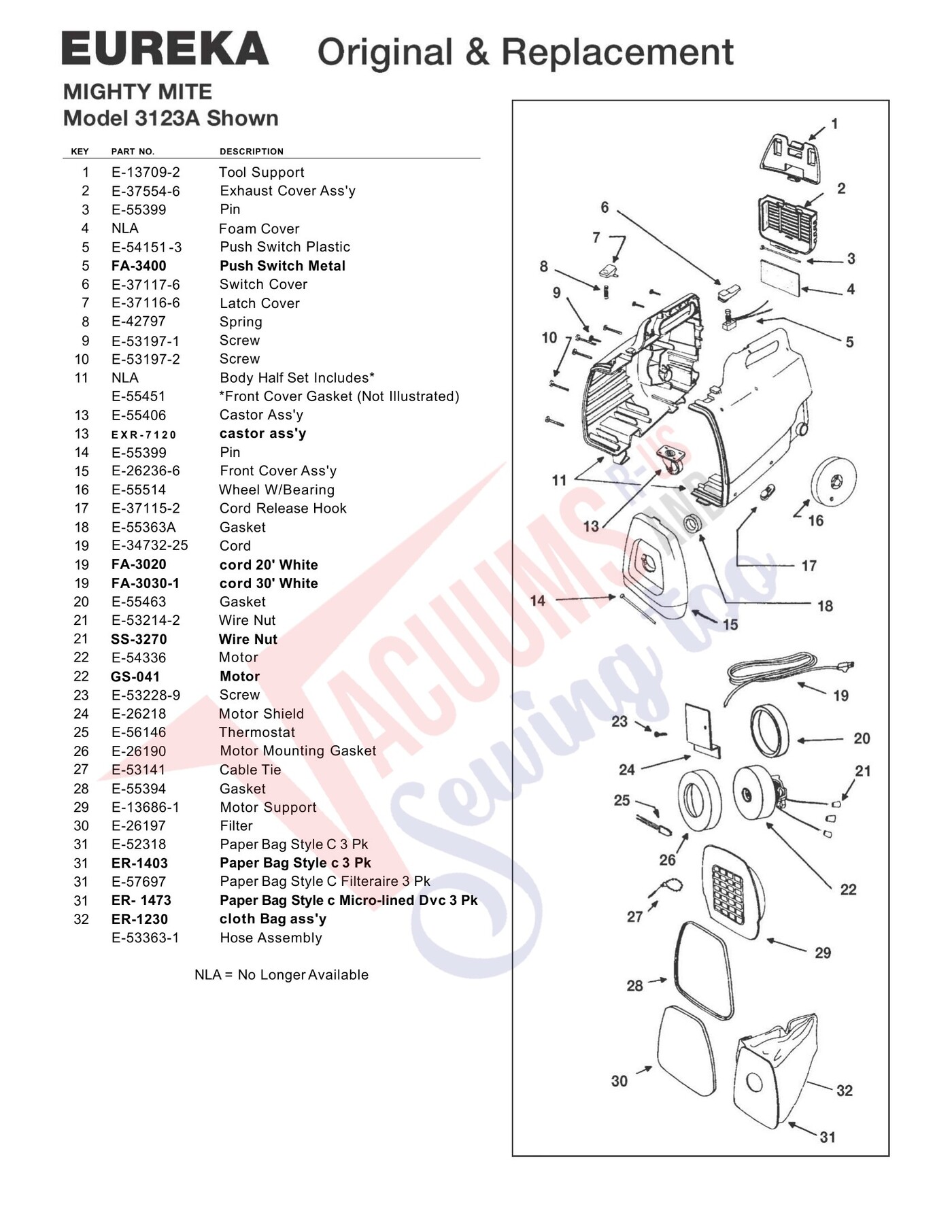

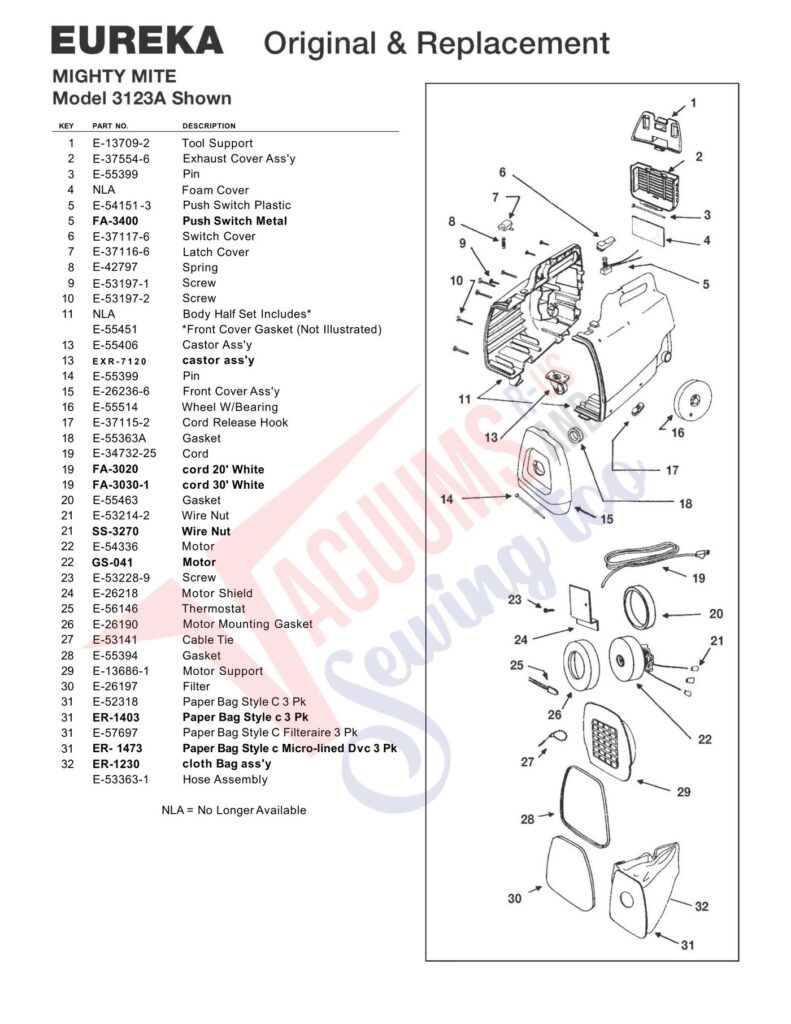

Schematic and parts book for Eureka 3123A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | *Front Cover Gasket (Not Illustrated) | 55451 | Not Available |
| XX | Not Available | Hose Assembly | 53363-1 | Not Available |
| 1 | Not Available | Tool Support | 13709-2 | Not Available |
| 2 | Not Available | Exhaust Cover Ass'y | 37554-6 | Not Available |
| 3 | Not Available | Pin | 55399 | Not Available |
| 4 | Not Available | Foam Cover | NLA | Not Available |
| 5 | Not Available | Push Switch Plastic | 54151-3 | Not Available |
| 5 | Not Available | Push Switch Metal | FA-3400 | Not Available |
| 6 | Not Available | Switch Cover | 37117-6 | Not Available |
| 7 | Not Available | Latch Cover | 37116-6 | Not Available |
| 8 | Not Available | Spring | 42797 | Not Available |
| 9 | Not Available | Screw | 53197-1 | Not Available |
| 10 | Not Available | Screw | 53197-2 | Not Available |
| 11 | Not Available | Body Half Set Includes* | NLA | Not Available |
| 13 | Not Available | Castor Ass'y | 55406 | Not Available |
| 13 | Not Available | castor ass'y | EXR-7120 | Not Available |
| 14 | Not Available | Pin | 55399 | Not Available |
| 15 | Not Available | Front Cover Ass'y | 26236-6 | Not Available |
| 16 | Not Available | Wheel W/Bearing | 55514 | Not Available |
| 17 | Not Available | Cord Release Hook | 37115-2 | Not Available |
| 18 | Not Available | Gasket | 55363A | Not Available |
| 19 | Not Available | Cord | 34732-25 | Not Available |
| 19 | Not Available | cord 20' White | FA-3020 | Not Available |
| 19 | Not Available | cord 30' White | FA-3030-1 | Not Available |
| 20 | No Image | GASKET, MIGHTY MITE Part Number: 55463 for Eureka | 55463 | $5.09Read more |
| 21 | Not Available | Wire Nut | 53214-2 | Not Available |
| 21 | Not Available | Wire Nut | SS-3270 | Not Available |
| 22 | Not Available | Motor | 54336 | Not Available |
| 22 | Not Available | Motor | GS-041 | Not Available |
| 23 | Not Available | Screw | 53228-9 | Not Available |
| 24 | Not Available | Motor Shield | 26218 | Not Available |
| 25 | Not Available | Thermostat | 56146 | Not Available |
| 26 | Not Available | Motor Mounting Gasket | 26190 | Not Available |
| 27 | Not Available | Cable Tie | 53141 | Not Available |
| 28 | Not Available | Gasket | 55394 | Not Available |
| 29 | Not Available | Motor Support | 13686-1 | Not Available |
| 30 | Not Available | Filter | 26197 | Not Available |
| 31 | Not Available | Paper Bag Style C 3 Pk | 52318 | Not Available |
| 31 | Not Available | Paper Bag Style c 3 Pk | ER-1403 | Not Available |
| 31 | Not Available | Paper Bag Style C Filteraire 3 Pk | 57697 | Not Available |
| 32 | Not Available | cloth Bag ass'y | ER-1230 | Not Available |
