Schematic and parts book for Eureka 3041az . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | 3:1 STRETCH HOSE | 77313-3 | Not Available |
| 2 | Not Available | HOOK - CORD | 80285-355N | Not Available |
| 3 | Not Available | COMBINATION TOOL | 60990-3 | Not Available |
| 4 | Not Available | TURBO HANDLE ASSEMBLY | 79800-1 | Not Available |
| 5 | Not Available | CLIP - TURBO | 79730-355N | Not Available |
| 6 | Not Available | TURBO NOZZLE ASSEMBLY | 75391-3 | Not Available |
| 7 | Not Available | BELT - TURBO | 75914 | Not Available |
| 8 |  | Crevice Tool, Gray Wand 1956A Part Number: 77506355N for Eureka | 77506355N | $9.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | NESTING WAND ASSEMBLY | 77505-2 | Not Available |
| 10 | Not Available | WAND - OUTER | 77507-366N | Not Available |
| 11 | Not Available | WAND CLIP | 77431-355N | Not Available |
| 12 | Not Available | HOSE COUPLING | 77310-355N | Not Available |
| 14 | No Image | SCREW, HANDLE 2904 10 PK Part Number: 53238-46 for Eureka | 5323846 | $3.06Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | REAR HOUSING (120V) | 79757-355N | Not Available |
| 2 | Not Available | GASKET - HOSE ADAPTER | 80260 | Not Available |
| 3 | Not Available | HOSE - WAND SUPPORT | 79783-355N | Not Available |
| 4 | Not Available | GASKET - REAR HOUSING | 80251 | Not Available |
| 5 | Not Available | GASKET - AIR DUCT -BOTTO | 79791 | Not Available |
| 6 | Not Available | DUCT - AIR | 79789-515N | Not Available |
| 7 | Not Available | GASKET - AIR DUCT - UPPER | 79790 | Not Available |
| 8 | Not Available | SHIELD - WIRING | 79792 | Not Available |
| 9 | Not Available | COVER - MOTOR (120V) | 79758-515N | Not Available |
| 10 | Not Available | COVER - LIGHT | 79822-515N | Not Available |
| 11 | Not Available | SCREW PKG | 53238-27 | Not Available |
| 12 | Not Available | GASKET - MOTOR CAN (120V) | 80274 | Not Available |
| 13 | Not Available | MOTOR ASSEMBLY - PACKAGED | 63396-2 | Not Available |
| 14 | Not Available | MOTOR ADJUSTMENT RING | 79231-119N | Not Available |
| 15 | Not Available | MOTOR BUSHING-HERMES (LOW | 79229-316N | Not Available |
| 17 | Not Available | SCREW PKG | 61803-3 | Not Available |
| 19 | Not Available | CORD & TERMINAL ASSEMBLY | 77435-2 | Not Available |
| 21 | Not Available | TIE - CABLE (PURCHASED) | 46713-3 | Not Available |
| 22 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | SUPPLY CORD & TERMINAL AS | 39585-32 | Not Available |
| 24 | Not Available | LOWER HOSE HOLDER | 79795-515N | Not Available |
| 25 | Not Available | HOOK - CORD | 79796-355N | Not Available |
| 26 | Not Available | ADAPTER - HOSE | 80261-313N | Not Available |
| 27 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |
| 28 | Not Available | SWITCH-ROCKER | 39455-1 | Not Available |

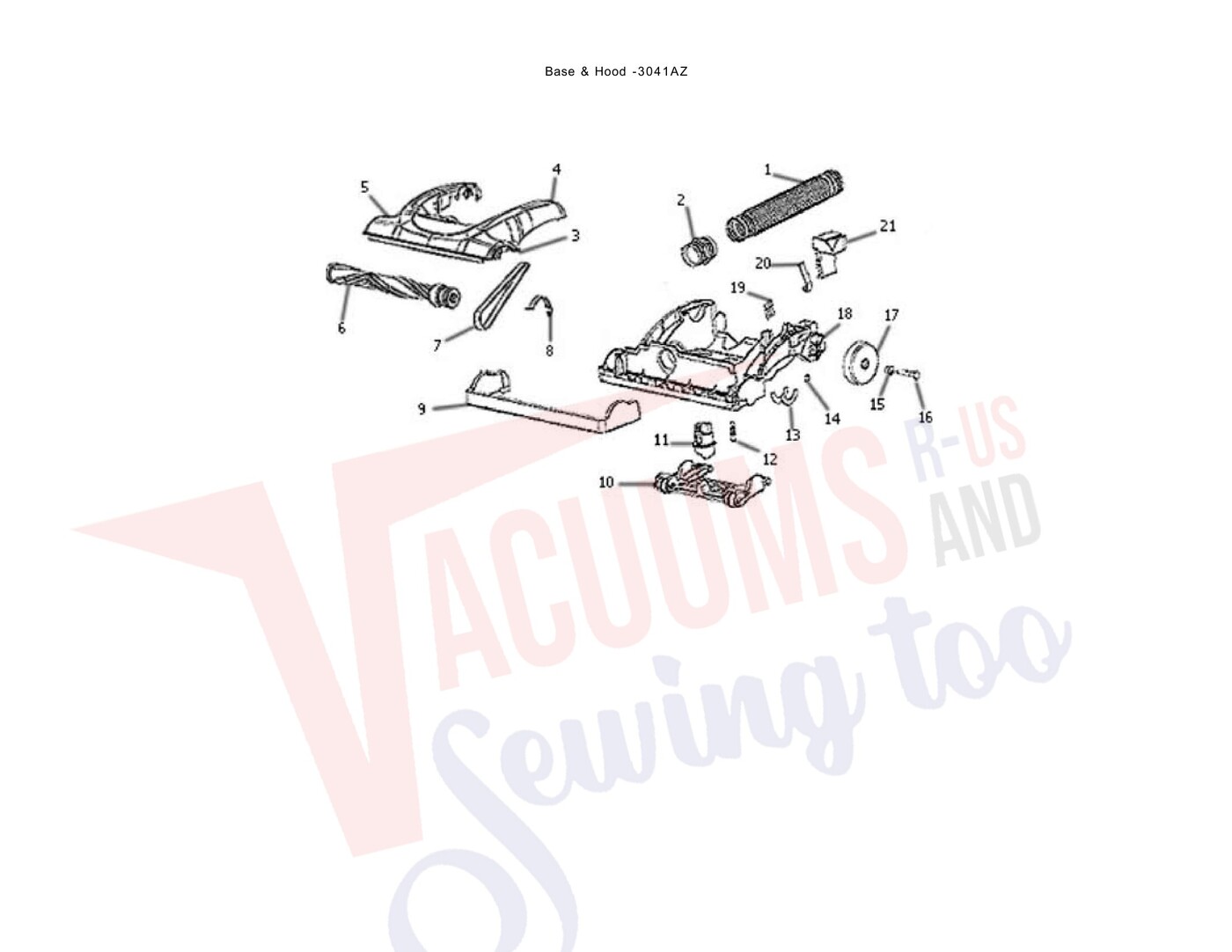

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE - BASE | 80249 | Not Available |
| 2 | Not Available | ADAPTER - BASE | 80263-316N | Not Available |
| 3 | No Image | COVER, BELT 3041 Part Number: 79788 for Eureka | 79788 | $7.33Read more |
| 4 |  | HOOD, 3041 Part Number: 63392-7 for Eureka | 633927 | $24.23Read more |
| 5 | Not Available | SCREW PKG (15543)(EW312-8-8Z) | 53238-8 | Not Available |
| 6 | Not Available | DISTURBULATOR ASSEMBLY - | 63391 | Not Available |
| 7 | Not Available | BELT PKG ASSY-STYLE U EXTND LF | 61120C | Not Available |
| 8 | Not Available | CLAMP - PACKAGED | 63395 | Not Available |
| 9 | Not Available | FURNITURE GUARD | 72474-453N | Not Available |
| 10 | Not Available | WHEEL CARRIAGE ASSEMBLY | 79779 | Not Available |
| 11 | Not Available | HEIGHT ADJUSTMENT KNOB | 80262-355N | Not Available |
| 12 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | FELT BASE | 73114 | Not Available |
| 14 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | BUSHING-AXLE | 72113-1 | Not Available |
| 16 | Not Available | AXLE - REAR | 38590A-1 | Not Available |
| 17 | Not Available | WHEEL - REAR | 80283-453N | Not Available |
| 18 | No Image | BASE, 3041 Part Number: 15853-2 for Eureka | 158532 | $36.85Read more |
| 19 | Not Available | GUARD - BELT (155512) | 38063 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | HANDLE RELEASE PEDAL | 79782-355N | Not Available |

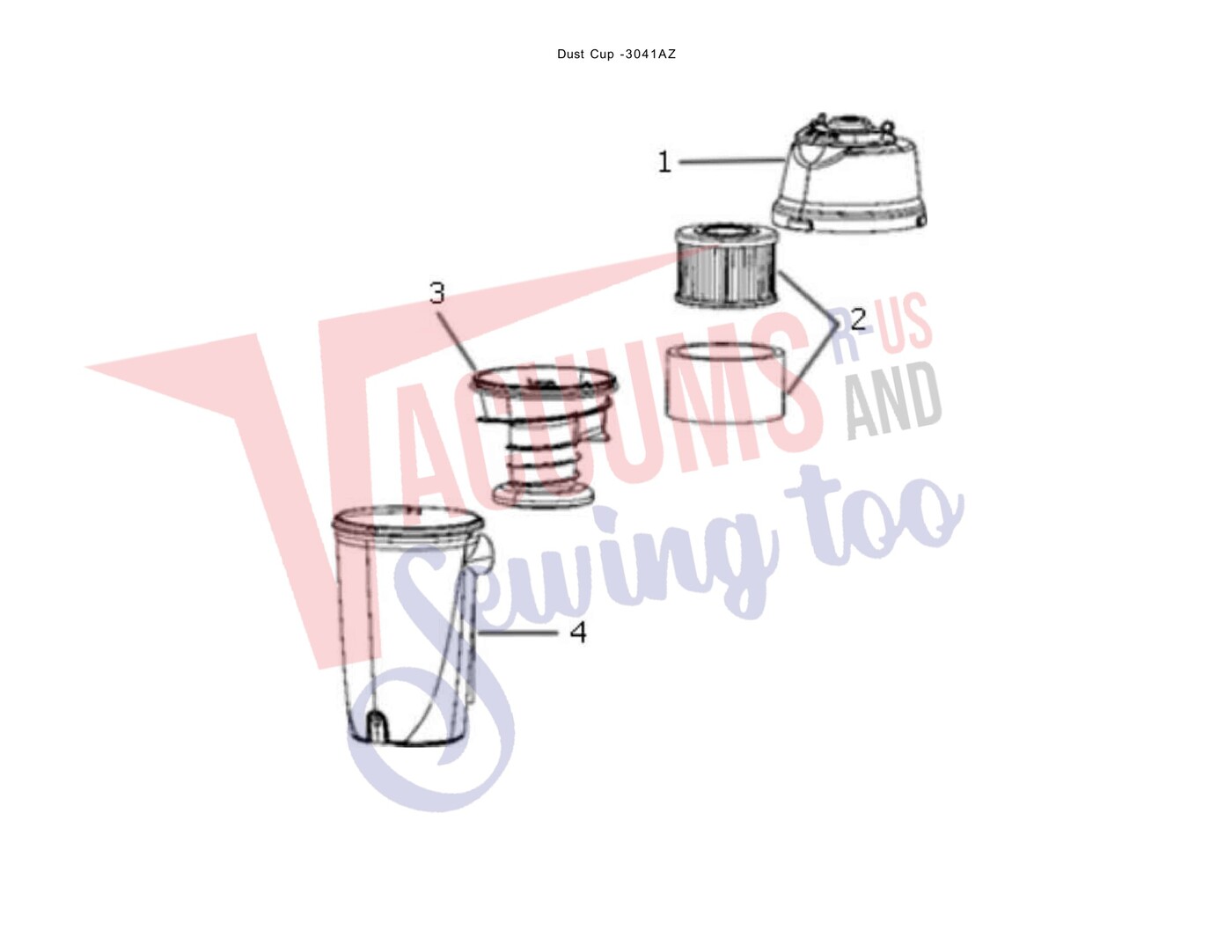

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUSTCUP COVER ASSEMBLY | 80268-1 | Not Available |
| 2 | Not Available | FILTER ASSEMBLY | 79902 | Not Available |
| 3 | Not Available | FILTER SCREEN & GRAPHICS | 80301 | Not Available |
| 4 | Not Available | DUSTCUP & DOOR ASSEMBLY | 80272-1 | Not Available |
