Schematic and parts book for Eureka 2904AZ . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

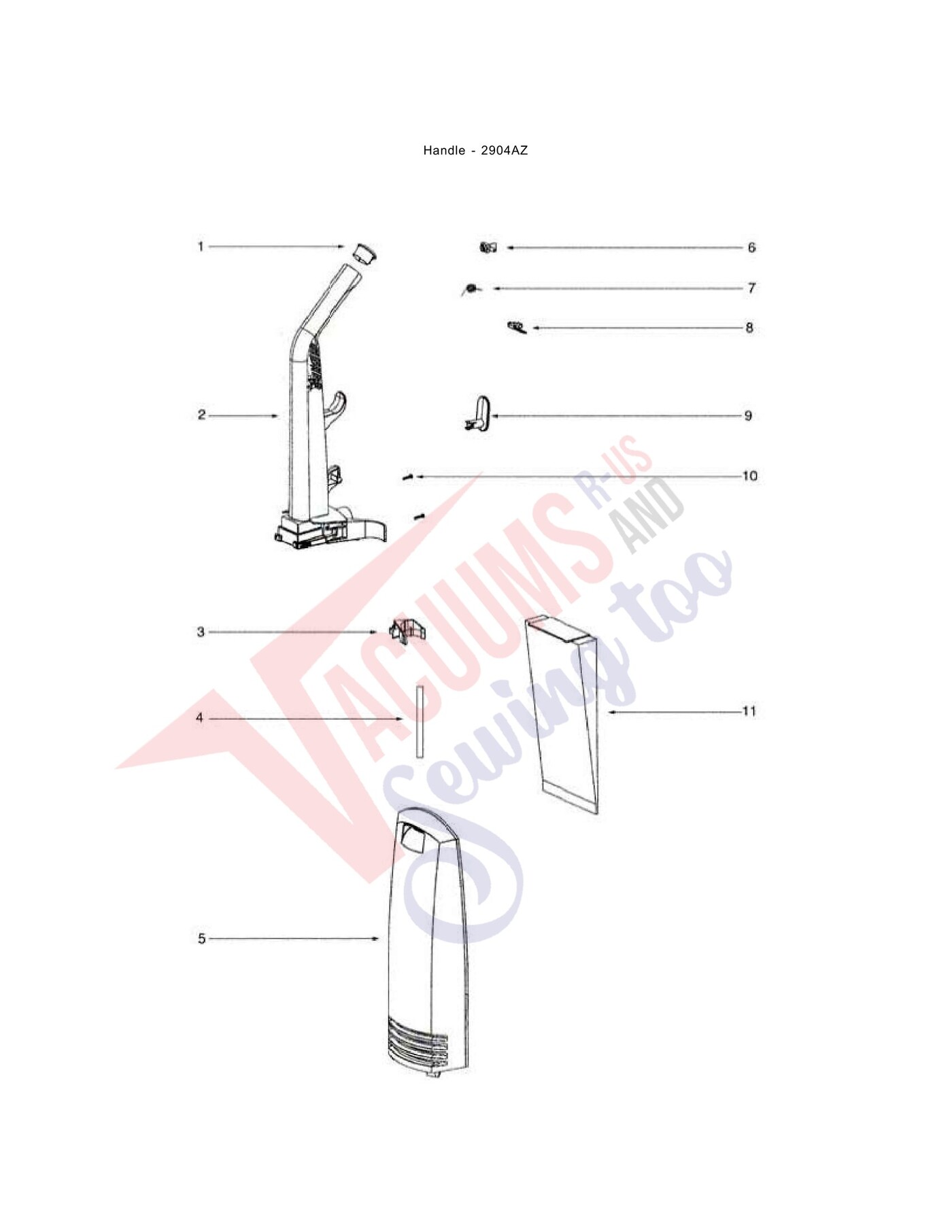

| 1 | Not Available | CAP - HANDLE | 72221-355N | Not Available |
| 2 | Not Available | HANDLE ASSY W/DRILLED HOL | 75267-1 | Not Available |
| 3 | Not Available | CLIP - WAND | 72658-355N | Not Available |
| 4 | Not Available | GASKET | 73002-1 | Not Available |
| 5 | Not Available | BAG CVR & GRPHCS ASSY - P | 62076-10 | Not Available |
| 6 | Not Available | BRACKET - BAG-IN-PLACE | 72539-355N | Not Available |
| 7 | Not Available | SPRING - BAG-IN-PLACE | 72455 | Not Available |
| 8 | Not Available | LEVER - BAG-IN-PLACE | 72454-355N | Not Available |
| 9 | Not Available | HOOK - CORD | 70864A-355N | Not Available |
| 10 | No Image | SCREW, HANDLE 2904 10 PK Part Number: 53238-46 for Eureka | 5323846 | $3.06Read more |
| 11 | Not Available | PAPER BAG PACKAGE - STYLE | 61515A | Not Available |
| # | Part image | Description | SKU | Price |

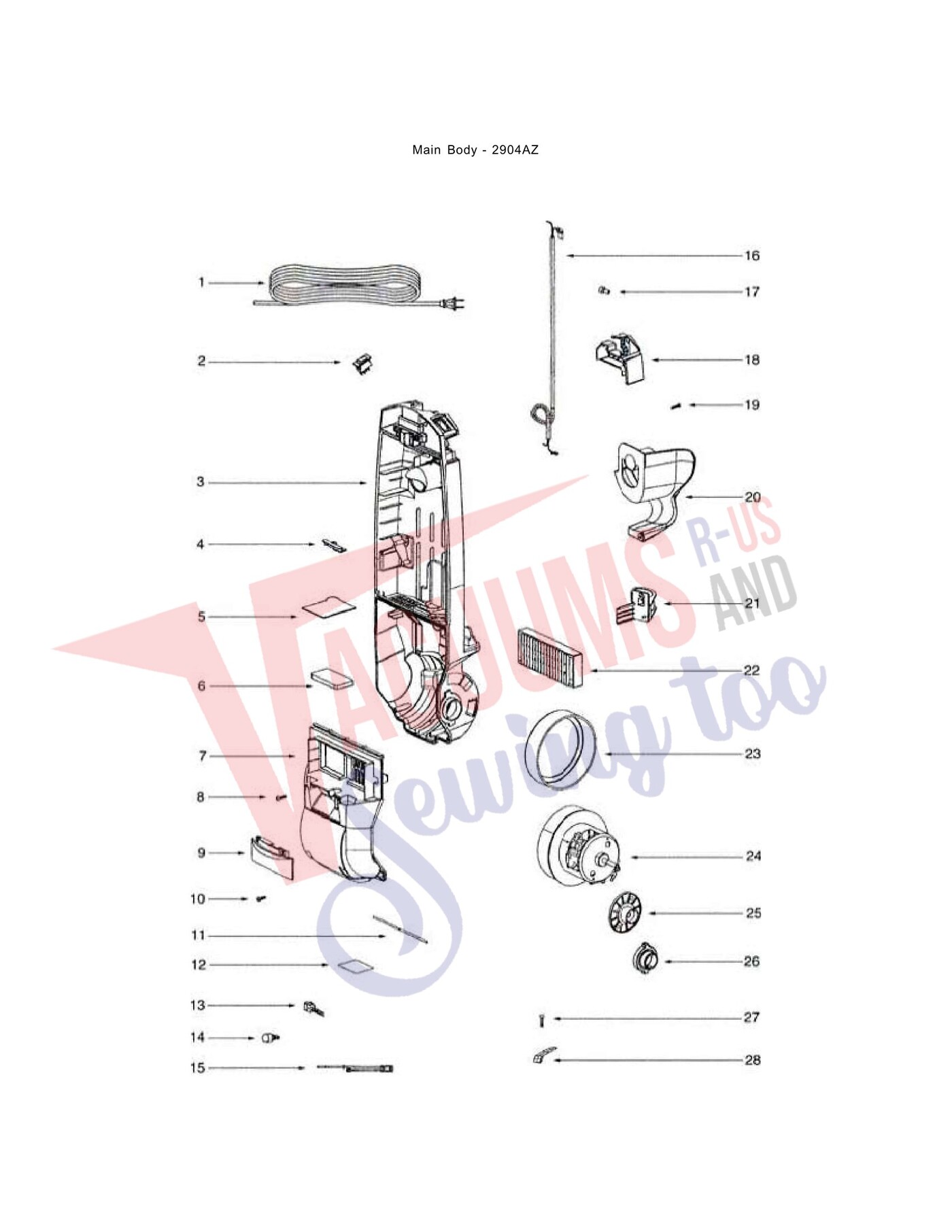

| 1 | Not Available | SUPPLY CORD & TERMINAL AS | 39585-9 | Not Available |
| 2 | Not Available | SWITCH - ROCKER | 39455-1 | Not Available |
| 3 | Not Available | REAR HOUSING ASSEMBLY | 73547 | Not Available |
| 4 | Not Available | CLIP - FILTER | 73117-355N | Not Available |
| 5 | Not Available | SHIELD - WIRING | 73225 | Not Available |
| 6 | Not Available | FILTER | 72469 | Not Available |
| 7 | Not Available | MOTOR COVER - PACKAGED | 62074-2 | Not Available |
| 9 | Not Available | LENS | 72468-313N | Not Available |
| 10 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | GASKET - MOTOR COVER | 72522-1 | Not Available |
| 13 | Not Available | HEADLIGHT ASSEMBLY | 38828B-5 | Not Available |
| 14 | Not Available | This part is obsolete and there is no substitute available. | 57940-2 | Not Available |
| 15 | Not Available | THERMOSTAT & TERMINAL ASS | 61663 | Not Available |
| 16 | Not Available | CORD & TERMINAL ASSY | 73001 | Not Available |
| 17 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | COVER - SWITCH | 72456-355N | Not Available |
| 19 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 20 | Not Available | HOSE HOLDER - LOWER | 72463-355N | Not Available |
| 21 | Not Available | HOOK - HOSE | 72636-355N | Not Available |
| 22 | Not Available | HEPA FILTER PKG - STYLE H | 61850 | Not Available |
| 23 | Not Available | GASKET - MOTOR CAN | 72476-119N | Not Available |
| 24 | Not Available | MOTOR ASSEMBLY - CTND | 62075-1 | Not Available |
| 25 | Not Available | MOTOR ADJUSTMENT RING | 72434-119N | Not Available |
| 26 | Not Available | BUSHING - MOTOR | 72650-119N | Not Available |
| 27 | Not Available | SCREW PACKAGE | 62082 | Not Available |
| 28 | Not Available | SHIELD - MOTOR | 73526 | Not Available |
| 28 | Not Available | HANDLE RELEASE PEDAL Not illustrated. | 61630 | Not Available |
| 28 | Not Available | RIVET PACKAGE | 51108A-10 | Not Available |
| 28 | Not Available | AXLE BEARINGS - PACKAGE 1 | 53200 | Not Available |
| 28 | Not Available | SCREW PACKAGE | 53238-1 | Not Available |
| # | Part image | Description | SKU | Price |

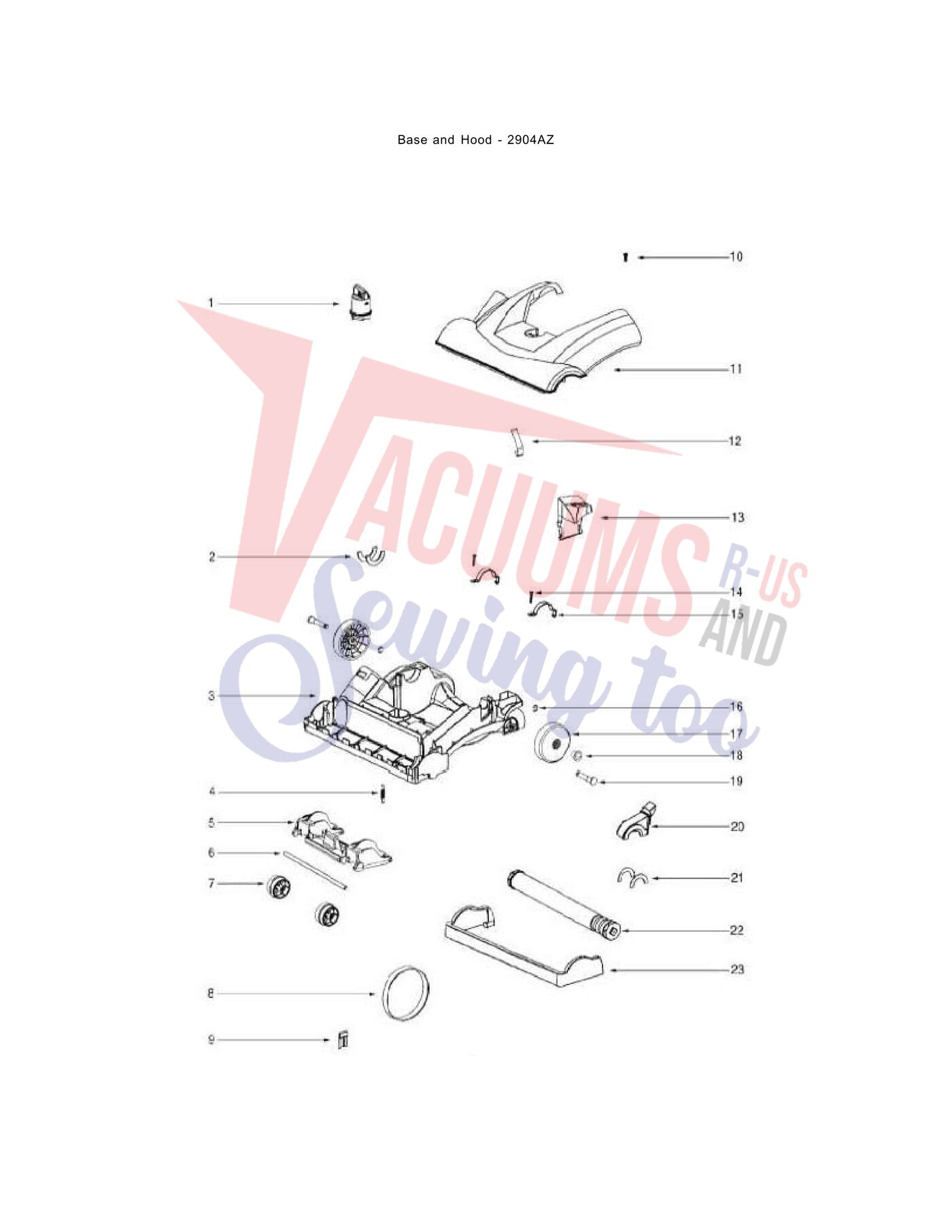

| 1 | Not Available | KNOB - HEIGHT ADJUSTMENT | 72472-355N | Not Available |
| 2 | Not Available | FELT - BASE | 73114 | Not Available |
| 3 | Not Available | BASE ASSEMBLY - | 62072-1 | Not Available |
| 4 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | WHEEL CARRIAGE | 72521-119N | Not Available |
| 6 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | WHEEL - FRONT | 39173-119N | Not Available |
| 8 | Not Available | BELT PKG ASSY-STYLE | 61120A | Not Available |
| 9 | Not Available | GUARD - BELT | 38063 | Not Available |
| 10 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | HOOD ASSEMBLY - | 62073-6 | Not Available |
| 12 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | HANDLE RELEASE | 72473-355N | Not Available |
| 14 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 15 |  | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $3.88Read more |
| 16 | Not Available | PACKAGE - RETAINING | 54432-1 | Not Available |
| 17 | Not Available | WHEEL - REAR | 72117-119N | Not Available |
| 18 | Not Available | BUSHING - AXLE | 72113-1 | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | BELT CAP ASSEMBLY | 73289 | Not Available |
| 21 | Not Available | FELT - BASE | 73114 | Not Available |
| 22 | Not Available | 12" DISTURBULATOR | 60251-3 | Not Available |
| 23 | Not Available | FURNITURE GUARD | 72474-355N | Not Available |
| # | Part image | Description | SKU | Price |

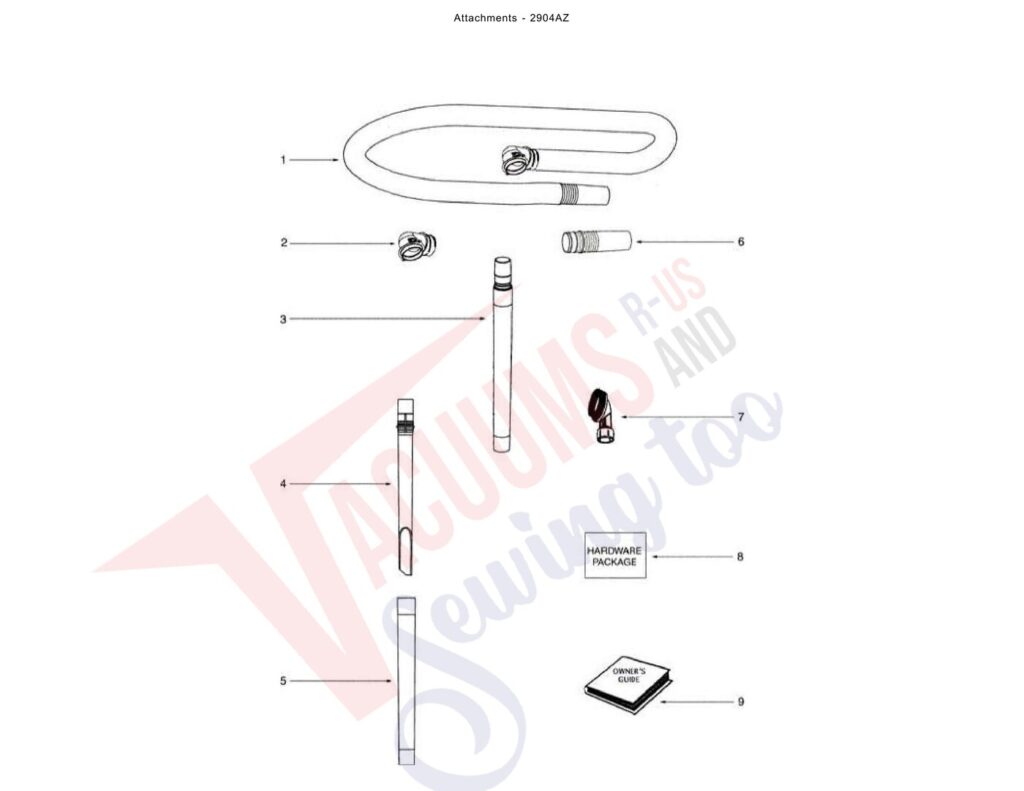

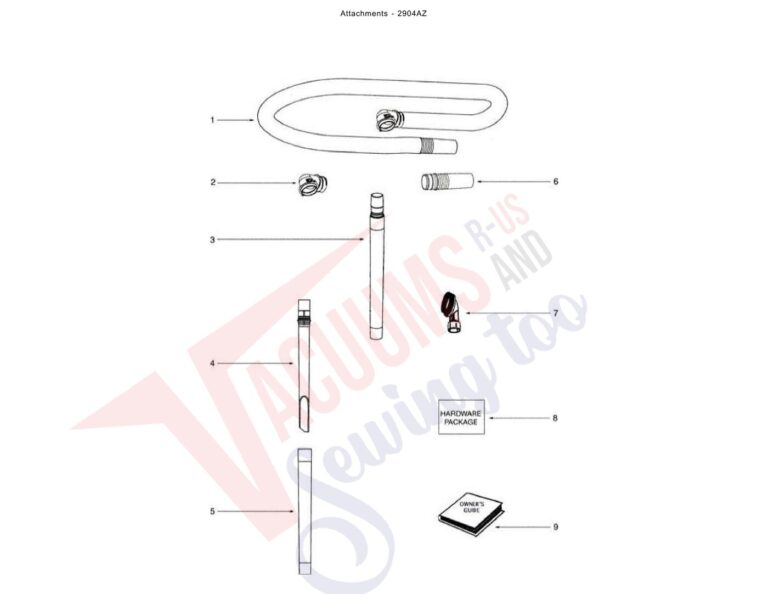

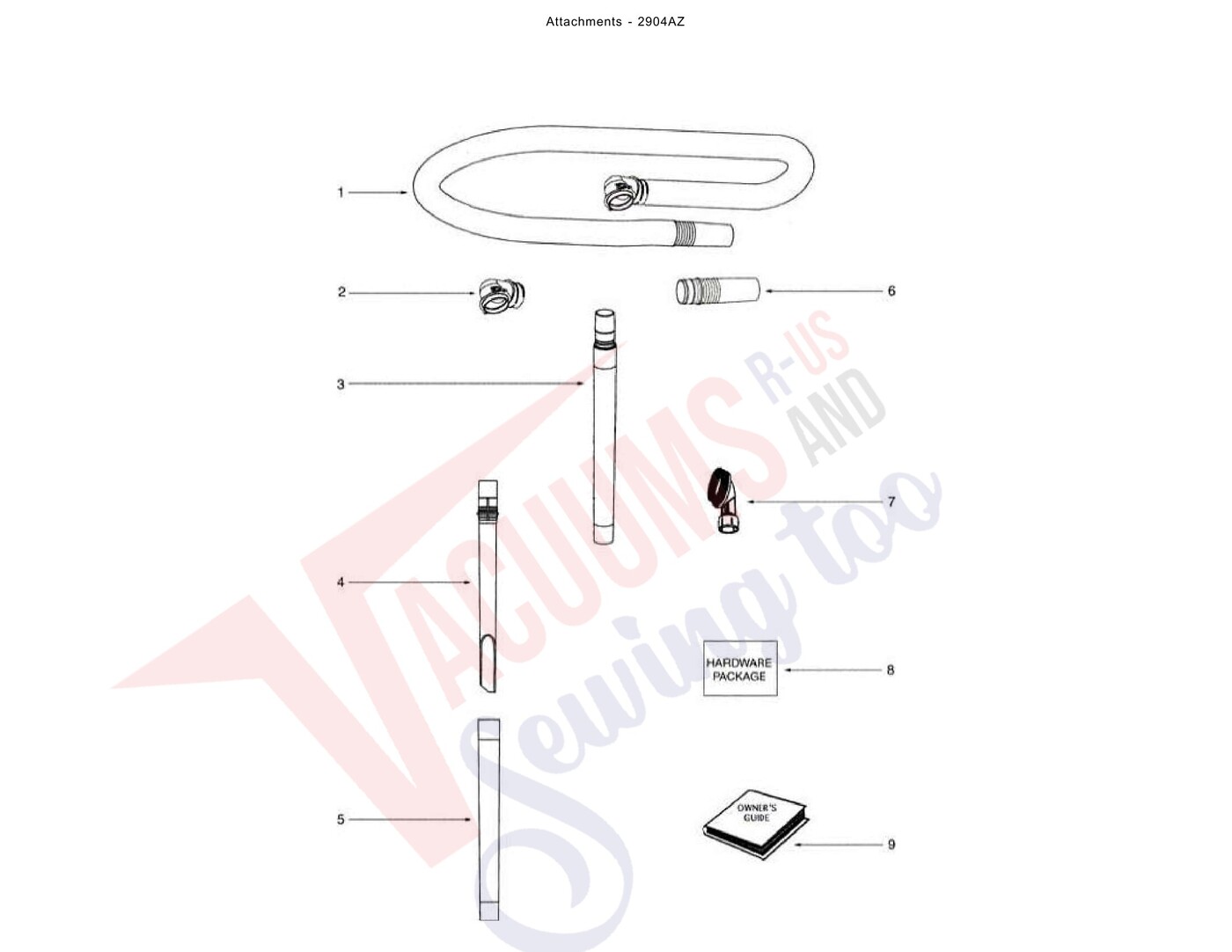

| 1 | Not Available | HOSE ASSEMBLY - CARTONED | 61865-10 | Not Available |
| 2 | Not Available | ADAPTER - HOSE | 72459-313N | Not Available |
| 3 | No Image | Solenoid,Extractor,1/8 Orifice | 71492A | $971.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | WAND - CREVICE | 71956A-355N | Not Available |
| 5 | Not Available | WAND - OUTER | 71973-119N | Not Available |
| 6 | Not Available | COUPLING - HOSE | 28472A-355N | Not Available |
| 7 | Not Available | COMBINATION BRSH BRSTLD-C | 60990-3 | Not Available |
| 8 | Not Available | PACKAGE - HARDWARE | 73012 | Not Available |
| 10 | Not Available | TURBO NOZZLE ASSY Not illustrated. | 28612A-7 | Not Available |
