Schematic and parts book for Eureka 286a . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

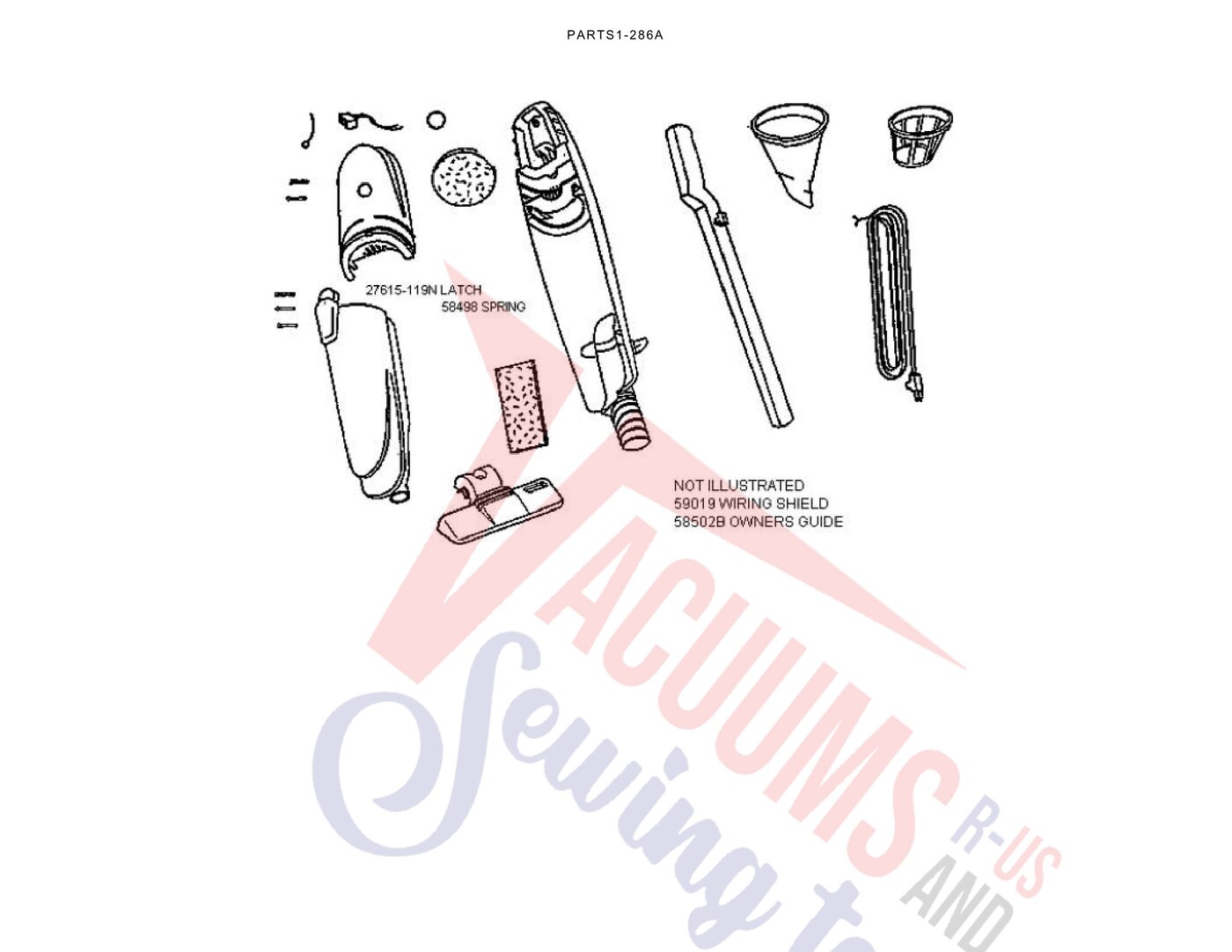

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOUSING - REAR | 02144-119N | Not Available |
| 2 | Not Available | SUPPORT - FILTER | 15212-119N | Not Available |
| 3 | Not Available | LATCH | 27615-119N | Not Available |
| 4 | Not Available | SWITCH - ROCKER | 38299-2 | Not Available |
| 5 | Not Available | SUPPLY CORD ASSEMBLY | 38588-1 | Not Available |
| 6 | Not Available | WIRE & TERMINAL | 38589-1 | Not Available |
| 7 | Not Available | FINAL FILTER | 38596 | Not Available |
| 8 | Not Available | SOUND FOAM | 38599 | Not Available |
| 9 | No Image | HANDLE ASSY, 274A BROOM Part Number: 38649-1 for Eureka | 386491 | $16.20Read more |
| 10 | Not Available | FLOOR TOOL | 39134-5 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 12 | Not Available | FILTER ASSY - PKG | 54865 | Not Available |
| 13 | Not Available | SPRING | 58498 | Not Available |
| 14 | Not Available | SHIELD - WIRING | 59019 | Not Available |
| 15 | Not Available | DIRT CUP & GRAPHICS - PKG | 60013-7 | Not Available |
| 16 | Not Available | MOTOR COVER - PACKAGED | 60014-7 | Not Available |

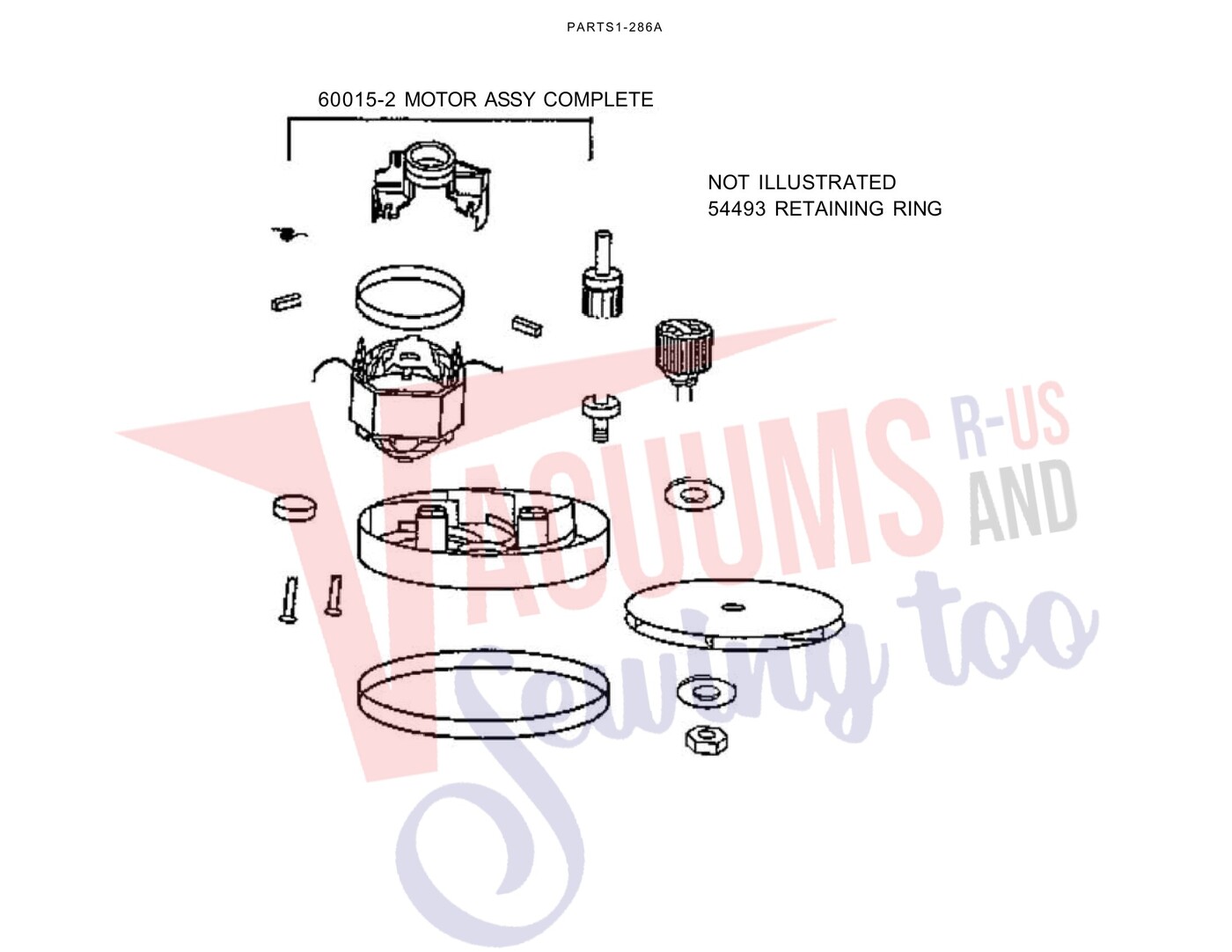

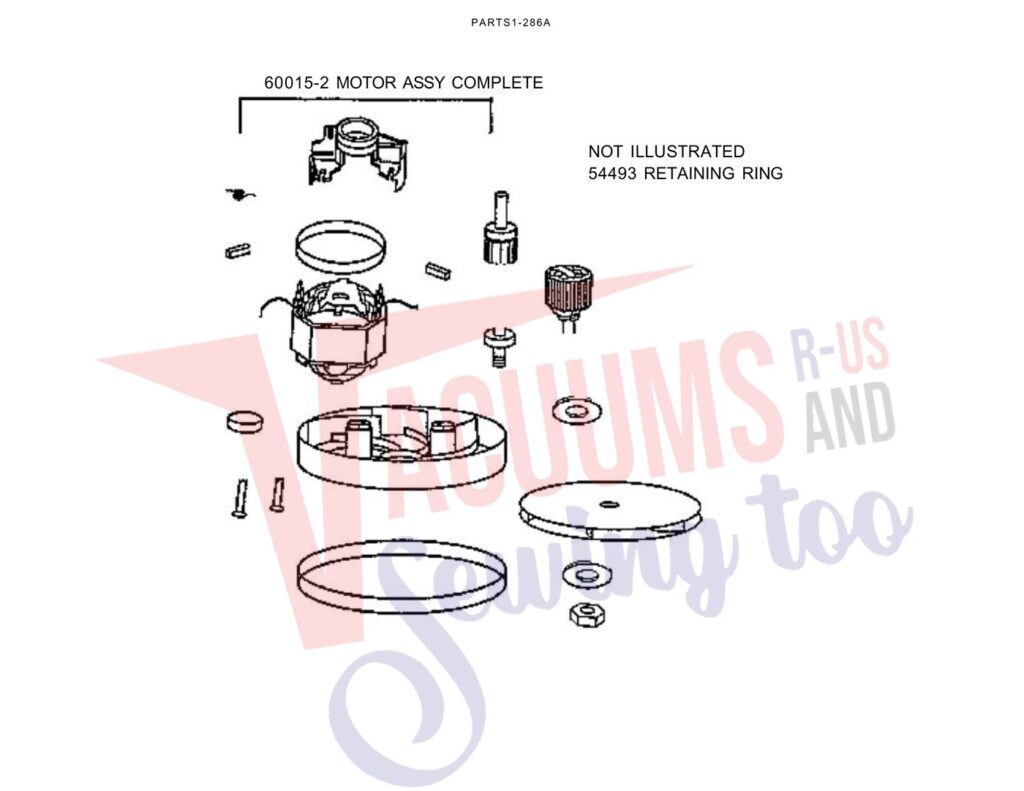

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FAN - STATIONARY | 15214-1 | Not Available |
| 2 | Not Available | END CAP (COMMUTATOR) | 15216 | Not Available |
| 3 | No Image | SPRING, CARBON BRUSH 180A BROOM Part Number: 38038 for Eureka | 38038 | $2.29Read more |
| 4 | Not Available | FAN ASSY | 38585 | Not Available |
| 5 | Not Available | BALL BEARING PKG (53088- (NLA) | 53088-4 | Not Available |
| 6 | Not Available | SCREWS - PACKAGE | 53237-7 | Not Available |
| 7 | Not Available | PACKAGE - RETAINING RING | 54493 | Not Available |
| 8 | No Image | RUBBER BAND, WET/DRY VAC 3 PK 2827A Part Number: 54796 for Eureka | 54796 | $4.62Read more |
| 9 | Not Available | SPACER | 56453 | Not Available |
| 10 | Not Available | WASHER | 56467 | Not Available |
| 11 | Not Available | GASKET - MOTOR STACK | 57364 | Not Available |
| 12 | Not Available | WASHER SPRING | 57529 | Not Available |
| 13 | Not Available | CUP - BEARING | 58491 | Not Available |
| 14 | Not Available | MOTOR ASSY(NLA) (NLA) | 60015-2 | Not Available |
| 15 | Not Available | FIELD ASSY - PKG | 60016-2 | Not Available |
| 16 | Not Available | ARMATURE ASSY | 60017-2 | Not Available |
