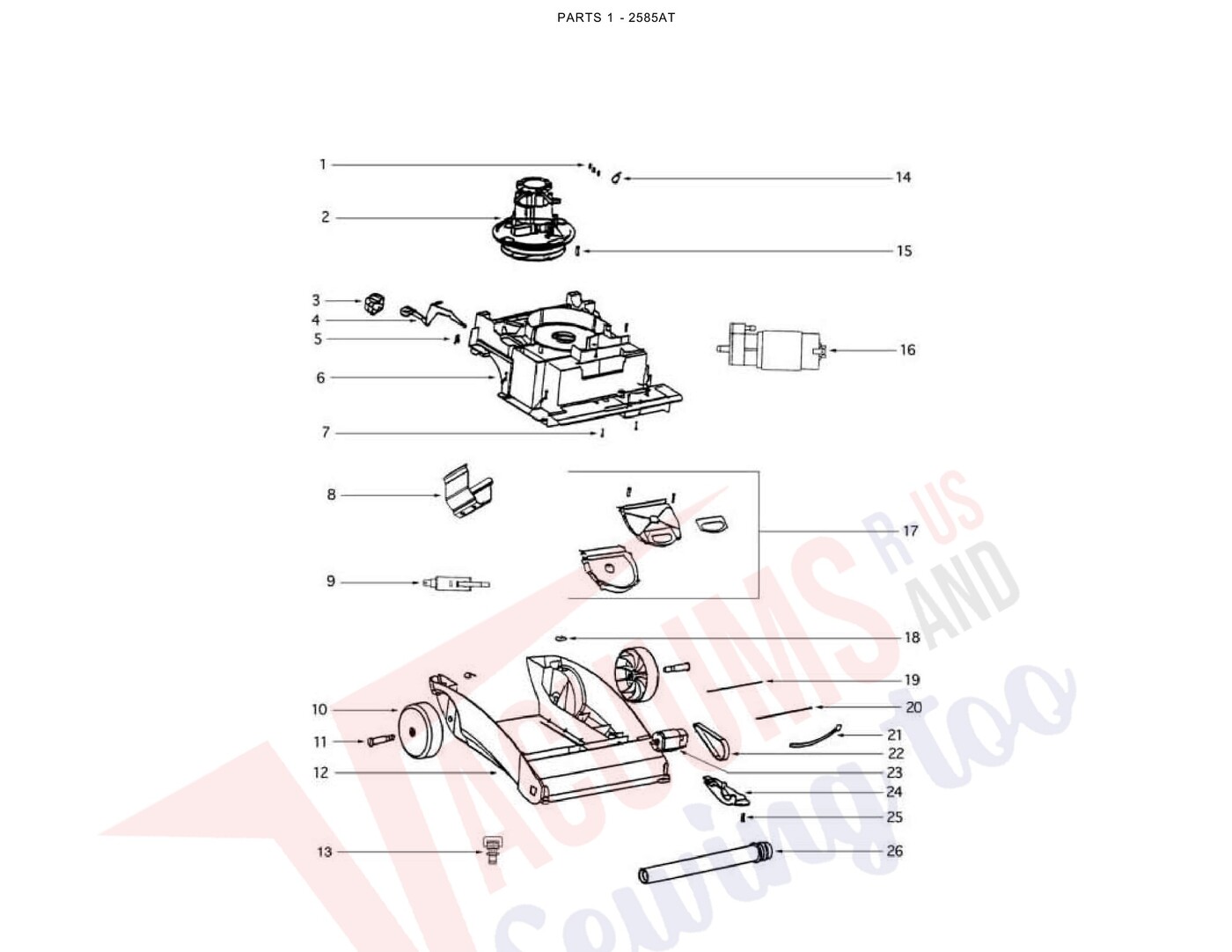

Schematic and parts book for Eureka 2585AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

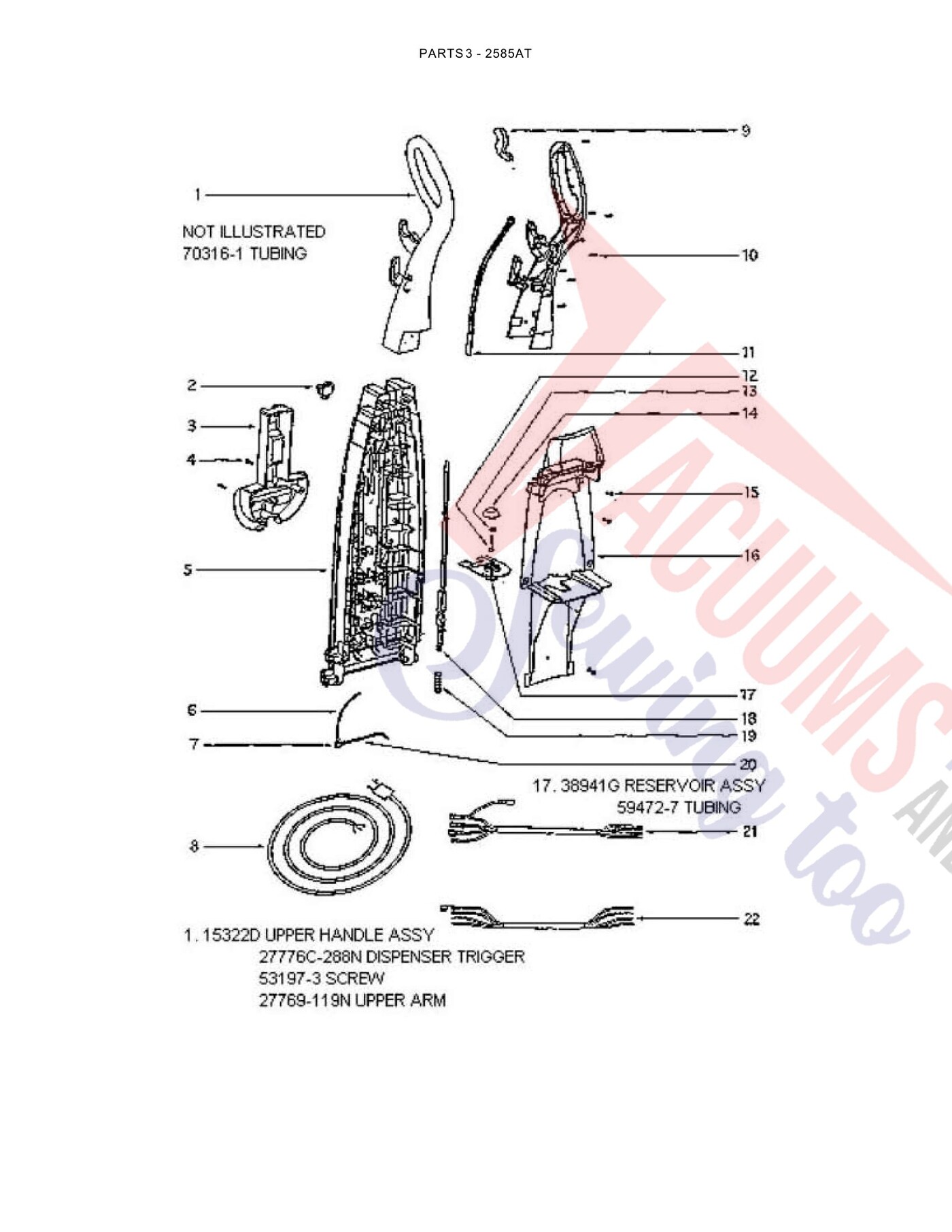

| # | Part image | Description | SKU | Price |
| 1 | Not Available | REAR HOUSING ASSEMBLY | 02191C-119N | Not Available |
| 2 | No Image | HOSE CADDY, DREAM MACH. Part Number: 15317-119N for Eureka | 15317119N | $6.21Read more |
| 3 | Not Available | UPPER HANDLE ASSEMBLY | 15322D | Not Available |
| 4 | Not Available | ARM - UPPER | 27769-119N | Not Available |
| 5 | Not Available | TRIGGER - DISPENSER | 27776C-288N | Not Available |
| 6 | Not Available | ARM - LOWER | 27846B-119N | Not Available |
| 7 |  | COVER, HOUSING 2576 Part Number: 28431-1 for Eureka | 284311 | $22.18Read more |
| 8 | Not Available | SWITCH - ROCKER | 36052-4 | Not Available |
| 9 | Not Available | CORD - SUPPLY | 38752-119N | Not Available |
| 10 | Not Available | SEAL - BOOT | 38845-119N | Not Available |
| 11 | Not Available | RESERVOIR ASSY | 38941G | Not Available |
| 12 | Not Available | ACTUATOR - PLUNGER | 38945B-305N | Not Available |
| 13 | Not Available | DISPENSE VALVE ASSY (3 PO | 39070 | Not Available |
| 14 | Not Available | SCREW PACKAGE | 53197-3 | Not Available |
| 15 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 16 | Not Available | TUBING | 59472-6 | Not Available |
| 17 | Not Available | FILTER PACKAGE | 60207 | Not Available |
| 18 | Not Available | SPRING PKG | 60219 | Not Available |
| 19 | Not Available | TUBING | 70316-1 | Not Available |

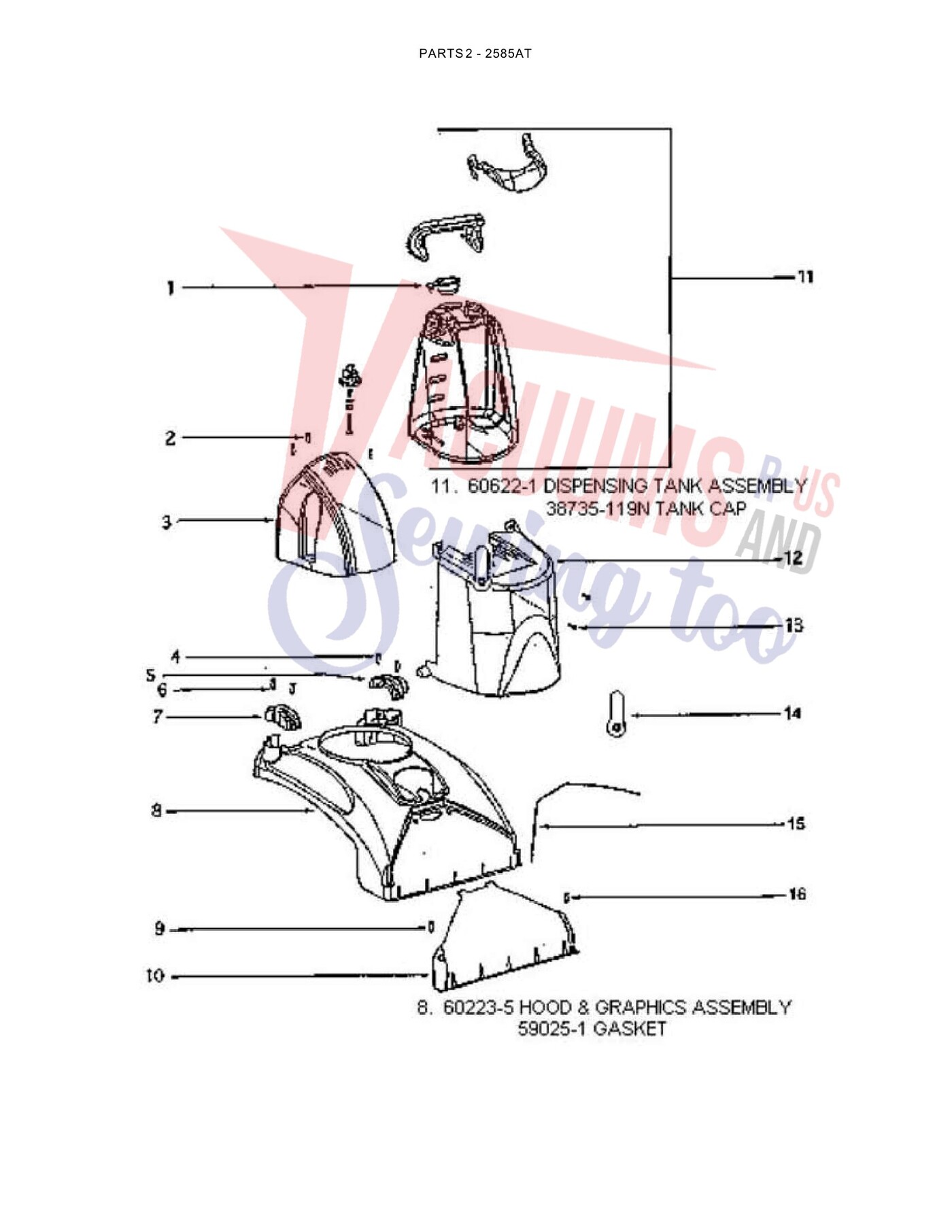

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COVER - MOTOR | 15316A-119N | Not Available |
| 2 | Not Available | CAP - TANK | 38735-119N | Not Available |
| 3 | Not Available | COVER - AXLE (LH) | 38737-119N | Not Available |
| 4 | Not Available | N KNOB - ROTOR | 38741-341 | Not Available |
| 5 | Not Available | COVER - AXLE (RH) | 38756-119N | Not Available |
| 6 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 7 | Not Available | SEAL - GASKET | 59025-1 | Not Available |
| 8 | Not Available | SUCTION COVER - PKGD | 60204B | Not Available |
| 9 | Not Available | HOOD & GRAPHICS ASSY - PK | 60223-5 | Not Available |
| 10 |  | SCREW, HOOD DREAM MACH. 10PK Part Number: 60224 for Eureka | 60224 | $6.52Read more |
| 11 | Not Available | SHROUD & GRAPHICS ASSY - | 60226-6 | Not Available |
| 12 | Not Available | SCREW PKG (10) | 60227 | Not Available |
| 13 | Not Available | DISPENSING TANK ASSY - PK | 60622-1 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | MOTOR & GASKET -PKG | 60218B | Not Available |
| 3 | Not Available | COVER - HANDLE RELEASE | 38853-288N | Not Available |
| 4 | Not Available | BASE/SUPPORT KIT | 59516 | Not Available |
| 5 | No Image | SPRING, HANDLE RELEASE UPRIGHT EXT. 2450 5 PK Part Number: 60217 for Eureka | 60217 | $33.61Read more |
| 6 | Not Available | BASE/SUPPORT KIT | 28142B | Not Available |
| 7 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |
| 8 | No Image | SPACER WALL MOUNT TASKFORCE | 39297 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | SWITCH, MICRO 2575/2595 SHAMPOOER Part Number: 28019A-1 for Eureka | 28019A1 | $9.27Read more |
| 10 | Not Available | WHEEL - REAR | 27843A-119N | Not Available |
| 11 | No Image | WHEEL AXLE, DREAM MACHINE UPRIGHT EXTRACTOR 2450A Part Number: 38392 for Eureka | 38392 | $6.66Read more |
| 12 | No Image | BASE, 2585 Part Number: 60624A for Eureka | 60624A | $34.23Read more |
| 13 | Not Available | NOZZLE | 39290 | Not Available |
| 14 | Not Available | CABLE TIE | 70520-1 | Not Available |
| 15 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 16 | Not Available | PUMP & MOTOR ASSY - PKGD | 60221C | Not Available |
| 17 | Not Available | VALVE ASSEMBLY | 27785A-1 | Not Available |
| 18 | No Image | CLIP, REAR WHEEL EXCALIBAR Part Number: 54709 for Eureka | 54709 | $7.48Read more |
| 19 | Not Available | WIRE & TERMINAL ASSEMBLY | 58971-1 | Not Available |
| 20 | Not Available | WIRE & TERMINAL ASSEMBLY | 58971-2 | Not Available |
| 21 | Not Available | WIRE & TERMINAL ASSEMBLY | 58738-1 | Not Available |
| 22 | Not Available | BELT PACKAGE | 60129 | Not Available |
| 23 | Not Available | MOTOR & PULLEY ASSY - CRT | 60623 | Not Available |
| 24 |  | COVER, BELT 2585 Part Number: 38738B-119N for Eureka | 38738B119N | $7.33Read more |
| 25 | Not Available | SCREW PACKAGE | 54669-3 | Not Available |
| 26 | Not Available | DISTURBULATOR ASSY - CTND | 60203A | Not Available |
| 27 | Not Available | GASKET - BRUSH ROLL MOTOR | 59148 | Not Available |

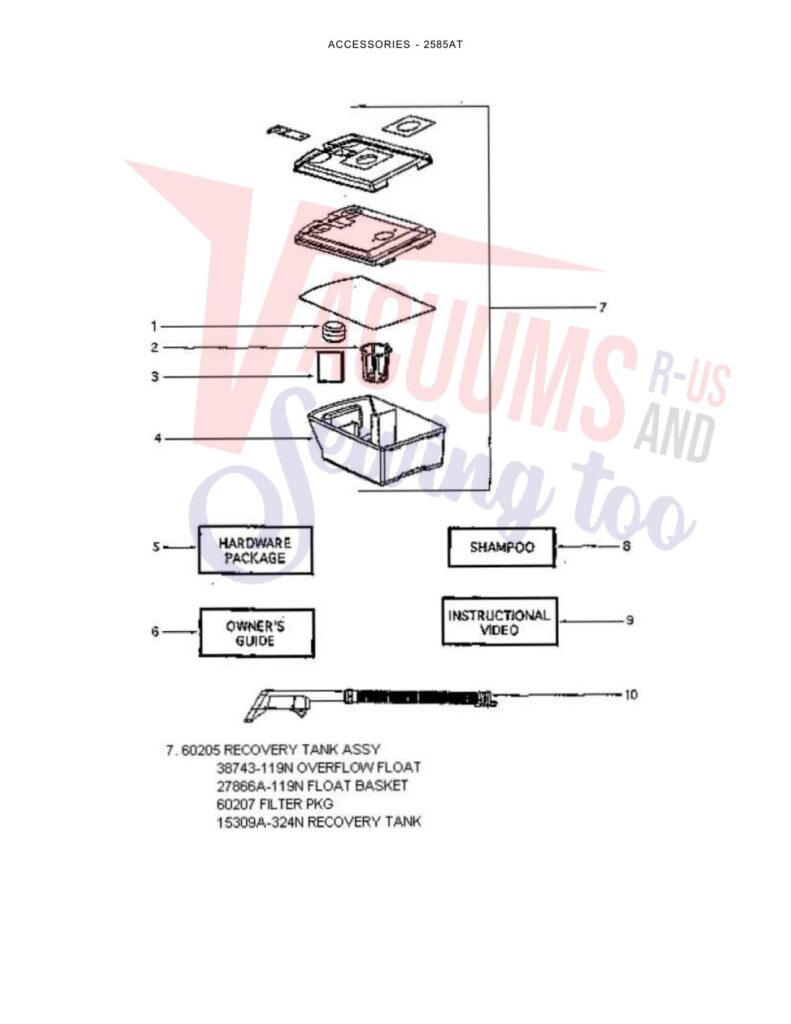

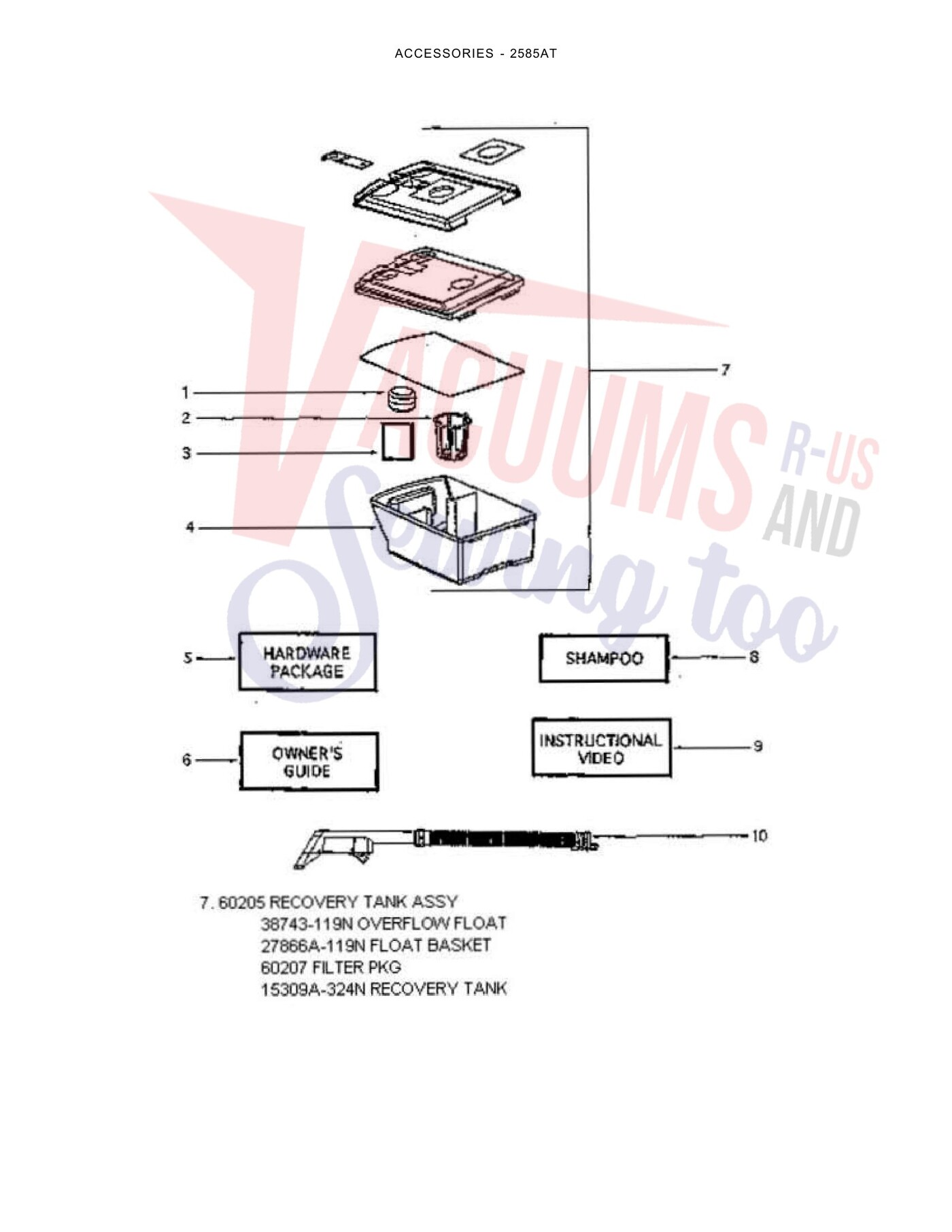

| # | Part image | Description | SKU | Price |
| 1 | Not Available | RECOVERY TANK ASSY -PKGD | 38743-119N | Not Available |
| 2 | Not Available | BASKET - FLOAT | 27866A-119N | Not Available |
| 3 | Not Available | FILTER PACKAGE | 60207 | Not Available |
| 4 | Not Available | RECOVERY TANK ASSY -PKGD | 15309A-324N | Not Available |
| 5 | Not Available | HARDWARE PACKAGE | 59052 | Not Available |
| 6 | Not Available | Owner's Guide | 70326 | Not Available |
| 7 | Not Available | RECOVERY TANK ASSY -PKGD | 60205 | Not Available |
| 8 | Not Available | EXTRACTOR SHAMPOO PACKAGE | 60170 | Not Available |
| 9 | Not Available | Instructional Video | 70351 | Not Available |
| 10 | Not Available | UPHOLSTERY HOSE ASSY - CT | 60245C | Not Available |
| 11 | Not Available | VALVE ASSEMBLY | 70322 | Not Available |
| 12 | Not Available | UPHOLSTERY HOSE ASSY - CR | 38745-119N | Not Available |
| 13 | Not Available | UPHOLSTERY HOSE ASSY - CR | 27765-119N | Not Available |
| 14 | Not Available | NOZZLE - COVER | 27767-324N | Not Available |
