Schematic and parts book for Eureka 2275AZ . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

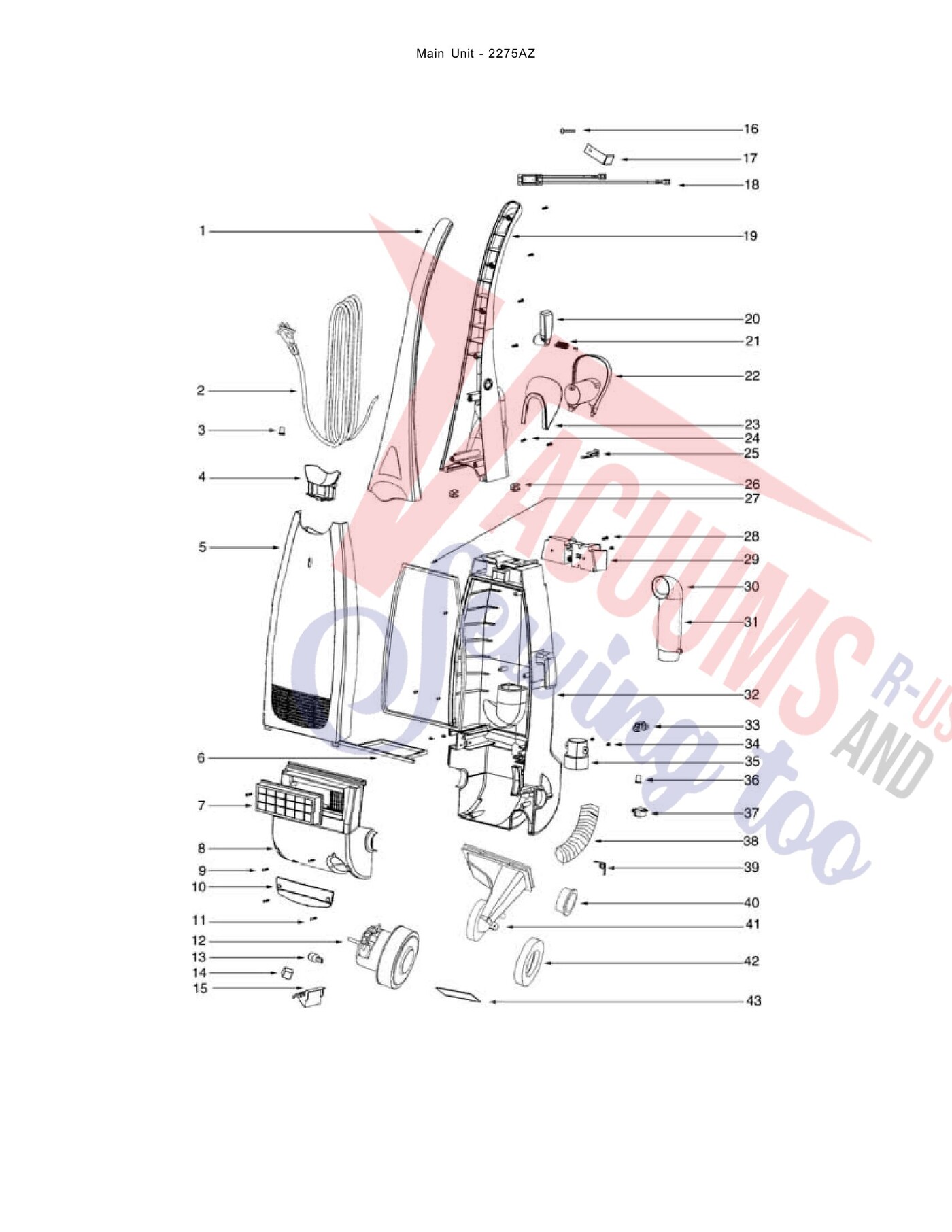

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE COVER -PKGD | 61636-5 | Not Available |
| 2 | Not Available | POWER CORD | 61637 | Not Available |
| 3 | Not Available | POWER CORD JACKET | 61664 | Not Available |
| 4 | Not Available | BAG COVER LATCH | 61638 | Not Available |
| 5 | Not Available | BAG COVER ASSY - PACKAGED | 63018 | Not Available |
| 6 | Not Available | AIR INLET GASKET | 61646 | Not Available |
| 7 | Not Available | HEPA FILTER PKG - STYLE H | 61850 | Not Available |
| 8 | Not Available | MOTOR COVER - PACKAGED | 61642-12 | Not Available |
| 9 | Not Available | SCREW PACKAGE | 61803-1 | Not Available |
| 10 | Not Available | LENS | 61857 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 61803-4 | Not Available |
| 12 | Not Available | MOTOR ASSY -CTND | 61632 | Not Available |
| 13 | Not Available | HEADLIGHT (NLA) | 57940-2 | Not Available |
| 14 | Not Available | HEADLIGHT SOCKET ASSEMBLY | 61849 | Not Available |
| 15 | Not Available | SWITCH PEDAL | 61641-1 | Not Available |
| 16 | Not Available | SCREW PACKAGE | 61803-3 | Not Available |
| 17 | No Image | CLIP, THERMOSTAT 2903AE Part Number: 72443 for Eureka | 72443 | $4.55Read more |
| 18 | Not Available | THERMOSTAT & TERMINAL ASS | 61663 | Not Available |
| 19 | Not Available | HANDLE | 61660 | Not Available |
| 20 | Not Available | CORD HOOK | 61659 | Not Available |
| 21 | Not Available | SPRING PACKAGE | 61658 | Not Available |
| 22 | Not Available | DUSTING BRUSH SUPPORT | 61657 | Not Available |
| 23 | Not Available | HOSE FRAME | 61656 | Not Available |
| 25 | Not Available | CLIP | 61655 | Not Available |
| 26 | Not Available | HANDLE CLIP | 72342 | Not Available |
| 27 | Not Available | BAG COVER GASKET | 61654 | Not Available |
| 29 | Not Available | TOOL CADDY | 61652 | Not Available |
| 30 | Not Available | AIR TUBE | 61653 | Not Available |
| 31 | Not Available | AIR TUBE CONNECTOR | 61648 | Not Available |
| 32 | Not Available | REAR HOUSING - PKGD | 61650 | Not Available |
| 33 | Not Available | SWITCH REPLACEMENT KIT | 61644 | Not Available |
| 34 | Not Available | SCREW PACKAGE | 61803-2 | Not Available |
| 35 | Not Available | HOSE CUFF | 61651 | Not Available |
| 36 | Not Available | POWER CORD JACKET | 61647 | Not Available |
| 37 | Not Available | SWITCH REPLACEMENT KIT | 61645 | Not Available |
| 38 | No Image | HOSE, LOWER 2270 SERIES Part Number: 61649 for Eureka | 61649 | $6.23Read more |
| 39 | No Image | SPRING, TORSION 2270 Part Number: 61643 for Eureka | 61643 | $3.03Read more |
| 40 | Not Available | GROMMET | 61633 | Not Available |
| 41 | Not Available | AIR DUCT ASSEMBLY | 61634 | Not Available |
| 42 | Not Available | AIR DUCT GASKET | 61635 | Not Available |
| 43 | Not Available | FILTER | 61530 | Not Available |
| 44 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 45 | Not Available | SCREW PACKAGE | 61803 | Not Available |

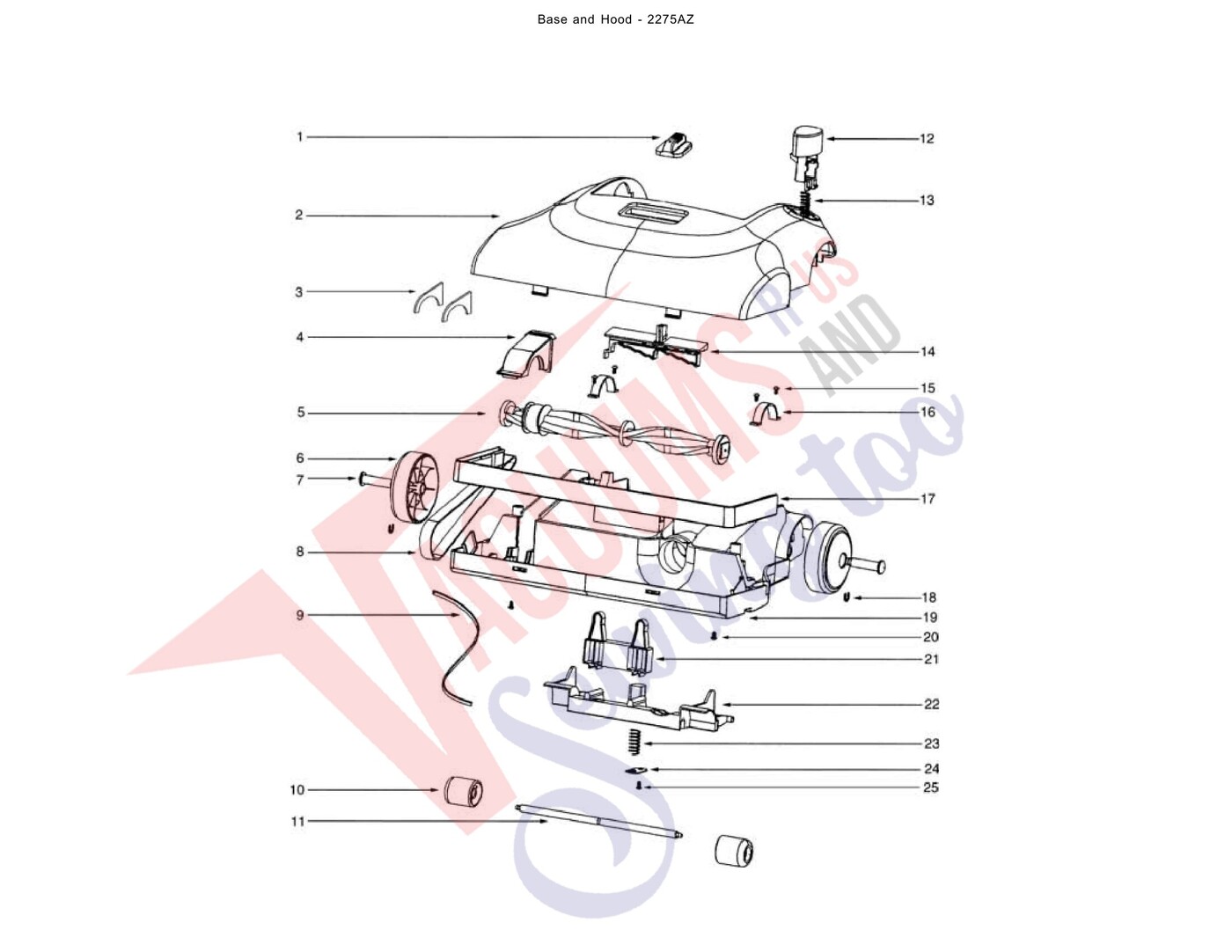

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HEIGHT ADJUSTMENT KNOB | 61631-1 | Not Available |
| 2 | Not Available | HOOD ASSEMBLY - PKG | 63019 | Not Available |
| 3 | No Image | POTENTIOMETER KNOB | 39573 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | COVER, BELT 2271 Part Number: 61613 for Eureka | 61613 | $4.84Read more |
| 5 | Not Available | BRUSHROLL ASSEMBLY - CART | 61540 | Not Available |
| 6 | Not Available | REAR WHEEL | 61616 | Not Available |
| 7 | Not Available | REAR WHEEL SHAFT | 61615 | Not Available |
| 8 | Not Available | BELT PACKAGE - STYLE J | 61520 | Not Available |
| 9 | Not Available | GASKET | 61622 | Not Available |
| 10 | Not Available | FRONT WHEEL | 61623 | Not Available |
| 11 | Not Available | FRONT WHEEL SHAFT | 61624 | Not Available |
| 12 | Not Available | HANDLE RELEASE PEDAL | 61630-1 | Not Available |
| 13 | Not Available | SPRING | 61629 | Not Available |
| 14 | Not Available | SWITCH SUPPORT | 61628 | Not Available |
| 16 | Not Available | CLAMP | 61614 | Not Available |
| 17 | Not Available | FURNITURE GUARD | 61617 | Not Available |
| 18 | Not Available | CLIP RING | 61619 | Not Available |
| 19 | Not Available | BASE | 61620 | Not Available |
| 20 | Not Available | SCREW PACKAGE | 61803 | Not Available |
| 21 | Not Available | ADJUST FRAME | 61621 | Not Available |
| 22 | Not Available | WHEEL CARRIAGE | 61627 | Not Available |
| 23 | Not Available | SPRING | 61626 | Not Available |
| 24 | Not Available | SPRING PLATE | 61625 | Not Available |
| 25 | Not Available | SCREW PACKAGE | 61803-2 | Not Available |

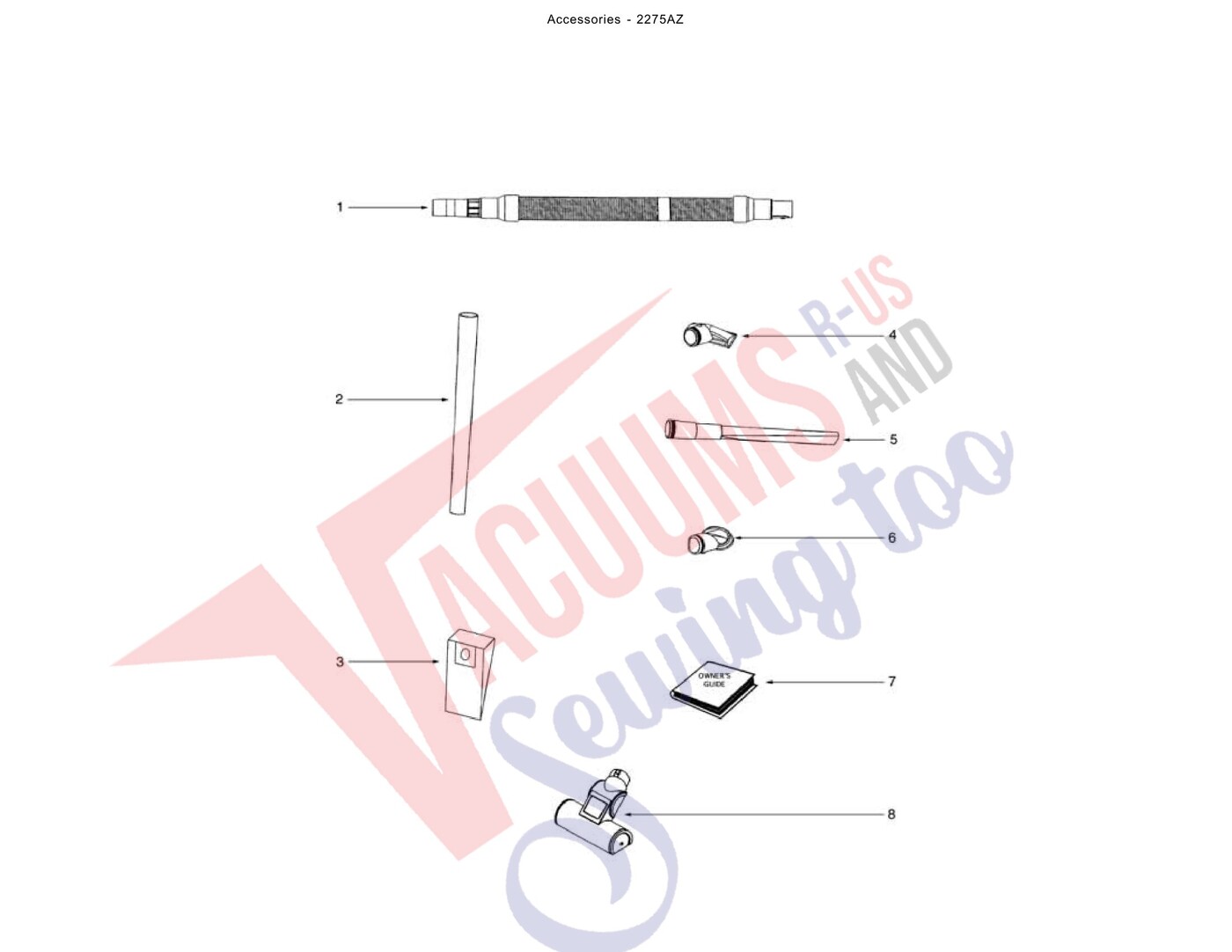

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE ASSY - CTND | 61535 | Not Available |
| 2 | Not Available | EXTENSION WAND | 61531 | Not Available |
| 3 | Not Available | PAPER BAG PACKAGE - STYLE | 61515A | Not Available |
| 4 | Not Available | UPHOLSTERY NOZZLE | 61537 | Not Available |
| 5 | Not Available | CREVICE NOZZLE | 61532 | Not Available |
| 6 | Not Available | DUSTING BRUSH | 61536 | Not Available |
| 7 | Not Available | OWNER'S GUIDE | 71434A | Not Available |
| 8 | Not Available | TURBO NOZZLE ASSY (MODEL | 28612A | Not Available |
