Schematic and parts book for Eureka 2270AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

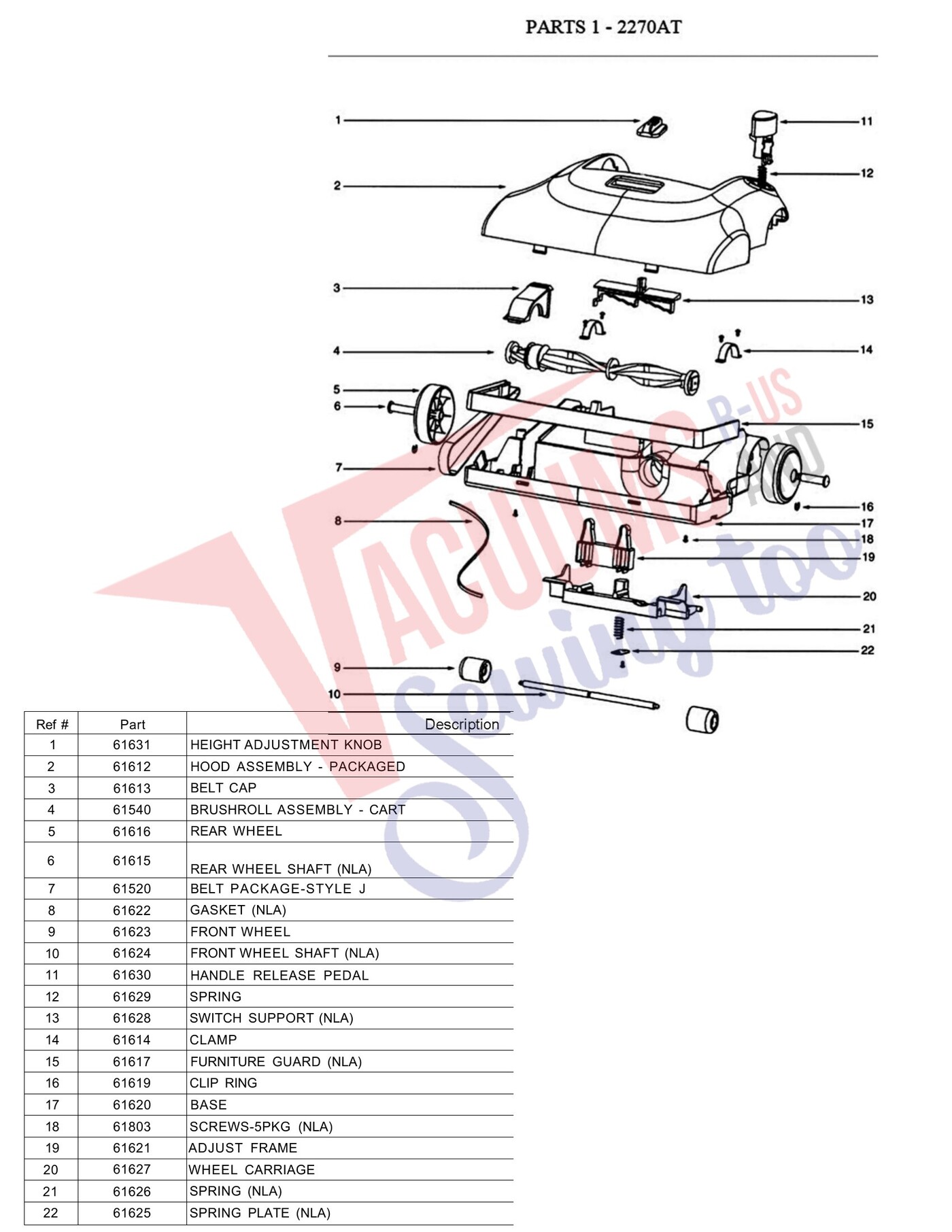

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HEIGHT ADJUSTMENT KNOB | 61631 | Not Available |
| 2 | Not Available | HOOD ASSEMBLY - PACKAGED | 61612 | Not Available |
| 3 | No Image | COVER, BELT 2271 Part Number: 61613 for Eureka | 61613 | $4.84Read more |
| 4 | Not Available | BRUSHROLL ASSEMBLY - CART | 61540 | Not Available |
| 5 | Not Available | REAR WHEEL | 61616 | Not Available |
| 6 | Not Available | REAR WHEEL SHAFT (NLA) | 61615 | Not Available |
| 7 | Not Available | BELT PACKAGE-STYLE J | 61520 | Not Available |
| 8 | Not Available | GASKET (NLA) | 61622 | Not Available |
| 9 | Not Available | FRONT WHEEL | 61623 | Not Available |
| 10 | Not Available | FRONT WHEEL SHAFT (NLA) | 61624 | Not Available |
| 11 | Not Available | HANDLE RELEASE PEDAL | 61630 | Not Available |
| 12 | Not Available | SPRING | 61629 | Not Available |
| 13 | Not Available | SWITCH SUPPORT (NLA) | 61628 | Not Available |
| 14 | Not Available | CLAMP | 61614 | Not Available |
| 15 | Not Available | FURNITURE GUARD (NLA) | 61617 | Not Available |
| 16 | Not Available | CLIP RING | 61619 | Not Available |
| 17 | Not Available | BASE | 61620 | Not Available |
| 18 | Not Available | SCREWS-5PKG (NLA) | 61803 | Not Available |
| 19 | Not Available | ADJUST FRAME | 61621 | Not Available |
| 20 | Not Available | WHEEL CARRIAGE | 61627 | Not Available |
| 21 | Not Available | SPRING (NLA) | 61626 | Not Available |
| 22 | Not Available | SPRING PLATE (NLA) | 61625 | Not Available |

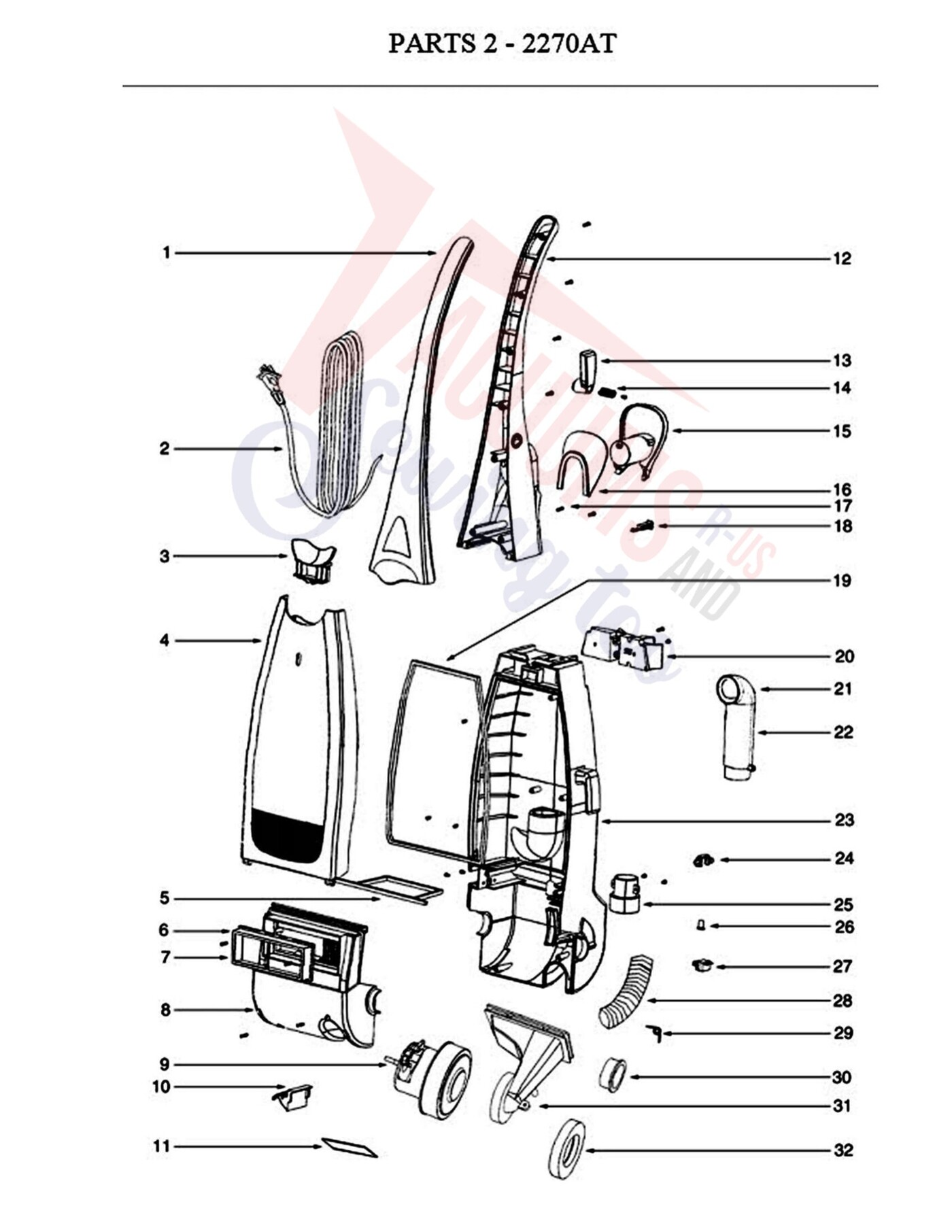

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE COVER-PKGD | 61636 | Not Available |
| 2 | Not Available | POWER CORD | 61637 | Not Available |
| 3 | Not Available | POWER CORD JACKET (NLA) | 61664 | Not Available |
| 4 | Not Available | BAG COVER LATCH (NLA) | 61638 | Not Available |
| 5 | Not Available | BAG COVER ASSY - PACKAGED | 61639 | Not Available |
| 6 | Not Available | AIR INLET GASKET (NLA) | 61646 | Not Available |
| 7 | Not Available | EXHAUST FILTER (NLA) | 61528 | Not Available |
| 8 | Not Available | FILTER FRAME | 61541 | Not Available |
| 9 | Not Available | MOTOR COVER (NLA) | 61642 | Not Available |
| 10 | Not Available | MOTOR ASSEMBLY (NLA) | 61632 | Not Available |
| 11 | Not Available | MOTOR ADJUSTMENT RING | 61662 | Not Available |
| 12 | Not Available | SWITCH (NLA) | 61641 | Not Available |
| 13 | Not Available | FILTER | 61530 | Not Available |
| 14 | Not Available | HANDLE | 61660 | Not Available |
| 15 | Not Available | CORD HOOK | 61659 | Not Available |
| 16 | Not Available | SPRING PACKAGE | 61658 | Not Available |
| 17 | Not Available | DUSTING BRUSH SUPPORT | 61657 | Not Available |
| 18 | Not Available | HOSE FRAME (NLA) | 61656 | Not Available |
| 19 | Not Available | SCREW PACKAGE | 61799 | Not Available |
| 20 | Not Available | CLIP (NLA) | 61655 | Not Available |
| 21 | Not Available | BAG COVER GASKET (NLA) | 61654 | Not Available |
| 22 | Not Available | TOOL CADDY (NLA) | 61652 | Not Available |
| 23 | Not Available | AIR TUBE | 61653 | Not Available |
| 24 | Not Available | AIR TUBE CONNECTOR (NLA) | 61648 | Not Available |
| 25 | Not Available | REAR HOUSING PKGD. | 61650 | Not Available |
| 26 | Not Available | SWITCH REPLACEMENT KIT | 61644 | Not Available |
| 27 | Not Available | HOSE CUFF | 61651 | Not Available |
| 28 | Not Available | POWER CORD JACKET | 61647 | Not Available |
| 29 | Not Available | SWITCH REPLACEMENT KIT | 61645 | Not Available |
| 30 | No Image | HOSE, LOWER 2270 SERIES Part Number: 61649 for Eureka | 61649 | $6.23Read more |
| 31 | Not Available | HOSE CLIP | 61661 | Not Available |
| 32 | No Image | SPRING, TORSION 2270 Part Number: 61643 for Eureka | 61643 | $3.03Read more |
| 33 | Not Available | GROMMET (NLA) | 61633 | Not Available |
| 34 | Not Available | AIR DUCT W/FILTER SUPPOR (NLA) | 61634 | Not Available |
| 35 | Not Available | AIR DUCT GASKET (NLA) | 61635 | Not Available |
| 36 | Not Available | THERMOSTAT & TERMINAL ASS | 61663 | Not Available |
| 37 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 38 | Not Available | SCREWS-5PKG (NLA) | 61803 | Not Available |

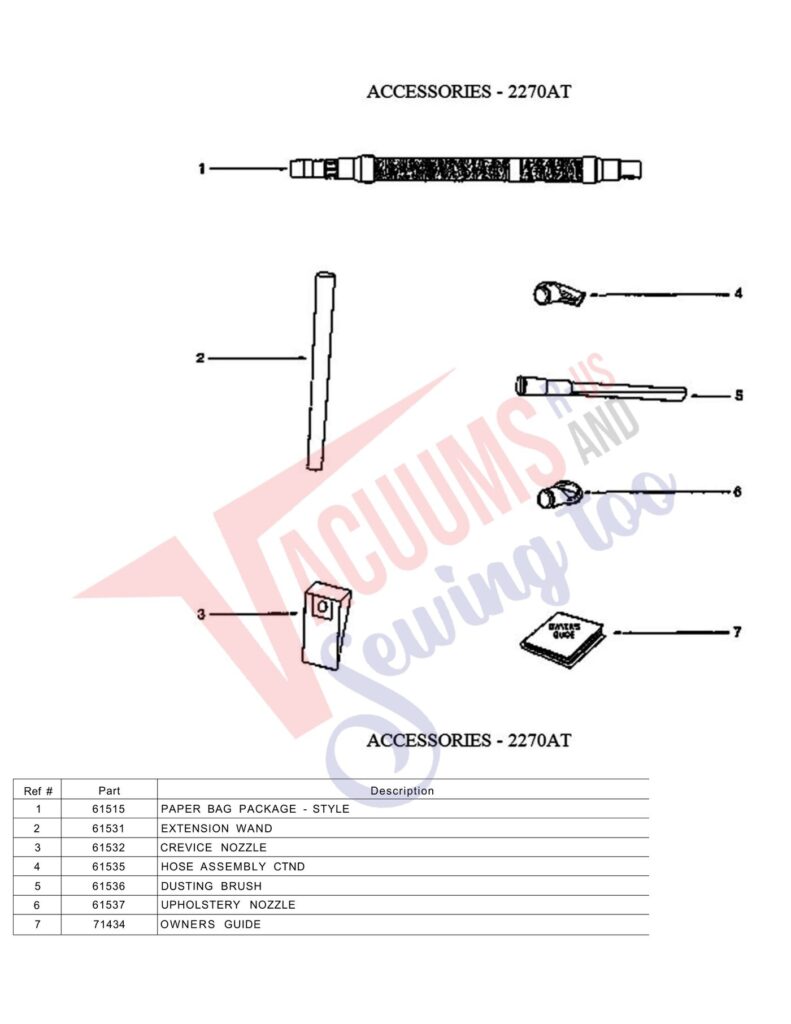

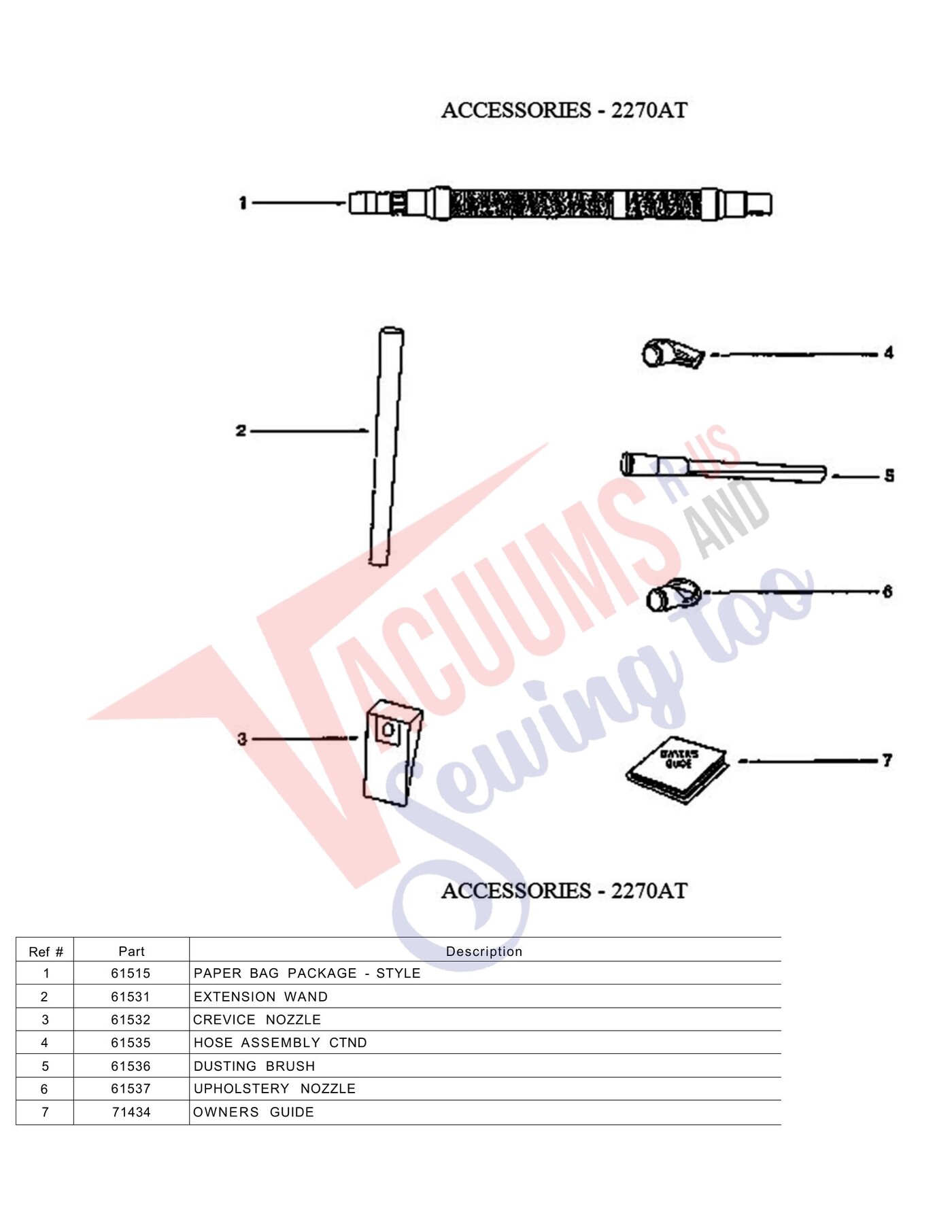

| # | Part image | Description | SKU | Price |
| 1 | Not Available | PAPER BAG PACKAGE - STYLE | 61515 | Not Available |
| 2 | Not Available | EXTENSION WAND | 61531 | Not Available |
| 3 | Not Available | CREVICE NOZZLE | 61532 | Not Available |
| 4 | Not Available | HOSE ASSEMBLY CTND | 61535 | Not Available |
| 5 | Not Available | DUSTING BRUSH | 61536 | Not Available |
| 6 | Not Available | UPHOLSTERY NOZZLE | 61537 | Not Available |
| 7 | Not Available | OWNERS GUIDE | 71434 | Not Available |
