Schematic and parts book for Eureka 2134A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

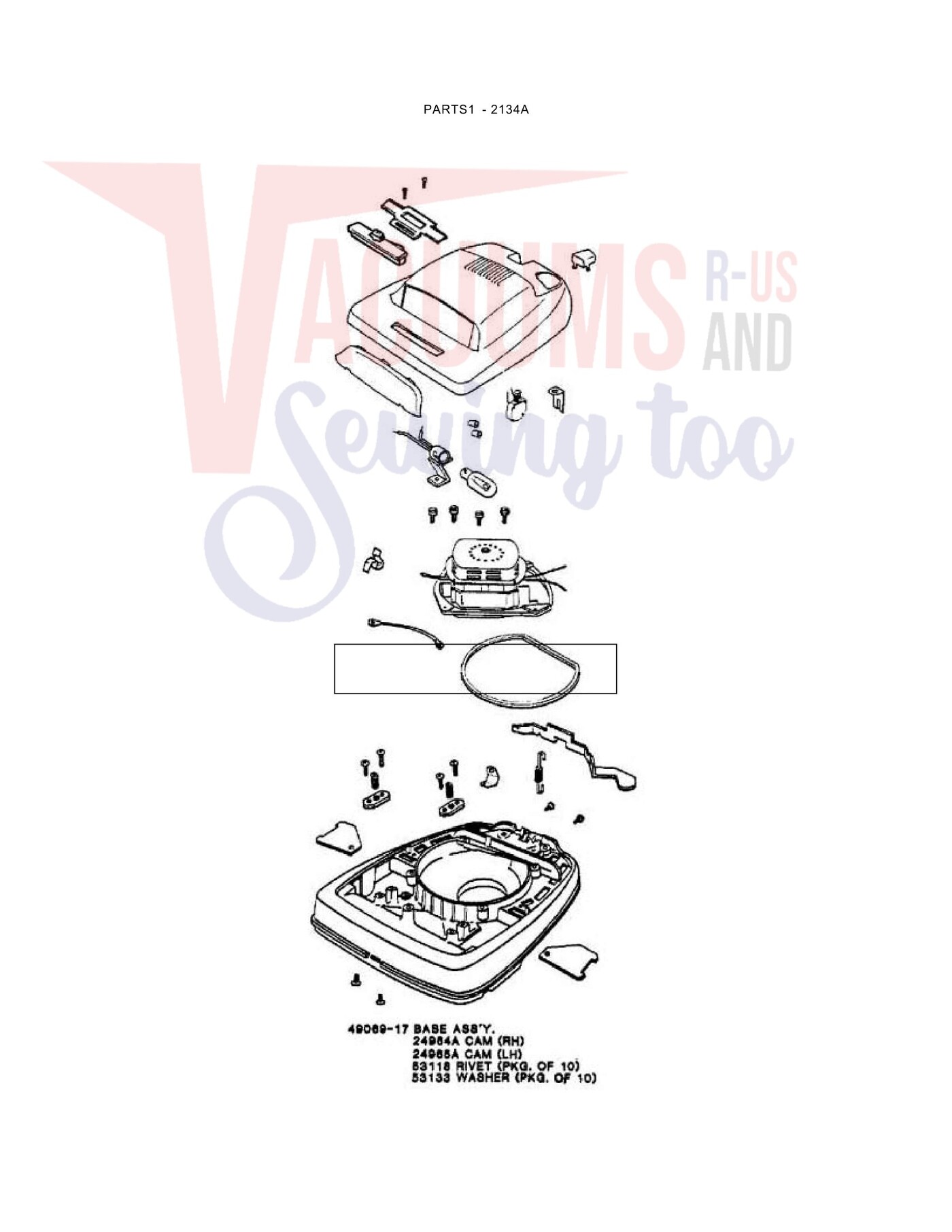

| 1 | Not Available | SWITCH ASSEMBLY | 13738-5 | Not Available |
| 2 | Not Available | PEDAL - FOOT | 24834A-1 | Not Available |
| 3 | Not Available | SLIDE - ADJUSTMENT | 24866A-5 | Not Available |
| 4 | Not Available | CAM (RIGHT) | 24964A | Not Available |
| 5 | Not Available | CAM (LEFT) | 24965A | Not Available |
| 6 | Not Available | COVER - SLIDE | 25729A-6 | Not Available |
| 7 | Not Available | TIE - CABLE (PURCHASED) | 26307 | Not Available |
| 8 | Not Available | BUTTON - SWITCH | 26808-2 | Not Available |
| 9 | Not Available | GASKET - MOTOR SEAL | 30517 | Not Available |
| 10 | No Image | Light Socket Assy For: eureka,sanitaire | 35958A | $6.25Read more |
| 11 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BRACKET - BUSHING | 37590 | Not Available |
| 13 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | LAMP - HEADLIGHT | 40009A | Not Available |
| 15 | Not Available | BASE ASSEMBLY - CARTONED | 49069-1 | Not Available |
| 16 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 17 | Not Available | RIVET - SHOULDER PACKAGE | 53118 | Not Available |
| 18 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 19 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | SCREW PACKAGE (10) | 53147 | Not Available |
| 21 | Not Available | WIRE SPLICE | 53214-1 | Not Available |
| 22 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | SCREW PACKAGE | 53238-1 | Not Available |
| 24 | No Image | WIRE and TERMINAL ASSEMBLY | 55296 | $17.99Read more |
| 25 | Not Available | SCREWS - PACKAGE | EW126-10-10CC | Not Available |
| 26 | Not Available | SCREW PACKAGE | EW29-8-12ZP | Not Available |
| # | Part image | Description | SKU | Price |

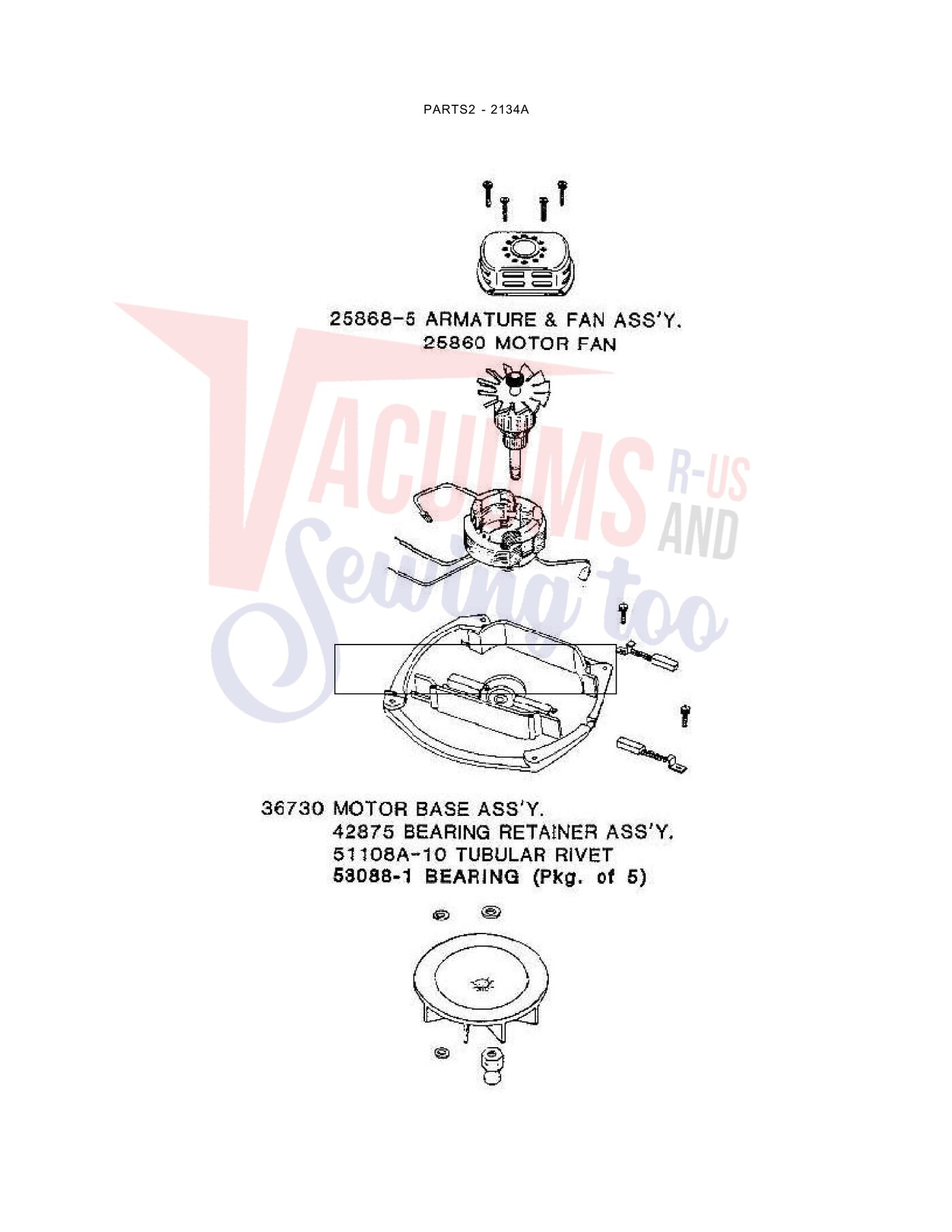

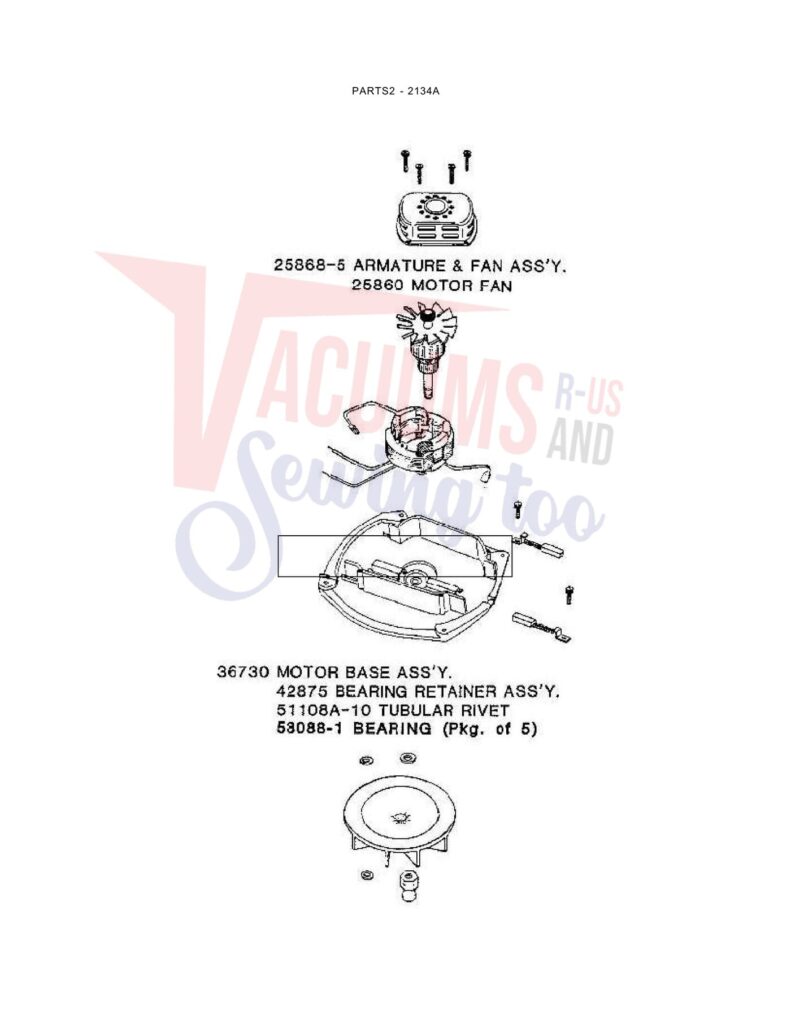

| 1 | Not Available | FAN BLOWER - MOTOR | 12988-1 | Not Available |
| 2 | Not Available | FIELD ASSEMBLY - CARTONED | 13355-1 | Not Available |
| 3 |  | MOTOR COVER, W/O BALL BRG 5.5/6.5 AMP ULTRA METAL Part Number: 13746-1 for Eureka | 137461 | $6.04Read more |
| 4 | Not Available | MOTOR BRUSH ASSEMBLY | 26055 | Not Available |
| 5 | Not Available | PULLEY - MOTOR DRIVE | 36993 | Not Available |
| 6 | Not Available | BEARING RETAINER ASSY-W/L | 42875 | Not Available |
| 7 | Not Available | RIVET PACKAGE | 51108A-10 | Not Available |
| 8 | Not Available | BALL BEARING - PACKAGE | 53088-1 | Not Available |
| 9 | Not Available | SCREW - TORX PAN HD | 53131-2 | Not Available |
| 10 | Not Available | WASHER - FAN PACKAGE (10) | 53148 | Not Available |
| 11 | Not Available | WASHER PACKAGE | 53188 | Not Available |
| 12 | Not Available | MOTOR KIT | 54818 | Not Available |
| # | Part image | Description | SKU | Price |

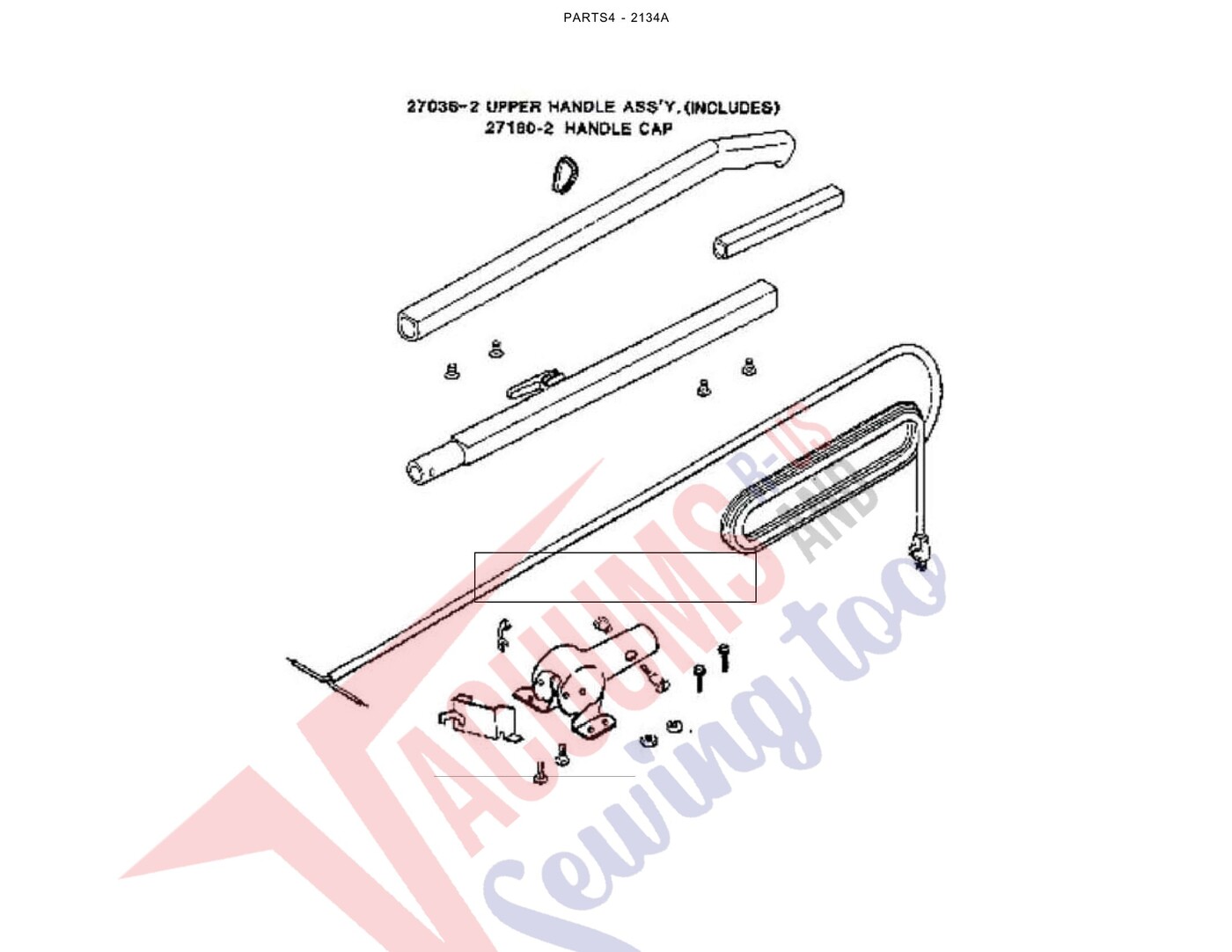

| 1 | Not Available | HANDLE - LOWER | 01681-2 | Not Available |
| 2 | Not Available | CONNECTOR - HANDLE | 26659-1 | Not Available |
| 3 | Not Available | HANDLE KIT - UPRIGHT | 27036-2 | Not Available |
| 5 | Not Available | HANDLE KIT - UPRIGHT | 27180-2 | Not Available |
| 6 | Not Available | CORD - LOW LEAD (18 GA) | 34732-25 | Not Available |
| 7 | Not Available | SHIELD - HANDLE SOCKET | 37157 | Not Available |
| 8 |  | BUSHING, HOOD 5134 UPRIGHT Part Number: 530891 for Eureka | 530891 | $8.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 10 | Not Available | HANDLE SCREW ASSY PACKAGE | 53198-1 | Not Available |
| 11 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | SNAP PIN - PACKAGED | 53536-3 | Not Available |
| 13 | Not Available | NUTS - PACKAGE | EW14-10ZP | Not Available |
| # | Part image | Description | SKU | Price |

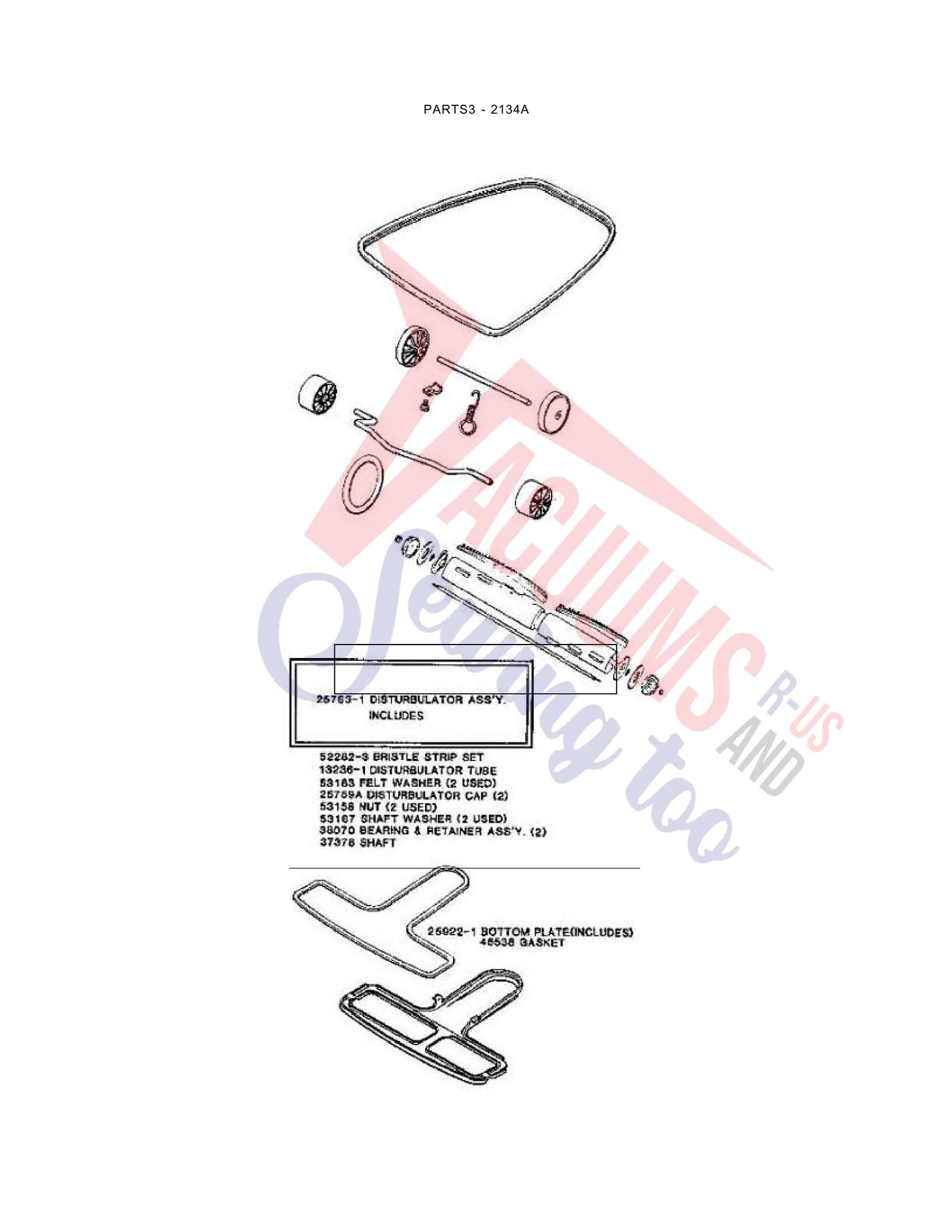

| 1 | Not Available | TUBE - DISTURBULATOR | 13236-1 | Not Available |
| 2 |  | END CAP, LARGE HEX VGII BRUSHROLL 53270 Part Number: 25759A for Eureka | 25759A | $7.72Read more |
| 3 | Not Available | DISTURBULATOR ASSY - CART | 25763-1 | Not Available |
| 4 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order — allow 2-4 weeks. |
| 5 | Not Available | WHEEL - REAR | 35858-1 | Not Available |
| 6 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Read more |
| 7 | Not Available | DIST SHAFT & BRG ASSY - C | 37378 | Not Available |
| 8 | Not Available | TAPE - FOAM | 46538 | Not Available |
| 9 |  | Axle, Metal Rear Standard Uprights Part Number: 47562 for Eureka | 47562 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | BRISTLE STRIP PACKAGE | 52282-3 | Not Available |
| 11 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 12 |  | Axle Clip, Metal Rear 1400/2000/4000/Sanitaire Part Number: 53111 for Eureka | 53111 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | BUMPER, FMP14PW Part Number: 53.167 for Fuller Brush | 53167 | $16.58Read more |
| 15 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

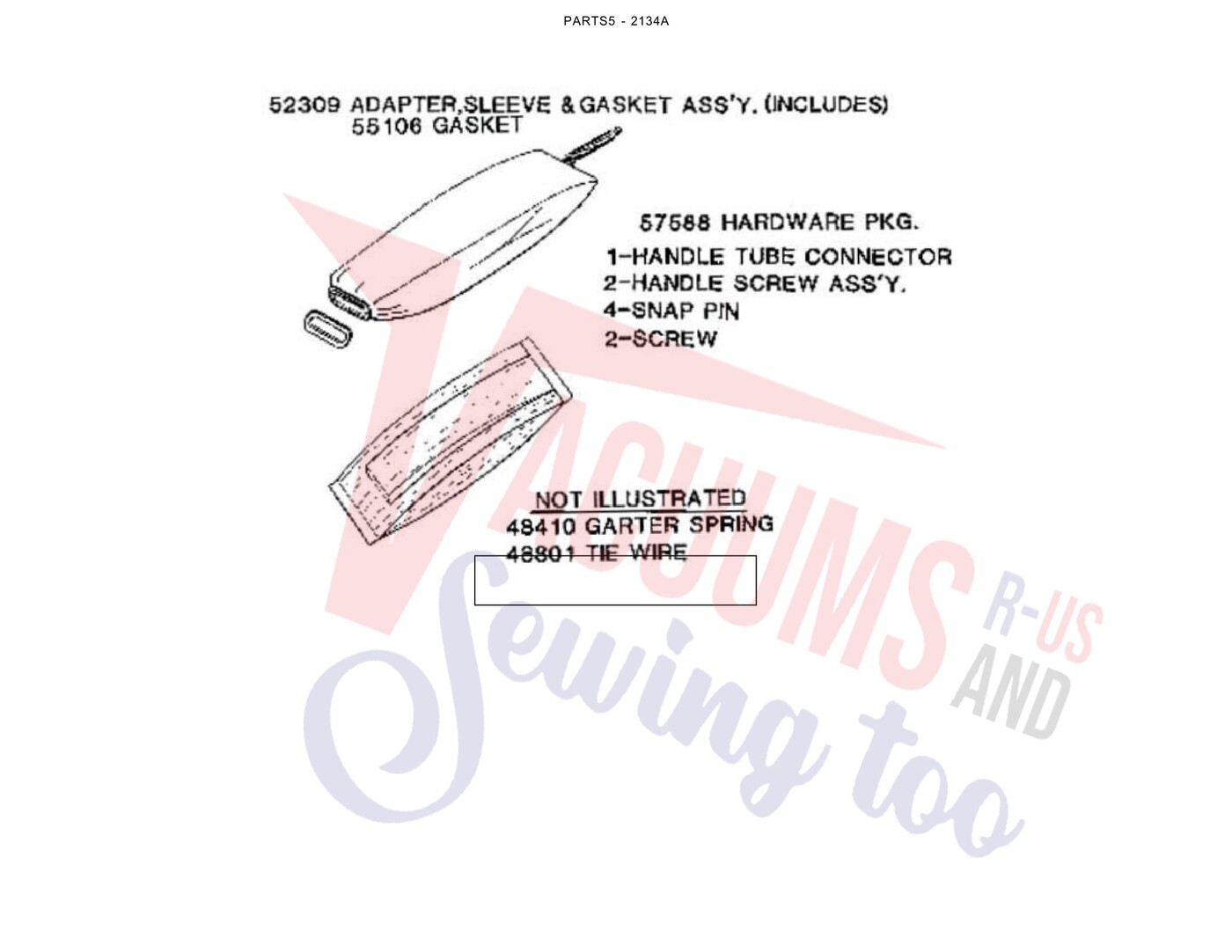

| 1 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $6.58Read more |
| 2 | Not Available | SPRING - GARTER | 48410 | Not Available |
| 3 | Not Available | WIRE - TIE | 48801 | Not Available |
| 4 | Not Available | ADAPTER - BAG | 52309 | Not Available |
| 5 | Not Available | PAPER BAG PKG ASSY STYLE | 52320 | Not Available |
| 6 | Not Available | BAG ASSEMBLY - PACKAGED | 53977-18 | Not Available |
| 7 | Not Available | GASKET - BAG ADAPTER | 55106 | Not Available |
| 8 | Not Available | HARDWARE PACKAGE - UPRIGH | 57588 | Not Available |
