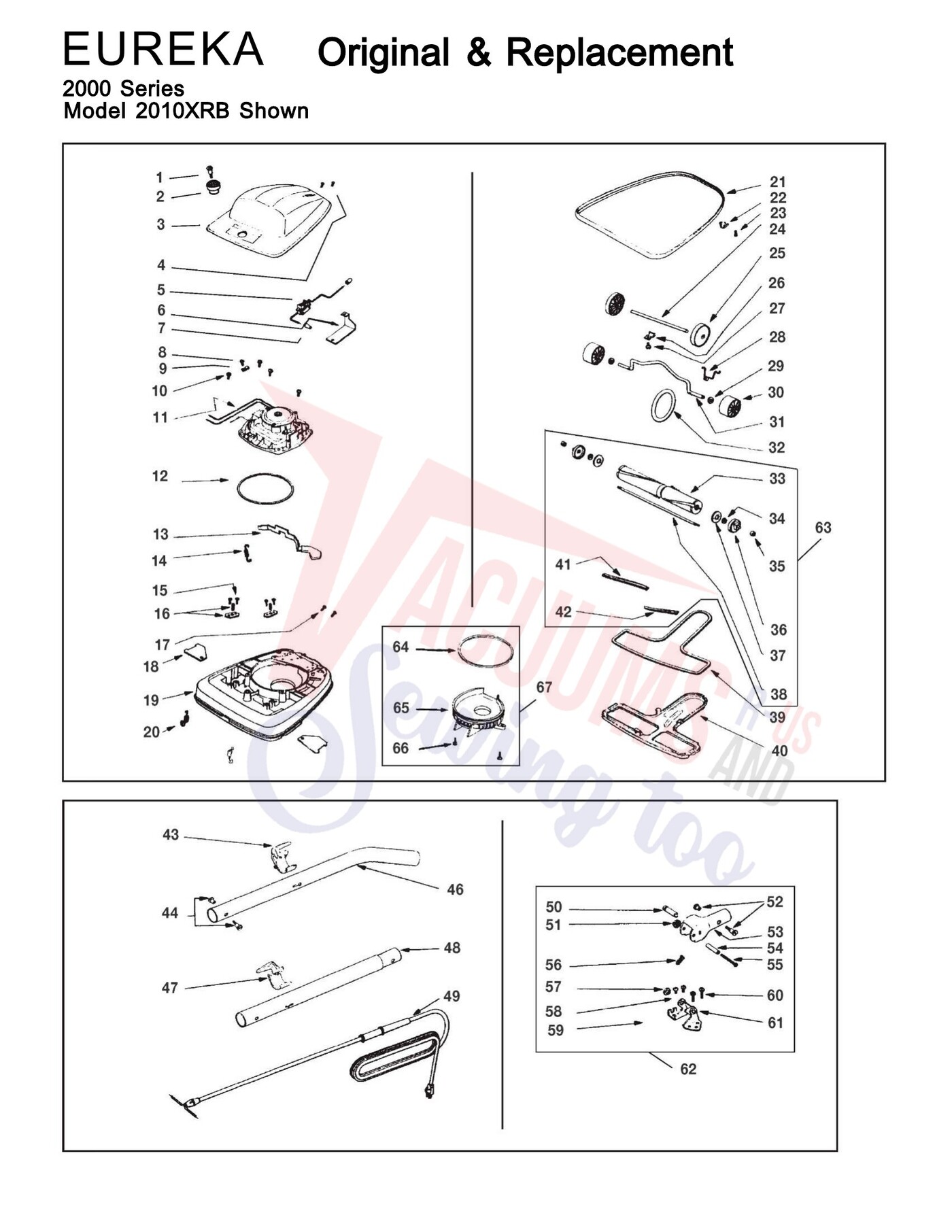

Schematic and parts book for Eureka 2010XRB . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Name Plate 35 E-48650 Nut* | 35620 | Not Available |
| XX | Not Available | set screw 50 E-41064E support Pin | 48624 | Not Available |
| XX | Not Available | Front Axle Clamp 51 E-45474-4 Keps Nut | 47754A | Not Available |
| XX | Not Available | disturbulator spring L.H. 55 E-EW3512P03 screw | 47852 | Not Available |
| XX | Not Available | disturbulator spring R.H. 56 E-EW181-7C Hair Cotter Pin | 48186 | Not Available |
| XX | Not Available | Rivet 57 E-45504 Bushing | 47851 | Not Available |
| XX | Not Available | Cam R.H. 58 E-EW12610P6 screw | 24964 | Not Available |
| XX | Not Available | Cam L.H. 59 E-36439 Handle socket shield | 24965 | Not Available |
| XX | Not Available | Rivet 60 E-EW12610P10 screw | 47854 | Not Available |
| 1 |  | HEIGHT ADJUSTMENT SCREW, Part Number: 53112-1 for Eureka | 531121 | $3.30Read more |
| 2 | Not Available | Adjustment Knob (includes*) | 26834-1 | Not Available |
| 3 | Not Available | Hood & Name Plate Ass'y | 47900-2 | Not Available |
| 4 | Not Available | switch screw | EW1106P4 | Not Available |
| 5 | Not Available | Rocker switch | 34825A | Not Available |
| 6 | Not Available | switch shield | 49071 | Not Available |
| 7 | Not Available | Wire Nut | EW22-17 | Not Available |
| 7 | Not Available | Wire Nut (includes**) | SS-3270 | Not Available |
| 8 | Not Available | Motor Mounting screw | EW12610P10 | Not Available |
| 9 | Not Available | Motor Wire Clip | 41280 | Not Available |
| 10 | Not Available | Motor screw | EW12610P10 | Not Available |
| 11 | Not Available | Motor Ass'y 5.0 Amp 1 speed Upper & Lower | 13356-2 | Not Available |
| 11 | Not Available | Motor Ass'y 5.5 Amp 1 speed | 53361-5 | Not Available |
| 11 | Not Available | Motor Ass'y 5.5 Amp 1 speed | 14774-3 | Not Available |
| 11 | Not Available | Motor Ass'y 6.5 Amp 1 speed | 53366-8 | Not Available |
| 11 | Not Available | Motor Ass'y 6.5 Amp 2 speed | 13706-3 | Not Available |
| 12 | Not Available | Motor Gasket Upper & Lower | 30517 | Not Available |
| 12 | Not Available | Motor Gasket | ER-7600 | Not Available |
| 13 | Not Available | Foot Pedal | 24834-1 | Not Available |
| 13 | Not Available | Foot Pedal | ER-7300 | Not Available |
| 14 | Not Available | Foot Pedal spring W/2 Square Sleeves | 45503 | Not Available |
| 15 | Not Available | Clamp screw | EW12610P8 | Not Available |
| 16 | Not Available | Clamp & screw W/2 Square Sleeves | 48823 | Not Available |
| 17 | Not Available | Adapter screw | EW351010 | Not Available |
| 18 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Base Ass'y Quick Clean Red | 53425-9 | Not Available |
| 19 | Not Available | Base Ass'y Quick Clean White | 53456-13 | Not Available |
| 20 | Not Available | Hood spring | 47853 | Not Available |
| 20 | Not Available | Hood Spring | ER-7705 | Not Available |
| 21 | Not Available | Furniture Guard | 34824-4 | Not Available |
| 21 | Not Available | Furniture Guard | ER-7410 | Not Available |
| 22 | Not Available | Clip | 48869 | Not Available |
| 23 | Not Available | Clip screw | EW1268P5 | Not Available |
| 24 |  | Axle, Metal Rear Standard Uprights Part Number: 47562 for Eureka | 47562 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Rear Wheel | 35858-1 | Not Available |
| 26 | Not Available | Axle Clip vGi Hex End W/Ball Bearings | 47586 | Not Available |
| 27 | Not Available | Clip screw | EW12610P6 | Not Available |
| 28 | Not Available | Axle spring | 35576 | Not Available |
| 29 | Not Available | Washer | 47585 | Not Available |
| 30 | Not Available | Front Wheel | 35859-1 | Not Available |
| 31 | Not Available | Front Axle | 35947 | Not Available |
| 32 | Not Available | Belt | 30563A | Not Available |
| 32 | Not Available | Belt 2 Pk. | 52100 | Not Available |
| 32 | Not Available | Belt (ESSco) includes* | ER-1000 | Not Available |
| 32 | Not Available | Belt | ER-1010 | Not Available |
| 33 | Not Available | disturbulator Core* | 35641B-1 | Not Available |
| 34 | Not Available | Washer* | 46799 | Not Available |
| 35 | Not Available | Nut* | 48650 | Not Available |
| 36 | Not Available | End Cap* | 24475A | Not Available |
| 37 | Not Available | Felt Washer* | 47714-1 | Not Available |
| 37 | Not Available | Felt Washer | ER-2055 | Not Available |
| 38 | Not Available | shaft* | 32017 | Not Available |
| 39 | Not Available | Foam Tape** | 46538 | Not Available |
| 40 | Not Available | Bottom Plate | 25359A | Not Available |
| 41 | Not Available | Beater Bar Long | 35638A-1 | Not Available |
| 42 | Not Available | Beater Bar short | 35639A-1 | Not Available |
| 43 | Not Available | Cord Retainer set | 53747-1 | Not Available |
| 44 | Not Available | screw & Nut Ass'y | 55468-1 | Not Available |
| 44 | Not Available | Screw & Nut Ass'y | ER-7700 | Not Available |
| 45 | Not Available | Grip* | 35293-6 | Not Available |
| 46 | Not Available | Upper Handle Ass'y (includes*) | 25329-2 | Not Available |
| 47 | Not Available | Cord Retainer set | 53747-1 | Not Available |
| 48 | Not Available | Lower Handle | 12637-3 | Not Available |
| 49 | Not Available | Cord Ass'y 20' | 36098A1 | Not Available |
| 49 | Not Available | cord Ass'y 20' | NLA | Not Available |
| 49 | Not Available | cord Ass'y 30' | NLA | Not Available |
| 50 | Not Available | support Pin | 41064E | Not Available |
| 51 | Not Available | Keps Nut | 45474-4 | Not Available |
| 52 | Not Available | screw & Nut Ass'y | 55468-1 | Not Available |
| 52 | Not Available | Screw & Nut Ass'y | ER-7700 | Not Available |
| 53 | Not Available | Handle socket | 25238-1 | Not Available |
| 54 | Not Available | spacer | 45507 | Not Available |
| 55 | Not Available | screw | EW3512P03 | Not Available |
| 56 | Not Available | Hair Cotter Pin | EW181-7C | Not Available |
| 57 | Not Available | Bushing | 45504 | Not Available |
| 58 | Not Available | screw | EW12610P6 | Not Available |
| 59 |  | SHIELD - HANDLE SOCKET | 36439 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | screw | EW12610P10 | Not Available |
| 61 | Not Available | Bracket Ass'y | 48877 | Not Available |
| 62 | Not Available | Handle socket Ass'y | 36264-1 | Not Available |
| 62 | Not Available | Handle Socket Ass'y | ER-7000 | Not Available |
| 63 | Not Available | Brushroll square End vGi | 53395 | Not Available |
| 63 | Not Available | Brushroll square End vGii | 35624A1 | Not Available |
| 63 | Not Available | Brushroll Square End Wood | ER-2010 | Not Available |
| 63 | Not Available | Brushroll Wood Hex End | 53350-1 | Not Available |
| 63 |  | Brushroll, 12 Inch Hex End W/Ball Bearings Vgi Part Number: 53272 for Eureka | 53272 | $70.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 |  | Brushroll, 12 Inch Hex End W/Ball Brng/Beater Bar | ER2002 | $20.85Read more |
| 63 | Not Available | Brushroll All Bristle | ER-2004 | Not Available |
| 64 | Not Available | Motor seal Gasket | 30517 | Not Available |
| 64 | Not Available | Motor Seal Gasket | ER-7600 | Not Available |
| 65 | No Image | Fan Scroll Cover-2720/40/70 Quick Kleen-Oem Eureka | 137701 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 |  | Compatible alternateEureka Sanitaire Perfect Bissell Commercial fan scroll housing for commercial vacuums More Product Details | 13770 | $14.28Add to cart |
| 65 |  | Compatible alternateKit, Fan Cover Repair SC886/SC887/SC888 Wide Track More Product Details | E-52334 | $25.18Add to cart |
| 66 | Not Available | *screw | 53238-17 | Not Available |
| 67 | Not Available | * Fan Chamber Replacement Kit | 52334 | Not Available |
