Schematic and parts book for Eureka 1934A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

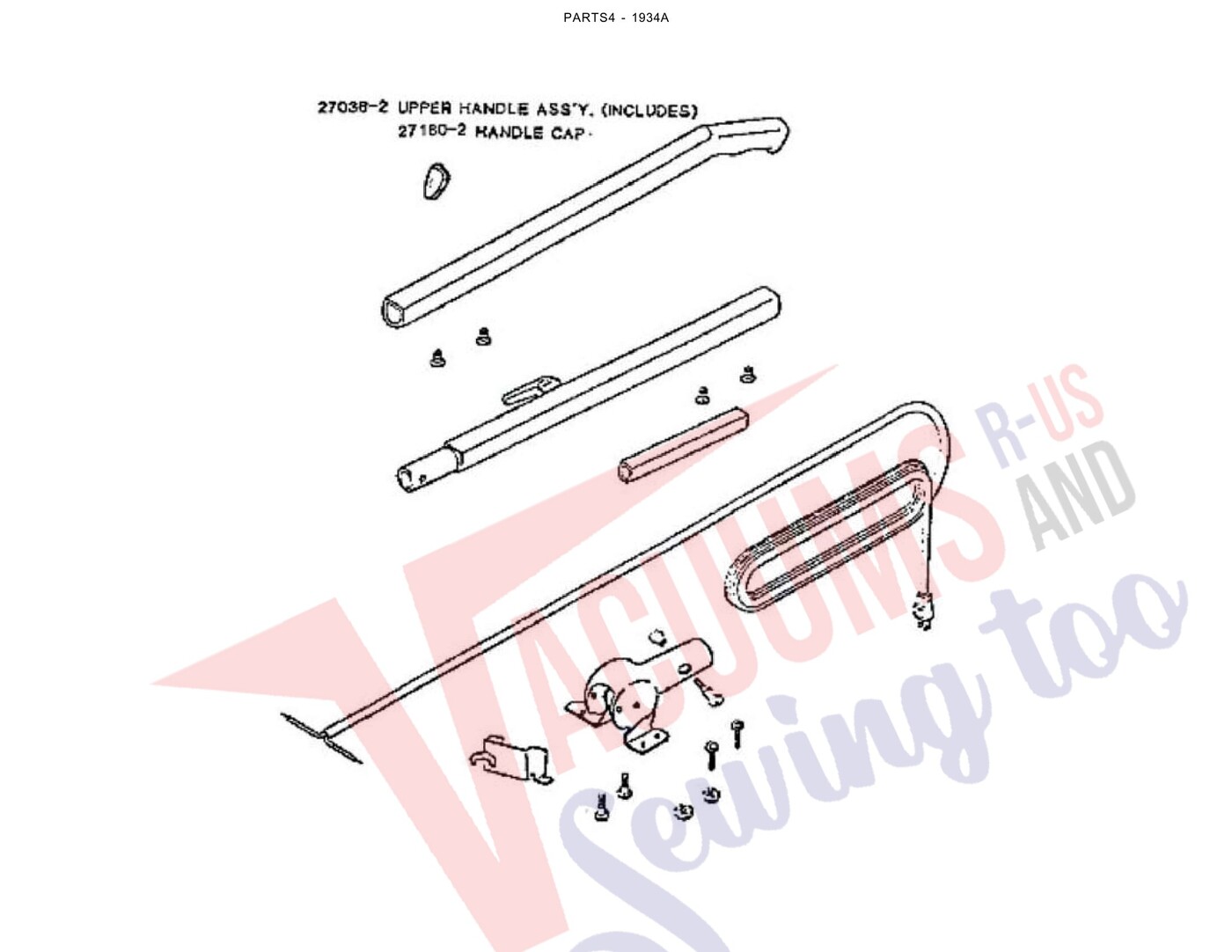

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE - LOWER | 01681-2 | Not Available |
| 2 | Not Available | CONNECTOR - HANDLE | 26659-1 | Not Available |
| 3 | Not Available | HANDLE KIT - UPRIGHT | 27036-2 | Not Available |
| 4 | Not Available | HANDLE SOCKET ASSEMBLY | 27137-2 | Not Available |
| 5 | Not Available | HANDLE KIT - UPRIGHT | 27180-2 | Not Available |
| 6 | Not Available | CORD - LOW LEAD (18 GA) | 27382-2 | Not Available |
| 7 | Not Available | SHIELD - HANDLE SOCKET | 37157 | Not Available |
| 8 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 9 | Not Available | HANDLE SCREW ASSY PACKAGE | 53198-1 | Not Available |
| 10 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | SNAP PIN - PACKAGED | 53536-3 | Not Available |

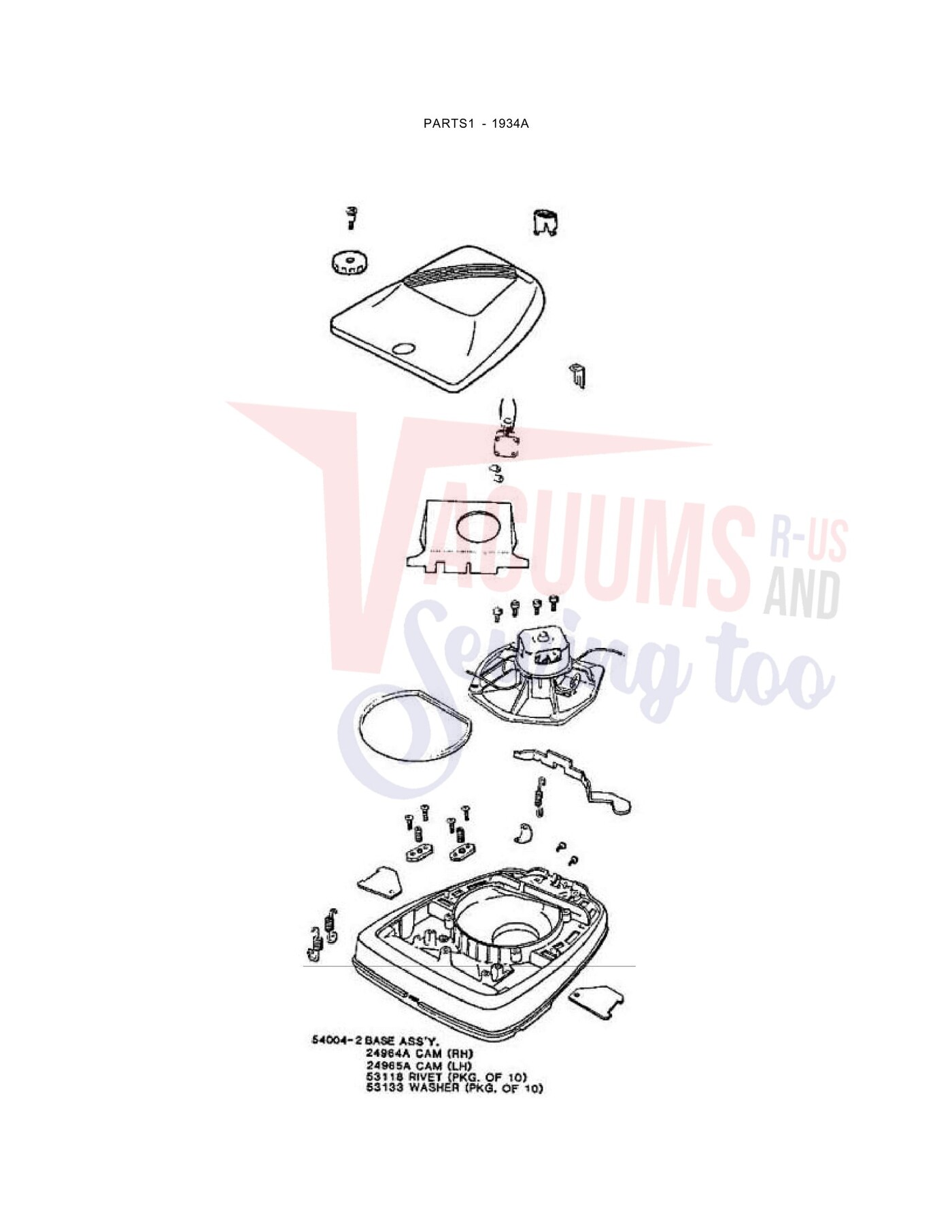

| # | Part image | Description | SKU | Price |
| 1 |  | Switch, Button 1934/1967/1968/SC678/SC679/SC684 Part Number: 146601 for Eureka | 146601 | $4.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | PEDAL - FOOT | 24834A-1 | Not Available |
| 3 | Not Available | CAM (RIGHT) | 24964A | Not Available |
| 4 | Not Available | CAM (LEFT) | 24965A | Not Available |
| 5 | Not Available | GASKET - MOTOR SEAL | 30517 | Not Available |
| 6 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | BRACKET - BUSHING | 37590 | Not Available |
| 8 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | KNOB ASSEMBLY | 38053-1 | Not Available |
| 10 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 11 |  | Eureka,Sanitaire Hood Attaching Spring-sanitaire 886 (10pk) | 53117 | $14.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Compatible alternateEureka and Sanitaire Hood Spring More Product Details | 20750005 | $1.65Add to cart |
| 12 | Not Available | RIVET - SHOULDER PACKAGE | 53118 | Not Available |
| 13 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 14 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | WIRE SPLICE | 53214-1 | Not Available |
| 17 | Not Available | SCREWS - PACKAGE | 53228-7 | Not Available |
| 18 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $4.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | MOTOR ASSEMBLY - CARTONED | 53349-7 | Not Available |
| 21 | Not Available | BASE ASSEMBLY - CARTONED | 54004-2 | Not Available |
| 22 | Not Available | SWITCH ASSEMBLY | 54151-2 | Not Available |
| 23 | Not Available | HOOD & GRAPHICS ASSY - PK | 54314-5 | Not Available |
| 24 | Not Available | NUT - SWITCH | 55446 | Not Available |

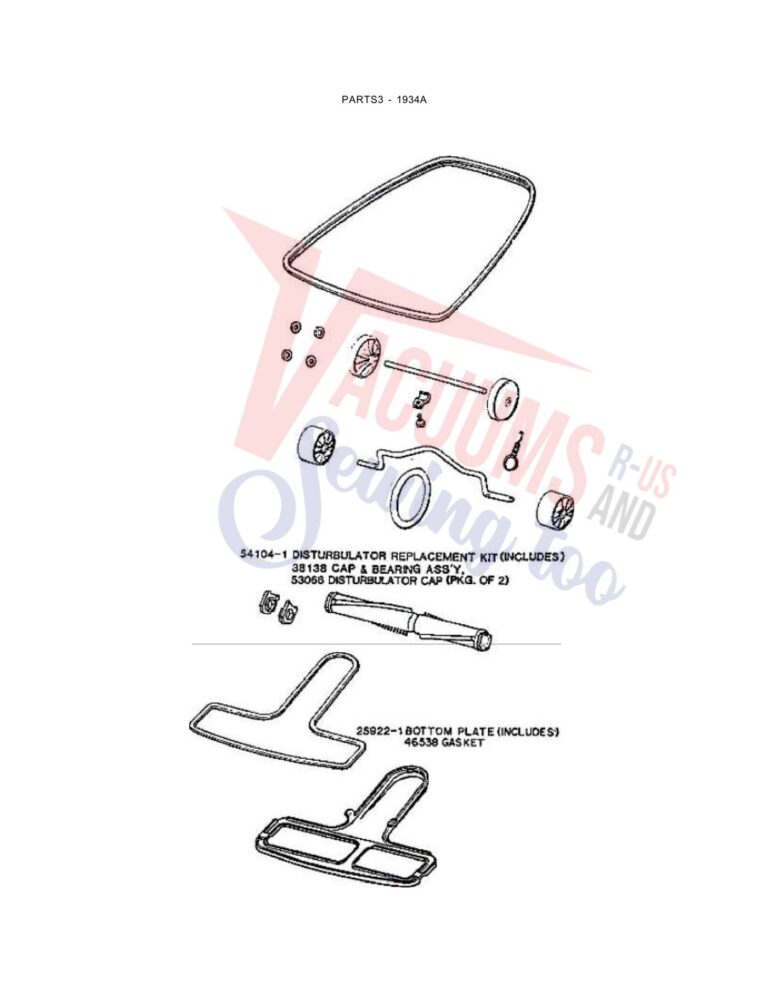

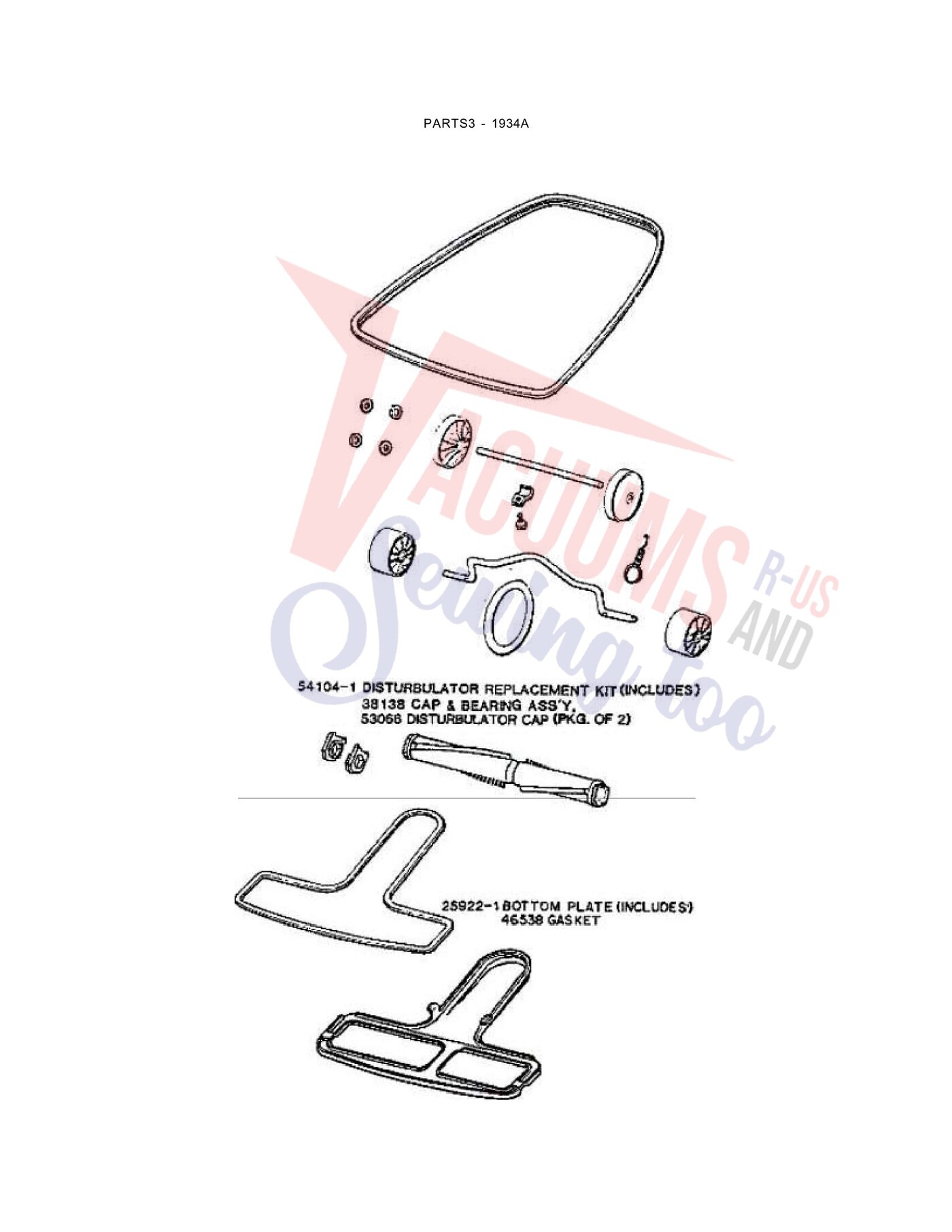

| # | Part image | Description | SKU | Price |
| 1 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order — allow 2-4 weeks. |
| 2 | Not Available | WHEEL - REAR | 35858-1 | Not Available |
| 3 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Read more |
| 5 | Not Available | GUARD - FURNITURE | 36999-31 | Not Available |
| 6 |  | End Cap, W/Bearing For Wood Brushroll Part Number: 38138 for Eureka | 38138 | $10.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | TAPE - FOAM | 46538 | Not Available |
| 8 |  | Axle, Metal Rear Standard Uprights Part Number: 47562 for Eureka | 47562 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | CAP - COVER | 53066 | Not Available |
| 10 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 11 |  | Axle Clip, Metal Rear 1400/2000/4000/Sanitaire Part Number: 53111 for Eureka | 53111 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | DISTURBULATOR REPLACEMENT | 54104-1 | Not Available |
| 14 | Not Available | WASHER PACKAGE | 57346 | Not Available |
| 15 | Not Available | BELT - DISTURBULATOR DRIV | 30563A | Not Available |

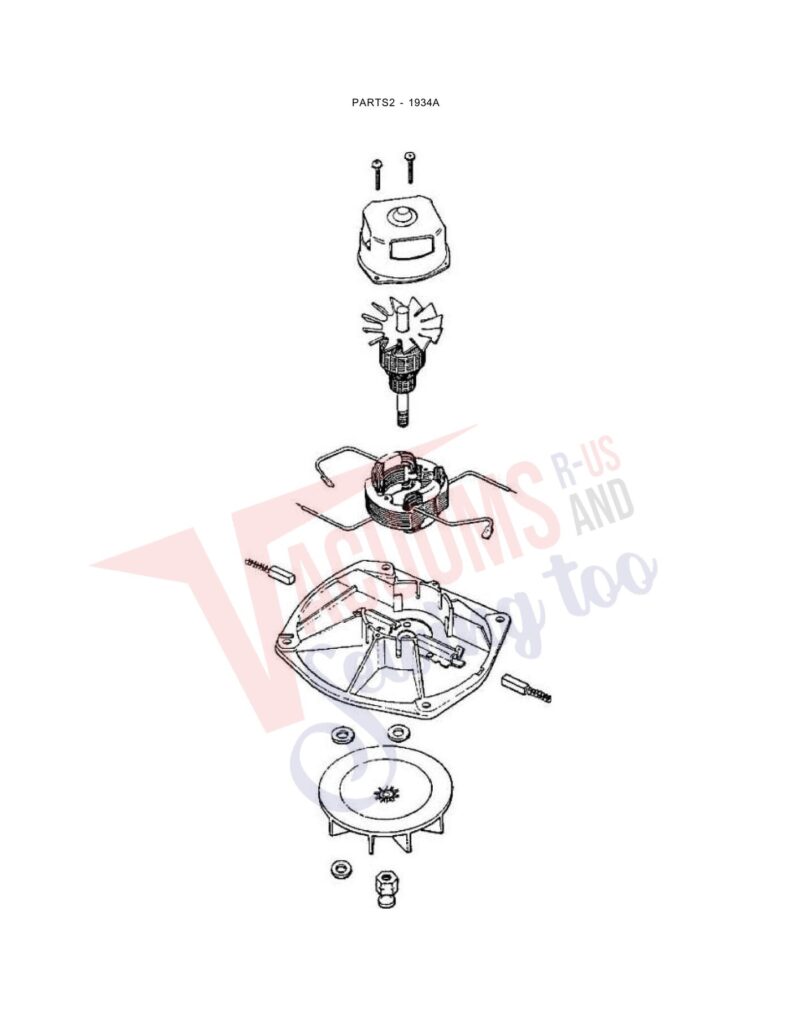

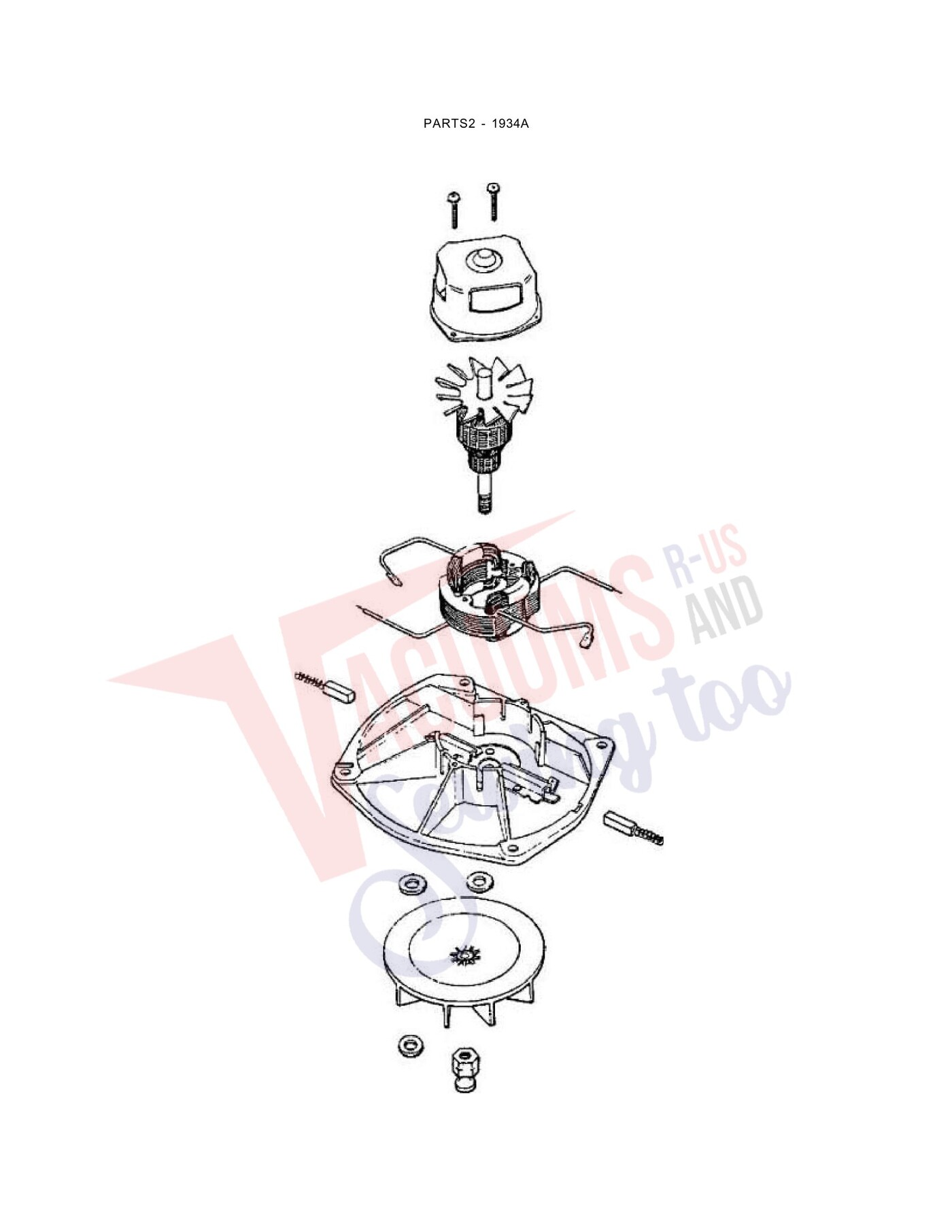

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FAN BLOWER - MOTOR | 12988-1 | Not Available |
| 3 | Not Available | PULLEY - MOTOR DRIVE | 49507 | Not Available |
| 4 | No Image | SCREW, TOP MOTOR/BEARING COVER 10/PK Part Number: 53131-1 for Eureka | 531311 | $9.48Read more |
| 5 | Not Available | WASHER - FAN PACKAGE (10) | 53148 | Not Available |
| 6 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $12.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | ARMATURE - CARTONED | 53470-3 | Not Available |
| 8 | Not Available | FIELD ASSEMBLY - PKG | 53901-2 | Not Available |
| 9 | Not Available | MOTOR BASE ASSEMBLY | 54171-1 | Not Available |
| 10 | Not Available | MOTOR FAN END HOUSING ASS | 54172 | Not Available |

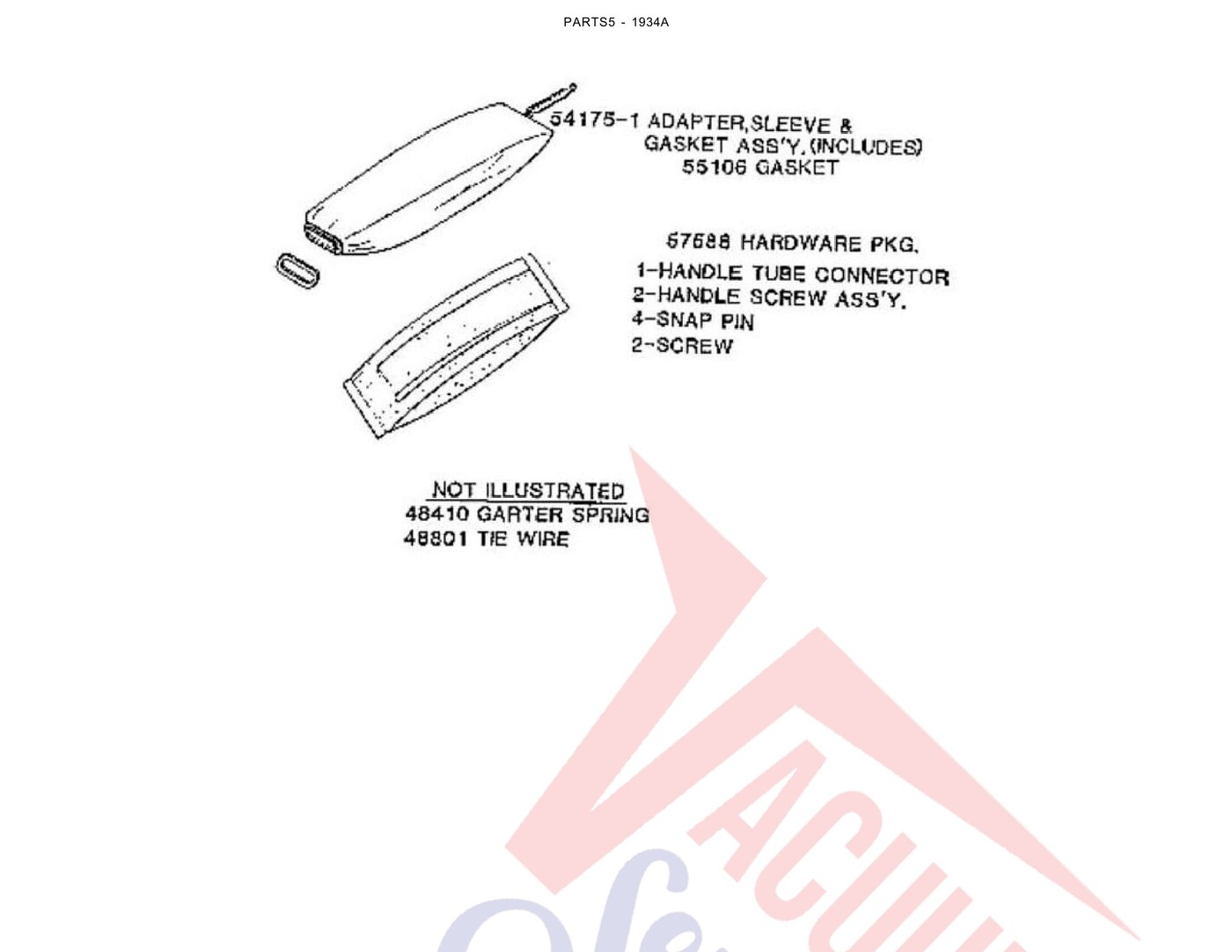

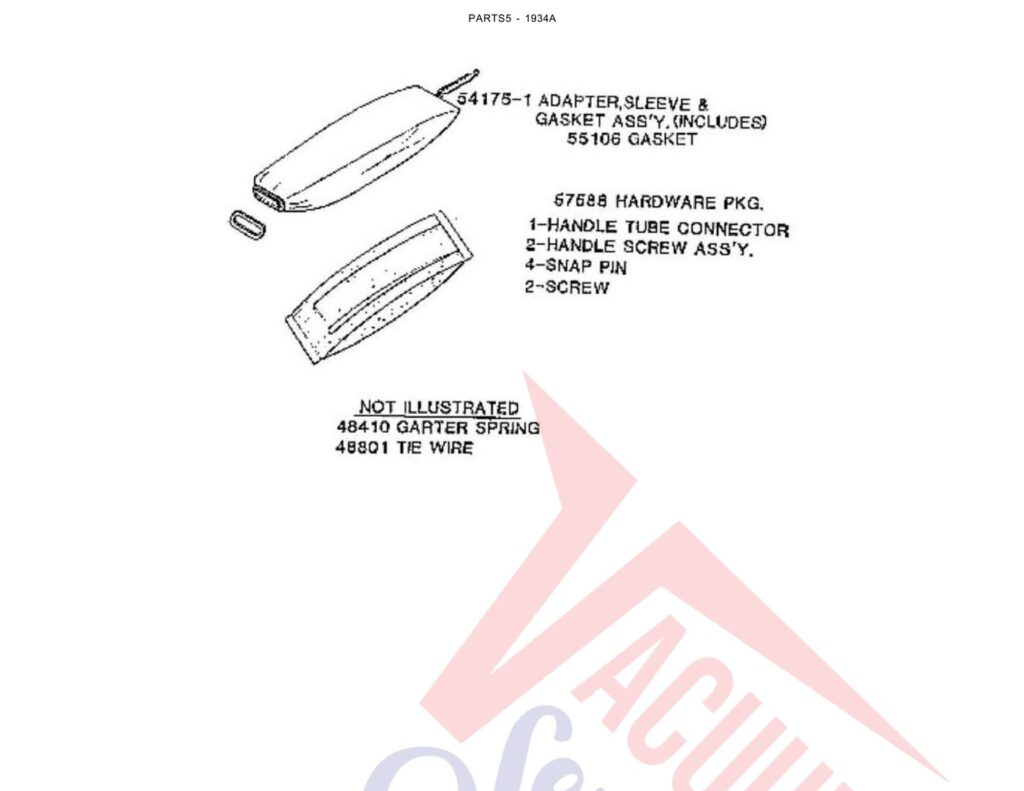

| # | Part image | Description | SKU | Price |
| 1 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $6.58Read more |
| 2 | Not Available | SPRING - GARTER | 48410 | Not Available |
| 3 | Not Available | WIRE - TIE | 48801 | Not Available |
| 4 | Not Available | PAPER BAG PKG ASSY STYLE | 52320 | Not Available |
| 5 | Not Available | BAG ASSEMBLY - PACKAGED | 53977-17 | Not Available |
| 6 |  | Adapter, Black 2-Hole Bag W/Clear Tube Part Number: 54175-1 for Eureka | 541751 | $21.88Read more |
| 7 | Not Available | GASKET - BAG ADAPTER | 55106 | Not Available |
| 8 | Not Available | HARDWARE PACKAGE - UPRIGH | 57588 | Not Available |
