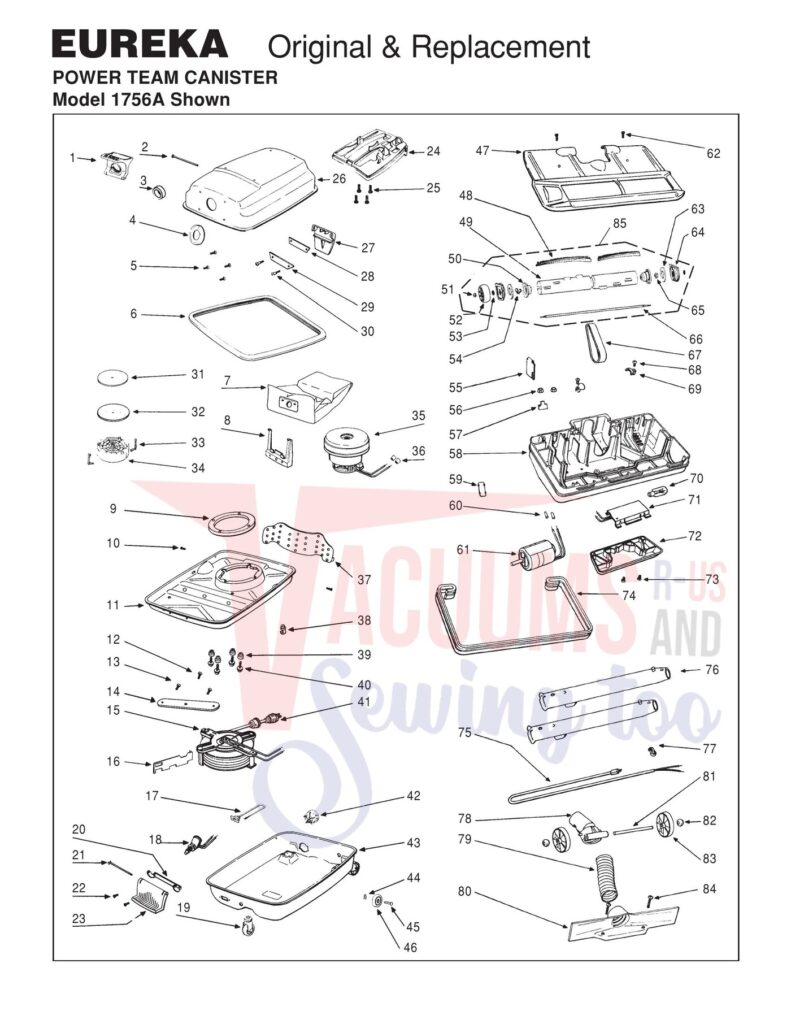

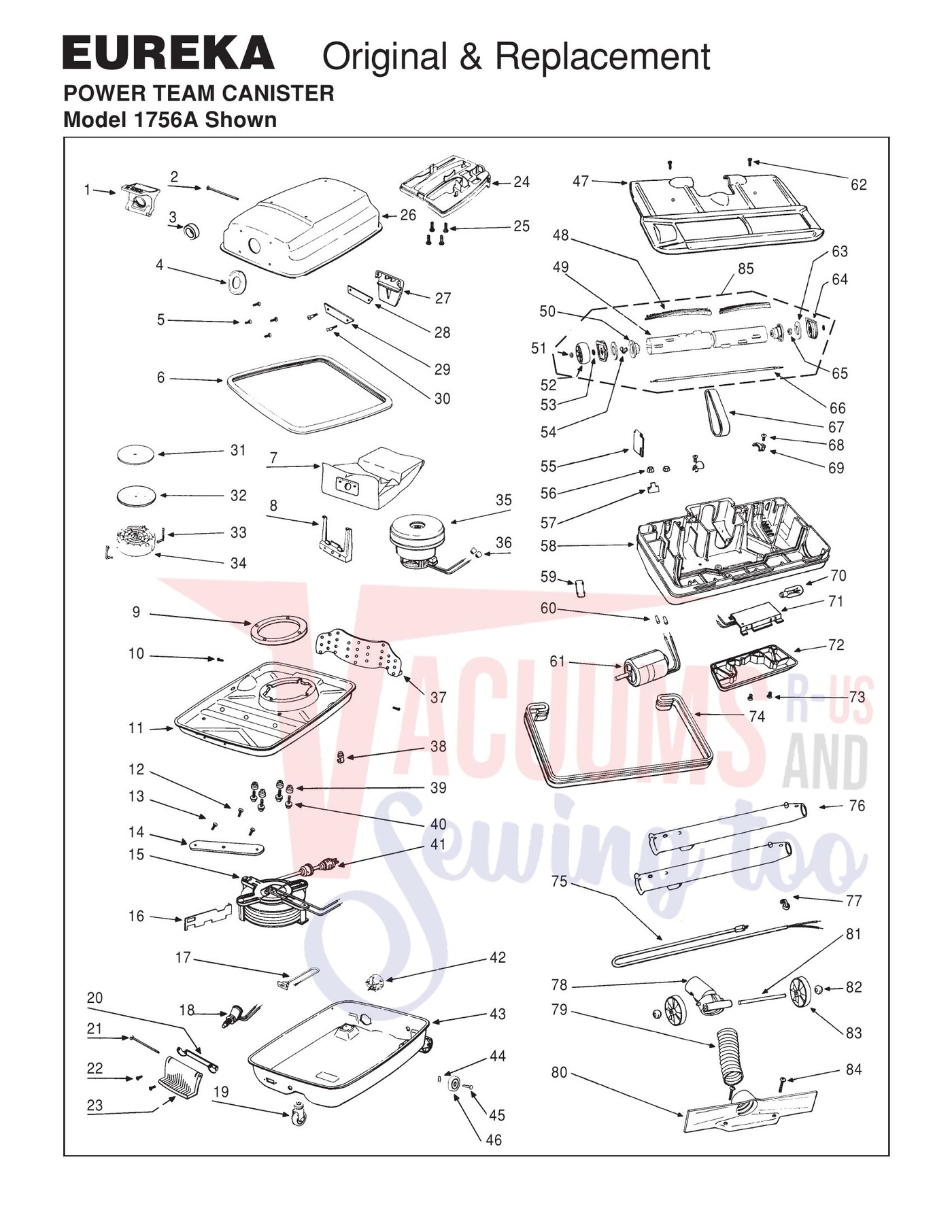

Schematic and parts book for Eureka 1756A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Repair Kit | 53282 | Not Available |
| XX | Not Available | Nameplate (Not shown) | 26377 | Not Available |
| XX | Not Available | sole Plate Gasket | 25903 | Not Available |
| 1 | Not Available | Latch Top Housing | NLA | Not Available |
| 2 | Not Available | Hinge Pin Most Canisters | 35845-2 | Not Available |
| 3 | Not Available | Hinge Gasket | NLA | Not Available |
| 4 | Not Available | Bag Gasket | NLA | Not Available |
| 5 | Not Available | Handle screw | EW2858T6C | Not Available |
| 6 | Not Available | Bumper White | 23792-11 | Not Available |
| 7 | Not Available | Paper Bag style B 3 Pk | 52329 | Not Available |
| 7 | Not Available | Paper Bag Style B 3 Pk | ER-1402 | Not Available |
| 8 | Not Available | Bag Holder | NLA | Not Available |
| 9 | Not Available | Ring Motor Mounting | 37423 | Not Available |
| 10 | Not Available | screw | 48624 | Not Available |
| 11 | Not Available | Motor Mounting Plate | NLA | Not Available |
| 12 | Not Available | Cord Reel screw | EW12610TSC | Not Available |
| 13 | Not Available | Cord Reel screw | EW1268T6C | Not Available |
| 14 | Not Available | Cord Reel Barrier | 35842A | Not Available |
| 15 | Not Available | 25' Cord Reel Ass’y | NLA | Not Available |
| 16 | Not Available | Cord Reel shield | 26045 | Not Available |
| 17 | Not Available | Power Receptacle Ass’y | 53255-1 | Not Available |
| 18 | Not Available | switch | NLA | Not Available |
| 18 | Not Available | Switch | FA-3400 | Not Available |
| 19 | Not Available | Front Castor | NLA | Not Available |
| 20 | Not Available | Hinge Bracket | 34567A | Not Available |
| 21 | Not Available | Hinge Pin | 35845-3 | Not Available |
| 22 | No Image | SCREW, 10 PK Part Number: 53134 for Eureka | 53134 | $3.70Read more |
| 23 | Not Available | switch Pedal Plastic White | 11740B-4 | Not Available |
| 24 | Not Available | Tool support | 54322-1 | Not Available |
| 25 | Not Available | screw | EW3126T8C | Not Available |
| 26 | Not Available | Upper shell | NLA | Not Available |
| 27 | Not Available | Latch Plastic Beige | NLA | Not Available |
| 28 | Not Available | Latch Gasket | 45779A | Not Available |
| 29 | No Image | SPRING, LATCH Part Number: 34582 for Eureka | 34582 | $2.44Read more |
| 30 | Not Available | Latch screw | 53094 | Not Available |
| 31 | Not Available | Filter disc 15 Pk | 52015 | Not Available |
| 32 | Not Available | Foam Filter disc | 34679 | Not Available |
| 32 | Not Available | Foam Filter Disc | ER-1800 | Not Available |
| 33 |  | Filter Support Clip- Eur. For: eureka,sanitaire | 487561 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | SUPPORT, FILTER 3300 713 1510 1756 Part Number: 24128A for Eureka | 24128A | $10.81Read more |
| 34 | Not Available | Filter Support | COR-1810 | Not Available |
| 35 | Not Available | Motor Ass’y | 54401 | Not Available |
| 35 | Not Available | Motor Ass’y | GS-041 | Not Available |
| 36 | Not Available | Wire Nut | SS-3270 | Not Available |
| 37 | Not Available | Bag Retainer | 13221 | Not Available |
| 38 | Not Available | Wire Clip | 53120 | Not Available |
| 39 | Not Available | Motor Mounting Brush | NLA | Not Available |
| 40 | No Image | SCREWS, Part Number: 53103 for Eureka | 53103 | $4.29Read more |
| 41 | Not Available | Bushing Cord | 53189 | Not Available |
| 42 | Not Available | exhaust shield | 13206A-4 | Not Available |
| 43 | Not Available | Lower shell & Wheel Ass’y Wood w/Small Pulley | 49747-16 | Not Available |
| 44 | Not Available | Cotter Pin Wheel Retainer | 53232-1 | Not Available |
| 45 | Not Available | Pin includes: shaft | NLA | Not Available |
| 46 |  | REAR WHEEL, STD UPRIGHTS & 1200/1700 CANS BLACK Part Number: 253925 for Eureka | 253925 | $4.98Read more |
| 47 | Not Available | sole Plate Ass’y* Bearing & Retainer Ass’y | 25895 | Not Available |
| 48 | Not Available | Brush strip Pair | 52282-3 | Not Available |
| 48 |  | Brush Strip sanitaire Eureka VGII 12" Upright And Pn 1 Long/1 Shor | ER-2210 | $6.72Add to cart |
| 48 |  | Compatible alternateEureka,Sanitaire Brush Inserts-eureka Sanitaire Vgii 12''orange With Blue Bristles More Product Details | 52282A4 | $6.72Add to cart Special order — allow 2-4 weeks. |
| 49 |  | Tube Only-Eureka Vgii Brush Roll For: eureka,sanitaire | 132363 | $22.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Use | NLA | Not Available |
| 51 | Not Available | Lock Nut | 49175 | Not Available |
| 52 |  | Cleaner, Dry Carpet Pail 4Lbs Part Number: 37114 for Oreck | 37114 | $43.29Read more |
| 53 | Not Available | Washer steel | 49898 | Not Available |
| 54 | Not Available | Klipring | 53155 | Not Available |
| 55 | Not Available | Belt Guard | 49110A | Not Available |
| 56 | Not Available | On-sert | 53424 | Not Available |
| 57 | Not Available | Grounding Cover | 36680 | Not Available |
| 58 | Not Available | Housing Ass’y | NLA | Not Available |
| 59 | Not Available | Belt Window | 26028-1 | Not Available |
| 60 | Not Available | Wire Nut | SS-3270 | Not Available |
| 61 | Not Available | Motor | 52314-78 | Not Available |
| 61 | Not Available | Motor | ER-6050 | Not Available |
| 62 | Not Available | screw 10 Pk | 53237-3 | Not Available |
| 63 | No Image | Felt Washer For: eureka,sanitaire | 49899 | $3.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | Not Available | Use | NLA | Not Available |
| 65 | Not Available | Hex Nut | 53195 | Not Available |
| 66 | Not Available | Use | NLA | Not Available |
| 67 | Not Available | drive Belt 2 Pk | 52201 | Not Available |
| 67 | Not Available | Drive Belt | ER-1050 | Not Available |
| 68 | Not Available | Plate screw | EW312-8-8C | Not Available |
| 69 | Not Available | Retainer Plate | 48332 | Not Available |
| 70 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 70 | Not Available | Bulb 15 Watt | FA-3515 | Not Available |
| 71 | Not Available | Lamp socket & Plate Ass’y | 37859-1 | Not Available |
| 72 | Not Available | Lens & Nameplate Ass’y | 12839A-1 | Not Available |
| 73 | Not Available | Motor screw | EW110-8P4C | Not Available |
| 74 | Not Available | Furniture Guard | 36237A-12 | Not Available |
| 75 | Not Available | Cord | 35970-10 | Not Available |
| 75 | Not Available | cord | NLA | Not Available |
| 76 | Not Available | Wand | 36593 | Not Available |
| 76 | Not Available | Wand | FA-5001 | Not Available |
| 77 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 78 | Not Available | Handle socket | NLA | Not Available |
| 79 | Not Available | Hose 5" | 25789-2 | Not Available |
| 79 | Not Available | Hose 5" | ER-7200 | Not Available |
| 80 | Not Available | inlet divider | NLA | Not Available |
| 81 | Not Available | Axle | 48334 | Not Available |
| 82 | Not Available | Axle Bearing | 48336 | Not Available |
| 83 | Not Available | Wheel | 36555-1 | Not Available |
| 84 | Not Available | screw | EW305-6P18C | Not Available |
| 85 | Not Available | Brushroll Ass’y vGii | 53412-1 | Not Available |
| 85 |  | NO LONGER AVAILABLE Eureka Canister Brush Roll W/Bearings And Sm Pulley OEM # 70097 also fits tri... | ER-2030 | $38.49Read more |
