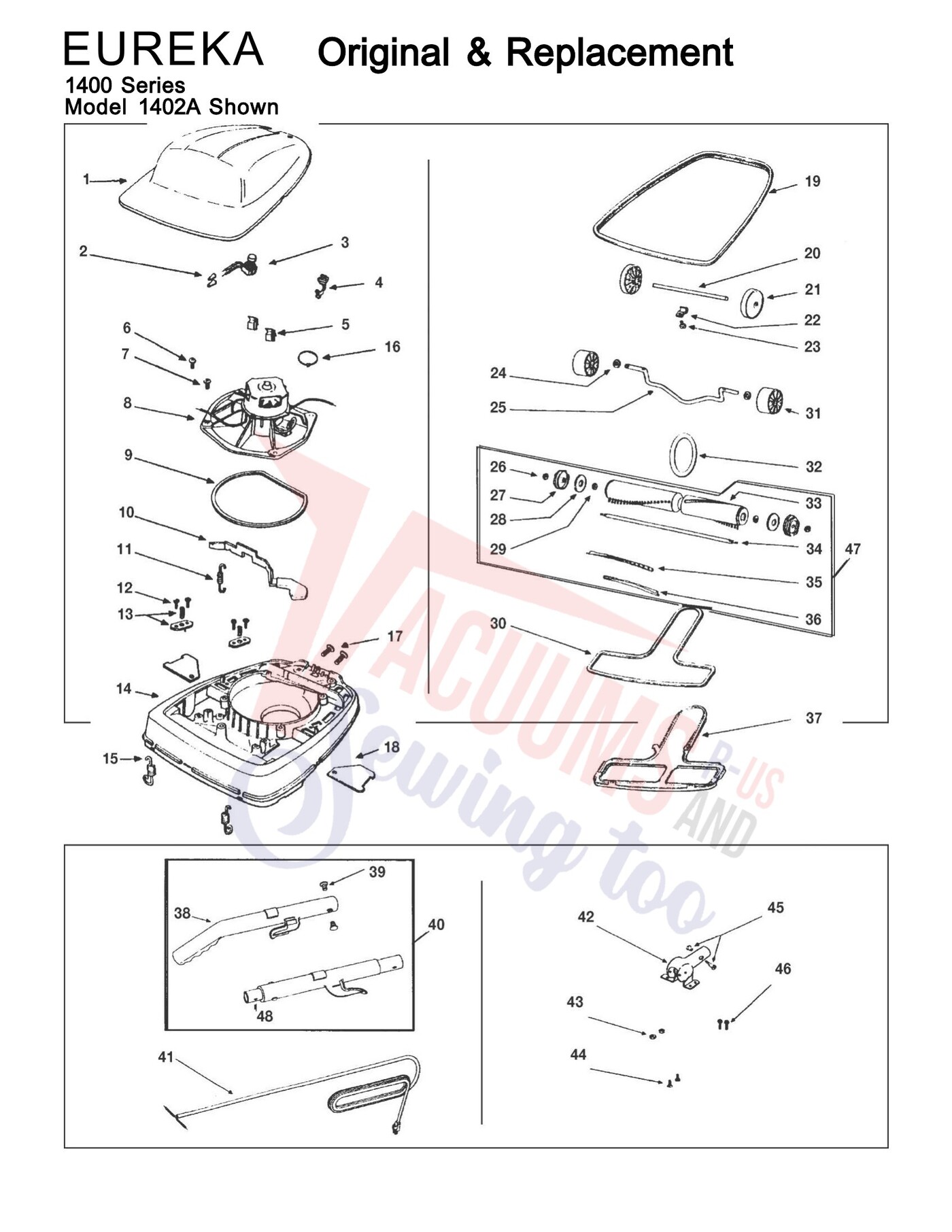

Schematic and parts book for Eureka 1402A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX |  | Repair Kit, :( 12" Brushroll VGII Part Number: 52241 for Eureka | 52241 | $24.02Read more |
| XX | Not Available | Name Plate 31 E-35859-1 Front Wheel | 55203 | Not Available |
| XX | Not Available | set screw 42 E-25717-7 Handle socket Ass'y | 48642 | Not Available |
| XX | Not Available | Adjustment Clamp 42 ER-7000 Handle Socket Ass'y | 47754A | Not Available |
| XX | Not Available | Cam R.H. 44 E-48870 Bolt | 24964A | Not Available |
| XX | Not Available | Cam L.H. 45 E-55468-1 screw & Nut Ass'y | 24965A | Not Available |
| XX | Not Available | Rivet 45 ER-7700 Screw & Nut Ass'y | 47854A | Not Available |
| XX | Not Available | Washer 46 E-EW3121014 screw | 48495 | Not Available |
| 1 | Not Available | Hood & Nameplate Ass'y | 48649-10 | Not Available |
| 2 | Not Available | 7 Wire Nuts | EW22-1 | Not Available |
| 2 | Not Available | Wire Nuts | SS-3270 | Not Available |
| 3 | Not Available | Push switch | 25801-7 | Not Available |
| 3 | Not Available | Push Switch | FA-3400 | Not Available |
| 4 |  | BUSHING, HOOD 5134 UPRIGHT Part Number: 530891 for Eureka | 530891 | $8.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Wire Clip (includes*) | 55015 | Not Available |
| 6 | Not Available | Motor screw | EW3121010 | Not Available |
| 7 | Not Available | Motor Mounting screw | EW3121014 | Not Available |
| 8 | Not Available | Motor Ass'y 4 Amp | 53349-4 | Not Available |
| 9 | Not Available | Motor seal Gasket | 30517 | Not Available |
| 9 | Not Available | Motor Seal Gasket | ER-7600 | Not Available |
| 10 | Not Available | Foot Pedal | 24834-2 | Not Available |
| 10 | Not Available | Foot Pedal | ER-7300 | Not Available |
| 11 | Not Available | Foot Pedal spring | 45503 | Not Available |
| 12 | Not Available | Clamp screw | EW3121014 | Not Available |
| 13 | Not Available | Clamp & screw Ass'y | 48823 | Not Available |
| 14 | Not Available | Base Ass'y | 49191-26 | Not Available |
| 15 | Not Available | Hood spring | 47853 | Not Available |
| 15 | Not Available | Hood Spring | ER-7705 | Not Available |
| 16 | Not Available | 3-1 Cable Tie Wood Hex End | 4671 | Not Available |
| 17 | Not Available | Bag screw | EW12610P10 | Not Available |
| 18 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Furniture Guard Narrow | 34824-8 | Not Available |
| 19 | Not Available | Furniture Guard Narrow Hex End W/Ball Bearings | ER-7410 | Not Available |
| 20 |  | Axle, Metal Rear Standard Uprights Part Number: 47562 for Eureka | 47562 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Rear Wheel vGi Aluminum square End | 35858-1 | Not Available |
| 22 | Not Available | Axle Clip | 47586 | Not Available |
| 23 | Not Available | Clip screw square End | EW312108 | Not Available |
| 24 | Not Available | Wheel Washer | 47585 | Not Available |
| 25 | Not Available | Front Axle | 36186 | Not Available |
| 26 | Not Available | Nut Plastic - White | 49175 | Not Available |
| 27 | Not Available | End Cap | 25456 | Not Available |
| 28 | Not Available | Felt Washer | 47714-2 | Not Available |
| 28 | Not Available | Felt Washer | ER-2055 | Not Available |
| 29 | Not Available | shaft Washer | 46799 | Not Available |
| 30 | Not Available | Foam Tape | 46538 | Not Available |
| 31 | Not Available | Front Wheel | 35859-1 | Not Available |
| 32 | Not Available | Belt 2 Pk. | 52100 | Not Available |
| 32 | Not Available | Belt | 30563 | Not Available |
| 32 | Not Available | Belt (ESSco) | ER-1000 | Not Available |
| 32 | Not Available | Belt | ER-1010 | Not Available |
| 33 | Not Available | Disturbulator Core* | 36262A | Not Available |
| 34 | Not Available | shaft* | 36257 | Not Available |
| 35 | Not Available | Beater Bar Long | 35638A-1 | Not Available |
| 36 | Not Available | Beater Bar short | 35639A-1 | Not Available |
| 37 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order — allow 2-4 weeks. |
| 38 | Not Available | Upper Handle & Cap Ass'y | 25989-3 | Not Available |
| 39 | Not Available | snap Pin | 36874-2 | Not Available |
| 40 | Not Available | Handle Ass'y Kit | 36984-2 | Not Available |
| 41 | Not Available | supply Cord | 34732-10 | Not Available |
| 41 | Not Available | Supply cord 20' | NLA | Not Available |
| 41 | Not Available | Supply cord 30' | FA-3030 | Not Available |
| 42 | Not Available | Handle socket Ass'y | 25717-7 | Not Available |
| 42 | Not Available | Handle Socket Ass'y | ER-7000 | Not Available |
| 43 | Not Available | Nut | EW14-10 | Not Available |
| 44 | Not Available | Bolt | 48870 | Not Available |
| 45 | Not Available | screw & Nut Ass'y | 55468-1 | Not Available |
| 45 | Not Available | Screw & Nut Ass'y | ER-7700 | Not Available |
| 46 | Not Available | screw | EW3121014 | Not Available |
| 47 | Not Available | Brushroll Wood Hex End | 53350-1 | Not Available |
| 47 |  | Brushroll, 12 Inch Hex End W/Ball Brng/Beater Bar | ER2002 | $20.85Read more |
| 47 | Not Available | Brushroll | ER-2004 | Not Available |
| 47 |  | Brushroll, 12 Inch Hex End W/Ball Bearings Vgi Part Number: 53272 for Eureka | 53272 | $70.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Brushroll | 53395 | Not Available |
| 47 | Not Available | Brushroll vGii Chrome | 53347 | Not Available |
| 47 | Not Available | Brushroll Wood Square End | ER-2010 | Not Available |
| 48 | Not Available | Handle Tube Connector | 25988-2 | Not Available |
