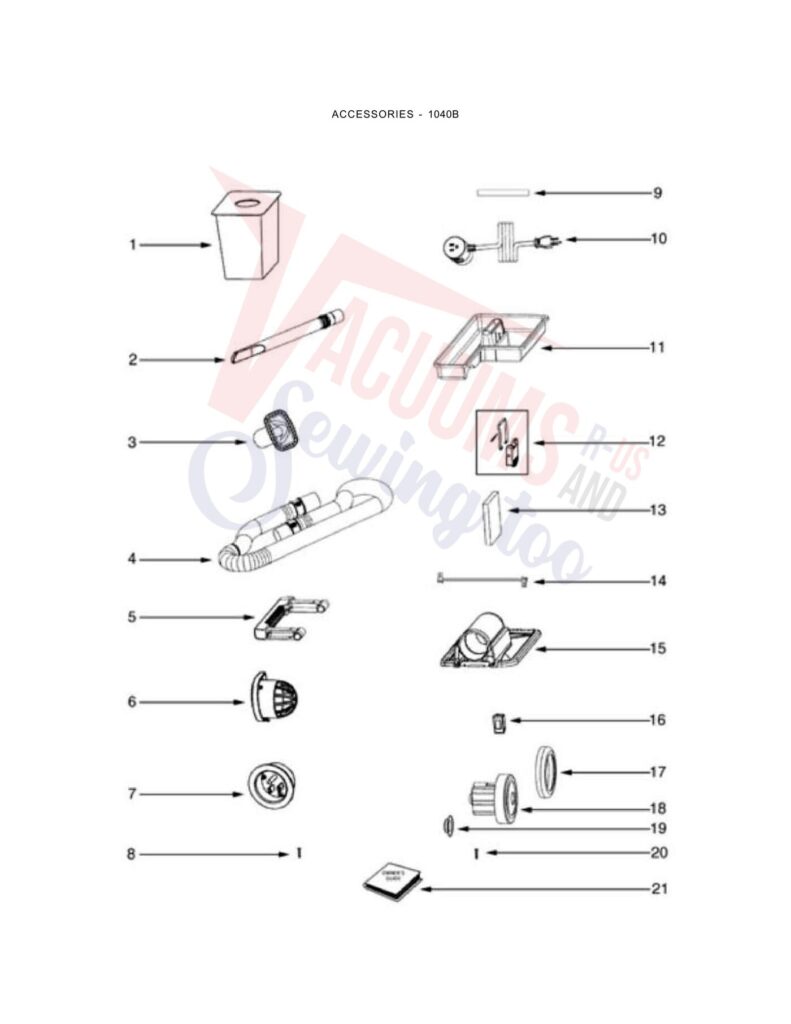

Schematic and parts book for Eureka 1040B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CLOTH DUSTBAG ASSEMBLY | 72553 | Not Available |
| 2 | Not Available | WAND - CREVICE | 72575-382N | Not Available |
| 3 | Not Available | DUSTING BRUSH | 61126 | Not Available |
| 4 | Not Available | HOSE ASSEMBLY | 72571 | Not Available |
| 5 | Not Available | HANDLE ASSEMBLY | 72643 | Not Available |
| 6 | Not Available | PORT - BLOWER | 71924-383N | Not Available |
| 7 | Not Available | RECEPTACLE ASSEMBLY | 72565 | Not Available |
| 8 | Not Available | SCREW | 72579 | Not Available |
| 9 | Not Available | CLAMP - DUSTBAG | 72558-119N | Not Available |
| 10 | Not Available | SUPPLY CORD ASSEMBLY | 72568 | Not Available |
| 11 | Not Available | TRAY - TOOL | 71915-382N | Not Available |
| 12 | Not Available | LATCH REPLACEMENT KIT | 61945 | Not Available |
| 13 | Not Available | FILTER - MOTOR | 72552 | Not Available |
| 14 | Not Available | LEADWIRE ASSY - SWITCH | 72567 | Not Available |
| 15 | Not Available | DUSTBIN ASSEMBLY | 72642 | Not Available |
| 16 | No Image | BRUSH MOTOR 24V 550W | 39455 | $1,206.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | GASKET - MOTOR CAN | 72563 | Not Available |
| 18 | Not Available | MOTOR ASSEMBLY | 72562-1 | Not Available |
| 19 | Not Available | BUSHING - MOTOR SUPPORT | 72564 | Not Available |
| 20 | Not Available | SCREW | 72561 | Not Available |
| 21 | Not Available | OWNER'S GUIDE | 72580 | Not Available |
