Schematic and parts book for Elna EP720 EP720. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

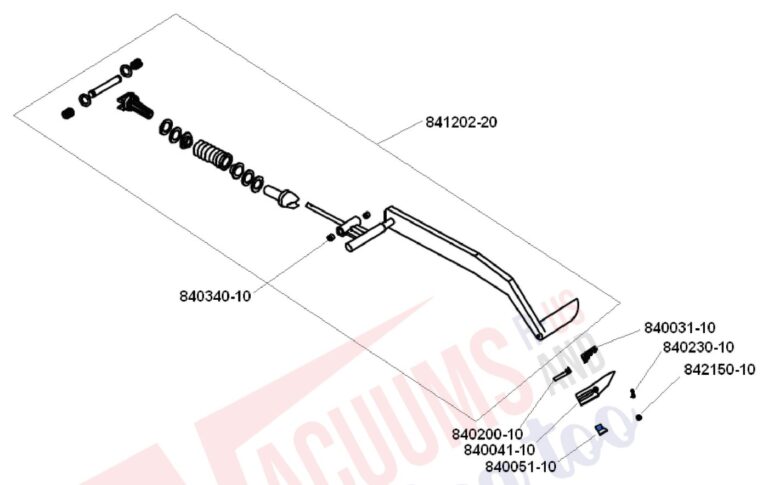

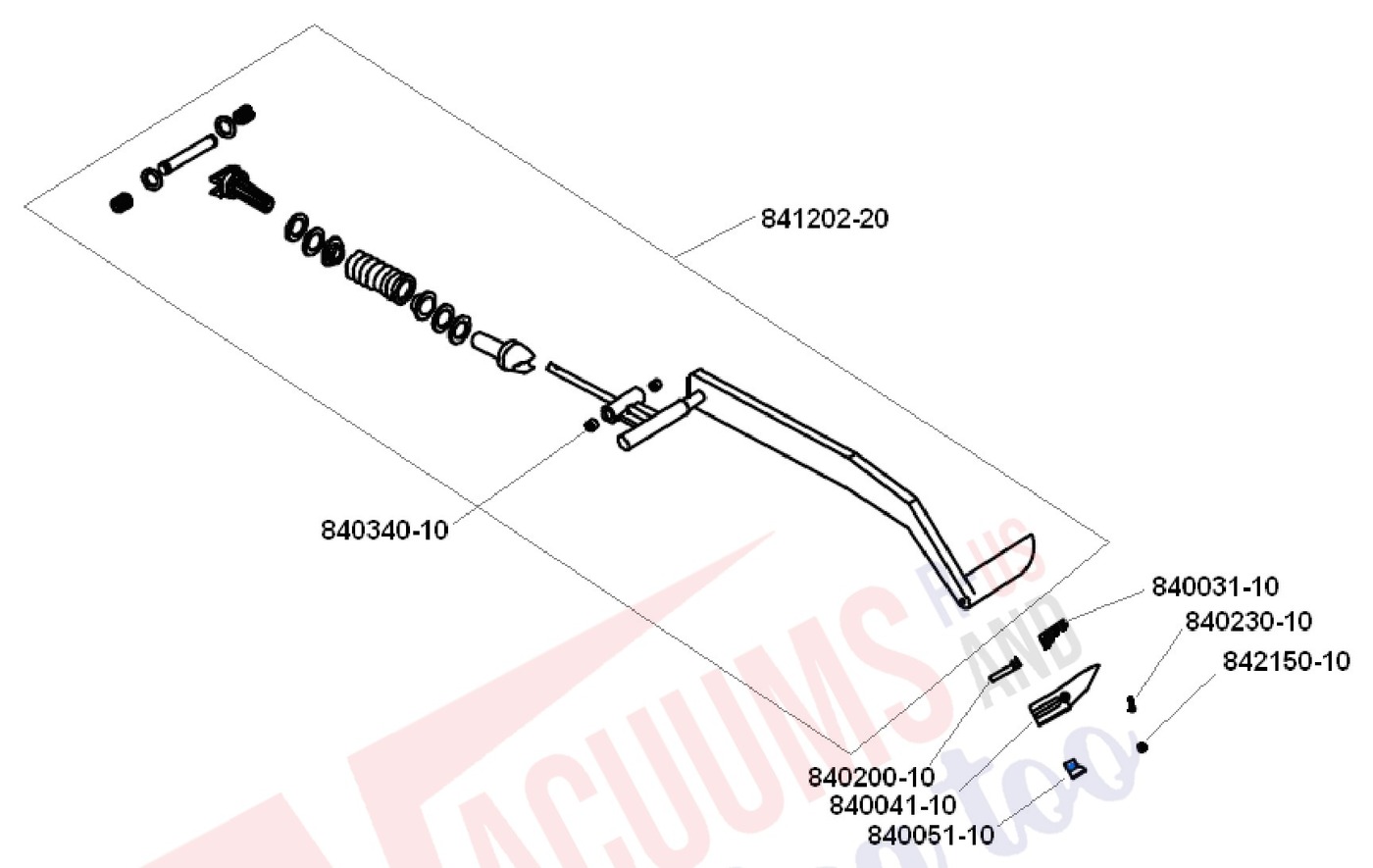

| 1 | Not Available | LOCKING AXLE SUPPORT | 840031-10 | Not Available |
| 2 | Not Available | LOCKING COVER | 840041-10 | Not Available |
| 3 | Not Available | Locking Latch for EP100 | 840051-10 | Not Available |
| 4 | Not Available | LOCKING AXLE | 840200-10 | Not Available |
| 5 | Not Available | SCREW 2 9X9 5 PT | 840230-10 | Not Available |
| 6 | Not Available | MOVABLE HANDLE COMPL. | 841202-20 | Not Available |
| 7 | Not Available | SCREW COVER | 842150-10 | Not Available |
| 8 | Not Available | CYLINDERICAL PIN 8X50 EP21/EP2 | 840340-10 | Not Available |
| # | Part image | Description | SKU | Price |

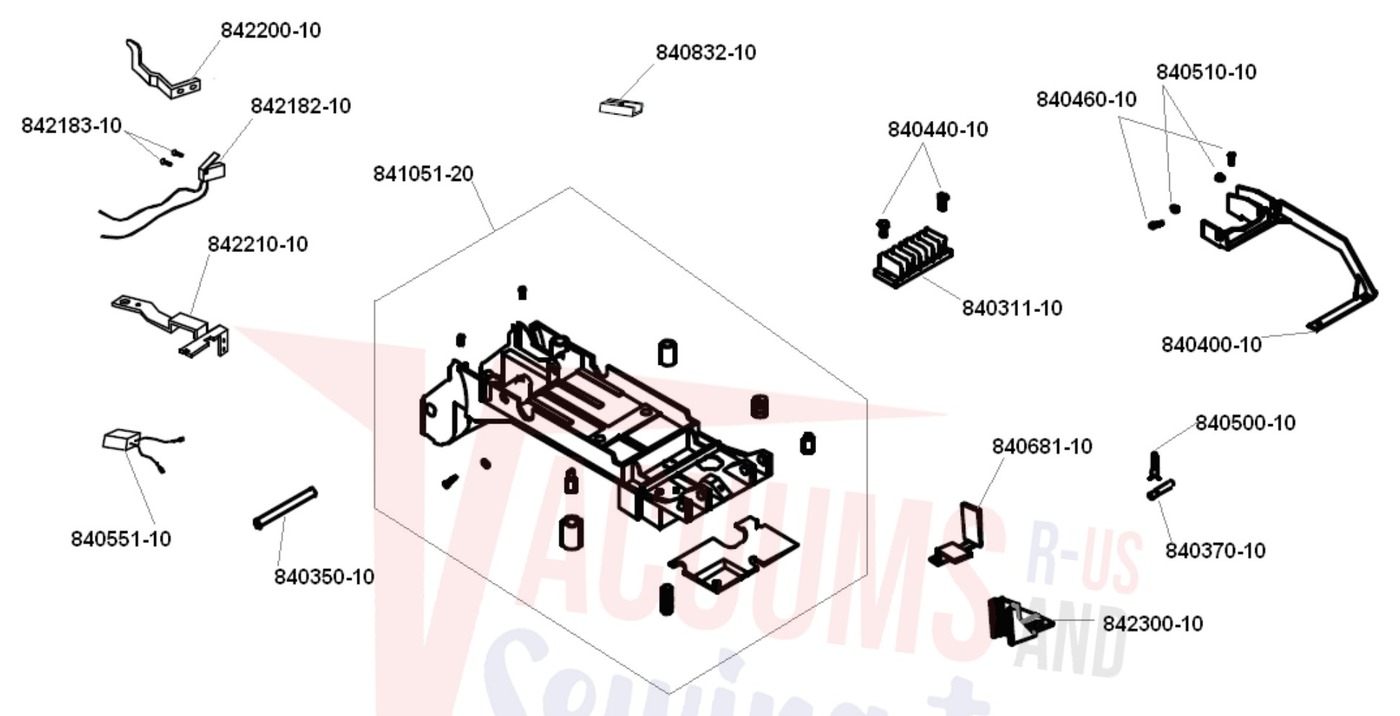

| 1 | Not Available | CONNECTOR WIRE SUPPORT 120V | 840311-10 | Not Available |
| 2 | Not Available | PRESSURE ARM AXLE 8X50 | 840350-10 | Not Available |
| 3 | Not Available | SCREW 4 X 12 | 840440-10 | Not Available |
| 4 | Not Available | FIXED HANDLE AXLE | 840370-10 | Not Available |
| 5 |  | PRESSURE ARM COMPL.EP53/TYPE 2 sewing machine part or accessory | 841051-20 | $141.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | FIXED HANDLE EP 53 | 840400-10 | Not Available |
| 7 | Not Available | SELF-LOCKING SPRING | 840500-10 | Not Available |
| 8 | Not Available | SCREW M5X14 | 840460-10 | Not Available |
| 9 | Not Available | TRANSFORMER HOUSING 120V | 840832-10 | Not Available |
| 10 | Not Available | CAPACITOR | 840551-10 | Not Available |
| 11 | No Image | Triac Ep720 | 84068110 | $56.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | LED GLASS | 842300-10 | Not Available |
| 13 | Not Available | NUT M6 | 840510-10 | Not Available |
| 14 | Not Available | SUPPORT CONTACT MICROSWITCH | 842200-10 | Not Available |
| 15 | Not Available | MICROSWITCH | 842182-10 | Not Available |
| 16 | Not Available | SCREW | 842183-10 | Not Available |
| 17 | Not Available | SUPPORT MICROSWITCH | 842210-10 | Not Available |
| # | Part image | Description | SKU | Price |

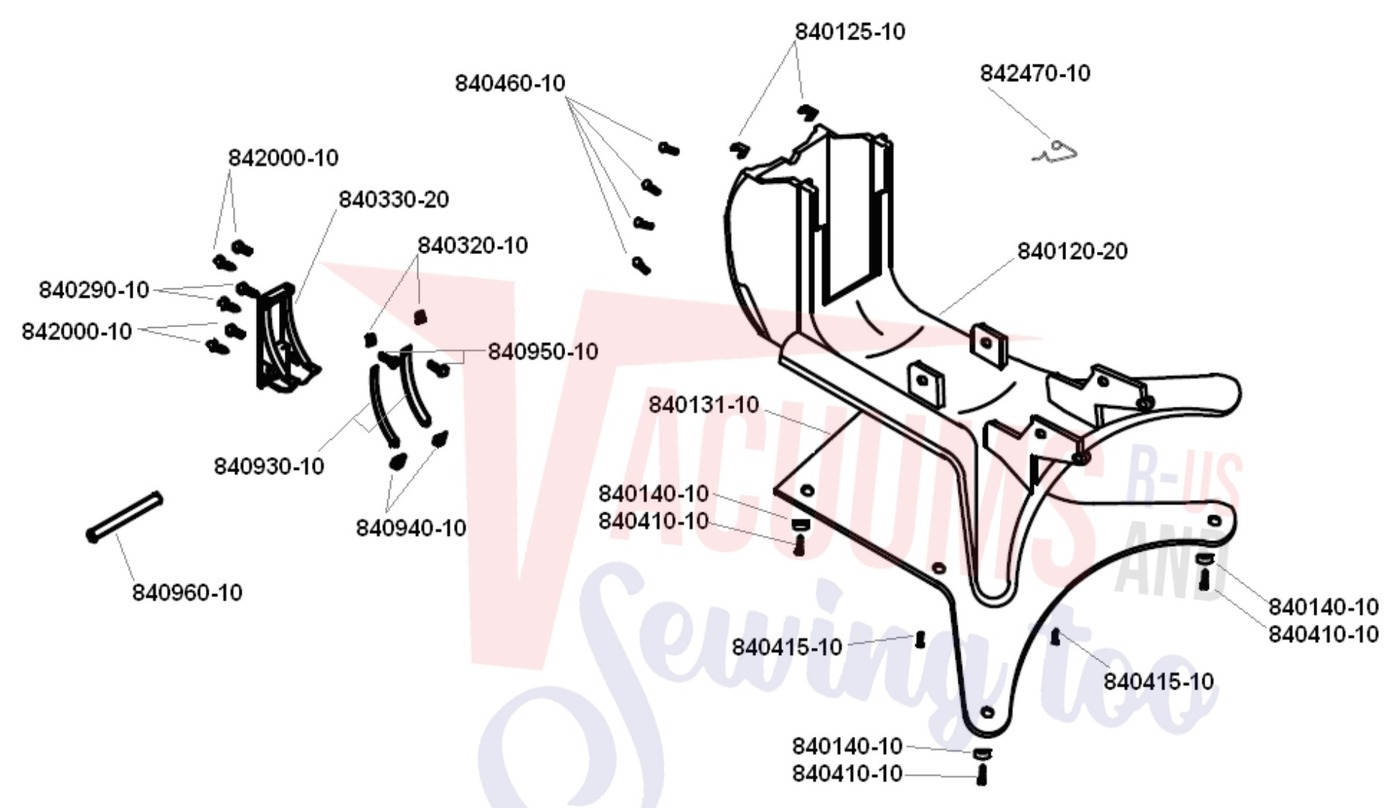

| 1 | Not Available | FRAME | 840120-20 | Not Available |
| 2 | Not Available | PRESSURE ARM STOPPER | 840125-10 | Not Available |
| 3 | Not Available | RUBBER FEET OPAL | 840140-10 | Not Available |
| 4 | Not Available | SCREW | 840410-10 | Not Available |
| 5 | Not Available | SCREW | 842290-10 | Not Available |
| 6 | Not Available | TAPTITE PAN-HEAD SCR. M4X8 | 840290-10 | Not Available |
| 7 | Not Available | TAPTITE PAN-HEAD SCR. M5X10 | 842000-10 | Not Available |
| 8 | Not Available | TAPPING SCREW | 840415-10 | Not Available |
| 9 | Not Available | FRAME COVER | 840131-10 | Not Available |
| 10 | Not Available | BEARING TRACK SUPPORT | 840330-20 | Not Available |
| 11 | Not Available | BEARING TRACK STRIP | 840930-10 | Not Available |
| 12 | Not Available | ROLLER STOP | 840940-10 | Not Available |
| 13 | Not Available | TAPTITE SCREW M3X8 | 840950-10 | Not Available |
| 14 | Not Available | CYLINDRICAL PIN 8X100 | 840960-10 | Not Available |
| 15 | Not Available | BEARING TRACK PLATE | 840320-10 | Not Available |
| 16 | Not Available | WIRE CABLE CLAMP | 842470-10 | Not Available |
| # | Part image | Description | SKU | Price |

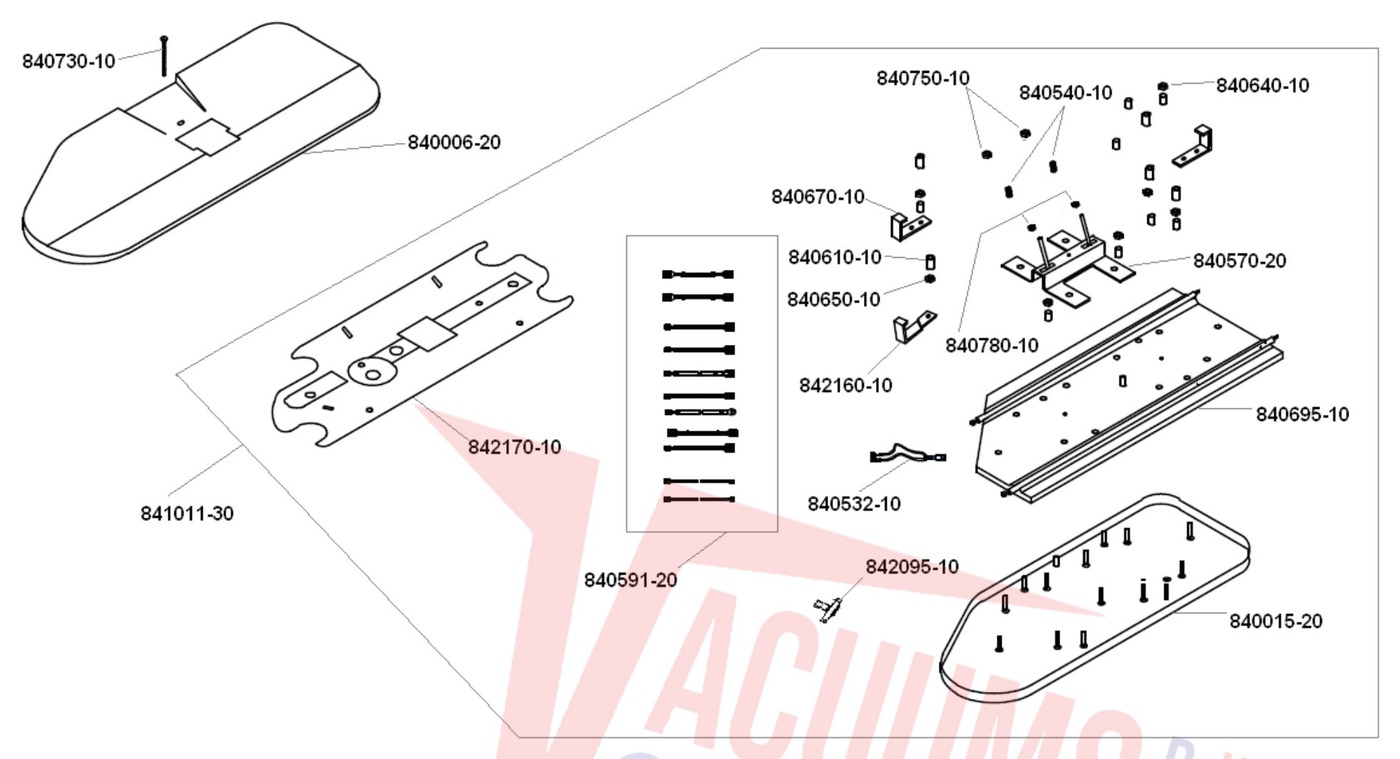

| 1 | Not Available | HEATING SHOE COVER | 840006-20 | Not Available |
| 2 | No Image | Heating Elements 120V/1000W | 84069510 | $139.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | NONSTICK HEITING SHOE | 840015-20 | Not Available |
| 4 | Not Available | Regulator Fuse for Opal | 842095-10 | Not Available |
| 5 | Not Available | SHOE HANGING SUPPORT | 840570-20 | Not Available |
| 6 | Not Available | SHOE WIRES 120V | 840591-20 | Not Available |
| 7 | Not Available | SHOE SLEEVE | 840610-10 | Not Available |
| 8 | Not Available | NUT M4 | 840640-10 | Not Available |
| 9 | Not Available | SCREW M4X32 | 840730-10 | Not Available |
| 10 | Not Available | THERMO SENSOR | 840532-10 | Not Available |
| 11 | Not Available | NUT M5 | 840650-10 | Not Available |
| 12 | Not Available | SUPPORT COVER | 840670-10 | Not Available |
| 13 | Not Available | SELF-LOCKING NUT M6 | 840750-10 | Not Available |
| 14 | Not Available | CIRCLIPS | 840780-10 | Not Available |
| 15 | Not Available | JOINT SPRING | 840540-10 | Not Available |
| 16 | Not Available | SUPPORT COVER | 842160-10 | Not Available |
| 17 | | INSULATION THERMIC sewing machine part or accessory | 842170-10 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | HEATING SHOE COMPL.NONSTICK | 841011-30 | Not Available |
| # | Part image | Description | SKU | Price |

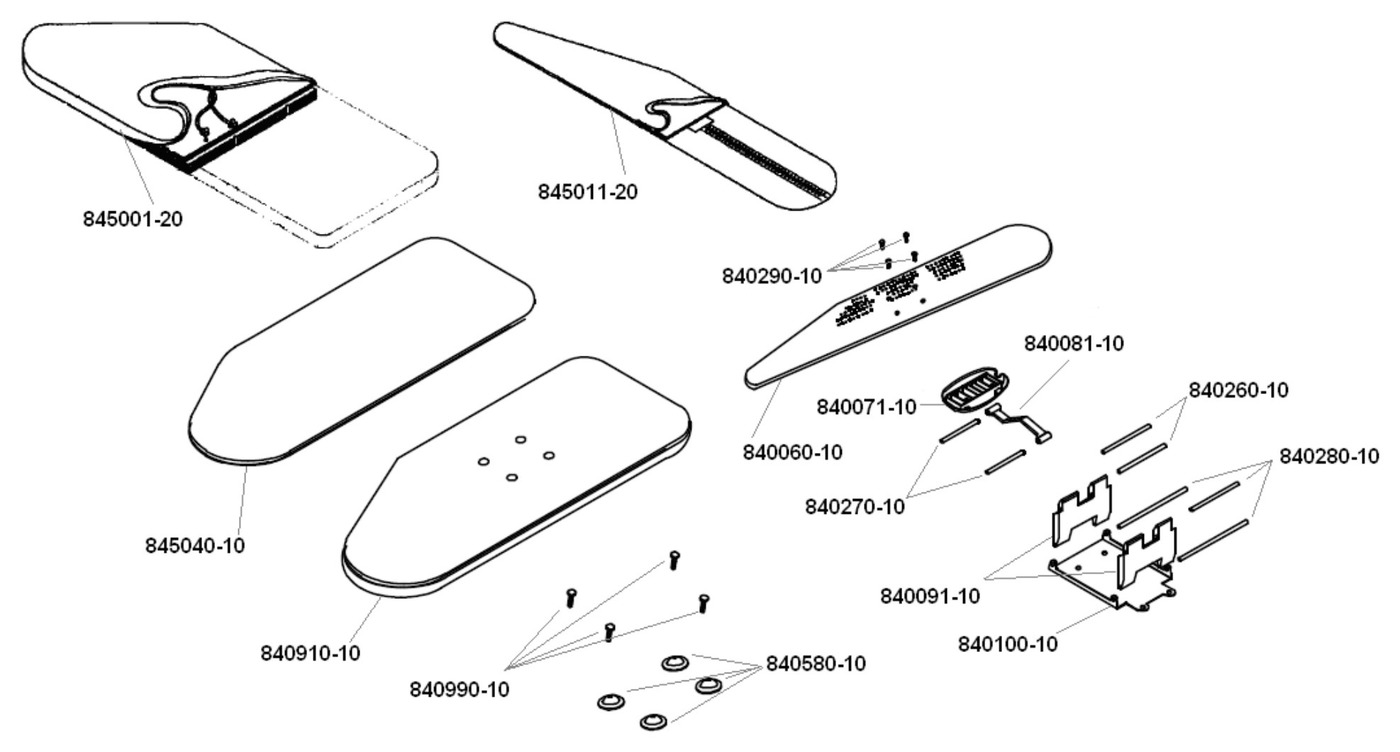

| 1 | Not Available | IRONING BOARD EP 53 | 840910-10 | Not Available |
| 2 | Not Available | CONICAL SCREW M5X20 | 840990-10 | Not Available |
| 3 | Not Available | IRONING COVER | 845011-20 | Not Available |
| 4 | Not Available | Foam Padding Opal | 845040-10 | Not Available |
| 5 | Not Available | WASHER | 840580-10 | Not Available |
| 6 | Not Available | IRONING BOARD SUPPORT | 840100-10 | Not Available |
| 7 | Not Available | INTERMEDIARY LEVER | 840081-10 | Not Available |
| 8 | Not Available | SLEEVE BOARD SUPPORT | 840071-10 | Not Available |
| 9 | Not Available | IRONING BOARD LEVER | 840091-10 | Not Available |
| 10 | Not Available | TAPTITE PAN-HEAD SCR. M4X8 | 840290-10 | Not Available |
| 11 | Not Available | SLEEVE BOARD | 840060-10 | Not Available |
| 12 | Not Available | IRONING BOARD SUPPORT AXLE | 840260-10 | Not Available |
| 13 | Not Available | AXLE FRAME | 840280-10 | Not Available |
| 14 | Not Available | IRONING BOARD SUPPORT | 840100-10 | Not Available |
| 15 | Not Available | IRONING COVER | 845011-20 | Not Available |
| # | Part image | Description | SKU | Price |

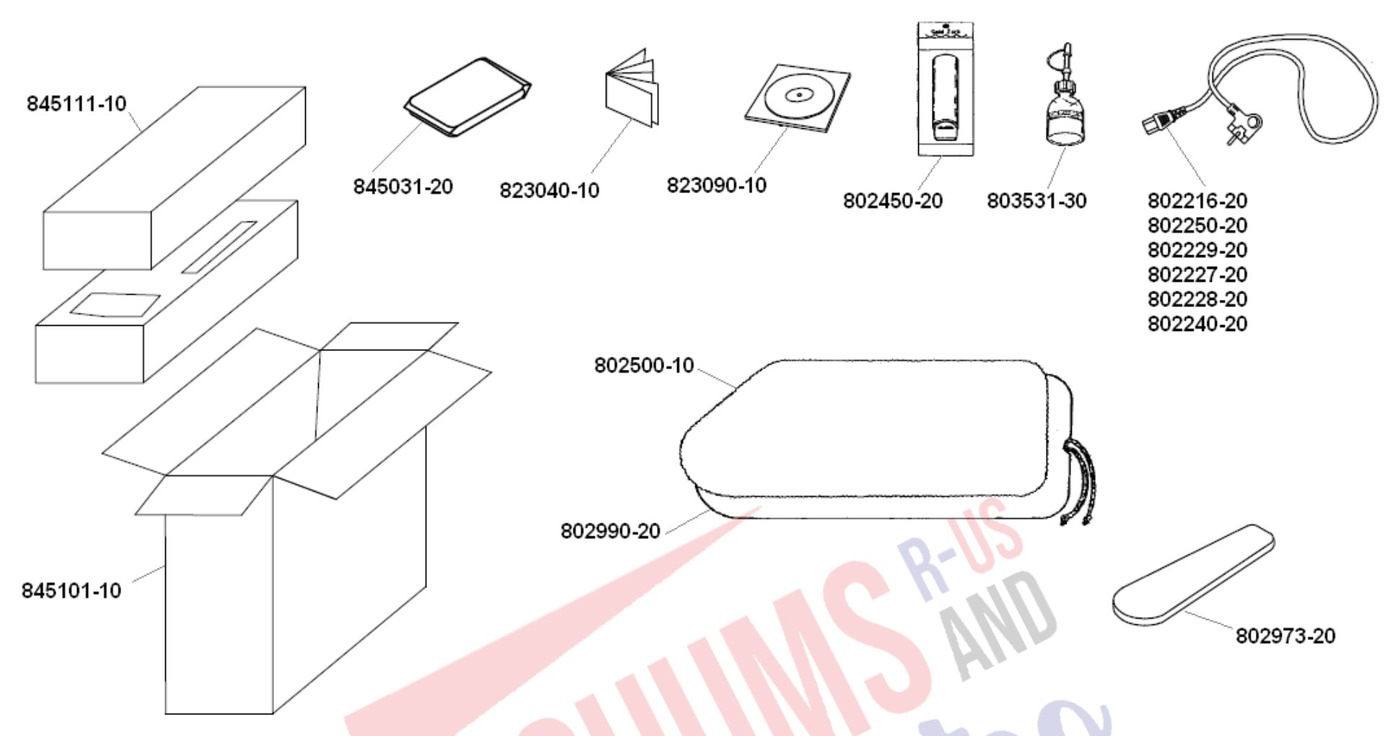

| 1 | | Cleaning Stick sewing machine part or accessory | 802450-20 | $25.80Read more |
| 2 | Not Available | Protection Liquid | 803531-30 | Not Available |
| 3 | Not Available | INSTRUCTION MANUAL EP720 | 823040-10 | Not Available |
| 4 | | HEAT PROTECTION SHEET-TEFLON C sewing machine part or accessory | 802500-10 | $97.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Heavy Duty Ironing Board Cover sewing machine part or accessory | 802990-20 | $80.00Read more |
| 6 | Not Available | IRONING CUSHION | 845031-20 | Not Available |
| 7 | Not Available | CARDBOARD EP720 | 845101-10 | Not Available |
| 8 | Not Available | SHELL EP 53 | 845110-10 | Not Available |
| 9 | Not Available | DVD | 823090-10 | Not Available |
| 10 | Not Available | LONG SLEEVE CUSHION | 802973-20 | Not Available |
| 11 | Not Available | CORD 2 5M | 802216-20 | Not Available |
| 12 | | POWER CORD ELNA 45 65 68 EP23 sewing machine part or accessory POWER CORD ELNA 45 65 68 EP23 EP72... | 802250-20 | $45.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | CORD SET CN | 802229-20 | Not Available |
| 14 | Not Available | CORD 2 50 (GB/IRL) | 802227-20 | Not Available |
| 15 | Not Available | CORD SET S.AFRICA | 802228-20 | Not Available |
| 16 | Not Available | CORD 2 5M (AUS) | 802240-20 | Not Available |
| # | Part image | Description | SKU | Price |

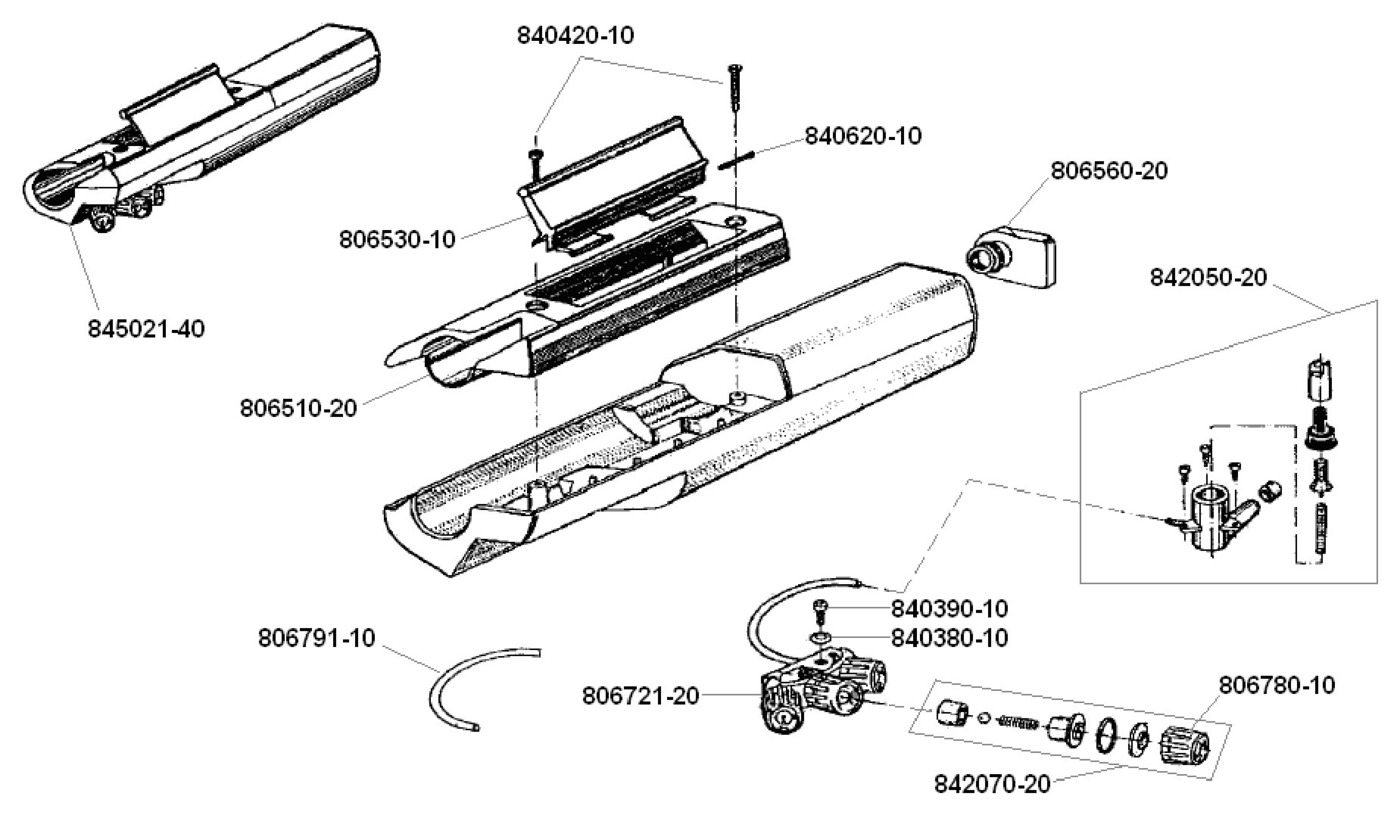

| 1 | Not Available | TAPPING SCREW 3.5X25 EP53 | 840420-10 | Not Available |
| 2 | Not Available | OPERATING LEVER V-J-O | 806530-10 | Not Available |
| 3 | Not Available | ELNA VAPORIZER COVER | 806510-20 | Not Available |
| 4 | Not Available | CONTROL LEVER AXLE | 840620-10 | Not Available |
| 5 |  | Backing Tube | 80679110 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Nozzle Body Elna | 80672120 | $31.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | TAPPING SCREW 3.5X9.5-SCRW VAP | 840390-10 | Not Available |
| 8 | Not Available | CONICAL WASHER 4X0.4 | 840380-10 | Not Available |
| 9 | Not Available | CASING CAP | 806560-20 | Not Available |
| 10 | Not Available | VAPOJET | 845021-40 | Not Available |
| 11 | Not Available | NOZZLE NUT | 806780-10 | Not Available |
| 12 | Not Available | PUMP KIT OPAL | 842050-20 | Not Available |
| 13 | Not Available | NOZZLE KIT | 842070-20 | Not Available |

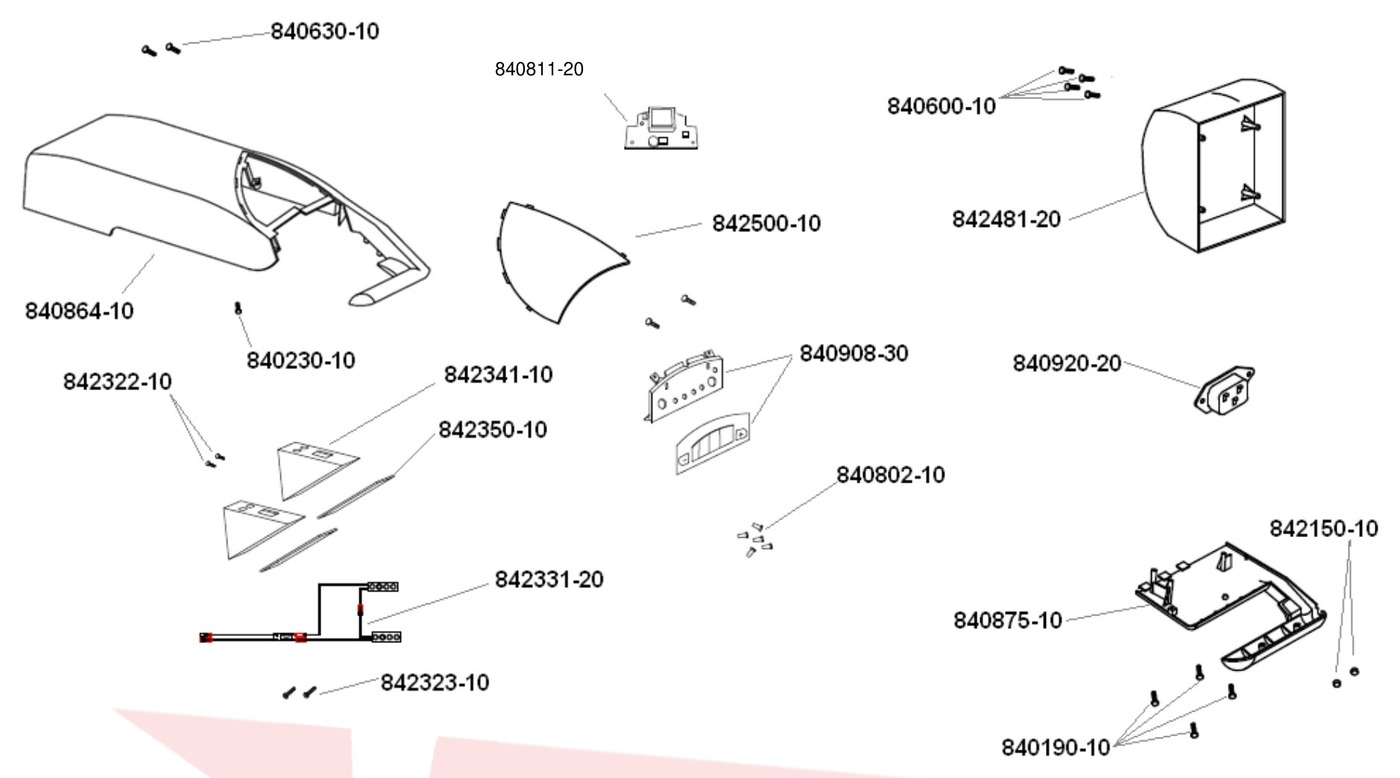

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW-OPAL:GEN SCRWS FRNT COVR | 840190-10 | Not Available |
| 2 | Not Available | SCREW 2 9X9 5 PT | 840230-10 | Not Available |
| 3 | Not Available | SCREW-OPAL;FOR REAR BACK COVER | 840600-10 | Not Available |
| 4 | Not Available | SCREW-OPAL;FORUNDER FRONT COVR | 840630-10 | Not Available |
| 5 | Not Available | REAR COVER 120V | 842481-20 | Not Available |
| 6 | Not Available | UPPER HANDLE COVER 120V | 840864-10 | Not Available |
| 7 | | LOWER HANDLE COVER USA/CDN OPL sewing machine part or accessory | 840875-10 | $18.40Read more |
| 8 | Not Available | SCREW COVER | 842150-10 | Not Available |
| 9 | Not Available | BASE CONNECTOR OPAL | 840920-20 | Not Available |
| 10 | Not Available | LIGHT CONDUCTOR | 840802-10 | Not Available |
| 11 | Not Available | TRIANGULAR COVER 120V | 842500-10 | Not Available |
| 12 | No Image | Circuit Board Ep520 Ep720 | 84081120 | $130.99Read more |
| 13 | Not Available | SCREW 2.5X10 | 842322-10 | Not Available |
| 14 | Not Available | CONTROL PANEL 120V | 840908-30 | Not Available |
| 15 | Not Available | SCREW 3X6 | 842323-10 | Not Available |
| 16 | Not Available | LED GROUPP 120V | 842331-20 | Not Available |
| 17 | Not Available | LIGHTING GLASS | 842350-10 | Not Available |
| 18 | Not Available | OUTDOOR HOUSING 120V | 842341-10 | Not Available |
