Schematic and parts book for Elna EP320 EP320. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

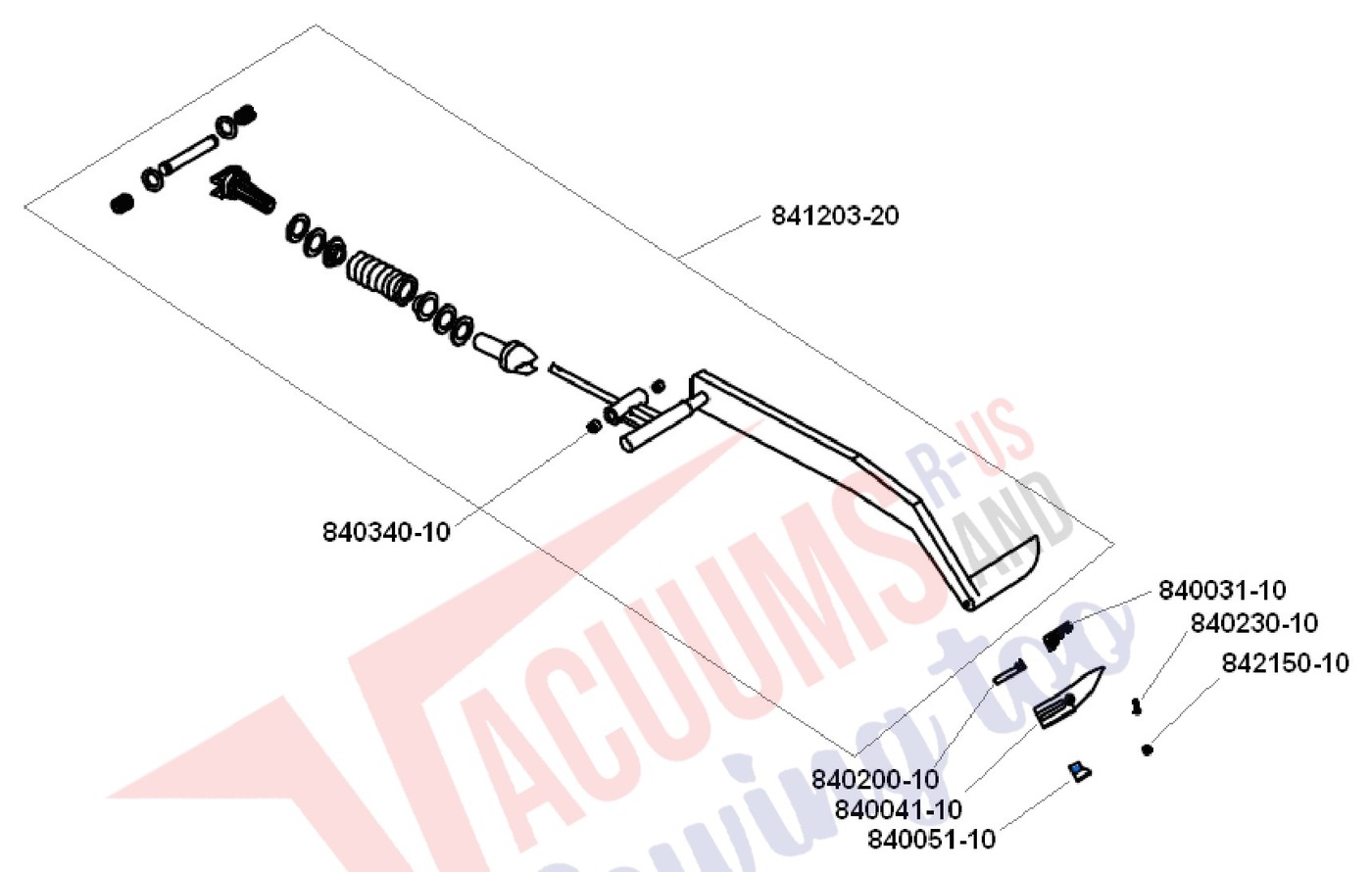

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LOCKING AXLE SUPPORT | 840031-10 | Not Available |
| 2 | Not Available | LOCKING COVER | 840041-10 | Not Available |
| 3 | Not Available | Locking Latch for EP100 | 840051-10 | Not Available |
| 4 | Not Available | LOCKING AXLE | 840200-10 | Not Available |
| 5 | Not Available | SCREW 2 9X9 5 PT | 840230-10 | Not Available |
| 6 | Not Available | MOVABLE HANDLE COMPL. | 841203-20 | Not Available |
| 7 | Not Available | SCREW COVER | 842150-10 | Not Available |
| 8 | Not Available | CYLINDERICAL PIN 8X50 EP21/EP2 | 840340-10 | Not Available |

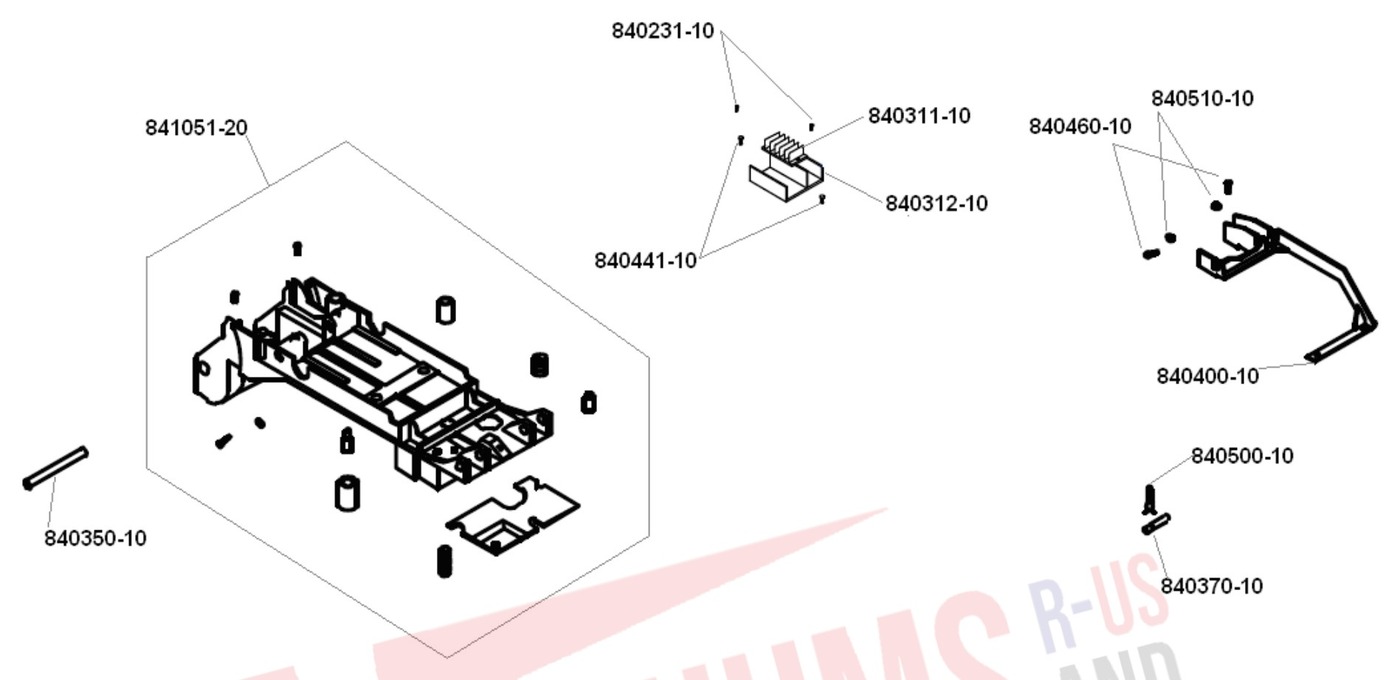

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CONNECTOR WIRE SUPPORT 120V | 840311-10 | Not Available |
| 2 | Not Available | PRESSURE ARM AXLE 8X50 | 840350-10 | Not Available |
| 3 | Not Available | SCREW 4x10 | 840441-10 | Not Available |
| 4 | Not Available | FIXED HANDLE AXLE | 840370-10 | Not Available |
| 5 |  | PRESSURE ARM COMPL.EP53/TYPE 2 sewing machine part or accessory | 841051-20 | $141.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | FIXED HANDLE EP 53 | 840400-10 | Not Available |
| 7 | Not Available | SELF-LOCKING SPRING | 840500-10 | Not Available |
| 8 | Not Available | SCREW M5X14 | 840460-10 | Not Available |
| 9 | Not Available | NUT M6 | 840510-10 | Not Available |
| 10 | Not Available | CABLE CONNECTOR BASE | 840312-10 | Not Available |
| 11 | Not Available | SCREW 3x9.5 | 840231-10 | Not Available |

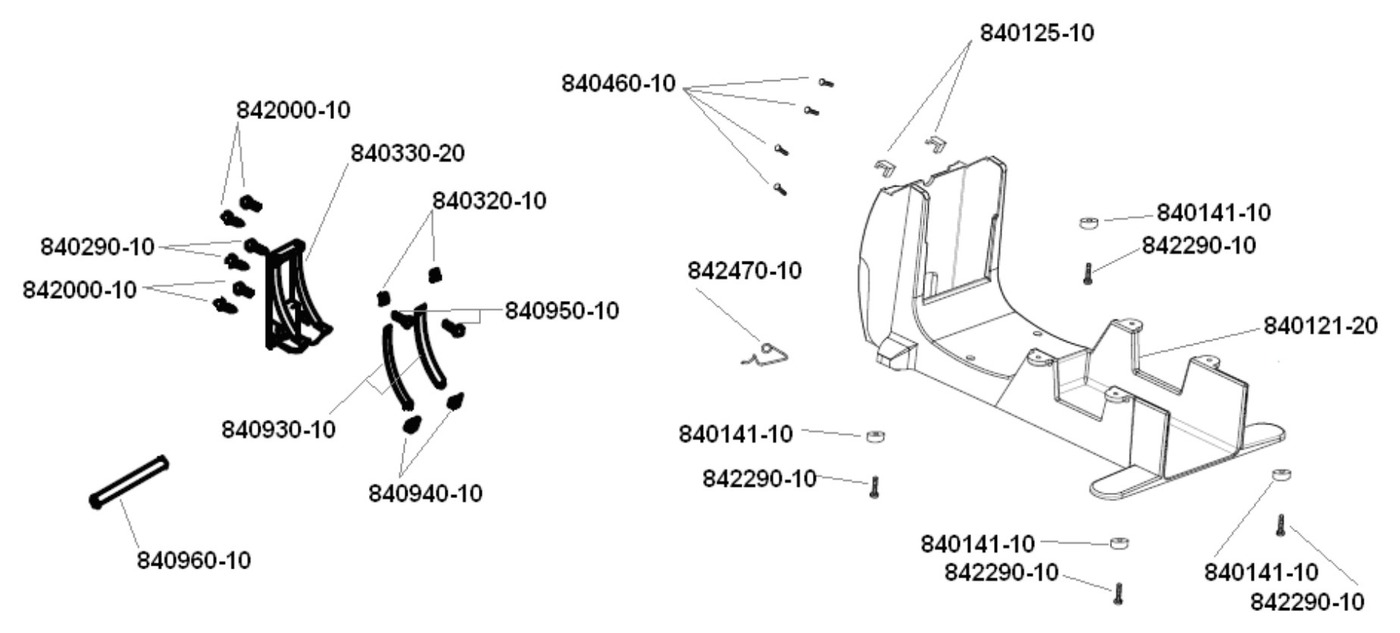

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FRAME | 840121-20 | Not Available |
| 2 | Not Available | PRESSURE ARM STOPPER | 840125-10 | Not Available |
| 3 | Not Available | WIRE CABLE CLAMP | 842470-10 | Not Available |
| 4 | Not Available | FOOT | 840141-10 | Not Available |
| 5 | Not Available | SCREW M5X14 | 840460-10 | Not Available |
| 6 | Not Available | SCREW | 842290-10 | Not Available |
| 7 | Not Available | TAPTITE PAN-HEAD SCR. M4X8 | 840290-10 | Not Available |
| 8 | Not Available | BEARING TRACK PLATE | 840320-10 | Not Available |
| 9 | Not Available | BEARING TRACK SUPPORT | 840330-20 | Not Available |
| 10 | Not Available | BEARING TRACK STRIP | 840930-10 | Not Available |
| 11 | Not Available | ROLLER STOP | 840940-10 | Not Available |
| 12 | Not Available | TAPTITE SCREW M3X8 | 840950-10 | Not Available |
| 13 | Not Available | CYLINDRICAL PIN 8X100 | 840960-10 | Not Available |
| 14 | Not Available | TAPTITE PAN-HEAD SCR. M5X10 | 842000-10 | Not Available |

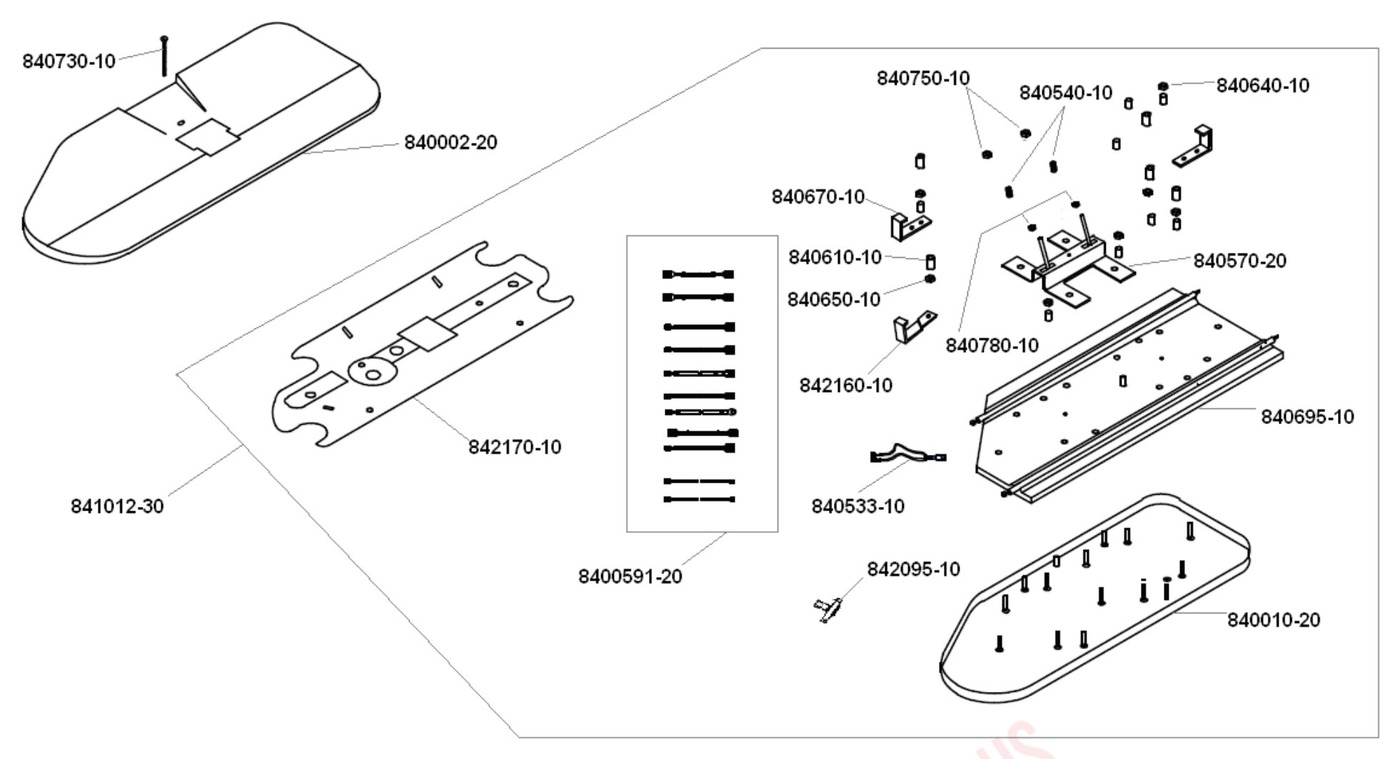

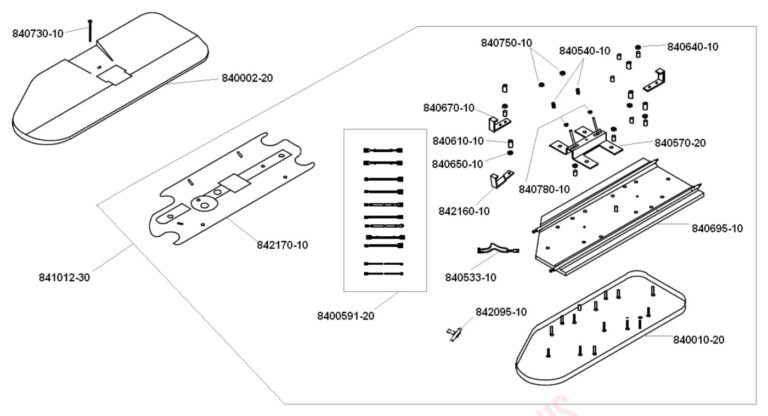

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HEATING SHOE COVER | 840002-20 | Not Available |
| 2 | Not Available | PERALUMAN HEATING SHOE | 840010-20 | Not Available |
| 3 | Not Available | SUPPORT COVER | 842160-10 | Not Available |
| 4 | Not Available | Regulator Fuse for Opal | 842095-10 | Not Available |
| 5 | Not Available | SHOE HANGING SUPPORT | 840570-20 | Not Available |
| 6 | Not Available | SHOE WIRES 120V | 840591-20 | Not Available |
| 7 | Not Available | SHOE SLEEVE | 840610-10 | Not Available |
| 8 | Not Available | NUT M4 | 840640-10 | Not Available |
| 9 | Not Available | NUT M5 | 840650-10 | Not Available |
| 10 | Not Available | SUPPORT COVER | 840670-10 | Not Available |
| 11 | No Image | Heating Elements 120V/1000W | 84069510 | $139.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | INSULATION THERMIC sewing machine part or accessory | 842170-10 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | JOINT SPRING | 840540-10 | Not Available |
| 14 | Not Available | CIRCLIPS | 840780-10 | Not Available |
| 15 | Not Available | HEATING SHOE COMPL.PERALUMAN | 841012-30 | Not Available |
| 16 | Not Available | SELF-LOCKING NUT M6 | 840750-10 | Not Available |
| 17 | Not Available | SCREW M4X32 | 840730-10 | Not Available |
| 18 | Not Available | THERMO SENSOR | 840533-10 | Not Available |

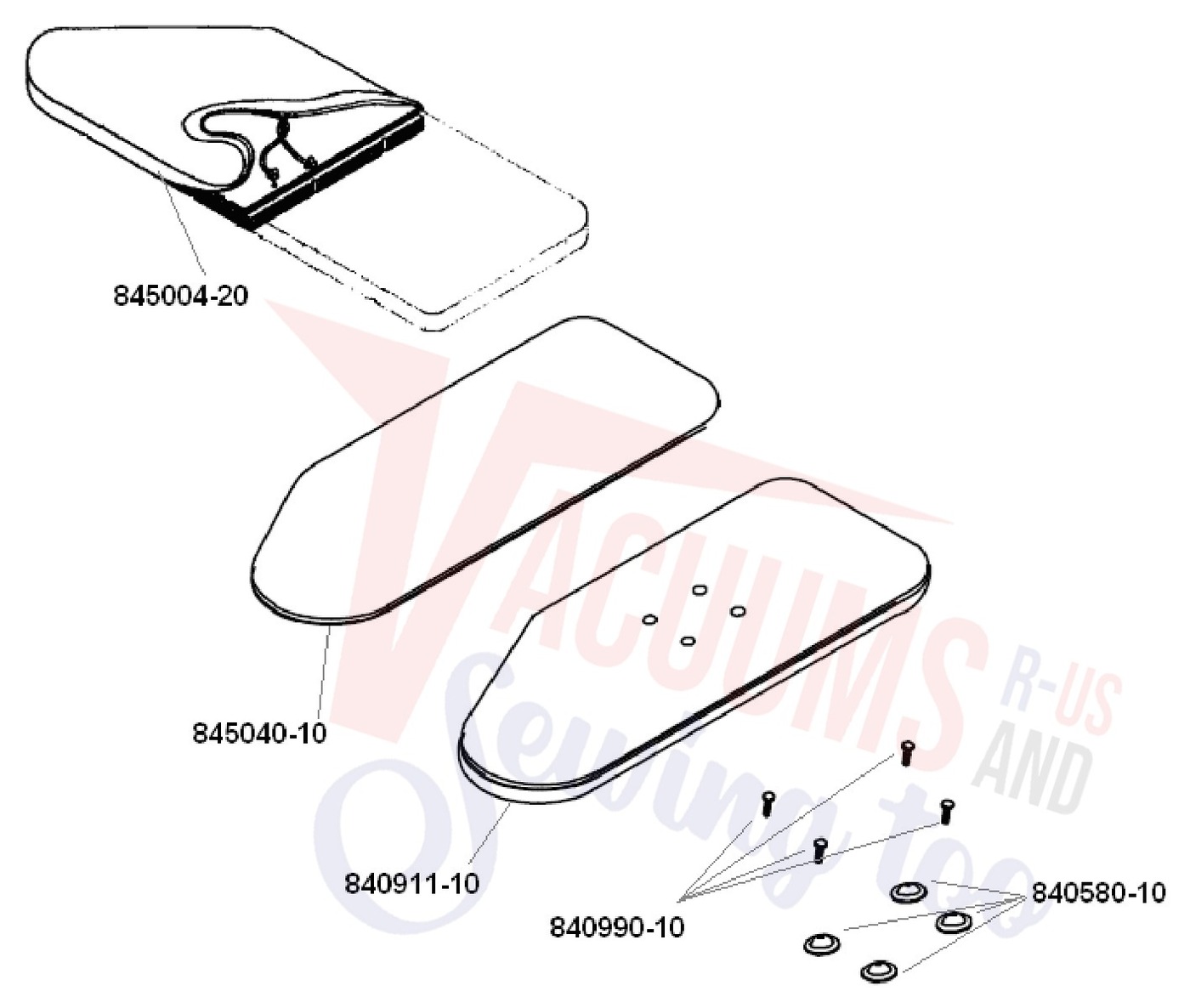

| # | Part image | Description | SKU | Price |
| 1 | Not Available | IRONING BOARD | 840911-10 | Not Available |
| 2 | Not Available | CONICAL SCREW M5X20 | 840990-10 | Not Available |
| 3 | Not Available | IRONING COVER | 845011-20 | Not Available |
| 4 | Not Available | Foam Padding Opal | 845040-10 | Not Available |
| 5 | Not Available | WASHER | 840580-10 | Not Available |

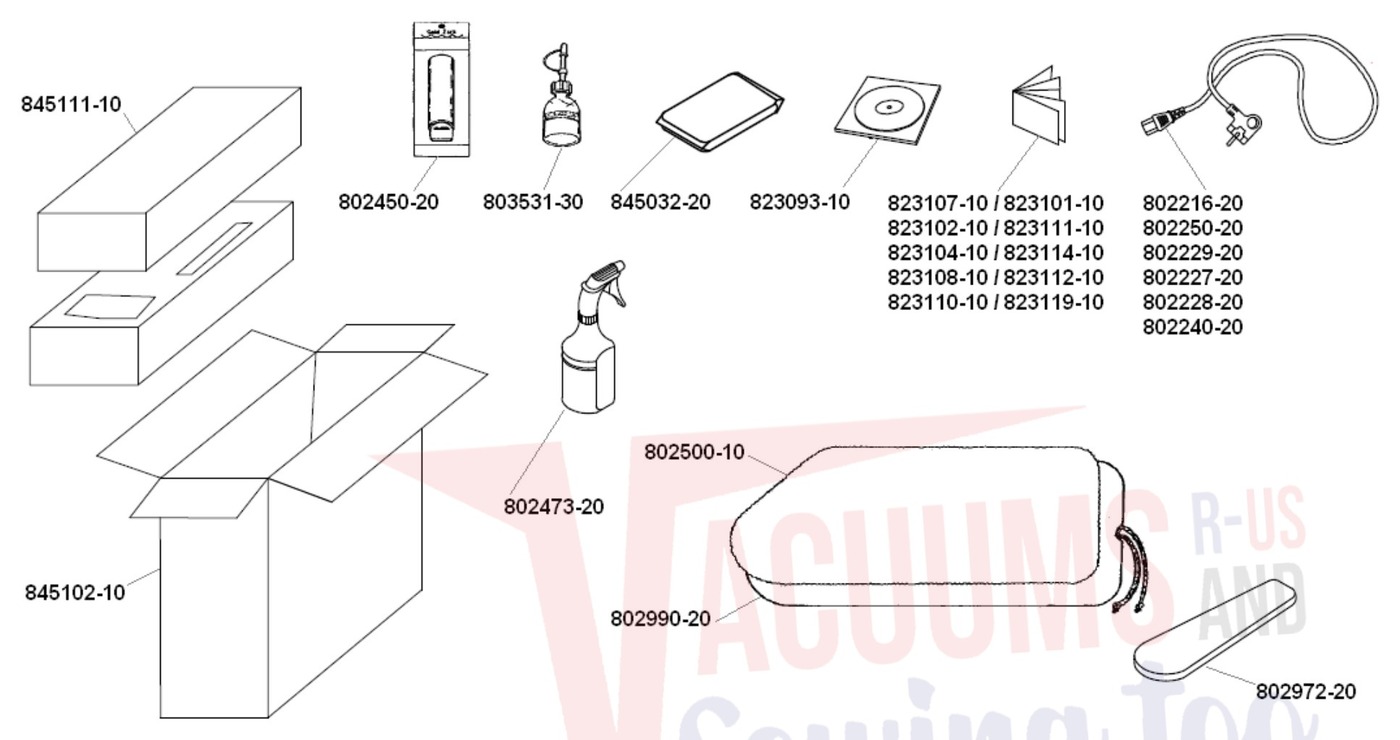

| # | Part image | Description | SKU | Price |
| 1 | | Cleaning Stick sewing machine part or accessory | 802450-20 | $25.80Read more |
| 2 | Not Available | Protection Liquid | 803531-30 | Not Available |
| 3 |  | Instruction Manual Ep320 | 82310210 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | IRONING CUSHION | 845032-20 | Not Available |
| 5 | Not Available | CARDBOARD EP320 | 845102-10 | Not Available |
| 6 | Not Available | SHELLS KIT | 845111-10 | Not Available |
| 7 | Not Available | DVD EP100 | 823093-10 | Not Available |
| 8 | Not Available | CORD 2 5M | 802216-20 | Not Available |
| 9 | Not Available | LONG SLEEVE CUSHION | 802972-20 | Not Available |
| 10 | | Heavy Duty Ironing Board Cover sewing machine part or accessory | 802990-20 | $80.00Read more |
| 11 | | POWER CORD ELNA 45 65 68 EP23 sewing machine part or accessory POWER CORD ELNA 45 65 68 EP23 EP72... | 802250-20 | $45.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | SPRAY BOTTLE | 802473-20 | Not Available |
| 13 | | HEAT PROTECTION SHEET-TEFLON C sewing machine part or accessory | 802500-10 | $97.60Add to cart Special order: ships in 2 to 4 weeks |

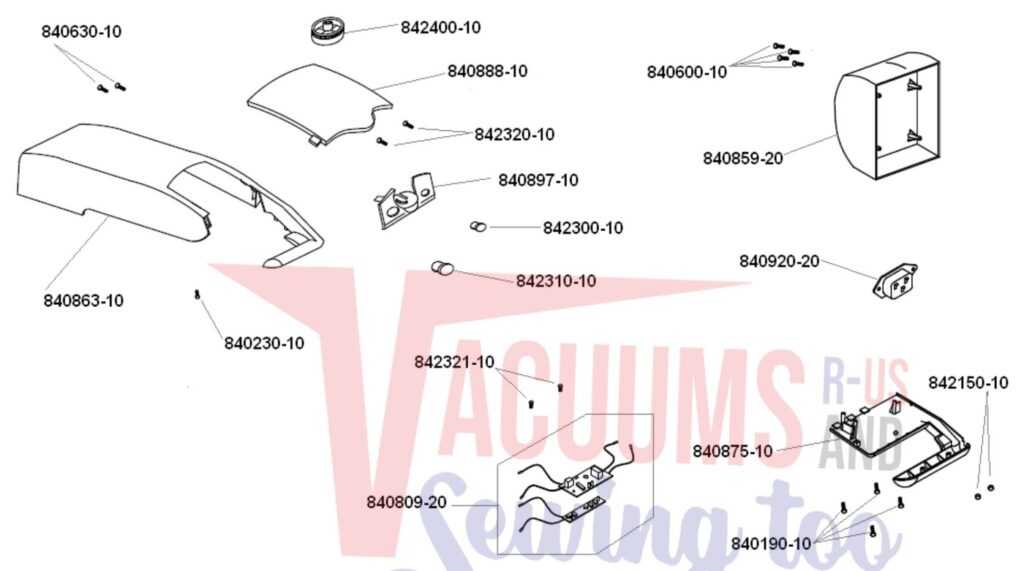

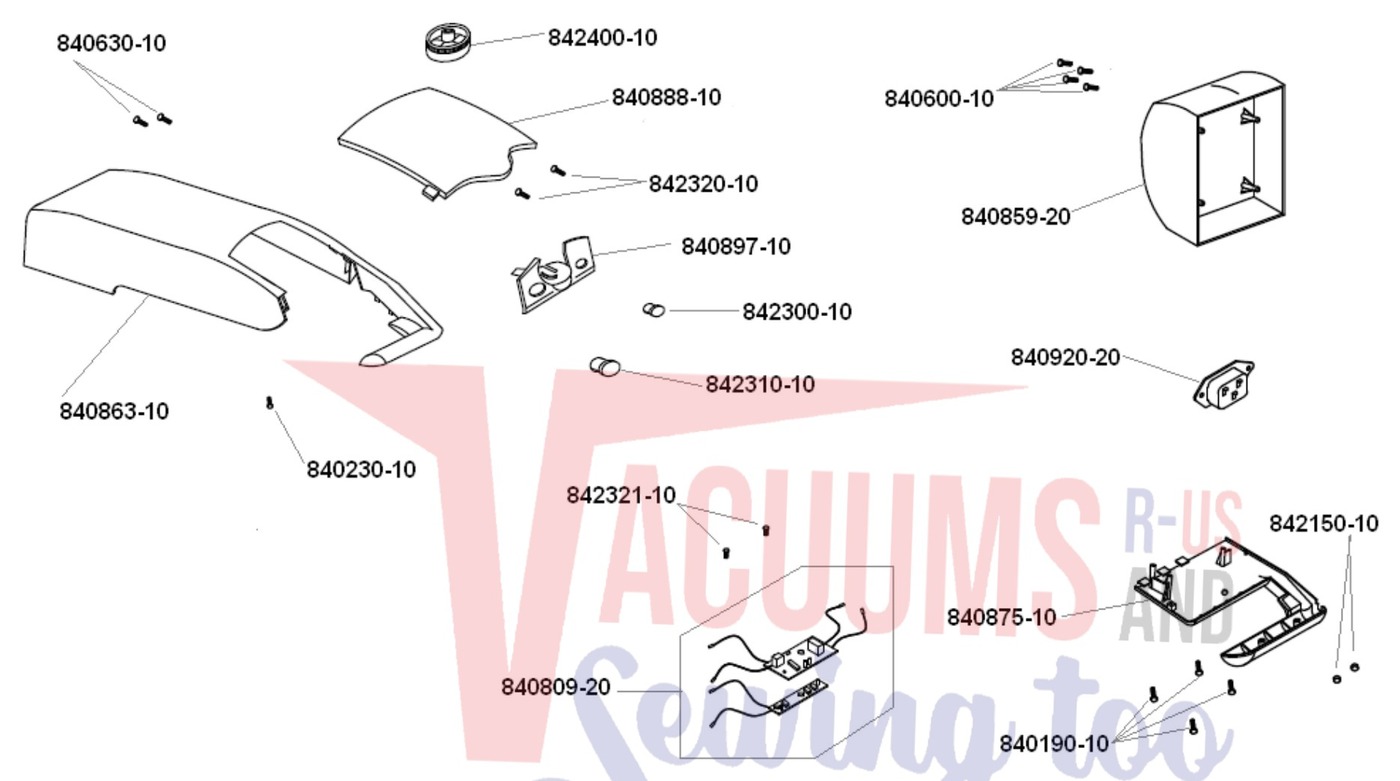

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW-OPAL:GEN SCRWS FRNT COVR | 840190-10 | Not Available |
| 2 | Not Available | SCREW 2 9X9 5 PT | 840230-10 | Not Available |
| 3 | Not Available | SCREW-OPAL;FOR REAR BACK COVER | 840600-10 | Not Available |
| 4 | Not Available | SCREW-OPAL;FORUNDER FRONT COVR | 840630-10 | Not Available |
| 5 | Not Available | REAR COVER 120V | 840859-20 | Not Available |
| 6 | Not Available | UPPER HANDLE COVER 120V | 840863-10 | Not Available |
| 7 | | LOWER HANDLE COVER USA/CDN OPL sewing machine part or accessory | 840875-10 | $18.40Read more |
| 8 | Not Available | CONTROL PANEL SUPPORT 120V | 840897-10 | Not Available |
| 9 | Not Available | BASE CONNECTOR OPAL | 840920-20 | Not Available |
| 10 | Not Available | SCREW COVER | 842150-10 | Not Available |
| 11 | Not Available | SQUARE COVER 120V | 840888-10 | Not Available |
| 12 | Not Available | TEMPEPRATURE KNOB | 842400-10 | Not Available |
| 13 | Not Available | LED GLASS | 842300-10 | Not Available |
| 14 | Not Available | ON-OFF BUTTON | 842310-10 | Not Available |
| 15 | Not Available | CIRCUIT BOARD 120V | 840809-20 | Not Available |
| 16 | Not Available | SCREW 3X6.5 | 842321-10 | Not Available |
| 17 | Not Available | SCREW 3X7.5 | 842320-10 | Not Available |
