Schematic and parts book for Elna EL802 EL802. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

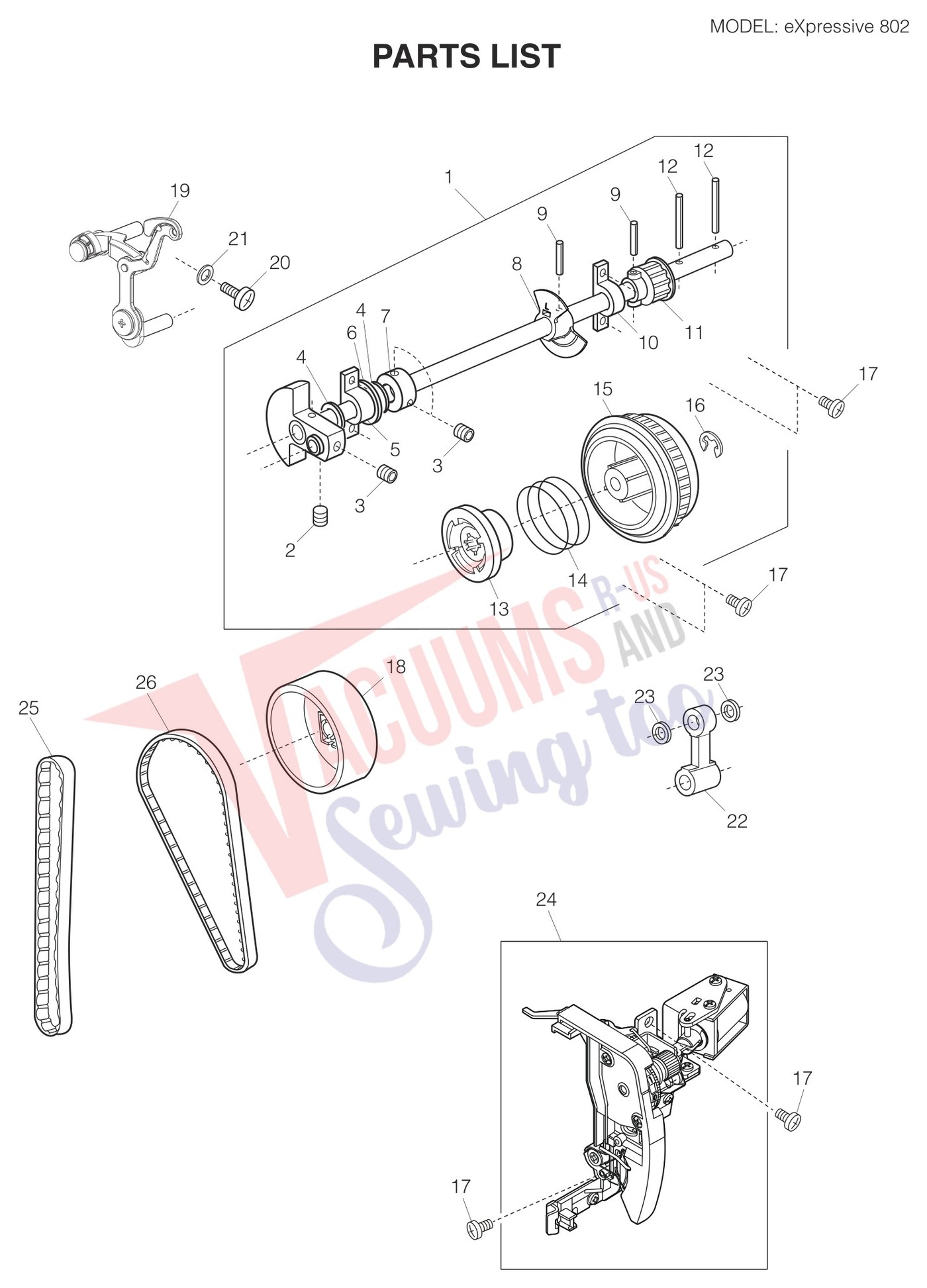

| # | Part image | Description | SKU | Price |
| 1 | No Image | Upper Shaft (Unit) | 819601009 | $30.97Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Setscrew 4x6 sewing machine part or accessory For Janome Models: 1100D, 1200D, 1200D, 3160QDC, My... | 000112800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Shaft supporter plate sewing machine part or accessory For Janome Models: 508120006 Shaft support... | 508120006 | $2.00Read more |
| 6 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Upper shaft shielding plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808003001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100 HF5... | 508054101 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Belt wheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812... | 508055009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Handwheel | 809100172 | $3.10Read more |
| 19 | No Image | Thread Take-Up Lever (Unit) | 819602000 | $25.78Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle bar crank rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808005003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thrust washer sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (... | 000036005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Thread Tension (Unit) | 815605001 | $72.26Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Syncro motor belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 808037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Timing belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808021005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

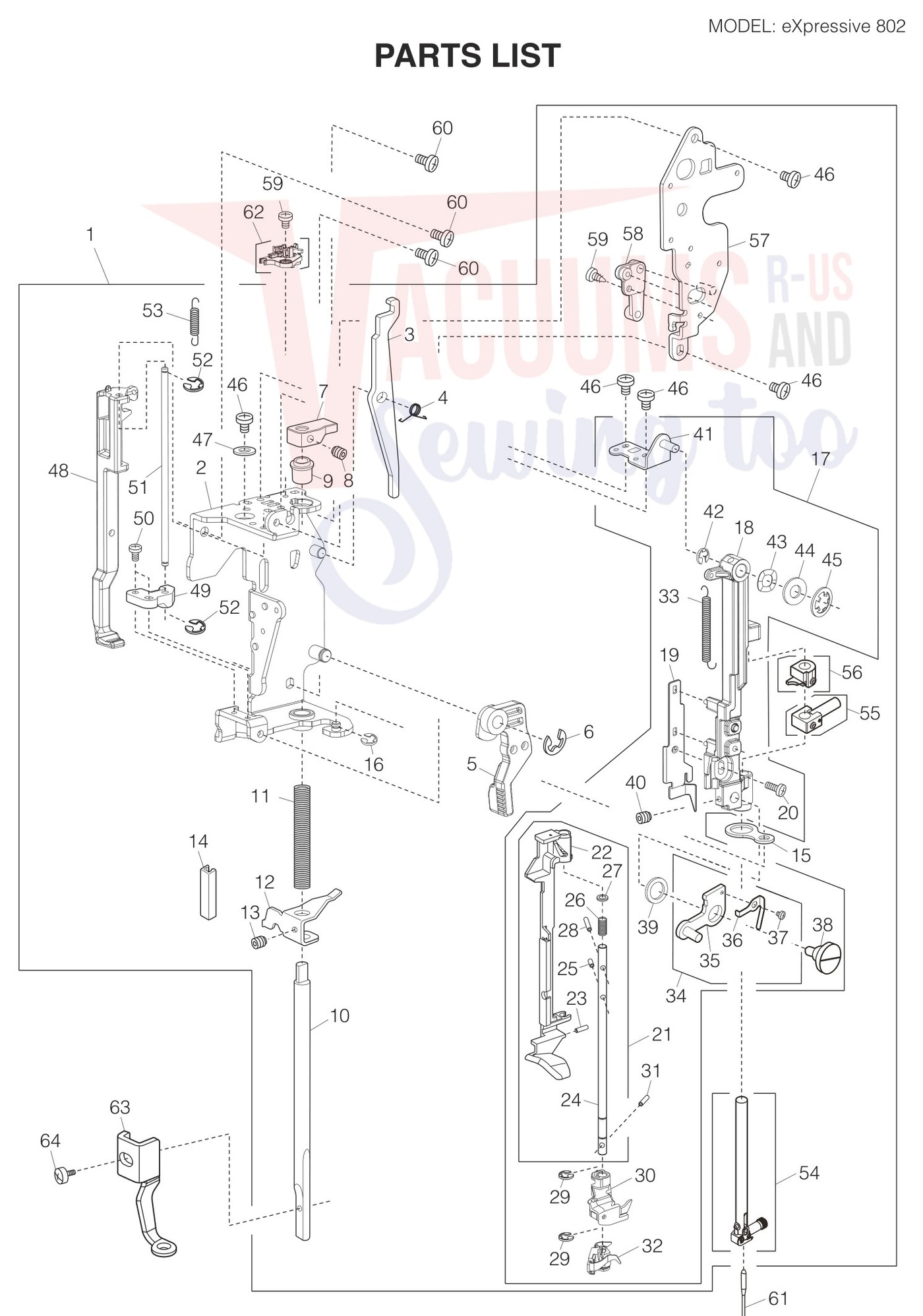

| # | Part image | Description | SKU | Price |
| 1 | No Image | Presser Bar Base Plate (Unit) | 815601007 | $121.56Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Presser Bar Base Plate | 819004109 | $29.69Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Thread tension release lever sewing machine part or accessory For Janome Models: 3160QDC HF8050, ... | 808007005 | $0.80Read more |
| 4 |  | Thread tension release spring sewing machine part or accessory For Janome Models: 3160QDC, 6019QC... | 503041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Presser Foot Lifter | 819006008 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Embroidery Foot Drive Block | 819013008 | $2.37Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Presser Bar Bushing | 815001001 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Presser Bar | 819010005 | $6.92Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Presser Bar Spring | 819011006 | $0.73Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Presser Bar Supporter | 819012007 | $4.37Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Presser Bar Supporter Holder | 819152000 | $0.73Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Supporter guide plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 808010001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 17 | No Image | Needle Bar Supporter (Unit) | 819604105 | $79.97Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Needle Bar Supporter | 819014009 | $22.95Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Thread Release Plate | 819018003 | $3.55Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Setscrew 3x12 sewing machine part or accessory For Janome Models: 203, 234D, 509, 521, 525S, 625E... | 000081500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Threader Shaft (Unit) | 819605003 | $18.49Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Needle Threader Arm | 819016A01 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Cam pin sewing machine part or accessory For Janome Models: 9410 | 869025008 | $2.75Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Threader Shaft | 819015000 | $0.27Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Guide pin 2x6-CH sewing machine part or accessory 000265603 Guide pin 2x6-CH | 000265603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Needle threader spring sewing machine part or accessory For Janome Models: 9410 | 869026009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Washer sewing machine part or accessory For Elna Models: EL680PLUSA | 539061004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Guide pin 2x12-CH sewing machine part or accessory 000265500 Guide pin 2x12-CH | 000265500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Thread guide base sewing machine part or accessory For Janome Models: 9410 | 869609002 | $8.34Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Hook holder (unit) sewing machine part or accessory For Janome Models: 9410 | 869610006 | $17.85Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Needle threader return spring sewing machine part or accessory For Janome Models: 9410 | 869030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Zigzag Width Rod (Unit) | 819606004 | $4.37Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Zigzag Width Rod | 819019004 | $3.19Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Eccentric pin sewing machine part or accessory 678084306 Eccentric pin | 678084306 | $1.80Read more |
| 39 | | Washer sewing machine part or accessory 863127003 Washer | 863127003 | $0.20Read more |
| 40 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Supporter adjusting plate sewing machine part or accessory For Janome Models: 5300QDC | 808009100 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Genuine Janome/Elna Polished plain washer 5 For: 3160QDC, MC10000, MC10001, MC6500P, MC6600P HF... | 000072003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | No Image | Threader Lever | 814046016 | $2.56Read more |
| 49 | No Image | Threader Lever Guide | 814047006 | $1.64Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

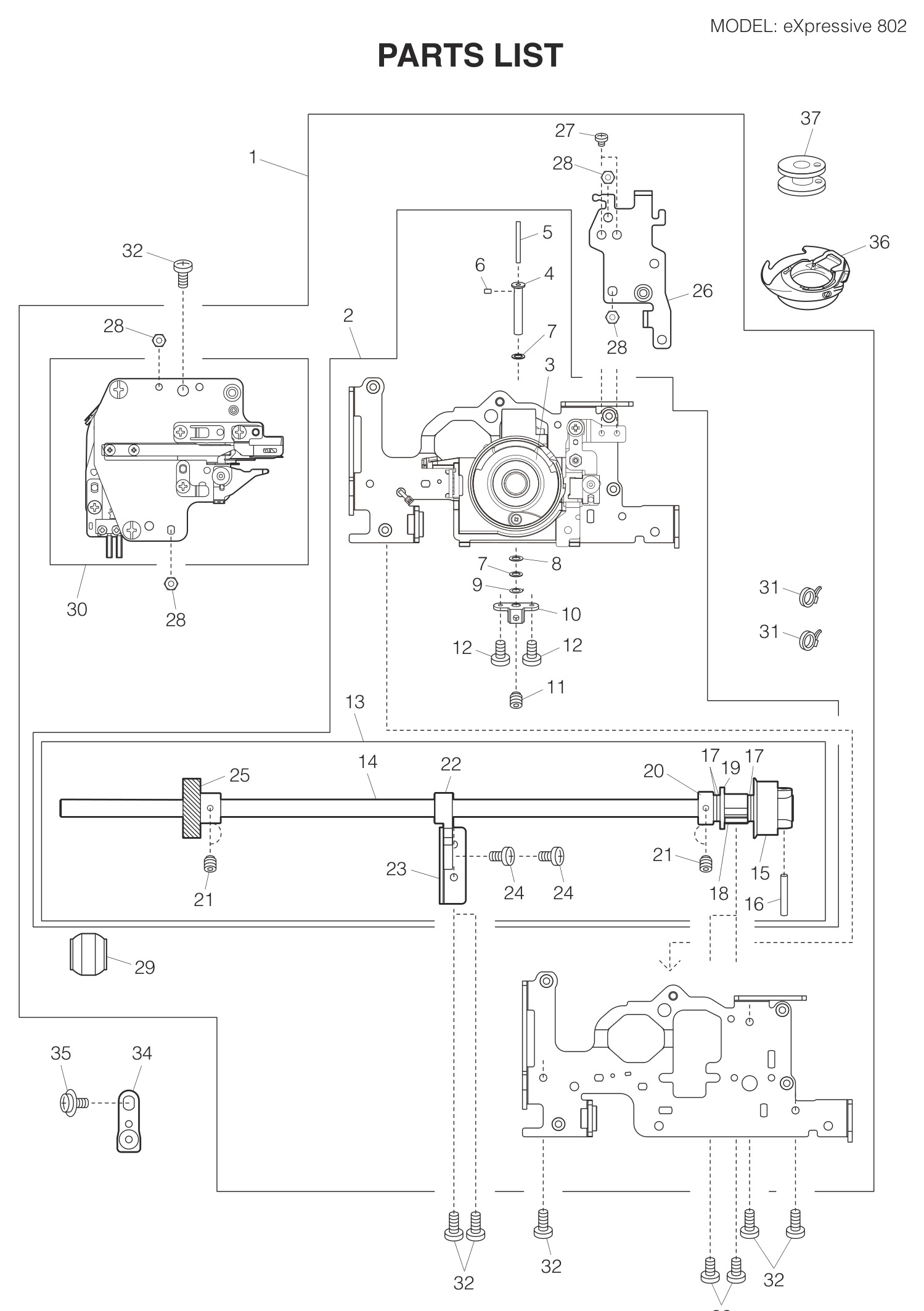

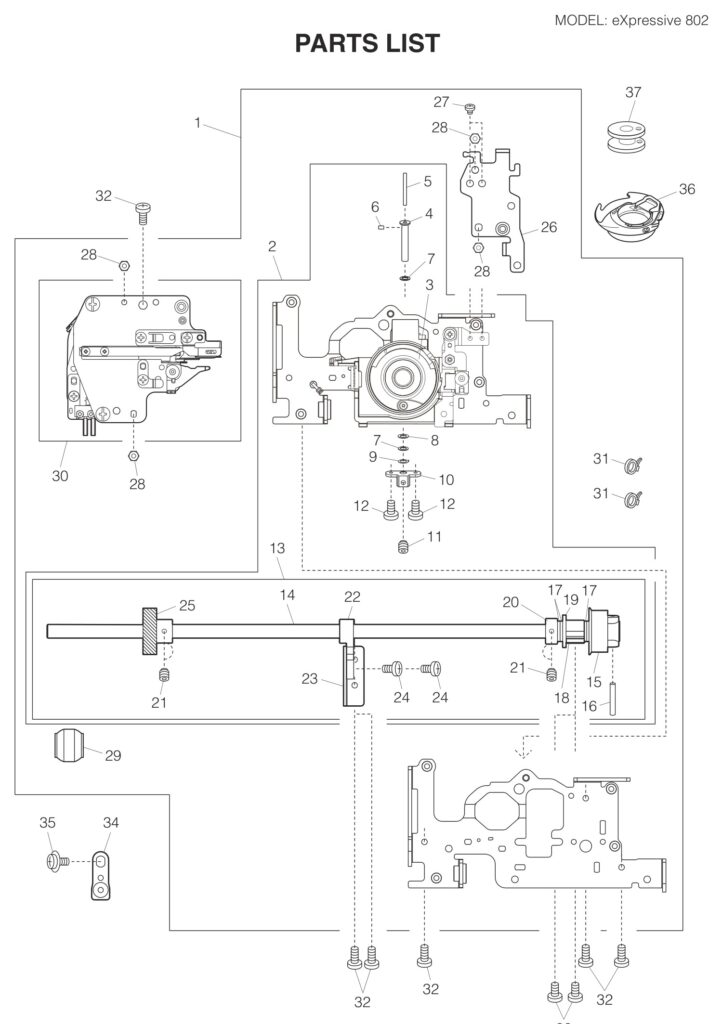

| # | Part image | Description | SKU | Price |
| 1 | No Image | Hook Race (Whole Unit) | 815602008 | $187.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Hook Race (Unit) | 815603009 | $110.21Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Hook Body (Unit) | 660536107 | $45.63Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hook race shaft base sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, N... | 508072002 | $2.40Read more |
| 11 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Lower Shaft (Unit) | 819621108 | $28.69Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Lower Shaft | 819042006 | $10.47Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Shaft supporter plate sewing machine part or accessory For Janome Models: 508120006 Shaft support... | 508120006 | $2.00Read more |
| 19 | | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Lower shaft supporter | 809017012 | Not Available |
| 23 | | Lower shaft supporter plate sewing machine part or accessory For Models: , Necchi EX30, Necchi E... | 809016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Setscrew 4x8 sewing machine part or accessory For Janome Models: 1000CPX, 204D, 434DR, 644D, 7034... | 000081016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Needle Plate Adjusting Plate | 815003003 | $5.83Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 234D... | 000101116 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Nut sewing machine part or accessory For Janome Models: 3160QDC, 808A, HSN 49360, Necchi EX30 , M... | 000063104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Thread Cutter (Unit) | 819624101 | $76.02Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Cord binder sewing machine part or accessory | 000053606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Lower shaft bushing set plate sewing machine part or accessory For Models: , Necchi EX30, Necchi... | 809042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Bobbin holder (unit) sewing machine part or accessory 867513002 Bobbin holder (unit) CM7 | 867513002 | $35.80Add to cart |
| 37 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |

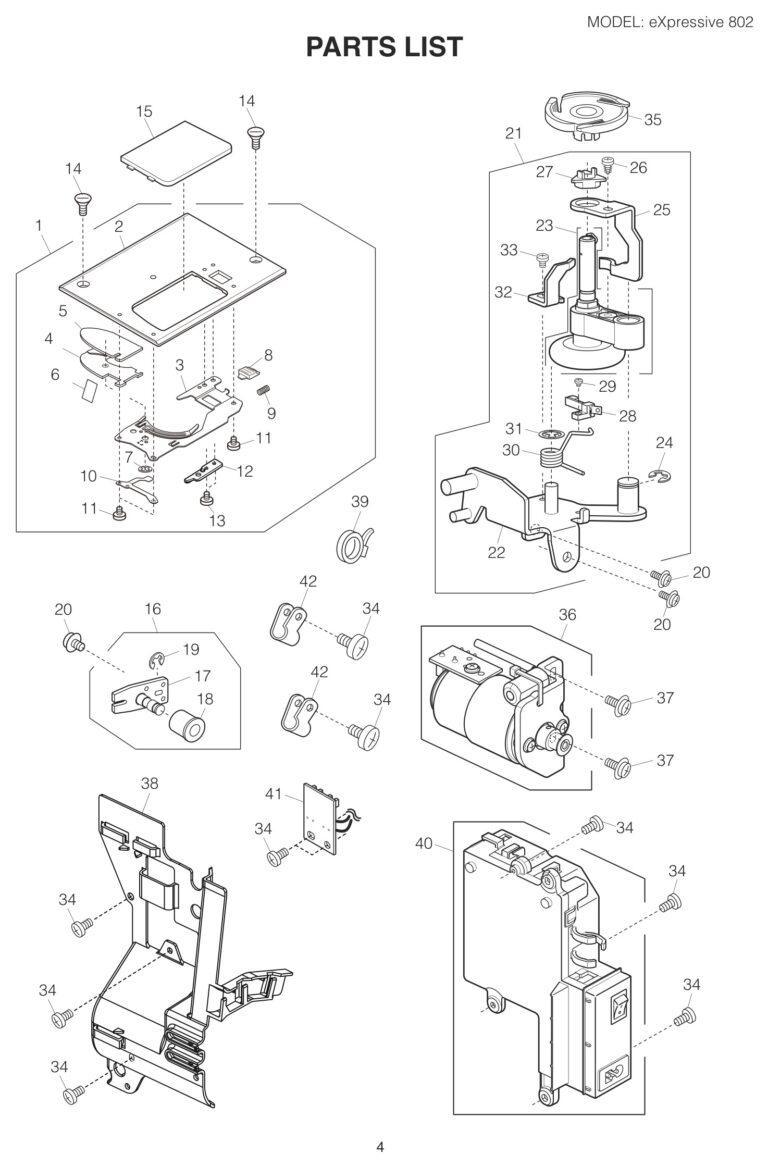

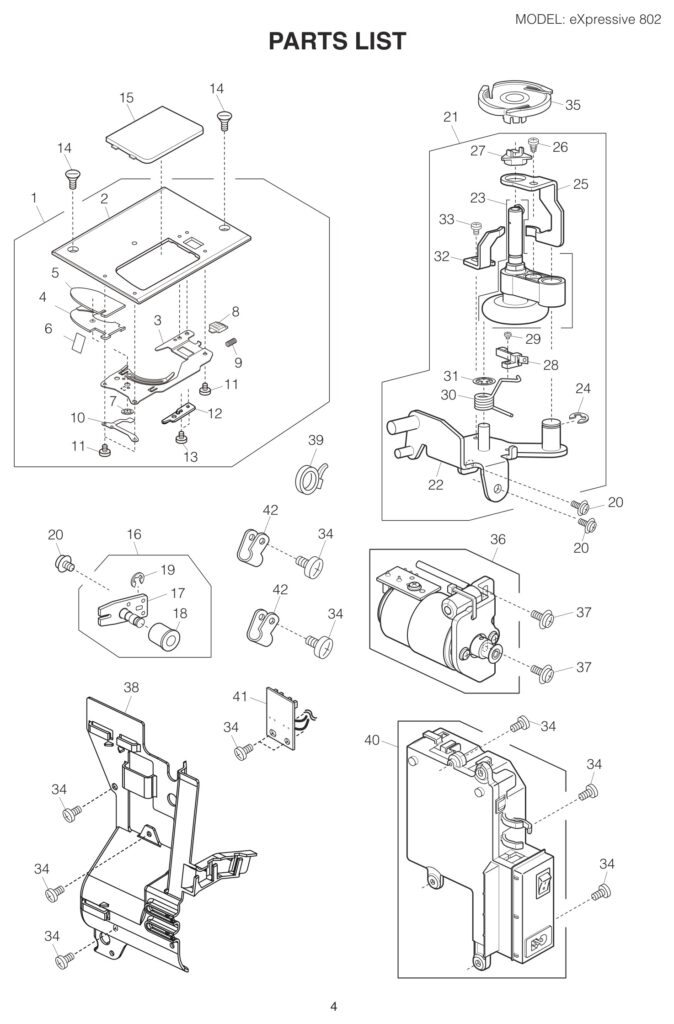

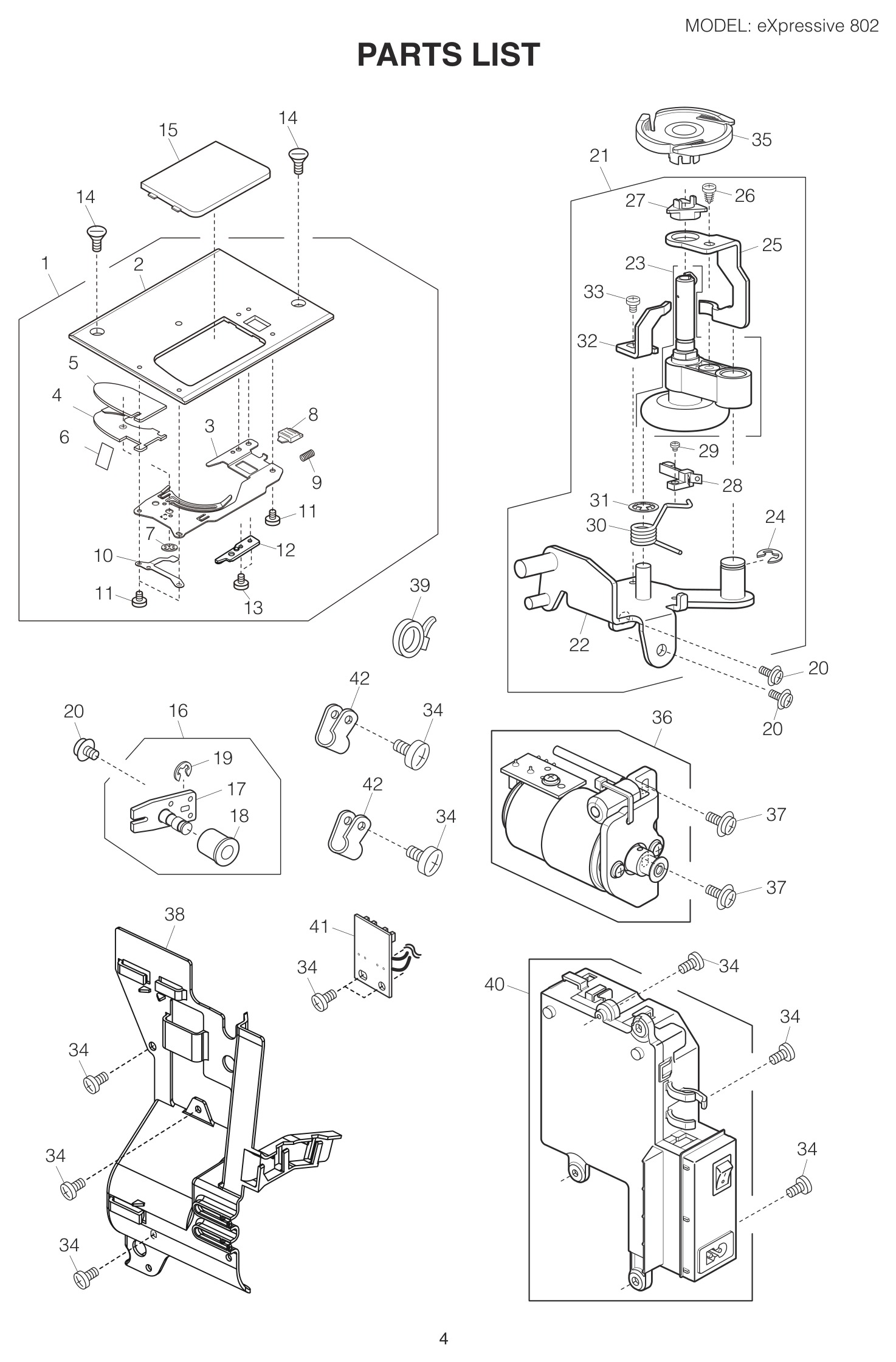

| # | Part image | Description | SKU | Price |
| 1 | No Image | Needle Plate (Unit) | 815604000 | $42.90Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle plate sewing machine part or accessory For Janome Models: 550E | 864024002 | $14.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook cover plate supporter sewing machine part or accessory For Janome Models: SKS3AE | 809133015 | $6.34Read more |
| 4 | | Hook cover plate supporter base sewing machine part or accessory For Janome Models: MC9900 , MC15... | 809134005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Guide holder sewing machine part or accessory 809135006 Guide holder | 809135006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Cutter sewing machine part or accessory 809137008 Cutter | 809137008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Spring sewing machine part or accessory 809184000 Spring | 809184000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Rotation Stopper | 819052009 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew 2x3.5 sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812, MC2... | 000163703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hook cover plate sewing machine part or accessory 809136100 Hook cover plate | 809136100 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Idler (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | 808614001 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Idler set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808038005 | $1.60Read more |
| 18 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Bobbin Winder (Unit) | 819627001 | $34.34Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Bobbin Winder Set Plate | 819062002 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: NQM2016 | 809505001 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Clutch lever sewing machine part or accessory For Janome Models: NQM2016 | 809141005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | SET SCREW sewing machine part or accessory For Janome Models: MC4800, MC4800QC, MC4900, ML3023, M... | 000120214 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Cam sewing machine part or accessory For Janome Models: NQM2016 | 809143007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Switch (unit) sewing machine part or accessory For Janome Models: MC200E, Necchi EC100, Necchi EX... | 856512007 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Setscrew 2.5x5 sewing machine part or accessory For Janome Models: MISS, 3160QDC, MC200E HF8050, ... | 000081706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Spring sewing machine part or accessory For Janome Models: NQM2016 | 809147001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Guide plate sewing machine part or accessory For Janome Models: EX30 SRV | 809142006 | $1.60Read more |
| 33 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Thread cutter holder (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eX... | 809619009 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Dc Motor (Unit) | 819630007 | $83.61Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Motor Belt Cover | 819074007 | $12.66Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Switch Reg (Unit) (100V-127V) | 819631307 | $79.85Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | Printed Circuit Board P (Unit) | 808504030 | $18.49Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |

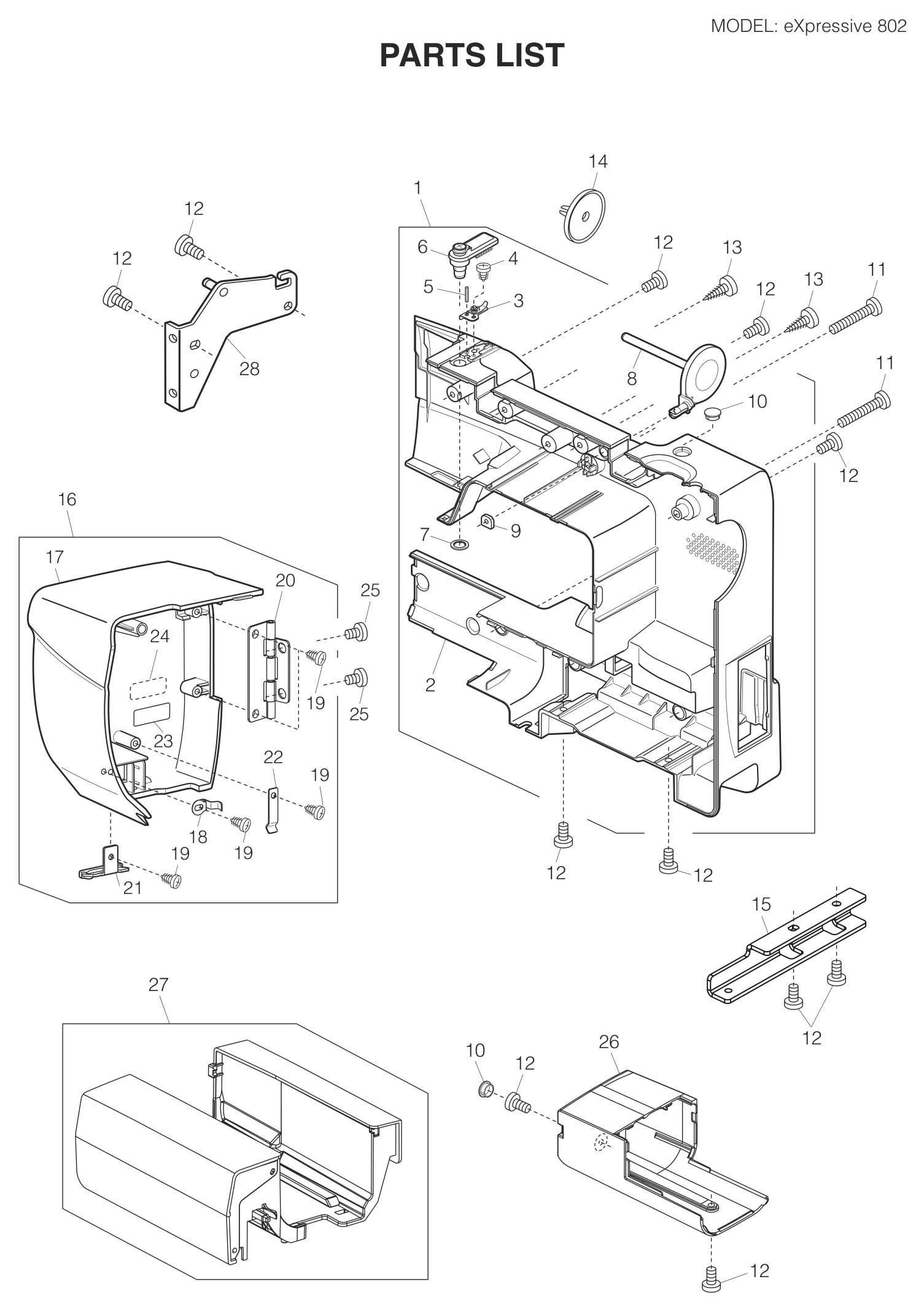

| # | Part image | Description | SKU | Price |
| 1 | No Image | Rear Cover (Unit) | 819640206 | $42.90Read more |
| 2 | No Image | Rear Cover | 819125B02 | $25.78Read more |
| 3 | Not Available | Top cover thread guide (unit) | 815607003 | Not Available |
| 4 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Spring Pin 2X12 | 000024804 | $0.40Read more |
| 6 | No Image | Thread Guide (Unit) | 856603305 | $10.47Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Additional Spool Pin | 819126005 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Nut sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2040, 2041, 2041LX, 2041NX... | 843014004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Setscrew 4x16 (B) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 000160401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Arm Sole Set Plate | 819127006 | $5.28Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Face cover (unit) | 819644303 | Not Available |
| 17 | No Image | Face Cover | 819139A02 | $11.58Read more |
| 18 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Hinge (Unit) | 851503103 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Thread cutter (unit) sewing machine part or accessory For Elna Models: EL830LCE | 832508017 | $22.92Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Magnifier fixing plate sewing machine part or accessory 859233000 Magnifier fixing plate | 859233000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Free Arm Cover | 819140005 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Extension Table (Unit) | 819645500 | $26.34Read more |
| 28 | | Presser foot pres adj set plte sewing machine part or accessory For Models: , Necchi EX30, Necch... | 809018002 | $3.20Read more |
| # | Part image | Description | SKU | Price |

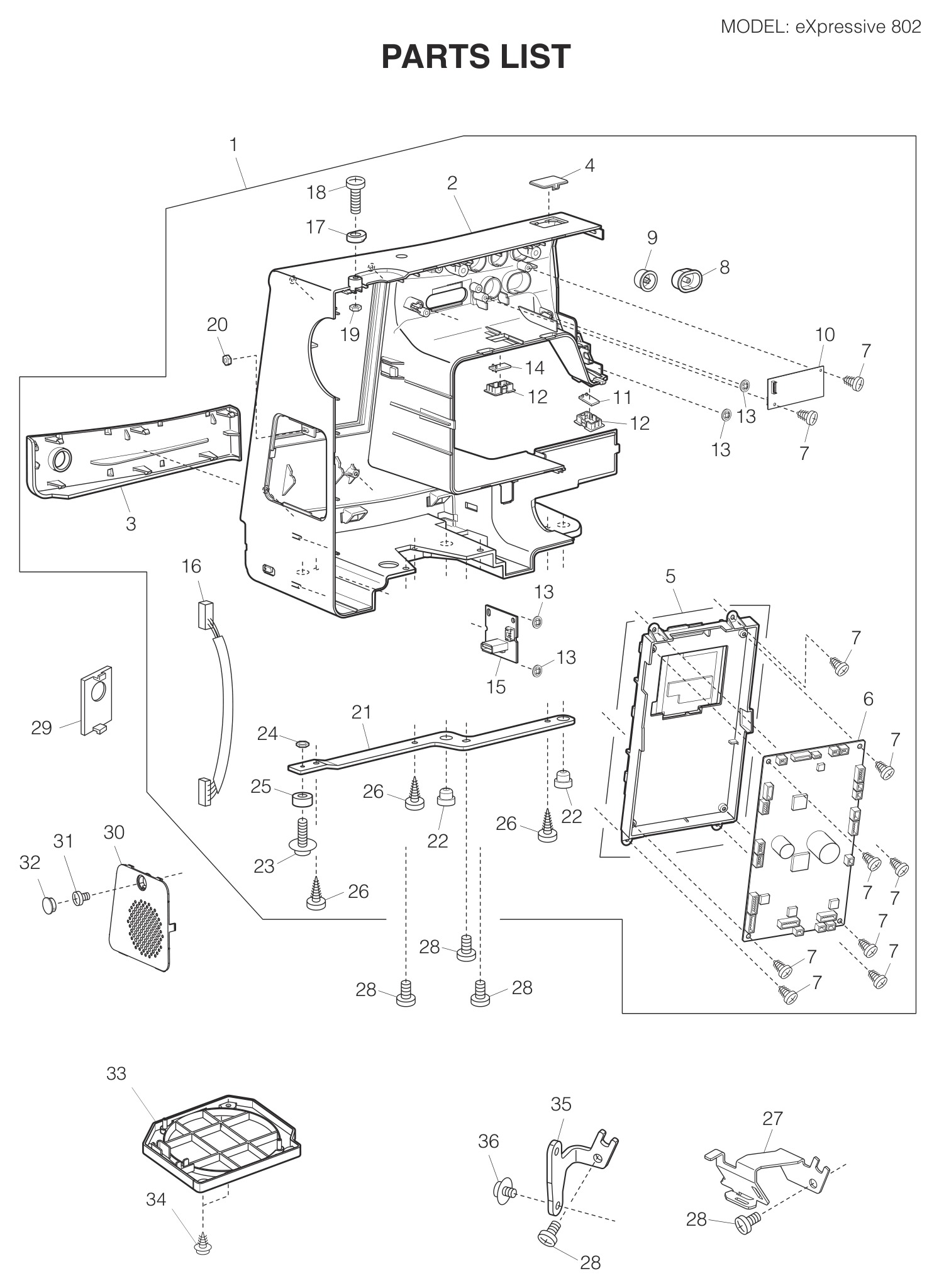

| 1 | Not Available | Front cover (unit) | 815606507 | Not Available |
| 2 | No Image | Front Cover | 819128B03 | $29.70Read more |
| 3 | No Image | Front Cover Panel | 819129B01 | $5.30Read more |
| 4 | | Front cover lid sewing machine part or accessory For Janome Models: NQM2016 | 809119004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Lcd Case (Unit) | 819405034 | $208.88Read more |
| 6 | No Image | Printed Circuit Board A | 815401038 | $624.58Read more |
| 7 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Ss Button | 819132A01 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Fuction Button | 819133B01 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Printed Circuit Board F (Unit) | 815503008 | $51.46Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Printed Circuit Board L2 (Unit | 812502204 | $12.11Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Lamp cover 2 sewing machine part or accessory 860167006 Lamp cover 2 | 860167006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Printed Circuit Board L2 (Unit | 812505001 | $12.11Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Printed Circuit Board B (Unit) | 819511001 | $21.31Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Cord Harness (Stp) (Unit) | 819512002 | $18.49Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: MB-4, Necchi EX30, MC15... | 846177108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Nut sewing machine part or accessory For Janome Models: 3160QDC, 808A, HSN 49360, Necchi EX30 , M... | 000063104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Front Arm Leg | 819137009 | $8.65Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Rubber Foot | 735003208 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set screw 4x14 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, A... | 000198604 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Arm Thread Guide | 819033004 | $8.65Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Cap sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809039009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Maintenance Cover | 819136008 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Bed Cover | 819138103 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Front Cover Set Plate | 819032003 | $3.64Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

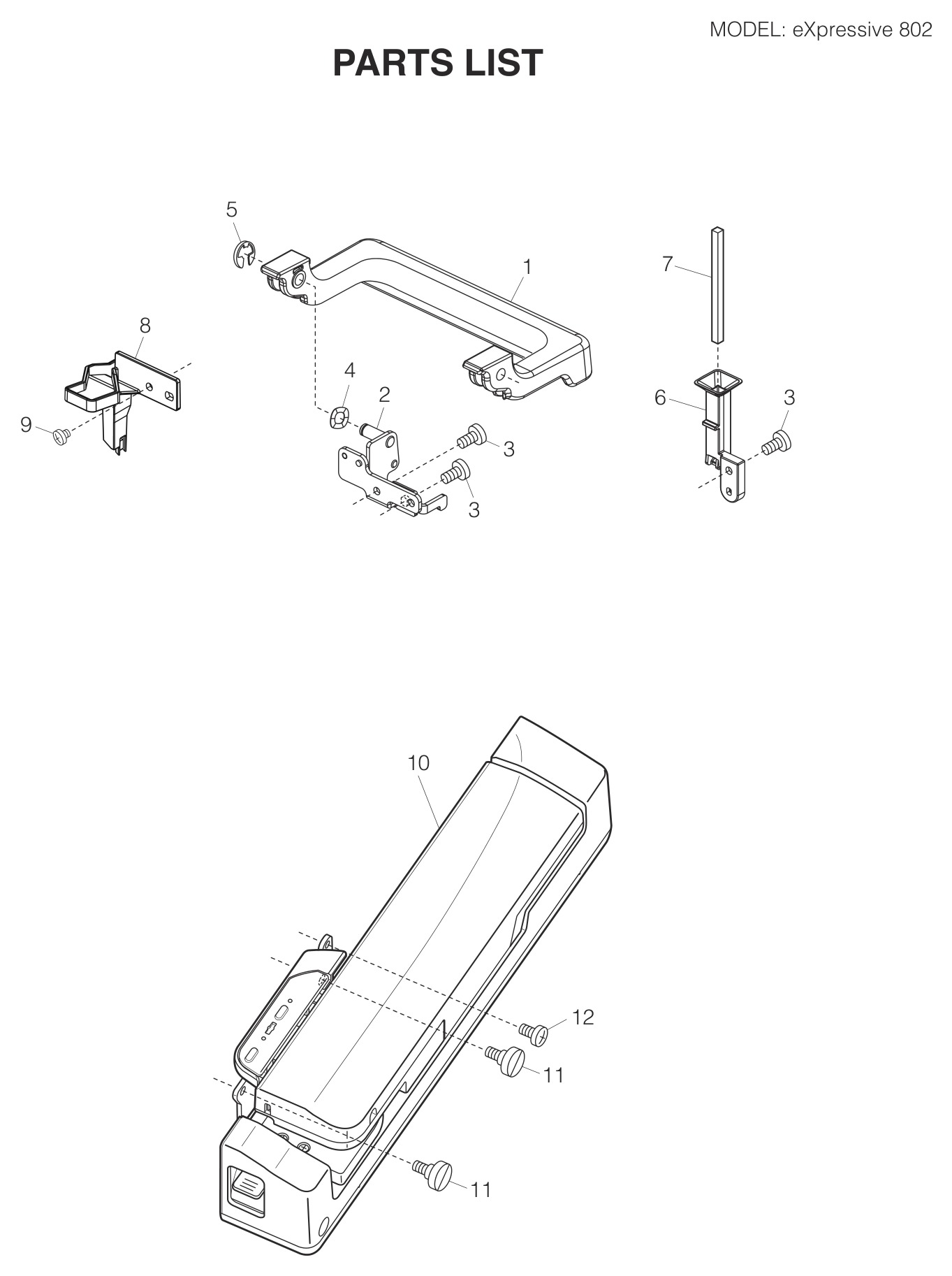

| 1 | No Image | Carrying Handle | 819064004 | $5.83Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Front Set Plate | 819065005 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Wave washer 6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, ... | 000116206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Lubrication Guide 1 | 819063003 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Felt | 819148003 | $1.28Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Lubrication Guide 2 | 819066006 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Embroidery Unit Cover (Unit) | 819632102 | $425.28Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Screw | 819145000 | $3.64Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

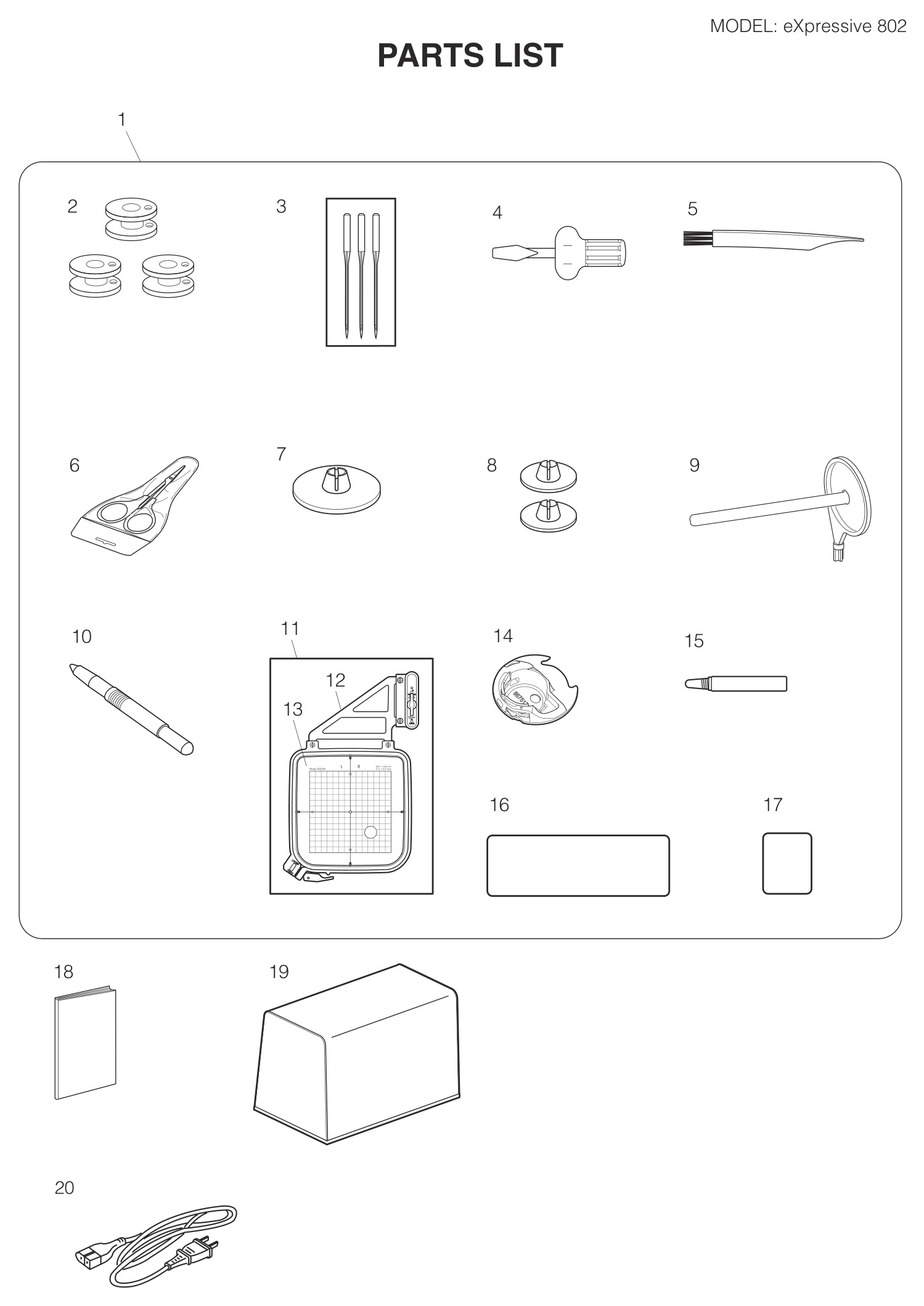

| 1 | No Image | Standard Accessories | 815870009 | $140.63Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna Needle set (unit) For: MC200E, MC350E, Necchi EC100 | 852802108 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 5 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Scissors sewing machine part or accessory 803813203 Scissors | 803813203 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Spool pin sewing machine part or accessory For Models: , MC9900 Horizon, EL900 eXpressive, EL8... | 809041004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | TOUCH PEN sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700QCP, MC89... | 860194002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Emb Hoop Sq14E (Whole Unit) | 819801001 | $98.73Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Embroidery Hoop Sq14E (Unit) | 819801104 | $115.37Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Template Sq14E | 819801A01 | $8.65Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Bobbin holder sewing machine part or accessory For use with Embroidery. High Tension work. Use ... | 867513208 | $39.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Bobbin holder cleaner sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 15... | 859858007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Caution card sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 858801002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Threading guide sticker sewing machine part or accessory For Janome Models: SKS3AE | 101506A09 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Instruction Book (English) | 815800042 | $20.68Read more |
| 19 | No Image | Cover | 819807100 | $45.36Read more |
| 20 | | Power supply cord (U.S.A.) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC... | 856519004 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
