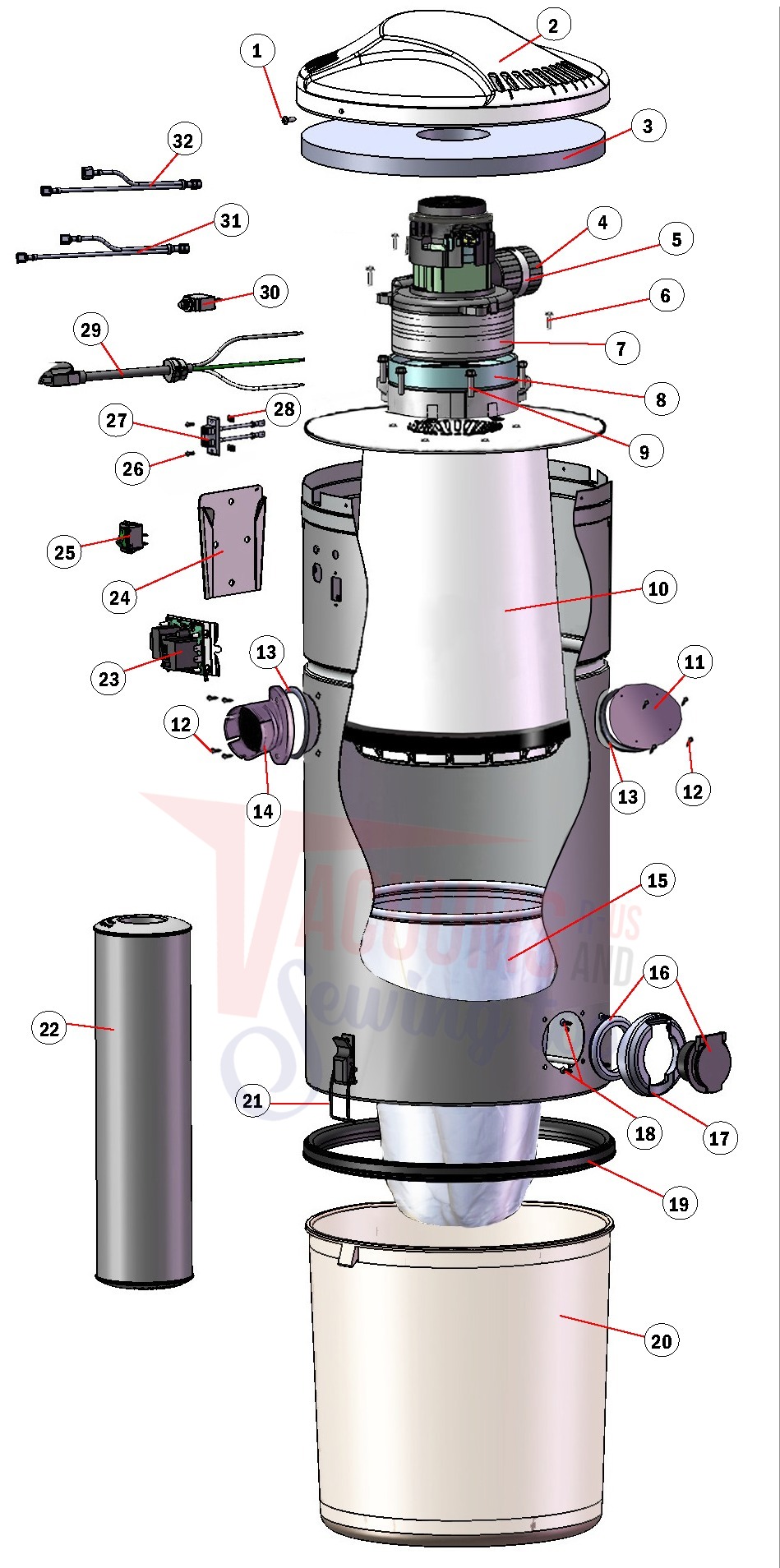

Schematic and parts book for Element 1700 1700. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw, Top Cover | 9024-01 | Not Available |
| 2 | Not Available | Top Cover for DB Units | 9348 | Not Available |
| 3 | Not Available | Acoustic Foam | 9402 | Not Available |
| 4 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 5 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 6 | Not Available | Shoulder Bolt (1/4" x 10-24) | 9746-03 | Not Available |
| 7 |  | Motor - 120V - 2Stage - Titan Tcs-8575 Central Vac
Alternate Lamb Motor For: titan | 8041001 | $468.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Bottom Motor Gasket | 0046 | Not Available |
| 9 | Not Available | Screw Filter Shroud | 28426-15 | Not Available |
| 10 | Not Available | Filter Shroud Assembly | 9356-01 | Not Available |
| 11 | Not Available | Inlet Hole Cover | 9608 | Not Available |
| 12 | Not Available | Screw (8-32 x 3/8") | 7064-02 | Not Available |
| 13 | Not Available | Inlet Gasket | 9609 | Not Available |
| 14 | Not Available | Inlet Tube | 9607 | Not Available |
| 15 | Not Available | Inverted Cloth Filter Replacement | 9352-01 | Not Available |
| 16 | Not Available | Grommet Ring for Utility Valve | 5584-B | Not Available |
| 17 | Not Available | Valve Escutcheon Plate | 9357 | Not Available |
| 18 | Not Available | Valve Escutcheon Screw | 9401 | Not Available |
| 19 | Not Available | DB and Inverted Filter Unit Dirt Canister Gasket | 9472 | Not Available |
| 20 | Not Available | Clear DuraCan Elite, Short | 6988-02 | Not Available |
| 21 | Not Available | Wire Loop | 4835 | Not Available |
| 22 | Not Available | 12" Round H-P Muffler | 8080 | Not Available |
| 23 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Element Wall Bracket | 9368 | Not Available |
| 25 | Not Available | LED On/Off Switch | 9358 | Not Available |
| 26 | Not Available | Low Voltage Connector, Screw | 9403 | Not Available |
| 27 | Not Available | Low Voltage Connector | 9353 | Not Available |
| 28 | Not Available | Low Voltage Connector, Spring Nut | 9404 | Not Available |
| 29 | Not Available | 120V Power Cord | 8757 | Not Available |
| 30 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Wire Assembly, Power | 9378 | Not Available |
| 32 | Not Available | Wiring Assembly, Motor | 9377 | Not Available |
