Schematic and parts book for Carpet Pro CPU-250, CPU250 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

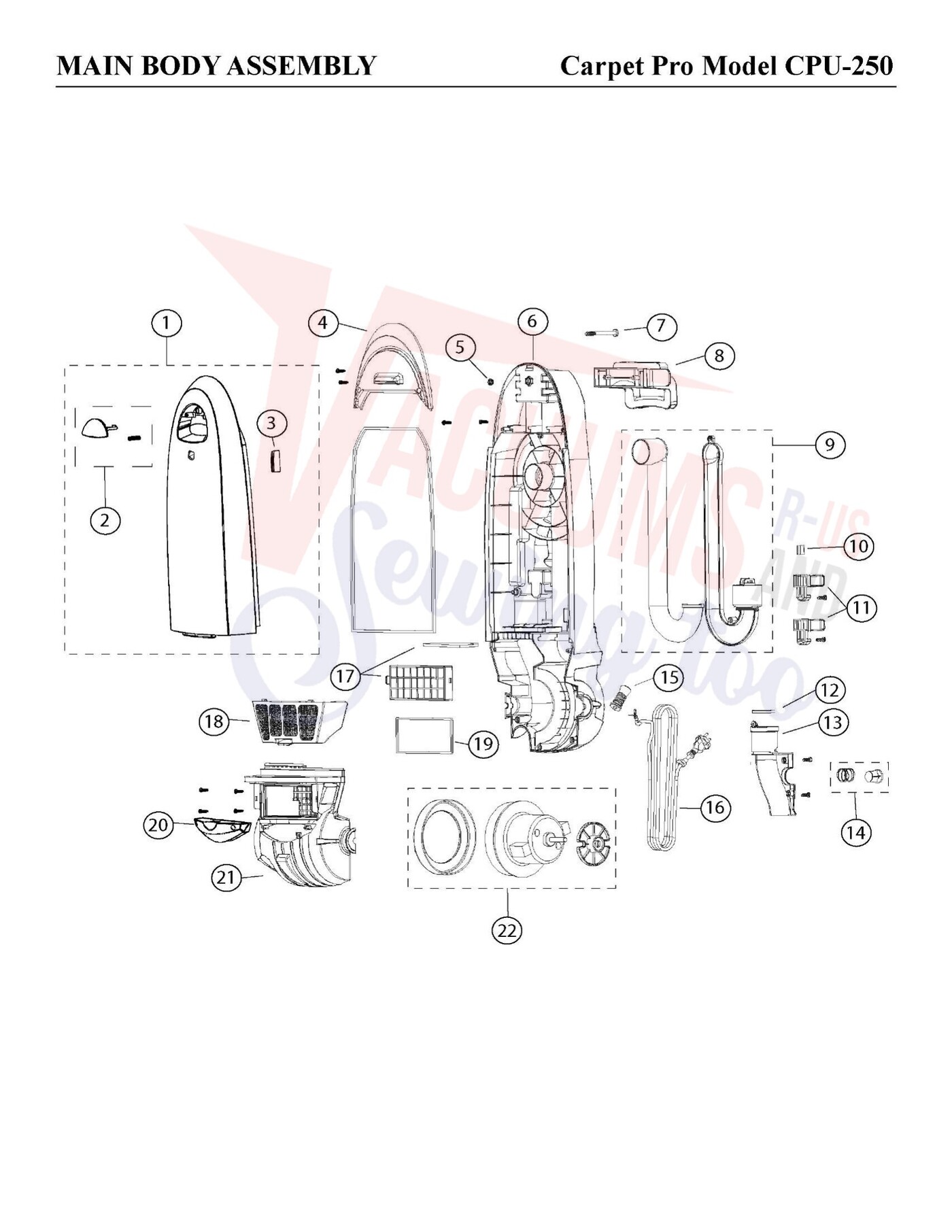

| # | Part image | Description | SKU | Price |
| 1 | No Image | CARPET PRO DUST COVER ASSY CPU250 YELLOW | C2833800 | $31.99Read more |
| 2 |  | Dust Cover Latch with Spring Part Number C283-1000 for Simplicity Models S20EZM | C2831000 | $2.99Read more |
| 3 |  | Full Bag Indicator Assembly Part Number C283-2000 for Simplicity Models S20EZM | C2832000 | $2.99Read more |
| 4 | Not Available | Cover Plate | B283-4100 | Not Available |
| 5 |  | Handle Nut Part Number B283-4400 for Simplicity Models S20EZM | B2834400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Dust Compartment Part Number C283-2300 for Simplicity Models S20EZM | C2832300 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Bolt Part Number B283-0100 for Simplicity Models S20EZM | B2830100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Assembly for Simplicity S20EZM and S20PET and CleanMax Nitro | WP11603 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Airpath Assembly Part Number C283-2700 for Simplicity Models S20EZM | C2832700 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Upper Crevice Tool Clip Part Number B283-0200 for Simplicity Models S20EZM | B2830200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Lower Tool Clip Part Number B283-0300 for Simplicity Models S20EZM | B2830300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Wand Inlet Tube Seal Part Number B283-0400 for Simplicity Models S20EZM | B2830400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Wand Inlet Tube Simplicity Fuller Brush Carpet Pro Uprights FBEZM CPU250 CPU350 CMNR S20EZM | WP11304 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Pressure Relief Valve Part Number C283-2500 for Simplicity Models S20EZM | C2832500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Cord Strain Relief Part Number B283-0600 for Simplicity Models S20EZM | B2830600 | $2.99Read more |
| 16 |  | Power Cord Part Number C283-0012 for Simplicity Models S20EZM,S20PET | C2830012 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | CARPET PRO FILTER SET FOAM and SECONDARY CPU250 CPU350 | CPU250F | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | CARPET PRO FILTER COVER YELLOW CPU250 CPU350 | B2834200 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Post HEPA Filter Seal Part Number B283-0900 for Simplicity Models S20EZM | B2830900 | $2.99Read more |
| 20 | | Lens Cover Part Number B283-0800 for Simplicity Models S20EZM | B2830800 | $0.00Read more |
| 21 | No Image | Motor Cover, CPU-250 Part Number: B283-4000 for Carpet Pro | B2834000 | $13.45Read more |
| 22 |  | Simplicty Motor Assembly for S20EZM 12 Amp | WP10688 | $73.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

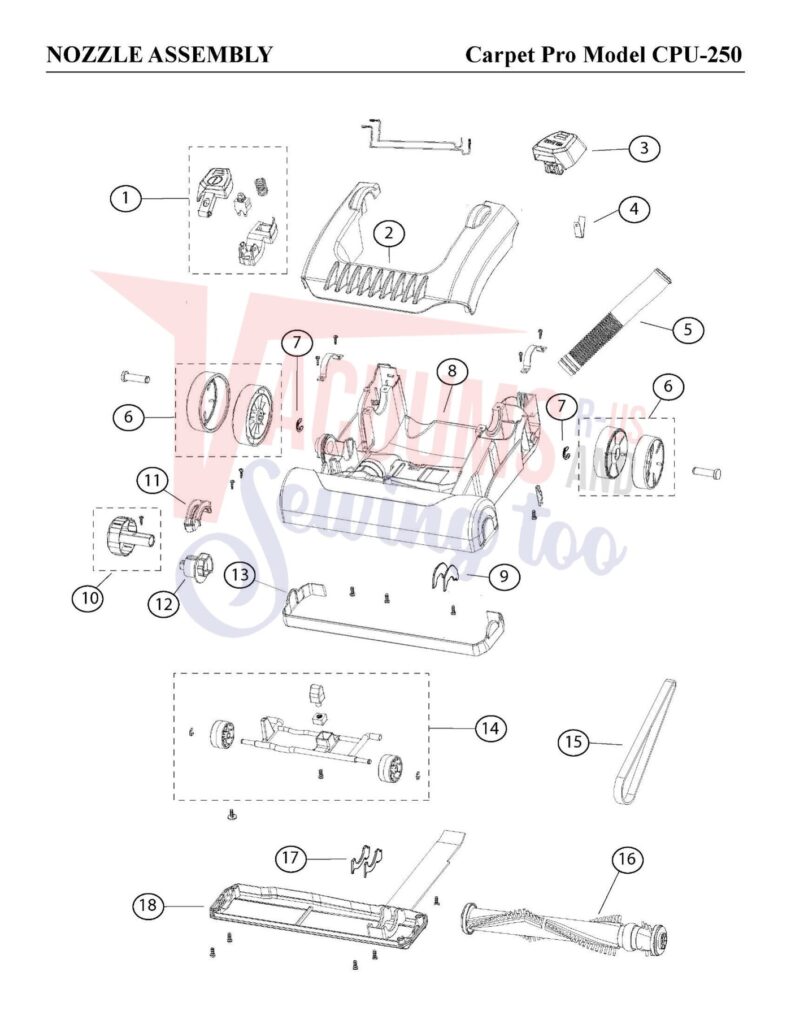

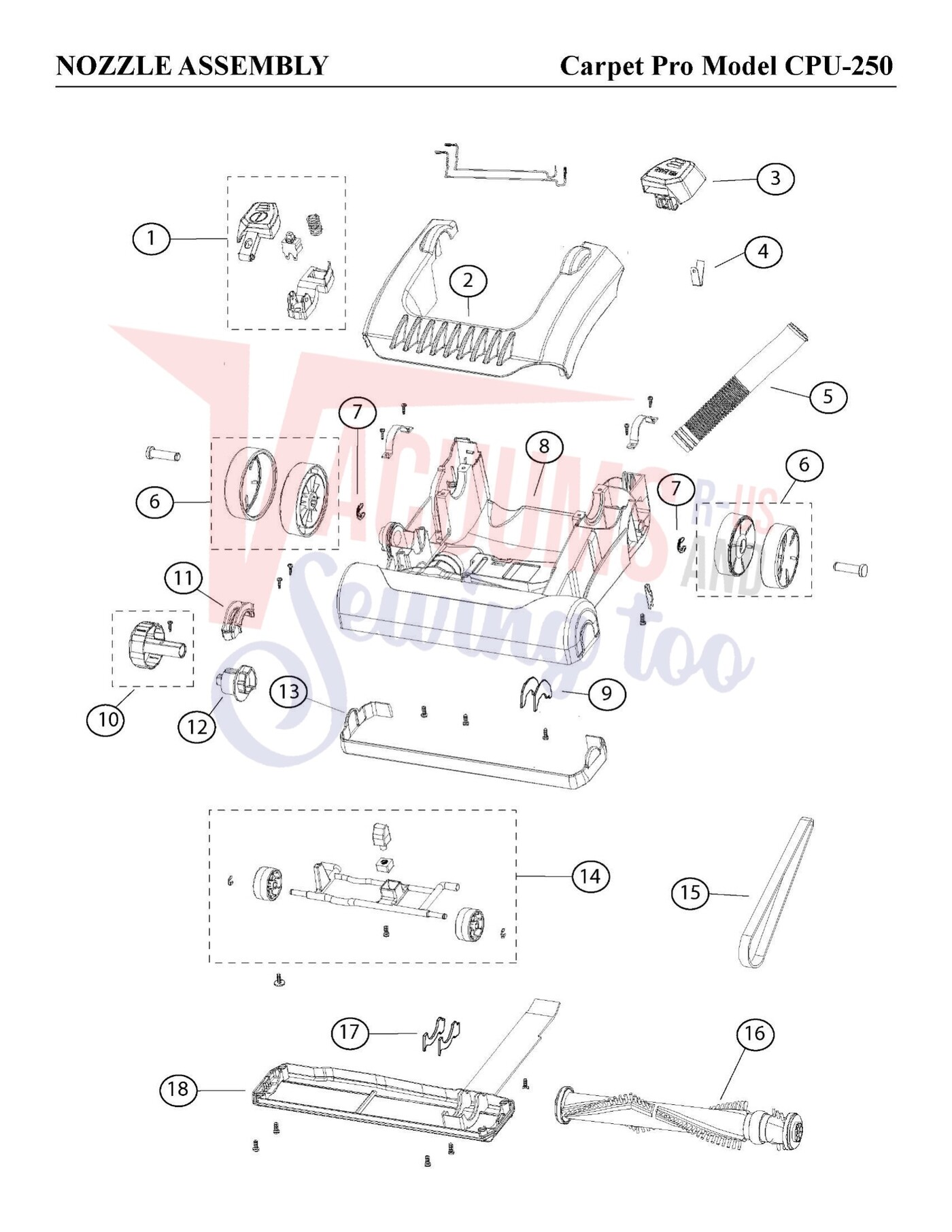

| # | Part image | Description | SKU | Price |
| 1 |  | Fuller Brush Main Switch Jiffy Maid Fb-Jfm | C283-0014 | $6.92Read more |
| 2 | No Image | CARPET PRO NOZZLE COVER CPU250 CPU350 | C2833500 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Handle Release Button | B283-1800 | Not Available |
| 4 |  | Handle Release Spring for S20EZM CPU250 and CPU350 | B2835200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Nozzle Inlet Tube Part Number B283-1300 for Simplicity Models S20EZM,S20PET | B2831300 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Rear Wheel Assembly Part Number B283-0038 for Simplicity Models S20EZM,S20PET | B2830038 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Rear Wheel E Clip Part Number B283-0037 for Simplicity Models S20EZM,S20PET | B2830037 | $0.00Read more |
| 8 |  | Simplicity Nozzle Base Housing Assembly for S20EZM | WP11318 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Upper Agitator Seal Part Number B283-1400 for Simplicity Models S20EZM,S20PET | B2831400 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Height Adjust Knob Black | C2833600 | $0.00Read more |
| 11 |  | Height Adjust Press Plate Part Number B283-5500 for Simplicity Models S20EZM,S20PET | B2835500 | $2.99Add to cart |
| 12 |  | Height Adjust Axle Part Number B283-5600 for Simplicity Models S20EZM,S20PET | B2835600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Furniture Guard | B283-5300 | Not Available |
| 14 |  | Height Adjust Frame Assembly Part Number C283-3000 for Simplicity Models S20EZM,S20PET | C2833000 | $39.99Add to cart |
| 15 |  | Belt Bulk Black Rubber Stretch CPU250 CPU350 FBEZM CMNR-QD S20EZM | B014-6900 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Fuller Brush Brushroll for Models S20PET FB-JFM CPU-250 | C2830019 | $36.29Add to cart |
| 17 |  | Lower Agitator Seal Part Number B283-1500 for Simplicity Models S20EZM,S20PET | B2831500 | $2.99Read more |
| 18 |  | Base Plate Plastic for S20PET EZM | B2830042B | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

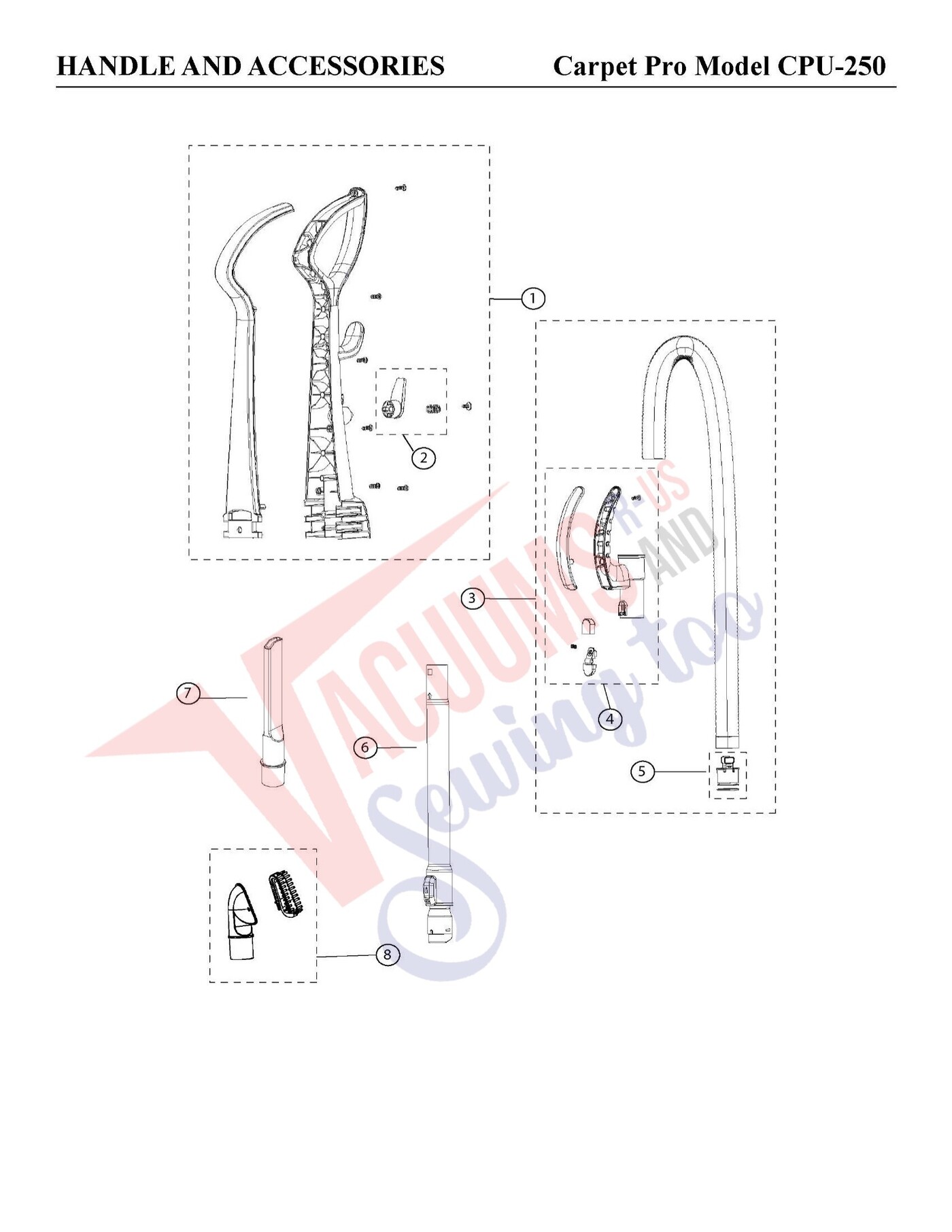

| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle Assembly Plastic CPU250 | C2833200 | $28.99Read more |
| 2 | No Image | Cord Hook | C2832200 | $0.00Read more |
| 3 |  | Hose Assembly for FBEZM CPU250 CPU350 CMNR | C2832800 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | HOSE HANDLE ASSY GRIP CPU250 CPU350 CMNR S20EZM | B2834800 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Hose Handle Part Number B283-4700 for Simplicity Models S20EZM | B2834700 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Carpet Pro/cleanmax Wand Assembly Plastic Telescopic CPU250 CPU350 | C2833400 | $24.99Add to cart |
| 7 |  | Crevice Tool Part Number B283-1200 for Simplicity Models S20EZM | B2831200 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | CARPET PRO UPHOLSTERY TOOL NYLON BRISTLE CPU250 CPU350 CMNR | C2833700 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
