Schematic and parts book for Carpet Pro CPU-1QD, CPU1QD . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

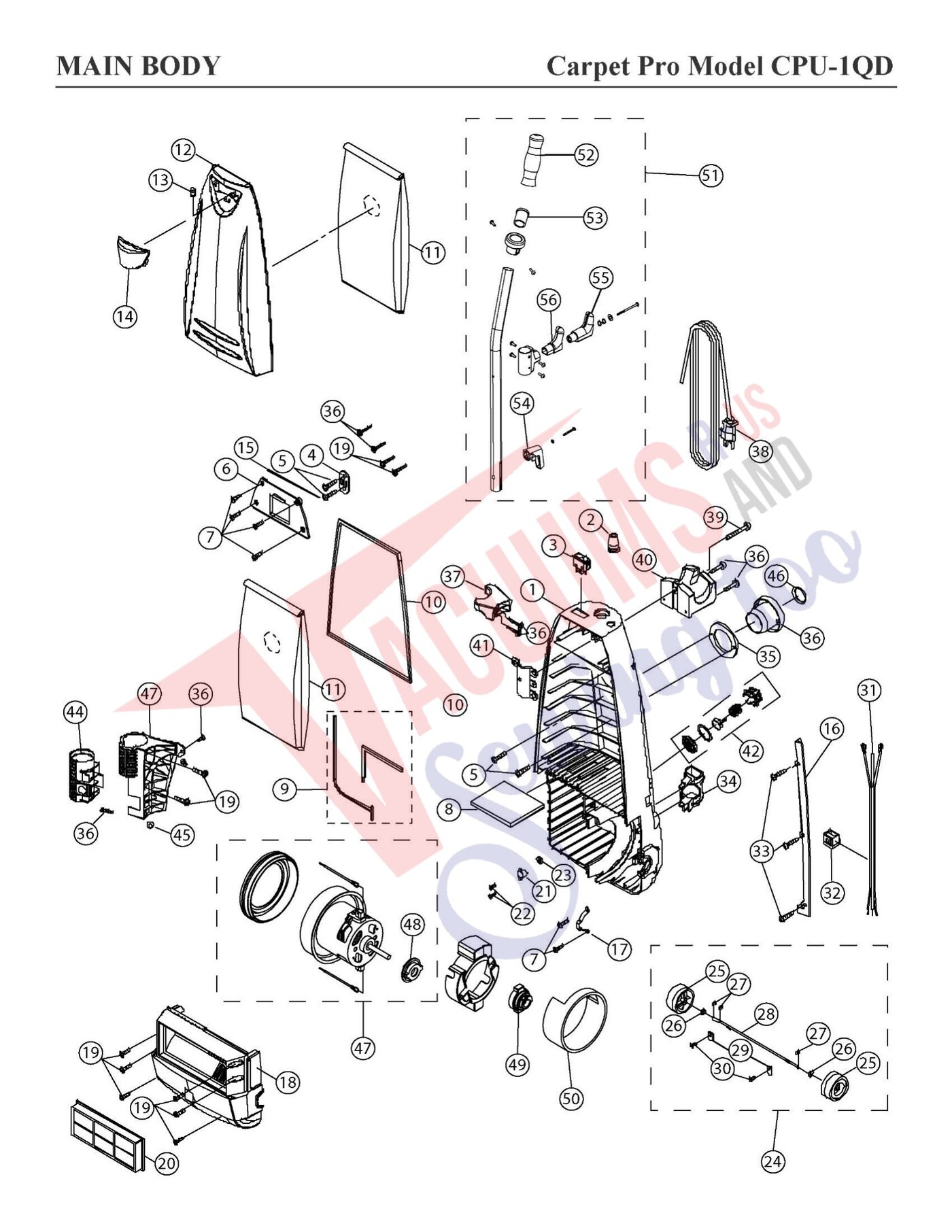

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | 53.150 | Not Available |
| 2 |  | Boot Strain Relief Part Number B236-0114 for Cleanmax and Simplicity Models CMPB, CMPS1N,SDCCM,SH... | B2360114 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Main Switch Part Number 25.104 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB, CMP... | 25104 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Compatible alternate15AMP 120V ON/OFF rocker switch oreck hoover Riccar Simplicity More Product Details | 15AROCKERLG | $10.99Add to cart |
| 3 |  | Compatible alternateSwitch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck More Product Details | 430000914 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Cord Restraining Strap Part Number B332-0014 for Simplicity and Cleanmax and Riccar Models 7250, ... | B3320014 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screw | 53.059 | Not Available |
| 6 |  | Inner Switch Cover Part Number 54.131 for Simplicity Models SHD-1T | 54131 | $5.49Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Screw Part Number A732-4500 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | A7324500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Secondary Filter Part Number CMPS-SF for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CMPSSF | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Motor Cover Seal Kit Part Number 84.103 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | 84103 | |
| 10 |  | Dust Compartment Seal Part Number 54.134 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD,... | 54134 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Carpet Pro Paper Bags for Uprights 3pk | CPP3 | $9.99Read more |
| 12 |  | Carpet Pro Dust Cover Yellow Assembly with Latch | 54122 | $75.99Read more |
| 13 |  | Latch Spring Part Number 54.123 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB, CM... | 54123 | $2.19Read more |
| 14 | | Dust Cover Release Latch Part Number 54.124 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-... | 54124 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Switch Cover Seal Part Number 54.128 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPP... | 54128 | |
| 16 | | Wire Harness Cover Part Number 54.129 for Simplicity Models SHD-1T | 54129 | |
| 17 | Not Available | Support Strap | N/A | Not Available |
| 18 | No Image | Fuller Brush Motor Cover Blk | 53065 | $41.99Read more |
| 19 | Not Available | Screw #8x5/8 | A732-8314 | Not Available |
| 21 |  | Thermal Switch Manual Reset CPU | B3330400B | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Screw #4 X 5/16 Part Number A732-7300 for Simplicity and Cleanmax and Maytag and Riccar Models 72... | A7327300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thermal Switch Seal Part Number B333-0600 for Simplicity and Cleanmax and Maytag and Riccar Model... | B3330600 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Wheel Axle Assembly Part Number 54.127 for Simplicity Models SHD-1T | 54127 | $7.99Read more |
| 25 |  | Rear Wheel Part Number B210-0531 for Cleanmax Models CMPB, CMPS1N | B2100531 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Washer 25mm Part Number A732-6500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, 6... | A7326500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | E-Clip 5mm Part Number A732-0300 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Rear Wheel Axle Part Number 54.135 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB,... | 54135 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Axle Clamp | 54.136 | Not Available |
| 30 |  | Clamp for Rear Axle Part Number A732-8500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD... | A7328500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Motor Cord Houshold Part Number B224-0314B for Simplicity and Riccar Models 7250, 7350, 7450, 775... | B2240314B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Wire Bushing Part Number A732-4114 for Simplicity and Cleanmax Models 7300, 7350, 7850,7200, 7250... | A7324114 | $0.00Read more |
| 33 | | Screw - Hose Clip Part Number A732-7705 for Simplicity Models SHD-1T | A7327705 | $0.00Read more |
| 34 | Not Available | On-board Tool Holder | 53.152 | Not Available |
| 36 | | Paper Bag Inlet Part Number 89.855 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | 89855 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Power Cord 30' 17/2 | 14.062 | Not Available |
| 39 |  | Handle Screw Part Number A232-0100 for Simplicity and Cleanmax Models 7250, 7350, 7450, 7750, 785... | A2320100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Hose Hanger - Titan T4000.2 - Tc6000.2 Metal Handles For: titan | 54.140 | $12.36Add to cart Special order: ships in 2 to 4 weeks |
| 41 | Not Available | Handle Fitting | N/A | Not Available |
| 42 |  | Suction Relief Valve Assembly Part Number CM021021 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CM021021 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | Attachment Holder | 53.153 | Not Available |
| 44 |  | Quick Draw Clean Out Part Number CMQD-CO for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CMQDCO | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Tool Clip Nut Part Number A732-7605 for Riccar Models R100, R200, R300, R300C, R500, R600, R700, ... | A7327605 | $3.99Read more |
| 47 |  | Motor Assembly Complete 10amp with Light Tap ZH CPU FBHD FBMM FBP - Replaces CM011010 | D2000200 | $146.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Front Motor Mount | 54.150 | Not Available |
| 49 |  | Metal Pivot Sleeve Part Number B123-1300 for Simplicity and Cleanmax and Maytag and Riccar Models... | B1231300 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Motor Sound Suppressor Part Number B123-1900 for Simplicity and Cleanmax and Maytag and Riccar Mo... | B1231900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 | Not Available | Handle Assembly | C609-1000 | Not Available |
| 52 |  | Pistol Grip Handle for Simplicity Freedom S10e Riccar supralite R10e and Zoom 200 clean max | BP22 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Lower Cord Hook for Carpet Pro CPU1 CPU2 and FBHD1 | WP11266 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Compatible alternateTitan Cord Hook - Lower Fuller Fbhd2t Upright Vacuumfits Cpu2 Titan T4000 More Product Details | 54018 | $3.12Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Compatible alternateCarpet Pro Cord Hook Holder CPU2 More Product Details | 54050 | $2.99Add to cart |
| 54 |  | Compatible alternateFuller Brush Carpet Pro Inlet Tall N/S More Product Details | 54076 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Compatible alternateAxle clamp for simplicity s10 freedom and riccar r10 supralights More Product Details | WP10350 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | FULLER BRUSH CORD HOOK UPPER FBMMPW FBTM | 53178 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 |  | HOSE HOOK Part Number: 53.177 for Fuller Brush | 53177 | $11.27Add to cart Special order: ships in 2 to 4 weeks |

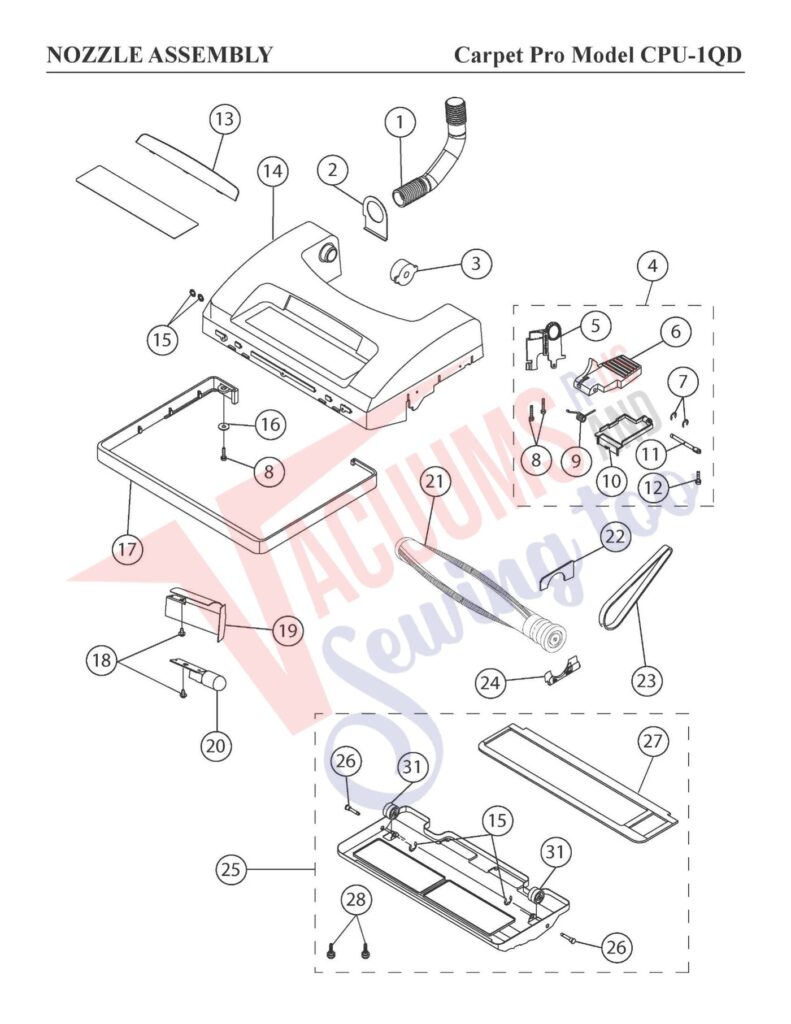

| # | Part image | Description | SKU | Price |
| 1 |  | Nozzle Hose Part Number CMQD-NOZHOSE for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CMQDNOZHOSE | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Plastic BushingPlastic BushingPlastic Bushing Part Number B017-0214 for Simplicity and Maytag and... | B0170214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | FOOT PEDAL ASSEMBLY 8000 SERIES KIT and BELT COVER | C0200300 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Foot Pedal Frame Part Number B020-0100B for Riccar and Simplicity Models R100, R200, R300, R300C,... | B0200100B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Foot Pedal - Black Part Number 54.016 for Simplicity Models SHD-1T | 54016 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Screw #8x5/8 | A732-8314 | Not Available |
| 9 |  | Pedal Spring Part Number B020-0400 for Riccar and Simplicity Models R100, R200, R300, R300C, R500... | B0200400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Belt Cover Rear Part Number 54.041 for Simplicity Models SHD-1T | 54041 | |
| 11 |  | Pedal Shaft Part Number B020-0300 for Riccar and Simplicity Models R100, R200, R300, R300C, R500,... | B0200300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Screw #8x5/8 | A732-8314 | Not Available |
| 13 |  | Headlight Lens Part Number N19-CL for Simplicity Models SHD-1T | N19CL | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Nozzle Housing | 54.141 | Not Available |
| 15 | | Push On Sring Nut Part Number A732-4000 for Simplicity Models 7300, 7350, 7850 | A7324000 | $2.19Read more |
| 16 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Combination Screw M4x16 Part Number A732-5300 for Simplicity and Maytag and Riccar Models 7250, 7... | A7325300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Light Bulb | A350-0000 | Not Available |
| 21 |  | Agitator Assembly 10.3mm Non-Clutch Red Bristle Brush | D0122500 | $57.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Vented Support Fitting | B0171200 | $2.99Add to cart |
| 25 | No Image | BASE PLATE ASMB RUBBER WHEELS 8955 8905 8900 8920 | C0151500 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Base Plate Wheel Axle Part Number B010-0500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-... | B0100500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Bottom Plate Gasket Part Number B021-0200 for Simplicity Models SHD-1T | B0210200 | $0.00Read more |
| 28 |  | Base Plate Screw Part Number A732-2000 for Simplicity Models 6100, 6370, 6400, 6470, 6550, 6570, ... | A7322000 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

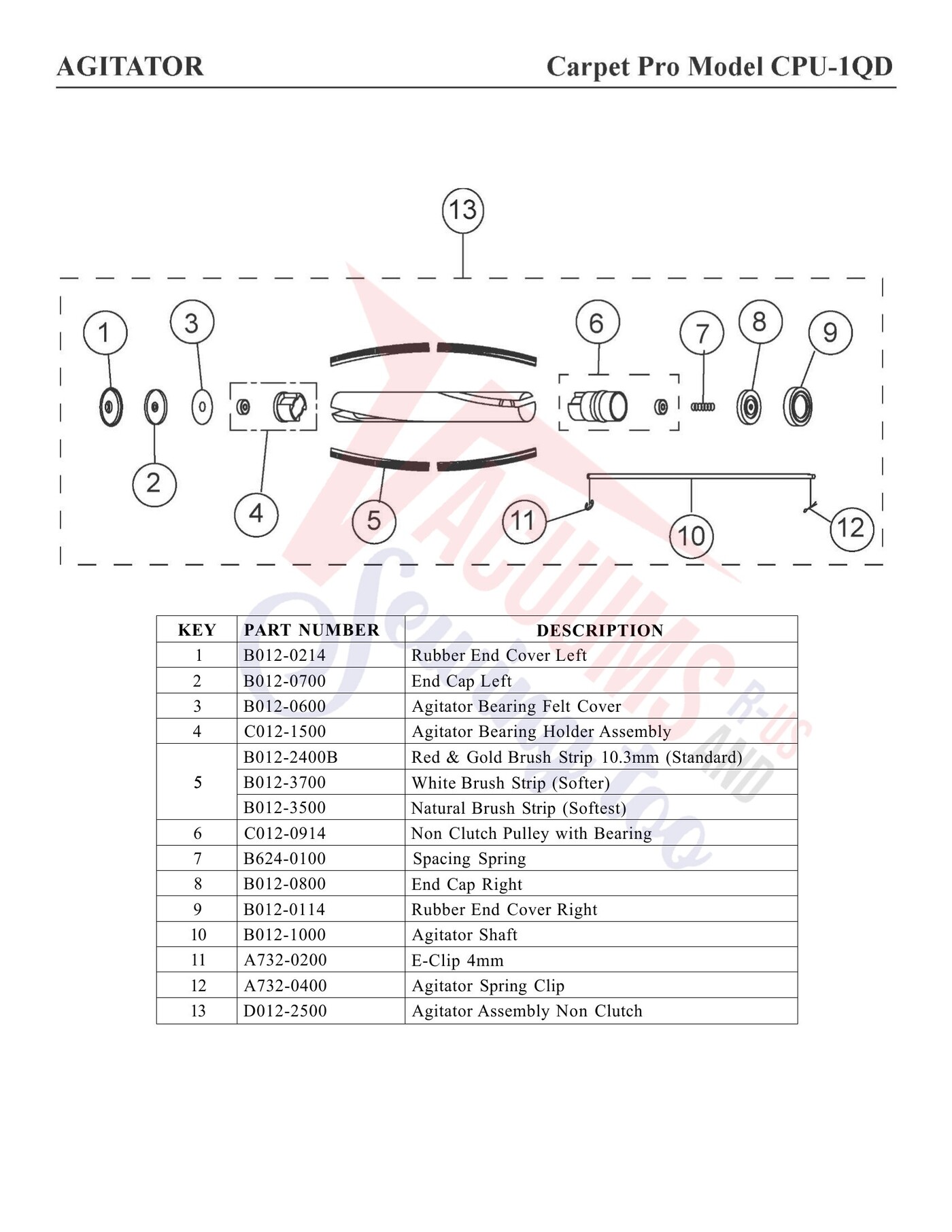

| # | Part image | Description | SKU | Price |
| 1 |  | Rubber End Cover Left Part Number B012-0214 for Simplicity and Cleanmax and Maytag and Riccar Mod... | B0120214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | End Cap Left Part Number B012-0700 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 7400... | B0120700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Riccar Simplicity Felt Cover for Brush Roll Bearings | B0120600 | $2.99Add to cart |
| 4 |  | Agitator Bearing Holder Assembly for All Riccar R20 Simplicity S20 machine with metal rollers | C0121500 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Agitator Pulley with Bearing Part Number C012-0914 for Simplicity and Cleanmax and Riccar Models ... | C0120914 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spacing Spring Part Number B624-0100 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B6240100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | End Cap Right Part Number B012-0800 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 740... | B0120800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Rubber End Cover Right Part Number B012-0114 for Simplicity and Cleanmax and Riccar Models 7200, ... | B0120114 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Agitator Shaft Part Number B012-1000 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B0121000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Agitator Spring Clip Part Number A732-0400 for Simplicity and Cleanmax and Maytag and Riccar Mode... | A7320400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Agitator Assembly 10.3mm Non-Clutch Red Bristle Brush | D0122500 | $57.99Add to cart Special order: ships in 2 to 4 weeks |

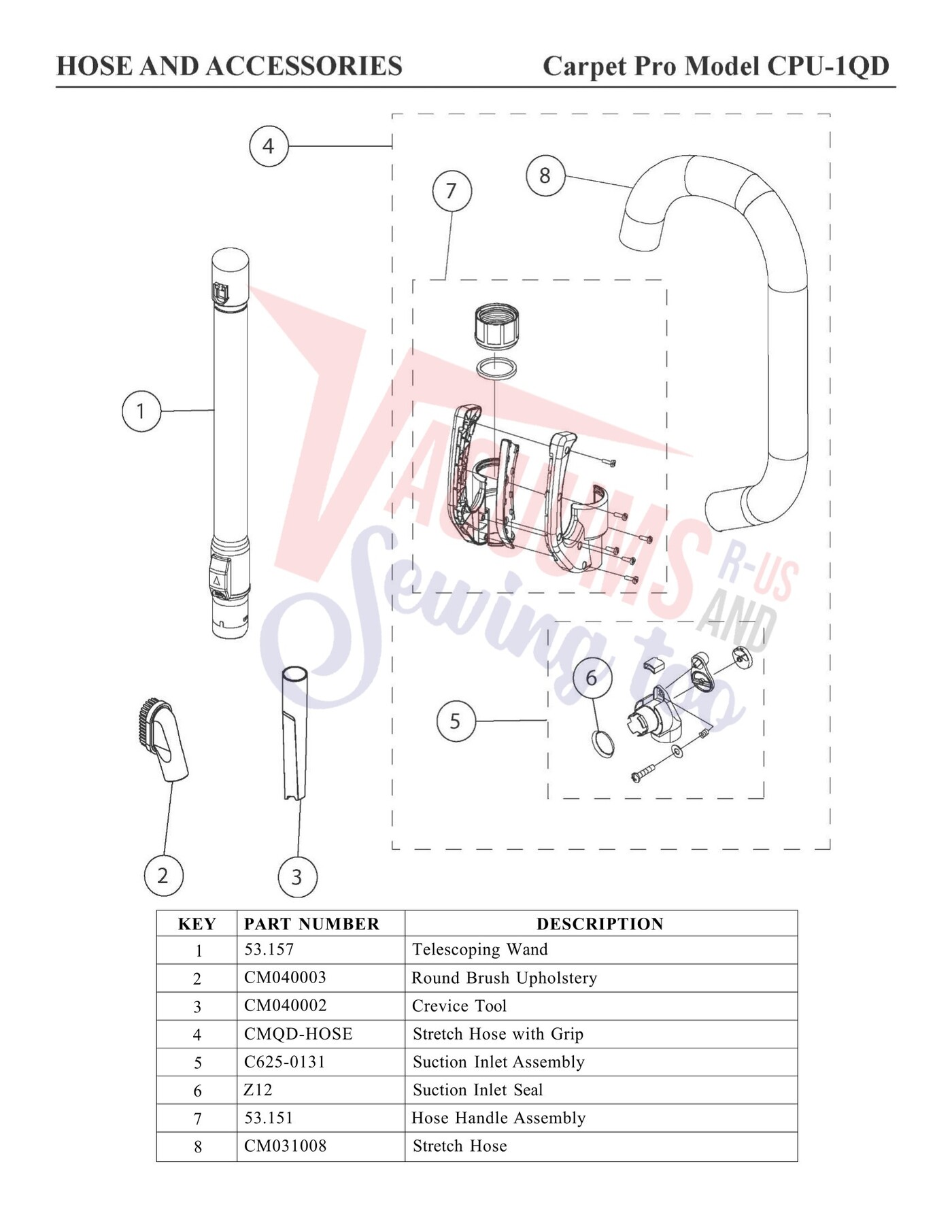

| # | Part image | Description | SKU | Price |
| 1 |  | Fuller Brush Riccar Simplicity Quickdraw Aluminum Telescopic Wand - Models S20EZM. R25D. R25P, S2... | B4345400B | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Round Brush Part Number CM040003 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CM040003 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Crevice Tool Part Number CM040002 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CM040002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | CleanMax Quick Draw Hose for CMPS-QD | CMQDHOSE | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NO LONGER AVAILABLE Suction Inlet Assembly (Tools Models) Part Number C625-0131 for Simplicity an... | C6250131 | $0.00Read more |
| 5 |  | Compatible alternateSuction inlet black symm More Product Details | WP10667 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Fuller Brush Handle Grip Power Wand | 53151 | $15.99Read more |
| 8 |  | CLEANMAX STRETCH HOSE ONLY PRO SERIES CMPS-1T | CM031008 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
