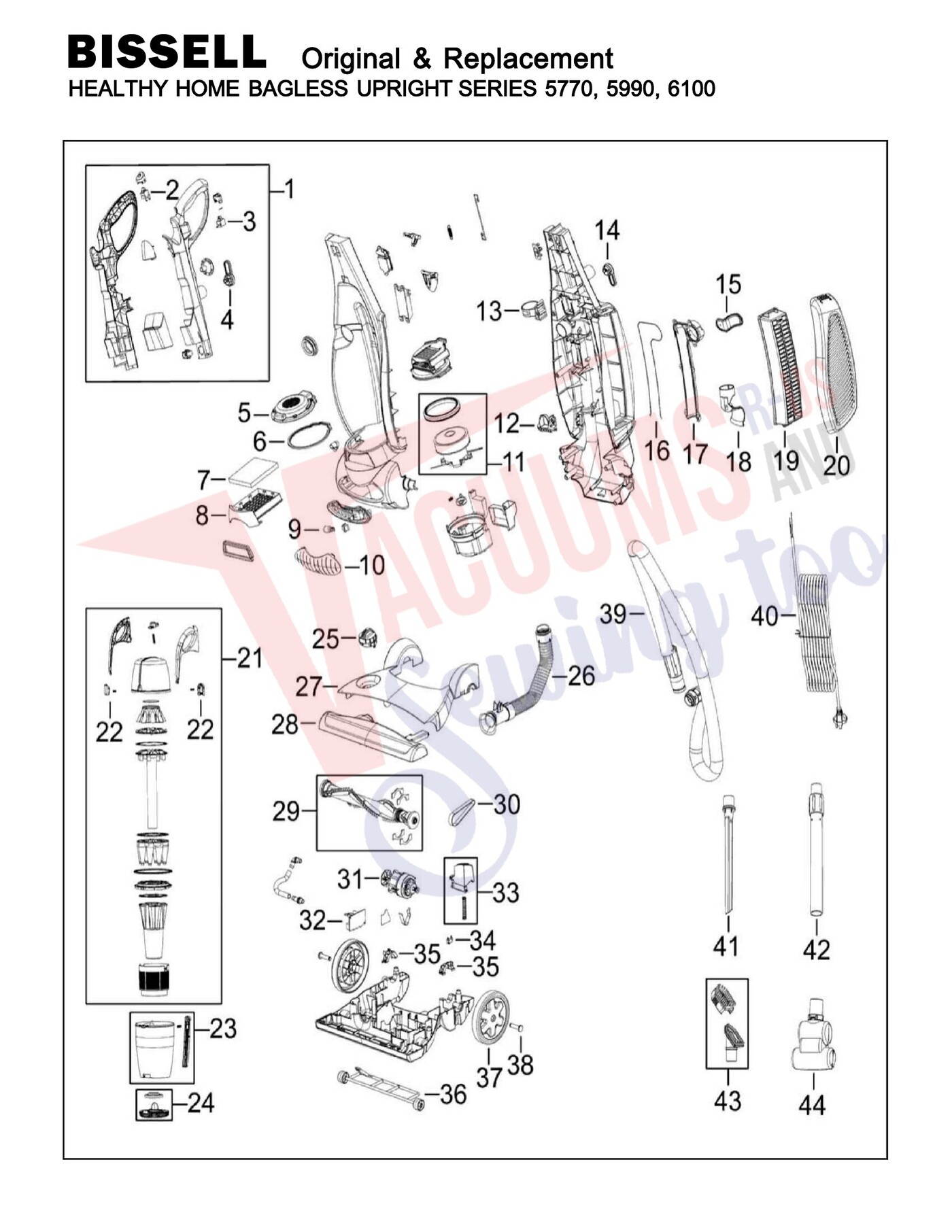

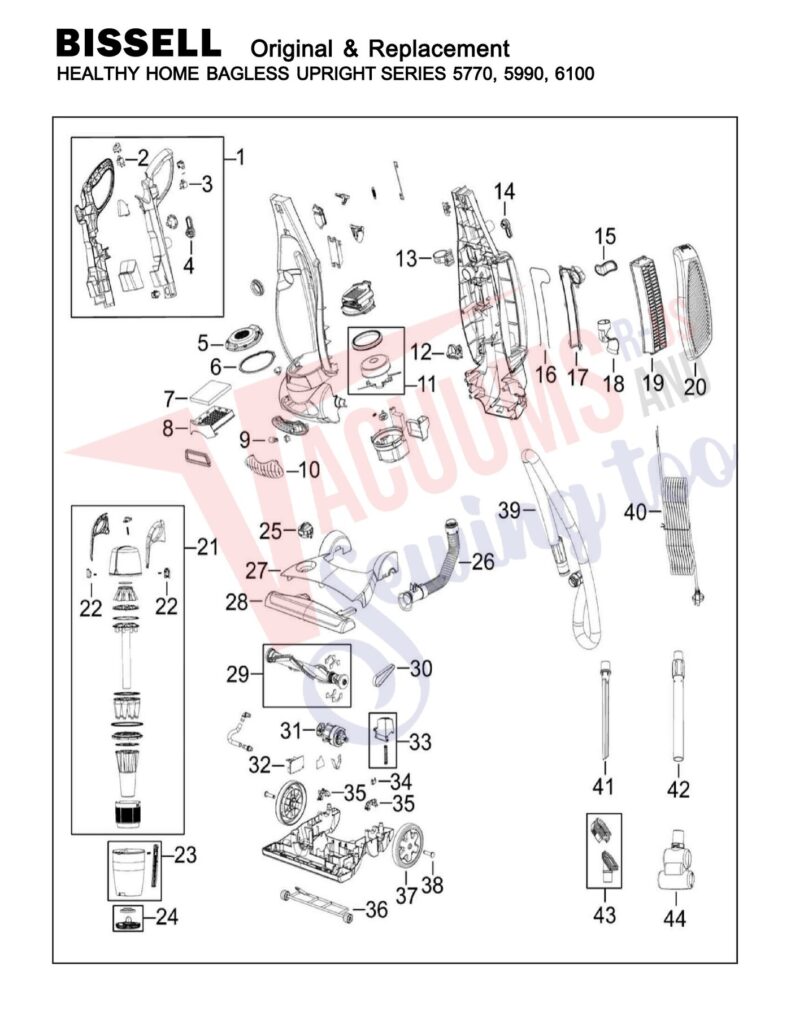

Schematic and parts book for Bissell 6100;5770;5990 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Ass'y | 203-1311 | Not Available |
| 2 |  | Switch-Bissell 5770 - 5990 - 6100 - On/Off -
Healthy Home - Upright For: bissell | 2031316 | $3.33Read more |
| 3 |  | Switch, Blk Sq Brush Button 5770/6100 Healthy Home Part Number: 203-1317 for Bissell | 2031317 | $3.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Cord wrap hook for Bissell healthy home vacuum cleaner models: 5770, 5990, 6100, 5770-5, 5770-8,... | 2031315 | $10.88Read more |
| 5 | Not Available | UV Reflector | 203-1378 | Not Available |
| 6 |  | Gasket, Gray Cyclone Healthy Home 5770/5990/6100 Part Number: 203-1308 for Bissell | 2031308 | $4.91Read more |
| 7 |  | Filter Foam Premotor | 2031374 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Pre Motor Filter Tray | 203-1352 | Not Available |
| 9 |  | Bulb, 12V Healthy Home 5770/5990/6100 Part Number: 203-1377 for Bissell | 2031377 | $3.62Read more |
| 10 | Not Available | Headlight Lens | 203-1354 | Not Available |
| 11 |  | Motor, 5.7" 120 Volt B/B 2 Stage Thru-Flow Hi-Eff Part Number: 203-1360 for Bissell | 2031360 | $86.64Read more |
| 12 | Not Available | Lower Wand Support | 203-1356 | Not Available |
| 13 | Not Available | Upper Wand Support | 203-1355 | Not Available |
| 14 | | Cord wrap hook for Bissell healthy home vacuum cleaner models: 5770, 5990, 6100, 5770-5, 5770-8,... | 2031315 | $10.88Read more |
| 15 | Not Available | Hose Clip | 203-1357 | Not Available |
| 16 | Not Available | Diverter Cover Gasket | 203-1379 | Not Available |
| 17 |  | Cover, Clear Plastic Diverter Healthy Home 5770 Part Number: 203-1361 for Bissell | 2031361 | $10.48Read more |
| 18 | Not Available | Hose Guide | 203-1358 | Not Available |
| 19 |  | Style 15 Hepa Filter Cartridge | 3282 | $41.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Filter Door | 203-1353 | Not Available |
| 21 |  | Cyclone, Upper Assy Healthy Home 5770/5990/6100 Part Number: 203-1310 for Bissell | 2031310 | $51.57Read more |
| 22 | No Image | SUB B-203-1349 LATCHES & SPRING, CYCLONE 5770 5990 Part Number: 203-1375 for Bissell | 2031375 | $5.12Read more |
| 23 | Not Available | Dirt Bin & Debris Door Ass'y | 203-1313 | Not Available |
| 24 |  | Door, Dirt Cup Healthy Home 5770/5990/6100/6405 Part Number: 203-1299 for Bissell | 2031299 | $16.02Read more |
| 25 |  | Knob, Height Adjustment Healthy Hom 5770/5990/6100 Part Number: 203-1320 for Bissell | 2031320 | $2.65Read more |
| 26 |  | Hose, Nozzle, Healthy Home 5770/5990/6100 Part Number: 203-1348 for Bissell | 2031348 | $9.87Read more |
| 27 | Not Available | Top Cover | 203-1321 | Not Available |
| 28 | Not Available | Brush Window | 203-1324 | Not Available |
| 29 | Not Available | Brush With Felt Gaskets | 203-1328 | Not Available |
| 30 |  | Belt Healty Home Heavy Duty | 2031329 | $3.44Add to cart |
| 31 |  | Cogged brush bar motor for bissell healthy home 5770 5990 6100 5770-5 5770-8 5770-P 5770-H 6405 | 2031350 | $43.99Read more |
| 32 | Not Available | Circuit Board | 203-1349 | Not Available |
| 33 |  | Pedal, Black Detent Healthy Home 5770/5990/6100 Part Number: 203-1340 for Bissell | 2031340 | $3.33Read more |
| 34 |  | Bissell microswitch for Bissell healthy home 5770 5990 6100 5770-5 5770-8 5770-P 5770-H 6405 | 2031347 | $7.21Add to cart |
| 35 |  | Clamp, Body Pivot W/Screws Healthy Home 5770/5990 Part Number: 203-1346 for Bissell | 2031346 | $0.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | WHEEL, FRONT ASSEMBLY 5770 5990 6100 HEALTHY HOME Part Number: 203-1319 for Bissell | 2031319 | $14.73Read more |
| 37 |  | Wheel, Rear HealthyHome 5770/5990/6100 Part Number: 203-1341 for Bissell | 2031341 | $9.53Read more |
| 38 |  | Axle, W/E-Ring Healthy Home 5770/5990/6100 Part Number: 203-1345 for Bissell | 2031345 | $5.09Read more |
| 39 |  | Hose, 5770/5990/6100 Healthy Home Part Number: 203-1359 for Bissell | 2031359 | $28.89Read more |
| 40 |  | Cord, Gray Healthy Home 5770/5990/6100/6405 Part Number: 203-1318 for Bissell | 2031318 | $27.63Read more |
| 41 |  | Tool Crevice | 2031363 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Wand, Telescoping Ext Healthy Home/Pet Hair Eraser Part Number: 203-1364 for Bissell | 2031364 | $21.96Read more |
| 43 | Not Available | Combination Brush | 203-1365 | Not Available |
| 44 | Not Available | Turbo Brush | 203-1362 | Not Available |
