Parts list and schematic for: Janome Models: loft100, Loft 100 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 |  | Upper shaft (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC,... | 808601005 | $38.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Setscrew 4x6 sewing machine part or accessory For Janome Models: 1100D, 1200D, 1200D, 3160QDC, My... | 000112800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Shaft supporter plate sewing machine part or accessory For Janome Models: 508120006 Shaft support... | 508120006 | $2.00Read more |
| 6 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 73... | 003823110009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100 HF5... | 508054101 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Upper shaft shielding plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808003001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Belt wheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812... | 508055009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Handwheel sewing machine part or accessory For Janome Models: Loft100 | 508056066 | $2.05Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: SEWIST780DC | 808648004 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle bar crank rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808005003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thrust washer sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (... | 000036005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread tension (unit) sewing machine part or accessory For Janome Models: Loft100 | 811511708 | $49.88Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Syncro motor belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 808037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Timing belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808021005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

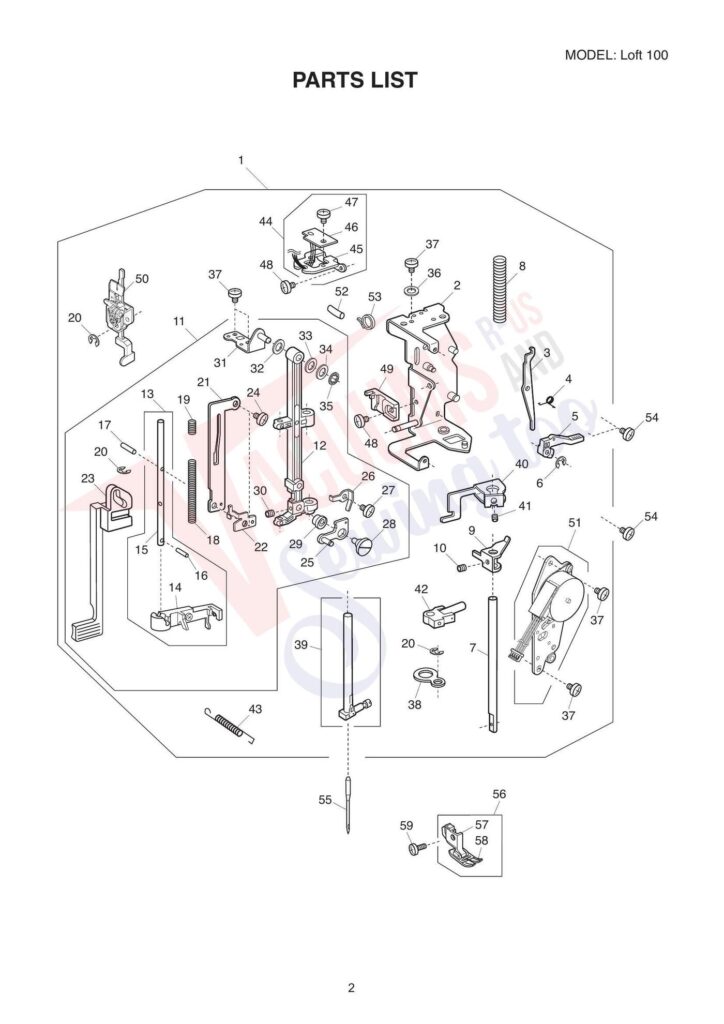

| 1 | | Presser bar base plate (unit) sewing machine part or accessory For Janome Models: JW8100 | 808602615 | $114.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser bar base plate sewing machine part or accessory For Janome Models: Loft100 | 808006303 | $13.70Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Thread tension release lever sewing machine part or accessory For Janome Models: 3160QDC HF8050, ... | 808007005 | $0.80Read more |
| 4 |  | Thread tension release spring sewing machine part or accessory For Janome Models: 3160QDC, 6019QC... | 503041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Presser Bar Lifter sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4... | 502024001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser bar sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 508002104 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Presser bar spring sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812,... | 508038006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Presser bar supporter sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8... | 508039007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: JW8100 | 808603100 | $47.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 3160QDC, 2160QDC, JNH186... | 808008006 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Threader shaft (unit) sewing machine part or accessory For Janome Models: SEWIST780DC | 842637028 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Threader guard plate (unit) sewing machine part or accessory For Janome Models: MC7700QCP, MC8900... | 846588014 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Threader shaft sewing machine part or accessory For Janome Models: MC2160QDC, JNH1860, HSN 49360,... | 840036025 | $1.80Read more |
| 16 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Threader shaft spring sewing machine part or accessory For Janome Models: TB30, MO200, MC7700QCP,... | 842090001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Threader lever spring sewing machine part or accessory 842096007 Threader lever spring SKS3 | 842096007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 21 |  | Threader guide plate sewing machine part or accessory For Janome Models: MC7700QCP, MC2160QDC, JN... | 842091002 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Threader lever plate sewing machine part or accessory For Janome Models: MC7700QCP, MC2160QDC, JN... | 844036027 | $2.18Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Threader lever sewing machine part or accessory For Janome Models: MC7700QCP, MC2160QDC, JNH1860,... | 842092003 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Zigzag width rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, J... | 808015006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Zigzag rod spring sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4048/8... | 003827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set screw 2x3 sewing machine part or accessory For Janome Models: 1110DX, 2040, 204D, 3022, 3160Q... | 003820373003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Washer sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, HS... | 808074003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Supporter adjusting plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2... | 808009007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Genuine Janome/Elna Polished plain washer 5 For: 3160QDC, MC10000, MC10001, MC6500P, MC6600P HF... | 000072003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Supporter guide plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 808010001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Genuine Janome/Elna Needle bar (unit) For: 3160QDC HF8050, MC2160QDC, JNH1860, HSN 49360 | 508607105 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Threader position set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808011002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Hexagonal socket screw 3x6 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 120... | 000177205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Needle bar connecting stud sewing machine part or accessory For Janome Models: 3160QDC, Mystyle10... | 508509003 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Needle bar supporter spring sewing machine part or accessory 844038018 Needle bar supporter spring | 844038018 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Buttonhole sensor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC21... | 808606000 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Sensor set plate sewing machine part or accessory For Janome Models: 3160QDC, 6260QC HF8050, MC21... | 845002005 | $1.20Read more |
| 46 |  | Printed circuit board E1 unit sewing machine part or accessory For Janome Models: 3160QDC HF8050,... | 843502602 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Buttonhole lever guide sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC7700... | 003830057021 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Buttonhole lever (unit) sewing machine part or accessory For Janome Models: SEWIST780DC | 808673008 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 51 | | Zigzag width motor (unit) sewing machine part or accessory For Janome Models: M7050 | 808605607 | $45.00Add to cart |
| 52 |  | Tube sewing machine part or accessory For Janome Models: NQM2016 | 809046009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 53 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 54 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 |  | Presser Foot Unit (top load low shank) sewing machine part or accessory For Janome Models: 2040, ... | 660509008 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 57 | | Presser foot holder sewing machine part or accessory For Janome Models: HQ310 | 660806019 | $4.80Add to cart Special order: ships in 2 to 4 weeks |
| 58 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 59 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

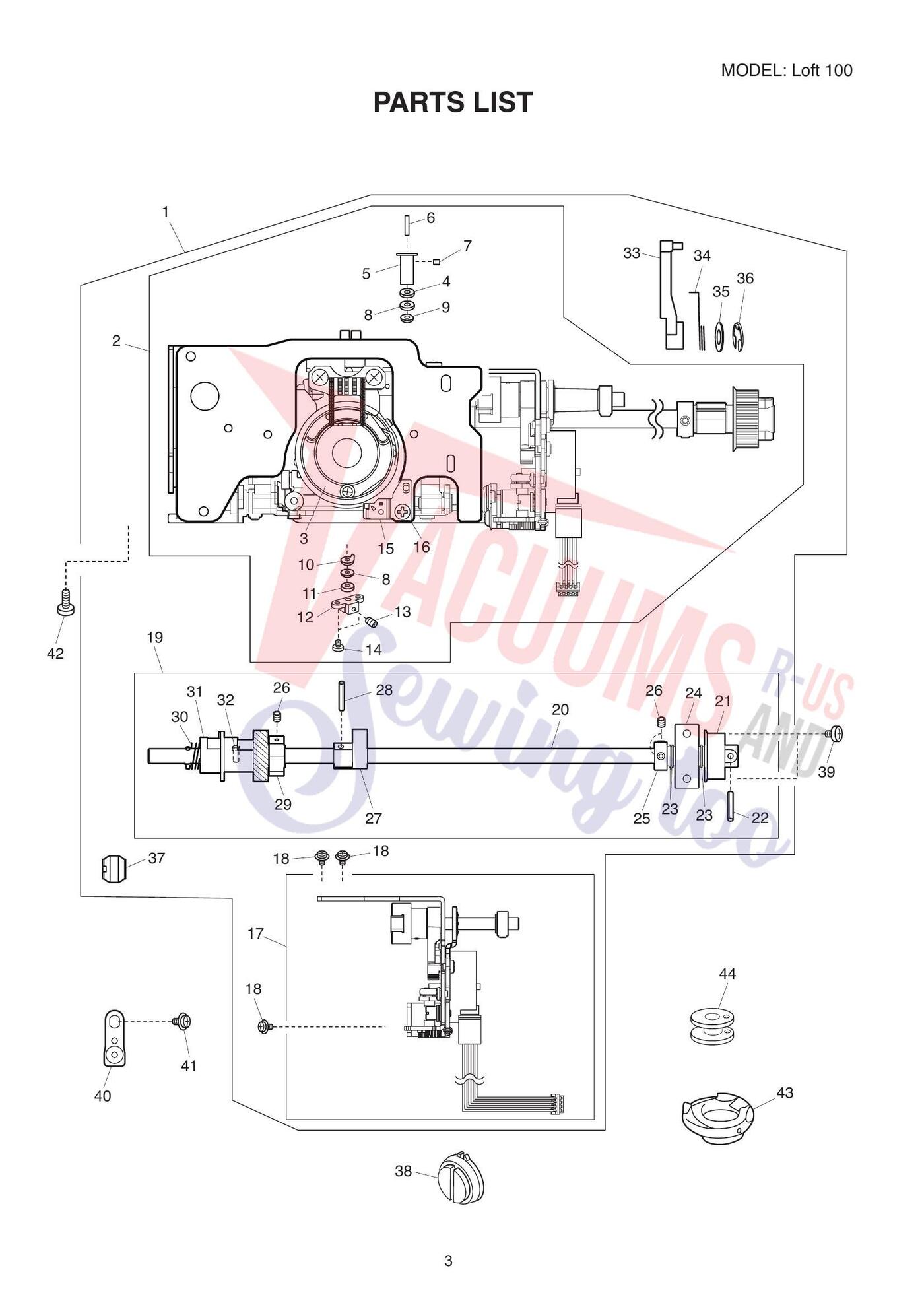

| 1 |  | Hook race (whole unit) sewing machine part or accessory For Janome Models: Loft100 | 811607115 | $192.11Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Hook race (unit) sewing machine part or accessory For Janome Models: JW8100 | 811608002 | $102.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook body (unit) sewing machine part or accessory For Janome Models: NQM2016 | 660536004 | $34.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Washer sewing machine part or accessory For Janome Models: 4300QDC-B | 508118001 | $0.40Read more |
| 5 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Magnet set plate sewing machine part or accessory For Janome Models: 4300QDC-B | 508139008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook race shaft base sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, N... | 508072002 | $2.40Read more |
| 13 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Bobbin holder stopper (unit) sewing machine part or accessory For Janome Models: NQM2016 | 627567104 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed regulator (unit) sewing machine part or accessory For Janome Models: HQ310 | 811611112 | $76.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Lower shaft (unit) sewing machine part or accessory Lower shaft (unit) | 811610007 | $28.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft sewing machine part or accessory For Janome Models: JW8100 | 808027300 | $6.20Read more |
| 21 | | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle1... | 508054008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Feed cam sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809014008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Spring pin 3x12 sewing machine part or accessory For Janome Models: SEWIST780DC | 000005407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Feed fork sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809013007 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Feed fork spring sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necch... | 809015009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Washer 5 | 000071105 | Not Available |
| 36 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Feed balancing dial 2 sewing machine part or accessory For Janome Models: NQM2016 | 809053009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Lower shaft bushing set plate sewing machine part or accessory For Models: , Necchi EX30, Necchi... | 809042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

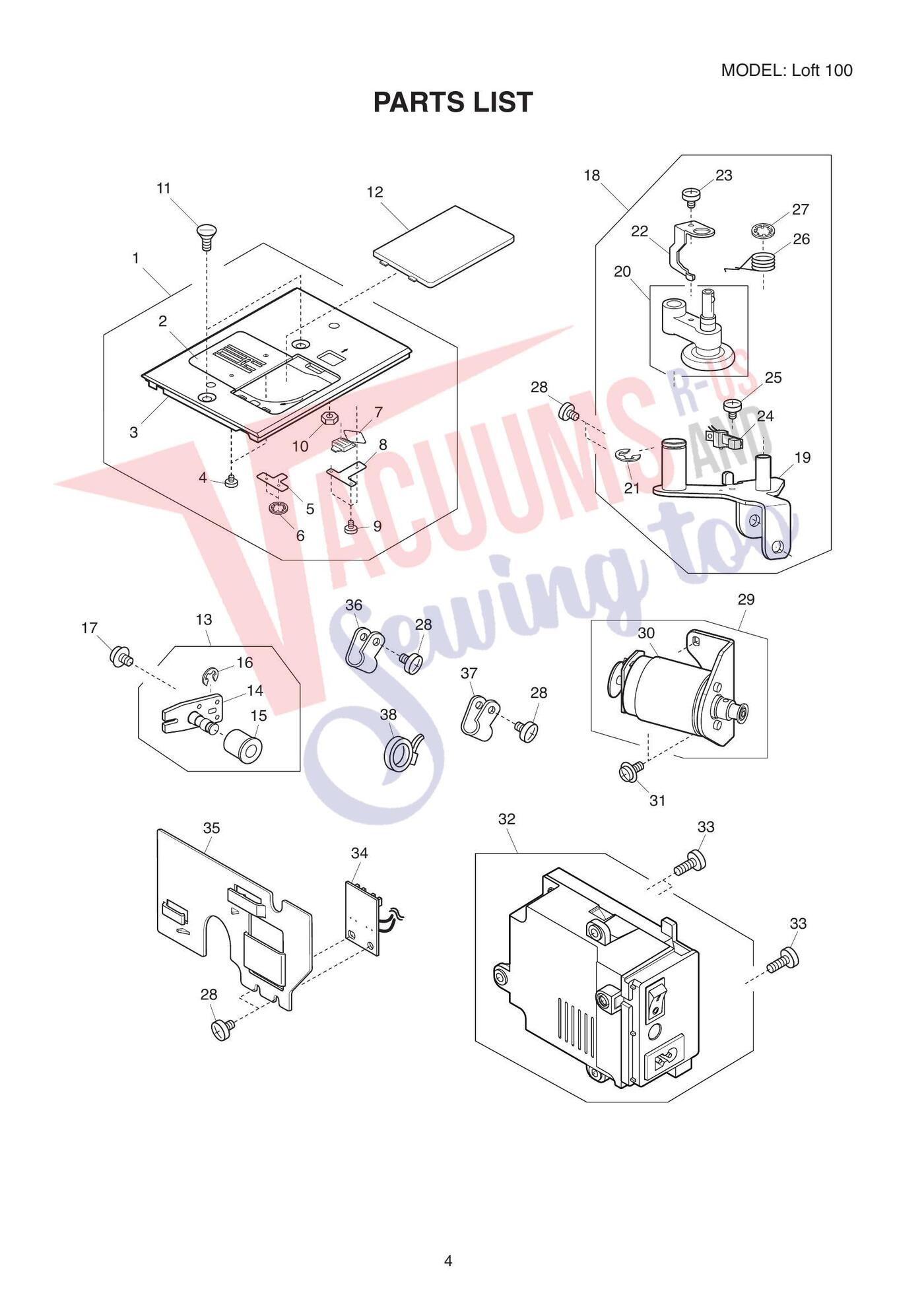

| 1 | | Needle plate (unit) sewing machine part or accessory For Janome Models: JNH1860, MC2160QDC HF8050 | 808626006 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle plate sewing machine part or accessory For Janome Models: JW8100 | 808067003 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Support needle plate | 808068004 | Not Available |
| 4 | | Setscrew 2x3.5 sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812, MC2... | 000163703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502015009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 000015503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hook cover plate release buttn sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502016000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Supporter plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502202005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Setscrew 1.7x2.5 (B) sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF581... | 000130206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Nut | 508116009 | Not Available |
| 11 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook cover plate sewing machine part or accessory For Janome Models: MC12000 Horizon, MC11000SE, ... | 846271103 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Compatible alternateJanome Hook Cover Plate More Product Details | 502017104 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Idler (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | 808614001 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Idler set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808038005 | $1.60Read more |
| 15 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Bobbin winder (unit) sewing machine part or accessory For Janome Models: 3160QDC, MC2160QDC, JNH1... | 808615002 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Bobbin winder set plate sewing machine part or accessory For Janome Models: 3160QDC, MC2160QDC, J... | 808039006 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100,... | 508507001 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Clutch lever sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100, MC2160QDC, ... | 508111004 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Reef switch (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC,... | 856512100 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Setscrew 2.5x5 sewing machine part or accessory For Janome Models: MISS, 3160QDC, MC200E HF8050, ... | 000081706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Spring sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, HS... | 808040000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | DC motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808617004 | $69.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | DC motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808502005 | $71.49Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Switching regulator (unit) sewing machine part or accessory For Janome Models: Loft100 | 808657132 | $132.26Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Printed circuit board P (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050... | 808504007 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Cord guide sewing machine part or accessory For Janome Models: SEWIST780DC | 808181004 | $0.80Read more |
| 36 |  | Nylon clip sewing machine part or accessory For Janome Models: 3160QDC, 6125QC, 7330, 888 COMPULO... | 000188209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Nylon clip ACC-2 sewing machine part or accessory For Janome Models: NQM2016 | 000188405-OLD | $0.80Read more |
| 38 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

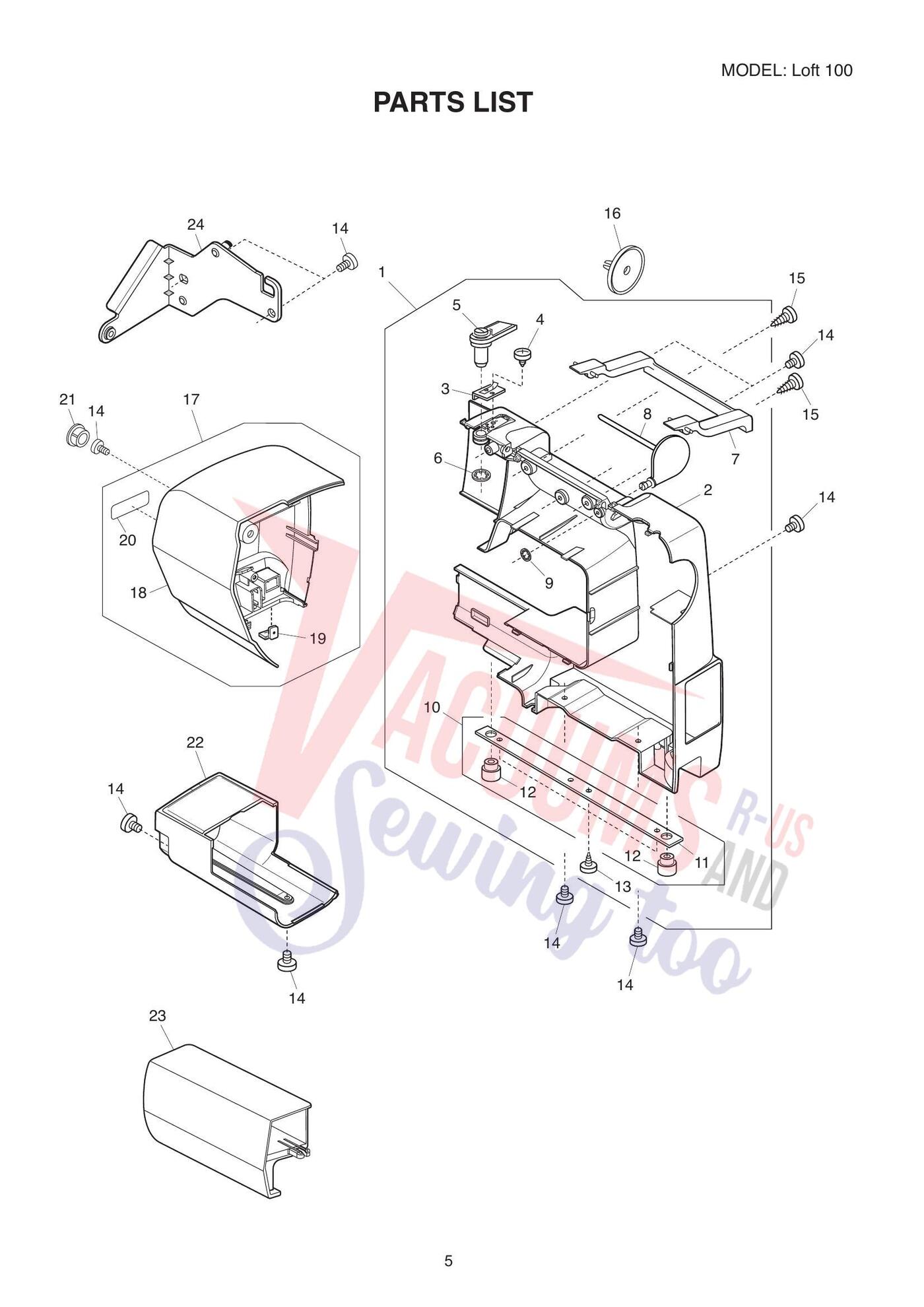

| # | Part image | Description | SKU | Price |
| 1 | | Rear cover (unit) sewing machine part or accessory For Janome Models: Loft100 | 809604377 | $68.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rear cover sewing machine part or accessory For Janome Models: 5300QDC | 809025A06 | $35.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Top cover thread guide (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050,... | 827503108 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Thread guide (unit) sewing machine part or accessory For Janome Models: Loft100 | 650503377 | $9.70Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Carrying handle sewing machine part or accessory For Janome Models: Loft100 | 809026106 | $3.26Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Spool pin sewing machine part or accessory For Janome Models: Loft100 | 809027303 | $2.05Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Arm leg rear (unit) sewing machine part or accessory For Janome Models: HQ310 | 809661006 | $30.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Arm leg rear sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809028005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Cushion for MX 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, CE2... | 735003002 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set screw 4x14 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, A... | 000198604 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Setscrew 4x16 (B) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 000160401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Face plate (unit) sewing machine part or accessory For Janome Models: Loft100 | 811604097 | $22.75Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Face plate sewing machine part or accessory For Janome Models: JW8100 | 811012A03 | $17.20Read more |
| 19 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Cap sewing machine part or accessory For Janome Models: Loft100 | 653006145 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Free arm cover sewing machine part or accessory For Janome Models: Loft100 | 808061100 | $10.53Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Extension table sewing machine part or accessory For Janome Models: Loft100 | 811013015 | $11.09Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Face plate set plate sewing machine part or accessory For Janome Models: JW8100 | 811001009 | $3.00Read more |

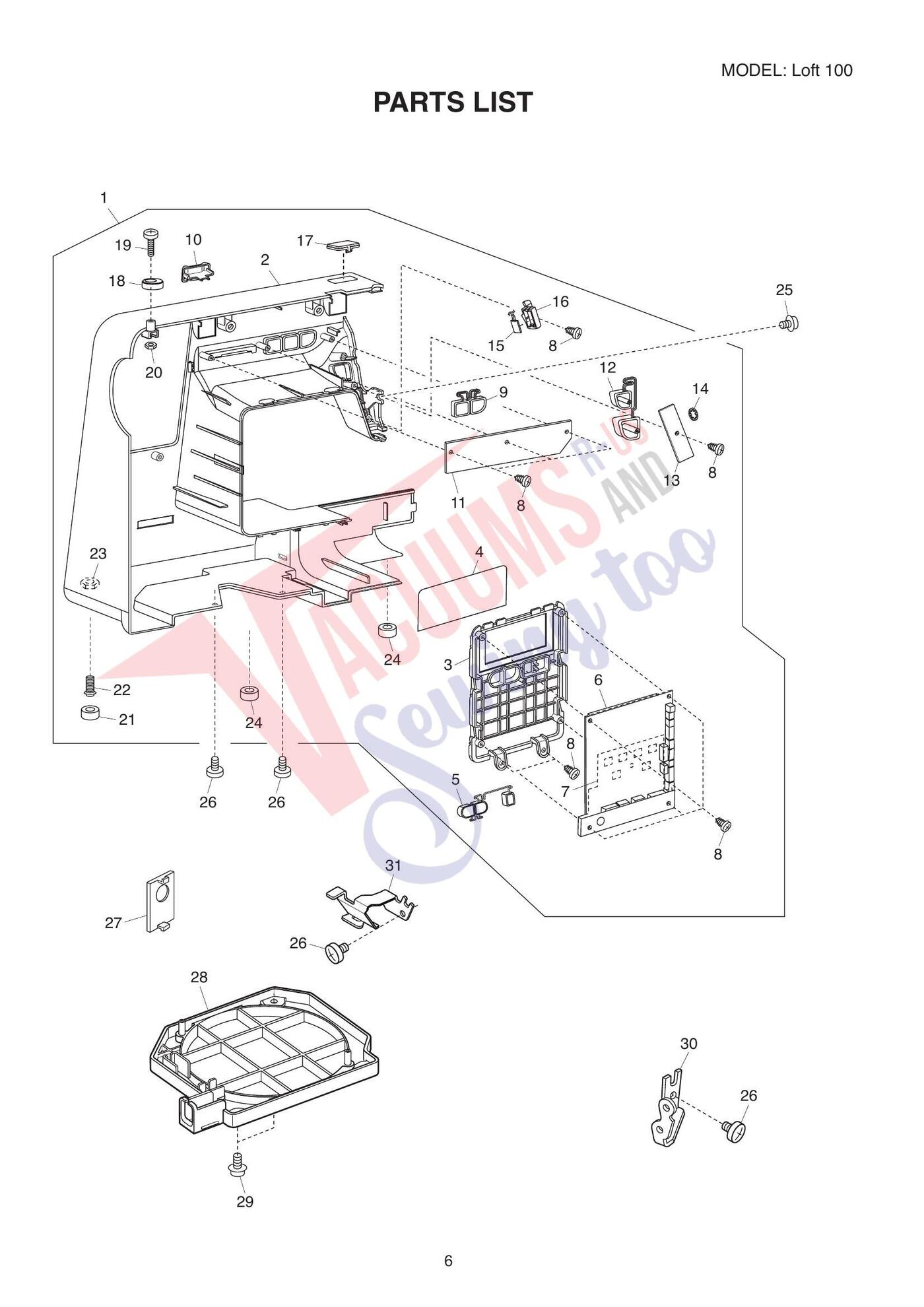

| # | Part image | Description | SKU | Price |
| 1 | | Front cover (unit) sewing machine part or accessory For Janome Models: Loft100 | 811603524 | $270.35Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Front cover sewing machine part or accessory For Janome Models: Loft100 | 811004C01 | $47.54Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Ornamental panel 1 sewing machine part or accessory For Janome Models: Loft100 | 811005139 | $4.66Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Ornamental panel 2 sewing machine part or accessory For Janome Models: JW8100 | 811006A03 | $4.60Read more |
| 5 | | Button 2 sewing machine part or accessory For Janome Models: JW8100 | 811010A01 | $2.40Read more |
| 6 | | Printed circuit board A (unit) sewing machine part or accessory For Janome Models: JW8100 | 811401025 | $123.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Flame retardant insulating paper sewing machine part or accessory For Janome Models: 00181030DC (V2) | 811021005 | $4.00Read more |
| 8 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Button 1 sewing machine part or accessory For Janome Models: JW8100 | 811007A01 | $2.40Read more |
| 10 | Not Available | Slide volume | 811008109 | Not Available |
| 11 | | Printed circuit board F2 (unit) sewing machine part or accessory For Janome Models: HQ310 | 811516002 | $26.93Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Button 3 sewing machine part or accessory For Janome Models: JW8100 | 811011A01 | $2.40Read more |
| 13 | | Printed circuit board F (unit) sewing machine part or accessory For Janome Models: M7050 | 808507103 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Printed circuit board L (unit) sewing machine part or accessory For Janome Models: JW8100 | 808506102 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Lamp holder sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808057000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Front cover lid sewing machine part or accessory For Janome Models: Loft100 | 808103013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Cap sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809039009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Bed cover sewing machine part or accessory For Janome Models: Loft100 | 808059600 | $6.34Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: SEWMINI AND SEWPETITE HF8050, MC... | 000149312 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Front cover set plate sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 3160... | 639080002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Arm thread guide sewing machine part or accessory For Janome Models: 3160PG SRV | 808016018 | $3.80Add to cart Special order: ships in 2 to 4 weeks |

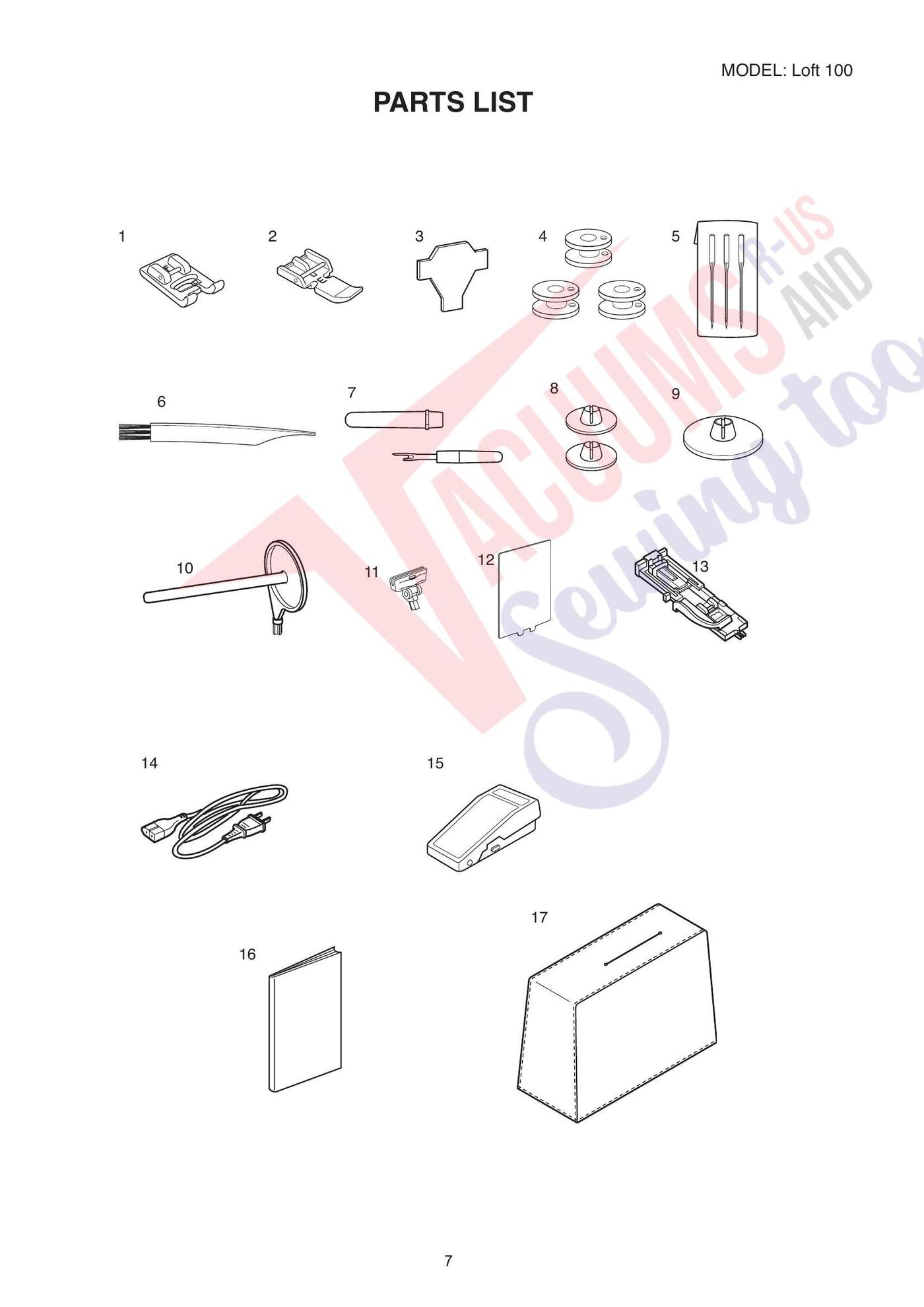

| # | Part image | Description | SKU | Price |
| 1 |  | Satin stitch foot F sewing machine part or accessory For Janome Models: MC11000 Special Edition, ... | 822804129 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Zipper Foot (new 7mm top load) sewing machine part or accessory metal zipper for 7mm and 5mm mode... | 808852003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Additional spool pin sewing machine part or accessory For Janome Models: MC9400 | 809146000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Stitch chart base sewing machine part or accessory For Janome Models: | 809809008 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Stitch chart sewing machine part or accessory For Janome Models: | 809801206 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Power supply cord (U.S.A.) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC... | 856519004 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Instruction book sewing machine part or accessory For Janome Models: 00181100DC | 811800202 | $13.24Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Vinyl Dust Cover sewing machine part or accessory For Janome Models: 900, 910, 921, 990, 2040, CE... | 741811000 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
