Parts list and schematic for: Janome Models: hd1000, heavy duty 1000 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |

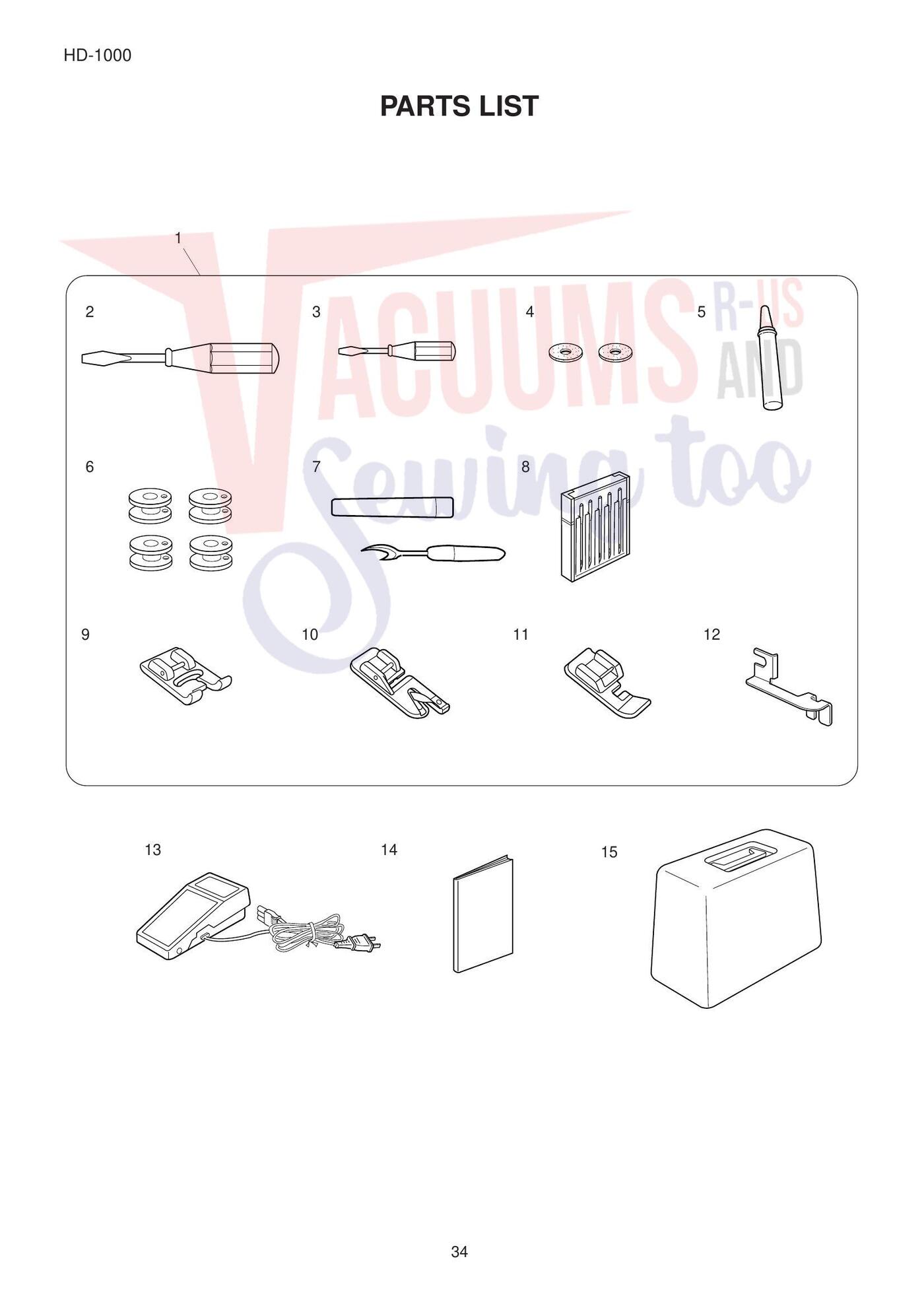

| 1 |  | ACCESSORY SET FOR HD1000 sewing machine part or accessory For Janome Models: HD1000 | 721870005 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (large) | 647802003 | Not Available |
| 3 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Bobbin | 102261000 | Not Available |
| 7 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Buttonhole foot sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2118S, 21... | 737801015 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hemmer Foot (5mm) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L108... | 743815000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Zipper foot | 611604002 | Not Available |
| 12 | | BLIND HEM GUIDE LEFT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380... | 674401002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Instruction book sewing machine part or accessory For Janome Models: | 731402195 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

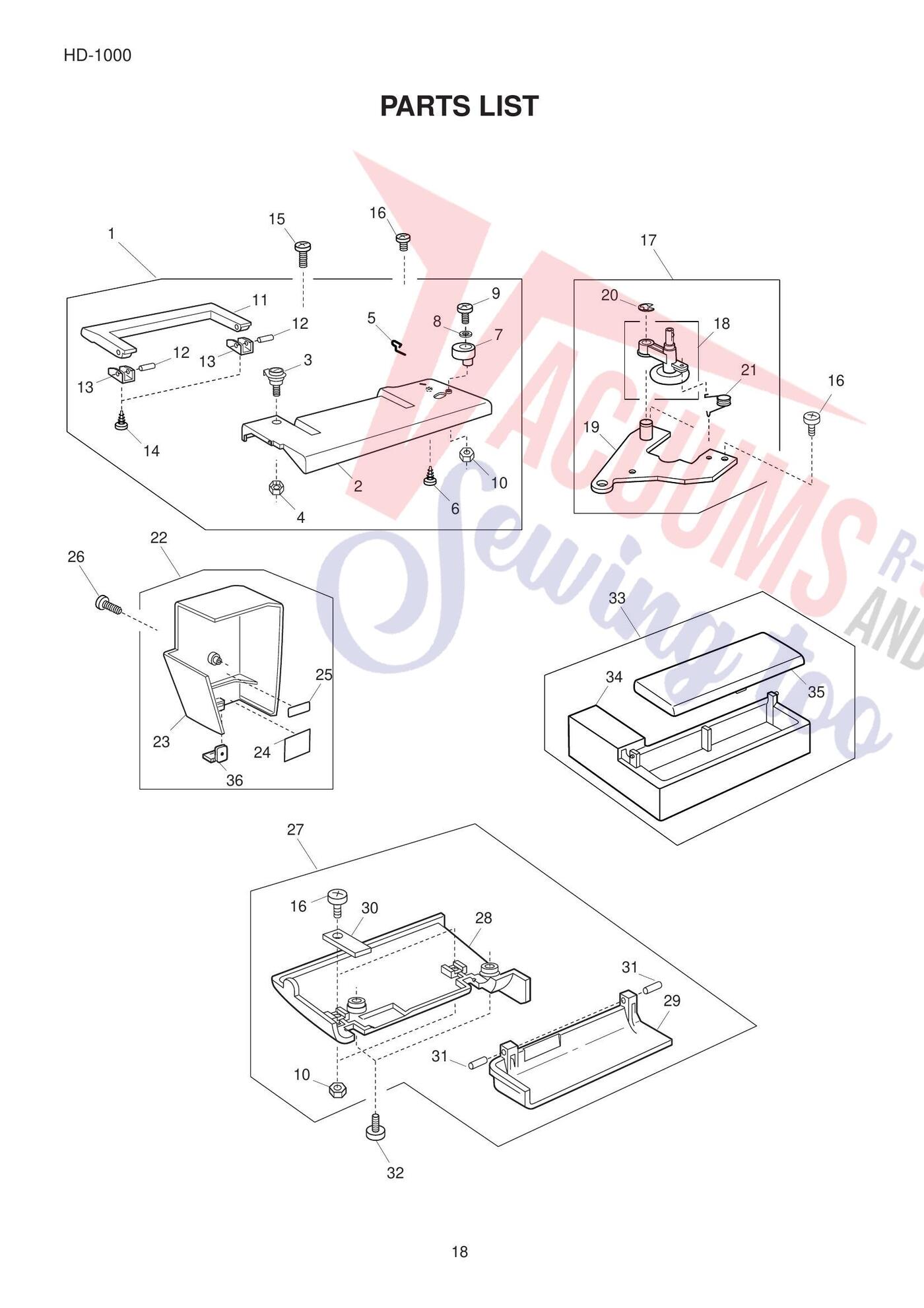

| 1 | | Top cover (unit) sewing machine part or accessory For Janome Models: | 721609399 | $33.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Top cover | 721020600 | Not Available |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | TOP COVER THRD GUIDE L-SERIES sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 731004001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128... | 652016101 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Handle | 731005208 | Not Available |
| 12 | | Handle supporter shaft sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 104, ... | 730015002 | $0.69Read more |
| 13 | | Handle supporter plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730016003 | $1.15Read more |
| 14 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | BOBBIN WINDER UNIT RX18S(73060 sewing machine part or accessory For Janome Models: 360, 380 &... | 730604107 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: 360, TB12 | 730502104 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Bobbin winder set plate | 730018108 | Not Available |
| 20 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Bobbin Winder Spring for L-Series Machines sewing machine part or accessory For Janome Models: 10... | 730019006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Face plate (unit) sewing machine part or accessory For Janome Models: | 721602026 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Face plate | 721008509 | Not Available |
| 24 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Sticker sewing machine part or accessory For Janome Models: 106, 108, 110, 2018S, 2041, 2041LX, 2... | 100411104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Bed cover (unit) | 730601403 | Not Available |
| 28 | Not Available | Bed cover | 730004307 | Not Available |
| 29 | Not Available | Bed lid | 730005308 | Not Available |
| 30 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Spring pin 2.5x10 (K) | 000021409 | Not Available |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Extension Table for Model RX18S sewing machine part or accessory For Janome Models: 104, 106, 108... | 731502200 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Extension table | 731050208 | Not Available |
| 35 | Not Available | Extension table lid | 731051209 | Not Available |
| 36 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

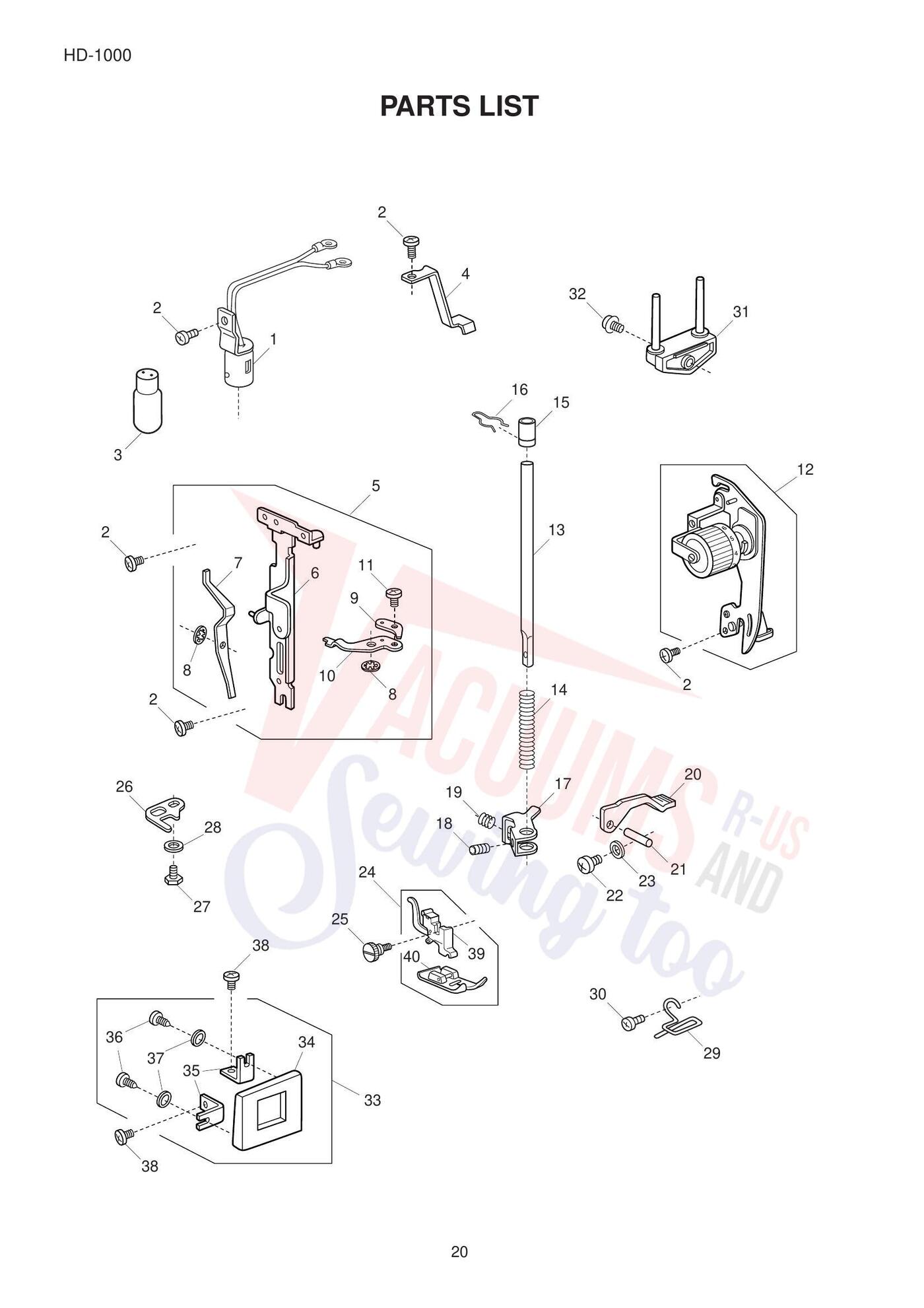

| 1 | | LAMP SOCKET UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380 &... | 647510001 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Cord holder | 693047005 | Not Available |
| 5 | Not Available | Front bracket (unit) | 731636101 | Not Available |
| 6 | Not Available | Front bracket | 731099106 | Not Available |
| 7 | Not Available | Thread tension release lever | 730029009 | Not Available |
| 8 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Thread tension release plate (1) | 730030003 | Not Available |
| 10 | Not Available | Thread tension release plate (2) | 730031004 | Not Available |
| 11 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Thread tension (unit) sewing machine part or accessory For Janome Models: L-344, TB12, L108, L109... | 721502519 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Presser bar sewing machine part or accessory For Janome Models: | 303017008 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RETAINER sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 802022008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Presser Bar Lifter Lever sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822071004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Presser Foot Complete (5mm front load low shank) sewing machine part or accessory For Janome Mode... | 611520003 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Needle bar supporter stopper sewing machine part or accessory For Janome Models: 104, 106, 108, 1... | 680036001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Thread Guide for School Model S-650 sewing machine part or accessory For Janome Models: 104, 106,... | 731009006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Setscrew 3.5x5 | 000100300 | Not Available |
| 31 |  | Spool Pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 4612TM, 808A, L... | 731006209 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | FRONT FRAME UNIT sewing machine part or accessory For Janome Models: 4612TM, L-344, TB12 | 721603201 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Front cover | 721010205 | Not Available |
| 35 | Not Available | Face plate stopper plate | 721011000 | Not Available |
| 36 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | WASHER POLISHED PLAIN 3-9 8 6 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000070104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | BINDING HEAD SMALL SCREW 3.5X6 sewing machine part or accessory For Janome Models: 134D, 1600P, 1... | 000103004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Presser Foot Holder (5mm front load) sewing machine part or accessory For Janome Models: HD-1000,... | 611510000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Presser Foot (5mm low shank front load) sewing machine part or accessory For Janome Models: HD-10... | 611511001 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

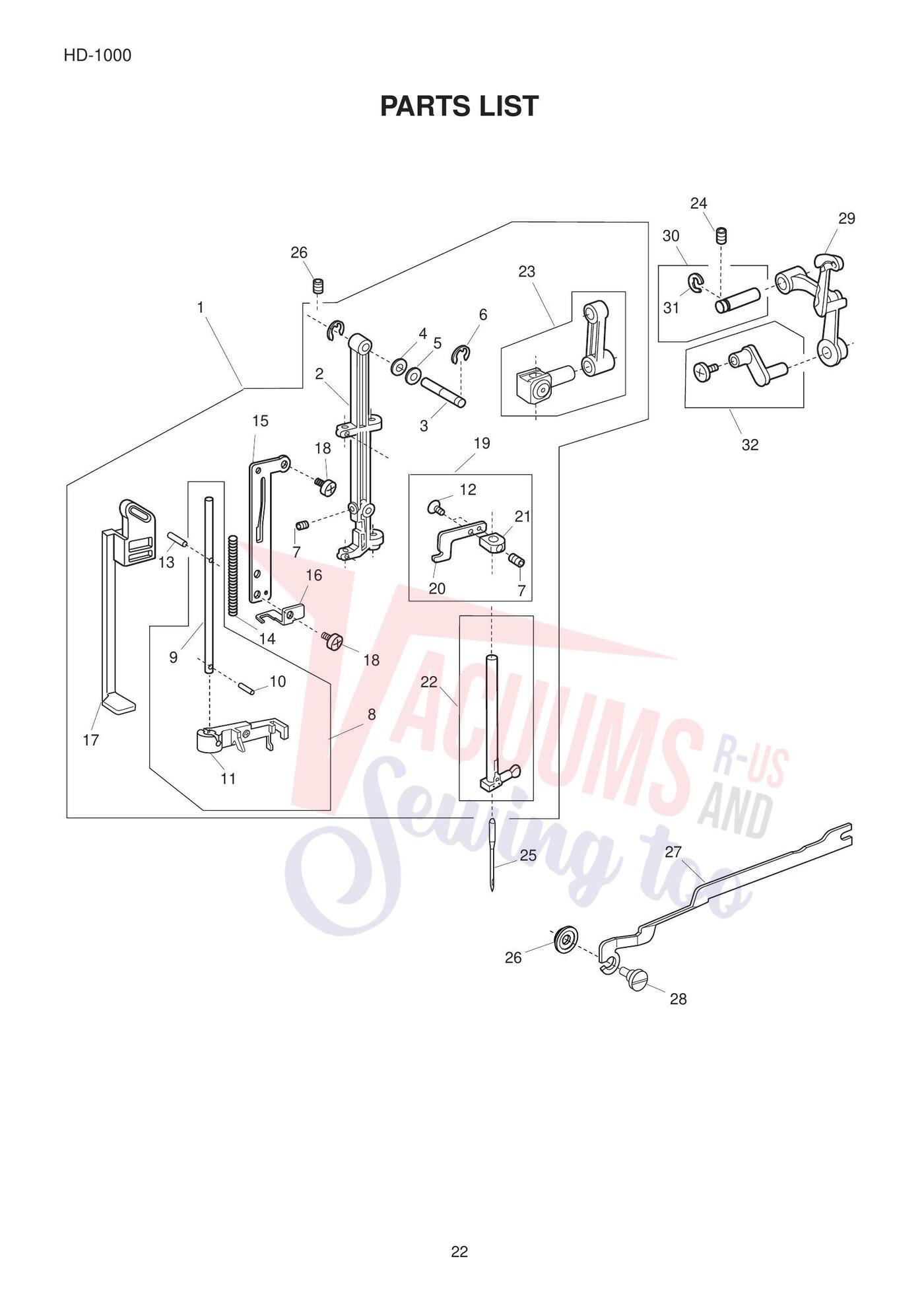

| 1 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: | 303604101 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 415, 419S, 423S | 303020107 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle threader shaft (unit) sewing machine part or accessory For Janome Models: | 303605009 | $12.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle threader shaft sewing machine part or accessory For Janome Models: | 303016007 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle Threader Plate for Janome Elna babylock kenmore necchi viking Bernina sewing machines #755... | 755643002 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle threader spring sewing machine part or accessory For Janome Models: HD1000BE | 840035002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle threader guide plate sewing machine part or accessory For Janome Models: | 303064000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Needle threader lever support sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 840037004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Needle threader lever sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 404... | 840034001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Threader positioning setting plate (unit) | 734625003 | Not Available |
| 20 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Threader positioning holder sewing machine part or accessory For Janome Models: HF3000, HF8077, H... | 734102009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | NEEDLE BAR UNIT sewing machine part or accessory For Janome Models: QS2250 | 730503013 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | NEEDLE BAR CONNECTING STUD sewing machine part or accessory For Janome Models: AQS2009, DC4030, H... | 639516002 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 25 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Zigzag rod sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 730023003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Needle bar crank pin unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730509008 | $5.00Add to cart Special order: ships in 2 to 4 weeks |

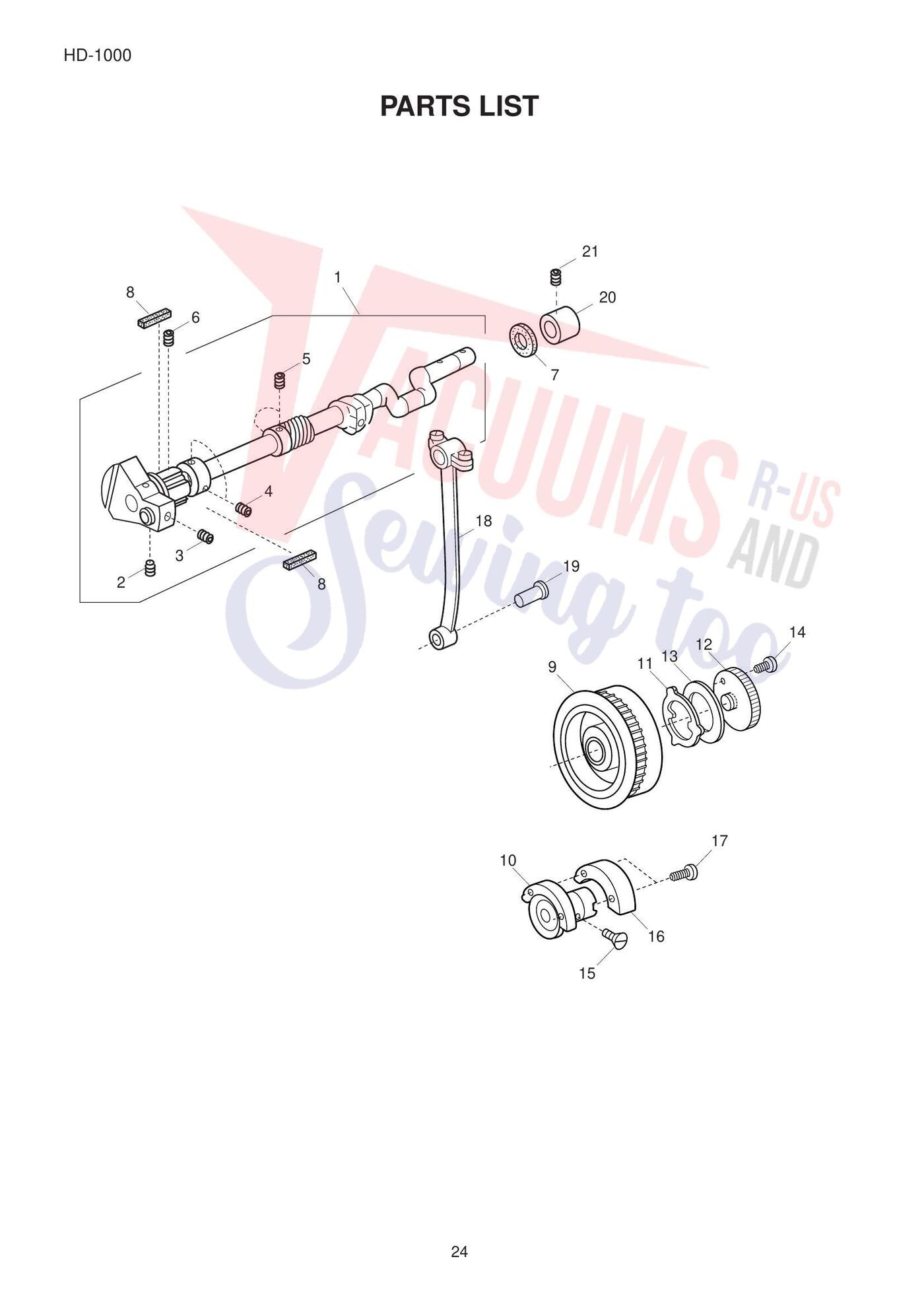

| # | Part image | Description | SKU | Price |
| 1 |  | UPPER SHAFT COM. UNIT sewing machine part or accessory HD1000 | 731604007 | $28.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BRACKET SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 102063000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 |  | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hexagonal socket screw 4x6 sewing machine part or accessory For Janome Models: NH1612, NH1616, NH... | 000110303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Handwheel | 730036504 | Not Available |
| 10 | | BALANCE WHEEL BUSHING sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730037000 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | WASHER STOP MOTION sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, ... | 102076006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | STOP MOTION LARGE SCREW sewing machine part or accessory For Janome Models: 360, 380 & 381, 4... | 647036400 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Washer | 647037009 | Not Available |
| 14 | | Setscrew sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 102078101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & ... | 671106005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | BALANCE WEIGHT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 640008000 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Setscrew 3x12 | 000105202 | Not Available |
| 18 | | Crank rod unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, NH1612, ... | 738634007 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | CRANK ROD PIN sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, JA1504-15... | 735064001 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Upper shaft rear bushing | 671021005 | Not Available |
| 21 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

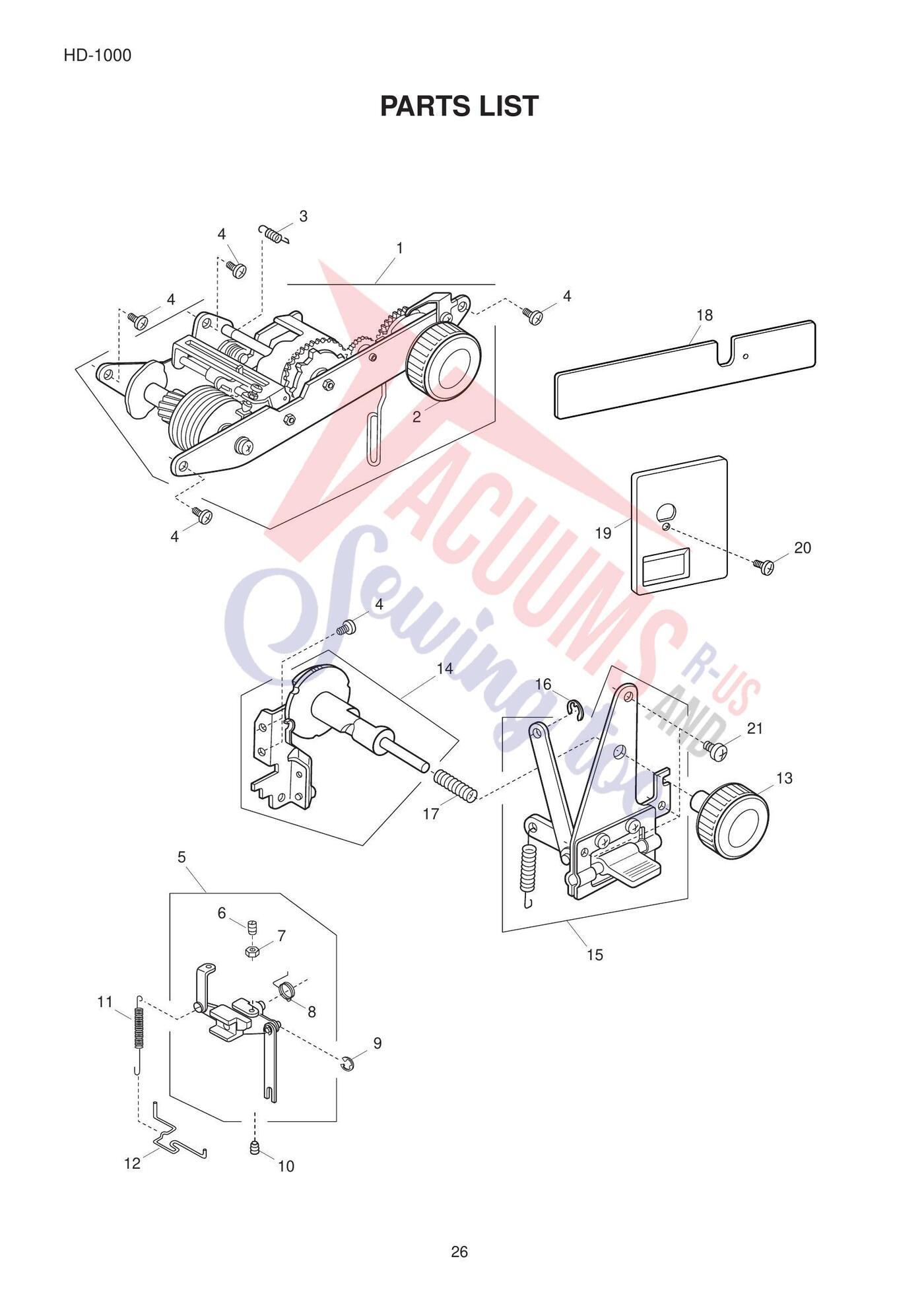

| 1 | | Zigzag mechanism (unit) sewing machine part or accessory For Janome Models: | 731662014 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Pattern selector dial (unit) sewing machine part or accessory For Janome Models: | 731663118 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Spring | 730092003 | Not Available |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Feed regulator (unit) sewing machine part or accessory For Janome Models: L-344, TB12 | 731645103 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Feed regulating body spring | 803134007 | Not Available |
| 9 | | SNAP RING 5D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | 000000309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hexagonal socket screw sewing machine part or accessory For Janome Models: HD1000BE | 802097004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | HOOK sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 381, ... | 730041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Feed dial (unit) sewing machine part or accessory For Janome Models: | 731658073 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Feed regulating cam (unit) | 731607000 | Not Available |
| 15 | Not Available | Reverse button (unit) | 721606307 | Not Available |
| 16 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Feed dial spring | 731029002 | Not Available |
| 18 | | Ornamental plate sewing machine part or accessory For Janome Models: | 721181002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Feed front cover sewing machine part or accessory For Janome Models: | 731302057 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

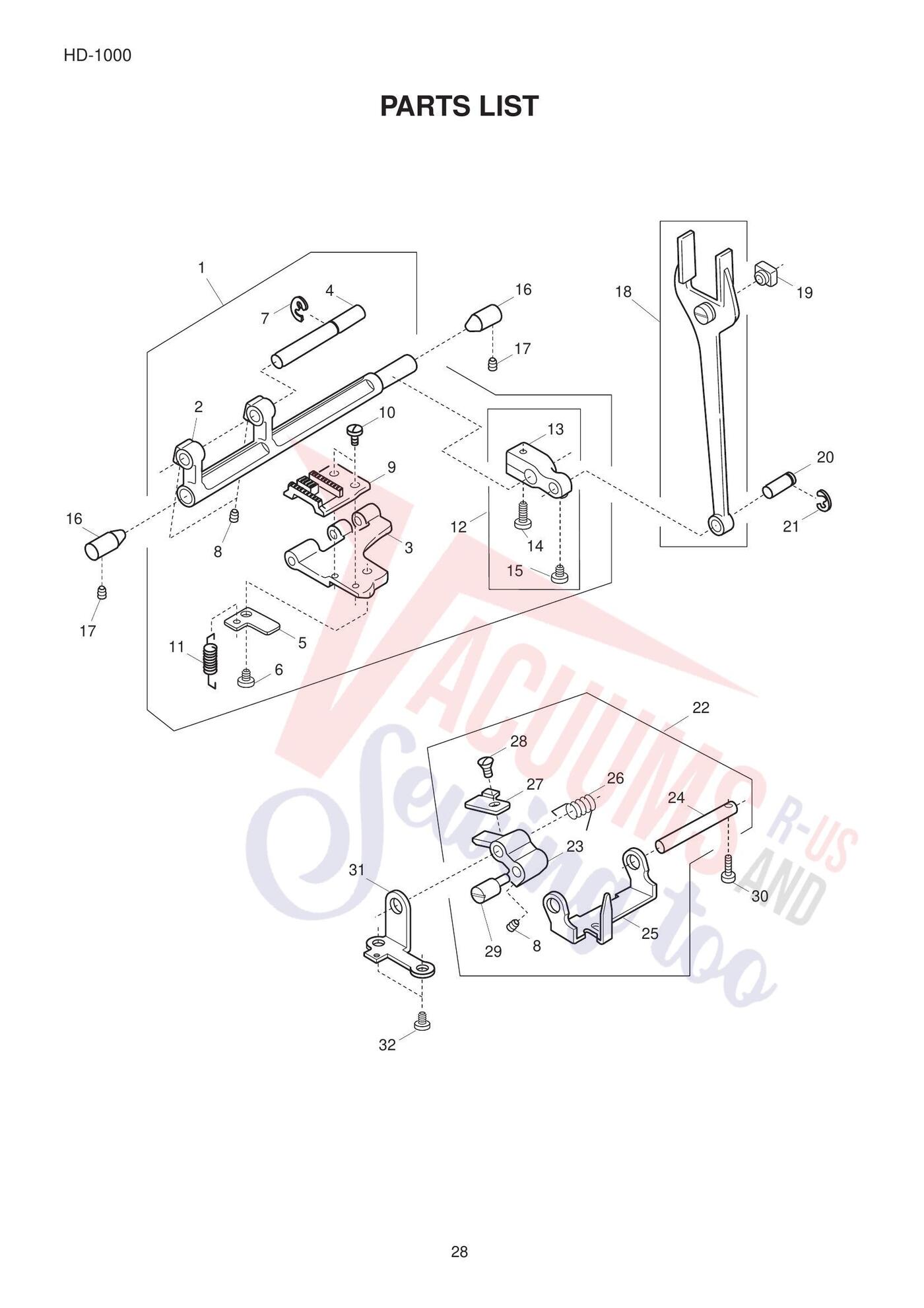

| # | Part image | Description | SKU | Price |
| 1 |  | FEED ROCK SHAFT COMP. UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 730611004 | $30.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 730057006 | $6.60Read more |
| 3 |  | Feed bar sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 647066007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 647134007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Sliding plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 648019008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set screw (black) sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 41... | 102021202 | $0.60Read more |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed dog sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S,... | 730184003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S... | 730183002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed bar spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 672042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Feed rock shaft crank (unit) | 647612015 | Not Available |
| 13 |  | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 647064005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & ... | 102151006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | OSCILLATING CRANK SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 102205006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 18 |  | FORK ROD FOR 106 MODEL sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 647607006 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Connecting pin sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 673103008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | FEED LIFTING ARM UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730612005 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Feed lifting arm sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415... | 738028002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Feed lifting shaft | 735090109 | Not Available |
| 25 | Not Available | Drop feed selecting plate | 730059008 | Not Available |
| 26 |  | Drop feed selector spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730061003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Sliding plate | 730062004 | Not Available |
| 28 |  | FLAT HEAD SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P... | 365032001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Eccentric pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 4... | 730063016 | $1.61Read more |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Feed lifting arm shaft holder | 730064006 | Not Available |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

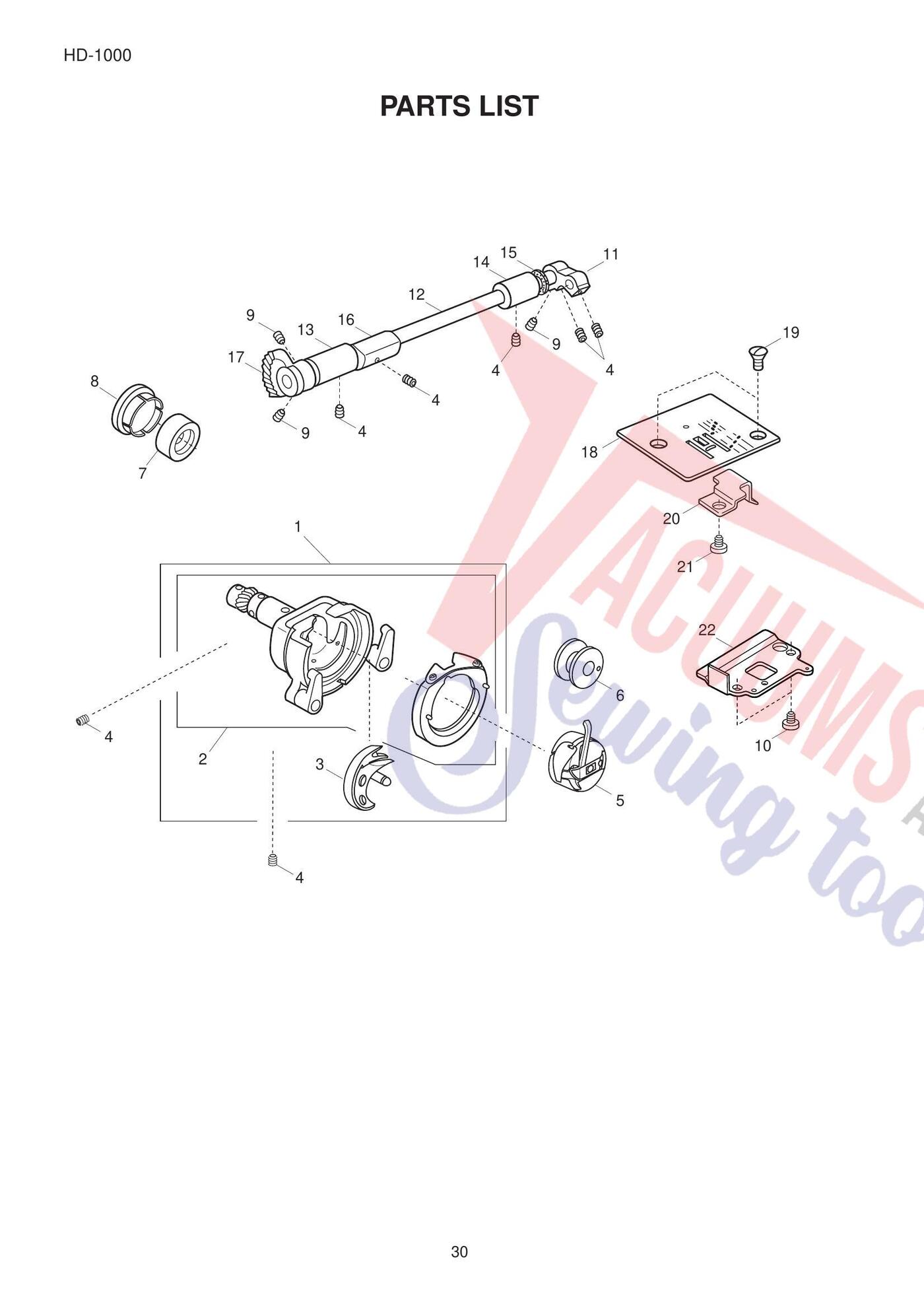

| # | Part image | Description | SKU | Price |
| 1 |  | Shuttle Race Body Unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 640603104 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Shuttle/Hook Race Unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, ... | 640503000 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Bobbin | 102261000 | Not Available |
| 7 | | Cam shaft bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 38... | 640018003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Cap | 626045407 | Not Available |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Lower shaft crank | 738023007 | Not Available |
| 12 | | Lower shaft sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 419... | 647142008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Lower shaft bushing sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, ... | 738024008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Lower shaft bushing (rear) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 640038009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Feed lifting cam sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 647043008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Lower Shaft Gear sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 730038001 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Needle Plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &am... | 730027007 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Gear box upper lid sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 730107002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Gear box rear cover | 730109004 | Not Available |

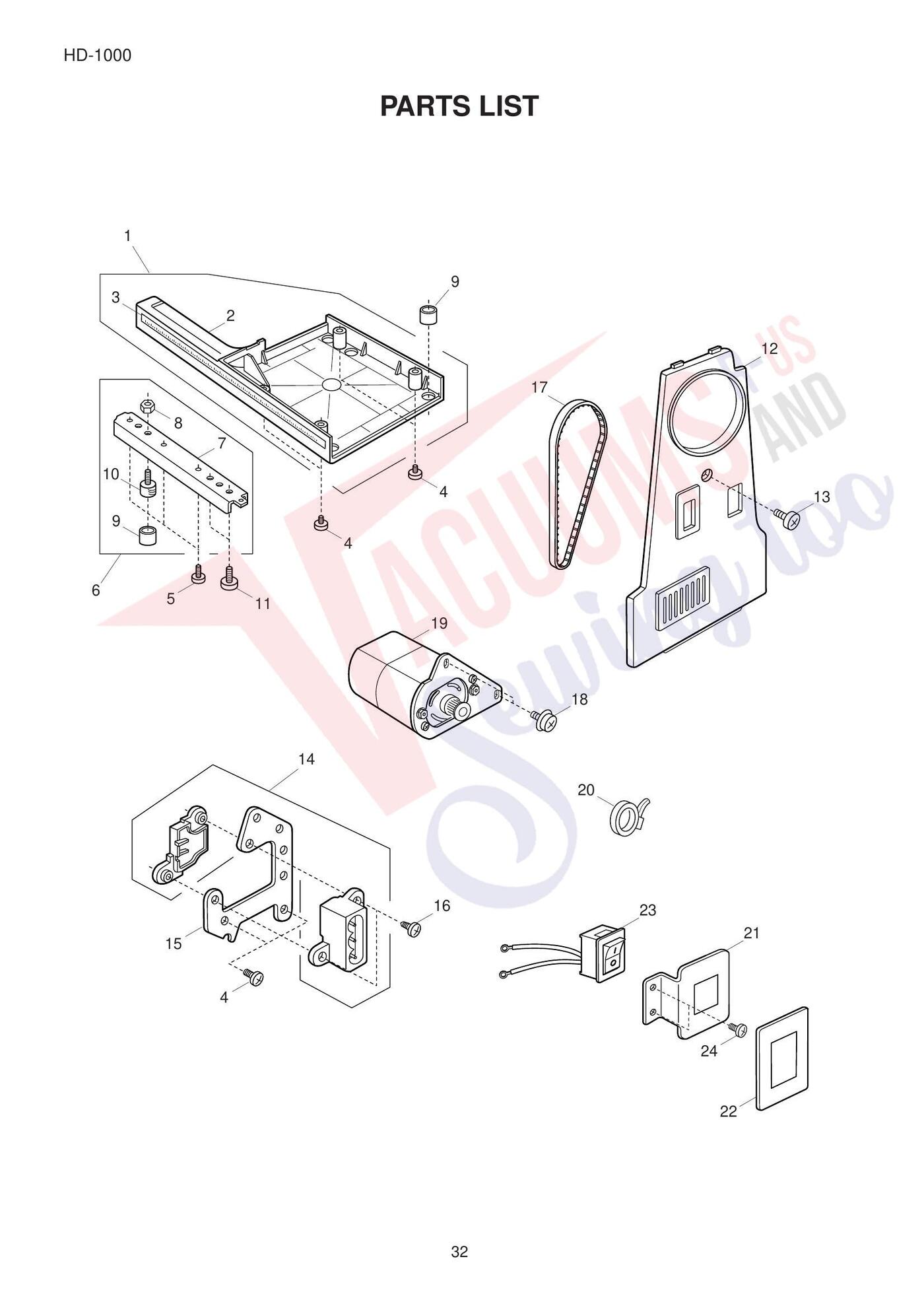

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Base (unit) | 731624726 | Not Available |
| 2 | Not Available | Base | 730010502 | Not Available |
| 3 | Not Available | Base scale | 731061305 | Not Available |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Arm leg (unit) | 731668009 | Not Available |
| 7 | | BRACKET FOR L-372 BASE sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730008002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | ADJUSTING SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 647010006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BELT COVER 108 NEW/392-393 sewing machine part or accessory For Janome Models: 106, 108, 110, 360... | 731161100 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Socket for Model 639 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 4612... | 731515000 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Machine socket set plate | 731380107 | Not Available |
| 16 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Motor Belt sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 624093002 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Switch set plate sewing machine part or accessory For Janome Models: 4612TM, L-344, L-393, TB12 | 731379000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Indicator plate sewing machine part or accessory For Janome Models: 4612TM, L-344, TB12 | 731381005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | ON/OFF SWITCH ASSEMBLY UNIT sewing machine part or accessory For Janome Models: 4612TM, HARMONY 1... | 639511018 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
