Parts list and schematic for: Janome Models: 392 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

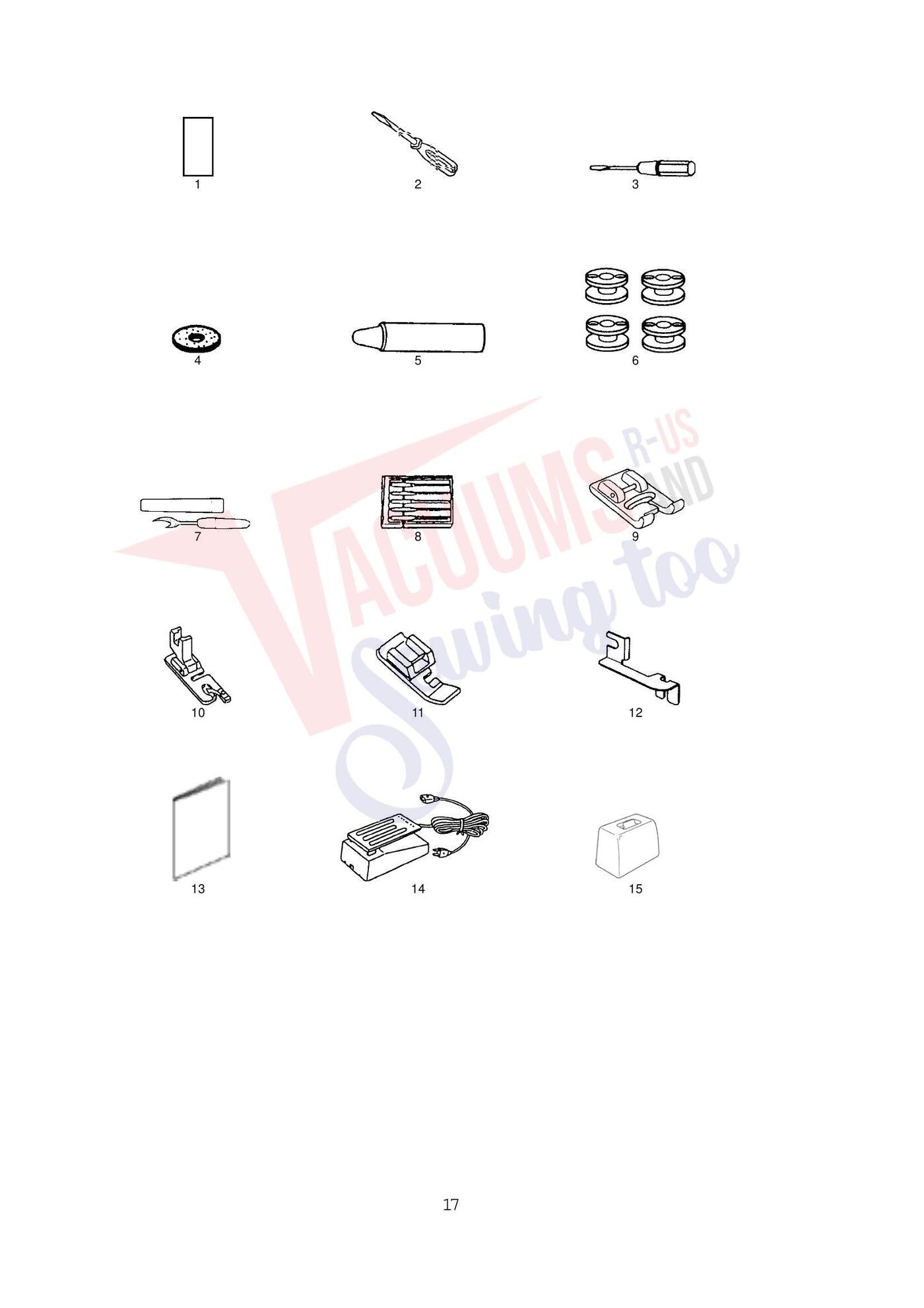

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Accessory bag | 131400003 | Not Available |
| 2 | Not Available | Screwdriver (large) | 647802003 | Not Available |
| 3 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Bobbin | 102261000 | Not Available |
| 7 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Set of needles | 672432040 | Not Available |
| 9 | | Buttonhole foot sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2118S, 21... | 737801015 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Hemmer foot | 553410006 | Not Available |
| 11 |  | Zipper Foot (front load) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA10... | 611406002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | BLIND HEM GUIDE LEFT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380... | 674401002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Instruction book | 731400274 | Not Available |
| 13 | Not Available | Foot control | 043370100 | Not Available |
| 14 | Not Available | Resin cover | 465732001 | Not Available |

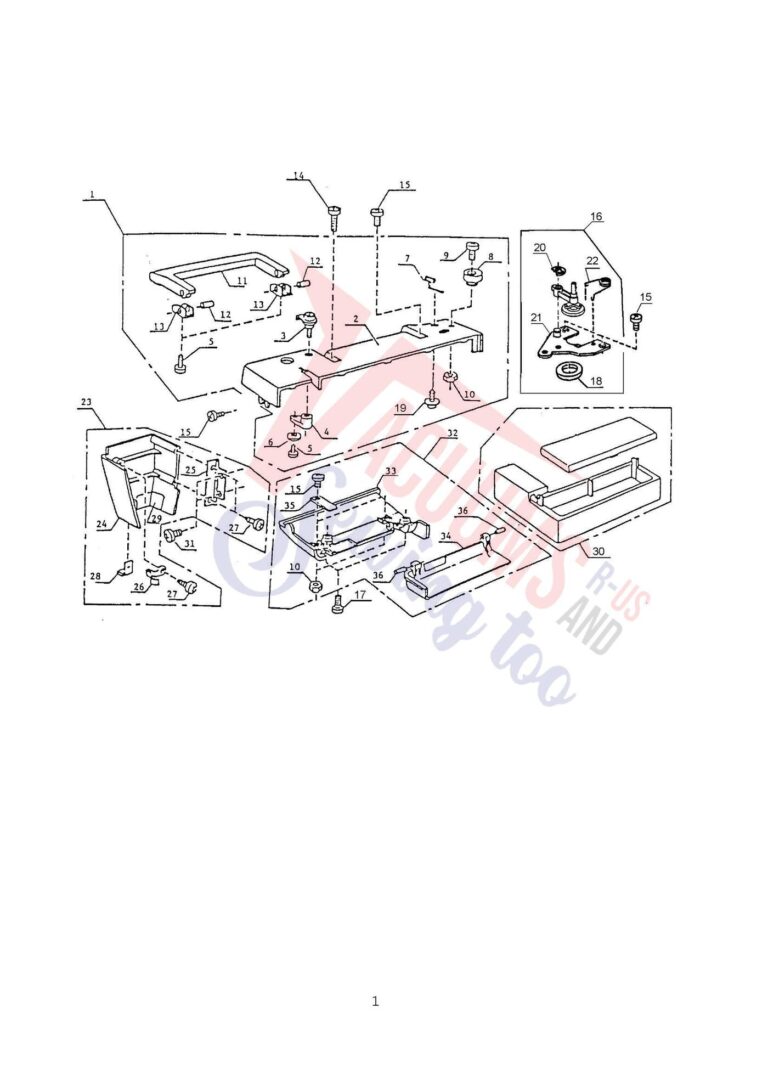

| # | Part image | Description | SKU | Price |
| 1 | | Top cover (unit) sewing machine part or accessory For Janome Models: | 731601602 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Top cover sewing machine part or accessory For Janome Models: | 731003206 | $13.57Read more |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | TENSION GUIDE BRACKET:7500 700 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822021009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER POLISHED PLAIN 3-9 8 6 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000070104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | TOP COVER THRD GUIDE L-SERIES sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 731004001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Bobbin Winder Stop sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 674064009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Handle | 731005208 | Not Available |
| 12 | | Handle supporter shaft sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 104, ... | 730015002 | $0.69Read more |
| 13 | | Handle supporter plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730016003 | $1.15Read more |
| 14 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | BOBBIN WINDER UNIT RX18S(73060 sewing machine part or accessory For Janome Models: 360, 380 &... | 730604107 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Winder Tire Ring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 3... | 365076007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Bobbin winder base | 730018108 | Not Available |
| 22 |  | Bobbin Winder Spring for L-Series Machines sewing machine part or accessory For Janome Models: 10... | 730019006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Face plate unit | 731602201 | Not Available |
| 24 | Not Available | Face plate | 731007200 | Not Available |
| 25 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Setscrew 3x9 (B) sewing machine part or accessory For Janome Models: | 000161000 | $0.40Read more |
| 28 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Extension table | 731665006 | Not Available |
| 31 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | BED COVER UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 730601300 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Bed cover | 730004307 | Not Available |
| 34 | Not Available | Hook cover | 730005308 | Not Available |
| 35 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Spring pin | 000021409 | Not Available |

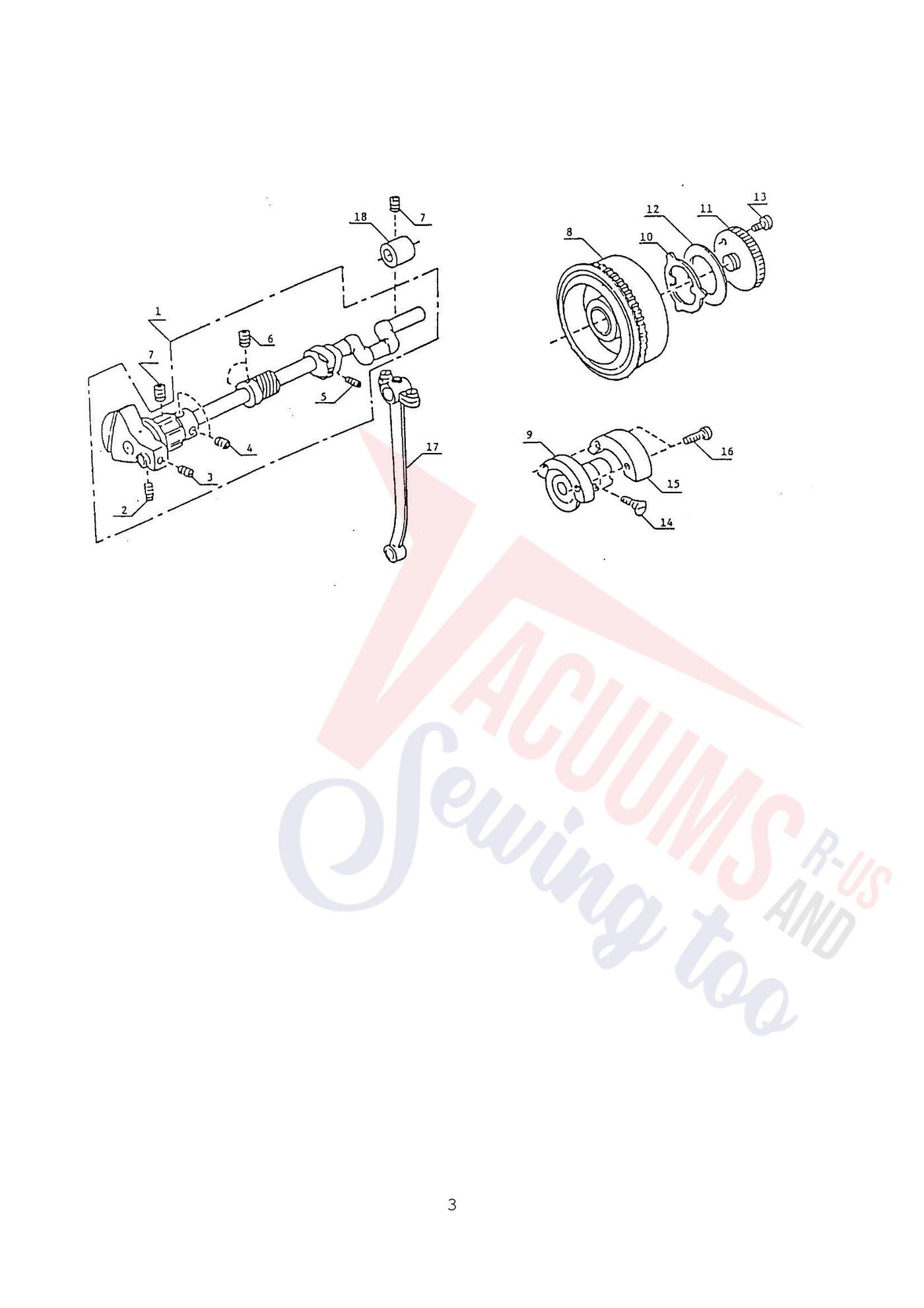

| # | Part image | Description | SKU | Price |
| 1 |  | UPPER SHAFT UNIT 108 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380 ... | 730608008 | $31.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BRACKET SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 102063000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 | Not Available | Set screw | 102133002 | Not Available |
| 6 |  | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Handwheel sewing machine part or accessory For Janome Models: | 730036308 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | BALANCE WHEEL BUSHING sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730037000 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | WASHER STOP MOTION sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, ... | 102076006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | STOP MOTION LARGE SCREW sewing machine part or accessory For Janome Models: 360, 380 & 381, 4... | 647036400 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Washer | 647037009 | Not Available |
| 13 | | Setscrew sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 102078101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & ... | 671106005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | BALANCE WEIGHT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 640008000 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Set screw | 000105202 | Not Available |
| 17 | | CRANK ROD UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 640602000 | $4.40Read more |
| 18 | Not Available | Bushing | 671021005 | Not Available |

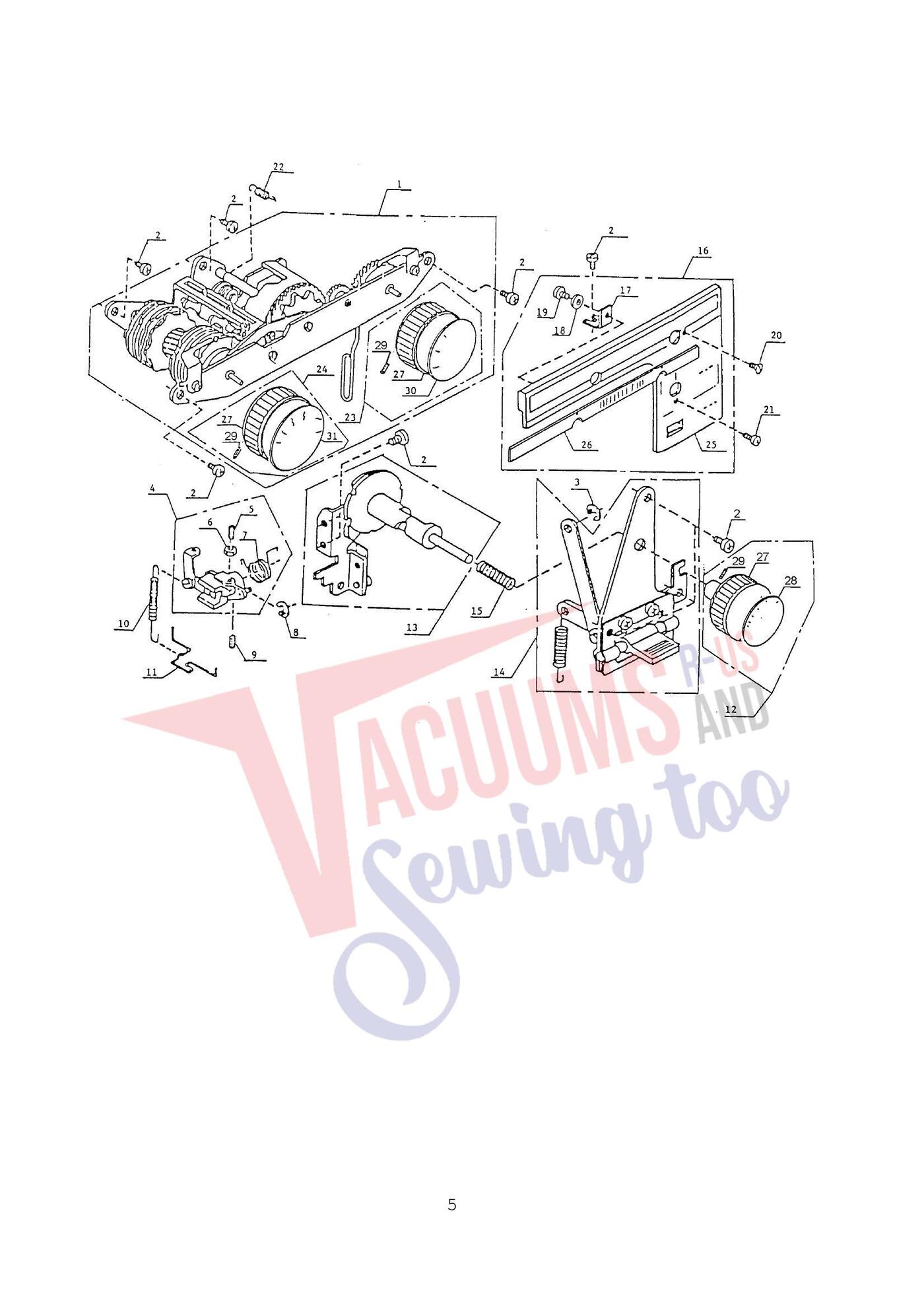

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cam block unit | 731631106 | Not Available |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 4 |  | FEED REGULATOR ASSY sewing machine part or accessory | 731605008 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | FEED REGULATOR BODY SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039... | 735077007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SNAP RING 5D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | 000000309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagonal socket screw sewing machine part or accessory For Janome Models: HD1000BE | 802097004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | HOOK sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 381, ... | 730041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Stitch length dial unit | 731606168 | Not Available |
| 13 | Not Available | Feed regulating cam unit | 731607000 | Not Available |
| 14 | | Reverse feed lever (unit) sewing machine part or accessory For Janome Models: | 731608609 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Spring | 731029002 | Not Available |
| 16 | Not Available | Front panel unit | 731626326 | Not Available |
| 17 | Not Available | Panel set plate | 731037003 | Not Available |
| 18 | | WASHER POLISHED PLAIN 3-9 8 6 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000070104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | SET SCREW 5001 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 693091004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | BINDING HEAD SCREW 3.5X12 sewing machine part or accessory For Janome Models: 360, 380 & 381,... | 000103303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Spring | 730092003 | Not Available |
| 23 | Not Available | Zigzag width dial unit | 731628306 | Not Available |
| 24 | Not Available | Pattern selector dial unit | 731611328 | Not Available |
| 25 | Not Available | Front panel | 731323205 | Not Available |
| 26 | Not Available | Pattern indicating plate | 731324000 | Not Available |
| 27 | Not Available | Dial | 731023604 | Not Available |
| 28 | Not Available | Stitch length indicating plate | 731068003 | Not Available |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Pattern indicating plate | 731087008 | Not Available |
| 31 | Not Available | Zigzag width indicating plate | 731072000 | Not Available |

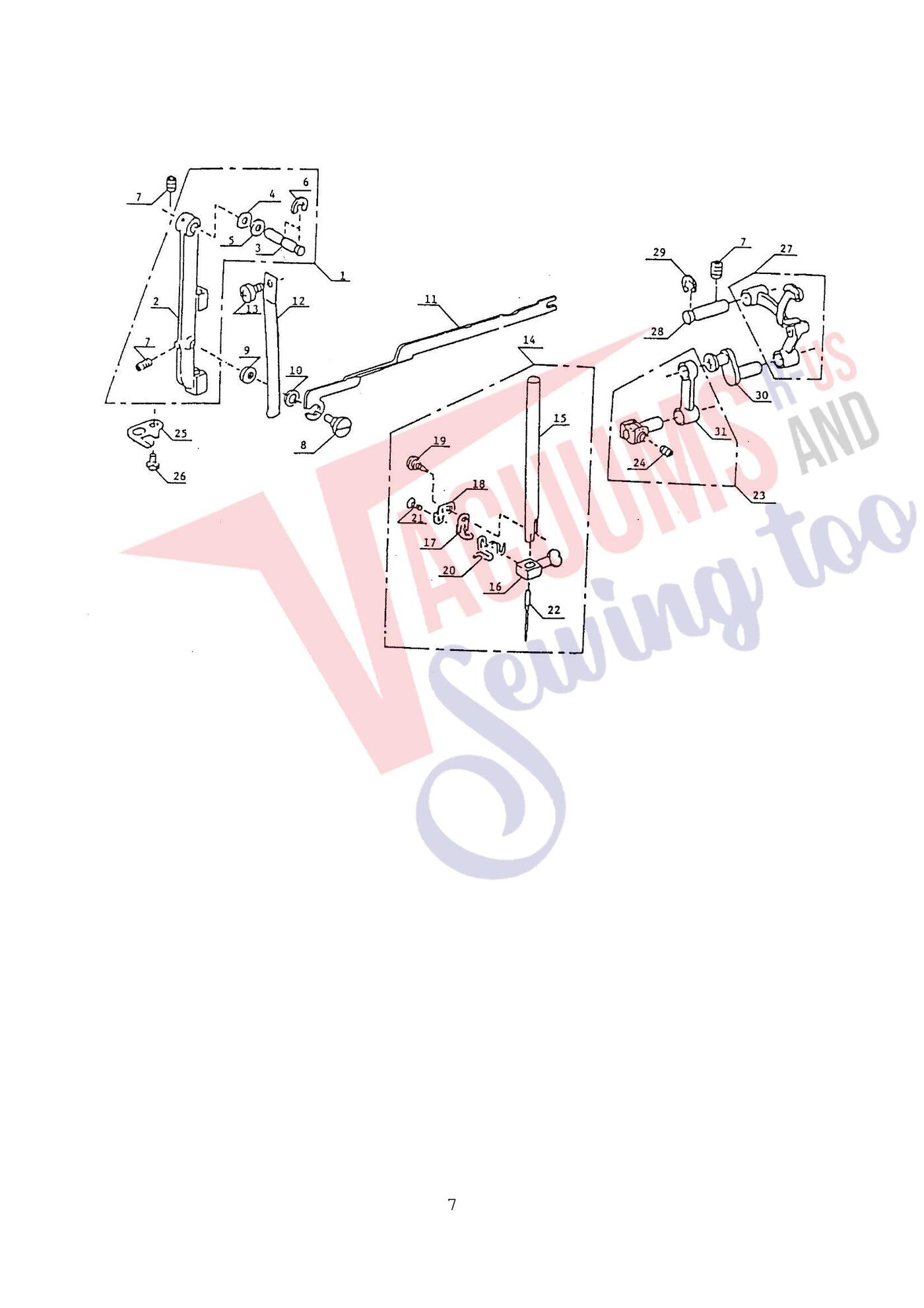

| # | Part image | Description | SKU | Price |
| 1 |  | NEEDLE BAR SUPPORTER UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730606006 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | NEEDLE BAR SUPPORT sewing machine part or accessory | 647130003 | $6.00Add to cart |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Washer | 670258000 | Not Available |
| 10 | Not Available | Washer | 678044005 | Not Available |
| 11 |  | Zigzag rod sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 730023003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Needle bar sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512, JF100... | 553085019 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle Clamp Unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512... | 801506008 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | NEEDLE GUIDE PLATE sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-151... | 730025005 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Needle Holding Plate sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1... | 732105006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512, JF1004... | 802108009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle Clamp Thread Guide sewing machine part or accessory For Janome Models: HF1012, HF2022, JF1... | 680043012 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Bar Thread Guide Screw (Rear) sewing machine part or accessory For Janome Models: HF1012, ... | 670047004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle bar supporter stopper sewing machine part or accessory For Janome Models: 104, 106, 108, 1... | 680036001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Needle bar crank pin unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730509008 | $5.00Add to cart Special order: ships in 2 to 4 weeks |

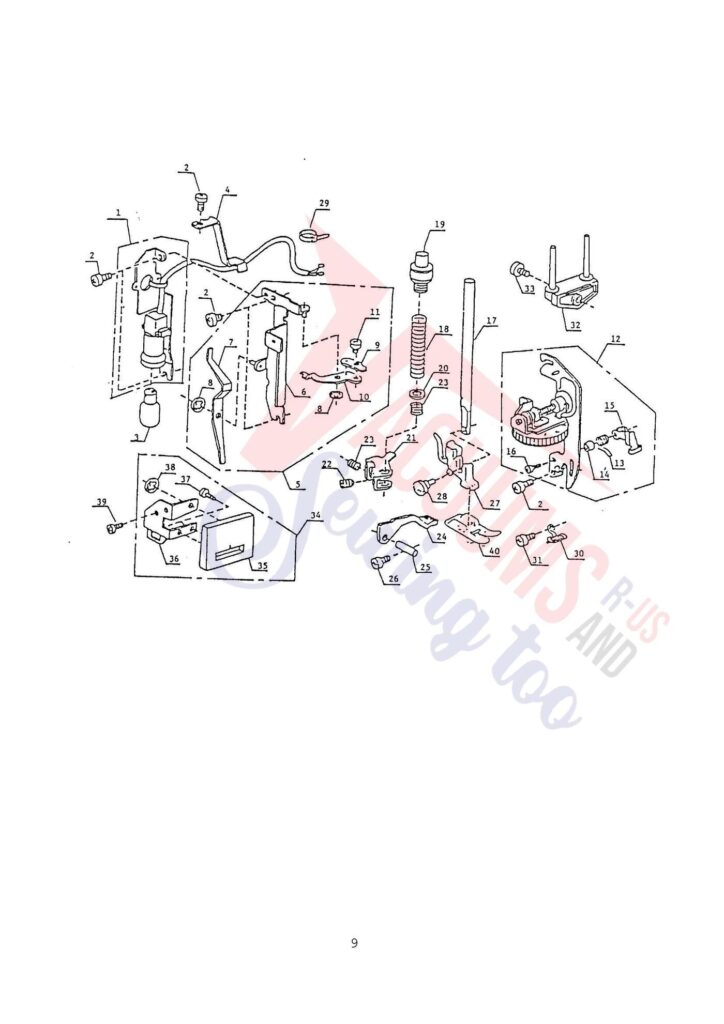

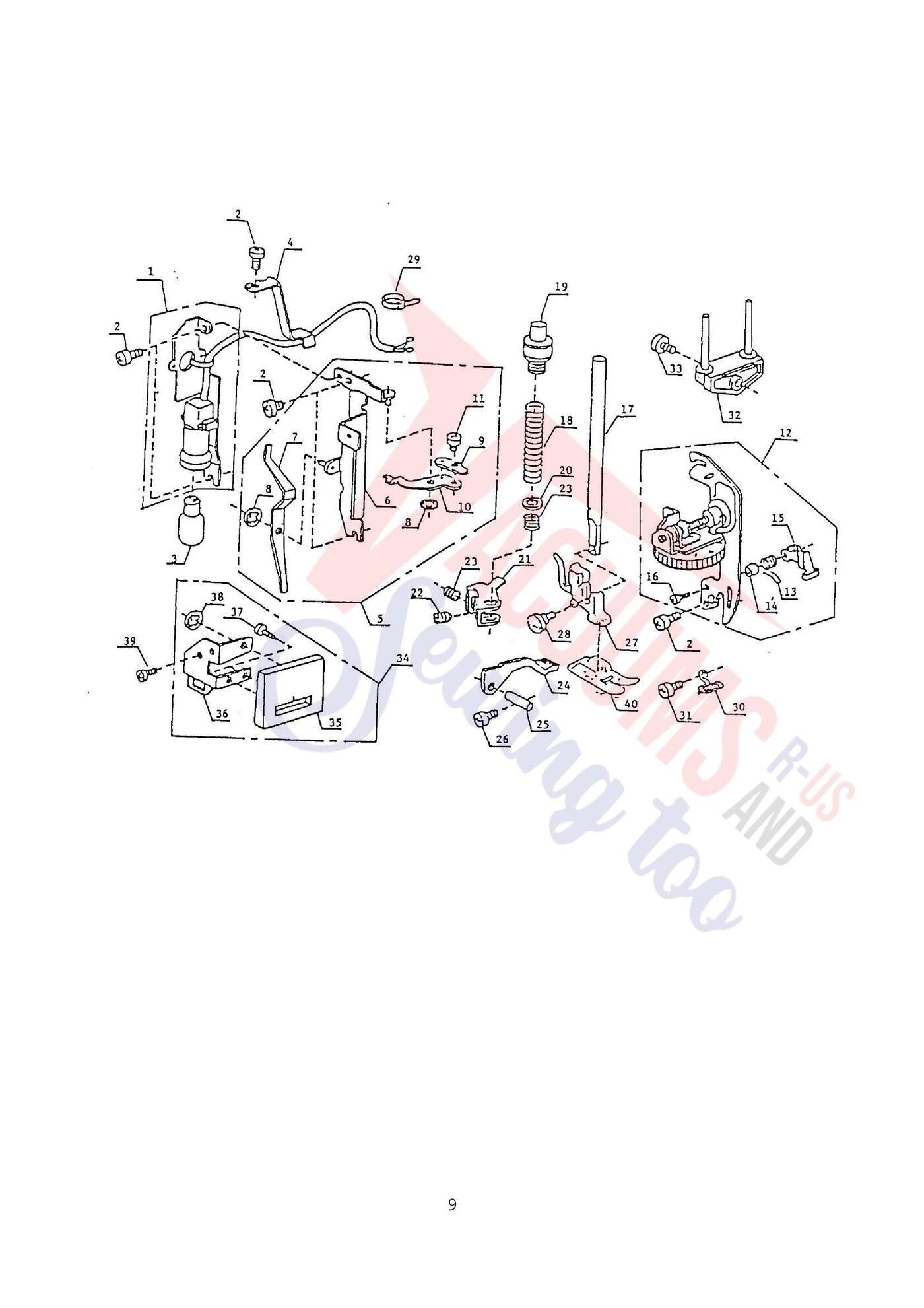

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lamp socket unit | 731503005 | Not Available |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Light bulb | 000009009 | Not Available |
| 4 | Not Available | Cord holder | 693047005 | Not Available |
| 5 | Not Available | Front bracket unit | 731603006 | Not Available |
| 6 | Not Available | Front bracket | 731010000 | Not Available |
| 7 | Not Available | Tension release lever | 730029009 | Not Available |
| 8 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Thread tension release plate sewing machine part or accessory For Janome Models: | 731011001 | $0.40Read more |
| 10 | Not Available | Tension release plate | 730031004 | Not Available |
| 11 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Thread tension regulator unit sewing machine part or accessory For Janome Models: | 731501405 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Check Spring for Model 5500 sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 650044009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SPRING GUIDE 5500 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 625057007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | THREAD GUIDE 5500 sewing machine part or accessory For Janome Models: 360, 380 & 381, COMBI-D... | 650045000 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 3x10 sewing machine part or accessory For Janome Models: | 000069708 | $0.40Read more |
| 17 |  | PRESSER BAR sewing machine part or accessory For Janome Models: 360, 380 & 381, COMBI-10, L-3... | 350804006 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Presser bar spring sewing machine part or accessory For Janome Models: | 731063008 | $0.40Read more |
| 19 | | Pressure regulator (unit) sewing machine part or accessory For Janome Models: | 647505117 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Presser Bar Lifter Lever sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822071004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Presser Foot Holder (5mm front load) sewing machine part or accessory For Janome Models: HD-1000,... | 611510000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Thread Guide for School Model S-650 sewing machine part or accessory For Janome Models: 104, 106,... | 731009006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Set screw | 000100300 | Not Available |
| 32 |  | Spool Pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 4612TM, 808A, L... | 731006209 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Tension indicating plate unit | 731625107 | Not Available |
| 35 | Not Available | Tension indicating plate | 731064102 | Not Available |
| 36 | | Face cover set plate sewing machine part or accessory For Janome Models: | 731062007 | $1.80Read more |
| 37 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Presser Foot (5mm low shank front load) sewing machine part or accessory For Janome Models: HD-10... | 611511001 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

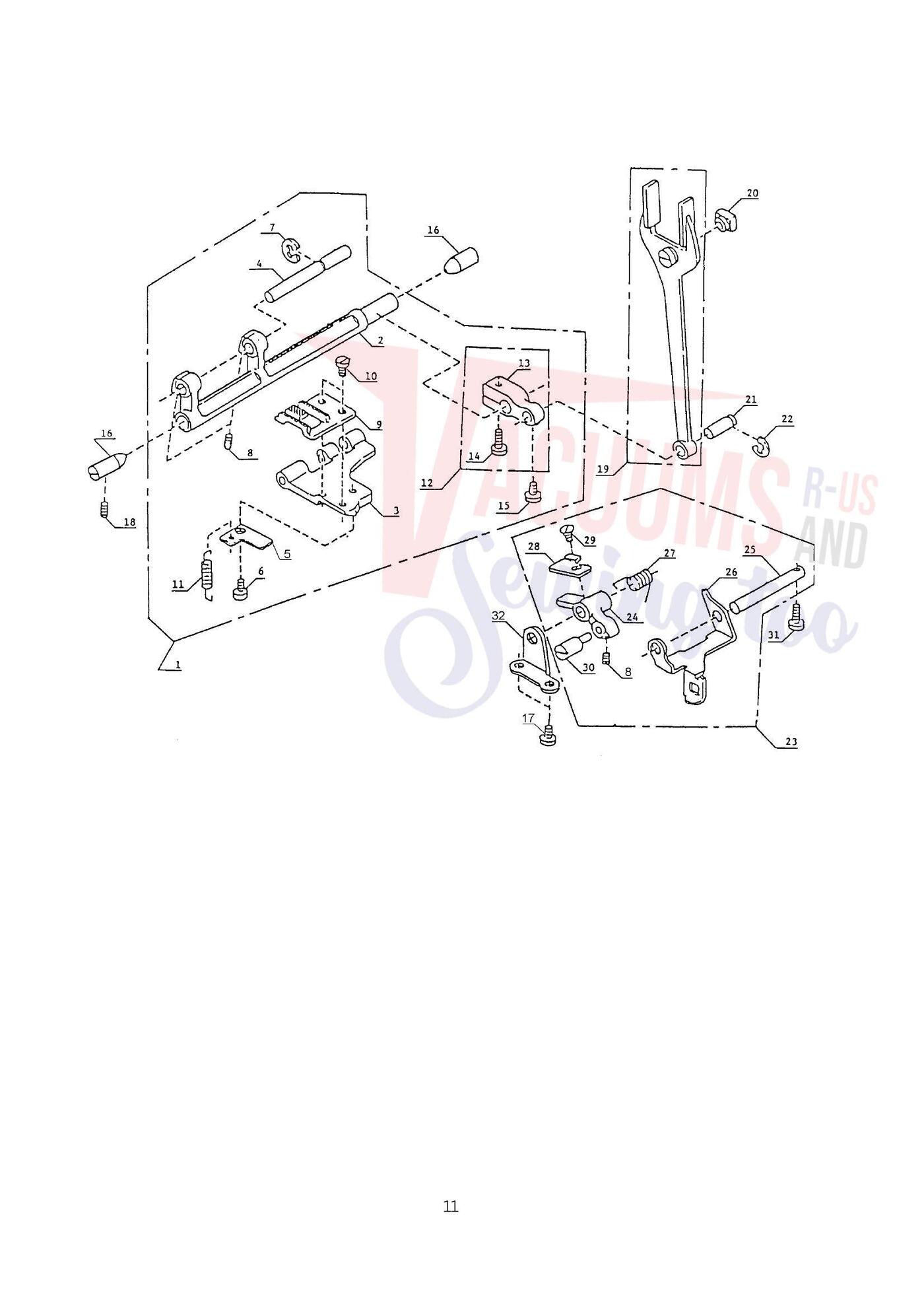

| 1 |  | FEED ROCK SHAFT COMP. UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 730611004 | $30.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 730057006 | $6.60Read more |
| 3 |  | Feed bar sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 647066007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 647134007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Sliding plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 648019008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set screw (black) sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 41... | 102021202 | $0.60Read more |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed dog sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S,... | 730184003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S... | 730183002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed bar spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 672042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Feed rock shaft crank unit | 647612015 | Not Available |
| 13 |  | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 647064005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & ... | 102151006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | OSCILLATING CRANK SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 102205006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 19 |  | FORK ROD FOR 106 MODEL sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 647607006 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Connecting pin sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 673103008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED LIFTING ARM UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730612005 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed lifting arm sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415... | 738028002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Feed lifting arm shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730058007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Drop feed lever | 730059008 | Not Available |
| 27 |  | Drop feed selector spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730061003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Slide plate | 730062004 | Not Available |
| 29 |  | FLAT HEAD SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P... | 365032001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Eccentric pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 4... | 730063016 | $1.61Read more |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Pin supporter | 730064006 | Not Available |
| # | Part image | Description | SKU | Price |

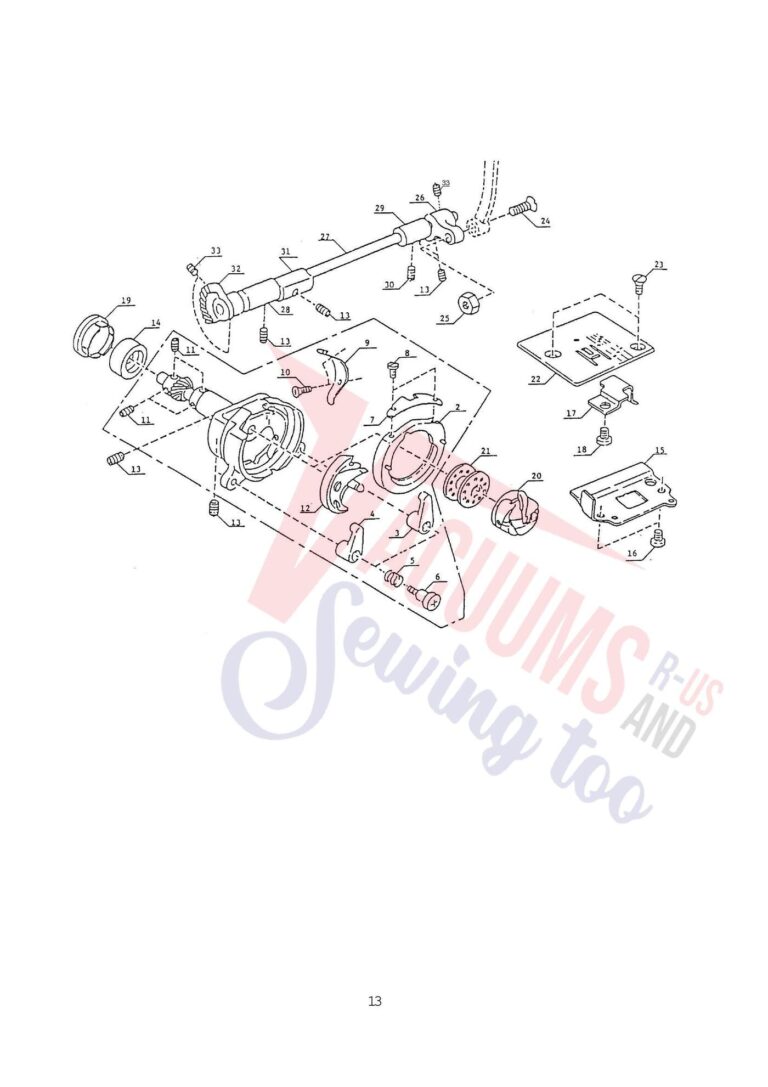

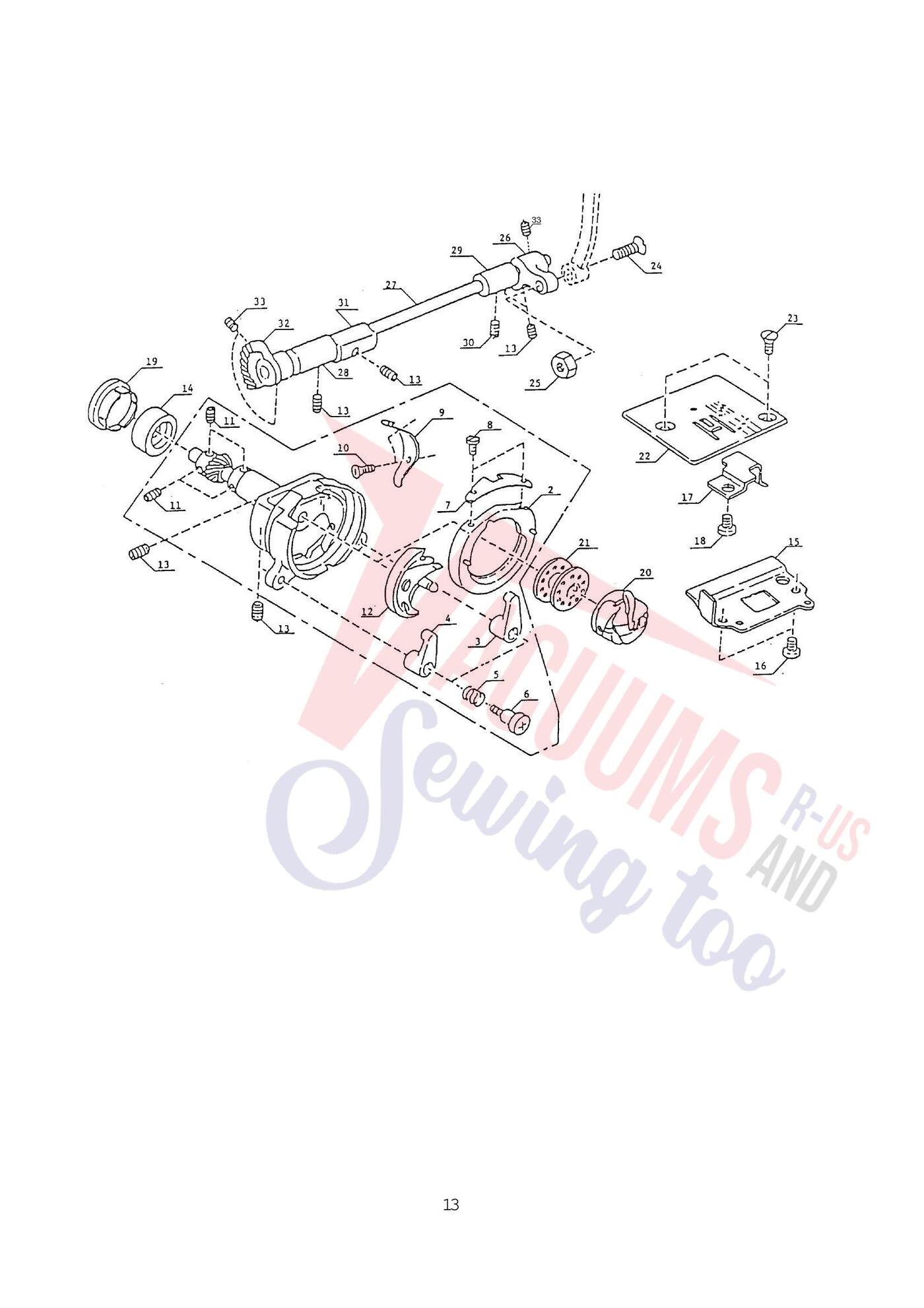

| 1 |  | Shuttle Race Body Unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 640603104 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | RACE RING sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 553168006 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Shuttle race ring clasp right sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 605065006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | HOOK SUPPORTER RING SET-DISCON sewing machine part or accessory For Janome Models: 104, 106, 108,... | 605066007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SHUTTLE RACE CLASP SPRING sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 532184003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hinge screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S,... | 673290003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Race Cover Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 601801000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SHUTTLE RACE SPRING SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 102100000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Shuttle Driver Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670286007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SHUTTLE DRIVER SP SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 102202003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 | | Cam shaft bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 38... | 640018003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Gear cover | 730109004 | Not Available |
| 16 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Gear box upper lid sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 730107002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Cap | 626045407 | Not Available |
| 20 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Bobbin | 102261000 | Not Available |
| 22 |  | Needle Plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &am... | 730027007 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Center Set Screw | 761161000 | $1.40Read more |
| 25 | | CRANK CONN ROD HINGE NUT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 102129005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | LOWER SHAFT CRANK sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 38... | 640010005 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Lower shaft sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 419... | 647142008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Lower shaft bushing sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, ... | 738024008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower shaft bushing (rear) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 640038009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Feed lifting cam sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 647043008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Lower Shaft Gear sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 730038001 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

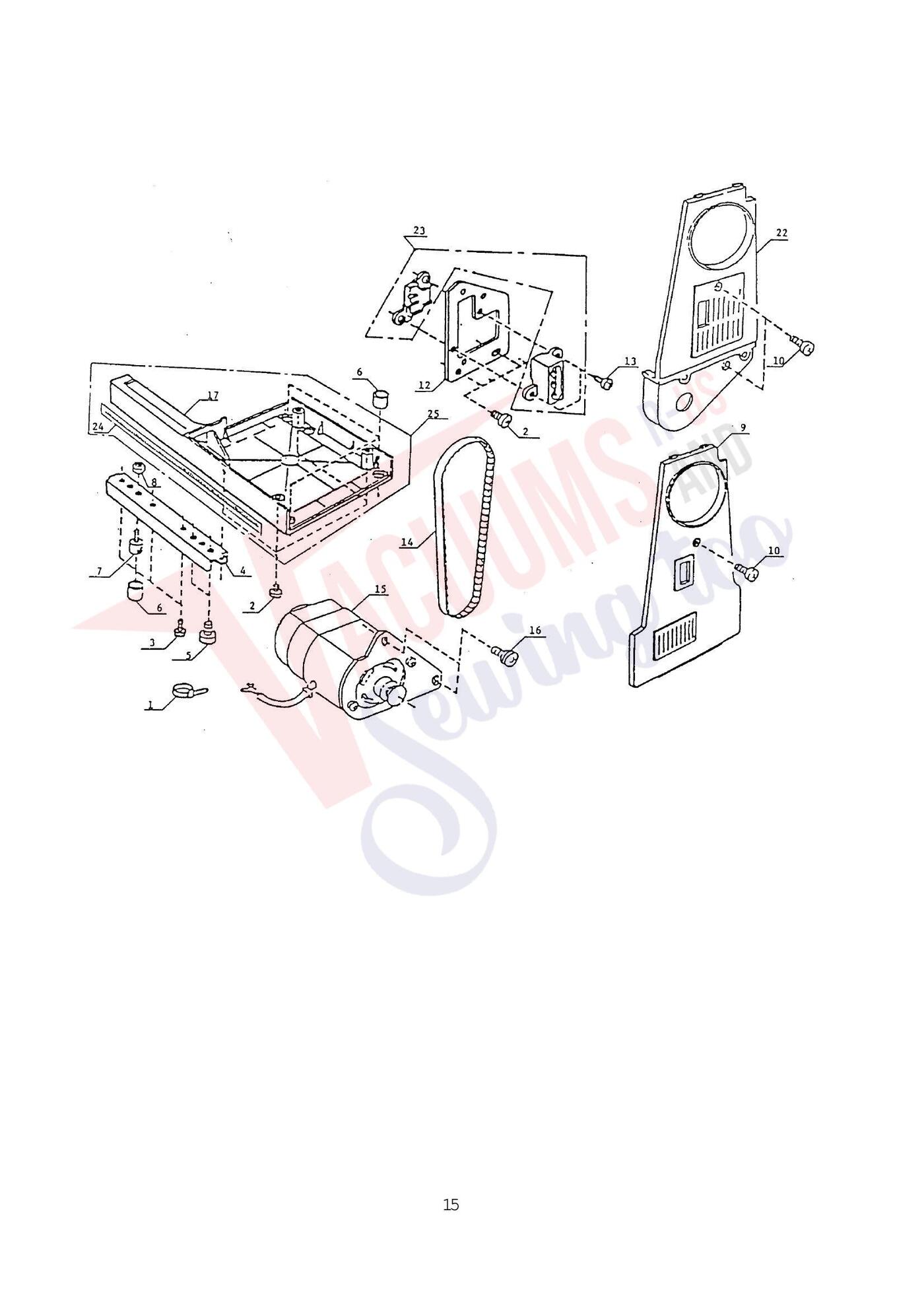

| 1 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | BRACKET FOR L-372 BASE sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730008002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ADJUSTING SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 647010006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Belt cover | 731002401 | Not Available |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Base unit | 731624726 | Not Available |
| 12 | Not Available | Set plate | 731052004 | Not Available |
| 13 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Motor Belt sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 624093002 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Motor | 023970104 | Not Available |
| 16 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Base | 730010502 | Not Available |
| 18 | Not Available | Base measure | 731061305 | Not Available |
| 19 | Not Available | Machine socket unit | 730507109 | Not Available |
Report errors on this page HERE
