Parts list and schematic for: Elna Models: pl1000, sew fun 1000 green Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

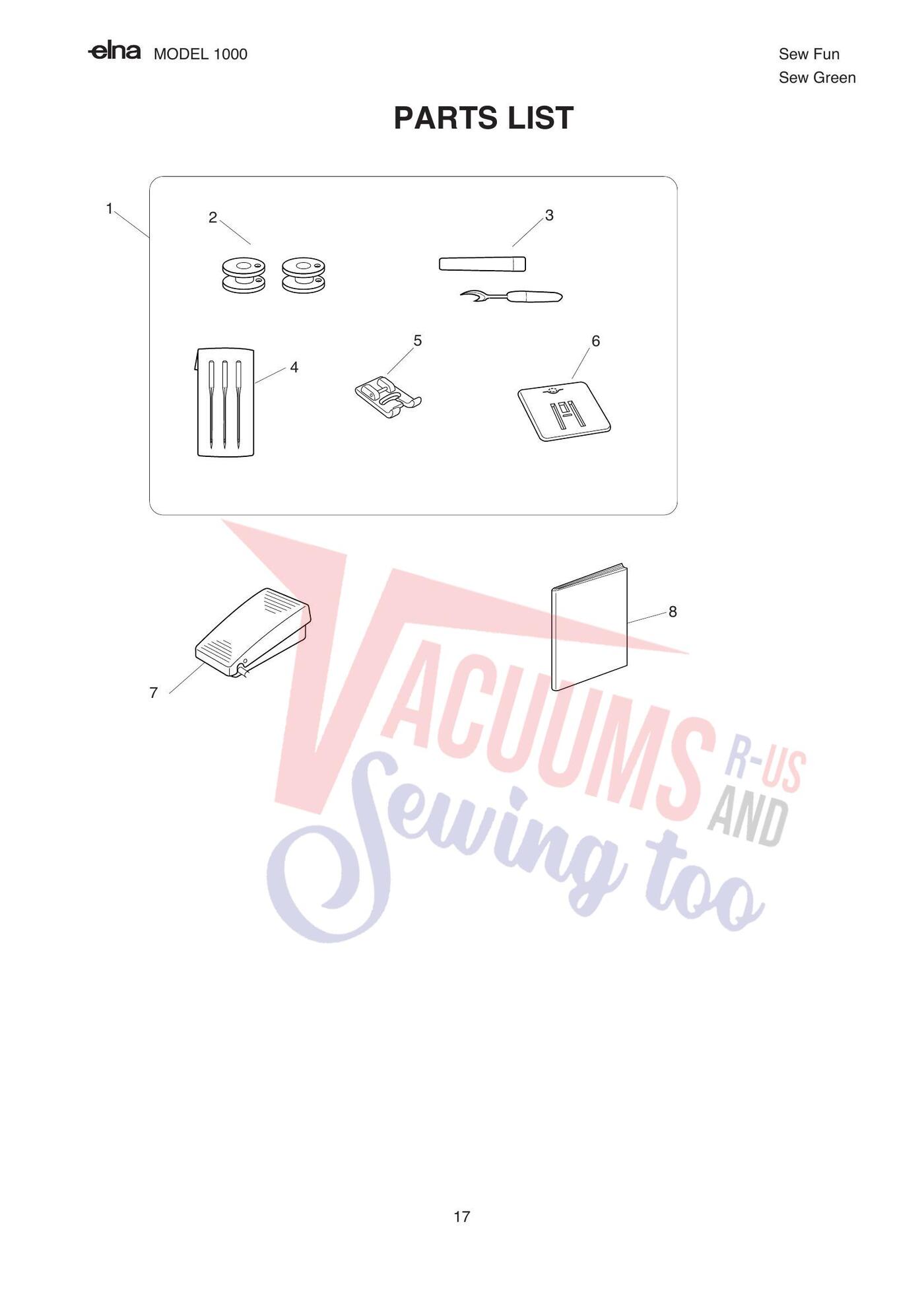

| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna Accessory set (Netherlands) (U.S.A.) For: EL1000 | 743870298 | $19.09Read more |
| 2 | Not Available | Bobbin | 102261000 | Not Available |
| 3 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Genuine Janome/Elna DARNING PLATE 639 & JA1508 For: 2003P, Necchi EV7, Necchi EV7 | 735801008 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Buttonhole foot sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2118S, 21... | 737801015 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Foot control (220V) sewing machine part or accessory For Janome Models: HF5812 | 042970402 | $22.90Read more |
| 8 | | Genuine Janome/Elna INSTRUCTION MANUAL SEW FUN | 743801380 | $8.99Add to cart Special order: ships in 2 to 4 weeks |

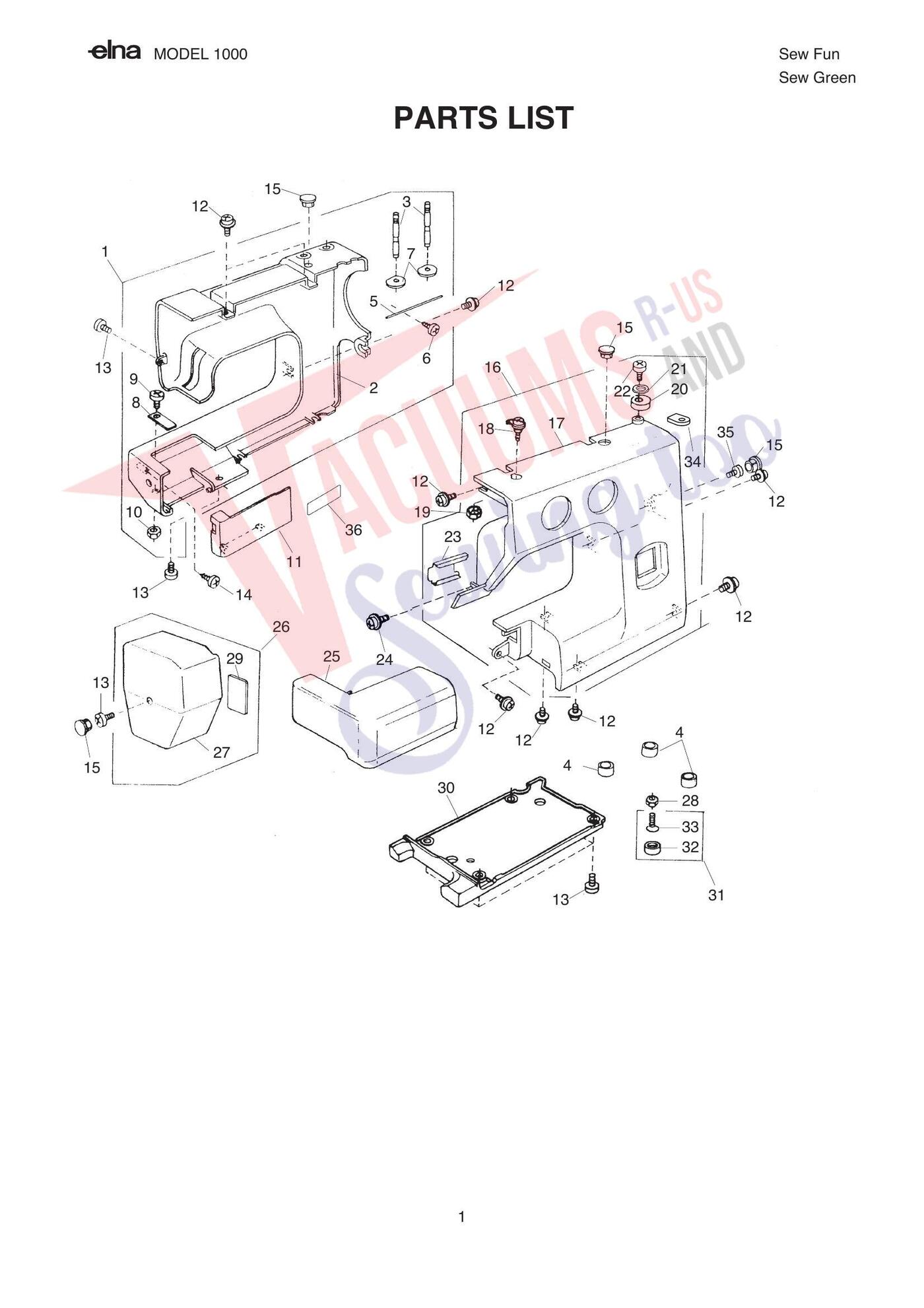

| # | Part image | Description | SKU | Price |
| xx | | Genuine Janome/Elna Front cover (unit) (Sew Green) For: ELSEWGREEN | 743621041 | $31.05Read more |
| xx | | Genuine Janome/Elna Front cover (Sew Green) For: ELSEWGREEN | 743056452 | $12.80Read more |
| xx | | Genuine Janome/Elna Face cover (unit) (Sew Green) For: ELSEWGREEN | 743636706 | $6.90Read more |
| xx | | Genuine Janome/Elna Face cover (Sew Green) For: ELSEWGREEN | 743198505 | $6.80Read more |
| 1 | | Genuine Janome/Elna Rear cover (unit) For: ELSEWFUN | 743617804 | $26.80Read more |
| 2 | | Genuine Janome/Elna Rear cover For: ELSEWFUN | 743003144 | $28.20Read more |
| 3 |  | Spool Pin sewing machine part or accessory 2212, 2206, Elna sew fun | 652205109 | $2.20Read more |
| 4 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SPOOL PIN SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 736007009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool pin spring base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | BED LID FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 739004005 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Front cover (unit) (Sew Fun) For: ELSEWFUN | 743621030 | $35.88Read more |
| 17 | | Genuine Janome/Elna Front cover (Sew Fun) For: ELSEWFUN | 743056441 | $23.00Read more |
| 18 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | THREAD GUIDE PLATE sewing machine part or accessory For Janome Models: JA1504-1512, JS1004, JS1008LE | 735123009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | EXTENSION TABLE FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, FM725, JF10... | 743004008 | $22.18Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna Face cover (unit) (Sew Fun) For: ELSEWFUN | 743636603 | $11.96Read more |
| 27 | | Genuine Janome/Elna Face cover (Sew Fun) For: ELSEWFUN | 743198402 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Janome/Elna Base plate For: 2003P, JF1004, JF1022, JS1004 | 739005006 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Rubber base (unit) sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735616200 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Nut sewing machine part or accessory For Janome Models: 659, QS2250 | 744014004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

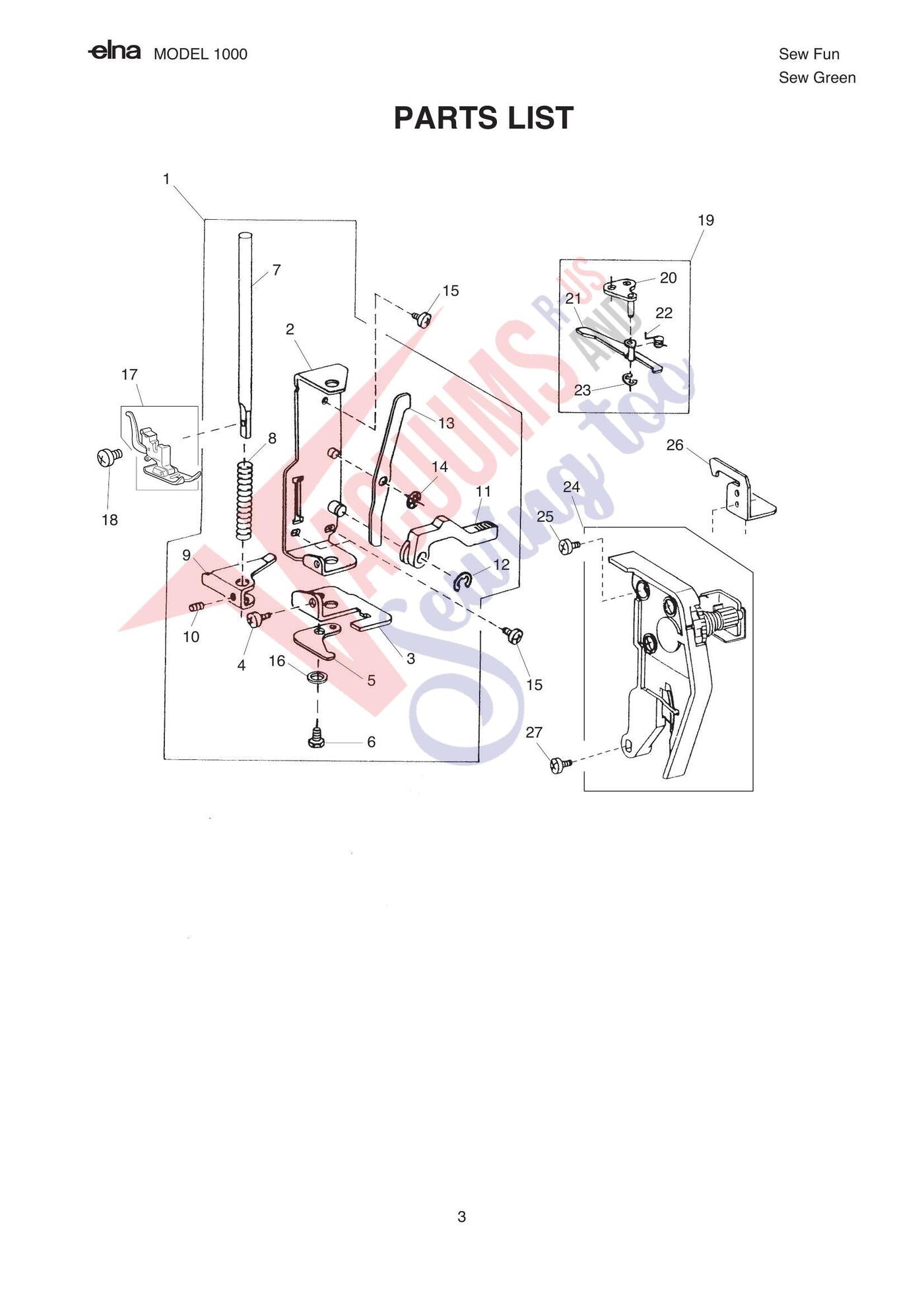

| # | Part image | Description | SKU | Price |
| 1 | | Presser bar base plate (unit) sewing machine part or accessory For Janome Models: 2018S, 2118S, 2... | 305604004 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser bar base plate sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041, 2... | 735221008 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Needle drop adjusting plate sewing machine part or accessory For Janome Models: 2018S, 2039SN, 20... | 735222009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NEEDLE BAR SUPPORTER STOPPER sewing machine part or accessory For Janome Models: 2003P, 2018S, 20... | 735025000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | 7 mm Hexagon Bolt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000138307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PRESSER BAR sewing machine part or accessory For Janome Models: 2003P, 2018S, 2049LX, 2049SX, 211... | 735026001 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735027002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 12 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | TENSION RELEASE LEVER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735030008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Presser foot (unit) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L1... | 301612003 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Tension release arm (unit) sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139... | 739605002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Thread release base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 211... | 739017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Thread release arm sewing machine part or accessory For Janome Models: 2003P, 2041, 2041LX, 2041N... | 739018002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Tension release spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739019003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 24 | | Genuine Janome/Elna Tension assembly (unit) For: EL1000 | 743503002 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Top cover thread guide sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739016000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

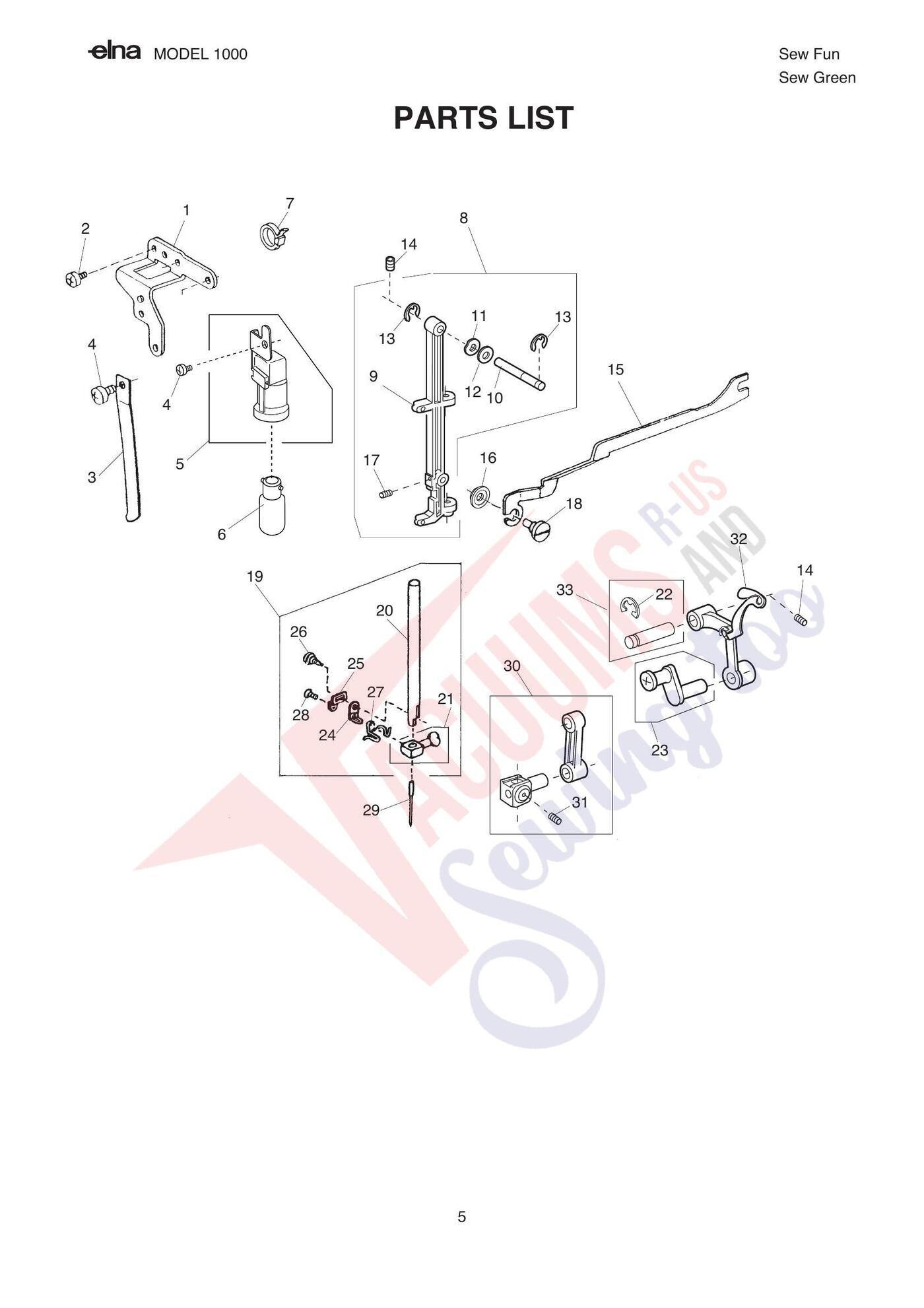

| # | Part image | Description | SKU | Price |
| 1 |  | Face Plate Set Plate sewing machine part or accessory For Janome Models: JF1004, JF1022, XPRESSIO... | 740007013 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Lamp socket (unit) sewing machine part or accessory For Elna Models: ELSEWFUN | 743634003 | $12.60Read more |
| 6 | Not Available | Lamp | 000009009 | Not Available |
| 7 |  | Wire binder sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, 509,... | 000053709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: 2212, 2206 | 301610001 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 2212, 2206 | 301032003 | $15.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 15 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle bar sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512, JF100... | 553085019 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Clamp Unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512... | 801506008 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1... | 735504008 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | NEEDLE GUIDE PLATE sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-151... | 730025005 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle Holding Plate sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1... | 732105006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1504-1512, JF1004... | 802108009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Needle Clamp Thread Guide sewing machine part or accessory For Janome Models: HF1012, HF2022, JF1... | 680043012 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Needle Bar Thread Guide Screw (Rear) sewing machine part or accessory For Janome Models: HF1012, ... | 670047004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |

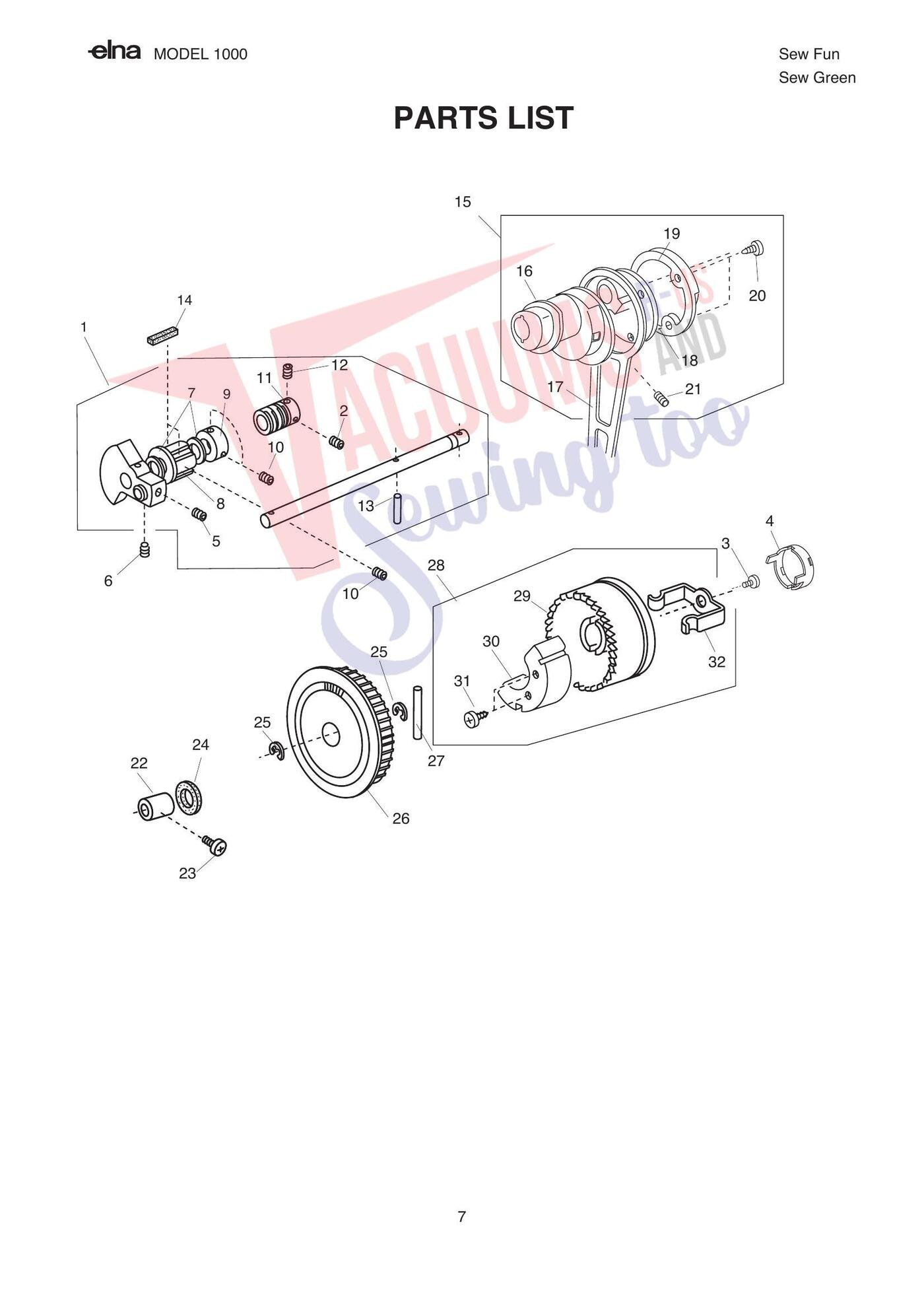

| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: 2212 | 304607200 | $29.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, ... | 000112501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 8 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 |  | Worm sewing machine part or accessory For Janome Models: 2212 | 751146101 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring pin 2x12 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, ... | 000022802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Crank rod (unit) sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304609006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Feed cam sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304042005 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Crank rod sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 743011008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Crank cam sewing machine part or accessory For Elna Models: EL1000 | 304044007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Crank cam plate sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304043006 | $0.00Read more |
| 20 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Upper shaft rear bushing sewing machine part or accessory For Janome Models: 2212, 2206 | 743002006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 743029009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | BELT WHEEL FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 743019006 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | HANDWHEEL UNIT sewing machine part or accessory | 743630009 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Balance wheel sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139S, 2149SX, 62... | 639097024 | $5.80Add to cart |
| 30 |  | Balance weight sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 743030003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | CLUTCH SPRING sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039... | 639113016 | $2.80Add to cart Special order: ships in 2 to 4 weeks |

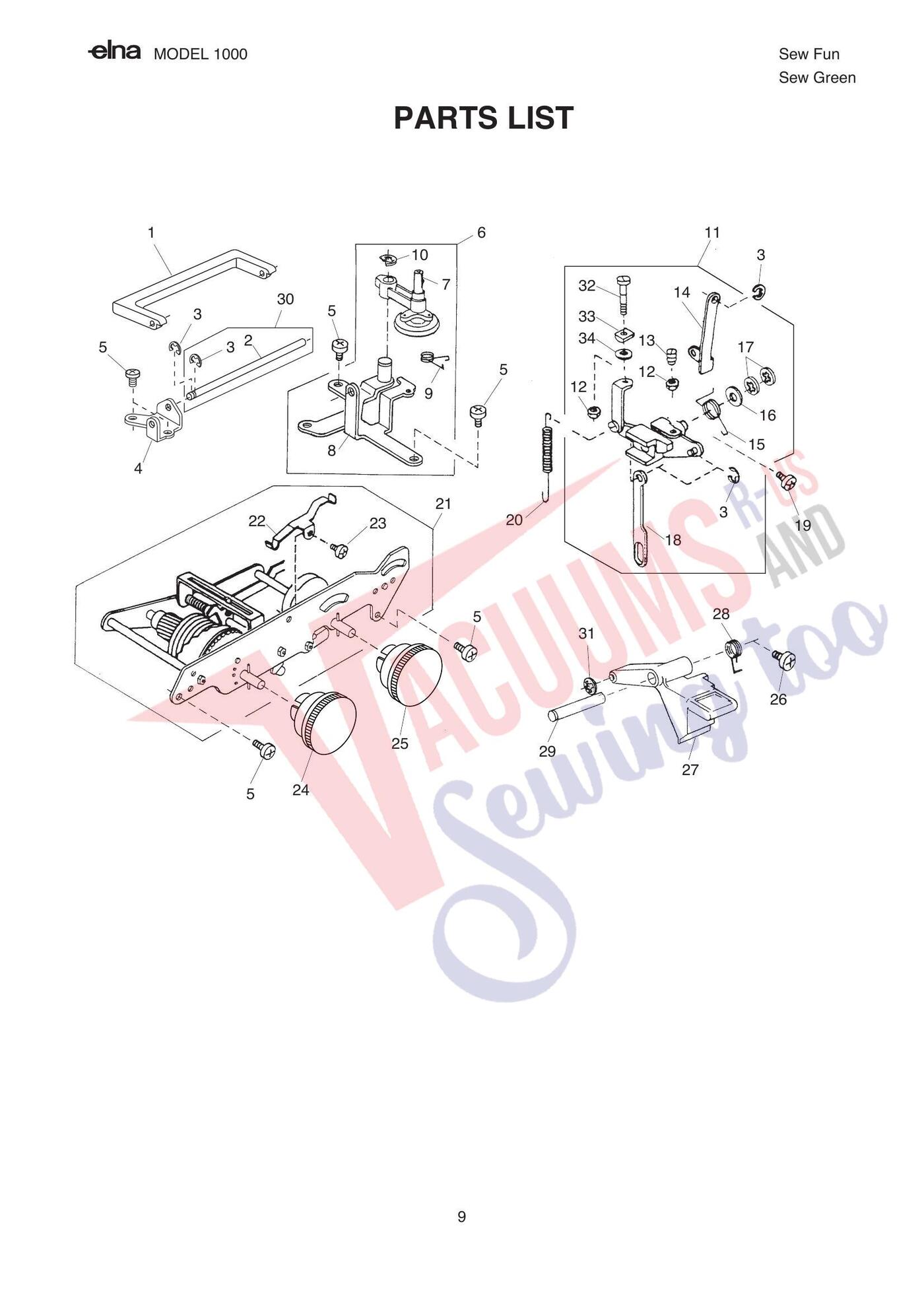

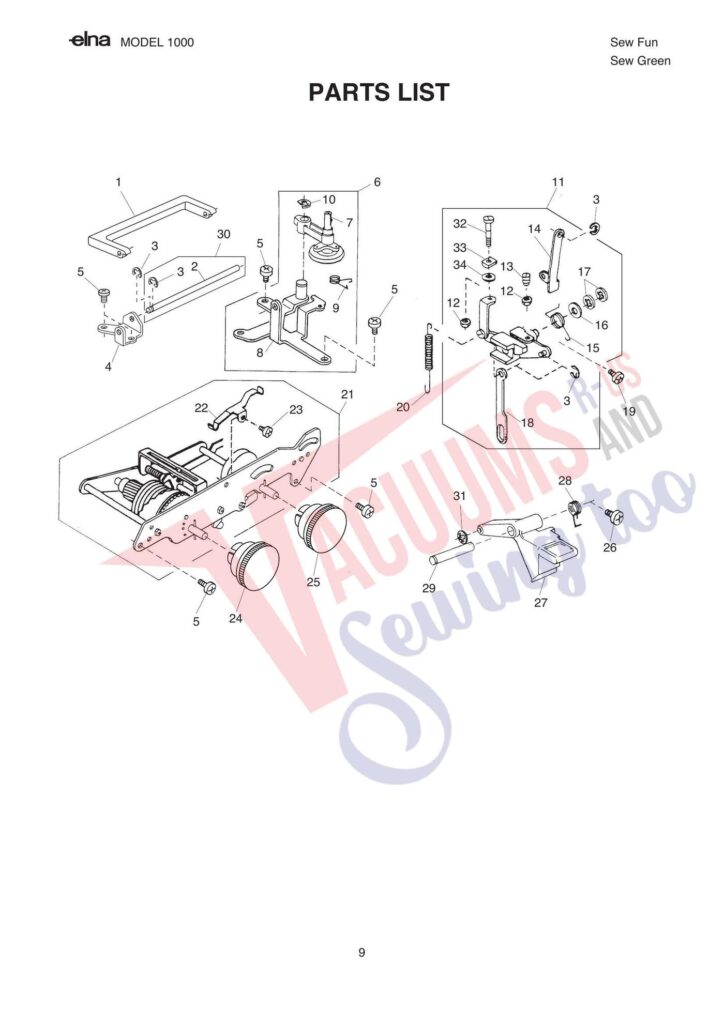

| # | Part image | Description | SKU | Price |
| xx | | Genuine Janome/Elna DIAL For: | 743189318 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| xx | Not Available | Stitch length dial (Sew Green) | 743189329 | Not Available |
| 1 |  | Handle sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139N, 2139S, 2149SX, FM... | 735017308 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Handle shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041... | 740011009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 4 | | Handle supporter sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 740010008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Bobbin Winder Base Plate-1800 Series sewing machine part or accessory For Janome Models: 2003P, 2... | 740602209 | $19.20Read more |
| 7 | | Bobbin winder arm unit sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735501005 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Bobbin winder base plate sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 740003101 | $4.60Read more |
| 9 | | Bobbin winder arm spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 740042009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed regulator (unit) sewing machine part or accessory For Elna Models: EL1000 | 736604301 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Feed regulating rod sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041... | 739020007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | FEED REGULATOR BODY SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039... | 735077007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | REVERSE LINK sewing machine part or accessory | 730045001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna Zigzag mechanism (unit) For: EL1000 | 743661009 | $69.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Index spring sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 737011009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Genuine Janome/Elna DIAL For: | 743189293 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Stitch length dial (Sew Fun) | 743189307 | Not Available |
| 26 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | R button sewing machine part or accessory For Elna Models: EL1000 | 742007008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | R button spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 739063002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | REVERSE BUTTON HINGE PIN sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 736015000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Carrying handle shaft unit sewing machine part or accessory For Janome Models: FM725, JS1008LE, X... | 740624001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SS ADJUSTING SCREW sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 735074004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | SS ROD BLOCK sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 735076006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

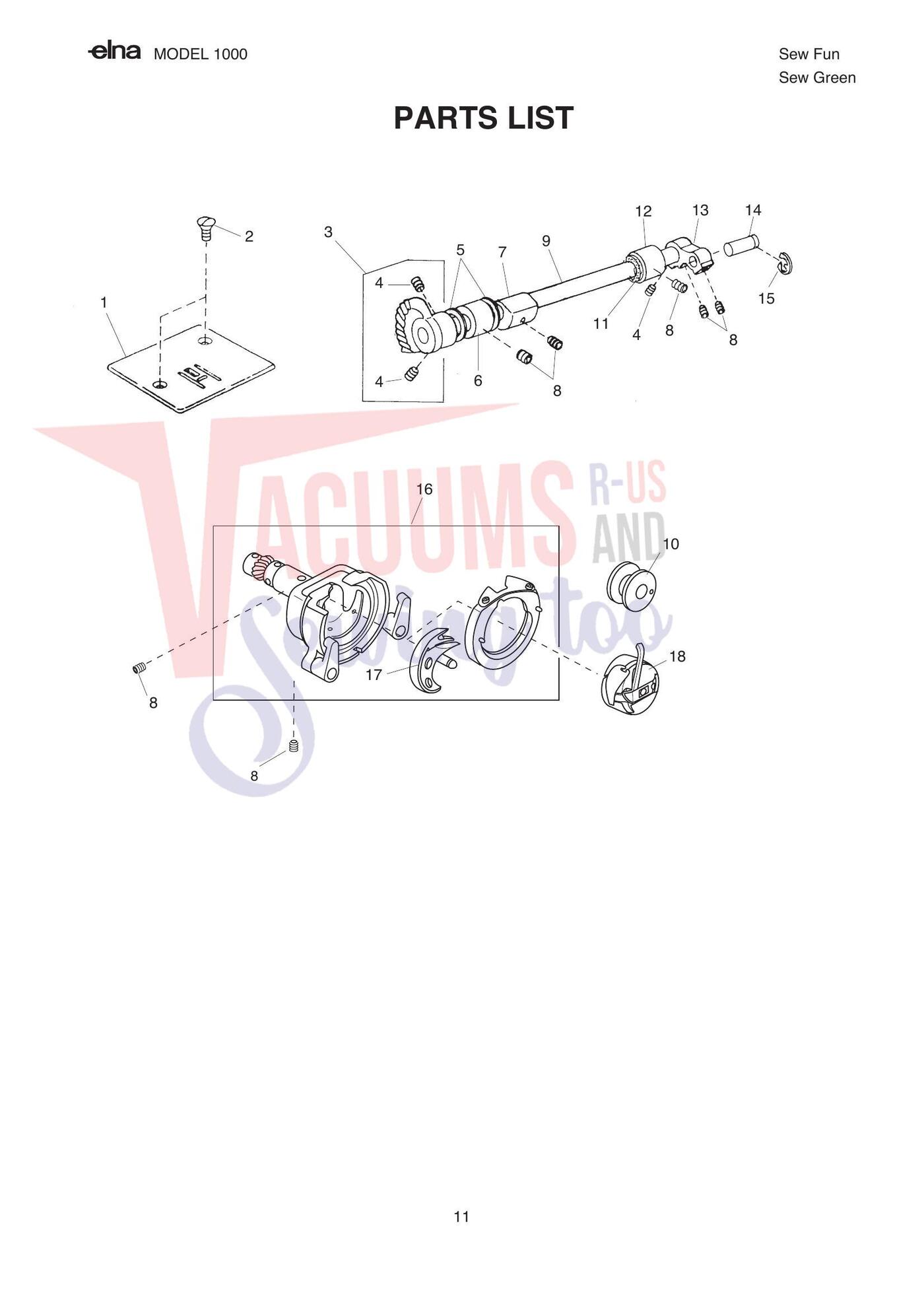

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 204... | 744004001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735950003 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735233003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Feed lifting cam sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735061008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 9 |  | LOWER SHAFT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041L... | 735236006 | $55.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Bobbin | 102261000 | Not Available |
| 11 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735234004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft crank arm sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 203... | 639036003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2041, ... | 639037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SHUTTLE BODY UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 1017, 1117S, 200... | 735610101 | $111.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |

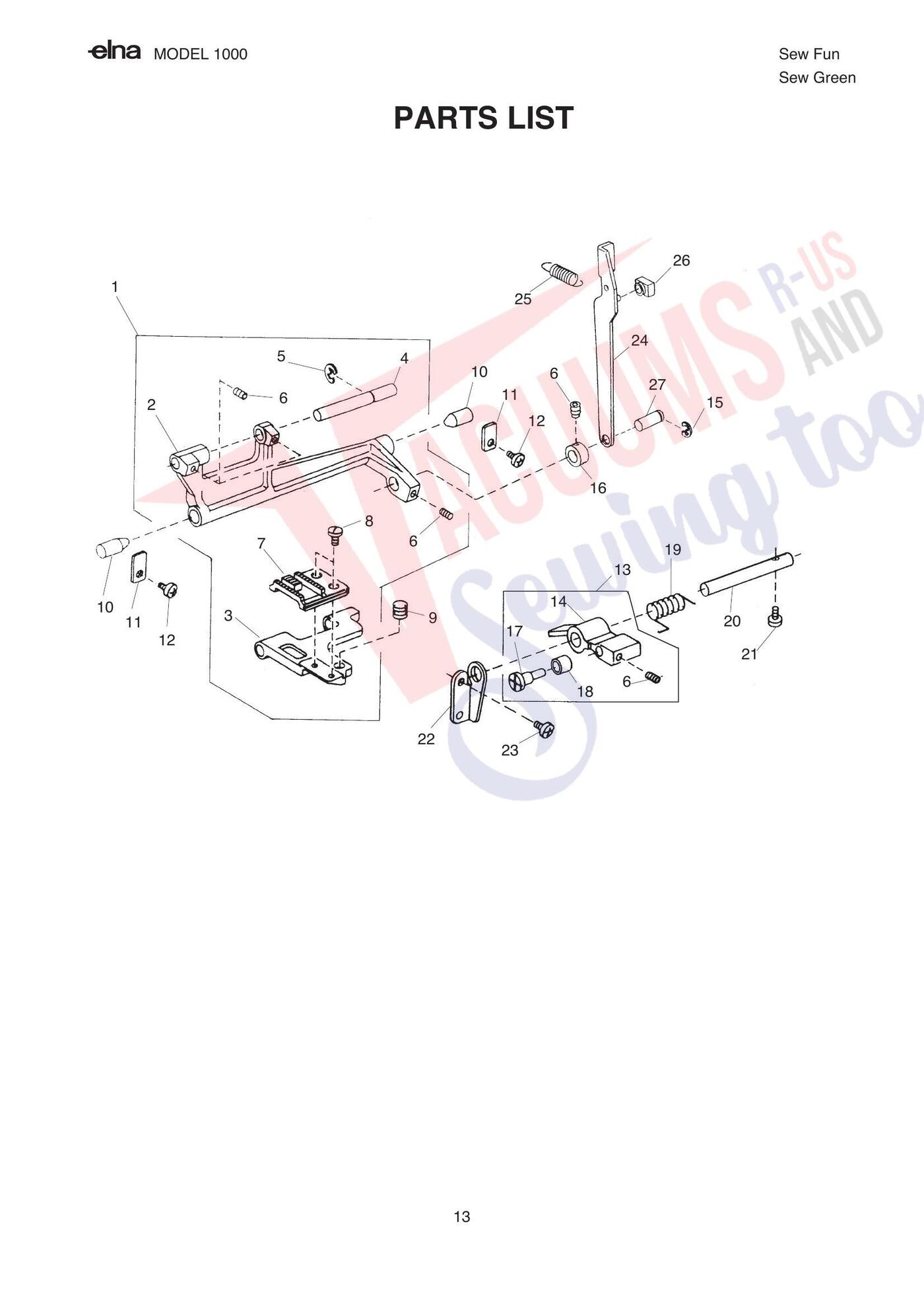

| # | Part image | Description | SKU | Price |
| 1 |  | FEED ROCK SHAFT UNIT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 20... | 735612000 | $48.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Elna Models: EL1000 | 735078008 | $7.40Read more |
| 3 |  | Feed bar sewing machine part or accessory For Elna Models: EL1000 | 735079009 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 735080003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed Dog sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, ... | 735081004 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 735082005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed bar spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 735083006 | $0.60Read more |
| 10 |  | FEED ROCK SHAFT CENTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735084007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | UPPER SHAFT CTR HOLDING PLATE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 735085008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Feed lifting arm (unit) sewing machine part or accessory For Janome Models: JS1008LE, Necchi EV7 | 301608006 | $4.80Read more |
| 14 |  | Feed lifting arm sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041S, 2041S ... | 301027005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 735276008 | $1.40Read more |
| 17 |  | Feed lifting pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 735087000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed lifting roller sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735088001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | FEED LIFTING SPRING sewing machine part or accessory For Janome Models: 2003P, HF1012, JA1504-151... | 735089002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed lifting shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735090006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew 4x12 sewing machine part or accessory For Janome Models: 2003P, 625E, DE5018, DE5024, DE... | 000097200 | $0.60Read more |
| 22 | | Feed lifting shaft holder sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 739022009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | FEED ROD FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743012009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | FEED ROD SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 743013000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |

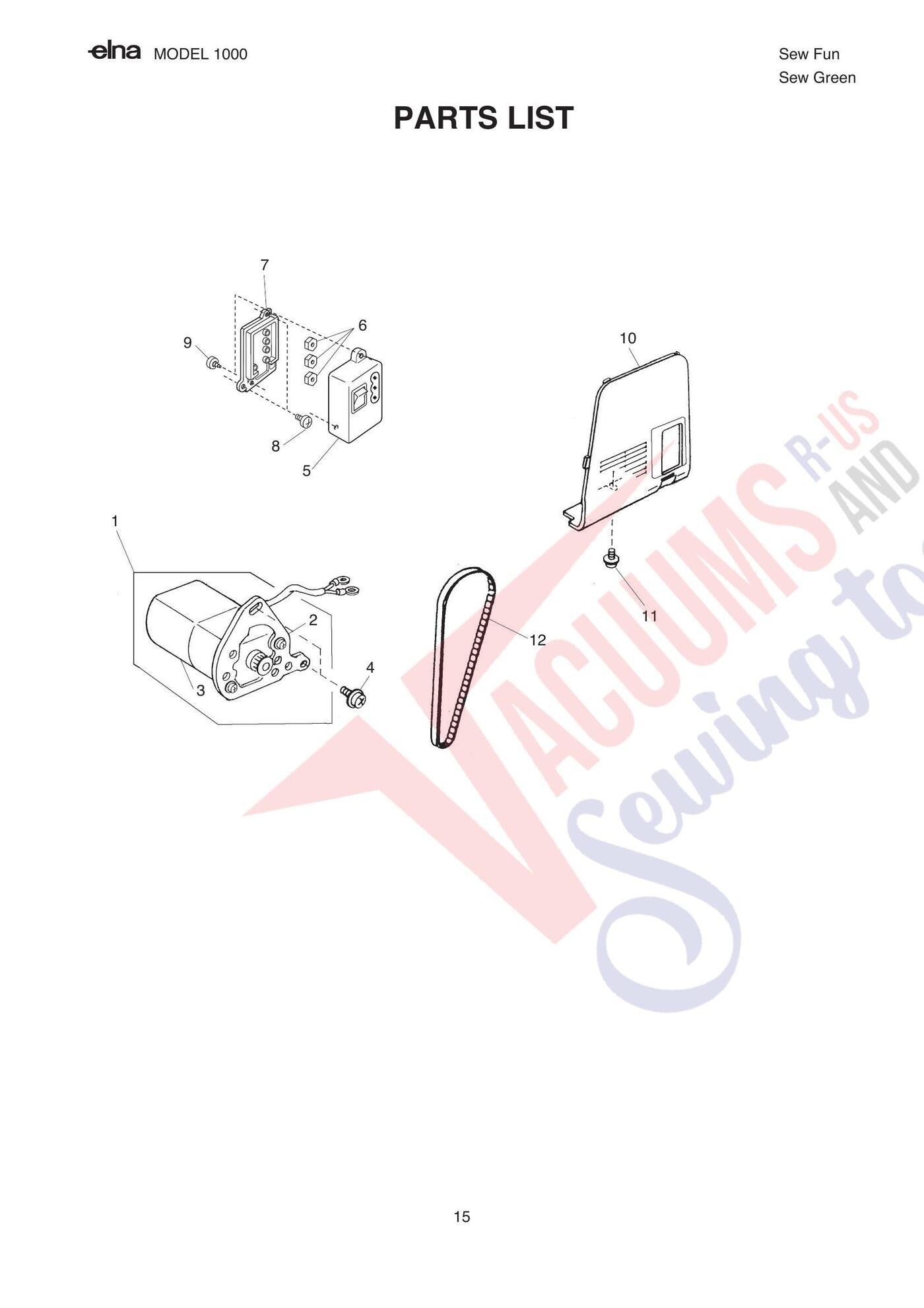

| # | Part image | Description | SKU | Price |
| 1 | | Motor (unit) for EL220 sewing machine part or accessory | 743611004 | $72.40Read more |
| 2 | | MOTOR BRACKET sewing machine part or accessory | 743025005 | $1.80Read more |
| 3 | Not Available | Motor assy | 024070108 | Not Available |
| 4 |  | Setscrew 5x12 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 204... | 000201209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Machine socket (UNIT) sewing machine part or accessory For Janome Models: 2018S, 2041S & 2141... | 739503308 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Belt Cover sewing machine part or accessory For Janome Models: 2003P, FM725, JF1004, JF1022, XPRE... | 743017004 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna MOTOR TIMING BELT | 650166019 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
