Parts list and schematic for: Elna Models: el9020 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 | Not Available | NEEDLEPLATE(ASM.) 1 | 395821-95 | Not Available |
| 2 | Not Available | NEEDLEPLATE (1) | 395821-96 | Not Available |
| 3 | Not Available | BOBBINCASECOVER (1) | 395821-97 | Not Available |
| 4 | Not Available | NEEDLEPLATEPILEB (1) | 395814-82 | Not Available |
| 5 | Not Available | STOPPINGPLATE(LEFT) (1) | 395821-98 | Not Available |
| 6 | Not Available | HOOKCOVERSPRING (1) | 395814-84 | Not Available |
| 7 | Not Available | HOOKCOVERSUPPORTPLATE (1) | 395814-85 | Not Available |
| 8 | Not Available | HOOKCOVEROPEN/CLOSEBUTTON (1) | 395814-86 | Not Available |
| 9 | Not Available | HOOKCOVERBUTTONSUPPORT (1) | 395814-87 | Not Available |
| 10 | Not Available | NEEDLEPLATEPILEA (1) | 395814-88 | Not Available |
| 11 | Not Available | SCREW (2) | 395814-89 | Not Available |
| 12 | Not Available | SCREW (1) | 395810-44 | Not Available |
| 13 |  | Genuine Janome/Elna SCREW EL9010 XQUISIT | 395817-04 | $0.60Read more |
| 14 | Not Available | SCREW (1) | 395814-92 | Not Available |
| 15 | Not Available | NEEDLEPLATERUBBER (1) | 395814-93 | Not Available |
| 16 | Not Available | BAND 2 | 395810-49 | Not Available |
| 17 | Not Available | HOOKCOVER(ASM.) 1 | 395821-99 | Not Available |
| 18 |  | Genuine Janome/Elna NEEDLE PLATE SCREW ELNA XE1 | 395814-96 | $5.40Read more |
| 19 | Not Available | LATERALFEEDSTMFIXINGPLATE(TOTALASM.)(120V) 1 | 395822-00 | Not Available |
| 20 | Not Available | LATERALFEEDSTMFIXINGPLATE(TOTALASM.)(230V) 1 | 395822-01 | Not Available |
| 21 | Not Available | THREADRELEASEARM (1) | 395814-99 | Not Available |
| 22 | Not Available | ERING (1) | 395810-71 | Not Available |
| 23 | Not Available | KNIFEDISENGAGINGCONTACT (1) | 395815-02 | Not Available |
| 24 | Not Available | ERING (1) | 395811-09 | Not Available |
| 24 | Not Available | ERING (1) | 395811-09 | Not Available |
| 25 | Not Available | LATERALFEEDSTM (1) | 395815-04 | Not Available |
| 26 | Not Available | RELAYLEADWIRE(ASM.) (1) | 395815-05 | Not Available |
| 27 | Not Available | SCREW (2) | 395810-33 | Not Available |
| 27 | Not Available | SCREW (2) | 395810-33 | Not Available |
| 28 | | Genuine Janome/Elna MAIN SHAFT DETECTING BOARD | 395815-07 | $18.00Read more |
| 29 | | Genuine Janome/Elna LATERAL FEED GEAR | 395815-08 | $62.40Read more |
| 30 | Not Available | SCREW (2) | 395811-19 | Not Available |
| 30 | Not Available | SCREW (2) | 395811-19 | Not Available |
| 32 | Not Available | GEARPIN (1) | 395815-11 | Not Available |
| 33 | Not Available | WASHERA (2) | 395815-12 | Not Available |
| 33 | Not Available | WASHERA (2) | 395815-12 | Not Available |
| 34 | Not Available | WASHERB (1) | 395815-13 | Not Available |
| 35 | Not Available | SPRINGWASHER (1) | 395815-14 | Not Available |
| 36 | Not Available | LATERALFEEDLINK(ASM.) (1) | 395822-02 | Not Available |
| 37 | Not Available | CROSSFEEDLINKROLLER (1) | 395822-03 | Not Available |
| 38 | Not Available | ERING (1) | 395812-22 | Not Available |
| 39 | Not Available | THREADTRIMMINGGEARSTOPPER (1) | 395815-18 | Not Available |
| 40 | Not Available | ORIGINDETECTINGRUBBER (1) | 395815-19 | Not Available |
| 42 | Not Available | HOOKDRIVINGSHAFTSUPPORT (1) | 395815-21 | Not Available |
| 43 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 44 | | Genuine Janome/Elna DRIVER CABLE ELNA EL9010 XE1 | 395815-23 | $49.20Read more |
| 45 | | Genuine Janome/Elna SCREW FOR BRACKET 9010 9020 | 395819-84 | $1.00Read more |
| 46 |  | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | LATERALFEEDSTMFIXINGPLATE(ASM.) (1) | 395822-04 | Not Available |
| 48 | Not Available | DRIVERCABLE(TOTALASM.)(230V) (1) | 395822-05 | Not Available |
| 49 | Not Available | LATERALFEEDLINKSPRING (1) | 395815-28 | Not Available |
| 50 | Not Available | THREADTRIMMINGGEAR (1) | 395814-98 | Not Available |
| 53 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 54 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 55 | Not Available | SCREW 1 | 395810-38 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | GEARCOVER(ASM.) 1 | 395815-30 | Not Available |
| 2 | Not Available | GEARCOVER (1) | 395815-31 | Not Available |
| 3 | Not Available | WINDING-ROUNDPREVENTINGKNIFE (1) | 395815-32 | Not Available |
| 4 | Not Available | SCREW (1) | 395814-92 | Not Available |
| 4 | Not Available | SCREW (1) | 395814-92 | Not Available |
| 5 | Not Available | SCREW 2 | 395810-33 | Not Available |
| 5 | Not Available | SCREW 2 | 395810-33 | Not Available |
| 6 | Not Available | SCREW(RIGHT) 1 | 395815-35 | Not Available |
| 7 | Not Available | BOBBINCASESTOPERPLATE(TOTALASM.) 1 | 395822-06 | Not Available |
| 8 | Not Available | BOBBINCASESTOPPERPLATE (1) | 395822-07 | Not Available |
| 9 | Not Available | INTER-HOOKHOLDINGPLATESPRING (1) | 395815-38 | Not Available |
| 11 | Not Available | BOBBINWINDERBASETENSION(ASM.) (1) | 395815-40 | Not Available |
| 12 | Not Available | SPRING (1) | 395822-08 | Not Available |
| 13 | Not Available | ERING (1) | 395812-22 | Not Available |
| 14 | Not Available | STOPPERPLATESUPPORT (1) | 395815-43 | Not Available |
| 15 | Not Available | WASHER (1) | 395813-73 | Not Available |
| 16 | Not Available | THREADTRIMMINGMECHANISMBASE(ASM.B) 1 | 395822-09 | Not Available |
| 17 | Not Available | THREADTRIMMINGMECHANISMBASE(ASM.A) (1) | 395822-10 | Not Available |
| 18 | Not Available | LOOPERWORKINGPLATE(ASM.) (1) | 395822-11 | Not Available |
| 19 | Not Available | MOVINGKNIFEBASEGUIDE (1) | 395822-12 | Not Available |
| 20 | Not Available | SCREW (1) | 395811-76 | Not Available |
| 21 | Not Available | SCREW (1) | 395814-75 | Not Available |
| 22 | Not Available | MOVINGKNIFESTOPPER (1) | 395815-51 | Not Available |
| 23 | Not Available | MOVINGKNIFESTOPPER (1) | 395822-13 | Not Available |
| 24 | Not Available | MOVINGKNIFEBASE(TOTALASM.) 1 | 395822-14 | Not Available |
| 25 | Not Available | MOVINGKNIFE (1) | 395822-15 | Not Available |
| 26 | Not Available | SPACER (1) | 395815-55 | Not Available |
| 27 | Not Available | SCREW (2) | 395815-56 | Not Available |
| 28 | Not Available | MOVINGKNIFEBASE(ASM.) (1) | 395822-16 | Not Available |
| 29 |  | Genuine Janome/Elna MOVING KNIFE GUIDE PLATE | 395815-58 | $13.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | MOVINGKNIFEGUIDEPLATE(LOWER) 1 | 395815-59 | Not Available |
| 31 | Not Available | SPACER 1 | 395815-60 | Not Available |
| 32 | Not Available | MOVINGKNIFESUPPORT 1 | 395815-61 | Not Available |
| 33 | Not Available | GUIDEPLATECOLLAR 1 | 395815-62 | Not Available |
| 34 | Not Available | SCREW 1 | 395814-71 | Not Available |
| 35 | Not Available | SCREW 1 | 395815-64 | Not Available |
| 36 | Not Available | MOVINGKNIFELINK 1 | 395822-17 | Not Available |
| 37 | Not Available | SPRING 1 | 395822-18 | Not Available |
| 38 | Not Available | WASHER 1 | 395811-15 | Not Available |
| 39 | Not Available | ERING 1 | 395810-71 | Not Available |
| 39 | Not Available | ERING 1 | 395810-71 | Not Available |
| 39 | Not Available | ERING 1 | 395810-71 | Not Available |
| 40 | Not Available | MOVINGKNIFESUPPORT(LEFT) 1 | 395815-69 | Not Available |
| 41 | Not Available | SCREW 1 | 395814-89 | Not Available |
| 42 | Not Available | KNIFEDRIVELINK(ASM.) 1 | 395815-71 | Not Available |
| 43 | Not Available | SPRING 1 | 395815-72 | Not Available |
| 45 | Not Available | KNIFEDIENGAGINGPLATE(ASM.) 1 | 395815-74 | Not Available |
| 46 | Not Available | ERING 1 | 395811-09 | Not Available |
| 46 | Not Available | ERING 1 | 395811-09 | Not Available |
| 47 | Not Available | KNIFEDISENGAGINGADJUSTPLATE(ASM.) 1 | 395815-76 | Not Available |
| 48 | Not Available | KNIFEDISENGAGINGADJUSTPLATE (1) | 395815-77 | Not Available |
| 49 | Not Available | KNIFEDISENGAGINGADJUSTPLATE(FRONT) (1) | 395815-78 | Not Available |
| 50 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 50 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 51 | Not Available | SCREW 2 | 395822-19 | Not Available |
| 52 | Not Available | LOOPER(ASM.) 1 | 395822-20 | Not Available |
| 53 | Not Available | LOOPER (1) | 395822-21 | Not Available |
| 54 | Not Available | LOOPERATTACHINGPLATE(LEFT) (1) | 395815-83 | Not Available |
| 55 | Not Available | LOOPERADJUSTINGPLATE (1) | 395815-84 | Not Available |
| 56 | Not Available | LOOPERSHAFT(LEFT) (1) | 395815-85 | Not Available |
| 57 | Not Available | SPRING (1) | 395815-86 | Not Available |
| 58 | Not Available | SCREW (1) | 395815-87 | Not Available |
| 60 | Not Available | SCREW (1) | 395810-44 | Not Available |
| 61 | Not Available | WASHER (1) | 395815-90 | Not Available |
| 62 | Not Available | SPRING (1) | 395815-91 | Not Available |
| 64 | Not Available | SPRING 1 | 395822-22 | Not Available |
| 65 | Not Available | LOOPERATTACHINGPLATE(RIGHT)(ASM.) 1 | 395815-94 | Not Available |
| 66 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | REMAININGAMOUNTSENSORFIXINGBASE(RECEIVELIGHT) 1 | 395815-96 | Not Available |
| 68 | | Genuine Janome/Elna SENSOR BOARD RECEIVE LIGHT | 395815-97 | $5.60Read more |
| 70 | Not Available | SCREW 1 | 395815-99 | Not Available |
| 71 | Not Available | SCREW 1 | 395810-38 | Not Available |
| 72 | Not Available | SCREW 1 | 395816-02 | Not Available |
| 73 | Not Available | KNIFEDISENGAGINGLINK 1 | 395815-44 | Not Available |
| 75 | Not Available | SCREW 1 | 395822-23 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FEEDROCKERARM(TOTALASM.) 1 | 395822-24 | Not Available |
| 2 | Not Available | FEEDROCKERARMSHAFT (1) | 395822-25 | Not Available |
| 3 | Not Available | FEEDROCKERARM(LARGE) (1) NUTB 1 | 395816-06 | Not Available |
| 4 | Not Available | SCREW (2) HOOKDRIVINGBUSHING 1 | 395810-27 | Not Available |
| 4 | Not Available | SCREW (2) HOOKDRIVINGBUSHING 1 | 395822-36 | Not Available |
| 4 | Not Available | SCREW (2) HOOKDRIVINGBUSHING 1 | 395810-27 | Not Available |
| 4 | Not Available | SCREW (2) HOOKDRIVINGBUSHING 1 | 395810-27 | Not Available |
| 4 | Not Available | SCREW (2) HOOKDRIVINGBUSHING 1 | 395810-27 | Not Available |
| 5 | Not Available | FEEDBAR(ASM.) (1) | 395822-26 | Not Available |
| 6 | Not Available | FEEDBARSHAFT(LEFT) (1) | 395816-14 | Not Available |
| 7 | Not Available | SCREW (2) | 395810-33 | Not Available |
| 8 | Not Available | VERTICALFEEDADJUSTSHAFT (1) | 395816-11 | Not Available |
| 9 | Not Available | VERTICALFEEDECCENTRICSHAFT (1) | 395816-12 | Not Available |
| 10 | Not Available | SCREW (1) | 395812-85 | Not Available |
| 10 | Not Available | SCREW (1) | 395812-85 | Not Available |
| 10 | Not Available | SCREW (1) | 395812-85 | Not Available |
| 11 | Not Available | FEEDDOG (1) | 395822-27 | Not Available |
| 12 | Not Available | FEEDBARSHAFT(RIGHT) (1) | 395816-15 | Not Available |
| 13 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 13 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 13 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 13 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 14 | Not Available | DFLINK (1) | 395822-28 | Not Available |
| 15 | Not Available | SPRING (1) | 395816-18 | Not Available |
| 16 | Not Available | ERING (1) | 395813-19 | Not Available |
| 16 | Not Available | ERING (1) | 395813-19 | Not Available |
| 16 | Not Available | ERING (1) | 395813-19 | Not Available |
| 17 | Not Available | FEEDROCKERARM(SMALL) (1) | 395816-20 | Not Available |
| 18 | Not Available | SCREW (1) | 395816-21 | Not Available |
| 19 | Not Available | FORKEDROD (1) | 395816-22 | Not Available |
| 20 | Not Available | FORKEDRODSHAFT (1) | 395816-23 | Not Available |
| 22 | Not Available | ERING (1) | 395810-71 | Not Available |
| 23 | Not Available | SPRING (1) | 395816-26 | Not Available |
| 24 | Not Available | FEEDREGULATORBLOCKSHAFT (1) | 395816-27 | Not Available |
| 26 | Not Available | LATERALFEEDWORKINGPLATE (1) | 395816-29 | Not Available |
| 27 | Not Available | HOOKDRIVINGBUSHING (1) | 395816-30 | Not Available |
| 27 | Not Available | HOOKDRIVINGBUSHING (1) | 395816-30 | Not Available |
| 28 | Not Available | SPRINGWASHER (1) | 395816-31 | Not Available |
| 30 | Not Available | FEEDBARSPRING (1) | 395816-33 | Not Available |
| 31 | Not Available | FEEDBARPILE (1) | 395810-07 | Not Available |
| 32 | Not Available | FEEDREGULATORBLOCK (1) | 395816-35 | Not Available |
| 33 | Not Available | FEEDBARBRUSH (1) | 395822-29 | Not Available |
| 34 | Not Available | FEEDBARBRUSH(RIGHT) (1) | 395822-30 | Not Available |
| 35 | Not Available | FEEDSTMFIXINGPLATE(COMPL.) 1 | 395816-38 | Not Available |
| 36 | Not Available | FEEDSTMFIXINGPLATE(ASM.) (1) | 395816-39 | Not Available |
| 37 | Not Available | FEEDSTMFIXINGPLATE (1) | 395816-40 | Not Available |
| 38 | Not Available | FEEDSTOPPERSHAFT (1) | 395816-41 | Not Available |
| 39 | Not Available | FEEDSTMGEAR(ASM.) (1) | 395816-42 | Not Available |
| 41 | Not Available | SCREW (2) | 395811-76 | Not Available |
| 41 | Not Available | SCREW (2) | 395811-76 | Not Available |
| 42 | Not Available | FEEDREGULATOR(ASM.) (1) | 395816-45 | Not Available |
| 43 | Not Available | FEEDREGULATOR (1) | 395822-31 | Not Available |
| 44 | Not Available | FEEDREGULATORGEARA (1) | 395816-47 | Not Available |
| 45 | Not Available | FEEDREGULATORGEARB (1) | 395816-48 | Not Available |
| 46 | Not Available | SPRING (1) | 395816-49 | Not Available |
| 48 | Not Available | FEEDREGULATORSHAFT (1) | 395816-51 | Not Available |
| 49 | Not Available | WASHER (1) | 395811-15 | Not Available |
| 50 | Not Available | SCREW (1) | 395817-99 | Not Available |
| 51 | Not Available | NUT (1) | 395816-54 | Not Available |
| 51 | Not Available | NUT (1) | 395816-54 | Not Available |
| 52 | Not Available | ORIGINDETECTINGRUBBER (1) | 395816-55 | Not Available |
| 53 |  | Genuine Janome/Elna FEED STEP MOTOR ELNA XE1 | 395816-56 | $47.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | FEEDSTMRELAYLEADIRE(ASM.) (1) | 395816-57 | Not Available |
| 55 | Not Available | SPRING (1) | 395816-58 | Not Available |
| 56 | Not Available | LEVER (1) | 395816-59 | Not Available |
| 57 | Not Available | ERING (1) | 395811-09 | Not Available |
| 58 | Not Available | WASHER (1) | 395815-13 | Not Available |
| 59 | Not Available | HOOKDRIVINGSHAFT(ASM.) 1 | 395822-32 | Not Available |
| 60 | Not Available | SCREW (1) | 395816-73 | Not Available |
| 60 | Not Available | SCREW (1) | 395816-73 | Not Available |
| 61 | Not Available | HOOKDRIVINGSHAFTSUPPORTB(ASM.) (1) | 395822-33 | Not Available |
| 62 | Not Available | WASHER (1) | 395810-93 | Not Available |
| 63 | Not Available | HOOKDRIVINGGEAR (1) | 395816-66 | Not Available |
| 64 | Not Available | THREADTRIMMINGCAMSPRINGPIN (1) | 395816-64 | Not Available |
| 64 | Not Available | THREADTRIMMINGCAMSPRINGPIN (1) | 395816-64 | Not Available |
| 65 | Not Available | VERTICALFEEDCAM (1) | 395822-34 | Not Available |
| 66 | Not Available | STOPPIN (1) | 395816-69 | Not Available |
| 67 | Not Available | FEEDROCKERCAM (1) | 395816-70 | Not Available |
| 69 | | Genuine Janome/Elna DETECTOR SHIELD PLATE | 395816-72 | $9.60Read more |
| 71 | Not Available | THRUSTCOLLAR(ASM.) (1) | 395816-74 | Not Available |
| 74 | | Genuine Janome/Elna CAM | 395816-77 | $9.60Read more |
| 75 | | Genuine Janome/Elna HOOK DRIVING SHAFT | 395816-78 | $64.60Read more |
| 76 | | Genuine Janome/Elna PIN EL9010 XQUISIT | 395816-62 | $8.20Read more |
| 77 | | Genuine Janome/Elna NUT EL9010 XQUISIT | 395816-63 | $1.20Read more |
| 79 | Not Available | HOOKDRIVINGSHAFTPULLEY(ASM.) 1 | 395816-82 | Not Available |
| 81 | Not Available | BALLBEARINGGUARDPLATE(REAR) 2 | 395816-80 | Not Available |
| 81 | Not Available | BALLBEARINGGUARDPLATE(REAR) 2 | 395816-80 | Not Available |
| 83 | Not Available | FEEDREGULATORSHAFTSTOPPLATE 1 | 395816-86 | Not Available |
| 85 | Not Available | BAND 1 | 395810-49 | Not Available |
| 86 | Not Available | HOOKDRIVINGSHAFTECCENTRICBUSHING 1 | 395816-89 | Not Available |
| 87 | Not Available | BALLBEARINGGUARDPLATE(FRONT) 1 | 395816-79 | Not Available |
| 90 | Not Available | NUTA 1 | 395822-35 | Not Available |

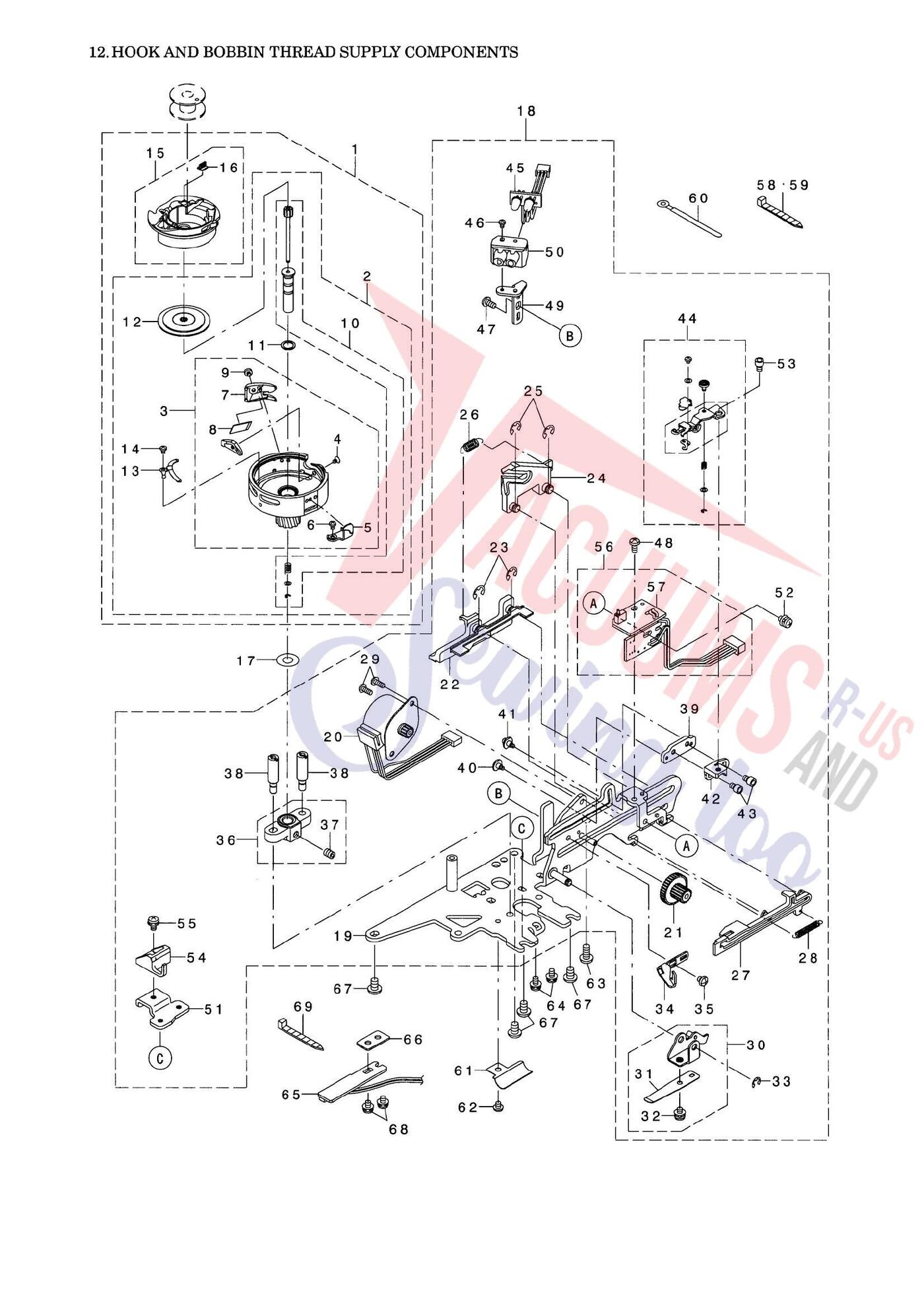

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOK(TOTALASM.) 1 | 395822-37 | Not Available |
| 2 | Not Available | ROTATINGHOOK(TOTALASM.) (1) | 395822-38 | Not Available |
| 3 | Not Available | ROTATINGHOOK(PARTIALASM.) (1) | 395822-39 | Not Available |
| 4 | Not Available | SCREW (1) | 395816-93 | Not Available |
| 5 | Not Available | HOOKOFROTATINGHOOK (1) | 395822-40 | Not Available |
| 6 | Not Available | SCREW (1) | 395816-95 | Not Available |
| 6 | Not Available | SCREW (1) | 395816-95 | Not Available |
| 7 | Not Available | TOPTHREADINGCUTTERFIXINGBASE (1) | 395822-41 | Not Available |
| 8 |  | Genuine Janome/Elna TOP THREAD CUTTER EL9020 | 395810-29 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | SCREW (1) | 395814-92 | Not Available |
| 10 | Not Available | HOOKSHAFT(ASM.) (1) | 395822-42 | Not Available |
| 11 | Not Available | WASHER(UPPER) (1) | 395817-01 | Not Available |
| 12 | Not Available | ROTATINGHOOKMAGNET(ASM.) (1) | 395817-02 | Not Available |
| 13 | Not Available | SPRING (1) | 395817-03 | Not Available |
| 14 | | Genuine Janome/Elna SCREW EL9010 XQUISIT | 395817-04 | $0.60Read more |
| 15 | Not Available | BOBBINCASE(TOTALASM.) (1) | 395822-43 | Not Available |
| 16 | Not Available | BOBBINCASEPILE (1) | 395814-82 | Not Available |
| 17 | | Genuine Janome/Elna WASHER EL9010 | 395817-07 | $0.60Read more |
| 18 | Not Available | BOBBINTHREADMECHANISMBASE(TOTALASM.) 1 | 395822-44 | Not Available |
| 19 | Not Available | BOBBINTHREADMECHANISMBASE(ASM.) (1) | 395822-45 | Not Available |
| 20 | | Genuine Janome/Elna BOBBIN THREAD SUPPLY STEP | 395817-10 | $39.60Read more |
| 21 | Not Available | BOBBINTHREADINTERMEDIATEGEAR (1) | 395817-11 | Not Available |
| 22 | Not Available | BOBBINWINDERDRIVEPLATERACK (1) | 395817-12 | Not Available |
| 23 | Not Available | ERING (2) | 395810-71 | Not Available |
| 23 | Not Available | ERING (2) | 395810-71 | Not Available |
| 24 | Not Available | BOBBINWINDERDRIVEPLATE (1) | 395822-46 | Not Available |
| 26 | Not Available | SPRING (1) | 395817-16 | Not Available |
| 27 | Not Available | GEARCONNECTINGLINKSTOPPER (1) | 395822-47 | Not Available |
| 28 | Not Available | SPRING (1) | 395817-18 | Not Available |
| 29 | Not Available | SCREW (2) | 395822-19 | Not Available |
| 30 | Not Available | GEARCONNECTINGLINK(ASM.) (1) | 395817-20 | Not Available |
| 31 | Not Available | GEARCONNECTINGLINKPLATESPRING (1) | 395817-21 | Not Available |
| 32 | Not Available | SCREW (1) | 395811-18 | Not Available |
| 32 | Not Available | SCREW (1) | 395811-18 | Not Available |
| 33 | Not Available | ERING (1) | 395811-09 | Not Available |
| 34 | Not Available | NEEDLETHREADCATCHINGPLATE (1) | 395817-24 | Not Available |
| 35 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 35 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 36 | | Genuine Janome/Elna HOOK SHAFT BASE | 395817-26 | $26.60Read more |
| 37 | Not Available | SCREW (1) | 395817-27 | Not Available |
| 38 | Not Available | GEARCOVERFIXINGSHAFTA (2) | 395817-28 | Not Available |
| 39 | Not Available | THREADHOLDINGPLATE(B) (1) | 395817-29 | Not Available |
| 40 | Not Available | THREADHOLDINGPLATESHAFTA (1) | 395817-30 | Not Available |
| 41 | Not Available | THREADHOLDINGPLATESHAFTB (1) | 395822-49 | Not Available |
| 42 | Not Available | THREADHOLDINGPLATEC (1) | 395817-32 | Not Available |
| 43 | Not Available | SCREW (2) | 395817-33 | Not Available |
| 43 | Not Available | SCREW (2) | 395817-33 | Not Available |
| 44 | Not Available | THREADHOLDINGPLATEA(TOTALASM.) (1) | 395822-50 | Not Available |
| 45 | | Genuine Janome/Elna SENSOR BOARD GIVE LIGHT | 395817-51 | $4.80Read more |
| 47 | Not Available | SCREW (1) | 395810-33 | Not Available |
| 47 | Not Available | SCREW (1) | 395810-33 | Not Available |
| 49 | Not Available | REMAININGAMOUNTSENSORFIXINGPLATE (1) | 395817-49 | Not Available |
| 50 | Not Available | FIXINGPLATE(GIVELIGHT) (1) | 395817-50 | Not Available |
| 51 | Not Available | HOOKDRIVINGSHAFTSUPPORTAFITTINGPLATE (1) | 395822-51 | Not Available |
| 52 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 52 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 54 | Not Available | HOOKDRIVINGSHAFTSUPPORTA (1) | 395822-52 | Not Available |
| 56 | Not Available | BOBBINTHREADORIGINSENSORBOARD(ASM.) (1) | 395817-46 | Not Available |
| 57 | Not Available | THREADHOLDINGPLATECOVERSENSORBOARD (1) | 395817-47 | Not Available |
| 58 | Not Available | BAND(SMALL) 1 | 395810-73 | Not Available |
| 58 | Not Available | BAND(SMALL) 1 | 395810-73 | Not Available |
| 58 | Not Available | BAND(SMALL) 1 | 395810-73 | Not Available |
| 60 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 61 | Not Available | LINKCOVER(E) 1 | 395817-08 | Not Available |
| 63 | Not Available | SCREWA 1 | 395810-27 | Not Available |
| 64 | Not Available | SCREW 2 | 395822-53 | Not Available |
| 65 | | Genuine Janome/Elna DF SENSOR BOARD ELNA XE1 | 395817-59 | $50.60Read more |
| 66 | Not Available | DFSENSORSPACER 1 | 395817-60 | Not Available |
| 67 | Not Available | SCREWB 4 | 395817-55 | Not Available |

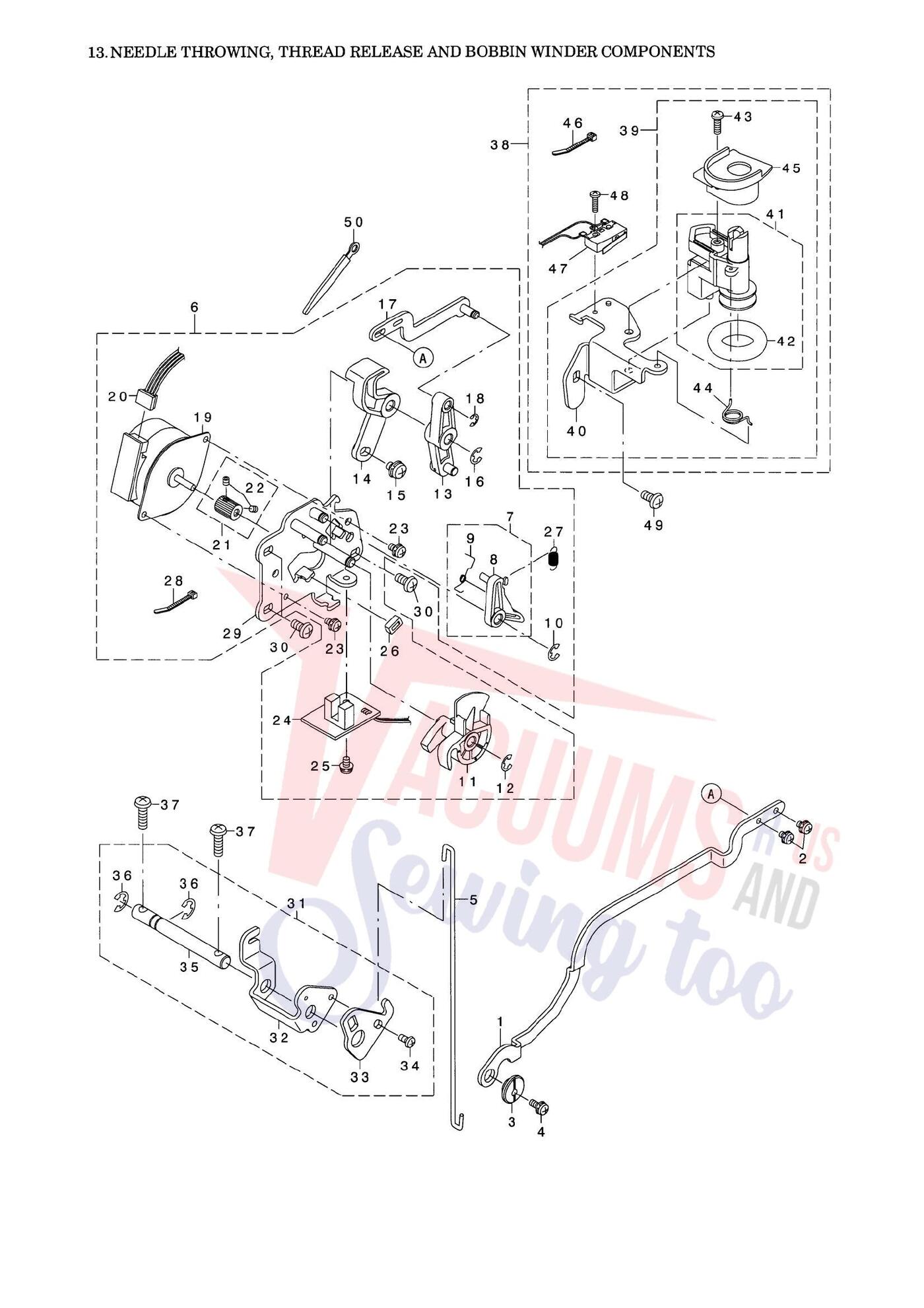

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ROCKINGROD 1 | 395817-63 | Not Available |
| 2 | Not Available | SCREW 2 | 395811-18 | Not Available |
| 3 | Not Available | ECCENTRICCOLLAR 1 | 395817-65 | Not Available |
| 4 | Not Available | SCREW 1 | 395810-60 | Not Available |
| 5 | Not Available | THREADRELEASELINK(LOWER) 1 | 395817-67 | Not Available |
| 6 | Not Available | NEEDLEROCKERSTMFIXINGPLATE(TOTALASM.) 1 | 395822-54 | Not Available |
| 7 | Not Available | MAINSHAFTDISENGAGINGLINK(ASM.) (1) | 395817-69 | Not Available |
| 8 | Not Available | MAINSHAFTDISENGAGINGLINK (1) | 395817-70 | Not Available |
| 9 | Not Available | BUFFERSPRING (1) | 395817-71 | Not Available |
| 10 | Not Available | ERING (1) | 395810-71 | Not Available |
| 10 | Not Available | ERING (1) | 395810-71 | Not Available |
| 10 | Not Available | ERING (1) | 395810-71 | Not Available |
| 11 | Not Available | NEEDLEROCKERCAM (1) | 395817-73 | Not Available |
| 13 | Not Available | NEEDLEROCKERLINK (1) | 395822-55 | Not Available |
| 14 | Not Available | MAINSHAFTDISENGAGINGSTOPPER (1) | 395817-76 | Not Available |
| 15 | Not Available | SCREW (1) | 395817-77 | Not Available |
| 17 | Not Available | ROCKINGRODA(ASM.) (1) | 395817-79 | Not Available |
| 18 | Not Available | ERING (1) | 395811-09 | Not Available |
| 19 | | Genuine Janome/Elna NEEDLE BAR ROCKING STEP MOTOR | 395817-81 | $41.40Read more |
| 20 | Not Available | RELAYLEADWIRE(ASM.) (1) | 395817-82 | Not Available |
| 21 | Not Available | NEEDLEBARROCKINGSTMGEAR(ASM.) (1) | 395817-83 | Not Available |
| 22 | Not Available | SCREW (2) | 395811-19 | Not Available |
| 23 | Not Available | SCREW (2) | 395810-40 | Not Available |
| 23 | Not Available | SCREW (2) | 395810-40 | Not Available |
| 24 | | Genuine Janome/Elna DETECTING BOARD | 395817-86 | $21.00Read more |
| 26 | Not Available | ORIGINDETECTINGRUBBER (1) | 395815-19 | Not Available |
| 27 | Not Available | DISENGAGINGLINKSPRING (1) | 395817-89 | Not Available |
| 28 | Not Available | BAND (1) | 395810-49 | Not Available |
| 28 | Not Available | BAND (1) | 395810-49 | Not Available |
| 29 | Not Available | NEEDLEROCKERSTMFIXINGPLATE(ASM.) (1) | 395817-68 | Not Available |
| 30 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 30 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 31 | Not Available | THREADRELEASELINKPLATE(ASM.) 1 | 395817-93 | Not Available |
| 32 | Not Available | THREADRELEASELINKPLATE (1) | 395817-94 | Not Available |
| 33 | Not Available | THREADRELEASELINKADJUSTPLATE (1) | 395817-95 | Not Available |
| 34 | Not Available | SCREW (1) | 395810-33 | Not Available |
| 35 | Not Available | THREADRELEASELINKSHAFT (1) | 395817-97 | Not Available |
| 36 | Not Available | ERING (2) | 395817-98 | Not Available |
| 37 | Not Available | SCREW 2 | 395817-99 | Not Available |
| 38 | Not Available | BOBBINWINDERMECHANISMBASE(TOTALASM.) 1 | 395818-01 | Not Available |
| 39 | Not Available | BOBBINWINDERMECHANISMBASE(ASM.) (1) | 395818-02 | Not Available |
| 40 | Not Available | BOBBINWINDERMECHANISMBASE (1) | 395818-03 | Not Available |
| 41 | Not Available | BOBBINWINDERBASE(ASM.) (1) | 395818-04 | Not Available |
| 42 | | Genuine Janome/Elna BOBBIN WINDER RING | 395818-05 | $3.80Read more |
| 43 | Not Available | SCREW (1) | 395813-48 | Not Available |
| 44 | Not Available | SPRING (1) | 395818-07 | Not Available |
| 45 | Not Available | GUIDE (1) | 395818-08 | Not Available |
| 47 | Not Available | BOBBINWINDERSWITCH(ASM.) (1) | 395818-10 | Not Available |
| 48 | Not Available | SCREW (1) | 395811-23 | Not Available |
| 50 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| # | Part image | Description | SKU | Price |

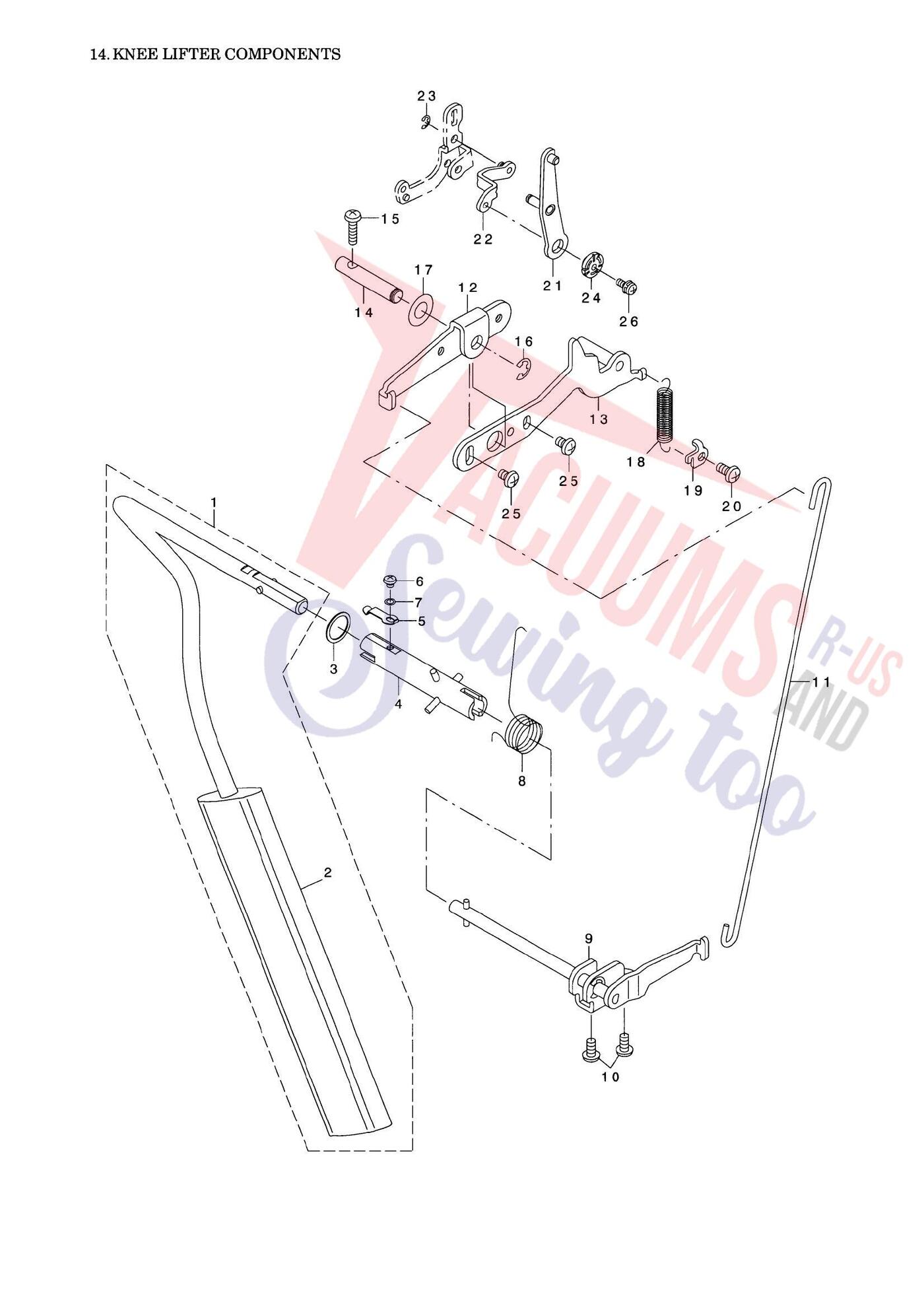

| 1 | | Genuine Janome/Elna KNEE LIFTER INSERT ELNA EL9010 | 395818-13 | $162.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | KNEELIFTERPAD (1) | 395818-14 | Not Available |
| 3 | Not Available | WASHER 1 | 395818-15 | Not Available |
| 4 | Not Available | KNEELIFTERCONNECTINGSHAFT(ASM.) 1 | 395822-56 | Not Available |
| 5 | Not Available | SPRING 1 | 395818-17 | Not Available |
| 6 | Not Available | SCREW 1 | 395811-75 | Not Available |
| 7 | Not Available | WASHER 1 | 395822-57 | Not Available |
| 8 | Not Available | SPRING 1 | 395818-20 | Not Available |
| 9 | Not Available | KNEELIFTERLINKPLATE(TOTALASM.) 1 | 395818-21 | Not Available |
| 10 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 10 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 11 | Not Available | KNEELIFTERLINK 1 | 395818-23 | Not Available |
| 12 | Not Available | KNEELIFTERLINKARMA 1 | 395818-24 | Not Available |
| 13 | Not Available | KNEELIFTERLINKARMB(ASM.) 1 | 395818-25 | Not Available |
| 14 | Not Available | FULCRUMSHAFT 1 | 395818-26 | Not Available |
| 15 | Not Available | SCREW 1 | 395811-02 | Not Available |
| 16 | Not Available | ERING 1 | 395817-98 | Not Available |
| 17 | Not Available | WASHER 1 | 395818-29 | Not Available |
| 18 | Not Available | SPRING 1 | 395818-30 | Not Available |
| 19 | Not Available | SPRINGHOOK 1 | 395818-31 | Not Available |
| 21 | Not Available | KNEELIFTERRELEASEPLATE(ASM.) 1 | 395818-33 | Not Available |
| 22 | Not Available | KNEELIFTERRELEASELINK(ASM.) 1 | 395818-34 | Not Available |
| 23 | Not Available | ERING 1 | 395811-09 | Not Available |
| 24 | Not Available | ECCENTRICCOLLAR 1 | 395817-65 | Not Available |
| 25 | Not Available | SCREW 2 | 395810-38 | Not Available |
| 26 | Not Available | SCREW 1 | 395810-60 | Not Available |
| # | Part image | Description | SKU | Price |

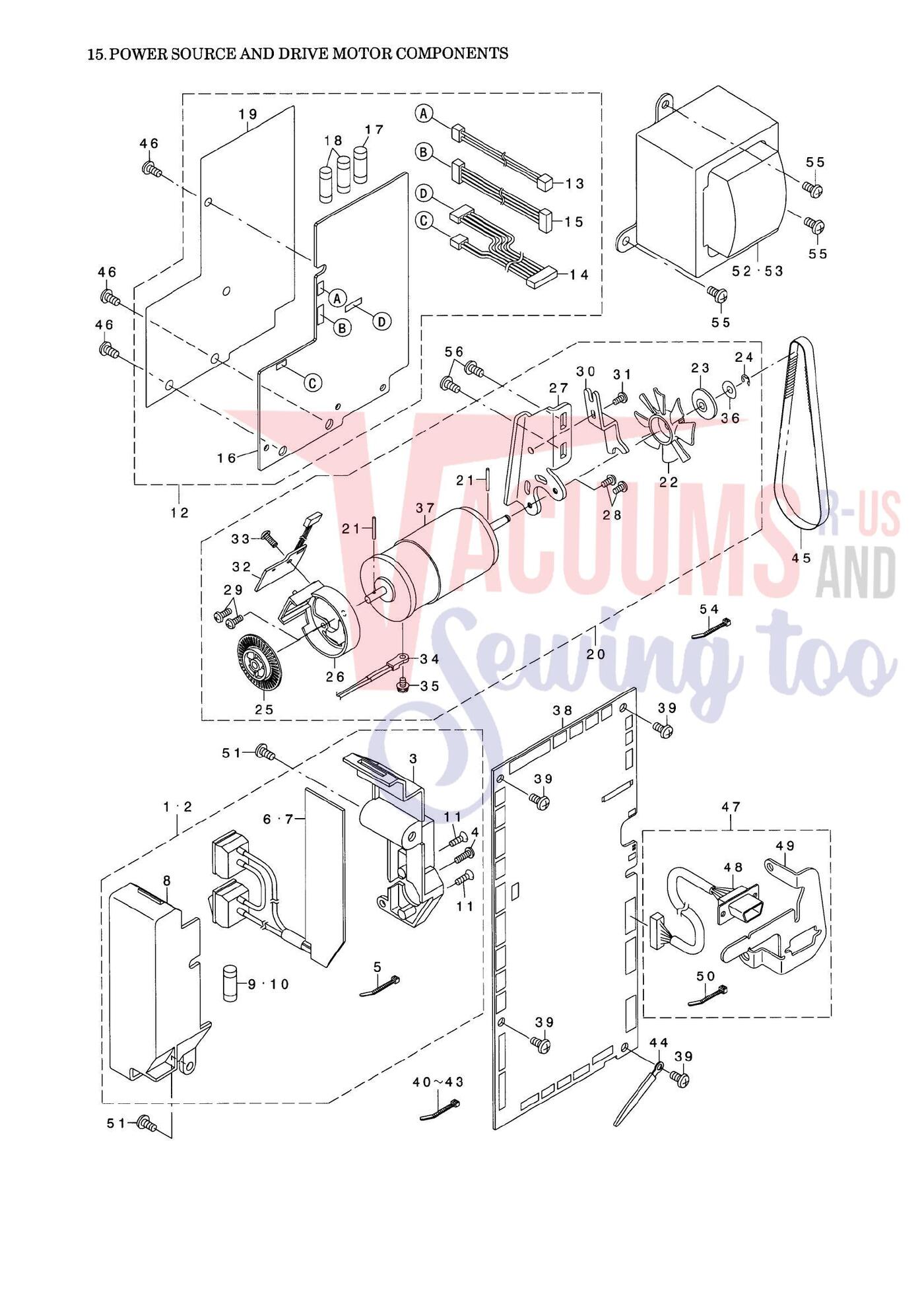

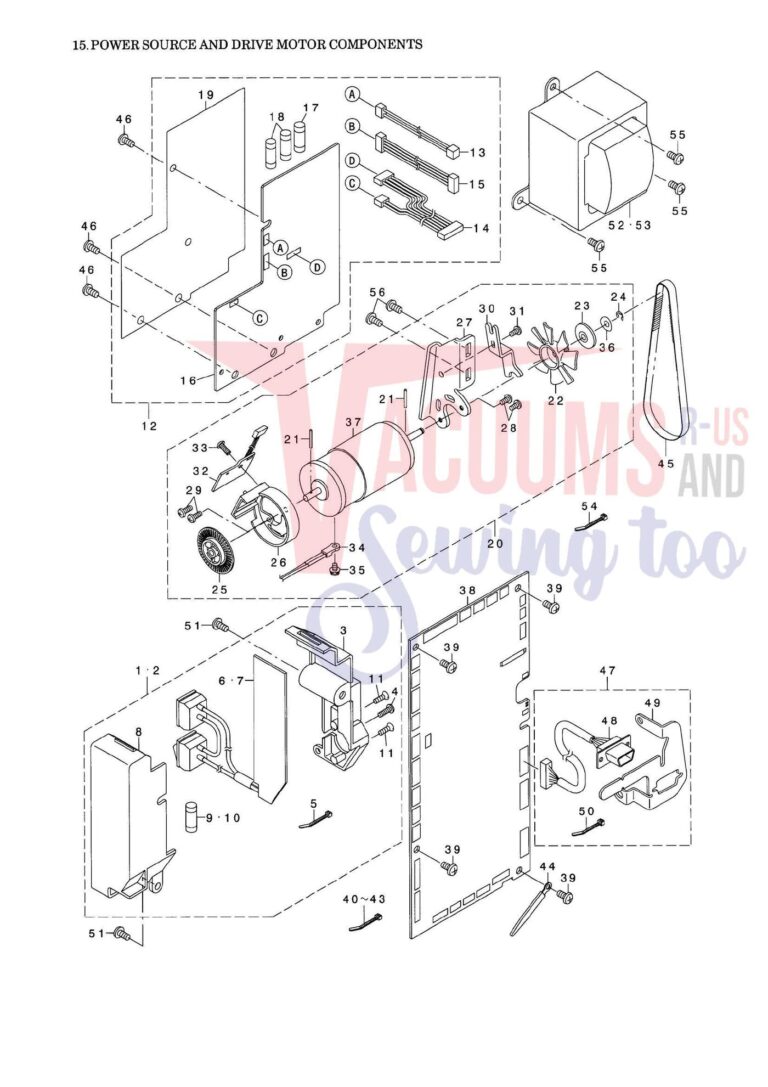

| 1 | Not Available | POWERTRANSFORMERBOX(ASM.)(120V) 1 | 395818-39 | Not Available |
| 2 | Not Available | POWERTRANSFORMERBOX(ASM.)(230V) 1 | 395822-58 | Not Available |
| 3 | Not Available | INLETCOVER (1) | 395818-41 | Not Available |
| 4 | Not Available | SCREW (1) | 395813-48 | Not Available |
| 5 | Not Available | BAND (1) | 395810-49 | Not Available |
| 5 | Not Available | BAND (1) | 395810-49 | Not Available |
| 5 | Not Available | BAND (1) | 395810-49 | Not Available |
| 6 | Not Available | FILTERBOARD(TOTALASM.)(120V) (1) | 395818-44 | Not Available |
| 7 | Not Available | FILTERBOARD(TOTALASM.)(230V) (1) | 395822-59 | Not Available |
| 8 | Not Available | POWERTRANSFORMERBOX (1) | 395818-40 | Not Available |
| 9 | Not Available | FUSE5A(120V) (1) | 395818-45 | Not Available |
| 10 | Not Available | FUSE3.15A(230V) (1) | 395820-55 | Not Available |
| 11 | Not Available | SCREW (2) | 395822-60 | Not Available |
| 12 | | Genuine Janome/Elna ELECTRIC POWER BOARD ASSEMBLY | 395818-47 | $241.60Read more |
| 13 | Not Available | INVERTERCONNECTINGLEADWIRE(ASM.) (1) | 395818-51 | Not Available |
| 14 | Not Available | POWERSUPPLYCONNECTINGCABLE(ASM.) (1) | 395818-52 | Not Available |
| 15 | Not Available | ELECTRICPOWERBOARDCONNECTINGCABLE(ASM.) (1) | 395818-53 | Not Available |
| 16 | | Genuine Janome/Elna POWER BOARD | 395818-54 | $725.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | TIME-LAGFUSE5A (1) | 395822-61 | Not Available |
| 18 | Not Available | FUSE(3.15A)(120/230V) (2) | 395818-49 | Not Available |
| 19 | Not Available | INSULATINGSHEET (1) | 395818-50 | Not Available |
| 20 | Not Available | MAINMOTOR(TOTALASM.) 1 | 395822-62 | Not Available |
| 21 | Not Available | MAINMOTORPIN (2) | 395818-59 | Not Available |
| 22 | | Genuine Janome/Elna MOTOR PULLEY | 395818-60 | $6.60Read more |
| 23 | Not Available | FLANGE (1) | 395818-61 | Not Available |
| 24 | Not Available | ERING (1) | 395822-63 | Not Available |
| 25 | Not Available | MPSHIELDPLATE (1) | 395818-63 | Not Available |
| 26 | Not Available | MPBOARDBRACKET (1) | 395818-64 | Not Available |
| 27 | Not Available | MAINMOTORFIXINGPLATE (1) | 395818-65 | Not Available |
| 28 | Not Available | SCREW (2) | 395818-66 | Not Available |
| 29 | Not Available | SCREW (2) | 395810-30 | Not Available |
| 29 | Not Available | SCREW (2) | 395810-30 | Not Available |
| 30 | Not Available | MOTORBELTGUIDE (1) | 395822-64 | Not Available |
| 31 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 31 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 32 | Not Available | MPDETECTINGBOARD(ASM.) (1) | 395818-70 | Not Available |
| 34 | Not Available | THERMISTOR(ASM.) (1) | 395818-72 | Not Available |
| 36 | Not Available | WASHER (1) | 395822-65 | Not Available |
| 37 | Not Available | MAINMOTOR(ASM.) (1) | 395822-66 | Not Available |
| 38 | Not Available | MICROCOMPUTERCIRCUITBOARD(ASM.) 1 | 395822-67 | Not Available |
| 39 | Not Available | SCREW 4 | 395810-27 | Not Available |
| 39 | Not Available | SCREW 4 | 395810-27 | Not Available |
| 39 | Not Available | SCREW 4 | 395810-27 | Not Available |
| 39 | Not Available | SCREW 4 | 395810-27 | Not Available |
| 39 | Not Available | SCREW 4 | 395810-27 | Not Available |
| 40 | Not Available | BAND 1 | 395818-78 | Not Available |
| 40 | Not Available | BAND 1 | 395818-78 | Not Available |
| 40 | Not Available | BAND 1 | 395818-78 | Not Available |
| 44 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 45 |  | Genuine Janome/Elna TIMING BELT | 395818-83 | $31.80Read more |
| 47 | Not Available | SERIALCOMMUNICATIONRELAYCORD(TOTALASM.) 1 | 395818-85 | Not Available |
| 48 | Not Available | SERIALCOMMUNICATIONRELAYCORD(ASM.) (1) | 395818-86 | Not Available |
| 49 | Not Available | CONNECTORFIXINGPLATE (1) | 395818-87 | Not Available |
| 52 | Not Available | POWERTRANSFORMER(ASM.)(120V) 1 | 395818-55 | Not Available |
| 53 | Not Available | POWERTRANSFORMER(ASM.)(230V) 1 | 395820-54 | Not Available |
| 54 | Not Available | BAND(SMALL) 1 | 395810-73 | Not Available |
| # | Part image | Description | SKU | Price |

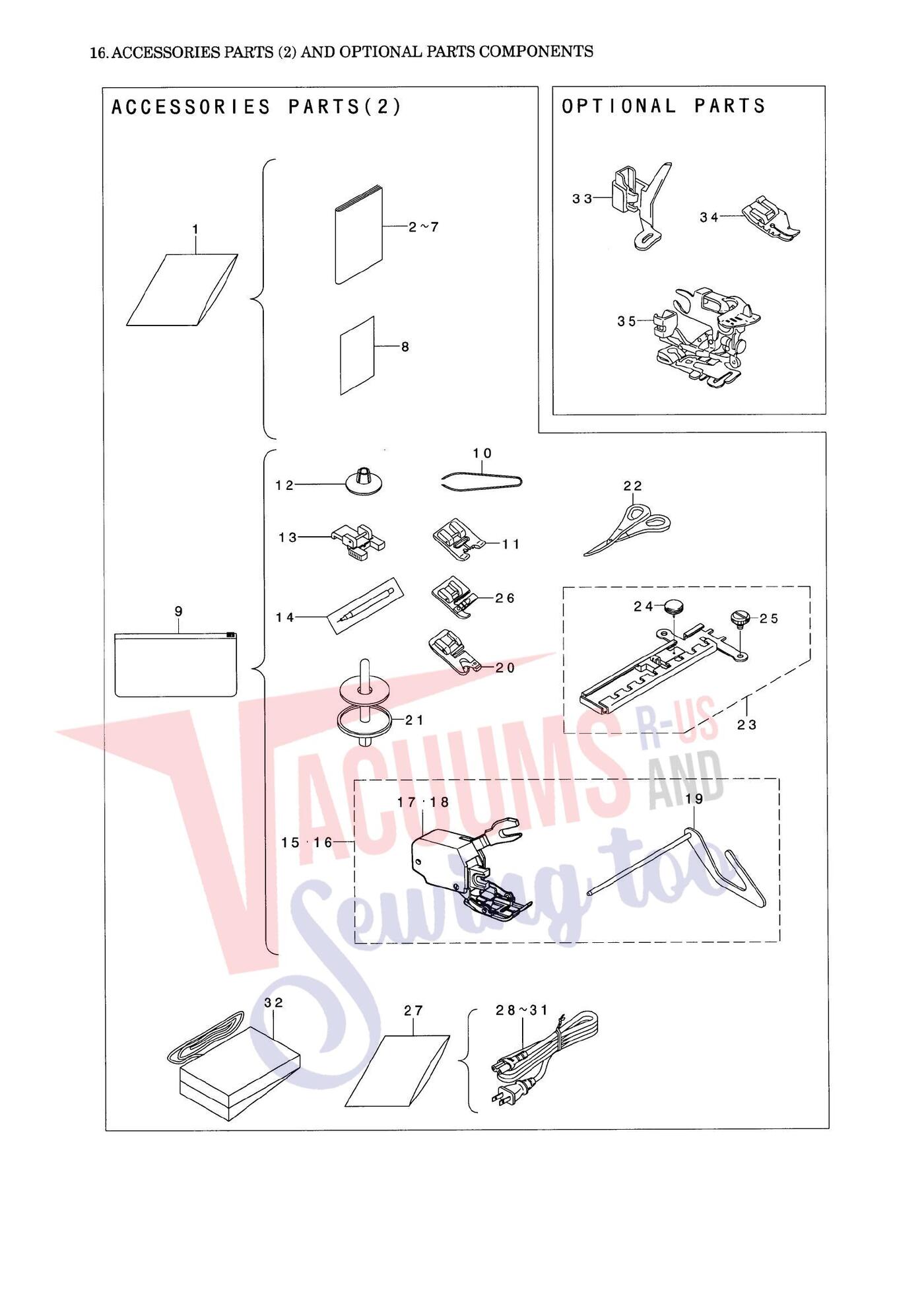

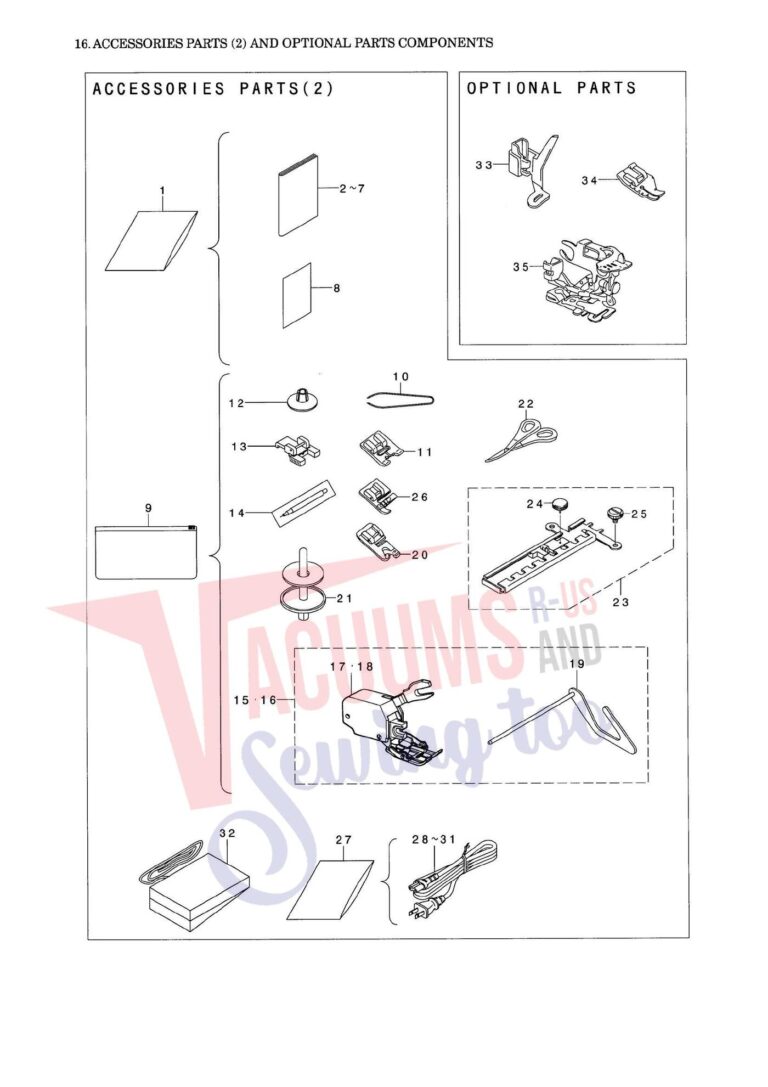

| 1 | Not Available | VINYLBAG 1 | 395805-01 | Not Available |
| 2 | | Genuine Janome/Elna INSTR. MANUAL XQUISIT II ENG | 395801-62 | $88.00Read more |
| 2 | | Genuine Janome/Elna INSTR. MANUAL XQUISIT II ENG | 395801-62 | $88.00Read more |
| 2 | | Genuine Janome/Elna INSTR. MANUAL XQUISIT II ENG | 395801-62 | $88.00Read more |
| 3 | Not Available | INSTRUCTIONMANUAL---GER 1 | 395801-61 | Not Available |
| 6 | Not Available | INSTRUCTIONMANUAL---SPN 1 | 395801-64 | Not Available |
| 7 | | Genuine Janome/Elna INSTR. MANUAL XQUISIT II FR | 395801-67 | $88.00Read more |
| 8 | Not Available | WARRANTYCARD---USA 1 | 395822-74 | Not Available |
| 9 |  | Genuine Janome/Elna ACCESSORY BAG ELNA EL9010 | 395805-05 | $18.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Janome/Elna TWEEZER ELNA EL9010 XQUISIT | 395805-19 | $3.00Read more |
| 11 |  | Genuine Janome/Elna TRANSPARENT BUTTONHOLE FOOT | 395805-47 | $14.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | SMALLSPOOLCAP 1 | 395805-53 | Not Available |
| 13 |  | Genuine Janome/Elna BUTTON FOOT ELNA EL9010 | 395805-09 | $7.40Read more |
| 14 |  | Genuine Janome/Elna ASSISTANT MARKER ELNA EL9010 | 395805-10 | $31.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Janome/Elna CABLE XPRESSIVE | 395805-54 | $74.20Read more |
| 16 | Not Available | EVENFEEDFOOT(TOTALASM.)---FRAONLY 1 | 395805-55 | Not Available |
| 17 | Not Available | EVENFEEDFOOT(ASM.) (1) | 395805-56 | Not Available |
| 18 | Not Available | EVENFEEDFOOT(ASM.)---FRAONLY (1) | 395805-57 | Not Available |
| 19 | | Genuine Janome/Elna QUILT GUIDE ELNA XQUISIT | 395805-14 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Genuine Janome/Elna ROLLED HEMMING FOOT (F) ELNA | 395805-16 | $20.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | AUXILIARYSPOOLPINANDFELT 1 | 395805-58 | Not Available |
| 22 | Not Available | SHEARS 1 | 395805-20 | Not Available |
| 23 |  | Genuine Janome/Elna CIRCLE STITCH RULER ASSEMBLY | 395805-21 | $28.80Read more |
| 24 | Not Available | CIRCLESTITCHTACK (1) | 395805-59 | Not Available |
| 25 |  | Genuine Janome/Elna CIRCLE STITCH SCREW | 395818-90 | $15.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | CORDINGFOOT(ASM.) 1 | 395805-60 | Not Available |
| 27 | Not Available | POWERCORDBAG 1 | 395818-94 | Not Available |
| 28 | | Genuine Janome/Elna POWER CORD ELNA EL9010 XQUISIT | 395818-95 | $46.00Read more |
| 29 | Not Available | EIECTRICPOWERCORD(ASM.)---(CEE) 1 | 395820-61 | Not Available |
| 30 | | Genuine Janome/Elna POWER CORD (UK/ZA/SG) | 395820-60 | $61.80Read more |
| 31 | Not Available | EIECTRICPOWERCORD(ASM.)---(SAA) 1 | 395822-83 | Not Available |
| 32 | | Genuine Janome/Elna FOOT CONTROL ELNA 9020 9010 | 395818-93 | $204.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | DARNINGFOOT(ASM.) 1 | 395805-61 | Not Available |
| 34 | Not Available | QUILTER'SFOOT 1 | 395805-62 | Not Available |
| 35 | Not Available | RUFFLERPRESSERFOOT 1 | 395805-63 | Not Available |
| # | Part image | Description | SKU | Price |

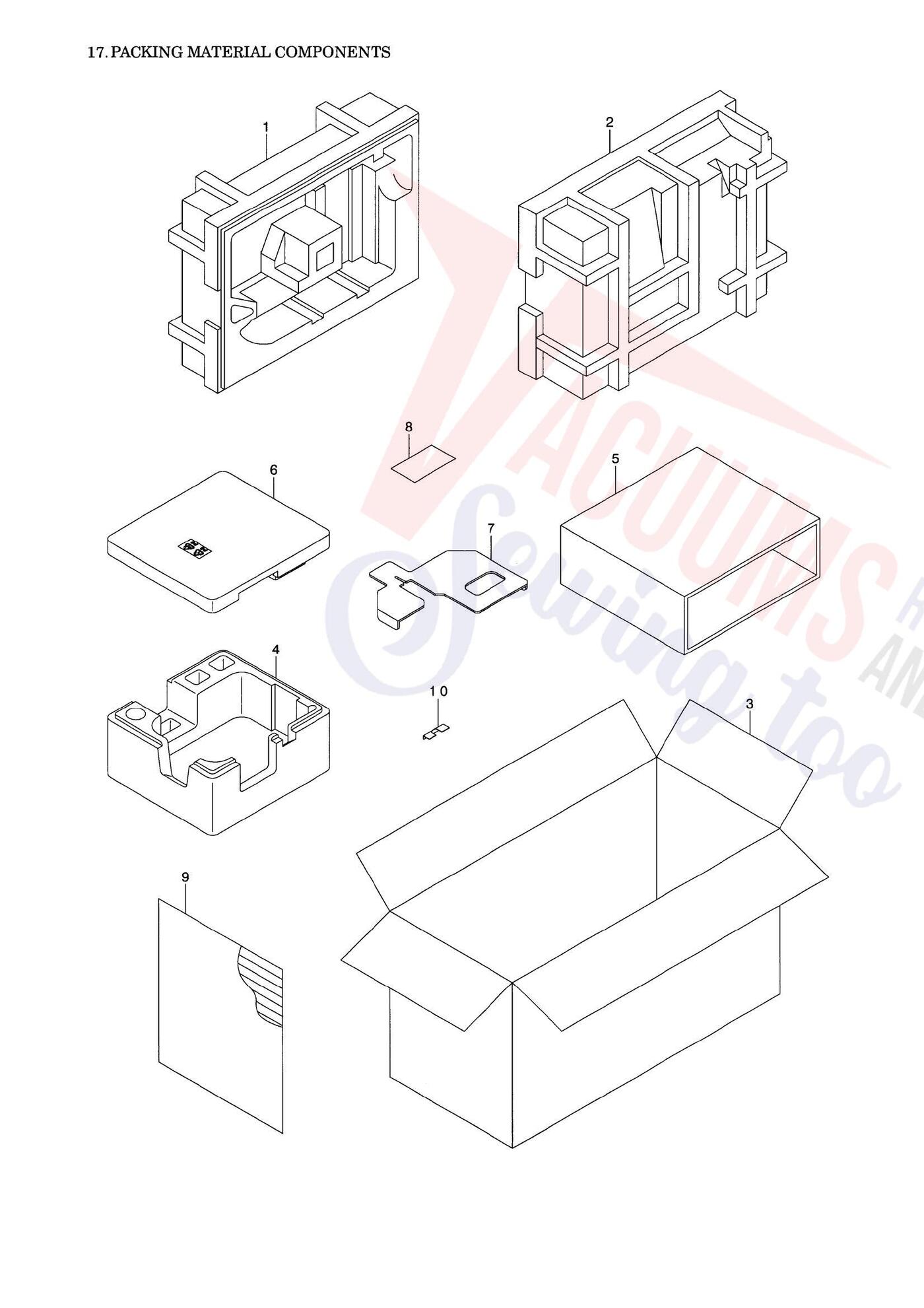

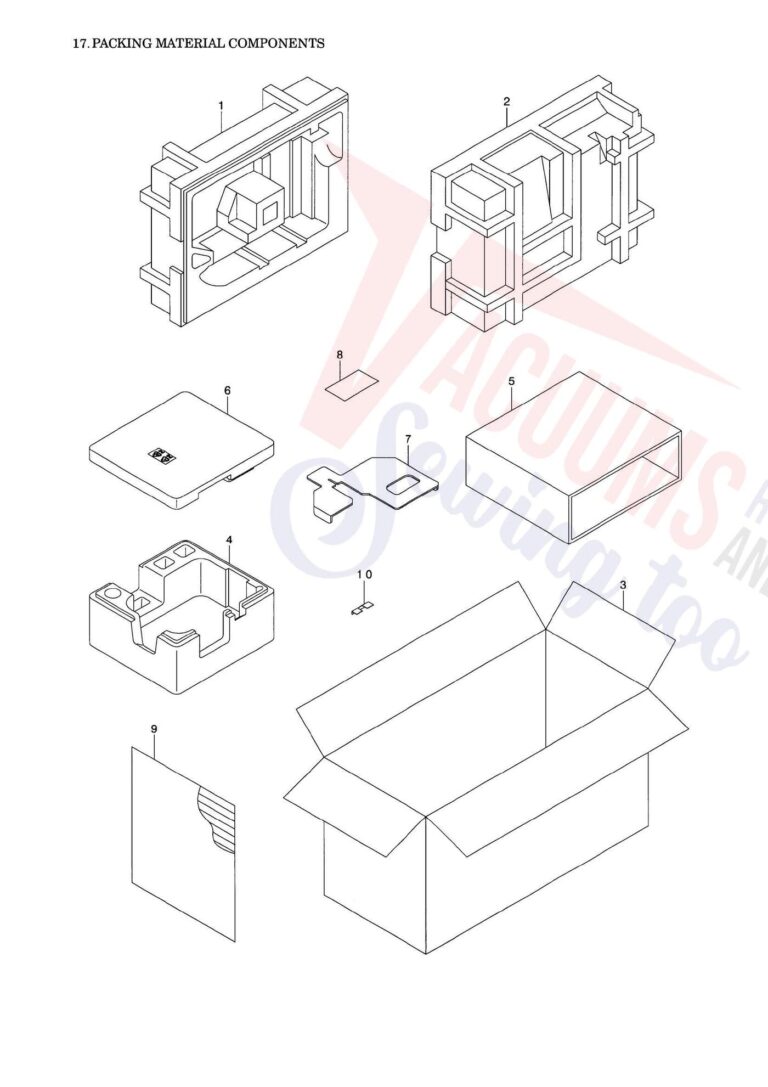

| 1 | Not Available | PACKING(REAR) 1 | 395822-87 | Not Available |
| 2 | Not Available | PACKING(FRONT)(ASM.) 1 | 395822-88 | Not Available |
| 3 | Not Available | CARTONCASE 1 | 395822-89 | Not Available |
| 4 | Not Available | STYRENEFOAMFOREMBROIDERINGUNIT 1 | 395822-90 | Not Available |
| 5 | Not Available | EMBROIDERINGUNITPACKINGFRAME 1 | 395822-91 | Not Available |
| 6 | Not Available | STYRENEFOAMCOVEREMBROIDERINGUNIT 1 | 395822-92 | Not Available |
| 7 | Not Available | EMBROIDERINGUNITPACKINGMATERIAL(1) 1 | 395822-93 | Not Available |
| 8 | Not Available | CAUTIONPAMPHLETFORTAKINGOUTE.U 1 | 395822-94 | Not Available |
| 9 | Not Available | PARTITIONPLATE(CROSSWISE) 1 | 395822-95 | Not Available |
| 10 | Not Available | THREADWAYPLATEPAPER 1 | 395822-96 | Not Available |
| # | Part image | Description | SKU | Price |

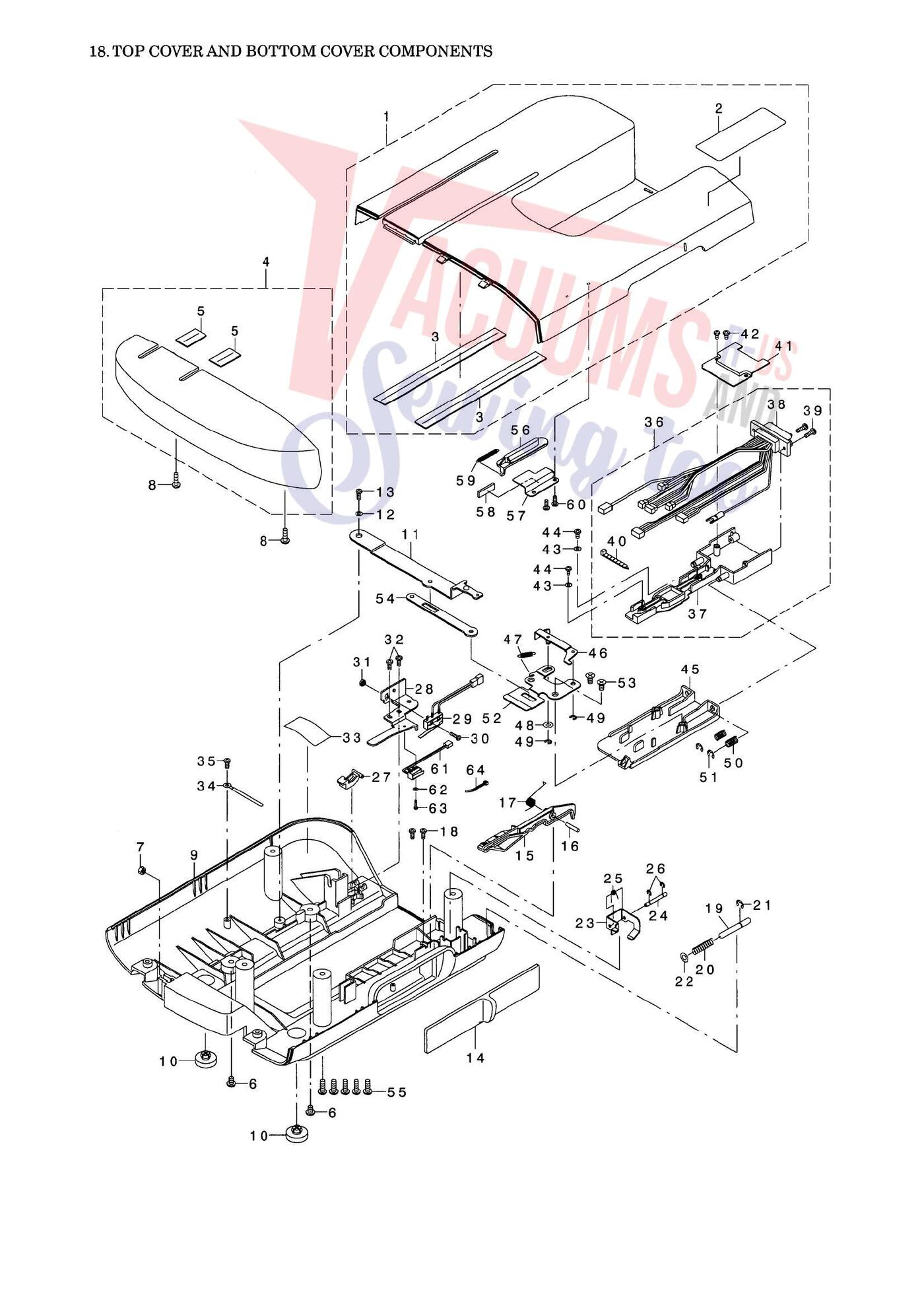

| 1 | | Genuine Janome/Elna TOP COVER EL9020 | 395822-97 | $111.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | EMBROIDERINGUNITHANDLINGCAUTIONSEALB (1) | 395819-04 | Not Available |
| 3 | Not Available | DUST-PROOFSEATA (2) | 395819-05 | Not Available |
| 4 | | Genuine Janome/Elna SIDE COVER ASSEMBLY EL9010 | 395819-06 | $31.00Read more |
| 5 | Not Available | DUST-PROOFSHEETB (2) | 395819-07 | Not Available |
| 6 | Not Available | SCREW 2 | 395810-38 | Not Available |
| 7 | Not Available | NUT 1 | 395816-54 | Not Available |
| 8 | Not Available | SCREW 2 | 395811-04 | Not Available |
| 8 | Not Available | SCREW 2 | 395811-04 | Not Available |
| 9 | Not Available | BOTTOMCOVER 1 | 395822-98 | Not Available |
| 10 | Not Available | RUBBERSEAT 2 | 395810-17 | Not Available |
| 11 | Not Available | CHANGE-OVERLEVER(ASM.) 1 | 395822-99 | Not Available |
| 12 | Not Available | WASHER 1 | 395819-14 | Not Available |
| 13 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 13 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 13 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 13 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 13 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 14 | Not Available | CHANGE-OVERKNOB 1 | 395819-16 | Not Available |
| 15 | Not Available | CHANGE-OVERLEVERHOOK 1 | 395819-17 | Not Available |
| 16 | Not Available | HOOKSHAFT 1 | 395819-18 | Not Available |
| 17 | Not Available | HOOKSPRING 1 | 395819-19 | Not Available |
| 19 | Not Available | TRIGGERPIN 1 | 395823-00 | Not Available |
| 20 | Not Available | TRIGGERPINSPRING 1 | 395819-22 | Not Available |
| 21 | Not Available | ERING 1 | 395810-71 | Not Available |
| 21 | Not Available | ERING 1 | 395810-71 | Not Available |
| 22 | Not Available | WASHER 1 | 395823-01 | Not Available |
| 23 | Not Available | TRIGGERLIMITPLATE 1 | 395819-25 | Not Available |
| 24 | Not Available | FULCRUMSHAFT 1 | 395819-26 | Not Available |
| 25 | Not Available | RETURNSPRING 1 | 395819-27 | Not Available |
| 26 | | Genuine Janome/Elna E RING EL9010 EL9020 | 395819-28 | $0.60Read more |
| 27 | | Genuine Janome/Elna MODE CHANGE OVER CONTACT | 395819-29 | $4.00Read more |
| 28 | Not Available | MODECHANGE-OVERSWPLATEFIXINGPLATE 1 | 395823-02 | Not Available |
| 29 | | Genuine Janome/Elna MODE CHANGE OVER SWITCH | 395819-31 | $17.80Read more |
| 30 | Not Available | SCREW 1 | 395811-23 | Not Available |
| 31 | Not Available | NUT 1 | 395819-33 | Not Available |
| 33 | Not Available | STARTSWITCHLEADTAPE 1 | 395813-44 | Not Available |
| 34 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 36 | | Genuine Janome/Elna CONNECTING SLIDER (A) COMPLETE | 395819-38 | $105.00Read more |
| 37 | Not Available | CONNECTINGSLIDERA (1) | 395819-39 | Not Available |
| 38 | Not Available | DRIVERCABLE(TOTALASM.) (1) | 395823-03 | Not Available |
| 39 | Not Available | SCREW (2) | 395819-41 | Not Available |
| 40 | Not Available | BAND(SMALL) (1) | 395810-73 | Not Available |
| 40 | Not Available | BAND(SMALL) (1) | 395810-73 | Not Available |
| 41 | Not Available | SLIDERCOVER 1 | 395819-43 | Not Available |
| 42 |  | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | WASHER 2 | 395819-45 | Not Available |
| 45 | Not Available | CONNECTINGSLIDERB 1 | 395823-04 | Not Available |
| 46 | Not Available | LEVERSWLINK(ASM.) 1 | 395823-05 | Not Available |
| 47 | Not Available | LEVERSWLINKSPRING 1 | 395823-06 | Not Available |
| 48 | Not Available | WASHER 1 | 395815-13 | Not Available |
| 49 | Not Available | ERING 2 | 395811-09 | Not Available |
| 50 | Not Available | SLIDERSPRING 2 | 395819-52 | Not Available |
| 52 | Not Available | SLIDERFULCRUMPLATE 1 | 395823-07 | Not Available |
| 53 | Not Available | SCREW 2 | 395819-55 | Not Available |
| 54 | Not Available | SLIDERWORKINGPLATE(ASM.) 1 | 395819-56 | Not Available |
| 56 | Not Available | DECONTACT 1 | 395823-08 | Not Available |
| 57 | Not Available | DECONTACTGUIDE 1 | 395823-09 | Not Available |
| 58 | Not Available | DFFELT 1 | 395823-10 | Not Available |
| 59 | Not Available | DFCONTACTSPRING 1 | 395823-11 | Not Available |
| 61 | Not Available | EMBROIDERINGUNITREMOVING/INSTALLINGDETECTIONSW(ASM.) 1 | 395823-12 | Not Available |
| 62 | Not Available | WASHER 1 | 395823-13 | Not Available |
| 63 | Not Available | SCREW 1 | 395823-14 | Not Available |
| # | Part image | Description | SKU | Price |

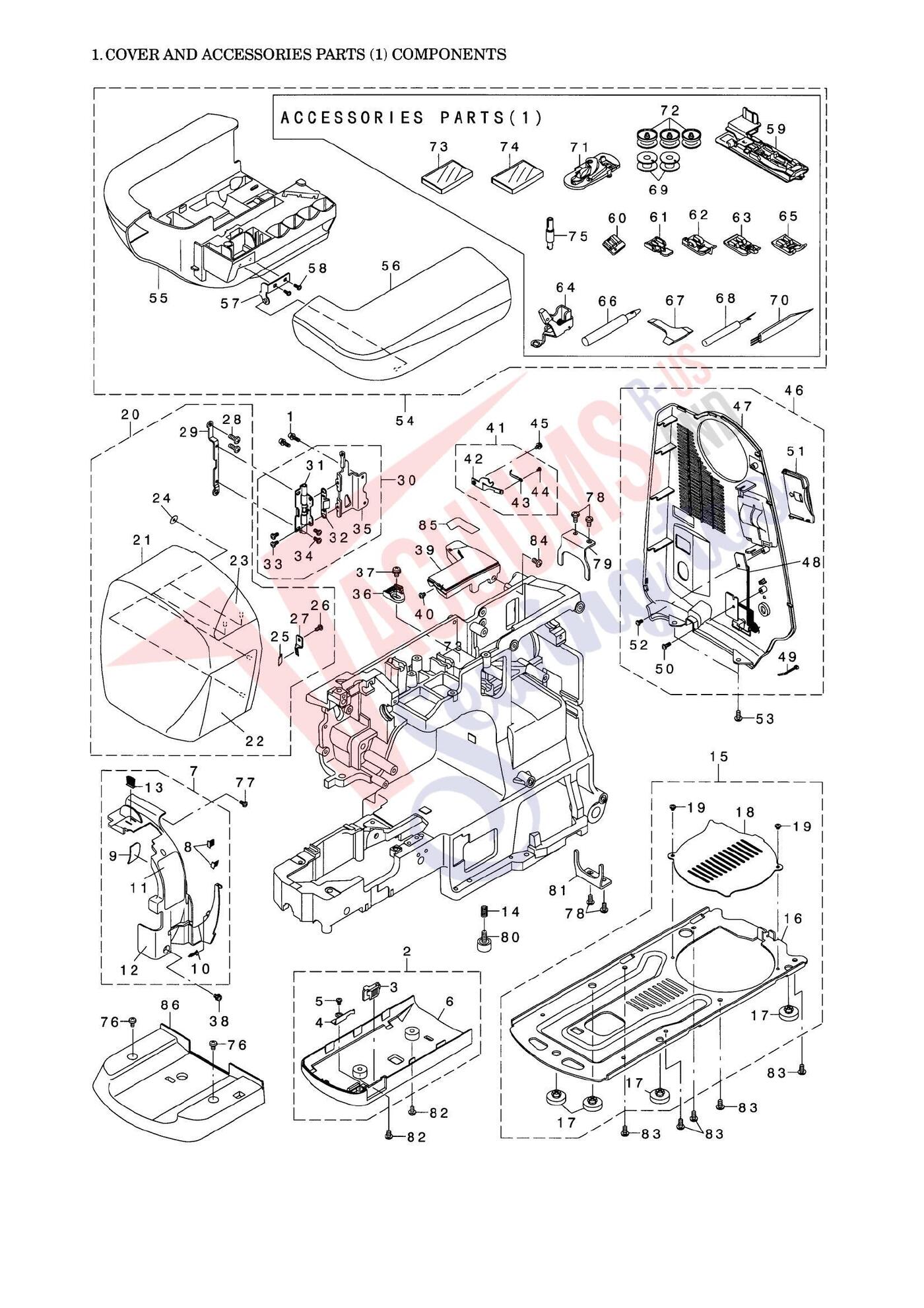

| 1 | Not Available | SCREW 2 | 395810-01 | Not Available |
| 2 | Not Available | FREEARMUNDERSIDECOVER(ASM.) 1 | 395820-70 | Not Available |
| 3 | Not Available | DFKNOB (1) | 395820-71 | Not Available |
| 4 | Not Available | SPRING (1) | 395810-04 | Not Available |
| 5 | Not Available | SCREW (2) | 395810-05 | Not Available |
| 6 | Not Available | FREEARMUNDERSIDECOVER (1) | 395820-72 | Not Available |
| 7 | Not Available | FACEPLATEINSIDECOVER(ASM.) 1 | 395820-73 | Not Available |
| 8 | Not Available | FACEPLATETENSIONPILE (2) | 395810-08 | Not Available |
| 9 | Not Available | FACEPLATEINSIDECOVERGUARD (1) | 395820-74 | Not Available |
| 10 | Not Available | FACEPLATEINSIDECOVERPILE(RIGHT) (1) | 395820-75 | Not Available |
| 11 | Not Available | FACEPLATEINSIDECOVERCAUTIONSEAL (1) | 395810-11 | Not Available |
| 12 | Not Available | LAMPCAUTIONSEAL (1) | 395810-12 | Not Available |
| 13 | Not Available | FEEDBARPILE (1) | 395810-07 | Not Available |
| 14 | Not Available | HEIGHTADJUSTINGSPRING 1 | 395820-76 | Not Available |
| 15 | Not Available | UNDERSIDECOVER(ASM.) 1 | 395820-77 | Not Available |
| 16 | Not Available | UNDERSIDECOVER (1) | 395820-78 | Not Available |
| 17 | Not Available | RUBBER WASHER (4) | 395810-17 | Not Available |
| 18 | Not Available | UNDERSIDECOVER (1) | 395810-18 | Not Available |
| 19 | Not Available | SCREW (2) | 395810-19 | Not Available |
| 20 | Not Available | FACEPLATE(ASM.) 1 | 395820-79 | Not Available |
| 21 | Not Available | FACEPLATE (1) | 395820-80 | Not Available |
| 22 | | Genuine Janome/Elna FACE PLATE COVER WINDOW PANEL | 395810-22 | $14.20Read more |
| 23 | Not Available | FACEPLATECOVERUPPERCOVER (1) | 395820-81 | Not Available |
| 24 | Not Available | NUT (4) | 395820-82 | Not Available |
| 25 | | Genuine Janome/Elna TOP THREAD CUTTER EL9020 | 395810-29 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Genuine Janome/Elna TOP THREAD CUTTER HOLDER 9020 | 395810-36 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | SCREW (2) | 395810-34 | Not Available |
| 29 | Not Available | FACEPLATEHINGEREINFORCINGPLATE (1) | 395820-83 | Not Available |
| 30 | Not Available | HINGEFIXINGPLATE(ASM.) 1 | 395820-84 | Not Available |
| 31 | Not Available | FACEPLATEHINGE(ASM.) (1) | 395820-85 | Not Available |
| 32 | | Genuine Janome/Elna FACE COVER SPRING | 395810-32 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | SCREW (2) | 395810-33 | Not Available |
| 33 | Not Available | SCREW (2) | 395810-33 | Not Available |
| 35 | | Genuine Janome/Elna HINGE FIXING PLATE EL9010 | 395810-35 | $5.00Read more |
| 36 | Not Available | MAINSHAFTSUPPORT 1 | 395820-86 | Not Available |
| 37 | Not Available | SCREW 1 | 395820-87 | Not Available |
| 38 | Not Available | SCREW 1 | 395820-88 | Not Available |
| 39 | Not Available | BASETENSIONCOVER 1 | 395820-89 | Not Available |
| 40 | Not Available | SCREW 1 | 395810-40 | Not Available |
| 40 | Not Available | SCREW 1 | 395810-40 | Not Available |
| 41 | | Genuine Janome/Elna BOBBIN WINDER THREAD GUIDE | 395810-41 | $18.60Read more |
| 42 | Not Available | BOBBINWINDERTHREADGUIDE (1) | 395810-42 | Not Available |
| 43 | Not Available | BOBBINWINDERTHREADGUIDESPRING (1) | 395810-43 | Not Available |
| 44 | Not Available | SCREW (1) | 395814-92 | Not Available |
| 46 | | Genuine Janome/Elna BELT COVER ASSEMBLY EL9010 | 395810-46 | $61.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | BELTCOVER (1) | 395810-47 | Not Available |
| 48 |  | Genuine Janome/Elna CONTROLLER RECEPTACLE ELNA | 395810-48 | $14.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | Not Available | BAND (1) | 395810-49 | Not Available |
| 51 | Not Available | CARDLID (1) | 395810-51 | Not Available |
| 53 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 53 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 53 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 54 | Not Available | AUXILIARYBED(ASM.) 1 | 395820-91 | Not Available |
| 55 | Not Available | AUXILIARYBED (1) | 395820-92 | Not Available |
| 56 | Not Available | AUXILIARYBEDCOVER (1) | 395810-56 | Not Available |
| 57 | Not Available | AUXILIARYBEDSUPPORTINGPLATE(ASM.) (1) | 395820-93 | Not Available |
| 58 | Not Available | SCREW (2) | 395810-30 | Not Available |
| 59 | Not Available | BUTTONHOLEFOOT(ASM.) (1) | 395820-94 | Not Available |
| 60 | | Genuine Janome/Elna INVISIBLE ZIPPER FOOT (G) | 395805-25 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 |  | Genuine Janome/Elna ZIPPER FOOT (B) ELNA EL9010 | 395805-26 | $4.83Read more |
| 62 | | Genuine Janome/Elna EMBROIDERY SOLE (J) EL9020 | 395805-50 | $44.20Read more |
| 63 | Not Available | OVERLOCKFOOT(ASM.) (1) | 395805-28 | Not Available |
| 64 | Not Available | EMBROIDERYPRESSERFOOT(ASM.) (1) | 395805-51 | Not Available |
| 65 | Not Available | SMOOTHFOOT (1) | 395805-52 | Not Available |
| 66 |  | Genuine Janome/Elna EYELET PUNCH ELNA EL9010 | 395805-31 | $28.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | SCREWDRIVER (1) | 395805-32 | Not Available |
| 68 | Not Available | SEAMRIPPER (1) | 395805-33 | Not Available |
| 69 | Not Available | BOBBIN (2) | 395805-39 | Not Available |
| 70 |  | Genuine Janome/Elna LINT BRUSH ELNA EL9010 XQUISIT | 395805-35 | $1.60Read more |
| 71 |  | Genuine Janome/Elna THREADING GUIDE ASSEMBLY ELNA | 395805-37 | $31.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | BOBBIN(ASM.) (3) | 395805-38 | Not Available |
| 73 | Not Available | NEEDLESET(1) (1) | 395805-41 | Not Available |
| 74 | | Genuine Janome/Elna NEEDLE SET (2) ELNA EL9010 | 395805-42 | $12.80Read more |
| 75 | Not Available | BOBBINWINDERSHAFT(ASM.) (1) | 395805-34 | Not Available |
| 76 | Not Available | SCREW 2 | 395810-38 | Not Available |
| 76 | Not Available | SCREW 2 | 395810-38 | Not Available |
| 77 | Not Available | SCREW 1 | 395810-60 | Not Available |
| 79 | Not Available | BELTGUIDE(UPPER) 1 | 395820-98 | Not Available |
| 80 | | Genuine Janome/Elna HEIGHT ADJUSTING SCREW ELNA | 395810-63 | $8.40Read more |
| 81 | Not Available | BELTGUIDE(LOWER) 1 | 395820-99 | Not Available |
| 84 | Not Available | SCREW 1 | 395810-61 | Not Available |
| 85 | Not Available | BASETENSIONSEAL 1 | 395810-64 | Not Available |
| 86 | Not Available | UNDERSIDECOVER 1 | 395810-65 | Not Available |

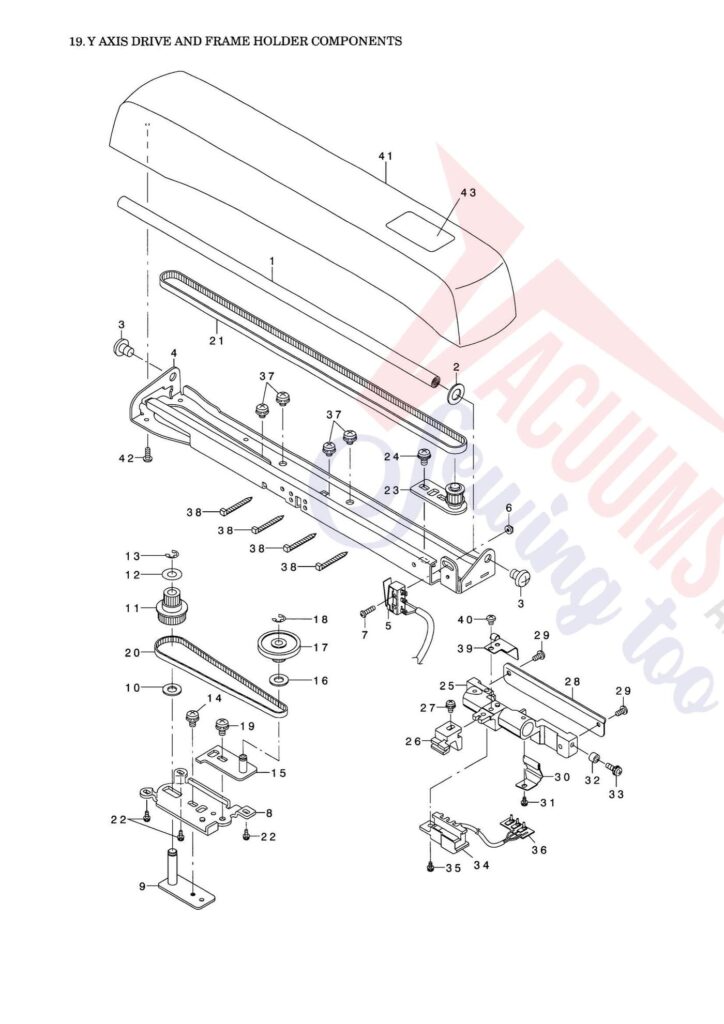

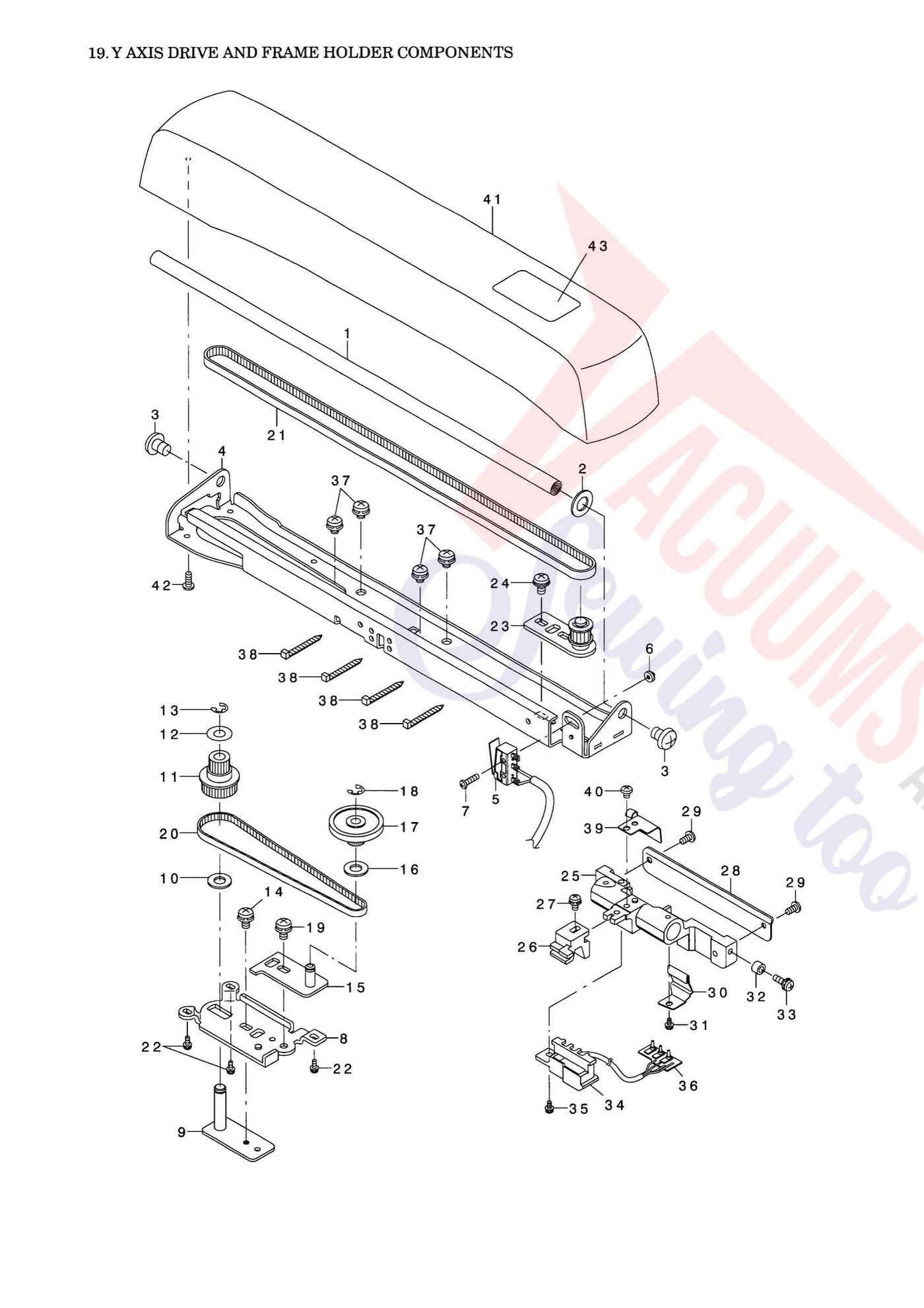

| # | Part image | Description | SKU | Price |

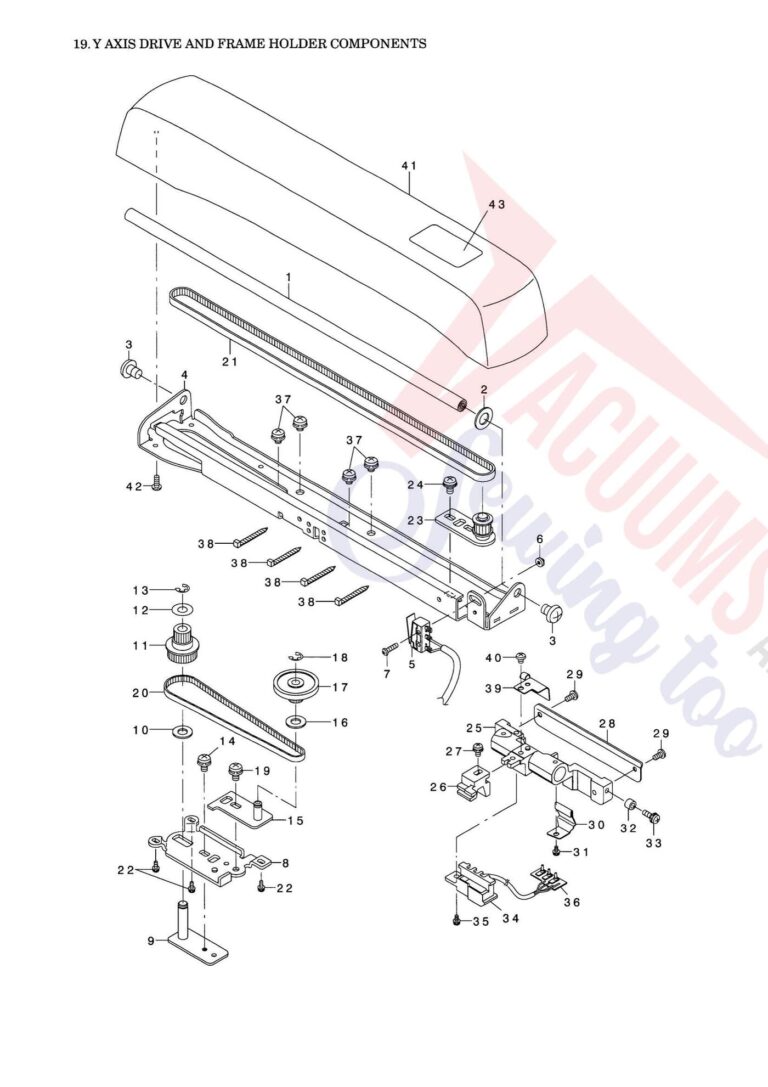

| 1 | | Genuine Janome/Elna (Y) COORDINATE DRIVE SHAFT | 395819-58 | $82.80Read more |
| 2 | Not Available | FELTA 1 | 395819-59 | Not Available |
| 3 | Not Available | SCREW 2 | 395819-60 | Not Available |
| 4 | Not Available | YCOORDINATEDRIVEPLATE 1 | 395819-61 | Not Available |
| 5 | | Genuine Janome/Elna (Y) AXIS DETECTING SWITCH ELNA | 395819-62 | $29.40Read more |
| 6 | Not Available | NUT 1 | 395819-33 | Not Available |
| 7 | Not Available | SCREW 1 | 395811-23 | Not Available |
| 8 | | Genuine Janome/Elna (Y)AXIS BELT FIXING PLATE | 395819-65 | $14.80Read more |
| 9 | | Genuine Janome/Elna (Y) AXIS INTERMEDIATE PULLEY | 395819-66 | $11.00Read more |
| 10 | | Genuine Janome/Elna WASHER EL9010 | 395817-07 | $0.60Read more |
| 11 | | Genuine Janome/Elna (Y) AXISINTERMEDIATE PULLEY | 395819-68 | $2.80Read more |
| 12 | Not Available | PULLEYFLANGE 1 | 395819-69 | Not Available |
| 13 | Not Available | ERING 1 | 395810-71 | Not Available |
| 13 | Not Available | ERING 1 | 395810-71 | Not Available |
| 14 | Not Available | SCREW 1 | 395819-71 | Not Available |
| 14 | Not Available | SCREW 1 | 395819-71 | Not Available |
| 14 | Not Available | SCREW 1 | 395819-71 | Not Available |
| 15 | | Genuine Janome/Elna (Y) AXIS FOLLOWER GEAR BRACKET | 395819-72 | $8.20Read more |
| 16 | Not Available | WASHER 1 | 395811-15 | Not Available |
| 17 | | Genuine Janome/Elna (Y) AXIS FOLLOWER GEAR EL9010 | 395819-74 | $2.80Read more |
| 20 | | Genuine Janome/Elna (Y) COORDINATE DRIVE BELT (B) | 395819-77 | $11.00Read more |
| 21 | | Genuine Janome/Elna (Y) COORDINATE DRIVE BELT (A) | 395819-78 | $22.40Read more |
| 22 | Not Available | SCREW 3 | 395810-40 | Not Available |
| 23 | | Genuine Janome/Elna (Y) COORDINATE PULLEY EL9010 | 395819-80 | $11.00Read more |
| 25 | Not Available | FRAMEHOLDER(ASM.) 1 | 395823-15 | Not Available |
| 26 | | Genuine Janome/Elna (Y) COORDINATE BELT HOLDER | 395819-83 | $4.80Read more |
| 27 | | Genuine Janome/Elna SCREW FOR BRACKET 9010 9020 | 395819-84 | $1.00Read more |
| 28 | Not Available | FRMEFIXINGSPRING 1 | 395823-16 | Not Available |
| 29 | Not Available | SCREW 2 | 395810-33 | Not Available |
| 30 | | Genuine Janome/Elna EMBROIDERY FRAME CLAMP SPRING | 395819-87 | $7.80Read more |
| 31 | Not Available | SCREW 1 | 395811-18 | Not Available |
| 31 | Not Available | SCREW 1 | 395811-18 | Not Available |
| 32 | Not Available | EMBROIDERYFRAMEPOSITIONINGCOLLAR 1 | 395819-89 | Not Available |
| 33 | Not Available | SCREW 1 | 395819-90 | Not Available |
| 34 | Not Available | EMBROIDERYFRAMEDETECTINGSWITCHGUIDE 1 | 395819-91 | Not Available |
| 36 | Not Available | EMBROIDERYFRAMEDETECTINGSWITCHBOARD(ASM.) 1 | 395823-17 | Not Available |
| 37 | Not Available | SCREW 4 | 395819-94 | Not Available |
| 38 | Not Available | BAND(SMALL) 4 | 395810-73 | Not Available |
| 39 | Not Available | EMBROIDERYFRAMEDETECTINGLEADCOVER 1 | 395819-96 | Not Available |
| 40 | Not Available | SCREW 1 | 395819-97 | Not Available |
| 41 | | Genuine Janome/Elna FRAME HOLDER COVER EL9010 | 395819-98 | $30.80Read more |
| 42 | Not Available | SCREW 1 | 395810-30 | Not Available |
| 43 | | Genuine Janome/Elna CAUTION SEAL (A) XQUISIT | 395820-01 | $4.60Read more |
| # | Part image | Description | SKU | Price |

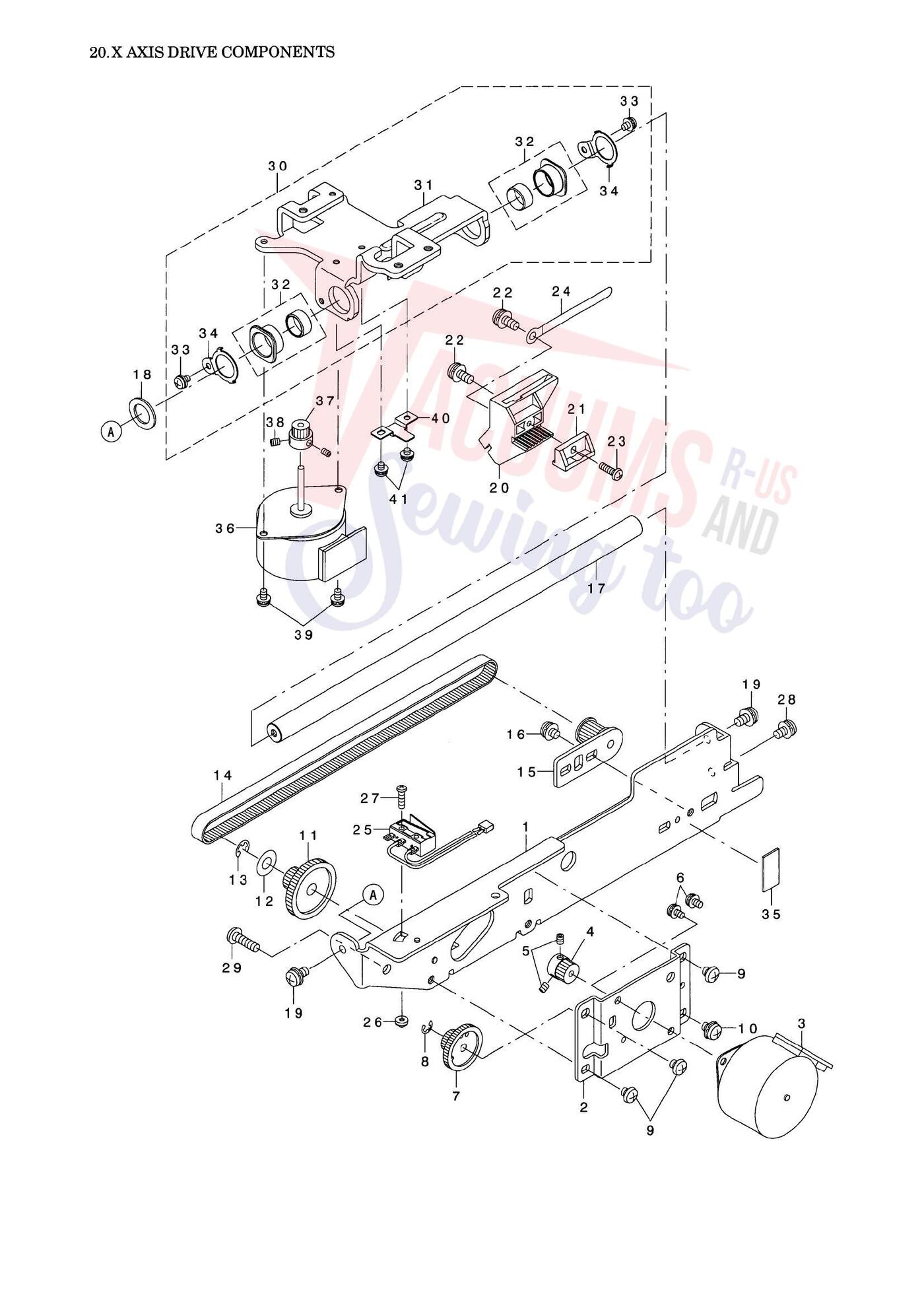

| 1 | Not Available | MAINFRAME(ASM.) 1 | 395820-02 | Not Available |
| 2 | Not Available | XMOTORBRACKET(ASM.) 1 | 395820-03 | Not Available |
| 3 | | Genuine Janome/Elna (X) AXIS STEP MOTOR ELNA XE1 | 395820-04 | $52.80Read more |
| 4 | Not Available | XMOTORGEAR 1 | 395820-05 | Not Available |
| 5 | Not Available | SCREW 2 | 395820-06 | Not Available |
| 5 | Not Available | SCREW 2 | 395820-06 | Not Available |
| 6 | | Genuine Janome/Elna SCREW FOR BRACKET 9010 9020 | 395819-84 | $1.00Read more |
| 6 | | Genuine Janome/Elna SCREW FOR BRACKET 9010 9020 | 395819-84 | $1.00Read more |
| 7 |  | Genuine Janome/Elna INTERMEDIATE GEAR (A) EL9010 | 395820-08 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | ERING 1 | 395811-09 | Not Available |
| 9 | Not Available | SCREW 3 | 395816-02 | Not Available |
| 10 | Not Available | SCREW 1 | 395817-77 | Not Available |
| 10 | Not Available | SCREW 1 | 395817-77 | Not Available |
| 11 | | Genuine Janome/Elna PINION | 395820-12 | $7.60Read more |
| 12 | Not Available | PULLEYFLANGE 1 | 395819-69 | Not Available |
| 13 | Not Available | ERING 1 | 395810-71 | Not Available |
| 14 | Not Available | XDRIVEBELT 1 | 395820-15 | Not Available |
| 15 | | Genuine Janome/Elna PULLEY | 395820-16 | $22.80Read more |
| 17 | Not Available | XCOORDINATEDRIVESHAFT 1 | 395820-18 | Not Available |
| 18 | Not Available | XCOORDINATEDRIVESHAFTFELTA 1 | 395823-18 | Not Available |
| 19 | Not Available | SCREW 2 | 395819-71 | Not Available |
| 19 | Not Available | SCREW 2 | 395819-71 | Not Available |
| 20 | Not Available | BELTPRESSERA 1 | 395820-21 | Not Available |
| 21 | Not Available | BELTPRESSERB 1 | 395820-22 | Not Available |
| 22 | Not Available | SCREW 2 | 395820-23 | Not Available |
| 23 | Not Available | SCREW 1 | 395813-48 | Not Available |
| 24 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 25 | | Genuine Janome/Elna (X) AXIS DETECTING SWITCH ELNA | 395820-26 | $13.80Read more |
| 26 | Not Available | NUT 1 | 395819-33 | Not Available |
| 27 | Not Available | SCREW 1 | 395811-23 | Not Available |
| 29 | Not Available | SCREW 1 | 395811-02 | Not Available |
| 30 | Not Available | XCOORDINATEDRIVEPLATE(ASM.) 1 | 395823-19 | Not Available |
| 31 | Not Available | XCOORDINATEDRIVEPLATE (1) | 395820-32 | Not Available |
| 32 | Not Available | XCOORDINATEDRIVEBEARINGA (2) | 395820-33 | Not Available |
| 33 | Not Available | SCREW (2) | 395820-35 | Not Available |
| 34 | Not Available | XDRIVESHAFTRECEPTACLEHOLDER (2) | 395811-18 | Not Available |
| 35 | Not Available | STARTSWITCHLEADTAPE 1 | 395813-44 | Not Available |
| 36 |  | Genuine Janome/Elna (Y) AXIS STEP MOTOR ELNA XE1 | 395820-37 | $104.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | YMOTORGEAR 1 | 395820-38 | Not Available |
| 40 | Not Available | CORDHOLDERPLATE 1 | 395820-41 | Not Available |
| 41 | Not Available | SCREW 2 | 395820-42 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna LARGE EMBROIDERY FRAME | 395805-02 | $182.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna LARGE EMBROIDERY FRAME INNER | 395805-03 | $50.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | LARGESIZEEMBROIDERYINNERFRAME (1) | 395805-04 | Not Available |
| 4 | Not Available | LARGESIZEEMBROIDERYINNERFRAMERUBBER (1) | 395805-06 | Not Available |
| 5 | Not Available | LARGESIZEEMBROIDERYOUTERFRAME(ASM.) (1) | 395805-64 | Not Available |
| 6 |  | Genuine Janome/Elna LARGE HOOP KNOB SCREW EL9010 | 395820-44 | $22.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Genuine Janome/Elna LARGE HOOP KNOB SCREW EL9010 | 395820-44 | $22.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Genuine Janome/Elna HOOP NUT EL9010 EL9020 | 395820-45 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Genuine Janome/Elna HOOP NUT EL9010 EL9020 | 395820-45 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | WASHER (1) | 395810-93 | Not Available |
| 8 | Not Available | WASHER (1) | 395810-93 | Not Available |
| 9 |  | Genuine Janome/Elna FRAME RELEASE SPRING EL9010 | 395820-47 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Genuine Janome/Elna FRAME RELEASE SPRING EL9010 | 395820-47 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | MEDIUMSIZEEMBROIDERYFRAME(ASM.) 1 | 395805-65 | Not Available |
| 11 | Not Available | MEDIUMSIZEEMBROIDERYOUTERFRAME(ASM.) (1) | 395805-66 | Not Available |
| 16 | | Genuine Janome/Elna MEDIUM EMBROIDERY FRAME INNER | 395805-22 | $21.40Read more |
| 17 | Not Available | SMALLSIZEEMBROIDERYFRAME(ASM.) 1 | 395805-67 | Not Available |
| 18 | Not Available | CONTINUOUSEMBROIDERYFRAMECOMPLETE 1 | 395805-68 | Not Available |
| 19 | Not Available | CONTINUOUSEMBROIDERYFRAMEBASEPLATE(TOTALASM.) (1) | 395805-69 | Not Available |
| 20 | Not Available | CONTINUOUSEMBROIDERYFRAMEBOX (2) | 395805-70 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE(ASM.) 1 | 395821-00 | Not Available |
| 2 | Not Available | HANDLE (1) | 395810-67 | Not Available |
| 3 | | Genuine Janome/Elna DF KNOB EL9020 XQUISIT | 395821-01 | $1.80Read more |
| 4 | Not Available | WASHER (2) | 395810-69 | Not Available |
| 5 | Not Available | HNADLESHAFT (2) | 395810-70 | Not Available |
| 6 | Not Available | ERING (4) | 395810-71 | Not Available |
| 7 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 7 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 8 | Not Available | BAND 1 | 395810-73 | Not Available |
| 9 | | Genuine Janome/Elna THREAD HOLDING COVER EL9020 | 395821-02 | $19.20Read more |
| 10 | | Genuine Janome/Elna NEEDLE THREADER HOOK HOLDER | 395821-03 | $17.80Read more |
| 11 |  | Genuine Janome/Elna NEEDLE PLATE COMPLETE 9020 | 395821-04 | $120.40Read more |
| 12 | Not Available | THREADHOLDINGPLATECOVER (1) | 395821-05 | Not Available |
| 13 | Not Available | THREADHOLDINGPLATECOVERFIXINGPLATE (1) | 395810-78 | Not Available |
| 14 | Not Available | PIN (2) | 395810-79 | Not Available |
| 15 |  | Genuine Janome/Elna MAGNET | 395810-80 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Genuine Janome/Elna MOVING BLADE EL9020 XQUISIT | 395821-06 | $50.00Read more |
| 17 | | Genuine Janome/Elna HOOK COMPLETE EL9020 XQUISIT | 395821-07 | $276.00Read more |
| 18 | Not Available | BOBBINWINDERSHAFTCOVERSPRING (1) | 395810-83 | Not Available |
| 19 | Not Available | SCREW (1) | 395810-84 | Not Available |
| 20 | Not Available | BOBBINWINDERSHAFTCOVERFIXINGPLATE (1) | 395810-85 | Not Available |
| 21 | Not Available | BOBBINWINDERSHAFTCOVERPIN (1) | 395810-86 | Not Available |
| 22 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 22 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 22 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 23 | Not Available | THREADSTANDPOST(ASM.) (1) | 395821-08 | Not Available |
| 24 |  | Genuine Janome/Elna THREAD HOLDING PLATE ASSEMBLY | 395821-09 | $115.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | Genuine Janome/Elna MICRO CUMPUTER CIRCUIT BOARD | 395821-10 | $2,292.20Read more |
| 26 | Not Available | SCREW (1) | 395819-41 | Not Available |
| 27 |  | Genuine Janome/Elna BOBBIN WINDER SEAT ELNA XE1 | 395810-92 | $10.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | | Genuine Janome/Elna FELT ELNA XE1 EL9010 XQUISIT | 395810-91 | $1.80Read more |
| 30 | Not Available | PANELCAP (1) | 395810-95 | Not Available |
| 31 | | Genuine Janome/Elna TOP THREAD CUTTER EL9020 | 395810-29 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | STOPPINGPLATE (1) | 395810-97 | Not Available |
| 34 | Not Available | THREADINGTHREADGUIDE (1) | 395810-99 | Not Available |
| 35 | Not Available | WASHER (1) | 395810-93 | Not Available |
| 35 | Not Available | WASHER (1) | 395810-93 | Not Available |
| 37 |  | Genuine Janome/Elna THREAD STAND POST SHAFT | 395810-89 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | SCREW 1 | 395811-06 | Not Available |
| 41 | Not Available | BHSWITCHFIXINGPLATE(TOTALASM.) 1 | 395811-07 | Not Available |
| 42 | Not Available | BHSWITCHFIXINGPLATE(PARTIALASM.) (1) | 395811-08 | Not Available |
| 43 | Not Available | WASHER (1) | 395814-47 | Not Available |
| 44 | Not Available | BHSWITCHFIXINGPLATE(ASM.) (1) | 395811-10 | Not Available |
| 45 | Not Available | AUXILIARYROLLERFLOATPLATE (1) | 395811-11 | Not Available |
| 46 | Not Available | PRESSERLIFTSWITCHWORKINGPLATE(ASM.) (1) | 395811-12 | Not Available |
| 47 | Not Available | ERING (1) | 395811-09 | Not Available |
| 47 | Not Available | ERING (1) | 395811-09 | Not Available |
| 47 | Not Available | ERING (1) | 395811-09 | Not Available |
| 50 | Not Available | BHCHANGE-OVERPLATE(ASM.) (1) | 395811-16 | Not Available |
| 51 | | Genuine Janome/Elna SENSOR BOARD EL9020 XQUISIT | 395821-11 | $59.80Read more |
| 52 | Not Available | SCREW (1) | 395811-18 | Not Available |
| 53 | Not Available | SCREW (2) | 395821-12 | Not Available |
| 54 | Not Available | POTENTIOMETERSPRING (1) | 395811-20 | Not Available |
| 55 | Not Available | POTENTIOMETER(ASM.) (1) | 395811-21 | Not Available |
| 56 | Not Available | PRESSERLIFTSWITCH(ASM.) (1) | 395811-22 | Not Available |
| 57 | Not Available | SCREW (1) | 395811-23 | Not Available |
| 58 | Not Available | LOCKNUT (1) | 395811-24 | Not Available |
| 59 | Not Available | BAND (1) | 395810-49 | Not Available |
| 60 | Not Available | BHSWITCH(ASM.) (1) | 395811-26 | Not Available |
| 61 | Not Available | LAMPFIXINGPLATE(RIGHT) 1 | 395821-13 | Not Available |
| 62 | Not Available | SCREW 1 | 395810-33 | Not Available |
| 63 | Not Available | LAMPINDICATIONLABEL 1 | 395821-14 | Not Available |
| 64 | Not Available | SCREW 1 | 395811-02 | Not Available |
| 65 | Not Available | SCREW 1 | 395811-03 | Not Available |
| 66 | Not Available | SCREW 1 | 395811-04 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DELIVERYSTMFIXINGPLATE(ASM.) 1 | 395821-15 | Not Available |
| 2 | Not Available | AUXILIARYROLLERARM(TOTALASM.) 1 | 395821-16 | Not Available |
| 3 | Not Available | AUXILIARYROLLERARM(ASM.) (1) | 395821-17 | Not Available |
| 4 | Not Available | AUXILIARYROLLERFIXINGPLATE(ASM.) (1) | 395821-18 | Not Available |
| 5 | Not Available | ROLLERGEARGUIDEA(ASM.) (1) | 395811-33 | Not Available |
| 6 | Not Available | ROLLERGEARGUIDEA (1) | 395811-34 | Not Available |
| 7 | Not Available | ROLLERGEARGUIDEAPILE (1) | 395811-35 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 8 | Not Available | ERING (1) | 395811-09 | Not Available |
| 9 | Not Available | ROLLERGEARGUIDEB (1) | 395811-37 | Not Available |
| 10 | Not Available | DELIVERYROLLERTHREADGUIDE 1 | 395821-19 | Not Available |
| 11 | Not Available | ERING 1 | 395810-71 | Not Available |
| 11 | Not Available | ERING 1 | 395810-71 | Not Available |
| 11 | Not Available | ERING 1 | 395810-71 | Not Available |
| 11 | Not Available | ERING 1 | 395810-71 | Not Available |
| 12 | | Genuine Janome/Elna DELIVERY ROLLER THREAD GUIDE | 395811-40 | $2.00Read more |
| 13 | Not Available | AUXILIARYROLLERARMSPRING 1 | 395821-20 | Not Available |
| 14 |  | Genuine Janome/Elna DELIVERY STEP MOTOR ELNA XE1 | 395811-42 | $50.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | SCREW 2 | 395810-33 | Not Available |
| 16 | Not Available | DELIVERYSTMRELAYLEADWIRE(ASM.) 1 | 395811-44 | Not Available |
| 17 | Not Available | THREADINGBODY 1 | 395821-21 | Not Available |
| 18 | Not Available | THREADINGBODYSPRING 1 | 395811-46 | Not Available |
| 20 | Not Available | THREADINGBODYLINK(ASM.) 1 | 395811-48 | Not Available |
| 22 | Not Available | THREADINGWORKINGBODY 1 | 395811-50 | Not Available |
| 24 | Not Available | THREADINGBODYINTERMEDIATEGEAR 1 | 395811-52 | Not Available |
| 25 | Not Available | DELIVERYROLLERSHAFT 1 | 395811-53 | Not Available |
| 26 | Not Available | DELIVERYROLLER 1 | 395821-22 | Not Available |
| 27 | | Genuine Janome/Elna PINION | 395811-55 | $5.80Read more |
| 28 | Not Available | SCREW 1 | 395811-19 | Not Available |
| 29 | Not Available | PIN 1 | 395810-79 | Not Available |
| 31 | | Genuine Janome/Elna PINION | 395811-59 | $4.20Read more |
| 32 | Not Available | THREADINGBODYDRIVEGEARWASHER 2 | 395811-60 | Not Available |
| 33 | Not Available | ERING 1 | 395811-61 | Not Available |
| 34 | | Genuine Janome/Elna PINION | 395811-62 | $7.60Read more |
| 35 | Not Available | DELIVERYDRIVEGEARSPRING 1 | 395811-63 | Not Available |
| 36 | Not Available | DELIVERYROLLERBEARING 2 | 395811-64 | Not Available |
| 37 | Not Available | DELIVERYSTMCHANGE-OVERPLATE 1 | 395811-65 | Not Available |
| 38 | Not Available | HINGESCREW 1 | 395811-66 | Not Available |
| 39 | Not Available | SPRING 1 | 395811-67 | Not Available |
| 40 | Not Available | BASETENSION(ASM.) 1 | 395821-23 | Not Available |
| 41 | Not Available | BASETENSION (1) | 395821-24 | Not Available |
| 42 | Not Available | BASETENSIONSPRING (1) | 395811-70 | Not Available |
| 43 | Not Available | BASETENSIONDISK(ASM.) (1) | 395821-25 | Not Available |
| 44 | Not Available | WASHER (1) | 395811-72 | Not Available |
| 45 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | BASETENSIONCLICK (1) | 395821-26 | Not Available |
| 47 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 48 | Not Available | SCREW 1 | 395811-76 | Not Available |
| 48 | Not Available | SCREW 1 | 395811-76 | Not Available |
| 49 | Not Available | THREADRELEASECAM(ASM.) 1 | 395821-27 | Not Available |
| 51 | Not Available | THREADRELEASELINK(UPPER) 1 | 395811-79 | Not Available |
| 53 | Not Available | THREADRELEASEPLATE(ASM.) 1 | 395811-81 | Not Available |
| 54 | Not Available | THREADRELEASEPLATE (1) | 395811-82 | Not Available |
| 55 | Not Available | THREADRELEASEADJUSTPLATE (1) | 395811-83 | Not Available |
| 56 | Not Available | SCREW (1) | 395811-84 | Not Available |
| 56 | Not Available | SCREW (1) | 395811-84 | Not Available |
| 57 | Not Available | THREADRELEASECHANGE-OVERADJUSTPLATE (1) | 395811-85 | Not Available |
| 60 | Not Available | BASETENSIONFLOAT 1 | 395811-88 | Not Available |
| 62 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 62 | Not Available | SCREW 3 | 395810-27 | Not Available |
| 63 | Not Available | BAND 1 | 395810-73 | Not Available |
| 64 | Not Available | CORDHOLDER 1 | 395811-92 | Not Available |
| 65 | Not Available | THREADRELEASECAMSPRING 1 | 395811-93 | Not Available |
| 66 | Not Available | AUXILIARYROLLERFLOATLINK(ASM.) 1 | 395811-94 | Not Available |
| 67 | Not Available | AUXILIARYROLLERFLOATADJUSTPLATE(ASM.) (1) | 395811-95 | Not Available |
| 68 | Not Available | AUXILIARYROLLERFLOATLINK (1) | 395811-96 | Not Available |
| 71 | Not Available | THREADGUIDENO.1(ASM.) 1 | 395821-28 | Not Available |
| 72 | Not Available | THREADGUIDENO.1 (1) | 395821-29 | Not Available |
| 73 | Not Available | THREADGUIDENO.1COVER (1) | 395812-02 | Not Available |
| 74 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 76 | Not Available | BAND 1 | 395810-49 | Not Available |
| 77 | Not Available | AUXILIARYROLLERARMSPRINGWASHER 1 | 395821-30 | Not Available |
| 78 | Not Available | SCREW 1 | 395810-38 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DRIVESHAFTFIXINGPLATE(TOTALASM.) 1 | 395821-31 | Not Available |
| 2 | Not Available | HOLDINGPRESSURECHANGE-OVERCONTACTPLATE (1) | 395812-07 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 3 | Not Available | SCREW (1) | 395812-08 | Not Available |
| 4 | Not Available | DRIVERACK (1) | 395812-09 | Not Available |
| 6 | Not Available | TOPTHREADTRANSFERBODYCONTROLCAM (1) | 395812-11 | Not Available |
| 7 | Not Available | SCREW(UPPER) (1) | 395812-12 | Not Available |
| 7 | Not Available | SCREW(UPPER) (1) | 395812-12 | Not Available |
| 8 | Not Available | SCREW(LOWER) (1) | 395812-13 | Not Available |
| 9 | Not Available | TOPTHREADTRANSFERINTERMEDIATEGEARA (1) | 395812-14 | Not Available |
| 10 | Not Available | TOPTHREADTRANSFERINTERMEDIATEGEARB (1) | 395812-15 | Not Available |
| 11 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Genuine Janome/Elna TOP THREAD TRANSFER BODY | 395812-17 | $58.80Read more |
| 13 | Not Available | TOPTHREADTRANSFERBODY(ASM.) (1) | 395812-18 | Not Available |
| 14 | Not Available | THREADPRESSER(ASM.) (1) | 395812-19 | Not Available |
| 15 | Not Available | THREADPRESSERWASHER (1) | 395812-20 | Not Available |
| 16 | Not Available | THREADPRESSERSPRING (1) | 395812-21 | Not Available |
| 17 | Not Available | ERING (1) | 395812-22 | Not Available |
| 18 | Not Available | HOLDINGPRESSURECHANGE-OVERPLATE (1) | 395812-23 | Not Available |
| 19 | Not Available | HINGESCREW (1) | 395812-24 | Not Available |
| 20 | Not Available | HOLDINGPRESSURECHANGE-OVERLINK(ASM.) (1) | 395812-25 | Not Available |
| 22 | Not Available | CHANGE-OVERWORKINGPLATE(ASM.) (1) | 395821-32 | Not Available |
| 23 | Not Available | CHANGE-OVERWORKINGPLATE (1) | 395821-33 | Not Available |
| 24 | Not Available | HOLDINGPRESSURECHANGE-OVERROLLER (1) | 395821-34 | Not Available |
| 25 | Not Available | CHANGE-OVERROLLERSPRING (1) | 395812-30 | Not Available |
| 26 | Not Available | CHANGE-OVERROLLERSHAFT (1) | 395821-35 | Not Available |
| 28 | Not Available | HOLDINGPRESSURECHANGE-OVERADJUSTPLATE (1) | 395812-33 | Not Available |
| 30 | Not Available | CHANGE-OVERWORKINGPLATESPRING (1) | 395821-36 | Not Available |
| 31 | Not Available | TOPTHREADTRANSFERBODYFULCRUMBASE (1) | 395821-37 | Not Available |
| 32 |  | Genuine Janome/Elna THREAD TRANSFER STOPPER | 395812-37 | $4.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | WASHER (1) | 395812-40 | Not Available |
| 36 | Not Available | EXTERNALWORKINGBODY(ASM.) (1) | 395812-41 | Not Available |
| 37 | Not Available | EXTERNALWORKINGBODYBEARING (1) | 395821-38 | Not Available |
| 38 | Not Available | EXTERNALWORKINGBODYGUIDE (1) | 395821-39 | Not Available |
| 39 | Not Available | SCREW (1) | 395812-44 | Not Available |
| 39 | Not Available | SCREW (1) | 395812-44 | Not Available |
| 40 | Not Available | INTERNALWORKINGBODY (1) | 395821-40 | Not Available |
| 41 | Not Available | WORKINGBODYSPRING (1) | 395821-41 | Not Available |
| 42 | Not Available | THREADINGWORKINGPLATE(ASM.) (1) | 395821-42 | Not Available |
| 43 | Not Available | WORKINGBODYROLLER (1) | 395812-48 | Not Available |
| 44 | Not Available | SCREW (2) | 395810-05 | Not Available |
| 45 |  | Genuine Janome/Elna TRANSFER BODY CAM | 395812-50 | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | Genuine Janome/Elna Thread Transfer Body Spring | 395812-51 | $4.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | TOPTHREADTRANSFERCOLLAR (1) | 395812-52 | Not Available |
| 48 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 48 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 49 | Not Available | THREADTRANSFERBODYDETECTBOARDGUIDE (1) | 395812-54 | Not Available |
| 51 | Not Available | THREADTRANSFERBODYDRIVESHAFT (1) | 395812-56 | Not Available |
| 52 | Not Available | ERING (1) | 395810-71 | Not Available |
| 52 | Not Available | ERING (1) | 395810-71 | Not Available |
| 53 | Not Available | THREADTRANSFERBODYDRIVESHAFTPIN (1) | 395812-58 | Not Available |
| 54 | Not Available | THREADTRANSFERBODYDRIVESHAFTGEAR (1) | 395812-59 | Not Available |
| 55 |  | Genuine Janome/Elna STEPPER MOTOR | 395812-60 | $120.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | SCREW (2) | 395811-84 | Not Available |
| 57 | | Genuine Janome/Elna THREAD DETECT CIRCUIT ASS. | 395812-62 | $41.80Read more |
| 58 | Not Available | DRIVESHAFTFIXINGPLATE(ASM.) (1) | 395812-06 | Not Available |
| 59 | Not Available | BAND (1) | 395810-73 | Not Available |
| 60 | Not Available | WORKINGBODYSPRING(LOWER) (1) | 395821-43 | Not Available |
| 61 | Not Available | DRIVEGEARCOVER (1) | 395821-44 | Not Available |
| 62 | Not Available | FACESUPPORTPLATE 1 | 395821-45 | Not Available |
| 63 | Not Available | LIFTINGLEVER(ASM.) 1 | 395821-46 | Not Available |
| 65 | Not Available | LIFTINGLEVERSHAFT (1) | 395821-47 | Not Available |
| 66 | Not Available | LIFTINGLEVER (1) | 395821-48 | Not Available |
| 67 | Not Available | LIFTINGLEVERSPRING (1) | 395812-68 | Not Available |
| 68 | Not Available | SCREW 1 | 395812-73 | Not Available |
| 69 |  | Genuine Janome/Elna PRESSER HOLDER ELNA EL9010 | 395812-74 | $11.60Read more |
| 70 | Not Available | STANDARDPRESSERFOOT 1 | 395805-36 | Not Available |
| 71 |  | Genuine Janome/Elna SCREW | 395812-75 | $12.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | PRESSERBARGUIDE 1 | 395812-69 | Not Available |
| 73 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 74 | Not Available | SCREW 1 | 395812-85 | Not Available |
| 75 | Not Available | PRESSERBAR 1 | 395821-49 | Not Available |
| 76 | Not Available | PRESSERBARSPRING 1 | 395812-71 | Not Available |
| 77 | Not Available | PRESSERBARBUSH 1 | 395821-50 | Not Available |
| 78 | Not Available | PRESSUREADJUSTINGARM(ARM.) 1 | 395821-51 | Not Available |
| 80 | Not Available | PRESSUREADJUSTINGBRACKET(ARM.) 1 | 395821-52 | Not Available |
| 81 | Not Available | PRESSUREADJUSTINGBRACKET (1) | 395821-53 | Not Available |
| 82 | Not Available | PRESSUREADJUSTINGCAM (1) | 395821-54 | Not Available |
| 83 | Not Available | SCREW (2) | 395812-81 | Not Available |
| 84 | Not Available | PRESSUREADJUSTINGSHAFT (1) | 395821-55 | Not Available |
| 85 | Not Available | SEAL (1) | 395821-56 | Not Available |
| 87 |  | Genuine Janome/Elna PRESSER BAR POSITION BRACKET | 395812-72 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | MAINSHAFT(ASM.) 1 | 395821-57 | Not Available |
| 2 | Not Available | SCREW (2) | 395812-87 | Not Available |
| 3 | Not Available | MAINSHAFTBUSHING 1 | 395812-88 | Not Available |
| 4 | Not Available | MAINSHAFTTHRUSTCOLLAR(ASM.) 1 | 395812-89 | Not Available |
| 5 | Not Available | SCREW (2) | 395812-90 | Not Available |
| 6 | Not Available | ERING 1 | 395812-91 | Not Available |
| 6 | Not Available | ERING 1 | 395812-91 | Not Available |
| 7 | Not Available | DISENGAGINGCAMSPRING 1 | 395812-92 | Not Available |
| 8 | Not Available | MAINSHAFTDISENGAGINGCAM(ASM.) 1 | 395821-58 | Not Available |
| 9 | Not Available | MAINSHAFTDISENGAGINGSTOPPERSPRING (1) | 395812-94 | Not Available |
| 10 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 10 | Not Available | SCREW (1) | 395810-30 | Not Available |
| 11 | Not Available | MAINSHAFTDISENGAGINGCAMPIN 1 | 395812-96 | Not Available |
| 12 | Not Available | THREADTAKE-UPBODY(ASM.) 1 | 395812-97 | Not Available |
| 13 | Not Available | ENDSCREW(LEFT) 1 | 395812-98 | Not Available |
| 14 | Not Available | MAINSHAFTPULLEY(ASM.) 1 | 395812-99 | Not Available |
| 15 | Not Available | MAINSHAFTPULLEY (1) | 395813-01 | Not Available |
| 16 | Not Available | MAINSHAFTDISENGAGINGBUFFERLINK (1) | 395813-02 | Not Available |
| 17 | Not Available | MAINSHAFTDISENGAGINGBUFFERSPRING (1) | 395813-03 | Not Available |
| 18 | Not Available | BUFFERMATERIAL (1) | 395813-04 | Not Available |
| 19 | Not Available | MAINSHAFTDISENGAGINGCAMLATCHSPRING (1) | 395813-05 | Not Available |
| 22 | Not Available | MAINSHAFTBUSHING(REAR) 1 | 395813-08 | Not Available |
| 23 | | Genuine Janome/Elna HAND WHEEL XQUISIT | 395813-09 | $19.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | SCREW 1 | 395813-10 | Not Available |
| 25 | Not Available | WASHER 1 | 395813-11 | Not Available |
| 26 | Not Available | SPRINGWASHER 2 | 395813-12 | Not Available |
| 27 | Not Available | MAINSHAFTBUSHINGRETAININGPLATE 1 | 395813-13 | Not Available |
| 28 | Not Available | MAINSHAFTBUSHINGRETAININGPLATE(REAR) 1 | 395813-14 | Not Available |
| 29 | Not Available | SCREW 2 | 395810-27 | Not Available |
| 30 | Not Available | THREADTAKE-UPSUPPORT 1 | 395813-16 | Not Available |
| 31 | Not Available | TAKE-UPSUPPORTINGSHAFT(ASM.) 1 | 395813-17 | Not Available |
| 32 | Not Available | THREADTAKE-UPLEVERSUPPORTINGSHAFT (1) | 395813-18 | Not Available |
| 33 | Not Available | ERING (1) | 395813-19 | Not Available |
| 34 | Not Available | TAKE-UPSUPPORTINGSHAFTRETAININGPLATE 1 | 395813-20 | Not Available |
| 35 | Not Available | SCREW 1 | 395811-02 | Not Available |
| 36 | Not Available | NEEDLEBARCRANK(ASM.) 1 | 395821-59 | Not Available |
| 37 | Not Available | NEEDLEBARCRANKROD 1 | 395821-60 | Not Available |
| 38 | Not Available | MAINSHAFTSUPPORTIMGBEARING 1 | 395821-61 | Not Available |
| 39 | | Genuine Janome/Elna IDLER COMPL. | 395813-25 | $22.80Read more |
| 40 | Not Available | IDLER (1) | 395813-26 | Not Available |
| 41 | Not Available | IDLERFIXINGPLATE(ASM.) (1) | 395813-27 | Not Available |
| 42 | Not Available | ERING (1) | 395810-71 | Not Available |
| 43 | Not Available | SCREW 1 | 395817-99 | Not Available |
| 44 | Not Available | TIMINGBELT(LARGE) 1 | 395813-30 | Not Available |
| 45 | Not Available | MAINSHAFTTHRUSTSPRINGWASHER 1 | 395813-31 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FRONTPANEL(ASM.) 1 | 395821-62 | Not Available |
| 2 | Not Available | FRONTPANEL (1) | 395821-63 | Not Available |
| 3 | Not Available | S/SBUTTON (1) | 395813-34 | Not Available |
| 4 | Not Available | REVERSEBUTTON (1) | 395813-35 | Not Available |
| 5 | Not Available | HALF-STITCHBUTTON (1) | 395813-36 | Not Available |
| 6 | Not Available | SLIDEVRKNOB (1) | 395813-37 | Not Available |
| 7 | | Genuine Janome/Elna SWITCH SLIDE VOLUME BOARD | 395813-38 | $44.20Read more |
| 8 | Not Available | BAND (1) | 395810-49 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 9 | Not Available | SCREW (3) | 395810-30 | Not Available |
| 11 | Not Available | WITH/WITHOUTBOBBINTHREADSENSORSHIELDPLATE (1) | 395813-42 | Not Available |
| 12 | Not Available | SPRING (1) | 395813-43 | Not Available |
| 13 | Not Available | STARTSWITCHLEADTAPE (3) | 395813-44 | Not Available |
| 14 | Not Available | BLINDPLATE (1) | 395813-45 | Not Available |
| 15 | Not Available | SCREW (2) | 395810-44 | Not Available |
| 17 | Not Available | SCREW (3) | 395813-48 | Not Available |
| 18 | | Genuine Janome/Elna LCD MODULE COMPLETE ELNA XE1 | 395813-49 | $2,325.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | LCDMODULE(ASM.) (1) | 395813-50 | Not Available |
| 20 | Not Available | LCDFIXINGPLATE (1) | 395813-51 | Not Available |
| 22 | Not Available | TRANSPARENTTOUCHPANEL(ASM.) (1) | 395813-53 | Not Available |
| 23 | Not Available | TRANSPARENTTOUCHPANEL (1) | 395813-54 | Not Available |
| 24 | Not Available | SWITCHSHEET (1) | 395813-55 | Not Available |
| 25 | Not Available | DOUBLESIDEADHESIVETAPE (2) | 395813-56 | Not Available |
| 26 | Not Available | INVERTERCIRCUITBOARD(ASM.) (1) | 395821-64 | Not Available |
| 28 | | Genuine Janome/Elna DISPLAY CIRCUIT BOARD RELAY | 395813-59 | $22.80Read more |
| 29 | Not Available | TTPBUFFERMATERIAL(VERTICAL) (3) | 395813-60 | Not Available |
| 30 | | Genuine Janome/Elna BOBBIN SUPPORT | 395813-61 | $7.60Read more |
| 31 | | Genuine Janome/Elna FELT | 395813-62 | $5.40Read more |
| 32 | Not Available | PIN (1) | 395813-63 | Not Available |
| 34 | Not Available | THREADSPOOLCAP (1) | 395813-65 | Not Available |
| 35 | Not Available | BOBBINTHREADSPOOLCOVER (1) | 395821-65 | Not Available |
| 36 | | Genuine Janome/Elna SPOOL COVER HOOK ELNA XE1 | 395813-67 | $2.00Read more |
| 38 | Not Available | WASHER (1) | 395813-69 | Not Available |
| 39 | Not Available | BOBBINTHREADTHREADGUIDE(TOTALASM.) (1) | 395821-66 | Not Available |
| 40 | Not Available | BOBBINTHREADTHREADGUIDE(ASM.) (1) | 395821-67 | Not Available |
| 41 | Not Available | ERING (1) | 395812-22 | Not Available |
| 42 | Not Available | WASHER (1) | 395813-73 | Not Available |
| 43 | Not Available | THREADGUIDEPLATESPRING (1) | 395813-74 | Not Available |
| 44 | Not Available | THREADGUIDESPRING (1) | 395813-75 | Not Available |
| 48 | Not Available | THREADGUIDECOVER (1) | 395813-79 | Not Available |
| 49 | Not Available | THREADGUIDEROD (1) | 395813-80 | Not Available |
| 50 | Not Available | SCREW (1) | 395810-05 | Not Available |
| 51 | Not Available | SCREW (2) | 395811-04 | Not Available |
| 52 | Not Available | SCREW (1) | 395811-18 | Not Available |
| 53 | Not Available | LCDFIXINGCOLLAR (2) | 395813-84 | Not Available |
| 54 | Not Available | STITCHBUTTON (1) | 395813-85 | Not Available |
| 55 | Not Available | FRONTPANELUPPERCOVER(ASM.) (1) | 395821-68 | Not Available |
| 56 | Not Available | FRONTUPPERCOVERFIXINGPLATE(ASM.) (2) | 395821-69 | Not Available |
| 57 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | Not Available | SCREW (4) | 395810-84 | Not Available |
| 59 | | Genuine Janome/Elna SHEET ELNA XE1 EL9010 XQUISIT | 395813-90 | $27.60Read more |
| 60 | Not Available | LAMPWINDOWCOVER (1) | 395821-70 | Not Available |
| 61 | Not Available | FRONTUPPERCOVERARM (1) | 395821-71 | Not Available |
| 62 | Not Available | EMBLEM (1) | 395821-72 | Not Available |
| 63 | Not Available | ERING (2) | 395811-09 | Not Available |
| 64 | Not Available | FRONTUPPERCOVERARMB (1) | 395821-73 | Not Available |
| 65 | Not Available | FRONTUPPERCOVERARMREGULATINGSPRING (1) | 395821-74 | Not Available |
| 66 | Not Available | SCREW (1) | 395811-75 | Not Available |
| 67 | Not Available | WASHER (2) | 395821-75 | Not Available |
| 68 | Not Available | WASHER (2) | 395821-76 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | NEDDLEBARFRAME(COMPL.) 1 | 395823-27 | Not Available |
| 2 | Not Available | NEDDLEBARFRAME(PARTIALASM.) (1) | 395823-28 | Not Available |
| 3 | Not Available | NEEDLEBARFRAME (1) | 395813-96 | Not Available |
| 4 | Not Available | THREADINGSHAFTDUMPERRING (1) | 395813-97 | Not Available |
| 5 | Not Available | NEEDLEBARROCKERBASESHAFT (1) | 395813-98 | Not Available |
| 6 | Not Available | ROCKERBASEFULCRUMSHAFT (1) | 395813-99 | Not Available |
| 7 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 7 | Not Available | SCREW (1) | 395811-19 | Not Available |
| 8 | Not Available | THREADERWORKINGBODYSPRINGHOOK (1) | 395814-02 | Not Available |
| 9 | Not Available | NEEDLEBAR (1) | 395823-29 | Not Available |
| 10 | Not Available | THREADERSHAFT (1) | 395814-04 | Not Available |
| 11 | Not Available | ERING (1) | 395811-09 | Not Available |
| 12 | Not Available | PIN (1) | 395814-06 | Not Available |
| 13 | Not Available | NEEDLESTOPPERTHREADINGBODY (1) | 395823-30 | Not Available |
| 14 | Not Available | NEEDLESTOPPERTHREADINGBODYSPRING (1) | 395814-08 | Not Available |
| 15 | Not Available | THREADERSHAFTGUIDE (1) | 395814-09 | Not Available |
| 16 | Not Available | THREADERWORKINGBODY (1) | 395823-31 | Not Available |
| 17 | Not Available | NEEDLEBARFRAMEBRUSH (1) | 395823-32 | Not Available |
| 18 | Not Available | CONNECTINGPLATESHAFT (1) | 395823-33 | Not Available |
| 19 | Not Available | NEEDLECLAMP(TOTALASM.) (1) | 395823-34 | Not Available |
| 20 | Not Available | NEEDLE#14 (1) | 395814-14 | Not Available |
| 21 | Not Available | NEEDLEBARCONNECTION(ASM.) (1) | 395814-15 | Not Available |
| 22 | Not Available | THREADERNEEDLEBARGUIDE(ASM.) (1) | 395823-35 | Not Available |
| 23 | Not Available | THREADERNEEDLEBARGUIDE (1) | 395823-36 | Not Available |
| 24 | Not Available | TRANSFERBODYPOSITIONINGPLATE (1) | 395814-18 | Not Available |
| 25 | Not Available | SCREW (1) | 395823-37 | Not Available |
| 25 | Not Available | SCREW (1) | 395823-37 | Not Available |
| 26 | Not Available | SCREW (1) | 395810-40 | Not Available |
| 27 | Not Available | NEEDLEBARREGULATIONSPRING (1) | 395823-38 | Not Available |
| 28 | Not Available | NEEDLETHREADERHOOKHOLDER(ASM) (1) | 395823-39 | Not Available |
| 29 |  | Genuine Janome/Elna SCREW | 395814-23 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | NEEDLETHREADERSHAFTSPRING (1) | 395823-40 | Not Available |
| 31 | Not Available | NEEDLESTOPPERTHREADINGARM (1) | 395823-41 | Not Available |
| 32 | | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | ROCKINGBASESPRING(LOWER) (1) | 395814-27 | Not Available |
| 34 | Not Available | THREADRELEASECAMSPRING (1) | 395811-93 | Not Available |
| 35 | Not Available | SPRING (1) | 395814-29 | Not Available |
| 36 | Not Available | FELTHOLDER (1) | 395814-30 | Not Available |
| 37 | Not Available | FELT (1) | 395814-21 | Not Available |
| 38 | Not Available | SCREW (1) | 395823-42 | Not Available |
| 40 | Not Available | SCREW 2 | 395810-33 | Not Available |
| 41 | Not Available | ROCKINGBASESHAFTSPRING 1 | 395823-43 | Not Available |
| 42 | Not Available | ROCKINGBASEADJUSTSHAFT(E) 1 | 395823-44 | Not Available |
| 44 | Not Available | NEEDLEMIS-INSERTPREVENTINGPLATE 1 | 395823-46 | Not Available |
| 45 | Not Available | SCREW 1 | 395814-37 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FACEPLATEFIXINGPLATE(TOTALASM.) 1 | 395821-77 | Not Available |
| 2 | Not Available | FACEPLATEFIXINGPLATE(ASM.) (1) | 395821-78 | Not Available |
| 3 | Not Available | FACEPLATEFIXINGPLATE (1) | 395821-79 | Not Available |
| 4 | Not Available | NEEDLEBARLATERALADJUSTPLATE(ASM.) (1) | 395821-80 | Not Available |
| 5 | Not Available | SCREW (1) | 395814-53 | Not Available |
| 5 | Not Available | SCREW (1) | 395814-53 | Not Available |
| 5 | Not Available | SCREW (1) | 395814-53 | Not Available |
| 6 | | Genuine Janome/Elna Lamp Fixing Body | 395814-43 | $7.40Read more |
| 7 | Not Available | SCREW (1) | 395810-38 | Not Available |
| 8 | | Genuine Janome/Elna Lamp Seal | 395814-45 | $3.80Read more |
| 9 | | Genuine Janome/Elna Lamp Socket (Total Asm.) | 395814-46 | $174.60Read more |
| 10 | Not Available | BULB (2) | 395805-13 | Not Available |
| 11 | Not Available | WASHER (1) | 395814-47 | Not Available |
| 12 | Not Available | ROCKINGBASECONTROLARM (1) | 395821-81 | Not Available |
| 13 | Not Available | ERING (1) | 395811-09 | Not Available |
| 13 | Not Available | ERING (1) | 395811-09 | Not Available |
| 14 | Not Available | SCREW (1) | 395811-18 | Not Available |
| 15 | Not Available | BAND(SMALL) (2) | 395810-73 | Not Available |
| 16 | Not Available | CONTROLPLATE (1) | 395821-82 | Not Available |
| 18 | Not Available | FACEPLATE(ASM.) 1 | 395821-83 | Not Available |
| 19 | Not Available | FACEPLATEPILE (1) | 395814-55 | Not Available |
| 20 | Not Available | FACEPLATEINSIDECOVERFIXINGPLATE (1) | 395814-56 | Not Available |
| 21 | Not Available | FACEPLATETENSIONPILE (1) | 395810-08 | Not Available |
| 22 | Not Available | NEEDLETHREADBREAKAGEDETECTINGBOARD(ASM.) (1) | 395821-84 | Not Available |
| 23 | Not Available | FACEPLATEPILE(UPPER) (1) | 395810-07 | Not Available |
| 24 | Not Available | THREADTAKE-UPSPRING (1) | 395814-60 | Not Available |
| 25 | Not Available | NEEDLETHREADBREAKAGEDETECTSHIELDPLATE (1) | 395821-85 | Not Available |
| 26 | Not Available | THREADTAKE-UPSPRINGFIXINGPLATE (1) | 395814-62 | Not Available |
| 27 | Not Available | SCREW (1) | 395821-86 | Not Available |
| 28 | Not Available | THREADTAKE-UPSPRINGCUSHION (1) | 395814-64 | Not Available |
| 29 | Not Available | SCREW (1) | 395810-33 | Not Available |
| 29 | Not Available | SCREW (1) | 395810-33 | Not Available |
| 30 | Not Available | MIS-THREADINGPREVENTINGPLATE(ASM.) (1) | 395814-66 | Not Available |
| 32 | Not Available | SPRING (1) | 395821-87 | Not Available |
| 33 |  | Genuine Janome/Elna DELIVERY ROLLER PILE 9020 | 395814-69 | $8.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | THREADTAKE-UPGUIDE (1) | 395821-88 | Not Available |
| 35 | Not Available | SCREW (1) | 395814-71 | Not Available |
| 36 | Not Available | FACEPLATEREINFORCINGPLATE (1) | 395821-89 | Not Available |
| 38 | Not Available | FACEPLATETENSIONBASE(ASM.) (1) | 395821-90 | Not Available |
| 39 | Not Available | SCREW (1) | 395814-75 | Not Available |
| 40 | Not Available | FACEPLATE (1) | 395821-91 | Not Available |
| 41 | Not Available | BAND (1) | 395818-78 | Not Available |
| 42 | Not Available | DELIVERYROLLERPILE(SIDE)B (1) | 395821-92 | Not Available |
| 43 | Not Available | THREADBREAKAGEDETECTSHIELDPLATESPACER (1) | 395821-93 | Not Available |
| 44 | Not Available | DELIVERYROLLERPILE(SIDE) (1) | 395821-94 | Not Available |
| 46 | Not Available | SCREW 1 | 395810-40 | Not Available |
Report errors on this page HERE
