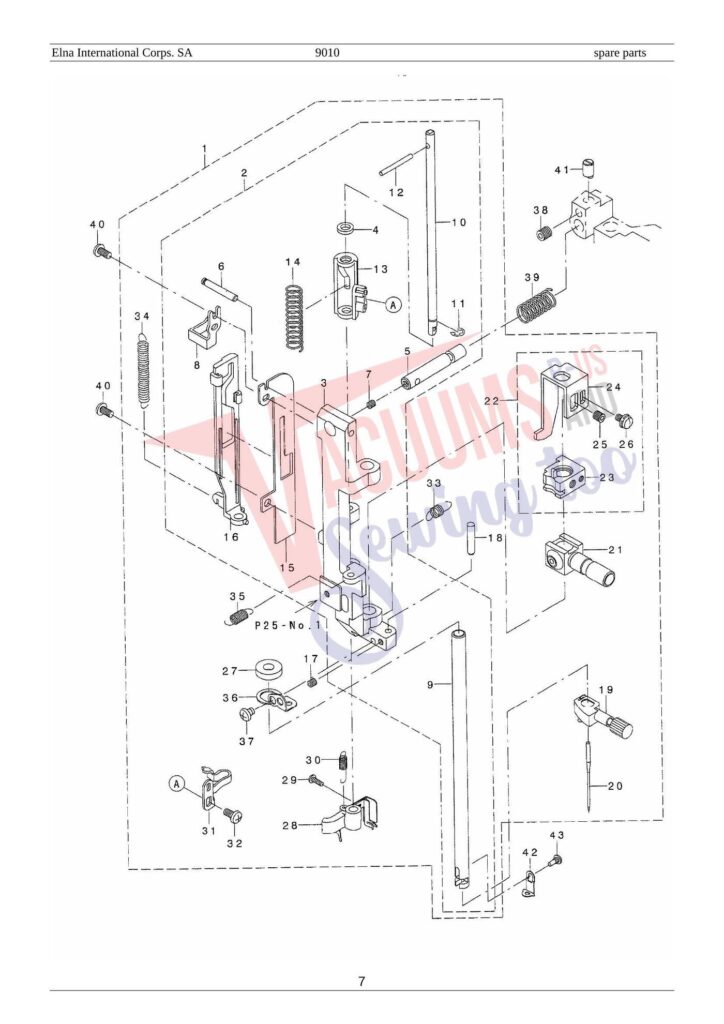

Parts list and schematic for: Elna Models: el9010 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

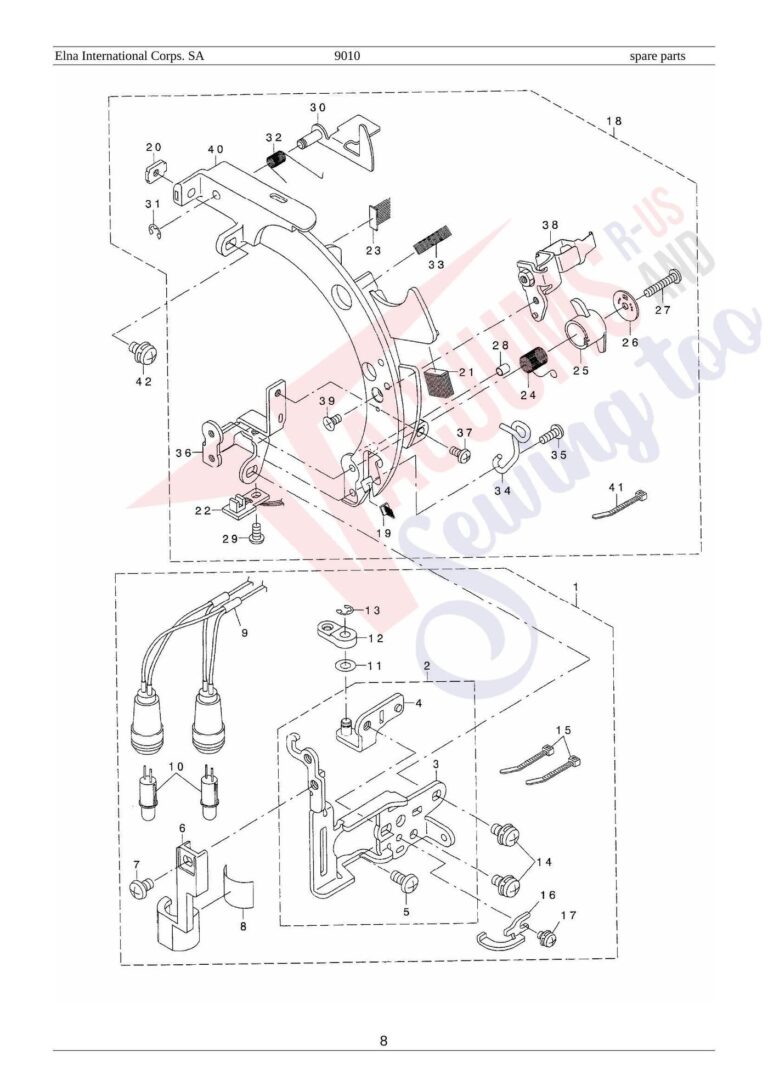

| # | Part image | Description | SKU | Price |

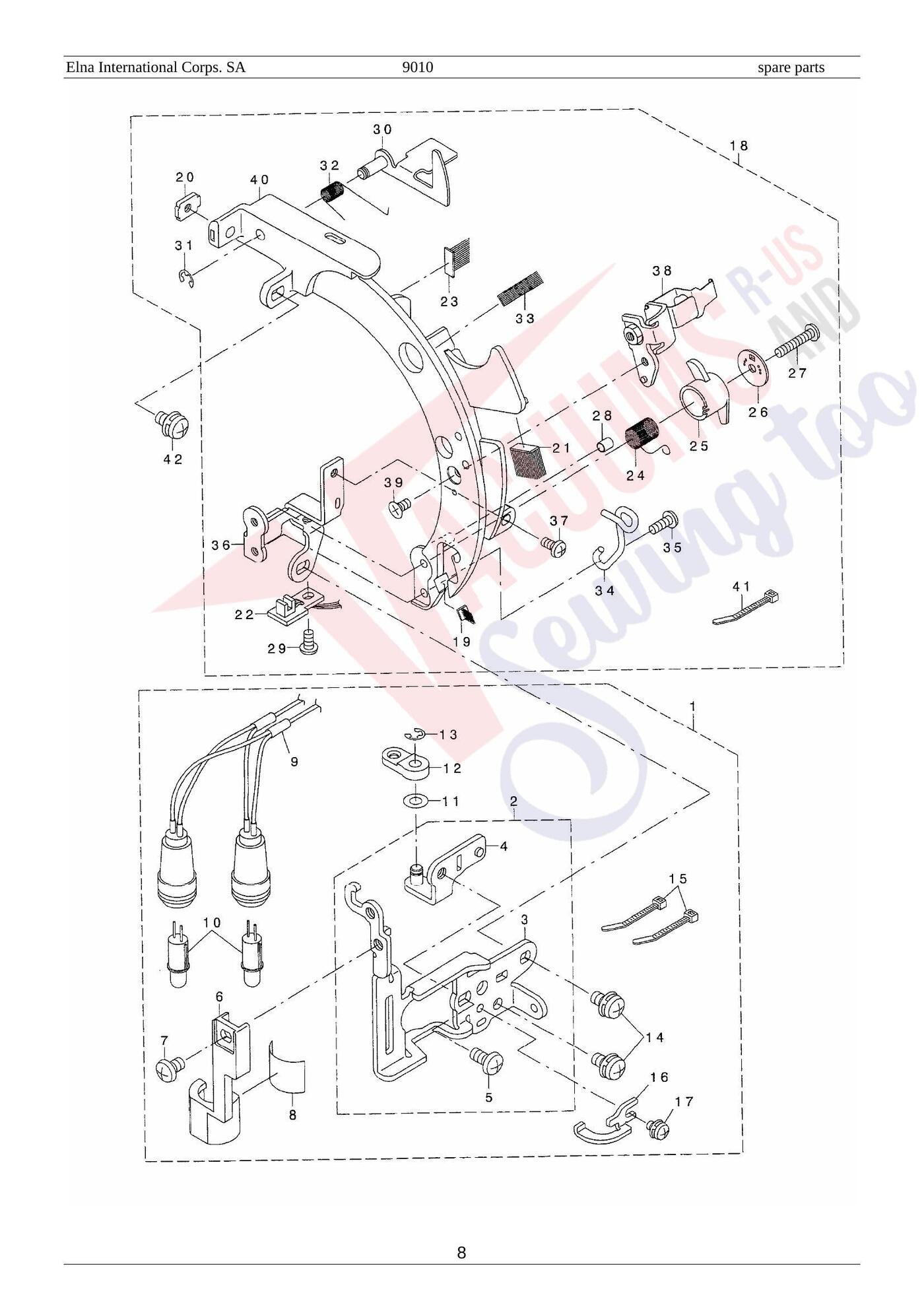

| 1 | Not Available | FACE PLATE FIXING PLATE (TOTAL ASM.) | 395814-38 | Not Available |
| 2 | Not Available | FACE PLATE FIXING PLATE (ASM.) | 395814-39 | Not Available |
| 3 | Not Available | FACE PLATE FIXING PLATE | 395814-40 | Not Available |
| 4 | Not Available | NEEDLE BAR LATERAL ADJUST PLATE (SASM.) | 395814-41 | Not Available |
| 5 | Not Available | SCREW | 395814-42 | Not Available |
| 6 |  | Genuine Janome/Elna Lamp Fixing Body | 395814-43 | $7.40Read more |
| 7 | Not Available | SCREW | 395814-44 | Not Available |
| 8 | | Genuine Janome/Elna Lamp Seal | 395814-45 | $3.80Read more |
| 9 | | Genuine Janome/Elna Lamp Socket (Total Asm.) | 395814-46 | $174.60Read more |
| 10 | Not Available | BULB | 395805-13 | Not Available |
| 11 | Not Available | WASHER | 395814-47 | Not Available |
| 12 | | Genuine Janome/Elna ROCKING BASE CONTROL ARM | 395814-48 | $36.20Read more |
| 13 | Not Available | E RING | 395814-49 | Not Available |
| 14 | Not Available | SCREW | 395814-50 | Not Available |
| 15 | Not Available | BAND (SMALL) | 395814-51 | Not Available |
| 16 | Not Available | CONTROL PLATE | 395814-52 | Not Available |
| 17 | Not Available | SCREW | 395814-53 | Not Available |
| 18 | Not Available | FACE PLATE (ASM.) | 395814-54 | Not Available |
| 19 | Not Available | FACE PLATE PILE | 395814-55 | Not Available |
| 20 | Not Available | FACE PLATE INSIDE COVER FIXING PLATE | 395814-56 | Not Available |
| 21 | | Genuine Janome/Elna FACE PLATE TENSION PILE 9010 | 395814-57 | $6.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Genuine Janome/Elna DETECTING BOARD | 395814-58 | $17.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | Genuine Janome/Elna FEED BAR PILE ELNA 9010 | 395814-59 | $6.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | THREAD TAKE-UP SPRING | 395814-60 | Not Available |
| 25 | | Genuine Janome/Elna NEEDLE THREAD BREAKAGE DETECT | 395814-61 | $3.00Read more |
| 26 | Not Available | THREAD TAKE-UP SPRING FIXING PLATE | 395814-62 | Not Available |
| 27 | Not Available | SCREW | 395814-63 | Not Available |
| 28 | Not Available | THREAD TAKE-UP SPRING CUSHION | 395814-64 | Not Available |
| 29 | Not Available | SCREW | 395814-65 | Not Available |
| 30 | Not Available | MIS-THREADING PREVENTING PLATE (ASM.) | 395814-66 | Not Available |
| 31 | Not Available | E RING | 395814-67 | Not Available |
| 32 | Not Available | SPRING | 395814-68 | Not Available |
| 33 |  | Genuine Janome/Elna DELIVERY ROLLER PILE 9020 | 395814-69 | $8.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | THREAD TAKE-UP GUIDE | 395814-70 | Not Available |
| 35 | Not Available | SCREW | 395814-71 | Not Available |
| 36 | Not Available | FACE PLATE REINFORCING PLATE | 395814-72 | Not Available |
| 37 | Not Available | SCREW | 395814-73 | Not Available |
| 38 | Not Available | FACE PLATE TENSION BASE (ASM.) | 395814-74 | Not Available |
| 39 | Not Available | SCREW | 395814-75 | Not Available |
| 40 | Not Available | FACE PLATE | 395814-76 | Not Available |
| 41 | Not Available | BAND (SMALL) | 395814-77 | Not Available |
| 42 | Not Available | SCREW | 395814-78 | Not Available |
| # | Part image | Description | SKU | Price |

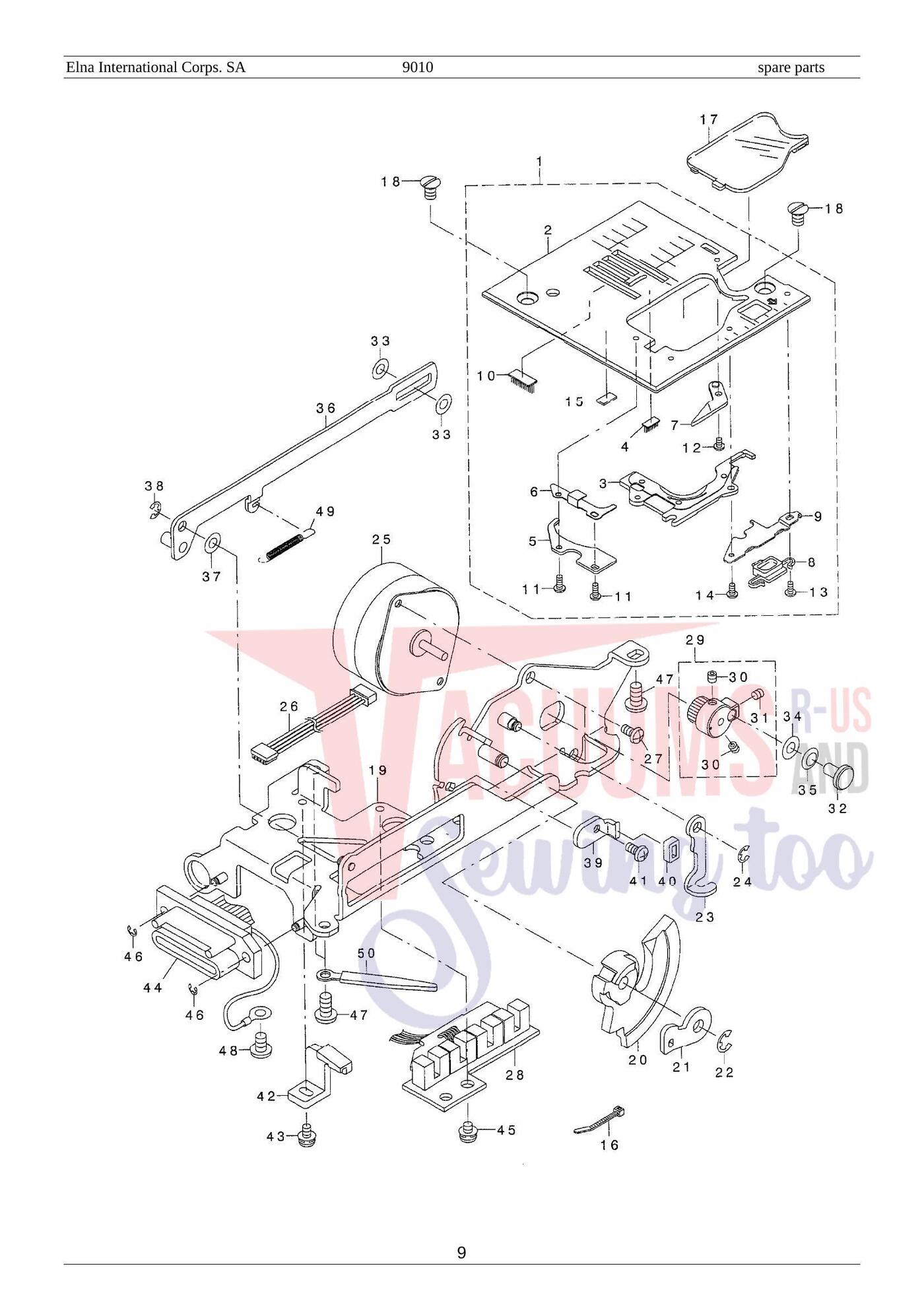

| 1 |  | Genuine Janome/Elna NEEDLE PLATE ASSEMBLY ELNA XE1 | 395814-79 | $138.00Read more |
| 2 |  | Genuine Janome/Elna NEEDLE PLATE ONLY EL9010 | 395814-80 | $70.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | BOBBIN CASE COVER | 395814-81 | Not Available |
| 4 | Not Available | NEEDLE PLATE PILE B | 395814-82 | Not Available |
| 5 | Not Available | STOPPING PLATE (LEFT) | 395814-83 | Not Available |
| 6 | Not Available | HOOK COVER SPRING | 395814-84 | Not Available |
| 7 | Not Available | HOOK COVER SUPPORT PLATE | 395814-85 | Not Available |
| 8 | Not Available | HOOK COVER OPEN/CLOSE BUTTON | 395814-86 | Not Available |
| 9 | Not Available | HOOK COVER BUTTON SUPPORT | 395814-87 | Not Available |
| 10 | Not Available | NEEDLE PLATE PILE A | 395814-88 | Not Available |
| 11 | Not Available | SCREW | 395814-89 | Not Available |
| 12 | Not Available | SCREW | 395814-90 | Not Available |
| 13 | Not Available | SCREW | 395814-91 | Not Available |
| 14 | Not Available | SCREW | 395814-92 | Not Available |
| 15 | Not Available | NEEDLE PLATE RUBBER | 395814-93 | Not Available |
| 16 | Not Available | BAND | 395814-94 | Not Available |
| 17 |  | Genuine Janome/Elna HOOK COVER ELNA XE1 EL9010 | 395814-95 | $22.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Genuine Janome/Elna NEEDLE PLATE SCREW ELNA XE1 | 395814-96 | $5.40Read more |
| 19 | Not Available | LATERAL FEED STM FIXING PLATE (ASM.) | 395814-97 | Not Available |
| 20 | Not Available | THREAD TRIMMING GEAR | 395814-98 | Not Available |
| 21 | Not Available | THREAD RELEASE ARM | 395814-99 | Not Available |
| 22 | Not Available | E RING | 395815-01 | Not Available |
| 23 | Not Available | KNIFE DISENGAGING CONTACT | 395815-02 | Not Available |
| 24 | Not Available | E RING | 395815-03 | Not Available |
| 25 | Not Available | LATERAL FEED STM | 395815-04 | Not Available |
| 26 | Not Available | RELAY LEAD WIRE (ASM.) | 395815-05 | Not Available |
| 27 | Not Available | SCREW | 395815-06 | Not Available |
| 28 | | Genuine Janome/Elna MAIN SHAFT DETECTING BOARD | 395815-07 | $18.00Read more |
| 29 | | Genuine Janome/Elna LATERAL FEED GEAR | 395815-08 | $62.40Read more |
| 30 | Not Available | SCREW | 395815-09 | Not Available |
| 31 | Not Available | SCREW | 395815-10 | Not Available |
| 32 | Not Available | GEAR PIN | 395815-11 | Not Available |
| 33 | Not Available | WASHER A | 395815-12 | Not Available |
| 34 | Not Available | WASHER B | 395815-13 | Not Available |
| 35 | Not Available | SPRING WASHER | 395815-14 | Not Available |
| 36 | Not Available | LATERAL FEEDLINK (ASM.) | 395815-15 | Not Available |
| 37 | Not Available | WASHER A | 395815-16 | Not Available |
| 38 | Not Available | E RING | 395815-17 | Not Available |
| 39 | Not Available | THREAD TRIMMING GEAR STOPPER | 395815-18 | Not Available |
| 40 | Not Available | ORIGIN DETECTING RUBBER | 395815-19 | Not Available |
| 41 | Not Available | SCREW | 395815-20 | Not Available |
| 42 | Not Available | HOOK DRIVING SHAFT SUPPORT | 395815-21 | Not Available |
| 43 | Not Available | SCREW | 395815-22 | Not Available |
| 44 | | Genuine Janome/Elna DRIVER CABLE ELNA EL9010 XE1 | 395815-23 | $49.20Read more |
| 45 | Not Available | SCREW | 395815-24 | Not Available |
| 46 | Not Available | E RING | 395815-25 | Not Available |
| 47 | Not Available | SCREW | 395815-26 | Not Available |
| 48 | Not Available | SCREW | 395815-27 | Not Available |
| 49 | Not Available | LATERAL FEED LINK SPRING | 395815-28 | Not Available |
| 50 | Not Available | CORD HOLDER | 395815-29 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | GEAR COVER (ASM.) | 395815-30 | Not Available |
| 2 | Not Available | GEAR COVER | 395815-31 | Not Available |
| 3 | Not Available | WINDING-ROUND PREVENTING KNIFE | 395815-32 | Not Available |
| 4 | Not Available | SCREW | 395815-33 | Not Available |
| 5 | Not Available | SCREW | 395815-34 | Not Available |
| 6 | Not Available | SCREW (RIGHT) | 395815-35 | Not Available |
| 7 | Not Available | BOBBIN CASE STOPER PLATE (ASM.) | 395815-36 | Not Available |
| 8 | Not Available | BOBBIN CASE STOPPER PLATE | 395815-37 | Not Available |
| 9 | Not Available | INTER-HOOK HOLDING PLATE SPRING | 395815-38 | Not Available |
| 10 | Not Available | SCREW | 395815-39 | Not Available |
| 11 | Not Available | BOBBIN WINDER BASE TENSION (ASM.) | 395815-40 | Not Available |
| 12 | Not Available | SPRING | 395815-41 | Not Available |
| 13 | Not Available | E RING | 395815-42 | Not Available |
| 14 | Not Available | STOPPER PLATE SUPPORT | 395815-43 | Not Available |
| 15 | Not Available | KNIFE DISENGAGING LINK | 395815-44 | Not Available |
| 16 | Not Available | THREAD TRIMMING MECHANISM BASE (ASM. B) | 395815-45 | Not Available |
| 17 | Not Available | THREAD TRIMMING MECHANISM BASE (ASM. A) | 395815-46 | Not Available |
| 18 | Not Available | LOOPER WORKING PLATE (ASM.) | 395815-47 | Not Available |
| 19 | Not Available | MOVING KNIFE BASE GUIDE | 395815-48 | Not Available |
| 20 | Not Available | SCREW | 395815-49 | Not Available |
| 21 | Not Available | SCREW | 395815-50 | Not Available |
| 22 | Not Available | MOVING KNIFE STOPPER | 395815-51 | Not Available |
| 23 | Not Available | MOVING KNIFE BASE (TOTAL ASM.) | 395815-52 | Not Available |
| 24 | Not Available | MOVING KNIFE BASE (ASM.) | 395815-53 | Not Available |
| 25 | Not Available | MOVING KNIFE | 395815-54 | Not Available |
| 26 | Not Available | SPACER | 395815-55 | Not Available |
| 27 | Not Available | SCREW | 395815-56 | Not Available |
| 28 | Not Available | E RING | 395815-57 | Not Available |
| 29 |  | Genuine Janome/Elna MOVING KNIFE GUIDE PLATE | 395815-58 | $13.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | MOVING KNIFE GUIDE PLATE (LOWER) | 395815-59 | Not Available |
| 31 | Not Available | SPACER | 395815-60 | Not Available |
| 32 | Not Available | MOVING KNIFE SUPPORT | 395815-61 | Not Available |
| 33 | Not Available | GUIDE PLATE COLLAR | 395815-62 | Not Available |
| 34 | Not Available | SCREW | 395815-63 | Not Available |
| 35 | Not Available | SCREW | 395815-64 | Not Available |
| 36 | Not Available | MOVING KNIFE LINK | 395815-65 | Not Available |
| 37 | Not Available | SPRING | 395815-66 | Not Available |
| 38 | Not Available | WASHER | 395815-67 | Not Available |
| 39 | Not Available | E RING | 395815-68 | Not Available |
| 40 | Not Available | MOVING KNIFE SUPPORT (LEFT) | 395815-69 | Not Available |
| 41 | Not Available | SCREW | 395815-70 | Not Available |
| 42 | Not Available | KNIFE DRIVE LINK (ASM.) | 395815-71 | Not Available |
| 43 | Not Available | SPRING | 395815-72 | Not Available |
| 44 | Not Available | E RING | 395815-73 | Not Available |
| 45 | Not Available | KNIFE DIENGAGING PLATE (ASM.) | 395815-74 | Not Available |
| 46 | Not Available | E RING | 395815-75 | Not Available |
| 47 | Not Available | KNIFE DISENGAGING ADJUST PLATE (ASM.) | 395815-76 | Not Available |
| 48 | Not Available | KNIFE DISENGAGING ADJUST PLATE | 395815-77 | Not Available |
| 49 | Not Available | KNIFE DISENGAGING ADJUST PLATE (FRONT) | 395815-78 | Not Available |
| 50 | Not Available | SCREW | 395815-79 | Not Available |
| 51 | Not Available | SCREW | 395815-80 | Not Available |
| 52 | Not Available | LOOPER (ASM.) | 395815-81 | Not Available |
| 53 | Not Available | LOOPER | 395815-82 | Not Available |
| 54 | Not Available | LOOPER ATTACHING PLATE (LEFT) | 395815-83 | Not Available |
| 55 | Not Available | LOOPER ADJUSTING PLATE | 395815-84 | Not Available |
| 56 | Not Available | LOOPER SHAFT (LEFT) | 395815-85 | Not Available |
| 57 | Not Available | SPRING | 395815-86 | Not Available |
| 58 | Not Available | SCREW | 395815-87 | Not Available |
| 59 | Not Available | E RING | 395815-88 | Not Available |
| 60 | Not Available | SCREW | 395815-89 | Not Available |
| 61 | Not Available | WASHER | 395815-90 | Not Available |
| 62 | Not Available | SPRING | 395815-91 | Not Available |
| 63 | Not Available | SCREW | 395815-92 | Not Available |
| 64 |  | Genuine Janome/Elna LOOPER SPRING EL9010 XQUISIT | 395815-93 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | LOOPER ATTACHING PLATE (RIGHT) (ASM.) | 395815-94 | Not Available |
| 66 | Not Available | E RING | 395815-95 | Not Available |
| 67 | Not Available | REMAINING AMOUNT SENSOR FIXING BASE (RECEIVE LIGHT) | 395815-96 | Not Available |
| 68 | | Genuine Janome/Elna SENSOR BOARD RECEIVE LIGHT | 395815-97 | $5.60Read more |
| 69 | Not Available | SCREW | 395815-98 | Not Available |
| 70 | Not Available | SCREW | 395815-99 | Not Available |
| 71 | Not Available | SCREW | 395816-01 | Not Available |
| 73 | Not Available | SCREW | 395816-03 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW | 395816-81 | Not Available |
| 1 | Not Available | FEED ROCKER ARM (TOTAL ASM.) 78 395816-81 SCREW | 395816-04 | Not Available |
| 2 | Not Available | HOOK DRIVING SHAFT PULLEY (ASM.) | 395816-82 | Not Available |
| 2 | Not Available | FEED ROCKER ARM SHAFT 79 395816-82 HOOK DRIVING SHAFT PULLEY (ASM.) | 395816-05 | Not Available |
| 3 | Not Available | SCREW | 395816-83 | Not Available |
| 3 | Not Available | FEED ROCKER ARM (LARGE) 80 395816-83 SCREW | 395816-06 | Not Available |
| 4 | Not Available | BALL BEARING GUARD PLATE (REAR) | 395816-84 | Not Available |
| 4 | Not Available | SCREW 81 395816-84 BALL BEARING GUARD PLATE (REAR) | 395816-07 | Not Available |
| 5 | Not Available | SCREW | 395816-85 | Not Available |
| 5 | Not Available | FEED BAR 82 395816-85 SCREW | 395816-08 | Not Available |
| 6 | Not Available | FEED REGULATOR SHAFT STOP PLATE | 395816-86 | Not Available |
| 6 |  | Genuine Janome/Elna FEED DOG 9020 | 395816-09 | $85.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | SCREW | 395816-87 | Not Available |
| 7 | Not Available | SCREW 84 395816-87 SCREW | 395816-10 | Not Available |
| 8 | Not Available | BAND | 395816-88 | Not Available |
| 8 | Not Available | VERTICAL FEED ADJUST SHAFT 85 395816-88 BAND | 395816-11 | Not Available |
| 9 | Not Available | HOOK SHAFT ECCENTRIC BUSHING | 395816-89 | Not Available |
| 9 | Not Available | VERTICAL FEED ECCENTRIC SHAFT 86 395816-89 HOOK SHAFT ECCENTRIC BUSHING | 395816-12 | Not Available |
| 10 | Not Available | SCREW | 395816-13 | Not Available |
| 11 | Not Available | FEED BAR SHAFT (LEFT) | 395816-14 | Not Available |
| 12 | Not Available | FEED BAR SHAFT (RIGHT) | 395816-15 | Not Available |
| 13 | Not Available | SCREW | 395816-16 | Not Available |
| 14 | Not Available | DF LINK | 395816-17 | Not Available |
| 15 | Not Available | SPRING | 395816-18 | Not Available |
| 16 | Not Available | E RING | 395816-19 | Not Available |
| 17 | Not Available | FEED ROCKER ARM (SMALL) | 395816-20 | Not Available |
| 18 | Not Available | SCREW | 395816-21 | Not Available |
| 19 | Not Available | FORKED ROD | 395816-22 | Not Available |
| 20 | Not Available | FORKED ROD SHAFT | 395816-23 | Not Available |
| 21 | Not Available | SCREW | 395816-24 | Not Available |
| 22 | Not Available | E RING | 395816-25 | Not Available |
| 23 | Not Available | SPRING | 395816-26 | Not Available |
| 24 | Not Available | FEED REGULATOR BLOCK SHAFT | 395816-27 | Not Available |
| 25 | Not Available | SCREW | 395816-28 | Not Available |
| 26 | Not Available | LATERAL FEED WORKING PLATE | 395816-29 | Not Available |
| 27 | Not Available | HOOK DRIVING BUSHING | 395816-30 | Not Available |
| 28 | Not Available | SPRING WASHER | 395816-31 | Not Available |
| 29 | Not Available | E RING | 395816-32 | Not Available |
| 30 | Not Available | FEED BAR SPRING | 395816-33 | Not Available |
| 31 | Not Available | FEED BAR PILE | 395816-34 | Not Available |
| 32 | Not Available | FEED REGULATOR BLOCK | 395816-35 | Not Available |
| 33 | Not Available | SCREW | 395816-36 | Not Available |
| 34 | Not Available | HOOK DRIVING BUSHING | 395816-37 | Not Available |
| 35 | Not Available | FEED STM FIXING PLATE (COMPL.) | 395816-38 | Not Available |
| 36 | Not Available | FEED STM FIXING PLATE (ASM.) | 395816-39 | Not Available |
| 37 | Not Available | FEED STM FIXING PLATE | 395816-40 | Not Available |
| 38 | Not Available | FEED STOPPER SHAFT | 395816-41 | Not Available |
| 39 | Not Available | FEED STM GEAR (ASM.) | 395816-42 | Not Available |
| 40 | Not Available | SCREW | 395816-43 | Not Available |
| 41 | Not Available | SCREW | 395816-44 | Not Available |
| 42 | Not Available | FEED REGULATOR (ASM.) | 395816-45 | Not Available |
| 43 | Not Available | FEED REGULATOR | 395816-46 | Not Available |
| 44 | Not Available | FEED REGULATOR GEAR A | 395816-47 | Not Available |
| 45 | Not Available | FEED REGULATOR GEAR B | 395816-48 | Not Available |
| 46 | Not Available | SPRING | 395816-49 | Not Available |
| 47 | Not Available | SCREW | 395816-50 | Not Available |
| 48 | Not Available | FEED REGULATOR SHAFT | 395816-51 | Not Available |
| 49 | Not Available | WASHER | 395816-52 | Not Available |
| 50 | Not Available | SCREW | 395816-53 | Not Available |
| 51 | Not Available | NUT | 395816-54 | Not Available |
| 52 | Not Available | ORIGIN DETECTING RUBBER | 395816-55 | Not Available |
| 53 |  | Genuine Janome/Elna FEED STEP MOTOR ELNA XE1 | 395816-56 | $47.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | FEED STM RELAY LEAD IRE (ASM.) | 395816-57 | Not Available |
| 55 | Not Available | SPRING | 395816-58 | Not Available |
| 56 | Not Available | LEVER | 395816-59 | Not Available |
| 57 | Not Available | E RING | 395816-60 | Not Available |
| 58 | | Genuine Janome/Elna HOOK DRIVING SHAFT ASSEMBLY | 395816-61 | $92.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | | Genuine Janome/Elna PIN EL9010 XQUISIT | 395816-62 | $8.20Read more |
| 60 | | Genuine Janome/Elna NUT EL9010 XQUISIT | 395816-63 | $1.20Read more |
| 61 | Not Available | THREAD TRIMMING CAM SPRING PIN | 395816-64 | Not Available |
| 62 | | Genuine Janome/Elna WASHER EL9010 XQUISIT | 395816-65 | $1.20Read more |
| 63 | Not Available | HOOK DRIVING GEAR | 395816-66 | Not Available |
| 64 | Not Available | THREAD TRIMMING CAM SPRING PIN | 395816-67 | Not Available |
| 65 | Not Available | VERTICAL FEED CAM | 395816-68 | Not Available |
| 66 | Not Available | STOP PIN | 395816-69 | Not Available |
| 67 | Not Available | FEED ROCKER CAM | 395816-70 | Not Available |
| 68 | Not Available | E RING | 395816-71 | Not Available |
| 69 | | Genuine Janome/Elna DETECTOR SHIELD PLATE | 395816-72 | $9.60Read more |
| 70 | Not Available | SCREW | 395816-73 | Not Available |
| 71 | Not Available | THRUST COLLAR (ASM.) | 395816-74 | Not Available |
| 72 | Not Available | SCREW | 395816-75 | Not Available |
| 73 | | Genuine Janome/Elna HOOK DRIVING BUSHING | 395816-76 | $7.00Read more |
| 74 | | Genuine Janome/Elna CAM | 395816-77 | $9.60Read more |
| 75 | | Genuine Janome/Elna HOOK DRIVING SHAFT | 395816-78 | $64.60Read more |
| 76 | Not Available | BALL BEARING GUARD PLATE (FRONT) | 395816-79 | Not Available |
| 77 | Not Available | BALL BEARING GUARD PLATE (REAR) | 395816-80 | Not Available |
| # | Part image | Description | SKU | Price |

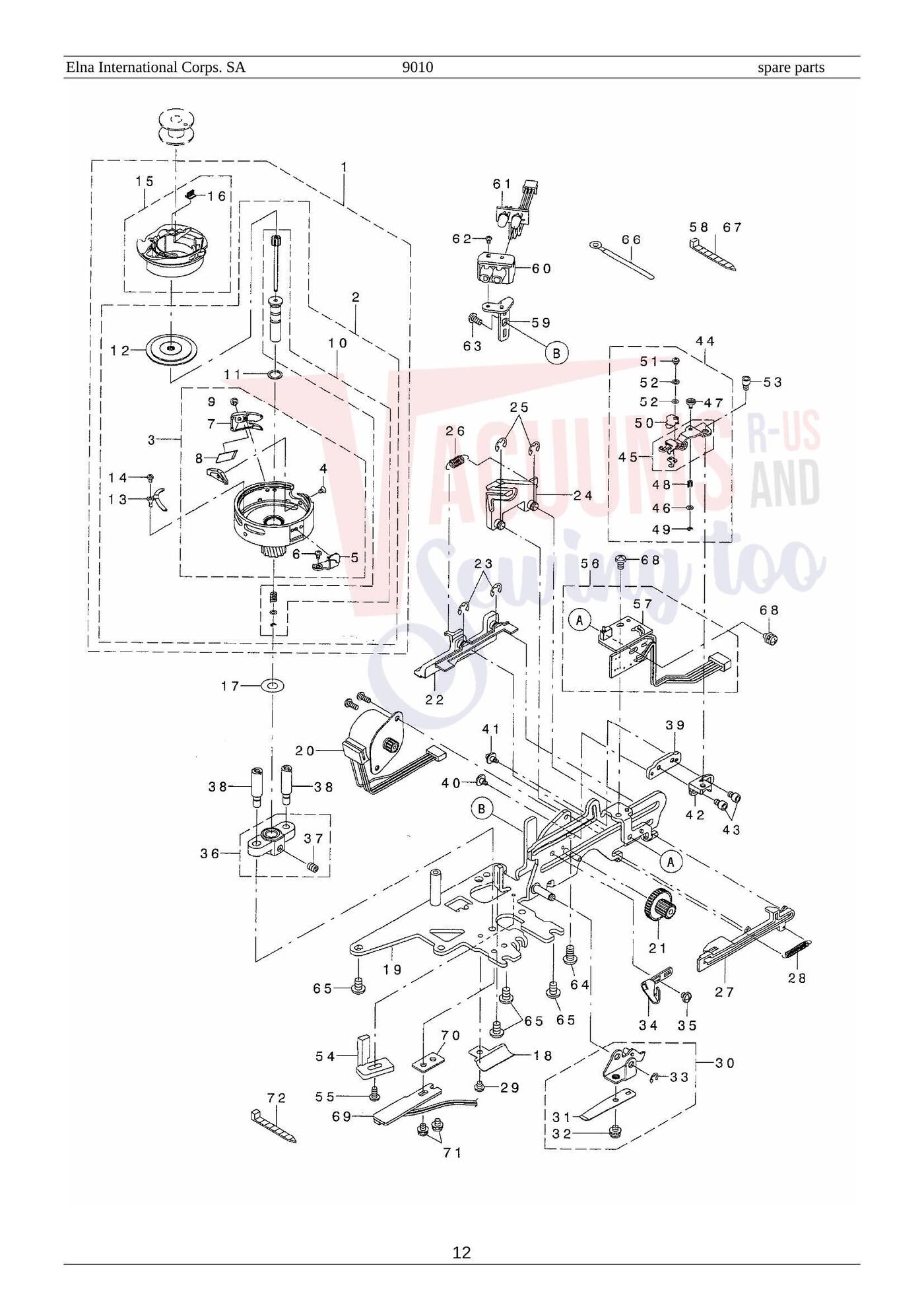

| 1 | | Genuine Janome/Elna HOOK AND BOBBIN CASE TOTAL | 395816-90 | $370.20Read more |
| 2 | | Genuine Janome/Elna HOOK COMPL. | 395816-91 | $414.60Read more |
| 3 | Not Available | ROTATING HOOK (PARTIAL ASM.) | 395816-92 | Not Available |
| 4 | Not Available | SCREW | 395816-93 | Not Available |
| 5 | Not Available | HOOK OF ROTATING HOOK | 395816-94 | Not Available |
| 6 | Not Available | SCREW | 395816-95 | Not Available |
| 7 | Not Available | TOP THREADING CUTTER FIXING BASE | 395816-96 | Not Available |
| 8 |  | Genuine Janome/Elna TOP THREADING CUTTER ELNA XE1 | 395816-97 | $2.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | SCREW | 395816-98 | Not Available |
| 10 | | Genuine Janome/Elna HOOK SHAFT ASSEMBLY EL9010 | 395816-99 | $20.80Read more |
| 11 | Not Available | WASHER (UPPER) | 395817-01 | Not Available |
| 12 | Not Available | ROTATING HOOK MAGNET (ASM.) | 395817-02 | Not Available |
| 13 | Not Available | SPRING | 395817-03 | Not Available |
| 14 | | Genuine Janome/Elna SCREW EL9010 XQUISIT | 395817-04 | $0.60Read more |
| 15 |  | Genuine Janome/Elna BOBBIN CASE ELNA XE1 EL9010 | 395817-05 | $149.60Read more |
| 16 | Not Available | NEEDLE PLATE PILE B | 395817-06 | Not Available |
| 17 | | Genuine Janome/Elna WASHER EL9010 | 395817-07 | $0.60Read more |
| 18 | Not Available | LINK COVER (E) | 395817-08 | Not Available |
| 19 | Not Available | BOBBIN THREAD MECHANISM BASE (ASM.) | 395817-09 | Not Available |
| 20 | | Genuine Janome/Elna BOBBIN THREAD SUPPLY STEP | 395817-10 | $39.60Read more |
| 21 | Not Available | BOBBIN THREAD INTERMEDIATE GEAR | 395817-11 | Not Available |
| 22 | Not Available | BOBBIN WINDER DRIVE PLATE RACK | 395817-12 | Not Available |
| 23 | Not Available | E RING | 395817-13 | Not Available |
| 24 | Not Available | BOBBIN WINDER DRIVE PLATE | 395817-14 | Not Available |
| 25 | Not Available | E RING | 395817-15 | Not Available |
| 26 | Not Available | SPRING | 395817-16 | Not Available |
| 27 | Not Available | GEAR CONNECTING LINK STOPPER | 395817-17 | Not Available |
| 28 | Not Available | SPRING | 395817-18 | Not Available |
| 29 | Not Available | SCREW | 395817-19 | Not Available |
| 30 | Not Available | GEAR CONNECTING LINK (ASM.) | 395817-20 | Not Available |
| 31 | Not Available | GEAR CONNECTING LINK PLATE SPRING | 395817-21 | Not Available |
| 32 | Not Available | SCREW | 395817-22 | Not Available |
| 33 | Not Available | E RING | 395817-23 | Not Available |
| 34 | Not Available | NEEDLE THREAD CATCHING PLATE | 395817-24 | Not Available |
| 35 | Not Available | SCREW | 395817-25 | Not Available |
| 36 | | Genuine Janome/Elna HOOK SHAFT BASE | 395817-26 | $26.60Read more |
| 37 | Not Available | SCREW | 395817-27 | Not Available |
| 38 | Not Available | GEAR COVER FIXING SHAFT A | 395817-28 | Not Available |
| 39 | Not Available | THREAD HOLDING PLATE (B) | 395817-29 | Not Available |
| 40 | Not Available | THREAD HOLDING PLATE SHAFT A | 395817-30 | Not Available |
| 41 | Not Available | THREAD HOLDING PLATE SHAFT B | 395817-31 | Not Available |
| 42 | Not Available | THREAD HOLDING PLATE C | 395817-32 | Not Available |
| 43 | Not Available | SCREW | 395817-33 | Not Available |
| 44 |  | Genuine Janome/Elna THREAD HOLDING PLATE COMPLETE | 395817-34 | $222.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | THREAD HOLDING PLATE (ASM.) | 395817-35 | Not Available |
| 46 | Not Available | WASHER | 395817-36 | Not Available |
| 47 | Not Available | BOBBIN WINDER TENSION PLATE (ASM.) | 395817-37 | Not Available |
| 48 | Not Available | SPRING | 395817-38 | Not Available |
| 49 | Not Available | E RING | 395817-39 | Not Available |
| 50 | Not Available | THREAD HOLDING SPRING | 395817-40 | Not Available |
| 51 | | Genuine Janome/Elna SCREW | 395817-41 | $2.40Read more |
| 52 | | Genuine Janome/Elna WASHER | 395817-42 | $2.40Read more |
| 53 | Not Available | SCREW | 395817-43 | Not Available |
| 54 | Not Available | HOOK DRIVING SHAFT SUPPORT OF HOOK | 395817-44 | Not Available |
| 55 | Not Available | SCREW | 395817-45 | Not Available |
| 56 | Not Available | BOBBIN THREAD ORIGIN SENSOR BOARD (ASM.) | 395817-46 | Not Available |
| 57 | Not Available | THREAD HOLDING PLATE COVER SENSOR BOARD | 395817-47 | Not Available |
| 58 | Not Available | BAND (SMALL) | 395817-48 | Not Available |
| 59 | Not Available | REMAINING AMOUNT SENSOR FIXING PLATE | 395817-49 | Not Available |
| 60 | Not Available | FIXING PLATE (GIVE LIGHT) | 395817-50 | Not Available |
| 61 | | Genuine Janome/Elna SENSOR BOARD GIVE LIGHT | 395817-51 | $4.80Read more |
| 62 | Not Available | SCREW | 395817-52 | Not Available |
| 63 | Not Available | SCREW | 395817-53 | Not Available |
| 64 | Not Available | SCREW | 395817-54 | Not Available |
| 65 | Not Available | SCREW | 395817-55 | Not Available |
| 66 | Not Available | CORD HOLDER | 395817-56 | Not Available |
| 67 | Not Available | BAND (SMALL) | 395817-57 | Not Available |
| 68 | Not Available | SCREW | 395817-58 | Not Available |
| 69 | | Genuine Janome/Elna DF SENSOR BOARD ELNA XE1 | 395817-59 | $50.60Read more |
| 70 | Not Available | DF SENSOR SPACER | 395817-60 | Not Available |
| 71 | Not Available | SCREW | 395817-61 | Not Available |
| 72 | Not Available | BAND | 395817-62 | Not Available |
| 73 | Not Available | BOBBIN | 395805-40 | Not Available |
| # | Part image | Description | SKU | Price |

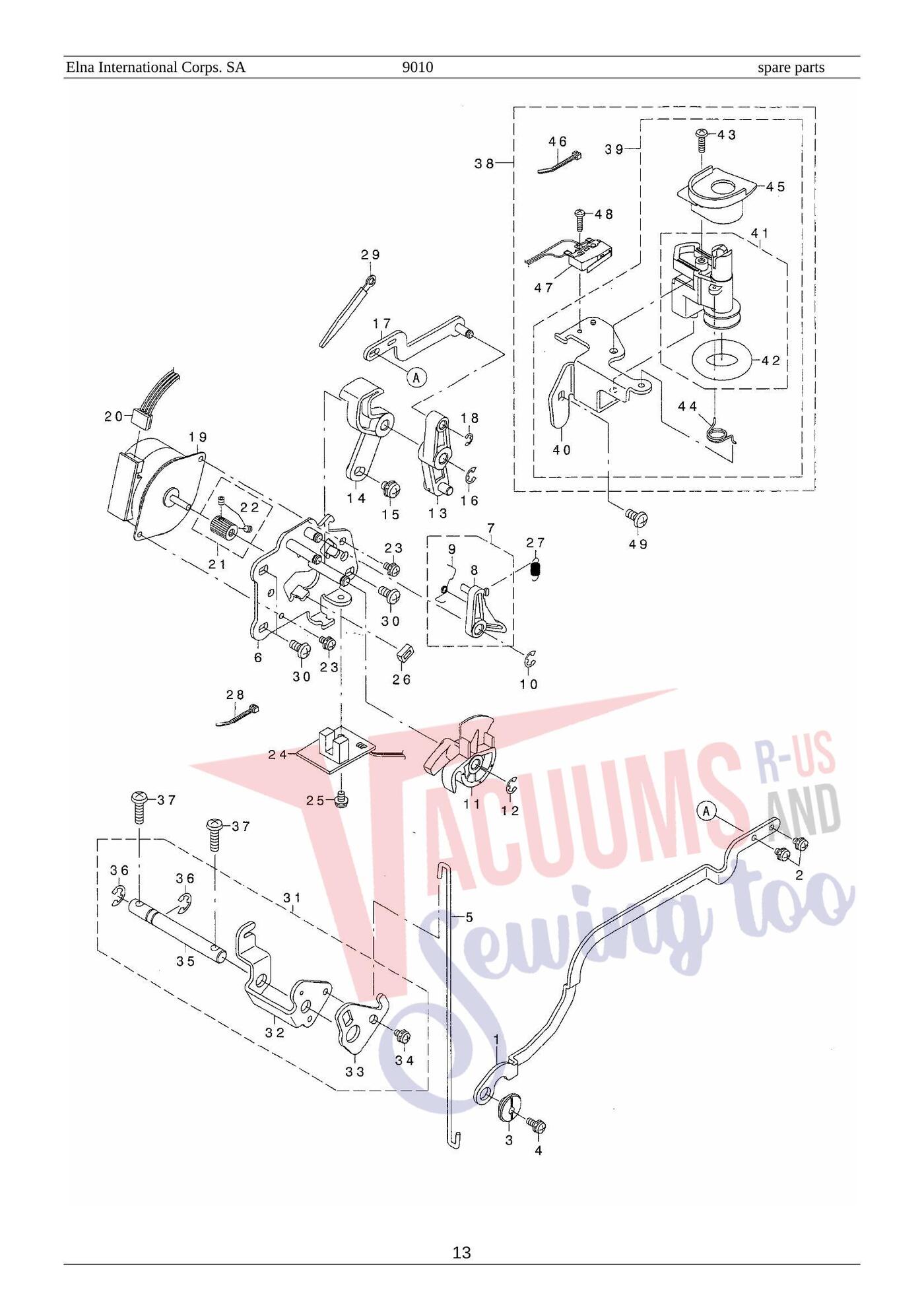

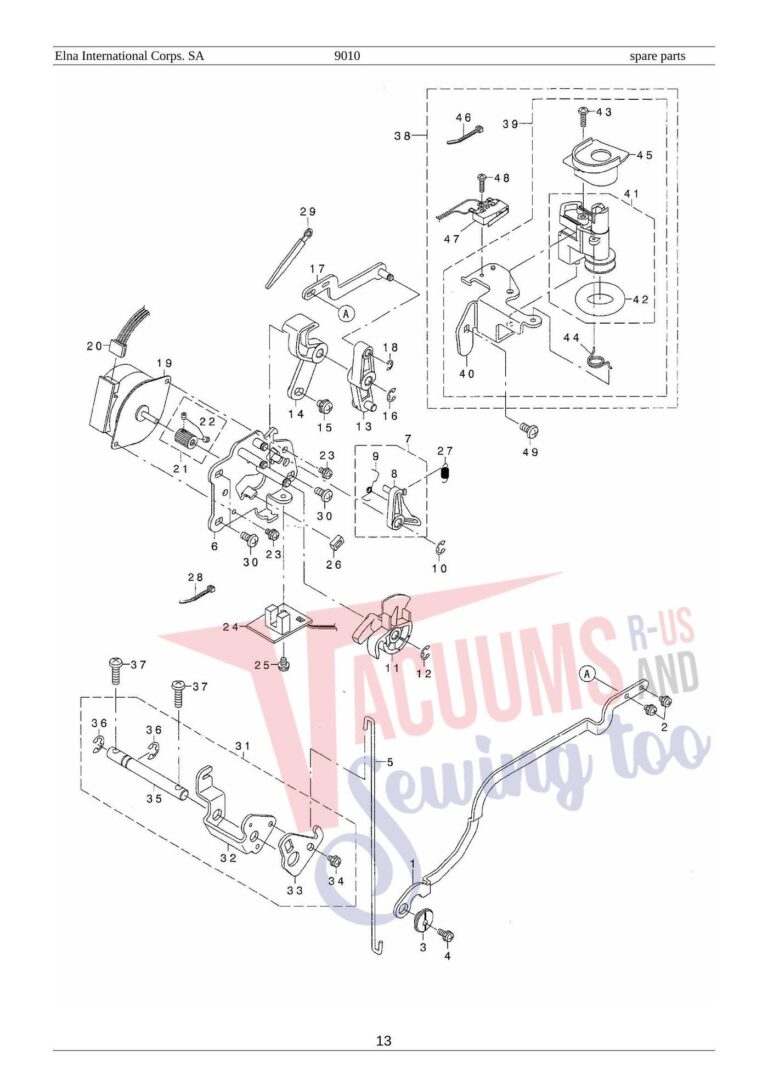

| 1 | Not Available | ROCKING ROD | 395817-63 | Not Available |
| 2 | Not Available | SCREW | 395817-64 | Not Available |
| 3 | Not Available | ECCENTRIC COLLAR | 395817-65 | Not Available |
| 4 | Not Available | SCREW | 395817-66 | Not Available |
| 5 | Not Available | THREAD RELEASE LINK (LOWER) | 395817-67 | Not Available |
| 6 | Not Available | NEEDLE ROCKER STM FIXING PLATE (ASM.) | 395817-68 | Not Available |
| 7 | Not Available | MAIN SHAFT DISENGAGING LINK (ASM.) | 395817-69 | Not Available |
| 8 | Not Available | MAIN SHAFT DISENGAGING LINK | 395817-70 | Not Available |
| 9 | Not Available | BUFFER SPRING | 395817-71 | Not Available |
| 10 | Not Available | E RING | 395817-72 | Not Available |
| 11 | Not Available | NEEDLE ROCKER CAM | 395817-73 | Not Available |
| 12 | Not Available | E RING | 395817-74 | Not Available |
| 13 | Not Available | NEEDLE ROCKER LINK | 395817-75 | Not Available |
| 14 | Not Available | MAIN SHAFT DISENGAGING STOPPER | 395817-76 | Not Available |
| 15 | Not Available | SCREW | 395817-77 | Not Available |
| 16 | Not Available | E RING | 395817-78 | Not Available |
| 17 | Not Available | ROCKING ROD A (ASM.) | 395817-79 | Not Available |
| 18 | Not Available | E RING | 395817-80 | Not Available |
| 19 | | Genuine Janome/Elna NEEDLE BAR ROCKING STEP MOTOR | 395817-81 | $41.40Read more |
| 20 | Not Available | RELAY LEAD WIRE (ASM.) | 395817-82 | Not Available |
| 21 | Not Available | NEEDLE BAR ROCKING STM GEAR (ASM.) | 395817-83 | Not Available |
| 22 | Not Available | SCREW | 395817-84 | Not Available |
| 23 | Not Available | SCREW | 395817-85 | Not Available |
| 24 | | Genuine Janome/Elna DETECTING BOARD | 395817-86 | $21.00Read more |
| 25 | Not Available | SCREW | 395817-87 | Not Available |
| 26 | Not Available | ORIGIN DETECTING RUBBER | 395817-88 | Not Available |
| 27 | Not Available | DISENGAGING LINK SPRING | 395817-89 | Not Available |
| 28 | Not Available | BAND | 395817-90 | Not Available |
| 29 | Not Available | CORD HOLDER | 395817-91 | Not Available |
| 30 | Not Available | SCREW | 395817-92 | Not Available |
| 31 | Not Available | THREAD RELEASE LINK PLATE (ASM.) | 395817-93 | Not Available |
| 32 | Not Available | THREAD RELEASE LINK PLATE | 395817-94 | Not Available |
| 33 | Not Available | THREAD RELEASE LINK ADJUST PLATE | 395817-95 | Not Available |
| 34 | Not Available | SCREW | 395817-96 | Not Available |
| 35 | Not Available | THREAD RELEASE LINK SHAFT | 395817-97 | Not Available |
| 36 | Not Available | E RING | 395817-98 | Not Available |
| 37 | Not Available | SCREW | 395817-99 | Not Available |
| 38 | Not Available | BOBBIN WINDER MECHANISM BASE (TOTAL ASM.) | 395818-01 | Not Available |
| 39 | Not Available | BOBBIN WINDER MECHANISM BASE (ASM.) | 395818-02 | Not Available |
| 40 | Not Available | BOBBIN WINDER MECHANISM BASE | 395818-03 | Not Available |
| 41 | Not Available | BOBBIN WINDER BASE (ASM.) | 395818-04 | Not Available |
| 42 | | Genuine Janome/Elna BOBBIN WINDER RING | 395818-05 | $3.80Read more |
| 43 | Not Available | SCREW | 395818-06 | Not Available |
| 44 | Not Available | SPRING | 395818-07 | Not Available |
| 45 | Not Available | GUIDE | 395818-08 | Not Available |
| 46 | Not Available | BAND | 395818-09 | Not Available |
| 47 | Not Available | BOBBIN WINDER SWITCH (ASM.) | 395818-10 | Not Available |
| 48 | Not Available | SCREW | 395818-11 | Not Available |
| 49 | Not Available | SCREW | 395818-12 | Not Available |
| # | Part image | Description | SKU | Price |

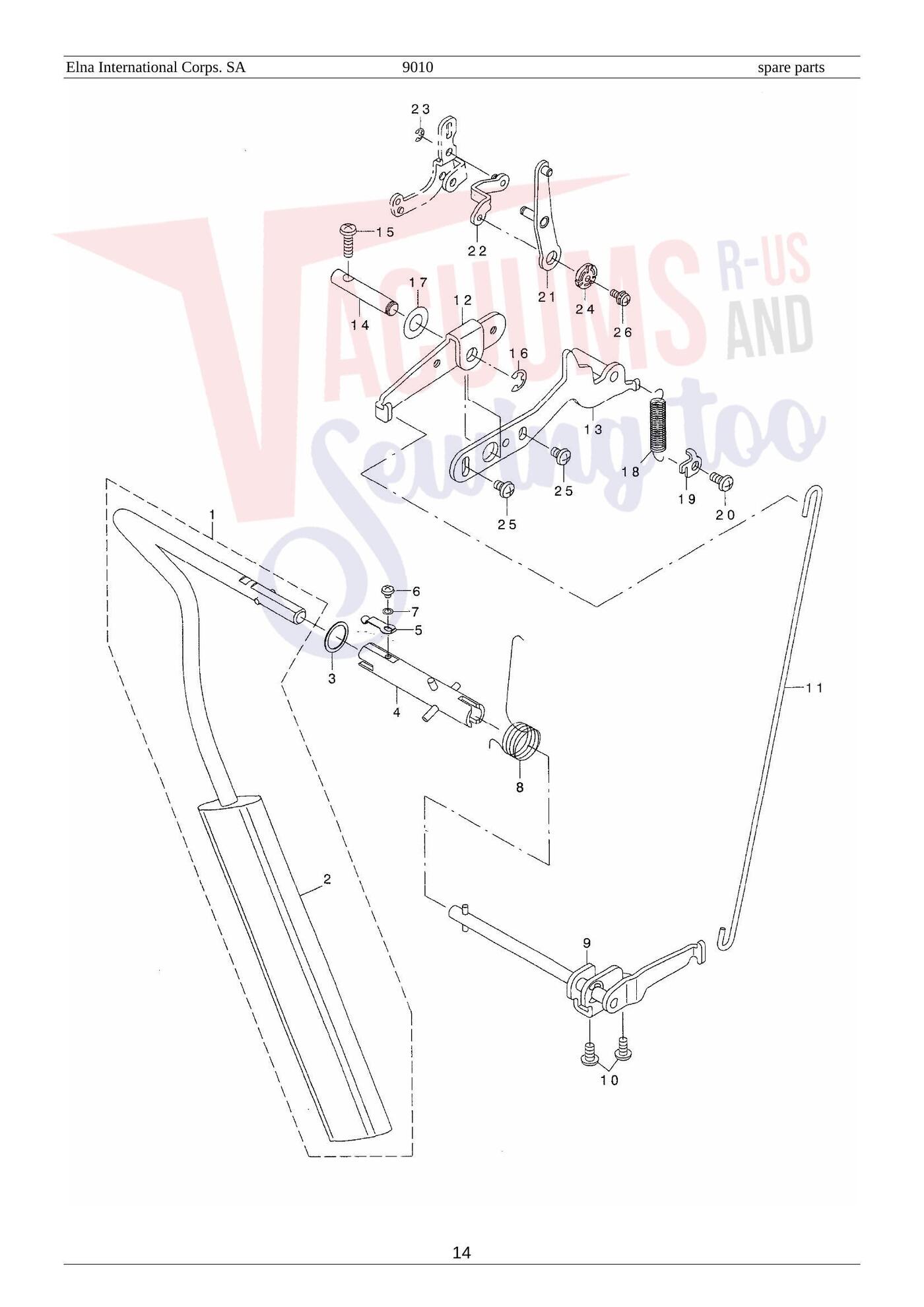

| 1 | | Genuine Janome/Elna KNEE LIFTER INSERT ELNA EL9010 | 395818-13 | $162.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | KNEE LIFTER PAD | 395818-14 | Not Available |
| 3 | Not Available | WASHER | 395818-15 | Not Available |
| 4 | Not Available | KNEE LIFTER CONNECTING SHAFT (ASM.) | 395818-16 | Not Available |
| 5 | Not Available | SPRING | 395818-17 | Not Available |
| 6 | Not Available | SCREW | 395818-18 | Not Available |
| 7 | Not Available | WASHER | 395818-19 | Not Available |
| 8 | Not Available | SPRING | 395818-20 | Not Available |
| 9 | Not Available | KNEE LIFTER LINK PLATE (TOTAL ASM.) | 395818-21 | Not Available |
| 10 | Not Available | SCREW | 395818-22 | Not Available |
| 11 | Not Available | KNEE LIFTER LINK | 395818-23 | Not Available |
| 12 | Not Available | KNEE LIFTER LINK ARM A | 395818-24 | Not Available |
| 13 | Not Available | KNEE LIFTER LINK ARM B (ASM.) | 395818-25 | Not Available |
| 14 | Not Available | FULCRUM SHAFT | 395818-26 | Not Available |
| 15 | Not Available | SCREW | 395818-27 | Not Available |
| 16 | Not Available | E RING | 395818-28 | Not Available |
| 17 | Not Available | WASHER | 395818-29 | Not Available |
| 18 | Not Available | SPRING | 395818-30 | Not Available |
| 19 | Not Available | SPRING HOOK | 395818-31 | Not Available |
| 20 | Not Available | SCREW | 395818-32 | Not Available |
| 21 | Not Available | KNEE LIFTER RELEASE PLATE (ASM.) | 395818-33 | Not Available |
| 22 | Not Available | KNEE LIFTER RELEASE LINK (ASM.) | 395818-34 | Not Available |
| 23 | Not Available | E RING | 395818-35 | Not Available |
| 24 | Not Available | ECCENTRIC COLLAR | 395818-36 | Not Available |
| 25 | Not Available | SCREW | 395818-37 | Not Available |
| 26 | Not Available | SCREW | 395818-38 | Not Available |
| # | Part image | Description | SKU | Price |

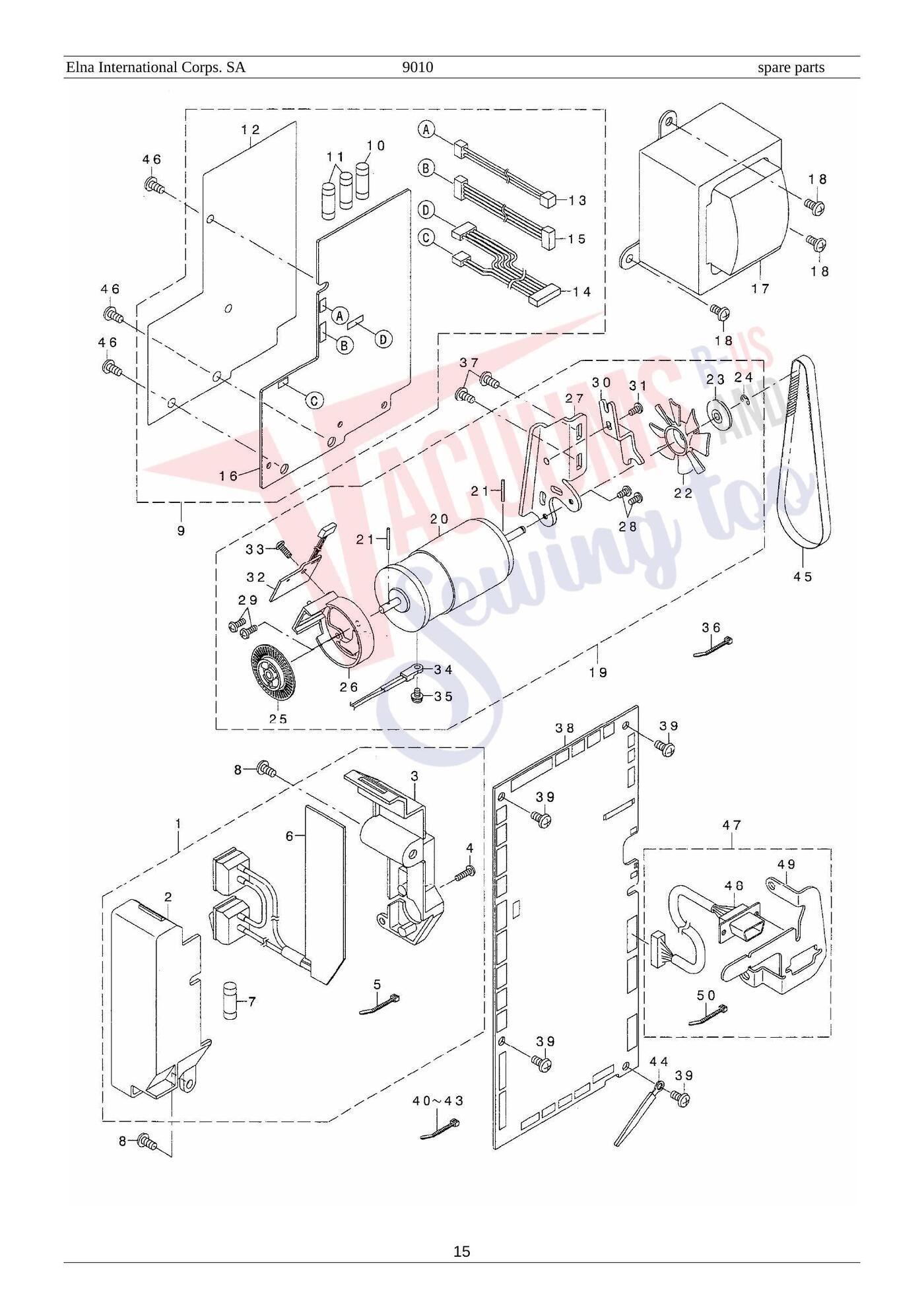

| 1 | Not Available | POWER TRANSFORMER BOX (ASM.) | 395818-39 | Not Available |
| 2 | Not Available | POWER TRANSFORMER BOX | 395818-40 | Not Available |
| 3 | Not Available | INLET COVER | 395818-41 | Not Available |
| 4 | Not Available | SCREW | 395818-42 | Not Available |
| 5 | Not Available | BAND | 395818-43 | Not Available |
| 6 | Not Available | FILTER BOARD (TOTAL ASM.) | 395818-44 | Not Available |
| 7 | Not Available | FUSE 5A | 395818-45 | Not Available |
| 8 | Not Available | SCREW | 395818-46 | Not Available |
| 9 | | Genuine Janome/Elna ELECTRIC POWER BOARD ASSEMBLY | 395818-47 | $241.60Read more |
| 10 |  | Genuine Janome/Elna TIME LAG FUSE 5A XE1 EL9010 | 395818-48 | $10.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | FUSE (3.15A) (120/230V) | 395818-49 | Not Available |
| 12 | Not Available | INSULATING SHEET | 395818-50 | Not Available |
| 13 | Not Available | INVERTER CONNECTING LEAD WIRE (ASM.) | 395818-51 | Not Available |
| 14 | Not Available | POWER SUPPLY CONNECTING CABLE (ASM.) | 395818-52 | Not Available |
| 15 | Not Available | ELECTRIC POWER BOARD CONNECTING CABLE (ASM.) | 395818-53 | Not Available |
| 16 | | Genuine Janome/Elna POWER BOARD | 395818-54 | $725.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | POWER TRANSFORMER (ASM.) | 395818-55 | Not Available |
| 18 | Not Available | SCREW | 395818-56 | Not Available |
| 19 | | Genuine Janome/Elna MOTOR COMPLETE ELNA EL9010 | 395818-57 | $230.00Read more |
| 20 | | Genuine Janome/Elna MAIN MOTOR | 395818-58 | $316.40Read more |
| 21 | Not Available | MAIN MOTOR PIN | 395818-59 | Not Available |
| 22 | | Genuine Janome/Elna MOTOR PULLEY | 395818-60 | $6.60Read more |
| 23 | Not Available | FLANGE | 395818-61 | Not Available |
| 24 | Not Available | E RING | 395818-62 | Not Available |
| 25 | Not Available | MP SHIELD PLATE | 395818-63 | Not Available |
| 26 | Not Available | MP BOARD BRACKET | 395818-64 | Not Available |
| 27 | Not Available | MAIN MOTOR FIXING PLATE | 395818-65 | Not Available |
| 28 | Not Available | SCREW | 395818-66 | Not Available |
| 29 | Not Available | SCREW | 395818-67 | Not Available |
| 30 | Not Available | MOTOR BELT GUIDE | 395818-68 | Not Available |
| 31 | Not Available | SCREW | 395818-69 | Not Available |
| 32 | Not Available | MP DETECTING BOARD (ASM.) | 395818-70 | Not Available |
| 33 | Not Available | SCREW | 395818-71 | Not Available |
| 34 | Not Available | THERMISTOR (ASM.) | 395818-72 | Not Available |
| 35 | Not Available | SCREW | 395818-73 | Not Available |
| 36 | Not Available | BAND (SMALL) | 395818-74 | Not Available |
| 37 | Not Available | SCREW | 395818-75 | Not Available |
| 38 | | Genuine Janome/Elna MICRO COMPUTER CIRCUIT BOARD | 395818-76 | $1,299.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | SCREW | 395818-77 | Not Available |
| 40 | Not Available | BAND | 395818-78 | Not Available |
| 41 | Not Available | BAND | 395818-79 | Not Available |
| 42 | Not Available | BAND | 395818-80 | Not Available |
| 43 | Not Available | BAND | 395818-81 | Not Available |
| 44 | Not Available | CORD HOLDER | 395818-82 | Not Available |
| 45 |  | Genuine Janome/Elna TIMING BELT | 395818-83 | $31.80Read more |
| 46 | Not Available | SCREW | 395818-84 | Not Available |
| 47 | Not Available | SERIAL COMMUNICATION RELAY CORD (TOTAL ASM.) | 395818-85 | Not Available |
| 48 | Not Available | SERIAL COMMUNICATION RELAY CORD (ASM.) | 395818-86 | Not Available |
| 49 | Not Available | CONNECTOR FIXING PLATE | 395818-87 | Not Available |
| 50 | Not Available | BAND | 395818-88 | Not Available |
| # | Part image | Description | SKU | Price |

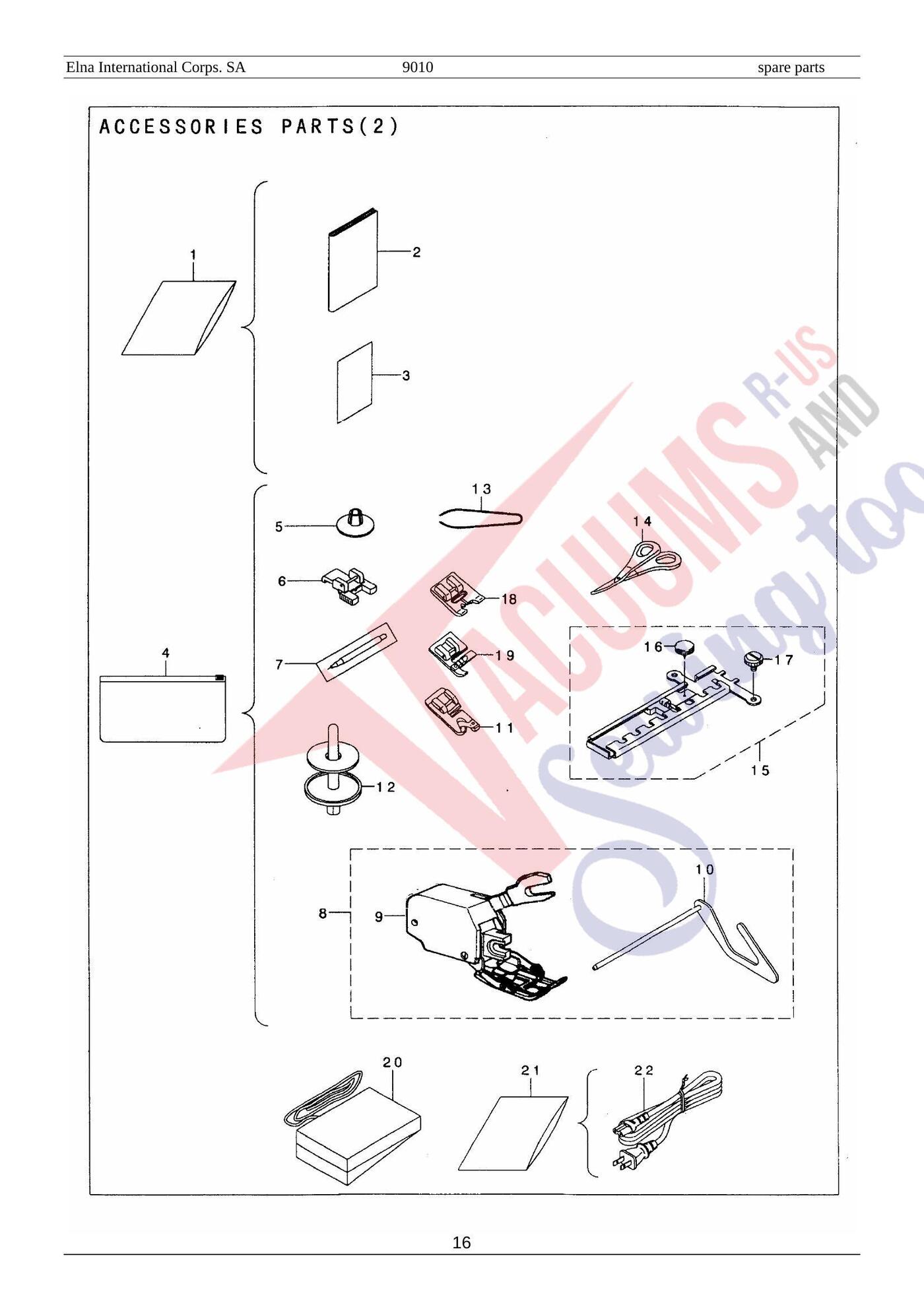

| 1 | Not Available | VINYL BAG | 395805-01 | Not Available |
| 2 | | Genuine Janome/Elna INSTRUCTION MANUAL XQUISIT ENG | 395801-02 | $124.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | WARRANTY CARD ---USA | 395802-02 | Not Available |
| 4 |  | Genuine Janome/Elna ACCESSORY BAG ELNA EL9010 | 395805-05 | $18.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | SMALL SPOOL CAP | 395805-07 | Not Available |
| 6 |  | Genuine Janome/Elna BUTTON FOOT ELNA EL9010 | 395805-09 | $7.40Read more |
| 7 |  | Genuine Janome/Elna ASSISTANT MARKER ELNA EL9010 | 395805-10 | $31.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Genuine Janome/Elna WALKING FOOT COMPLETE ELNA | 395805-11 | $81.60Add to cart |
| 9 | Not Available | EVEN FEED FOOT (ASM.) | 395805-12 | Not Available |
| 10 | | Genuine Janome/Elna QUILT GUIDE ELNA XQUISIT | 395805-14 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Genuine Janome/Elna ROLLED HEMMING FOOT (F) ELNA | 395805-16 | $20.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Genuine Janome/Elna AUXILIARY SPOOL PIN AND FELT | 395805-18 | $10.00Read more |
| 13 | | Genuine Janome/Elna TWEEZER ELNA EL9010 XQUISIT | 395805-19 | $3.00Read more |
| 14 | Not Available | SHEARS | 395805-20 | Not Available |
| 15 |  | Genuine Janome/Elna CIRCLE STITCH RULER ASSEMBLY | 395805-21 | $28.80Read more |
| 16 | | Genuine Janome/Elna CIRCLE STITCH TACK | 395818-89 | $13.40Read more |
| 17 |  | Genuine Janome/Elna CIRCLE STITCH SCREW | 395818-90 | $15.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | TRANSPARENT BUTTONHOLE FOOT (ASM.) | 395818-91 | Not Available |
| 19 | | Genuine Janome/Elna CORDING FOOT (H) ELNA EL9010 | 395818-92 | $8.60Read more |
| 20 | | Genuine Janome/Elna FOOT CONTROL ELNA 9020 9010 | 395818-93 | $204.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | POWER CORD BAG | 395818-94 | Not Available |
| 22 | | Genuine Janome/Elna POWER CORD ELNA EL9010 XQUISIT | 395818-95 | $46.00Read more |
| # | Part image | Description | SKU | Price |

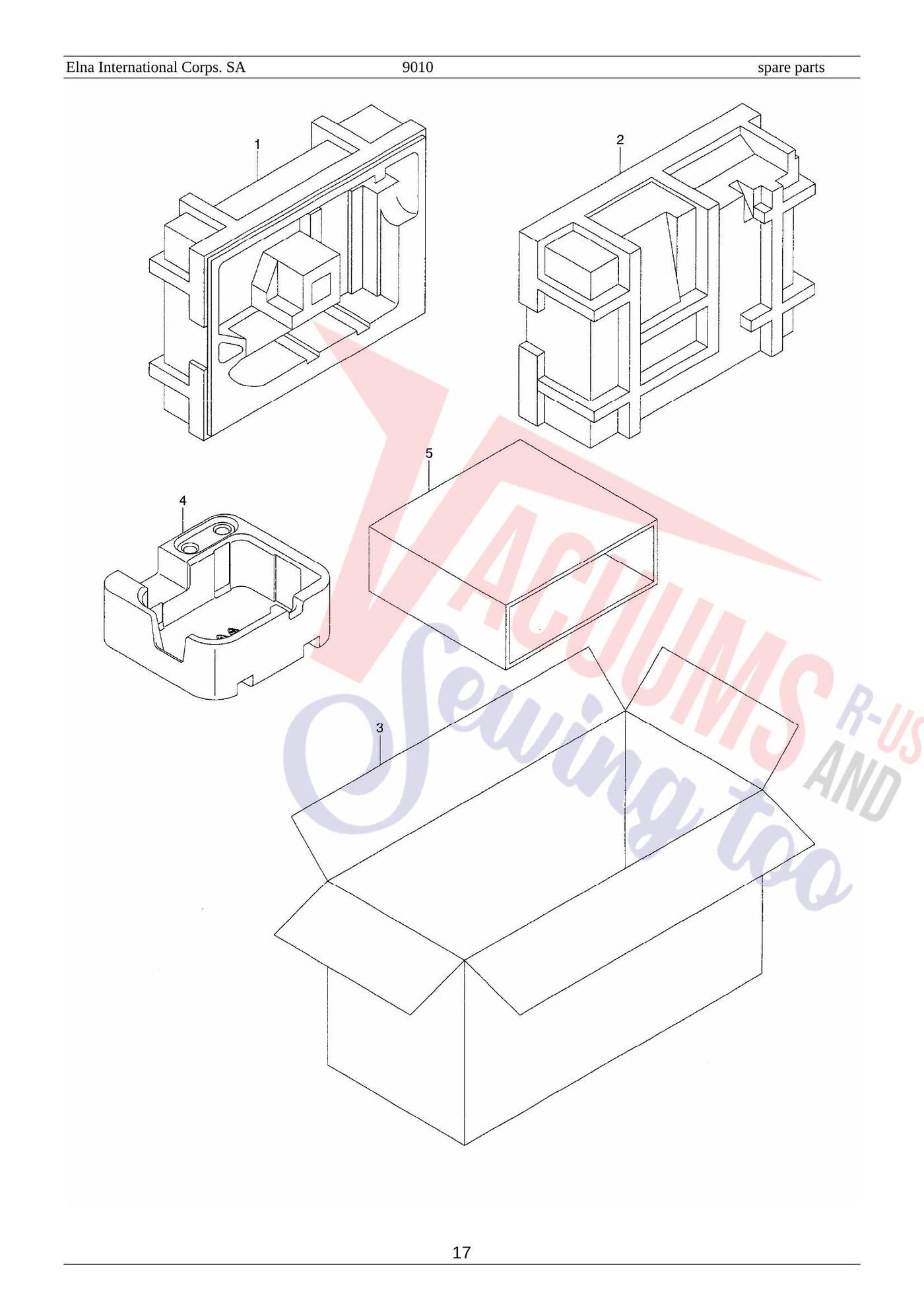

| 1 | Not Available | PACKING (REAR) | 395818-96 | Not Available |
| 2 | Not Available | PACKING (FRONT) | 395818-97 | Not Available |
| 3 | Not Available | CARTON CASE | 395818-98 | Not Available |
| 4 | Not Available | STYRENE FOAM FOR EMBROIDERING UNIT | 395818-99 | Not Available |
| 5 | Not Available | EMBROIDERING UNIT PACKING FRAME | 395819-01 | Not Available |
| 6 | Not Available | STYRENE FOAM COVER EMBROIDERING UNIT | 395819-02 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW | 395810-61 | Not Available |
| 1 | Not Available | SCREW 78 395810-61 SCREW | 395810-01 | Not Available |
| 2 | Not Available | SCREW | 395810-62 | Not Available |
| 2 | Not Available | FACE PLATE COVER (ASM.) 79 395810-62 SCREW | 395810-02 | Not Available |
| 3 | | Genuine Janome/Elna HEIGHT ADJUSTING SCREW ELNA | 395810-63 | $8.40Read more |
| 3 | Not Available | DF KNOB 80 395810-63 HEIGHT ADJUSTING SCREW | 395810-03 | Not Available |
| 4 | Not Available | BASE TENSION SEAL | 395810-64 | Not Available |
| 4 | Not Available | SPRING 81 395810-64 BASE TENSION SEAL | 395810-04 | Not Available |
| 5 | Not Available | UNDER SIDE COVER | 395810-65 | Not Available |
| 5 | Not Available | SCREW 82 395810-65 UNDER SIDE COVER | 395810-05 | Not Available |
| 6 | | Genuine Janome/Elna FACE PLATE INSIDE COVER | 395810-06 | $42.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | FEED BAR PILE | 395810-07 | Not Available |
| 8 | Not Available | FACE PLATE TENSION PILE | 395810-08 | Not Available |
| 9 | Not Available | FACE PLATE INSIDE COVER GUARD | 395810-09 | Not Available |
| 10 | Not Available | FACE PLATE INSIDE COVER PILE (RIGHT) | 395810-10 | Not Available |
| 11 | Not Available | FACE PLATE INSIDE COVER SEAL | 395810-11 | Not Available |
| 12 | Not Available | LAMP CAUTION SEAL | 395810-12 | Not Available |
| 13 | Not Available | FACE PLATE INSIDE COVER | 395810-13 | Not Available |
| 14 | Not Available | HEIGHT ADJUSTING SPRING | 395810-14 | Not Available |
| 15 | | Genuine Janome/Elna UNDER SIDE COVER UNIT | 395810-15 | $206.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | UNDER SIDE COVER | 395810-16 | Not Available |
| 17 | Not Available | RUBBER WASHER | 395810-17 | Not Available |
| 18 | Not Available | UNDER SIDE COVER | 395810-18 | Not Available |
| 19 | Not Available | SCREW | 395810-19 | Not Available |
| 20 | Not Available | FACE PLATE (ASM.) | 395810-20 | Not Available |
| 21 | Not Available | FACE PLATE | 395810-21 | Not Available |
| 22 | | Genuine Janome/Elna FACE PLATE COVER WINDOW PANEL | 395810-22 | $14.20Read more |
| 23 | Not Available | FACE PLATE COVER UPPER COVER | 395810-23 | Not Available |
| 24 | Not Available | NUT | 395810-24 | Not Available |
| 25 | Not Available | DOUBLE SIDE ADHESIVE TAPE 1 | 395810-25 | Not Available |

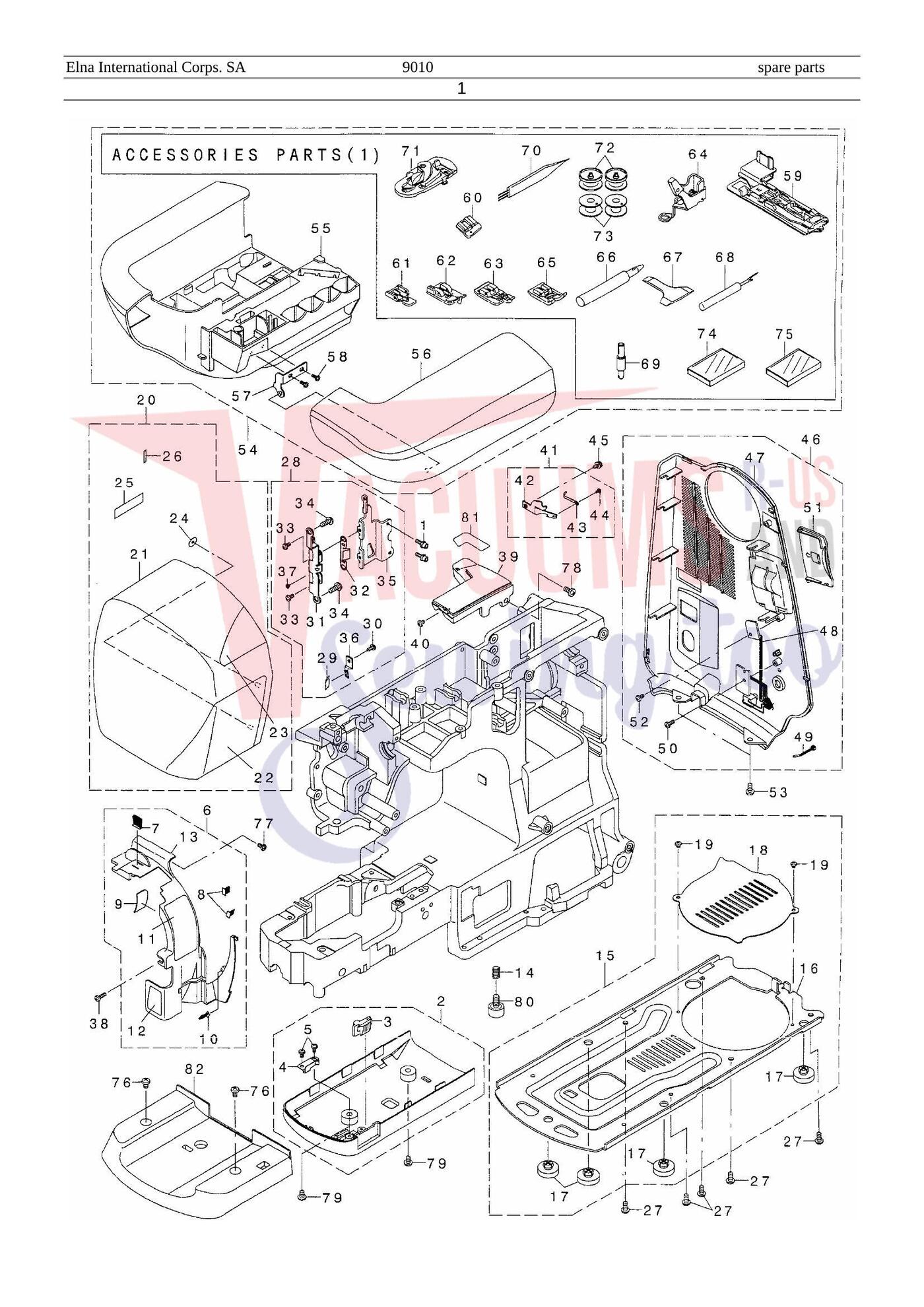

| 26 | Not Available | DOUBLE SIDE ADHESIVE TAPE 2 | 395810-26 | Not Available |
| 27 | Not Available | SCREW | 395810-27 | Not Available |
| 28 | Not Available | HINGE FIXING PLATE (ASM.) | 395810-28 | Not Available |
| 29 |  | Genuine Janome/Elna TOP THREAD CUTTER EL9020 | 395810-29 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | SCREW | 395810-30 | Not Available |
| 31 | Not Available | FACE PLATE HINGE (ASM.) | 395810-31 | Not Available |
| 32 | | Genuine Janome/Elna FACE COVER SPRING | 395810-32 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | SCREW | 395810-33 | Not Available |
| 34 | Not Available | SCREW | 395810-34 | Not Available |
| 35 | | Genuine Janome/Elna HINGE FIXING PLATE EL9010 | 395810-35 | $5.00Read more |
| 36 |  | Genuine Janome/Elna TOP THREAD CUTTER HOLDER 9020 | 395810-36 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | SCREW | 395810-37 | Not Available |
| 38 | Not Available | SCREW | 395810-38 | Not Available |
| 39 | Not Available | BASE TENSION COVER | 395810-39 | Not Available |
| 40 | Not Available | SCREW | 395810-40 | Not Available |
| 41 | | Genuine Janome/Elna BOBBIN WINDER THREAD GUIDE | 395810-41 | $18.60Read more |
| 42 | Not Available | BOBBIN WINDER THREAD GUIDE | 395810-42 | Not Available |
| 43 | Not Available | BOBBIN WINDER THREAD GUIDE SPRING | 395810-43 | Not Available |
| 44 | Not Available | SCREW | 395810-44 | Not Available |
| 45 | Not Available | SCREW | 395810-45 | Not Available |
| 46 | | Genuine Janome/Elna BELT COVER ASSEMBLY EL9010 | 395810-46 | $61.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | BELT COVER | 395810-47 | Not Available |
| 48 |  | Genuine Janome/Elna CONTROLLER RECEPTACLE ELNA | 395810-48 | $14.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | Not Available | BAND | 395810-49 | Not Available |
| 50 | Not Available | SCREW | 395810-50 | Not Available |
| 51 | Not Available | CARD LID | 395810-51 | Not Available |
| 52 |  | Genuine Janome/Elna TOP THREAD CUTTER SCREW 9020 | 395810-52 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | Not Available | SCREW | 395810-53 | Not Available |
| 54 | | Genuine Janome/Elna AUXILLIARY BED ASSEMBLY ELNA | 395810-54 | $234.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | AUXILIARY BED | 395810-55 | Not Available |
| 56 | Not Available | AUXILIARY BED COVER | 395810-56 | Not Available |
| 57 | Not Available | AUXILIARY BED SUPPORTING PLATE | 395810-57 | Not Available |
| 58 | Not Available | SCREW | 395810-58 | Not Available |
| 59 | Not Available | E BUTTONHOLE FOOT | 395805-24 | Not Available |
| 60 | | Genuine Janome/Elna INVISIBLE ZIPPER FOOT (G) | 395805-25 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 |  | Genuine Janome/Elna ZIPPER FOOT (B) ELNA EL9010 | 395805-26 | $4.83Read more |
| 62 |  | Genuine Janome/Elna BLIND STITCH PRESSER FOOT (D) | 395805-27 | $20.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | Not Available | C OVERLOCK FOOT | 395805-28 | Not Available |
| 64 | Not Available | J EMBROIDERY FOOT | 395805-29 | Not Available |
| 65 | Not Available | T TEFLON FOOT | 395805-30 | Not Available |
| 66 |  | Genuine Janome/Elna EYELET PUNCH ELNA EL9010 | 395805-31 | $28.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | SCREWDRIVER | 395805-32 | Not Available |
| 68 | Not Available | SEAM RIPPER | 395805-33 | Not Available |
| 69 | Not Available | BOBBIN WINDER SHAFT (ASM.) | 395805-34 | Not Available |
| 70 |  | Genuine Janome/Elna LINT BRUSH ELNA EL9010 XQUISIT | 395805-35 | $1.60Read more |
| 71 |  | Genuine Janome/Elna THREADING GUIDE ASSEMBLY ELNA | 395805-37 | $31.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | BOBBIN (ASM.) | 395805-38 | Not Available |
| 73 | Not Available | BOBBIN | 395805-39 | Not Available |
| 74 | Not Available | NEEDLE SET | 395805-41 | Not Available |
| 75 | | Genuine Janome/Elna NEEDLE SET (2) ELNA EL9010 | 395805-42 | $12.80Read more |
| 76 | Not Available | SCREW | 395810-59 | Not Available |
| 77 | Not Available | SCREW | 395810-60 | Not Available |
| # | Part image | Description | SKU | Price |

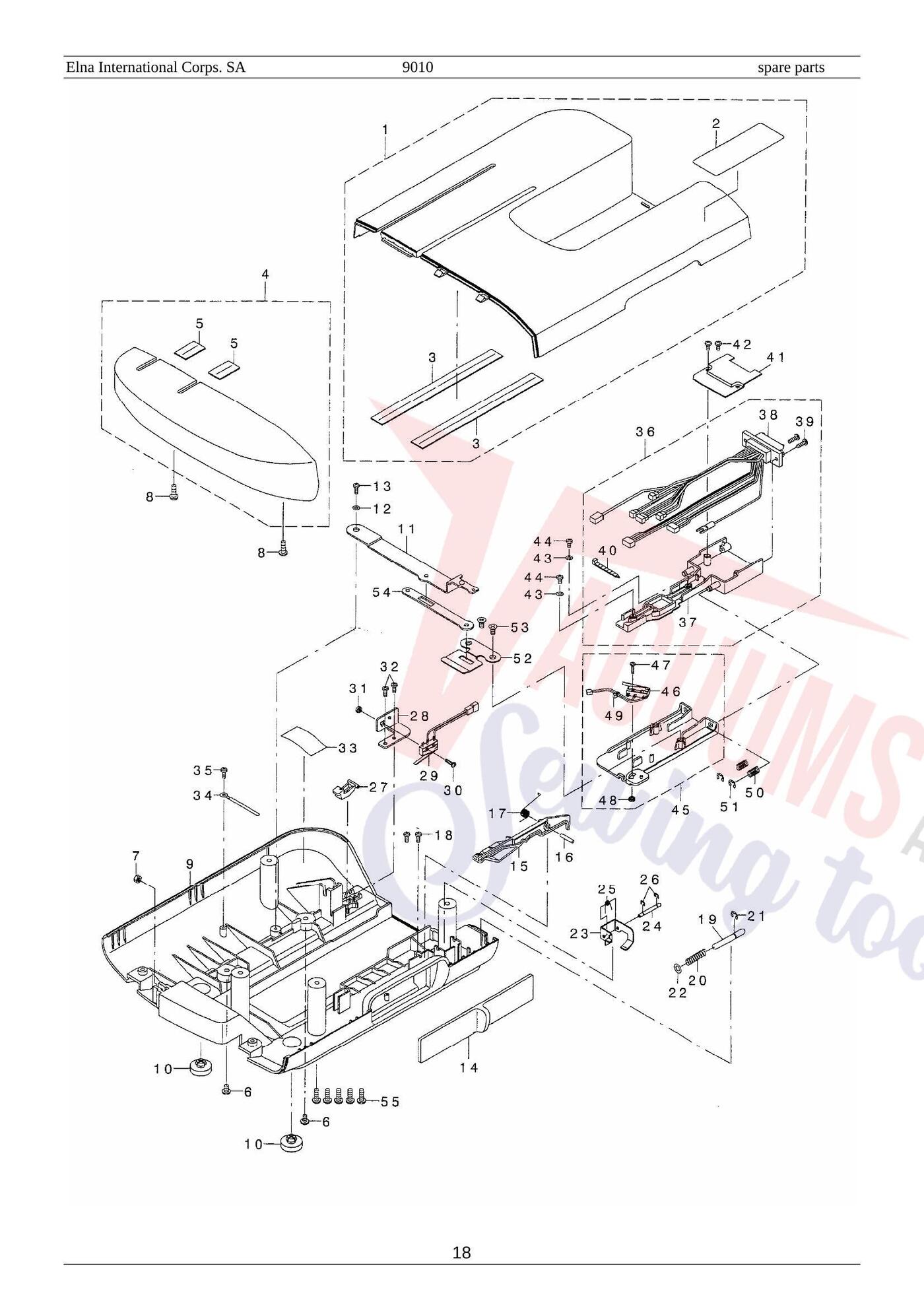

| 1 | | Genuine Janome/Elna TOP COVER ASSEMBLY EMBROIDERY | 395819-03 | $50.00Read more |
| 2 | Not Available | EMBROIDERING UNIT HANDLING CAUTION SEAL B | 395819-04 | Not Available |
| 3 | Not Available | DUST-PROOF SEAT A | 395819-05 | Not Available |
| 4 | | Genuine Janome/Elna SIDE COVER ASSEMBLY EL9010 | 395819-06 | $31.00Read more |
| 5 | Not Available | DUST-PROOF SHEET B | 395819-07 | Not Available |
| 6 | Not Available | SCREW | 395819-08 | Not Available |
| 7 | Not Available | NUT | 395819-09 | Not Available |
| 8 | Not Available | SCREW | 395819-10 | Not Available |
| 9 | Not Available | BOTTOM COVER | 395819-11 | Not Available |
| 10 | Not Available | RUBBER SEAT | 395819-12 | Not Available |
| 11 | Not Available | CHANGE-OVER LEVER (ASM.) | 395819-13 | Not Available |
| 12 | Not Available | WASHER | 395819-14 | Not Available |
| 13 | Not Available | SCREW | 395819-15 | Not Available |
| 14 | Not Available | CHANGE-OVER KNOB | 395819-16 | Not Available |
| 15 | Not Available | CHANGE-OVER LEVER HOOK | 395819-17 | Not Available |
| 16 | Not Available | HOOK SHAFT | 395819-18 | Not Available |
| 17 | Not Available | HOOK SPRING | 395819-19 | Not Available |
| 18 | Not Available | SCREW | 395819-20 | Not Available |
| 19 | Not Available | TRIGGER PIN | 395819-21 | Not Available |
| 20 | Not Available | TRIGGER PIN SPRING | 395819-22 | Not Available |
| 21 | Not Available | E RING | 395819-23 | Not Available |
| 22 | Not Available | WASHER | 395819-24 | Not Available |
| 23 | Not Available | TRIGGER LIMIT PLATE | 395819-25 | Not Available |
| 24 | Not Available | FULCRUM SHAFT | 395819-26 | Not Available |
| 25 | Not Available | RETURN SPRING | 395819-27 | Not Available |
| 26 | | Genuine Janome/Elna E RING EL9010 EL9020 | 395819-28 | $0.60Read more |
| 27 | | Genuine Janome/Elna MODE CHANGE OVER CONTACT | 395819-29 | $4.00Read more |
| 28 | Not Available | MODE CHANGE-OVER SW PLATE FIXING PLATE | 395819-30 | Not Available |
| 29 | | Genuine Janome/Elna MODE CHANGE OVER SWITCH | 395819-31 | $17.80Read more |
| 30 | Not Available | SCREW | 395819-32 | Not Available |
| 31 | Not Available | NUT | 395819-33 | Not Available |
| 32 | Not Available | SCREW | 395819-34 | Not Available |
| 33 | Not Available | START SWITCH LEAD TAPE | 395819-35 | Not Available |
| 34 | Not Available | CORD HOLDER | 395819-36 | Not Available |
| 35 | Not Available | SCREW | 395819-37 | Not Available |
| 36 | | Genuine Janome/Elna CONNECTING SLIDER (A) COMPLETE | 395819-38 | $105.00Read more |
| 37 | Not Available | CONNECTING SLIDER A | 395819-39 | Not Available |
| 38 | Not Available | DRIVER CABLE (TOTAL ASM.) | 395819-40 | Not Available |
| 39 | Not Available | SCREW | 395819-41 | Not Available |
| 40 | Not Available | BAND (SMALL) | 395819-42 | Not Available |
| 41 | Not Available | SLIDER COVER | 395819-43 | Not Available |
| 42 | Not Available | SCREW | 395819-44 | Not Available |
| 43 | Not Available | WASHER | 395819-45 | Not Available |
| 44 | Not Available | SCREW | 395819-46 | Not Available |
| 45 | Not Available | CONNECTING SLIDER B (ASM.) | 395819-47 | Not Available |
| 46 | Not Available | EMBROIDERY RELEASE SWITCH (ASM.) | 395819-48 | Not Available |
| 47 | Not Available | SCREW | 395819-49 | Not Available |
| 48 | Not Available | NUT | 395819-50 | Not Available |
| 49 | Not Available | BAND (SMALL) | 395819-51 | Not Available |
| 50 | Not Available | SLIDER SPRING | 395819-52 | Not Available |
| 51 | Not Available | E RING | 395819-53 | Not Available |
| 52 | Not Available | SLIDER FULCRUM PLATE | 395819-54 | Not Available |
| 53 | Not Available | SCREW | 395819-55 | Not Available |
| 54 | Not Available | SLIDER WORKING PLATE (ASM.) | 395819-56 | Not Available |
| 55 | Not Available | SCREW | 395819-57 | Not Available |
| # | Part image | Description | SKU | Price |

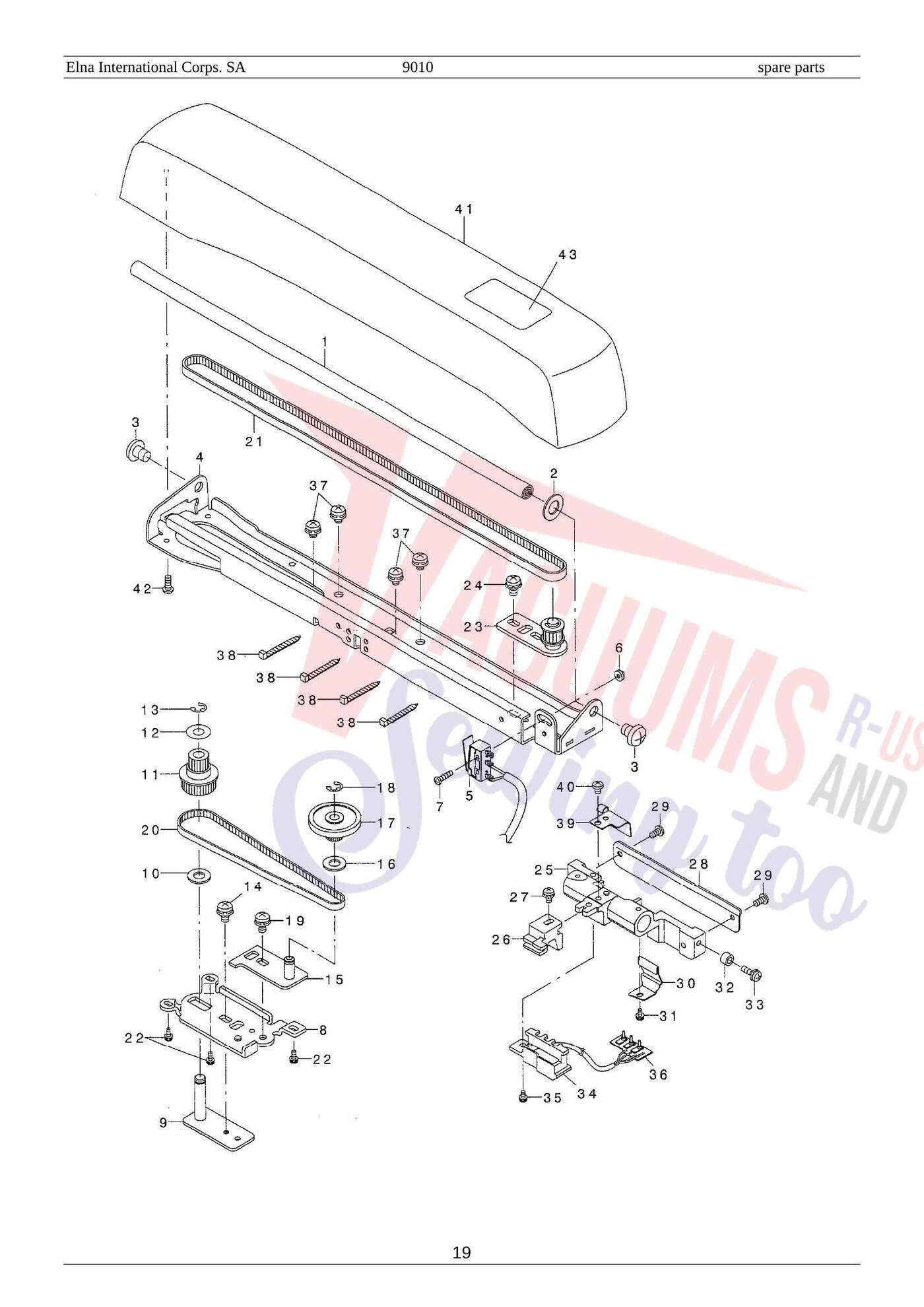

| 1 | | Genuine Janome/Elna (Y) COORDINATE DRIVE SHAFT | 395819-58 | $82.80Read more |
| 2 | Not Available | FELT A | 395819-59 | Not Available |
| 3 | Not Available | SCREW | 395819-60 | Not Available |
| 4 | Not Available | Y COORDINATE DRIVE PLATE | 395819-61 | Not Available |
| 5 | | Genuine Janome/Elna (Y) AXIS DETECTING SWITCH ELNA | 395819-62 | $29.40Read more |
| 6 | Not Available | NUT | 395819-63 | Not Available |
| 7 | Not Available | SCREW | 395819-64 | Not Available |
| 8 | | Genuine Janome/Elna (Y)AXIS BELT FIXING PLATE | 395819-65 | $14.80Read more |
| 9 | | Genuine Janome/Elna (Y) AXIS INTERMEDIATE PULLEY | 395819-66 | $11.00Read more |
| 10 | | Genuine Janome/Elna WASHER EL9010 EL9020 XQUISIT | 395819-67 | $0.60Read more |
| 11 | | Genuine Janome/Elna (Y) AXISINTERMEDIATE PULLEY | 395819-68 | $2.80Read more |
| 12 | Not Available | PULLEY FLANGE | 395819-69 | Not Available |
| 13 | Not Available | E RING | 395819-70 | Not Available |
| 14 | Not Available | SCREW | 395819-71 | Not Available |
| 15 | | Genuine Janome/Elna (Y) AXIS FOLLOWER GEAR BRACKET | 395819-72 | $8.20Read more |
| 16 | | Genuine Janome/Elna WASHER EL9010 EL9020 XQUIST | 395819-73 | $0.60Read more |
| 17 | | Genuine Janome/Elna (Y) AXIS FOLLOWER GEAR EL9010 | 395819-74 | $2.80Read more |
| 18 | | Genuine Janome/Elna E-RING EL9010 EL9020 XQUISIT | 395819-75 | $0.60Read more |
| 19 | Not Available | SCREW | 395819-76 | Not Available |
| 20 | | Genuine Janome/Elna (Y) COORDINATE DRIVE BELT (B) | 395819-77 | $11.00Read more |
| 21 | | Genuine Janome/Elna (Y) COORDINATE DRIVE BELT (A) | 395819-78 | $22.40Read more |
| 22 | Not Available | SCREW | 395819-79 | Not Available |
| 23 | | Genuine Janome/Elna (Y) COORDINATE PULLEY EL9010 | 395819-80 | $11.00Read more |
| 24 | Not Available | SCREW | 395819-81 | Not Available |
| 25 | | Genuine Janome/Elna FRAME HOLDER | 395819-82 | $191.20Read more |
| 26 | | Genuine Janome/Elna (Y) COORDINATE BELT HOLDER | 395819-83 | $4.80Read more |
| 27 | | Genuine Janome/Elna SCREW FOR BRACKET 9010 9020 | 395819-84 | $1.00Read more |
| 28 | Not Available | FRME FIXING SPRING | 395819-85 | Not Available |
| 29 | Not Available | SCREW | 395819-86 | Not Available |
| 30 | | Genuine Janome/Elna EMBROIDERY FRAME CLAMP SPRING | 395819-87 | $7.80Read more |
| 31 | Not Available | SCREW | 395819-88 | Not Available |
| 32 | Not Available | EMBROIDERY FRAME POSITIONING COLLAR | 395819-89 | Not Available |
| 33 | Not Available | SCREW | 395819-90 | Not Available |
| 34 | Not Available | EMBROIDERY FRAME DETECTING SWITCH GUIDE | 395819-91 | Not Available |
| 35 | Not Available | SCREW | 395819-92 | Not Available |
| 36 |  | Genuine Janome/Elna EMBROIDERY FRAME DETECTING | 395819-93 | $61.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | SCREW | 395819-94 | Not Available |
| 38 | Not Available | BAND (SMALL) | 395819-95 | Not Available |
| 39 | Not Available | EMBROIDERY FRAME DETECTING LEAD COVER | 395819-96 | Not Available |
| 40 | Not Available | SCREW | 395819-97 | Not Available |
| 41 | | Genuine Janome/Elna FRAME HOLDER COVER EL9010 | 395819-98 | $30.80Read more |
| 42 | Not Available | SCREW | 395819-99 | Not Available |
| 43 | | Genuine Janome/Elna CAUTION SEAL (A) XQUISIT | 395820-01 | $4.60Read more |
| # | Part image | Description | SKU | Price |

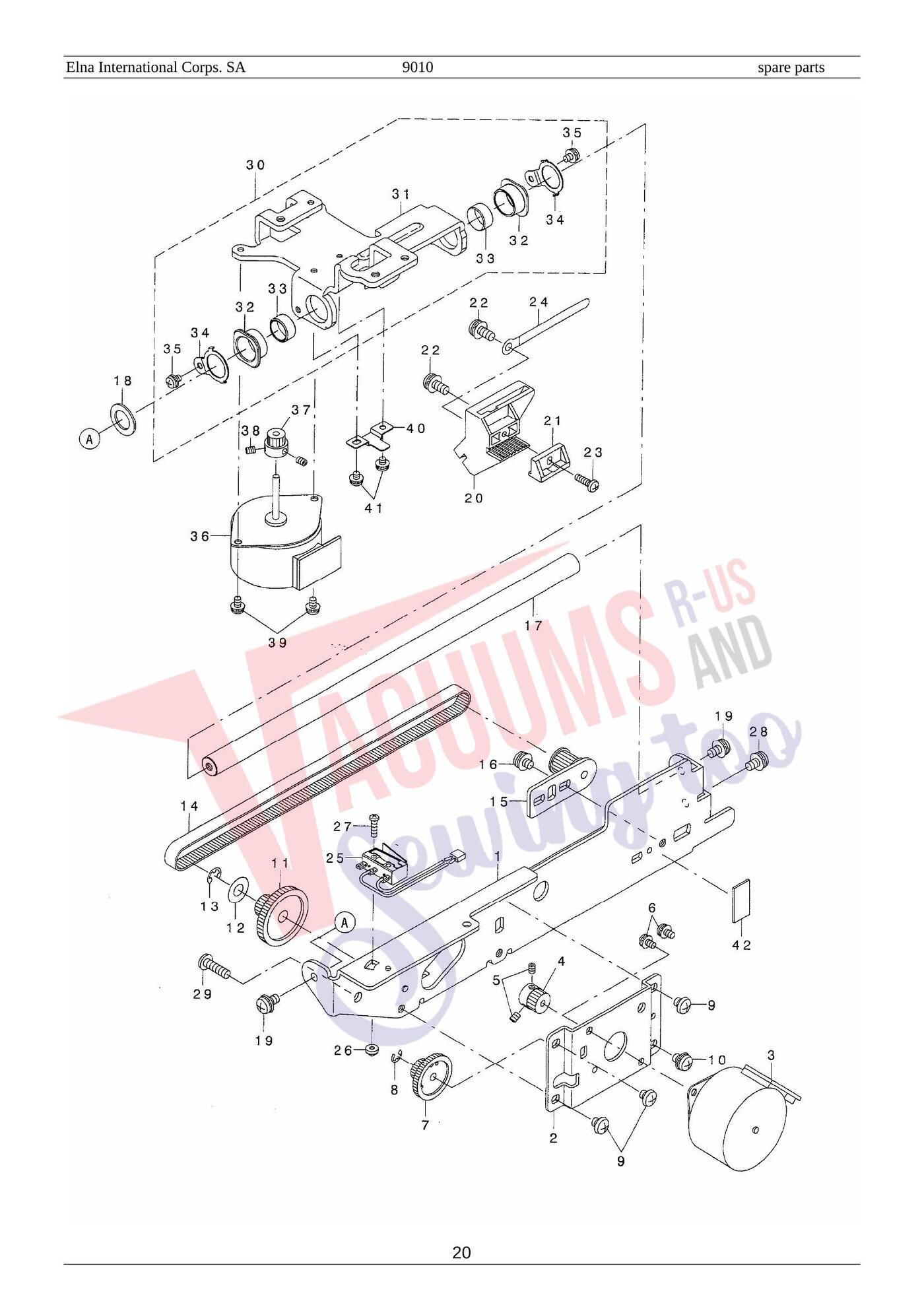

| 1 | Not Available | MAIN FRAME (ASM.) | 395820-02 | Not Available |
| 2 | Not Available | X MOTOR BRACKET (ASM.) | 395820-03 | Not Available |
| 3 | | Genuine Janome/Elna (X) AXIS STEP MOTOR ELNA XE1 | 395820-04 | $52.80Read more |
| 4 | Not Available | X MOTOR GEAR | 395820-05 | Not Available |
| 5 | Not Available | SCREW | 395820-06 | Not Available |
| 6 | Not Available | SCREW | 395820-07 | Not Available |
| 7 |  | Genuine Janome/Elna INTERMEDIATE GEAR (A) EL9010 | 395820-08 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | E RING | 395820-09 | Not Available |
| 9 | Not Available | SCREW | 395820-10 | Not Available |
| 10 | Not Available | SCREW | 395820-11 | Not Available |
| 11 | | Genuine Janome/Elna PINION | 395820-12 | $7.60Read more |
| 12 | Not Available | PULLEY FLANGE | 395820-13 | Not Available |
| 13 | Not Available | E RING | 395820-14 | Not Available |
| 14 | Not Available | X DRIVE BELT | 395820-15 | Not Available |
| 15 | | Genuine Janome/Elna PULLEY | 395820-16 | $22.80Read more |
| 16 | Not Available | SCREW | 395820-17 | Not Available |
| 17 | Not Available | X COORDINATE DRIVE SHAFT | 395820-18 | Not Available |
| 18 | Not Available | X COORDINATE DRIVE SHAFT FELT B | 395820-19 | Not Available |
| 19 | Not Available | SCREW | 395820-20 | Not Available |
| 20 | Not Available | BELT PRESSER A | 395820-21 | Not Available |
| 21 | Not Available | BELT PRESSER B | 395820-22 | Not Available |
| 22 | Not Available | SCREW | 395820-23 | Not Available |
| 23 | Not Available | SCREW | 395820-24 | Not Available |
| 24 | Not Available | CORD HOLDER | 395820-25 | Not Available |
| 25 | | Genuine Janome/Elna (X) AXIS DETECTING SWITCH ELNA | 395820-26 | $13.80Read more |
| 26 | Not Available | NUT | 395820-27 | Not Available |
| 27 | Not Available | SCREW | 395820-28 | Not Available |
| 28 | Not Available | SCREW | 395820-29 | Not Available |
| 29 | Not Available | SCREW | 395820-30 | Not Available |
| 30 | Not Available | X COORDINATE DRIVE PLATE (ASM.) | 395820-31 | Not Available |
| 31 | Not Available | X COORDINATE DRIVE PLATE | 395820-32 | Not Available |
| 32 | Not Available | X COORDINATE DRIVE BEARING A | 395820-33 | Not Available |
| 33 | Not Available | X COORDINATE DRIVE BEARING B | 395820-34 | Not Available |
| 34 | Not Available | X DRIVE SHAFT RECEPTACLE HOLDER | 395820-35 | Not Available |
| 35 | Not Available | SCREW | 395820-36 | Not Available |
| 36 |  | Genuine Janome/Elna (Y) AXIS STEP MOTOR ELNA XE1 | 395820-37 | $104.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | Y MOTOR GEAR | 395820-38 | Not Available |
| 38 | Not Available | SCREW | 395820-39 | Not Available |
| 39 | Not Available | SCREW | 395820-40 | Not Available |
| 40 | Not Available | CORD HOLDER PLATE | 395820-41 | Not Available |
| 41 | Not Available | SCREW | 395820-42 | Not Available |
| 42 | Not Available | START SWITCH LEAD TAPE | 395820-43 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna LARGE EMBROIDERY FRAME | 395805-02 | $182.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna LARGE EMBROIDERY FRAME INNER | 395805-03 | $50.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | LARGE SIZE EMBROIDERY INNER FRAME | 395805-04 | Not Available |
| 4 | Not Available | LARGE SIZE EMBROIDERY INNER FRAME RUBBER | 395805-06 | Not Available |
| 5 | | Genuine Janome/Elna LARGE EMBROIDERY FRAME OUTER | 395805-08 | $54.60Read more |
| 6 |  | Genuine Janome/Elna LARGE HOOP KNOB SCREW EL9010 | 395820-44 | $22.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Genuine Janome/Elna HOOP NUT EL9010 EL9020 | 395820-45 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Genuine Janome/Elna WASHER | 395820-46 | $2.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Genuine Janome/Elna FRAME RELEASE SPRING EL9010 | 395820-47 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Janome/Elna MEDIUM EMBROIDERY FRAME | 395805-15 | $184.00Read more |
| 11 | Not Available | MEDIUM SIZE EMBROIDERY OUTER FRAME (ASM.) | 395805-17 | Not Available |
| 12 | | Genuine Janome/Elna FRAME RELEASE SPRING EL9020 | 395820-48 | $1.60Read more |
| 13 | | Genuine Janome/Elna KNOB SCREW EL9020 | 395820-49 | $16.60Read more |
| 14 | Not Available | NUT | 395820-50 | Not Available |
| 15 | | Genuine Janome/Elna WASHER EL9020 | 395820-51 | $1.00Read more |
| 16 | | Genuine Janome/Elna MEDIUM EMBROIDERY FRAME INNER | 395805-22 | $21.40Read more |
| 17 | | Genuine Janome/Elna SMALL EMBROIDERY FRAME ELNA | 395805-23 | $64.00Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE (ASM.) | 395810-66 | Not Available |
| 2 | Not Available | HANDLE | 395810-67 | Not Available |
| 3 | Not Available | HANDLE FIXING PLATE | 395810-68 | Not Available |
| 4 | Not Available | WASHER | 395810-69 | Not Available |
| 5 | Not Available | HNADLE SHAFT | 395810-70 | Not Available |
| 6 | Not Available | E RING | 395810-71 | Not Available |
| 7 | Not Available | SCREW | 395810-72 | Not Available |
| 8 | Not Available | BAND | 395810-73 | Not Available |
| 9 | Not Available | REAR PANEL (ASM.) | 395810-74 | Not Available |
| 10 | Not Available | REAR PANEL | 395810-75 | Not Available |
| 11 | Not Available | THREAD HOLDING PLATE (ASM.) | 395810-76 | Not Available |
| 12 | Not Available | THREAD HOLDING PLATE COVER | 395810-77 | Not Available |
| 13 | Not Available | THREAD HOLDING PLATE COVER FIXING PLATE | 395810-78 | Not Available |
| 14 | Not Available | PIN | 395810-79 | Not Available |
| 15 |  | Genuine Janome/Elna MAGNET | 395810-80 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | BOBBIN WINDER SHAFT COVER (ASM.) | 395810-81 | Not Available |
| 17 | Not Available | BOBBIN WINDER SHAFT COVER | 395810-82 | Not Available |
| 18 | Not Available | BOBBIN WINDER SHAFT COVER SPRING | 395810-83 | Not Available |
| 19 | Not Available | SCREW | 395810-84 | Not Available |
| 20 | Not Available | BOBBIN WINDER SHAFT COVER FIXING PLATE | 395810-85 | Not Available |
| 21 | Not Available | BOBBIN WINDER SHAFT COVER PIN | 395810-86 | Not Available |
| 22 | Not Available | SCREW | 395810-87 | Not Available |
| 23 | Not Available | THREAD STAND POST | 395810-88 | Not Available |
| 24 |  | Genuine Janome/Elna THREAD STAND POST SHAFT | 395810-89 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Genuine Janome/Elna SNAP RING E | 395810-90 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | Genuine Janome/Elna FELT ELNA XE1 EL9010 XQUISIT | 395810-91 | $1.80Read more |
| 27 |  | Genuine Janome/Elna BOBBIN WINDER SEAT ELNA XE1 | 395810-92 | $10.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | WASHER | 395810-93 | Not Available |
| 29 | Not Available | SCREW | 395810-94 | Not Available |
| 30 | Not Available | PANEL CAP | 395810-95 | Not Available |
| 31 | Not Available | TOP THREADING CUTTER | 395810-96 | Not Available |
| 32 | Not Available | STOPPING PLATE | 395810-97 | Not Available |
| 33 | Not Available | SCREW | 395810-98 | Not Available |
| 34 | Not Available | THREADING THREAD GUIDE | 395810-99 | Not Available |
| 35 | Not Available | WASHER | 395811-01 | Not Available |
| 36 | Not Available | SCREW | 395811-02 | Not Available |
| 37 | Not Available | SCREW | 395811-03 | Not Available |
| 38 | Not Available | SCREW | 395811-04 | Not Available |
| 39 | Not Available | SCREW | 395811-05 | Not Available |
| 40 | Not Available | SCREW | 395811-06 | Not Available |
| 41 | Not Available | BH SWITCH FIXING PLATE (TOTAL ASM.) | 395811-07 | Not Available |
| 42 | Not Available | BH SWITCH FIXING PLATE (PARTIAL ASM.) | 395811-08 | Not Available |
| 43 | Not Available | E RING | 395811-09 | Not Available |
| 44 | Not Available | BH SWITCH FIXING PLATE (ASM.) | 395811-10 | Not Available |
| 45 | Not Available | AUXILIARY ROLLER FLOAT PLATE | 395811-11 | Not Available |
| 46 | Not Available | PRESSER LIFT SWITCH WORKING PLATE (ASM.) | 395811-12 | Not Available |
| 47 | Not Available | E RING | 395811-13 | Not Available |
| 48 | Not Available | E RING | 395811-14 | Not Available |
| 49 | Not Available | WASHER | 395811-15 | Not Available |
| 50 | Not Available | BH CHANGE-OVER PLATE (ASM.) | 395811-16 | Not Available |
| 51 | Not Available | POTENTIOMETER ARM SETSCREW | 395811-17 | Not Available |
| 52 | Not Available | SCREW | 395811-18 | Not Available |
| 53 | Not Available | SCREW | 395811-19 | Not Available |
| 54 | Not Available | POTENTIOMETER SPRING | 395811-20 | Not Available |
| 55 | Not Available | POTENTIOMETER (ASM.) | 395811-21 | Not Available |
| 56 | Not Available | PRESSER LIFT SWITCH (ASM.) | 395811-22 | Not Available |
| 57 | Not Available | SCREW | 395811-23 | Not Available |
| 58 | Not Available | LOCKNUT | 395811-24 | Not Available |
| 59 | Not Available | BAND | 395811-25 | Not Available |
| 60 | Not Available | BH SWITCH (ASM.) | 395811-26 | Not Available |
| 61 | Not Available | LAMP FIXING PLATE (RIGHT) | 395811-27 | Not Available |
| 62 | Not Available | SCREW | 395811-28 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DELIVERY STM FIXING PLATE (ASM.) | 395811-29 | Not Available |
| 2 | Not Available | AUXILIARY ROLLER ARM (TOTAL ASM.) | 395811-30 | Not Available |
| 3 | Not Available | AUXILIARY ROLLER ARM (ASM.) | 395811-31 | Not Available |
| 4 | | Genuine Janome/Elna AUXILIARY ROLLER FIXING PLATE | 395811-32 | $46.80Read more |
| 5 | Not Available | ROLLER GEAR GUIDE A (ASM.) | 395811-33 | Not Available |
| 6 | Not Available | ROLLER GEAR GUIDE A | 395811-34 | Not Available |
| 7 | Not Available | ROLLER GEAR GUIDE A PILE | 395811-35 | Not Available |
| 8 | Not Available | E RING | 395811-36 | Not Available |
| 9 | Not Available | ROLLER GEAR GUIDE B | 395811-37 | Not Available |
| 10 | Not Available | DELIVERY ROLLER THREAD GUIDE | 395811-38 | Not Available |
| 11 | Not Available | E RING | 395811-39 | Not Available |
| 12 | | Genuine Janome/Elna DELIVERY ROLLER THREAD GUIDE | 395811-40 | $2.00Read more |
| 13 | Not Available | AUXILIARY ROLLER ARM SPRING | 395811-41 | Not Available |
| 14 |  | Genuine Janome/Elna DELIVERY STEP MOTOR ELNA XE1 | 395811-42 | $50.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | SCREW | 395811-43 | Not Available |
| 16 | Not Available | DELIVERY STM RELAY LEAD WIRE (ASM.) | 395811-44 | Not Available |
| 17 | Not Available | THREADING BODY | 395811-45 | Not Available |
| 18 | Not Available | THREADING BODY SPRING | 395811-46 | Not Available |
| 19 | Not Available | E RING3 | 395811-47 | Not Available |
| 20 | Not Available | THREADING BODY LINK (ASM.) | 395811-48 | Not Available |
| 21 | Not Available | E RING | 395811-49 | Not Available |
| 22 | Not Available | THREADING WORKING BODY | 395811-50 | Not Available |
| 23 | Not Available | E RING | 395811-51 | Not Available |
| 24 | Not Available | THREADING BODY INTERMEDIATE GEAR | 395811-52 | Not Available |
| 25 | Not Available | DELIVERY ROLLER SHAFT | 395811-53 | Not Available |
| 26 | | Genuine Janome/Elna DELIVERY ROLLER ELNA XE1 | 395811-54 | $21.60Read more |
| 27 | | Genuine Janome/Elna PINION | 395811-55 | $5.80Read more |
| 28 | Not Available | SCREW | 395811-56 | Not Available |
| 29 | Not Available | PIN | 395811-57 | Not Available |
| 30 | Not Available | E RING | 395811-58 | Not Available |
| 31 | | Genuine Janome/Elna PINION | 395811-59 | $4.20Read more |
| 32 | Not Available | THREADING BODY DRIVE GEAR WASHER | 395811-60 | Not Available |
| 33 | Not Available | E RING | 395811-61 | Not Available |
| 34 | | Genuine Janome/Elna PINION | 395811-62 | $7.60Read more |
| 35 | Not Available | DELIVERY DRIVE GEAR SPRING | 395811-63 | Not Available |
| 36 | Not Available | DELIVERY ROLLER BEARING | 395811-64 | Not Available |
| 37 | Not Available | DELIVERY STM CHANGE-OVER PLATE | 395811-65 | Not Available |
| 38 | Not Available | HINGE SCREW | 395811-66 | Not Available |
| 39 | Not Available | SPRING | 395811-67 | Not Available |
| 40 | Not Available | BASE TENSION (ASM.) | 395811-68 | Not Available |
| 41 | Not Available | BASE TENSION | 395811-69 | Not Available |
| 42 | Not Available | BASE TENSION SPRING | 395811-70 | Not Available |
| 43 | Not Available | BASE TENSION DISK (ASM.) | 395811-71 | Not Available |
| 44 | Not Available | WASHER | 395811-72 | Not Available |
| 45 | Not Available | E RING | 395811-73 | Not Available |
| 46 | Not Available | BASE TENSION CLICK | 395811-74 | Not Available |
| 47 | Not Available | SCREW | 395811-75 | Not Available |
| 48 | Not Available | SCREW | 395811-76 | Not Available |
| 49 | Not Available | THREAD RELEASE CAM (ASM.) | 395811-77 | Not Available |
| 50 | Not Available | E RING | 395811-78 | Not Available |
| 51 | Not Available | THREAD RELEASE LINK (UPPER) | 395811-79 | Not Available |
| 52 | Not Available | E RING | 395811-80 | Not Available |
| 53 | Not Available | THREAD RELEASE PLATE (ASM.) | 395811-81 | Not Available |
| 54 | Not Available | THREAD RELEASE PLATE | 395811-82 | Not Available |
| 55 | Not Available | THREAD RELEASE ADJUST PLATE | 395811-83 | Not Available |
| 56 | Not Available | SCREW | 395811-84 | Not Available |
| 57 | Not Available | THREAD RELEASE OVER ADJUST PLATE | 395811-85 | Not Available |
| 58 | Not Available | SCREW | 395811-86 | Not Available |
| 59 | Not Available | E RING | 395811-87 | Not Available |
| 60 | Not Available | BASE TENSION FLOAT | 395811-88 | Not Available |
| 61 | Not Available | E RING | 395811-89 | Not Available |
| 62 | Not Available | SCREW | 395811-90 | Not Available |
| 63 | Not Available | BAND | 395811-91 | Not Available |
| 64 | Not Available | CORD HOLDER | 395811-92 | Not Available |
| 65 | Not Available | THREAD RELEASE CAM SPRING | 395811-93 | Not Available |
| 66 | Not Available | AUXILIARY ROLLER FLOAT LINK (ASM.) | 395811-94 | Not Available |
| 67 | Not Available | AUXILIARY ROLLER FLOAT ADJUST PLATE | 395811-95 | Not Available |
| 68 | Not Available | AUXILIARY ROLLER FLOAT LINK | 395811-96 | Not Available |
| 69 | Not Available | E RING | 395811-97 | Not Available |
| 70 | Not Available | SCREW | 395811-98 | Not Available |
| 71 | Not Available | THREAD GUIDE NO. 1 (ASM.) | 395811-99 | Not Available |
| 72 | Not Available | THREAD GUIDE NO. 1 | 395812-01 | Not Available |
| 73 | Not Available | THREAD GUIDE NO. 1 COVER | 395812-02 | Not Available |
| 74 | Not Available | SCREW | 395812-03 | Not Available |
| 75 | Not Available | SCREW | 395812-04 | Not Available |
| 76 | Not Available | BAND | 395812-05 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW | 395812-73 | Not Available |
| 1 | Not Available | DRIVE SHAFT FIXING PLATE (ASM.) 68 395812-73 SCREW | 395812-06 | Not Available |
| 2 |  | Genuine Janome/Elna PRESSER HOLDER ELNA EL9010 | 395812-74 | $11.60Read more |
| 2 | Not Available | HOLDING PRESSURE OVER PLATE 69 395812-74 PRESSER HOLDER (ASM.) | 395812-07 | Not Available |
| 3 | Not Available | A STANDARD METAL FOOT | 395805-36 | Not Available |
| 3 | Not Available | SCREW 70 395805-36 A STANDARD METAL FOOT | 395812-08 | Not Available |
| 4 |  | Genuine Janome/Elna SCREW | 395812-75 | $12.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | DRIVE RACK 71 395812-75 SCREW | 395812-09 | Not Available |
| 5 | Not Available | PRESSURE ADJUSTING ARM (ARM.) | 395812-76 | Not Available |
| 5 | Not Available | SCREW 72 395812-76 PRESSURE ADJUSTING ARM (ARM.) | 395812-10 | Not Available |
| 6 | Not Available | PRESSURE ADJUSTING BRACKET | 395812-77 | Not Available |
| 6 | Not Available | THREAD TRANSFER CONTROL CAM 73 395812-77 PRESSURE ADJUSTING BRACKET | 395812-11 | Not Available |
| 7 | Not Available | PRESSURE ADJUSTING BRACKET | 395812-78 | Not Available |
| 7 | Not Available | SCREW 74 395812-78 PRESSURE ADJUSTING BRACKET | 395812-12 | Not Available |
| 8 | Not Available | PRESSURE ADJUSTING CAM | 395812-79 | Not Available |
| 8 | Not Available | SCREW 75 395812-79 PRESSURE ADJUSTING CAM | 395812-13 | Not Available |
| 9 | | Genuine Janome/Elna PRESSURE ADJUSTING SHAFT | 395812-80 | $26.60Read more |
| 9 | Not Available | TOP THREAD TRANSFER GEAR A 76 395812-80 PRESSURE ADJUSTING SHAFT | 395812-14 | Not Available |
| 10 | Not Available | SCREW | 395812-81 | Not Available |
| 10 | Not Available | TOP THREAD TRANSFER GEAR B 77 395812-81 SCREW | 395812-15 | Not Available |
| 11 | Not Available | SEAL | 395812-82 | Not Available |
| 11 | | Genuine Janome/Elna TOP THREAD TRANSFER BODY | 395812-16 | $55.20Read more |
| 12 | Not Available | PRESSURE ADJUSTING SCREW | 395812-83 | Not Available |
| 12 | | Genuine Janome/Elna TOP THREAD TRANSFER BODY | 395812-17 | $58.80Read more |
| 13 | Not Available | SCREW | 395812-84 | Not Available |
| 13 | Not Available | THREAD TRANSFER BODY (ASM.) 80 395812-84 SCREW | 395812-18 | Not Available |
| 14 | Not Available | SCREW | 395812-85 | Not Available |
| 14 | Not Available | THREAD PRESSER (ASM.) 81 395812-85 SCREW | 395812-19 | Not Available |
| 15 | Not Available | THREAD PRESSER WASHER | 395812-20 | Not Available |
| 16 | Not Available | THREAD PRESSER SPRING | 395812-21 | Not Available |
| 17 | Not Available | E RING | 395812-22 | Not Available |
| 18 | Not Available | HOLDING PRESSURE PLATE | 395812-23 | Not Available |
| 19 | Not Available | HINGE SCREW | 395812-24 | Not Available |
| 20 | Not Available | HOLDING PRESSURE LINK (ASM) | 395812-25 | Not Available |
| 21 | Not Available | E RING | 395812-26 | Not Available |
| 22 | Not Available | OVER WORKING PLATE (ASM) | 395812-27 | Not Available |
| 23 | Not Available | OVER WORKING PLATE (ASM.) | 395812-28 | Not Available |
| 24 | Not Available | HOLDING PRESSURE ROLLER | 395812-29 | Not Available |
| 25 | Not Available | CHANGE-OVER ROLLER SPRING | 395812-30 | Not Available |
| 26 | Not Available | E RING | 395812-31 | Not Available |
| 27 | Not Available | E RING | 395812-32 | Not Available |
| 28 | Not Available | PRESSURE OVER ADJUST PLATE | 395812-33 | Not Available |
| 29 | Not Available | SCREW | 395812-34 | Not Available |
| 30 | Not Available | OVER WORKING PLATE SPRING | 395812-35 | Not Available |
| 31 | Not Available | THREAD TRANSFER BODY BASE | 395812-36 | Not Available |
| 32 |  | Genuine Janome/Elna THREAD TRANSFER STOPPER | 395812-37 | $4.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | SCREW | 395812-38 | Not Available |
| 34 | Not Available | SCREW | 395812-39 | Not Available |
| 35 | Not Available | WASHER | 395812-40 | Not Available |
| 36 | Not Available | EXTERNAL WORKING BODY (ASM.) | 395812-41 | Not Available |
| 37 | Not Available | EXTERNAL WORKING BEARING | 395812-42 | Not Available |
| 38 | Not Available | EXTERNAL WORKING BODY GUIDE | 395812-43 | Not Available |
| 39 | Not Available | SCREW | 395812-44 | Not Available |
| 40 | Not Available | INTERNAL WORKING BODY | 395812-45 | Not Available |
| 41 | Not Available | WORKING BODY SPRING | 395812-46 | Not Available |
| 42 | Not Available | THREADING PLATE (ASM.) | 395812-47 | Not Available |
| 43 | Not Available | WORKING BODY ROLLER | 395812-48 | Not Available |
| 44 | Not Available | SCREW | 395812-49 | Not Available |
| 45 |  | Genuine Janome/Elna TRANSFER BODY CAM | 395812-50 | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | Genuine Janome/Elna Thread Transfer Body Spring | 395812-51 | $4.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | TOP THREAD TRANSFER COLLAR | 395812-52 | Not Available |
| 48 | Not Available | SCREW | 395812-53 | Not Available |
| 49 | Not Available | THREAD TRANSFER DETECT GUIDE | 395812-54 | Not Available |
| 50 | Not Available | SCREW | 395812-55 | Not Available |
| 51 | Not Available | THREAD TRANSFER DRIVE SHAFT | 395812-56 | Not Available |
| 52 | Not Available | E RING | 395812-57 | Not Available |
| 53 | Not Available | THREAD TRANSFER SHAFT PIN | 395812-58 | Not Available |
| 54 | Not Available | THREAD TRANSFER SHAFT GEAR | 395812-59 | Not Available |
| 55 |  | Genuine Janome/Elna STEPPER MOTOR | 395812-60 | $120.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | SCREW | 395812-61 | Not Available |
| 57 | | Genuine Janome/Elna THREAD DETECT CIRCUIT ASS. | 395812-62 | $41.80Read more |
| 58 | Not Available | SCREW | 395812-63 | Not Available |
| 59 | Not Available | BAND | 395812-64 | Not Available |
| 60 | | Genuine Janome/Elna LIFTER LEVER ASSEMBLY ELNA | 395812-65 | $7.20Read more |
| 61 | Not Available | LIFTING LEVER | 395812-66 | Not Available |
| 62 | Not Available | LIFTING LEVER SHAFT | 395812-67 | Not Available |
| 63 | Not Available | LIFTING LEVER SPRING | 395812-68 | Not Available |
| 64 | Not Available | PRESSER BAR GUIDE | 395812-69 | Not Available |
| 65 |  | Genuine Janome/Elna Presser Bar (E) | 395812-70 | $32.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | PRESSER SPRING (E) | 395812-71 | Not Available |
| 67 |  | Genuine Janome/Elna PRESSER BAR POSITION BRACKET | 395812-72 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | MAIN SHAFT (ASM.) | 395812-86 | Not Available |
| 2 | Not Available | SCREW | 395812-87 | Not Available |
| 3 | Not Available | MAIN SHAFT BUSHING | 395812-88 | Not Available |
| 4 | Not Available | MAIN SHAFT THRUST COLLAR (ASM.) | 395812-89 | Not Available |
| 5 | Not Available | SCREW | 395812-90 | Not Available |
| 6 | Not Available | E RING | 395812-91 | Not Available |
| 7 | Not Available | DISENGAGING CAM SPRING | 395812-92 | Not Available |
| 8 | Not Available | MAIN SHAFT DISENGAGING CAM (ASM.) | 395812-93 | Not Available |
| 9 | Not Available | DISENGAGING STOPPER SPRING | 395812-94 | Not Available |
| 10 | Not Available | SCREW | 395812-95 | Not Available |
| 11 | Not Available | MAIN SHAFT DISENGAGING CAM PIN | 395812-96 | Not Available |
| 12 | Not Available | THREAD TAKE-UP BODY (ASM.) | 395812-97 | Not Available |
| 13 | Not Available | ENDSCREW (LEFT) | 395812-98 | Not Available |
| 14 | Not Available | MAIN SHAFT PULLEY (ASM.) | 395812-99 | Not Available |
| 15 | Not Available | MAIN SHAFT PULLEY | 395813-01 | Not Available |
| 16 | Not Available | MAIN SHAFT DISENGAGING BUFFER LINK | 395813-02 | Not Available |
| 17 | Not Available | SHAFT DISENGAGING BUFFER SPRING | 395813-03 | Not Available |
| 18 | Not Available | BUFFER MATERIAL | 395813-04 | Not Available |
| 19 | Not Available | DISENGAGING CAM LATCH SPRING | 395813-05 | Not Available |
| 20 | Not Available | SCREW | 395813-06 | Not Available |
| 21 | Not Available | E RING | 395813-07 | Not Available |
| 22 | Not Available | MAIN SHAFT BUSHING (REAR) | 395813-08 | Not Available |
| 23 | | Genuine Janome/Elna HAND WHEEL XQUISIT | 395813-09 | $19.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | SCREW | 395813-10 | Not Available |
| 25 | Not Available | WASHER | 395813-11 | Not Available |
| 26 | Not Available | SPRING WASHER | 395813-12 | Not Available |
| 27 | Not Available | MAIN SHAFT BUSHING RETAINING PLATE | 395813-13 | Not Available |
| 28 | Not Available | BUSHING RETAINING PLATE (REAR) | 395813-14 | Not Available |
| 29 | Not Available | SCREW | 395813-15 | Not Available |
| 30 | Not Available | THREAD TAKE-UP SUPPORT | 395813-16 | Not Available |
| 31 | Not Available | TAKE-UP SUPPORTING SHAFT (ASM.) | 395813-17 | Not Available |
| 32 | Not Available | TAKE-UP LEVER SUPPORTING SHAFT | 395813-18 | Not Available |
| 33 | Not Available | E RING | 395813-19 | Not Available |
| 34 | Not Available | RETAINING PLATE | 395813-20 | Not Available |
| 35 | Not Available | SCREW | 395813-21 | Not Available |
| 36 | | Genuine Janome/Elna NEEDLE BAR CRANK EL9010 | 395813-22 | $11.20Read more |
| 37 | | Genuine Janome/Elna NEEDLE BAR CRANK ROD EL9010 | 395813-23 | $11.20Read more |
| 38 | Not Available | WASHER | 395813-24 | Not Available |
| 39 | | Genuine Janome/Elna IDLER COMPL. | 395813-25 | $22.80Read more |
| 40 | Not Available | IDLER | 395813-26 | Not Available |
| 41 | Not Available | IDLER FIXING PLATE (ASM.) | 395813-27 | Not Available |
| 42 | Not Available | E RING | 395813-28 | Not Available |
| 43 | Not Available | SCREW | 395813-29 | Not Available |
| 44 | Not Available | TIMING BELT (LARGE) | 395813-30 | Not Available |
| 45 | Not Available | MAIN SHAFT THRUST SPRING WASHER | 395813-31 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FRONT PANEL (ASM.) | 395813-32 | Not Available |
| 2 | Not Available | FRONT PANEL | 395813-33 | Not Available |
| 3 | Not Available | S/S BUTTON | 395813-34 | Not Available |
| 4 | Not Available | REVERSE BUTTON | 395813-35 | Not Available |
| 5 | Not Available | HALF-STITCH BUTTON | 395813-36 | Not Available |
| 6 | Not Available | SLIDE VR KNOB | 395813-37 | Not Available |
| 7 | | Genuine Janome/Elna SWITCH SLIDE VOLUME BOARD | 395813-38 | $44.20Read more |
| 8 | Not Available | BAND | 395813-39 | Not Available |
| 9 | Not Available | SCREW | 395813-40 | Not Available |
| 10 | Not Available | SCREW | 395813-41 | Not Available |
| 11 | Not Available | BOBBIN THREAD SENSOR SHIELD PLATE | 395813-42 | Not Available |
| 12 | Not Available | SPRING | 395813-43 | Not Available |
| 13 | Not Available | START SWITCH LEAD TAPE | 395813-44 | Not Available |
| 14 | Not Available | BLIND PLATE | 395813-45 | Not Available |
| 15 | Not Available | SCREW | 395813-46 | Not Available |
| 16 | Not Available | SCREW | 395813-47 | Not Available |
| 17 | Not Available | SCREW | 395813-48 | Not Available |
| 18 | | Genuine Janome/Elna LCD MODULE COMPLETE ELNA XE1 | 395813-49 | $2,325.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | LCD MODULE (ASM.) | 395813-50 | Not Available |
| 20 | Not Available | LCD FIXING PLATE | 395813-51 | Not Available |
| 21 | Not Available | SCREW | 395813-52 | Not Available |
| 22 | Not Available | TRANSPARENT TOUCH PANEL (ASM.) | 395813-53 | Not Available |
| 23 | Not Available | TRANSPARENT TOUCH PANEL | 395813-54 | Not Available |
| 24 | Not Available | SWITCH SHEET | 395813-55 | Not Available |
| 25 | Not Available | DOUBLE SIDE ADHESIVE TAPE | 395813-56 | Not Available |
| 26 | Not Available | INVERTER CIRCUIT BOARD (ASM.) | 395813-57 | Not Available |
| 27 | Not Available | SCREW | 395813-58 | Not Available |
| 28 | | Genuine Janome/Elna DISPLAY CIRCUIT BOARD RELAY | 395813-59 | $22.80Read more |
| 29 | Not Available | TTP BUFFER MATERIAL (VERTICAL) | 395813-60 | Not Available |
| 30 | | Genuine Janome/Elna BOBBIN SUPPORT | 395813-61 | $7.60Read more |
| 31 | | Genuine Janome/Elna FELT | 395813-62 | $5.40Read more |
| 32 | Not Available | PIN | 395813-63 | Not Available |
| 33 | Not Available | SCREW | 395813-64 | Not Available |
| 34 | Not Available | THREAD SPOOL CAP | 395813-65 | Not Available |
| 35 | Not Available | BOBBIN THREAD SPOOL COVER | 395813-66 | Not Available |
| 36 | | Genuine Janome/Elna SPOOL COVER HOOK ELNA XE1 | 395813-67 | $2.00Read more |
| 37 | Not Available | SCREW | 395813-68 | Not Available |
| 38 | Not Available | WASHER | 395813-69 | Not Available |
| 39 | | Genuine Janome/Elna BOBBIN THREAD THREAD GUIDE | 395813-70 | $10.80Read more |
| 40 | Not Available | BOBBIN THREAD THREAD GUIDE (ASM.) | 395813-71 | Not Available |
| 41 | Not Available | E RING | 395813-72 | Not Available |
| 42 | Not Available | WASHER | 395813-73 | Not Available |
| 43 | Not Available | THREAD GUIDE PLATE SPRING | 395813-74 | Not Available |
| 44 | Not Available | THREAD GUIDE SPRING | 395813-75 | Not Available |
| 45 | Not Available | SCREW | 395813-76 | Not Available |
| 46 | Not Available | EMBROIDERY BOBBIN WINDER SEAL | 395813-77 | Not Available |
| 47 | Not Available | SCREW | 395813-78 | Not Available |
| 48 | Not Available | THREAD GUIDE COVER | 395813-79 | Not Available |
| 49 | Not Available | THREAD GUIDE ROD | 395813-80 | Not Available |
| 50 | Not Available | SCREW | 395813-81 | Not Available |
| 51 | Not Available | SCREW | 395813-82 | Not Available |
| 52 | Not Available | SCREW | 395813-83 | Not Available |
| 53 | Not Available | LCD FIXING COLLAR | 395813-84 | Not Available |
| 54 | Not Available | STITCH BUTTON | 395813-85 | Not Available |
| 55 | | Genuine Janome/Elna FRONT PANEL UPPER COVER ELNA | 395813-86 | $12.40Read more |
| 56 | Not Available | UPPER COVER FIXING PLATE (ASM.) | 395813-87 | Not Available |
| 57 | Not Available | SCREW | 395813-88 | Not Available |
| 58 | Not Available | SCREW | 395813-89 | Not Available |
| 59 | | Genuine Janome/Elna SHEET ELNA XE1 EL9010 XQUISIT | 395813-90 | $27.60Read more |
| 60 |  | Genuine Janome/Elna LAMP WINDOW COVER EL9010 | 395813-91 | $11.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | Not Available | FRONT UPPER COVER ARM | 395813-92 | Not Available |
| 62 | Not Available | WASHER | 395813-93 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | NEDDLE BAR FRAME (COMPL.) | 395813-94 | Not Available |
| 2 | Not Available | NEDDLE BAR FRAME (PARTIAL ASM.) | 395813-95 | Not Available |
| 3 | Not Available | NEEDLE BAR FRAME | 395813-96 | Not Available |
| 4 | Not Available | THREADING SHAFT DUMPER RING | 395813-97 | Not Available |
| 5 | Not Available | NEEDLE BAR ROCKER BASE SHAFT | 395813-98 | Not Available |
| 6 | Not Available | ROCKER BASE FULCRUM SHAFT | 395813-99 | Not Available |
| 7 | Not Available | SCREW | 395814-01 | Not Available |
| 8 | Not Available | THREADER WORKING BODY SPRING HOOK | 395814-02 | Not Available |
| 9 | Not Available | NEEDLE BAR (ASM.) | 395814-03 | Not Available |
| 10 | Not Available | THREADER SHAFT | 395814-04 | Not Available |
| 11 | Not Available | E RING | 395814-05 | Not Available |
| 12 | Not Available | PIN | 395814-06 | Not Available |
| 13 | Not Available | NEEDLE STOPPER THREADING BODY | 395814-07 | Not Available |
| 14 | Not Available | NEEDLE STOPPER THREADING BODY SPRING | 395814-08 | Not Available |
| 15 | Not Available | THREADER SHAFT GUIDE | 395814-09 | Not Available |
| 16 | Not Available | THREADER WORKING BODY | 395814-10 | Not Available |
| 17 | Not Available | SCREW | 395814-11 | Not Available |
| 18 | Not Available | CONNECTING PLATE SHAFT | 395814-12 | Not Available |
| 19 | | Genuine Janome/Elna NEEDLE CLAMP ELNA XE1 EL9010 | 395814-13 | $50.40Read more |
| 20 | Not Available | NEEDLE #14 | 395814-14 | Not Available |
| 21 | Not Available | NEEDLE BAR CONNECTION (ASM.) | 395814-15 | Not Available |
| 22 | Not Available | THREADER NEEDLE BAR GUIDE (ASM.) | 395814-16 | Not Available |
| 23 | Not Available | THREADER NEEDLE BAR GUIDE | 395814-17 | Not Available |
| 24 | Not Available | TRANSFER BODY POSITIONING PLATE | 395814-18 | Not Available |
| 25 | Not Available | SCREW | 395814-19 | Not Available |
| 26 | Not Available | SCREW | 395814-20 | Not Available |
| 27 | Not Available | FELT | 395814-21 | Not Available |
| 28 |  | Genuine Janome/Elna NEEDLE THREADER HOOK HOLDER | 395814-22 | $46.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Genuine Janome/Elna SCREW | 395814-23 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Janome/Elna NEEDLE THREADER SHAFT SPRING | 395814-24 | $1.40Read more |
| 31 |  | Genuine Janome/Elna NEEDLE STOPPER THREADING ARM | 395814-25 | $15.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | SCREW | 395814-26 | Not Available |
| 33 | Not Available | ROCKING BASE SPRING (LOWER) | 395814-27 | Not Available |
| 34 | Not Available | THREAD RELEASE CAM SPRING | 395814-28 | Not Available |
| 35 | Not Available | SPRING | 395814-29 | Not Available |
| 36 | Not Available | FELT HOLDER | 395814-30 | Not Available |
| 37 | Not Available | SCREW | 395814-31 | Not Available |
| 38 | Not Available | SCREW | 395814-32 | Not Available |
| 39 | Not Available | ROCKING BASE SHAFT SPRING | 395814-33 | Not Available |
| 40 | Not Available | SCREW | 395814-34 | Not Available |
| 41 | Not Available | ROCKING BASE ADJUST SHAFT (E) | 395814-35 | Not Available |
| 42 | Not Available | NEEDLE MIS-INSERT PREVENTING PLATE | 395814-36 | Not Available |
| 43 | Not Available | SCREW | 395814-37 | Not Available |
Report errors on this page HERE
