Parts list and schematic for: Elna Models: el830lce, expressive 830 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Screwdriver (large) | 820832005 | Not Available |
| 4 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spool pin sewing machine part or accessory For Models: , MC9900 Horizon, EL900 eXpressive, EL8... | 809041004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spool holders (special) sewing machine part or accessory For Janome Models: Skyline S5 | 862408008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | TOUCH PEN sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700QCP, MC89... | 860194002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Scissors sewing machine part or accessory 803813203 Scissors | 803813203 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna Needle set (unit) For: MC200E, MC350E, Necchi EC100 | 852802108 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bobbin holder (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive | 846652607 | $25.60Add to cart |
| 13 | | Bobbin holder cleaner sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 15... | 859858007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Magnetic clamps (4pcs) sewing machine part or accessory For Janome Models: MC9900, EL860 | 861805305 | $46.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Magnetic clamps (unit) sewing machine part or accessory 861805006 Magnetic clamps (unit) | 861805006 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Caution card sewing machine part or accessory For Janome Models: MC500E | 861826003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Genuine Janome/Elna Embroidery hoop RE36b For: 550E, 830ELE | 864839008 | $188.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Genuine Janome/Elna Embroidery hoop RE36b For: 550E, 830ELE | 864839008 | $188.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Embroidery hoop SQ20b (200x200mm or 7.9"x7.9") sewing machine part or accessory Embroidery Hoop ... | 864412001 | $157.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Template SQ20b | 864801 | Not Available |
| 21 |  | Embroidery hoop RE20b sewing machine part or accessory Embroidery Hoop RE20b (140x200mm or 5.5"x7... | 864413002 | $157.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Template RE20b | 864802 | Not Available |
| 23 |  | Embroidery hoop SQ14b (140x140mm or 5.5"x5.5") sewing machine part or accessory Embroidery Hoop ... | 864414003 | $133.40Read more |
| 24 |  | Genuine Janome/Elna Template SQ14b For: C500E | 864803A01 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| xx | | Quick reference chart (Fr) sewing machine part or accessory For Janome Models: 550E | 864818012 | $3.26Read more |
| xx | | Quick reference chart (Ger) sewing machine part or accessory For Janome Models: 550E | 864818034 | $3.26Read more |
| xx | Not Available | Power cable (Australia) | 830314018 | Not Available |
| xx | Not Available | Power cable (Continental Europe) | 830335004 | Not Available |
| xx | Not Available | Instruction book (French) | 864860237 | Not Available |
| xx | Not Available | Instruction book (German) | 864860259 | Not Available |
| 1 | | Genuine Janome/Elna USB flash drive (Large Embroidery Design Collection) For: EL830LCE | 202458700 | $79.83Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Quick reference chart (English) sewing machine part or accessory For Janome Models: MC500E | 864818001 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna Instructional card (English) For: 550E | 864851006 | $2.52Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Caution card sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 858801002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Power supply cord (U.S.A.) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC... | 856519004 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Genuine Janome/Elna Instruction book (English) For: EL830LCE | 864860204 | $29.15Read more |
| 7 |  | Extra wide table sewing machine part or accessory Fold out table legs
Use With: 550E, 550ELE | 864805201 | $47.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Genuine Janome/Elna Dust cover For: EL830L | 864807100 | $44.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Janome/Elna Switching power supply (unit) For: C500E | 864621005 | $202.80Add to cart Special order: ships in 2 to 4 weeks |
| xx | Not Available | Switching power supply (unit) | 864621809 | Not Available |
| xx | | Genuine Janome/Elna Switch pwr supp UK,Eur For: 550E | 864621304 | $184.40Add to cart Special order: ships in 2 to 4 weeks |
| xx | Not Available | Printed circuit board A (Australia) (with Auto-off-timer) | 864425096 | Not Available |
| xx | Not Available | Printed circuit board A (Australia) (with Auto-off-timer) | 864425096 | Not Available |
| 1 | | Genuine Janome/Elna Front cover (unit) For: EL830LCE | 864629715 | $1,636.52Read more |
| 2 |  | Front cover sewing machine part or accessory For Janome Models: MC500E | 864055A01 | $25.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Thread guide sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 63... | 639075004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Start/stop button sewing machine part or accessory For Janome Models: MC500E | 864056A01 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Button 1 sewing machine part or accessory For Janome Models: MC500E | 864057A01 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Printed circuit board F (unit) For: C500E | 809510102 | $43.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Printed circuit board L1 (unit) sewing machine part or accessory For Janome Models: 550E, 550E, E... | 858502114 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | LED cover 2 sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 858106000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Janome/Elna Printed circuit board L2 (unit) For: 550E | 858511910 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Lamp cover 2 sewing machine part or accessory 860167006 Lamp cover 2 | 860167006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: MB-4, Necchi EX30, MC15... | 846177108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna LCD case (unit) For: EL830LCE | 864426400 | $300.40Read more |
| 16 | | Genuine Janome/Elna Printed circuit board A (US, Can) For: 550ELE | 864425100 | $1,082.53Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Decorative plate sewing machine part or accessory For Janome Models: MC500E | 864064D01 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Genuine Janome/Elna Carriage window sheet 2 For: 550E | 856036105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Nut sewing machine part or accessory For Janome Models: 3160QDC, 808A, HSN 49360, Necchi EX30 , M... | 000063104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Front cover set plate sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 3160... | 639080002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Belt cover sewing machine part or accessory For Janome Models: MC500E | 864059006 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Genuine Janome/Elna Face plate (unit) For: EL830L | 864631123 | $27.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Face plate sewing machine part or accessory For Janome Models: 400E | 864060A01 | $16.60Read more |
| 30 | | Thread cutter (unit) sewing machine part or accessory For Elna Models: EL830LCE | 832508017 | $22.92Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Genuine Janome/Elna Base plate (unit) For: C500E | 864633000 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Base plate sewing machine part or accessory For Janome Models: 550E | 864063003 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Carriage cover lid sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, ... | 850156001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Needle plate (unit) For: 550E | 864615017 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle plate sewing machine part or accessory For Janome Models: 550E | 864024002 | $14.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook cover plate supporter sewing machine part or accessory For Janome Models: NQM2016 | 809133004 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Spring sewing machine part or accessory 809184000 Spring | 809184000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hook cover plate supporter base sewing machine part or accessory For Janome Models: MC9900 , MC15... | 809134005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Guide holder sewing machine part or accessory 809135006 Guide holder | 809135006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Cutter sewing machine part or accessory 809137008 Cutter | 809137008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna Rotation stopper For: C500E | 864025003 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew 2x3.5 sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812, MC2... | 000163703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hook cover plate sewing machine part or accessory 809136100 Hook cover plate | 809136100 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Bed cover (unit) For: C500E | 864632009 | $20.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Bed cover sewing machine part or accessory For Janome Models: 550E | 864061012 | $19.60Read more |
| 18 | | Carriage window sheet 1 sewing machine part or accessory For Janome Models: 550E | 856009109 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Janome/Elna Thread cutter (unit) For: 550ELE | 864616018 | $78.18Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Genuine Janome/Elna Thread cutter cover For: C500E | 864062002 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW 3X4-9 7 7500 5500 41 sewing machine part or accessory For Janome Models: 134D, 203, 234... | 000115401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Presser bar base plate (unit) For: 550ELE | 864602114 | $148.23Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna Presser bar base plate For: 550ELE | 864003016 | $26.38Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Presser bar bushing sewing machine part or accessory For Janome Models: MC500E | 864004006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Presser bar sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 827021004 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Presser bar spring For: C500E | 864005007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Presser bar connecting stud (unit) For: C500E | 864603001 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Presser bar connecting stud sewing machine part or accessory For Janome Models: 550E | 864006008 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Presser bar link sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, S... | 861028007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Presser foot lifter lever sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpr... | 861025004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna Presser foot lifter set plate For: C500E | 864007009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Tension release lever sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressi... | 861067008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 15000 Horizon, ... | 859273002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: 550E | 864604105 | $87.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Needle bar supporter sewing machine part or accessory For Janome Models: MC15000 Horizon | 003858250000 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Needle bar (unit) sewing machine part or accessory For Janome Models: MC500E | 858538108 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Needle drop adjusting plate For: C500E | 864009001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle bar connecting stud (unit) sewing machine part or accessory For Janome Models: 550E | 301504104 | $6.00Read more |
| 21 |  | Rotation pin stopper (unit) sewing machine part or accessory For Janome Models: MC9400 | 858540000 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Genuine Janome/Elna Needle threader shaft (unit) For: C500E | 864605003 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Needle threader shaft For: 550E | 858255108 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Guide pin 2x12-CH sewing machine part or accessory 000265500 Guide pin 2x12-CH | 000265500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Guide pin 2x6-CH sewing machine part or accessory 000265603 Guide pin 2x6-CH | 000265603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Needle threader lever sewing machine part or accessory For Janome Models: MC500E | 858256006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Washer sewing machine part or accessory For Elna Models: EL680PLUSA | 539061004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Spring sewing machine part or accessory For Janome Models: MC500E | 863128004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Threader lever supporter sewing machine part or accessory 858272008 Threader lever supporter | 858272008 | $3.40Read more |
| 30 | | Threader lever supporter 2 sewing machine part or accessory 863131000 Threader lever supporter 2 | 863131000 | $1.00Read more |
| 31 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Threader supporter shaft (unit) sewing machine part or accessory 862625106 Threader supporter sha... | 862625106 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Threader supporter shaft sewing machine part or accessory For Janome Models: Skyline S7 | 858259009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Threader guide sewing machine part or accessory For Elna Models: EL680PLUSA | 814043116 | $3.40Read more |
| 35 | | Knock pin 2x6 sewing machine part or accessory For Janome Models: MC15000 Horizon | 000022204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Link plate 1 sewing machine part or accessory For Janome Models: MC15000 Horizon | 858265008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Link plate 2 sewing machine part or accessory For Janome Models: MC15000 Horizon | 858266009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Threader guard plate (unit) sewing machine part or accessory 862626026 Threader guard plate (unit) | 862626026 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Hook holder (unit) sewing machine part or accessory For Janome Models: CM17 SRV | 862627119 | $17.42Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Setscrew 2x5 sewing machine part or accessory For Janome Models: MC15000 Horizon | 000230403 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Pin E 2x10 - CH sewing machine part or accessory For Janome Models: 1600P, 1600P-QC | 000125208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Needle bar supp adj plate sewing machine part or accessory For Janome Models: 550E | 864011006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Needle threader return spring sewing machine part or accessory 858258019 Needle threader return s... | 858258019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Genuine Janome/Elna Needle threader limiter plate For: C500E | 864012007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Lamp cover 2 sewing machine part or accessory 860167006 Lamp cover 2 | 860167006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Printed circuit board L2 (unit) sewing machine part or accessory For Janome Models: 550E | 859525415 | $14.80Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Stretch needle (Blue) sewing machine part or accessory For Janome Models: 550E | 813404013 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 51 |  | Genuine Janome/Elna Embroidery foot P For: C500E | 852890000 | $4.25Add to cart Special order: ships in 2 to 4 weeks |
| 52 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 53 | | Press ft lifter switch (unit) sewing machine part or accessory For Janome Models: 550E | 864606004 | $12.20Add to cart Special order: ships in 2 to 4 weeks |
| 54 | | Genuine Janome/Elna Micro switch (unit) For: C500E | 652520125 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 55 | | Presser foot lifter switch set plate sewing machine part or accessory For Janome Models: MC500E | 864013008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 56 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

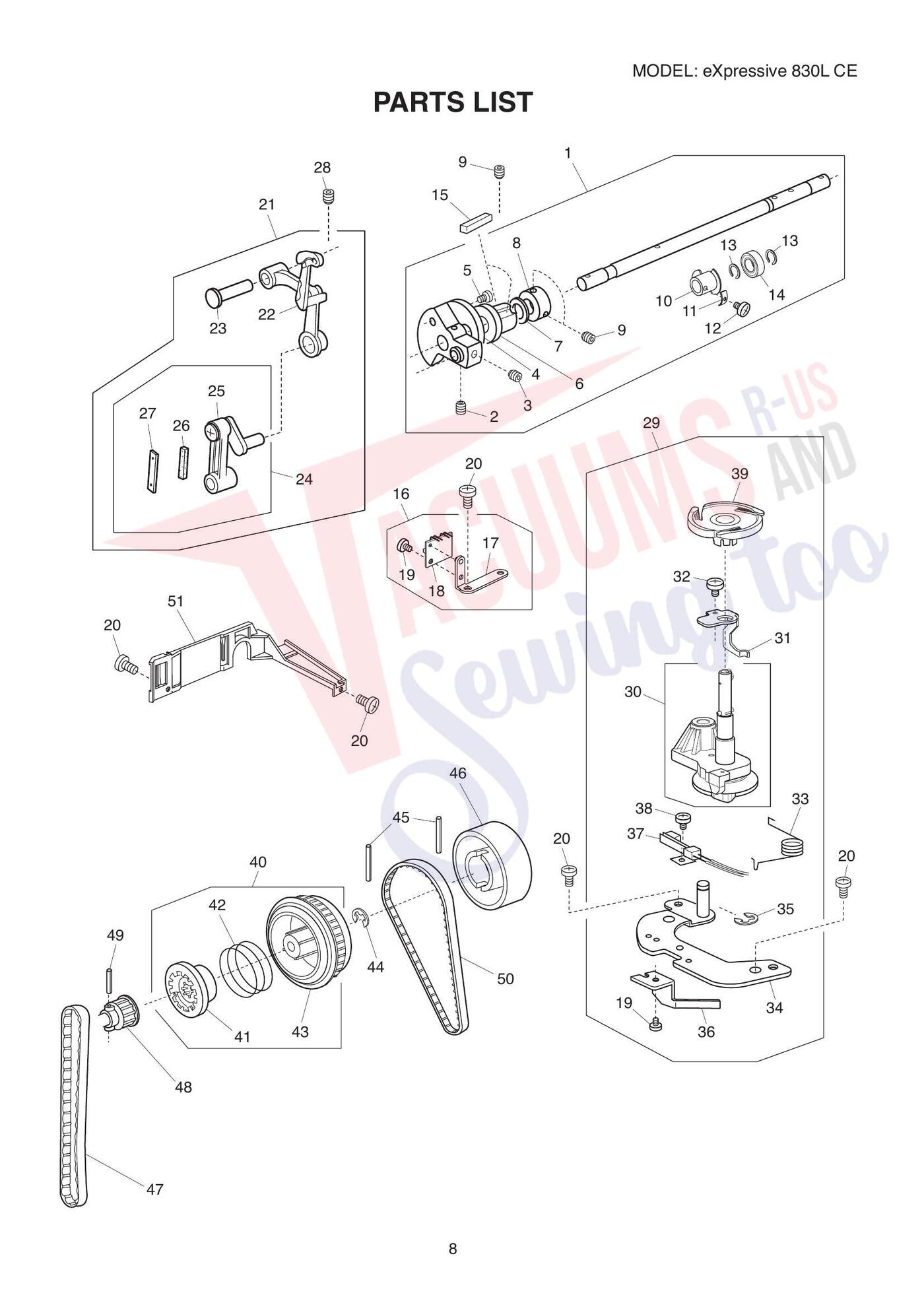

| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna Upper shaft (unit) For: C500E | 864601009 | $55.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Upper feed lifting cam sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive | 832068009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Upper shaft front bushing sewing machine part or accessory 670079201 Upper shaft front bushing | 670079201 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory 000040105 Washer | 000040105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Ring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC... | 003767077006 | $1.80Read more |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: MC15000 Horizon | 003862002008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 15000 Horizon, E... | 003859033008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw 3x10 sewing machine part or accessory For Janome Models: 134D, 234D, 434D, 534, 534D, D... | 000080406 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Snap ring 5103-46 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 000032702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Ball bearing 6901ZZ sewing machine part or accessory For Janome Models: Skyline S5 | 767178101 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Upper shaft sensor (unit) sewing machine part or accessory For Janome Models: MC500E | 861620304 | $26.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Sensor set plate sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, S... | 861039001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Genuine Janome/Elna Printed circuit board P (unit) For: 550E | 807505407 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: 550E | 864639006 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: MC500E | 820511304 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Thread take-up lever pin For: 550E | 508048009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Needle bar crank (unit) sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Hor... | 846615103 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Needle bar crank sewing machine part or accessory For Janome Models: DC4030, HF8077, MC5200, TB30... | 843543007 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Felt holder spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 003650041006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Genuine Janome/Elna Bobbin winder (unit) For: 550E | 864618102 | $54.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Bobbin winder sewing machine part or accessory For Janome Models: 550E | 864504001 | $27.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Clutch lever sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 861096006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Bobbin winder arm spring sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpre... | 861091001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Genuine Janome/Elna Bobbin winder set plate For: 550E | 861092105 | $3.80Read more |
| 35 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Guide plate sewing machine part or accessory 861098008 Guide plate | 861098008 | $1.60Read more |
| 37 |  | Reef switch (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC,... | 856512100 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Setscrew 2.5x5 sewing machine part or accessory For Janome Models: MISS, 3160QDC, MC200E HF8050, ... | 000081706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Thread cutter holder (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eX... | 809619009 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Belt wheel (unit) sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon ,... | 858647008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Clutch ring sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 858053001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Belt wheel sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200... | 858054002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Snap ring E-10 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000030009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Handwheel sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200 ... | 858055003 | $2.40Read more |
| 47 |  | Timing belt 178 sewing machine part or accessory For Janome Models: 550E | 846098104 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Upper shaft gear sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , ... | 003858052000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Timing belt 168 sewing machine part or accessory For Elna Models: EL680PLUS | 858118108 | $6.20Read more |
| 51 |  | Cord guide (rear) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, ... | 861078002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |

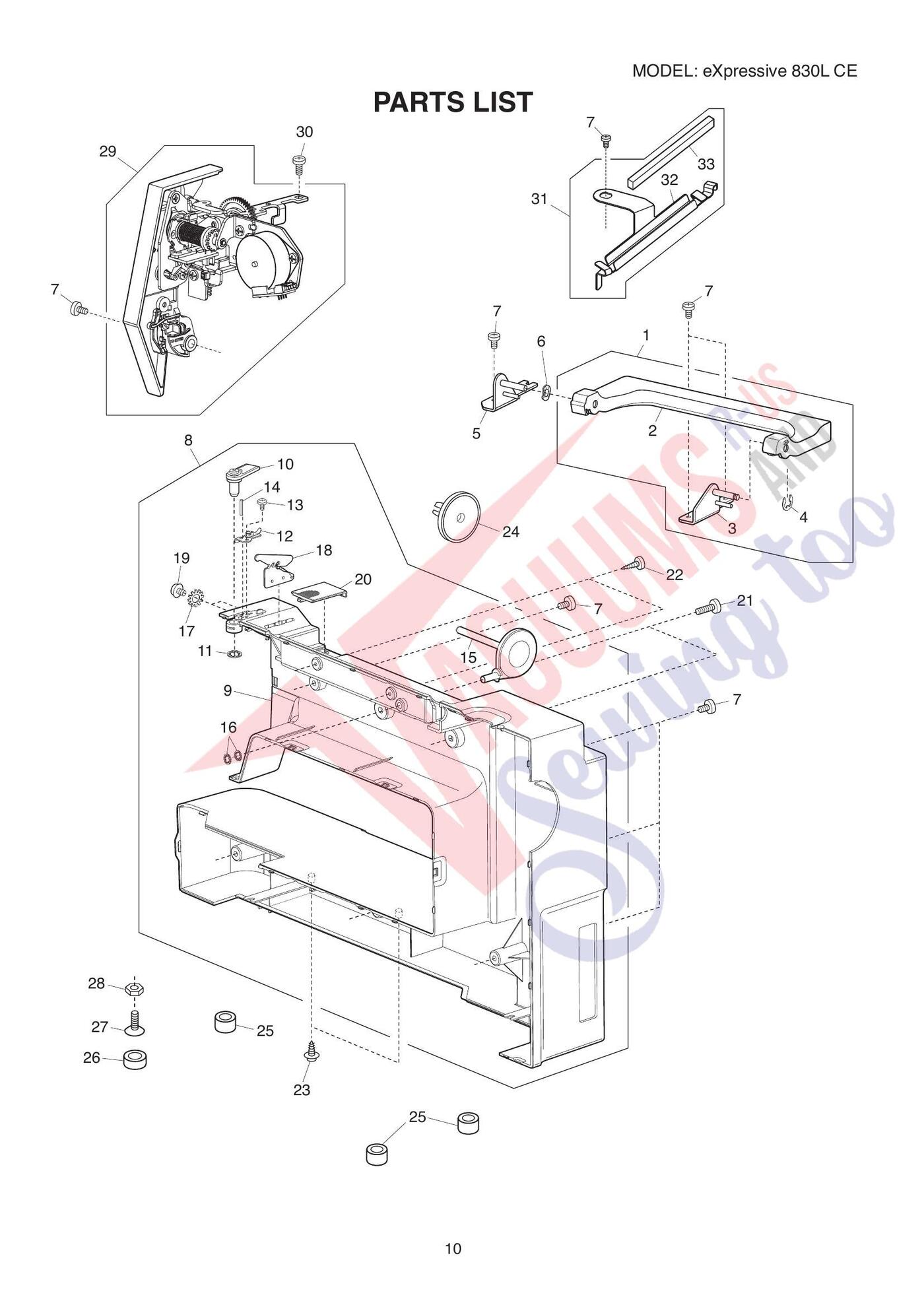

| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna Carrying handle (unit) For: C500E | 864620004 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna Carrying handle For: 550E | 864029007 | $9.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Carrying handle supporter (rear) sewing machine part or accessory For Janome Models: MC500E | 864031002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Carrying handle supporter (front) sewing machine part or accessory For Janome Models: MC500E | 864030001 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Wave washer 6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, ... | 000116206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Genuine Janome/Elna Rear cover (unit) For: EL830LCE | 864628068 | $94.72Read more |
| 9 | | Rear cover sewing machine part or accessory For Janome Models: 400E | 864054A01 | $47.61Read more |
| 10 | | Genuine Janome/Elna Thread guide (unit) For: EL830L | 650503344 | $8.60Read more |
| 11 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Top cover thread guide plate (unit) sewing machine part or accessory For Janome Models: 550ELE | 834555118 | $6.81Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Spring pin 2X10 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC6000, MC770... | 000020202 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Spool pin sewing machine part or accessory For Models: , Necchi EX30, Necchi EX100, Necchi EX60 | 809027004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Genuine Janome/Elna Washer For: 550E | 000006903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Genuine Janome/Elna Pre-tension thread guide (unit) For: C500E | 864634001 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW 3X4-9 7 7500 5500 41 sewing machine part or accessory For Janome Models: 134D, 203, 234... | 000115401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Oiling plate sewing machine part or accessory For Janome Models: MC500E | 864066006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SET SCREW 4 X 16-3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 000101806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna Setscrew 5x30 For: 550E | 000274007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Genuine Janome/Elna Thread tension (unit) For: EL830L | 864609100 | $112.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Oiling guide (unit) sewing machine part or accessory For Janome Models: 550E | 864638005 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Genuine Janome/Elna Oiling guide For: C500E | 864075008 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | String sewing machine part or accessory For Janome Models: MC500E | 763033019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

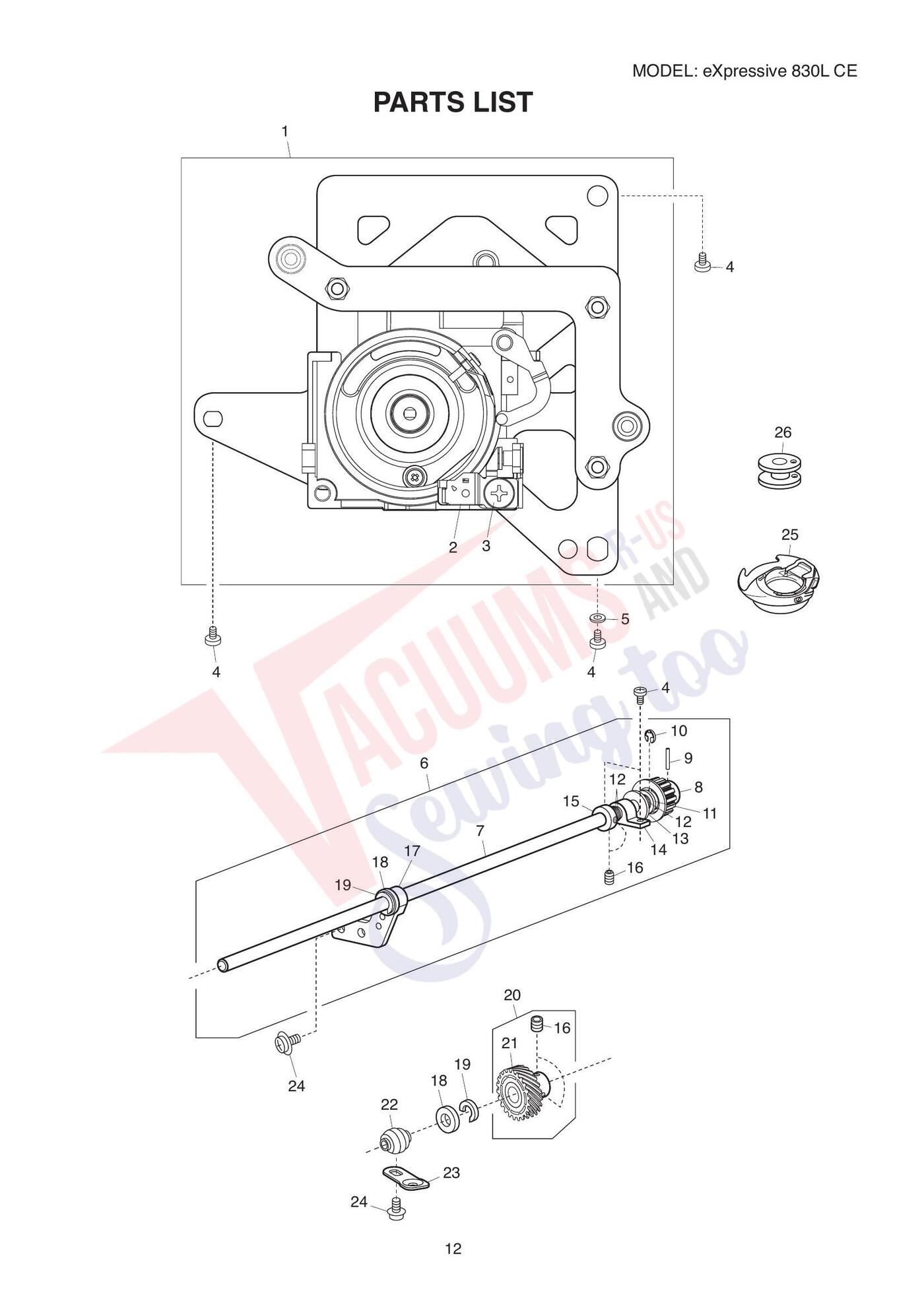

| # | Part image | Description | SKU | Price |
| 1 |  | Hook race (unit) sewing machine part or accessory For Janome Models: MC500E | 864613004 | $81.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin holder stopper (unit) For: C500E | 846632209 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Setscrew 4x12 sewing machine part or accessory For Janome Models: MC500E | 000160504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Lower shaft (unit) sewing machine part or accessory For Janome Models: MC500E | 864614005 | $29.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Genuine Janome/Elna Lower shaft For: 550E | 864022000 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Lower shaft washer sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 858177002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 73... | 003823110009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Shaft supporter plate sewing machine part or accessory For Janome Models: 508120006 Shaft support... | 508120006 | $2.00Read more |
| 15 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Lower shaft supporter sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horiz... | 003858058006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Felt holder (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 003822112008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft gear (unit) sewing machine part or accessory For Elna Models: EL680PLUSA | 863663006 | $4.80Read more |
| 21 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Lower shaft bushing set plate sewing machine part or accessory For Models: , Necchi EX30, Necchi... | 809042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Bobbin holder sewing machine part or accessory For Janome Models: MC12000 , MC9900 Horizon, EL900... | 846652504 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Compatible alternateGenuine Janome/Elna Bobbin Holder for Memory Craft 6500P For: 3160QDC, MC6500P, MC6600P, MC7700... More Product Details | 846652009 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Compatible alternateBobbin holder (unit) sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC35... More Product Details | 846652102 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |

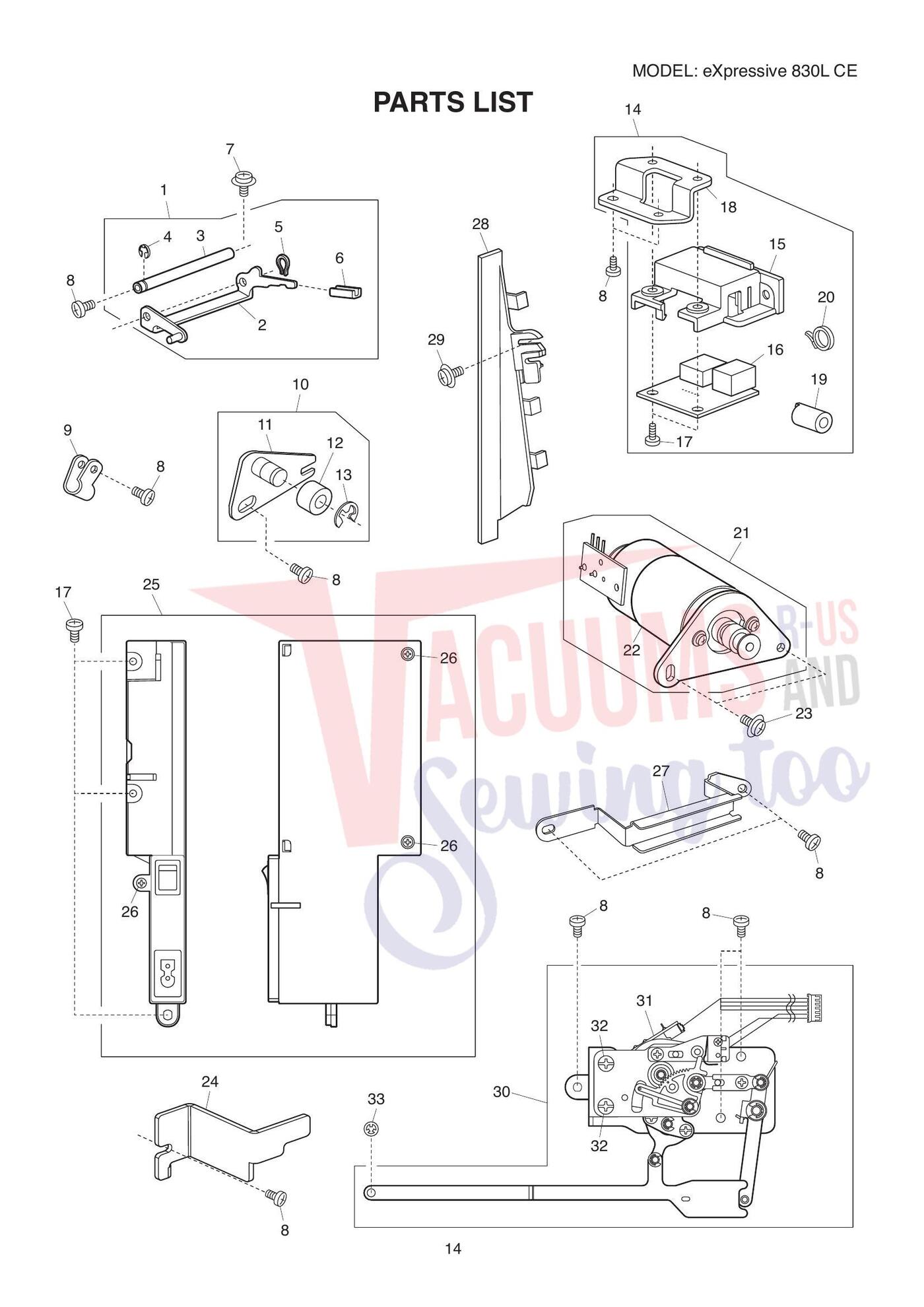

| # | Part image | Description | SKU | Price |
| xx | | Genuine Janome/Elna Printed circuit board A (US, Can) For: 550ELE | 864425100 | $1,082.53Add to cart Special order: ships in 2 to 4 weeks |
| xx | Not Available | Printed circuit board A | 864425096 | Not Available |
| xx | Not Available | Printed circuit board A | 864425096 | Not Available |
| xx | Not Available | Printed circuit board B case (unit) (Australia) (Continental Europe) | 864619309 | Not Available |
| xx | Not Available | Switching power supply (unit) (Australia) | 864621809 | Not Available |
| xx | | Genuine Janome/Elna Switch pwr supp UK,Eur For: 550E | 864621304 | $184.40Add to cart Special order: ships in 2 to 4 weeks |
| 1 | | Presser foot actuator arm (unit) sewing machine part or accessory For Janome Models: MC500E | 861616204 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser ft actuator arm sewing machine part or accessory For Janome Models: 9850 | 861035100 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Presser foot actuator shaft sewing machine part or accessory For Janome Models: 550E | 864077000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Slider sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive | 854145009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Nylon clip ACC-2 sewing machine part or accessory For Janome Models: NQM2016 | 000188405-OLD | $0.80Read more |
| 10 | | Idler base (unit) sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700Q... | 860608004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Idler base sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700QCP, MC8... | 860021007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Printed circuit board B case (unit) sewing machine part or accessory For Janome Models: 400E | 864619103 | $49.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Printed circuit board B case sewing machine part or accessory For Janome Models: 550ELE | 861090055 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Printed circuit board B (unit) sewing machine part or accessory 861507108 Printed circuit board B... | 861507108 | $31.60Read more |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Print circuit brd B case set plate sewing machine part or accessory For Janome Models: 550E | 864028006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Ferrite core sewing machine part or accessory 863504008 Ferrite core | 863504008 | $8.05Read more |
| 20 | Not Available | Cord binder (Australia) (Continental Europe) | 000053101 | Not Available |
| 21 | | DC motor (unit) sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , M... | 858639007 | $82.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | DC motor | 843518302 | Not Available |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set plate sewing machine part or accessory For Janome Models: MC500E | 864078001 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Genuine Janome/Elna Switching power supply (unit) For: C500E | 864621005 | $202.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Cord guide sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861089006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Cord guide plate sewing machine part or accessory For Janome Models: MC9900 , EL900 eXpressive, E... | 858145012 | $4.20Read more |
| 30 | | Bobbin thread sensor (unit) sewing machine part or accessory For Janome Models: MC500E | 864610001 | $77.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Genuine Janome/Elna Bobbin thread sensor motor For: 550E | 864611002 | $49.20Read more |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 888 COMPULOCK, MC10000, MC10... | 000013707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

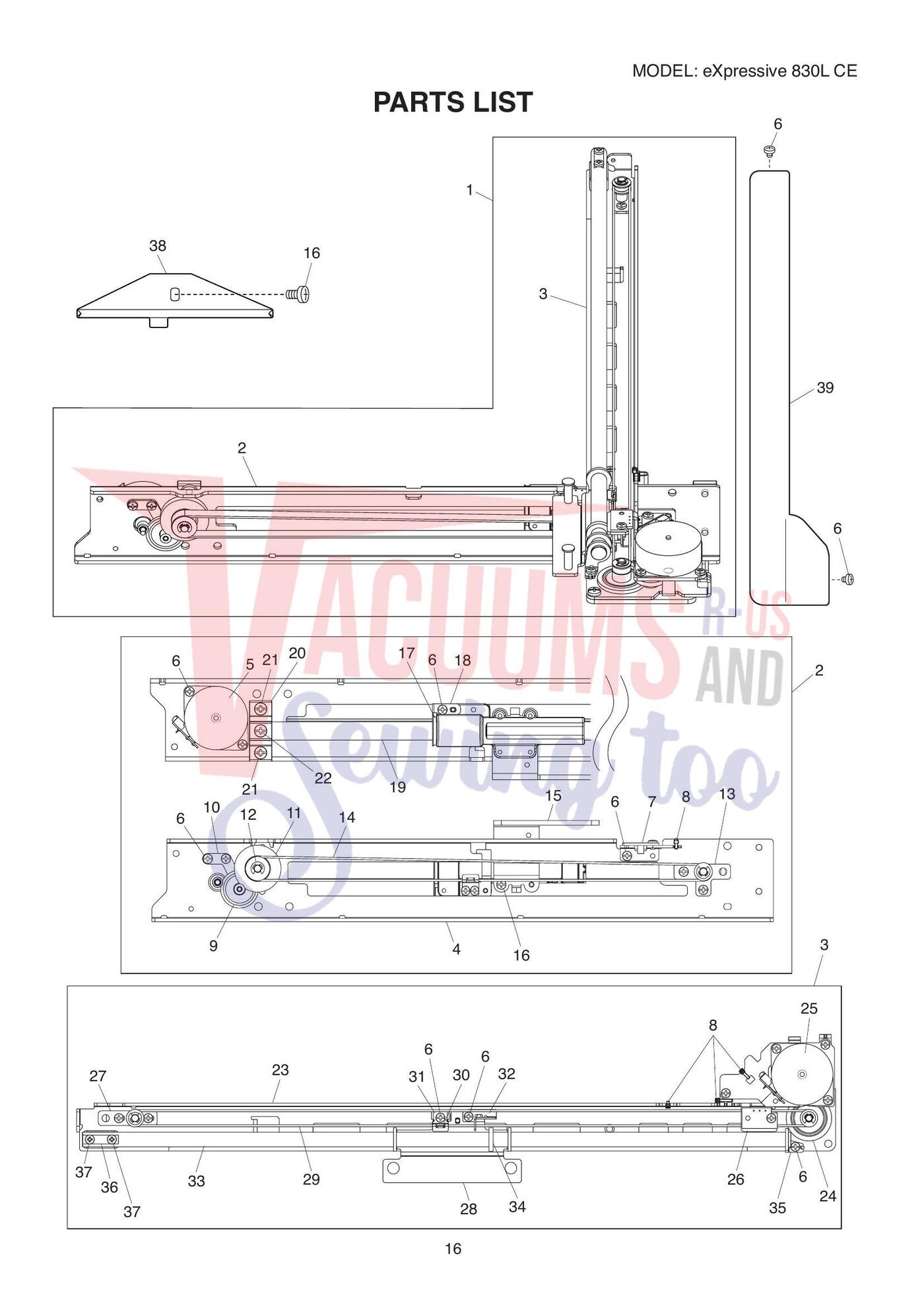

| # | Part image | Description | SKU | Price |
| 1 | | Carriage (unit) sewing machine part or accessory For Janome Models: 550ELE | 864641012 | $389.25Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | X-carriage (unit) sewing machine part or accessory For Janome Models: 550ELE | 864642013 | $176.88Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Y-carriage (unit) sewing machine part or accessory For Janome Models: 550E | 864645005 | $183.80Read more |
| 4 | | X-carriage base sewing machine part or accessory For Janome Models: 550E | 864091000 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Genuine Janome/Elna Stepping motor (unit) For: 550E | 864643003 | $52.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna X-sensor (unit) For: 550E | 864644004 | $32.60Read more |
| 8 |  | Cord binder sewing machine part or accessory | 000053606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna X-gear (unit) For: 550ELE | 859542016 | $7.18Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Idler gear set plate sewing machine part or accessory For Janome Models: MC200E, Necchi EC100 | 856041000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna X-gear For: 550ELE | 859236014 | $2.33Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna X-pulley (unit) For: C500E | 864624008 | $25.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Genuine Janome/Elna Timing belt 630 For: C500E | 864036007 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna Y-carriage base For: 550E | 864082008 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set screw 3x10 sewing machine part or accessory For Janome Models: 134D, 234D, 434D, 534, 534D, D... | 000080406 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 73... | 003823110009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Felt holder sewing machine part or accessory For Janome Models: 550E | 864093002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Genuine Janome/Elna X-shaft For: 550E | 864094003 | $21.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Janome/Elna X-shaft set plate For: 550E | 864095004 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Y-carriage For: 550E | 864083009 | $58.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Gear sewing machine part or accessory For Janome Models: MC500E | 864044008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Y motor (unit) sewing machine part or accessory For Janome Models: 550E | 864646006 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna Stepping motor harness (unit) For: 550E | 864511001 | $53.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Genuine Janome/Elna Y-pulley (unit) For: C500E | 864627001 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Embroidery hoop set plate sewing machine part or accessory For Janome Models: 550E | 864085001 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Syncrobelt 950 sewing machine part or accessory For Janome Models: 550E | 000279208 | $7.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Y-belt fixing plate 1 sewing machine part or accessory For Janome Models: MC200E, Necchi EC100 | 856054006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Y-belt fixing plate 2 sewing machine part or accessory For Janome Models: MC200E, Necchi EC100 | 856055007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Y-shield plate sewing machine part or accessory For Janome Models: MC200E, Necchi EC100 | 856056008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Y-shaft sewing machine part or accessory For Janome Models: 550E | 864087003 | $22.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Genuine Janome/Elna Felt For: 550E | 864088004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Y-shaft set plate sewing machine part or accessory For Janome Models: 550E | 864089005 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Genuine Janome/Elna Y-shaft supporter For: C500E | 864050007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Setscrew 3x20 sewing machine part or accessory For Janome Models: 550E | 000175306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Genuine Janome/Elna Y-carriage base For: 550E | 864097006 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Genuine Janome/Elna Carriage cover For: 550E | 864090A01 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
