Parts list and schematic for: Elna Models: el8300 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

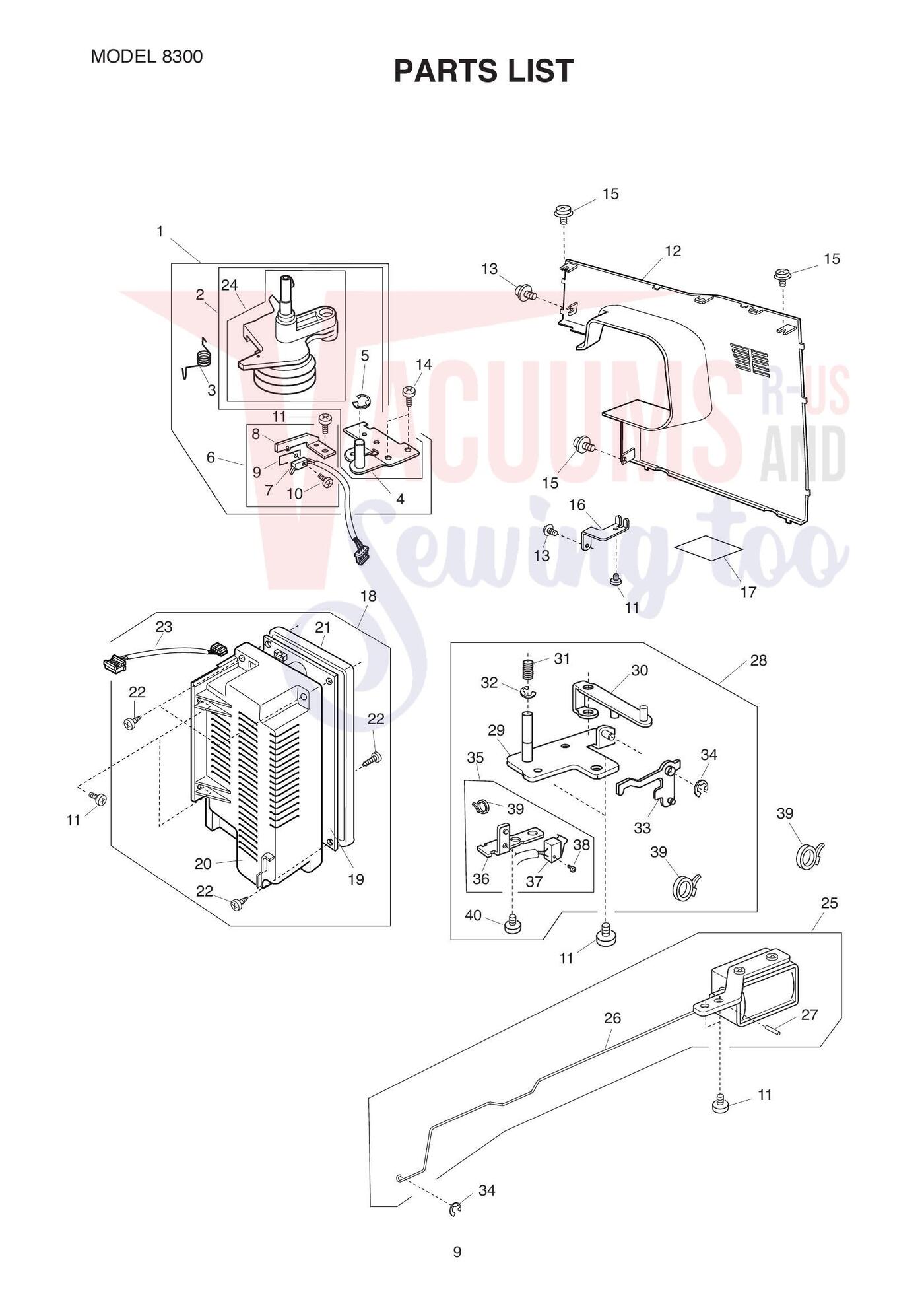

| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna Bobbin winder (unit) For: EL820 | 852643006 | $18.60Read more |
| 2 | | Genuine Janome/Elna Bobbin winder (unit) For: EL820 | 852644007 | $13.80Read more |
| 3 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna Bobbin winder plate For: EL820 | 854140107 | $2.00Read more |
| 5 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Switch sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852615009 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Micro Switch Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852510003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Switch fixing plate 2 | 852042009 | Not Available |
| 9 | | Insulating Paper sewing machine part or accessory | 852014002 | $0.48Read more |
| 10 | | Setscrew 1.7 x 6 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC5200, MO200 | 000041209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Genuine Janome/Elna Rear cover For: EL8300 | 853002309 | $16.20Read more |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Rear cover set plate sewing machine part or accessory For Janome Models: 350E | 853021005 | $1.60Read more |
| 17 | Not Available | Carriage sticker | 850201002 | Not Available |
| 18 | | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, M... | 850628205 | $135.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Genuine Janome/Elna Switching power supply (unit) For: 350E | 852527003 | $116.20Read more |
| 20 | | Swithcing power supply case sewing machine part or accessory For Janome Models: 350E | 850157024 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Switching power supply cap sewing machine part or accessory For Janome Models: 350E | 850158014 | $11.00Read more |
| 22 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Power Supply Harness Unit sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 850523003 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Bobbin winder unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853506009 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread cutter solenoid (unit) sewing machine part or accessory For Janome Models: MC350E | 854632008 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Thread cutter starting rod | 854131002 | Not Available |
| 27 |  | Pin sewing machine part or accessory For Janome Models: 7034D, HF3434D, MC350E, MC8000 HF7933, Ne... | 000005304 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Driving arm shaft base (unit) sewing machine part or accessory For Janome Models: MC350E | 854633009 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Feed arm shaft base sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC350E | 860045007 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Janome/Elna Arm (new type) For: MC11000, MC11000SE, MC350E, MC6500P, MC6600P, Necchi QS60 | 846233000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Spring sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC350E, MC6500P, M... | 846154006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Thread cutter starting lever | 854133004 | Not Available |
| 34 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 35 | | Thread cutter sensor (unit) sewing machine part or accessory For Janome Models: MC350E | 860624109 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Thread cutter sensor set plate | 860047009 | Not Available |
| 37 | Not Available | Micro switch (unit) | 846513605 | Not Available |
| 38 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Cord binder sewing machine part or accessory | 000053606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

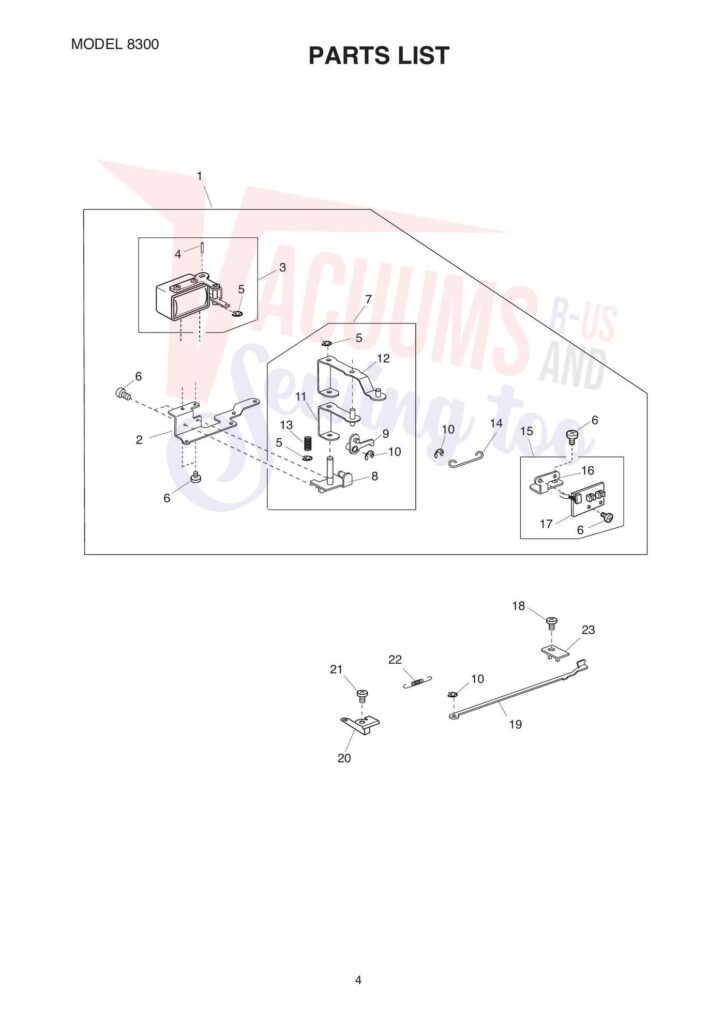

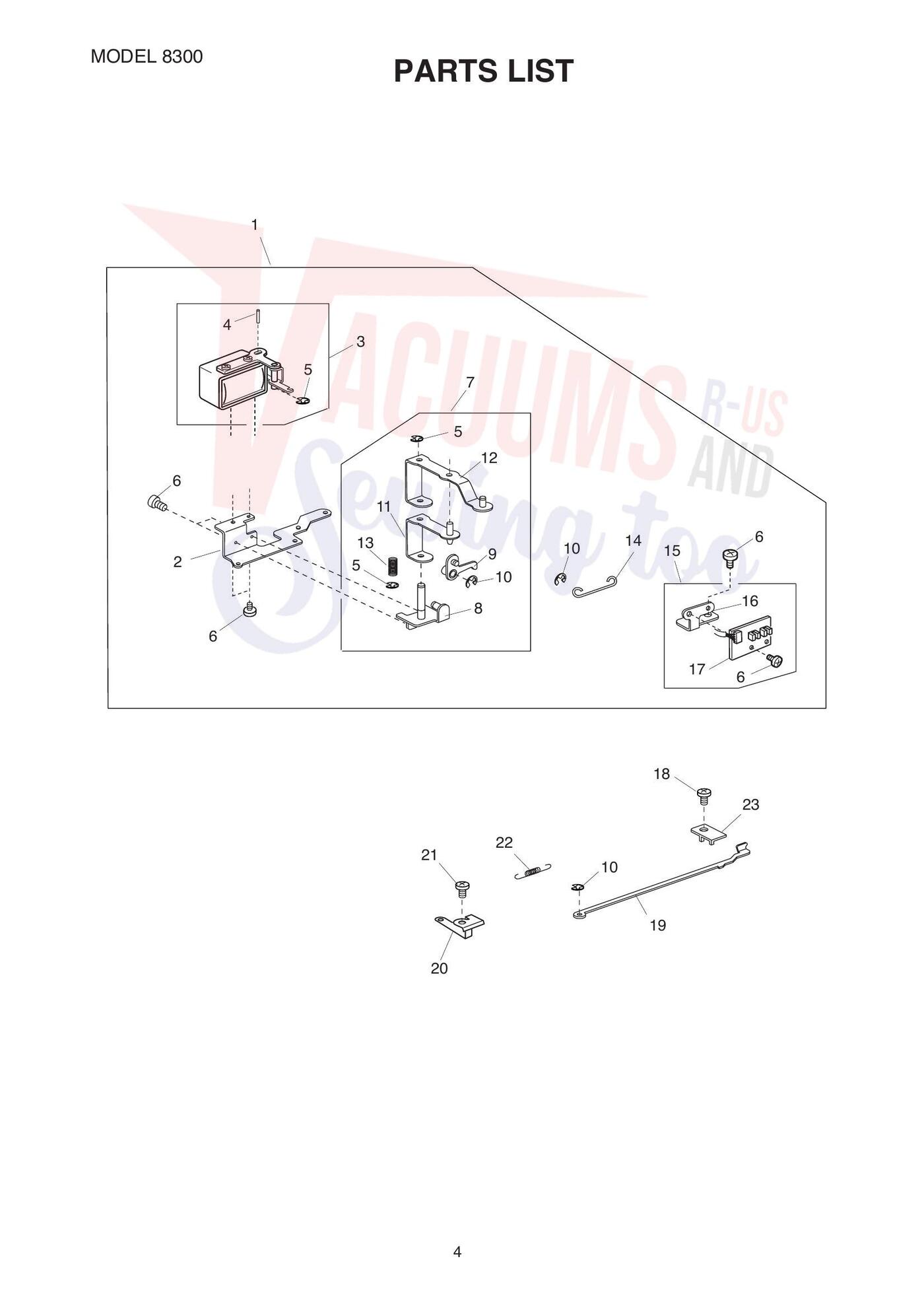

| # | Part image | Description | SKU | Price |
| 1 | | Thread cutter (unit) sewing machine part or accessory For Janome Models: 350E | 852634004 | $53.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Thread cutter (unit) sewing machine part or accessory MC11000SE | 860625100 | $65.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Thread cutter cover set plate sewing machine part or accessory For Janome Models: MC350E | 852057007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Needle thread solenoid (unit) sewing machine part or accessory For Janome Models: MC350E | 854631007 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Needle thread solenoid (unit) | 854508004 | Not Available |
| 8 | Not Available | Solenoid set plate | 854127005 | Not Available |
| 9 | | Setscrew 2.6X4 sewing machine part or accessory For Janome Models: 350E | 000163806 | $0.20Read more |
| 10 | Not Available | Thread drawing leverArm | 854128006 | Not Available |
| 11 | | Knock pin 2.5X8 sewing machine part or accessory For Janome Models: 350E | 000003900 | $0.40Read more |
| 12 | Not Available | Thread drawing lever actuator plate | 854129007 | Not Available |
| 13 | | Spring sewing machine part or accessory For Janome Models: 350E | 854130001 | $0.46Read more |
| 14 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Spring sewing machine part or accessory For Janome Models: MC10001, MC350E, MC9500, MC9700 , MC99... | 850212017 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Solenoid unit sewing machine part or accessory For Janome Models: MC10001, MC350E, MC9500, MC9700 | 850645013 | $41.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Bobbin thread sensor solenoid (unit) | 832613027 | Not Available |
| 18 | | Bobbin thread sensor arm sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850083006 | $3.00Read more |
| 19 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 20 |  | Hinge screw sewing machine part or accessory For Janome Models: MC350E, MC6500P, MC6600P, Necchi ... | 846220004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Sensor set plate sewing machine part or accessory For Janome Models: MC350E, MC9500, MC9700 | 850618109 | $31.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 888 COMPULOCK, MC10000, MC10... | 000013707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC350E, MC9500, MC9700 | 850089002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

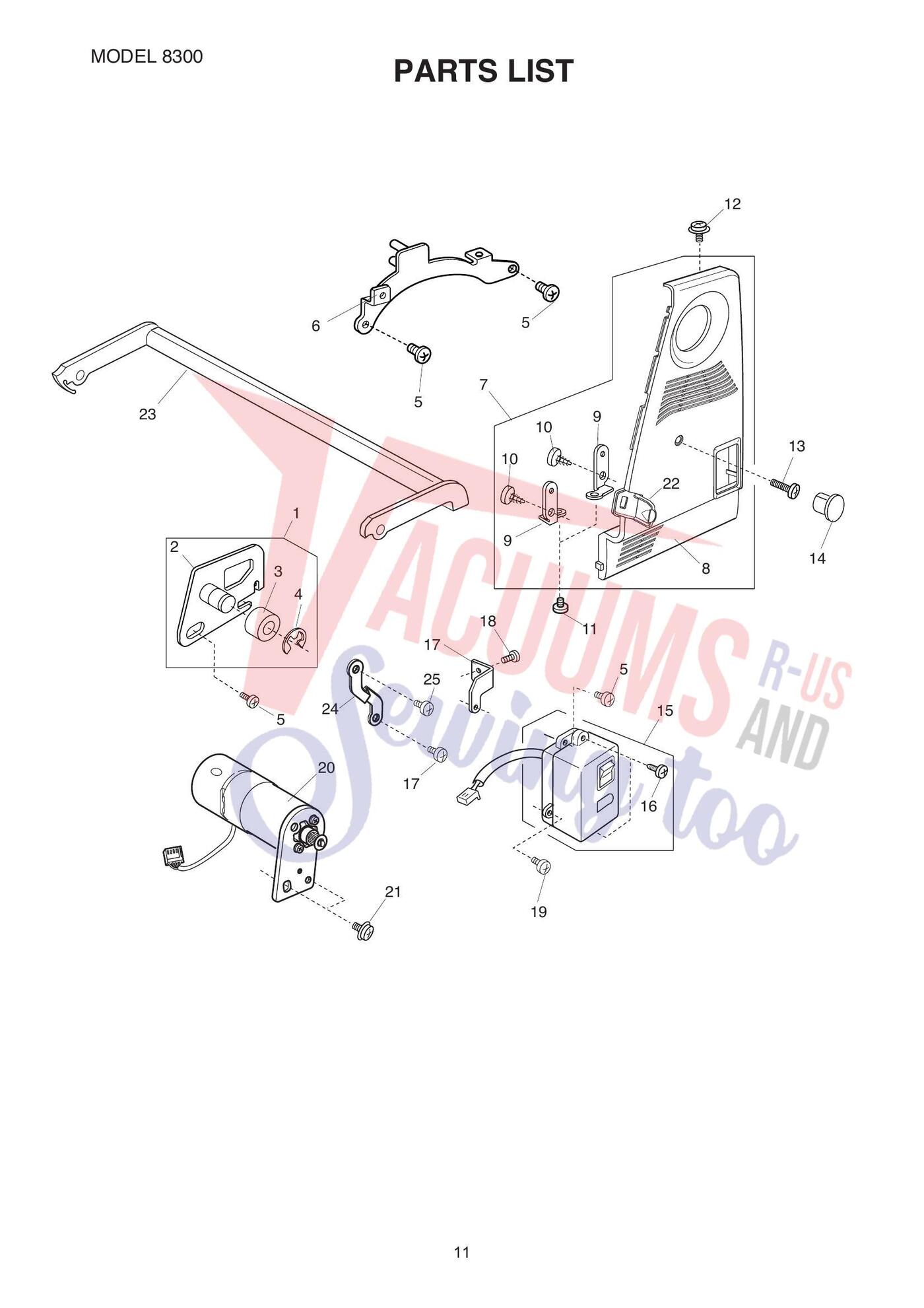

| # | Part image | Description | SKU | Price |
| 1 | | Idler Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 851617008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Idler base | 851039000 | Not Available |
| 3 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Handle plate rear | 857002002 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Belt cover (unit) sewing machine part or accessory | 853614207 | $45.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Belt cover sewing machine part or accessory For Janome Models: 350E | 852031304 | $11.60Read more |
| 9 |  | Belt cover setting plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 832099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Machine Socket Unit for Memory Craft 300e sewing machine part or accessory For Janome Models: MC3... | 852513006 | $26.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Machine Socket Fixing Plate sewing machine part or accessory | 003852036000 | $1.40Read more |
| 18 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | DC motor unit sewing machine part or accessory For Janome Models: MC350E | 852620030 | $62.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Cover sewing machine part or accessory For Janome Models: MC350E, MC9500, MC9700 | 853022006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Carrying handle | 854139103 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Motor setting support plate sewing machine part or accessory | 857025001 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

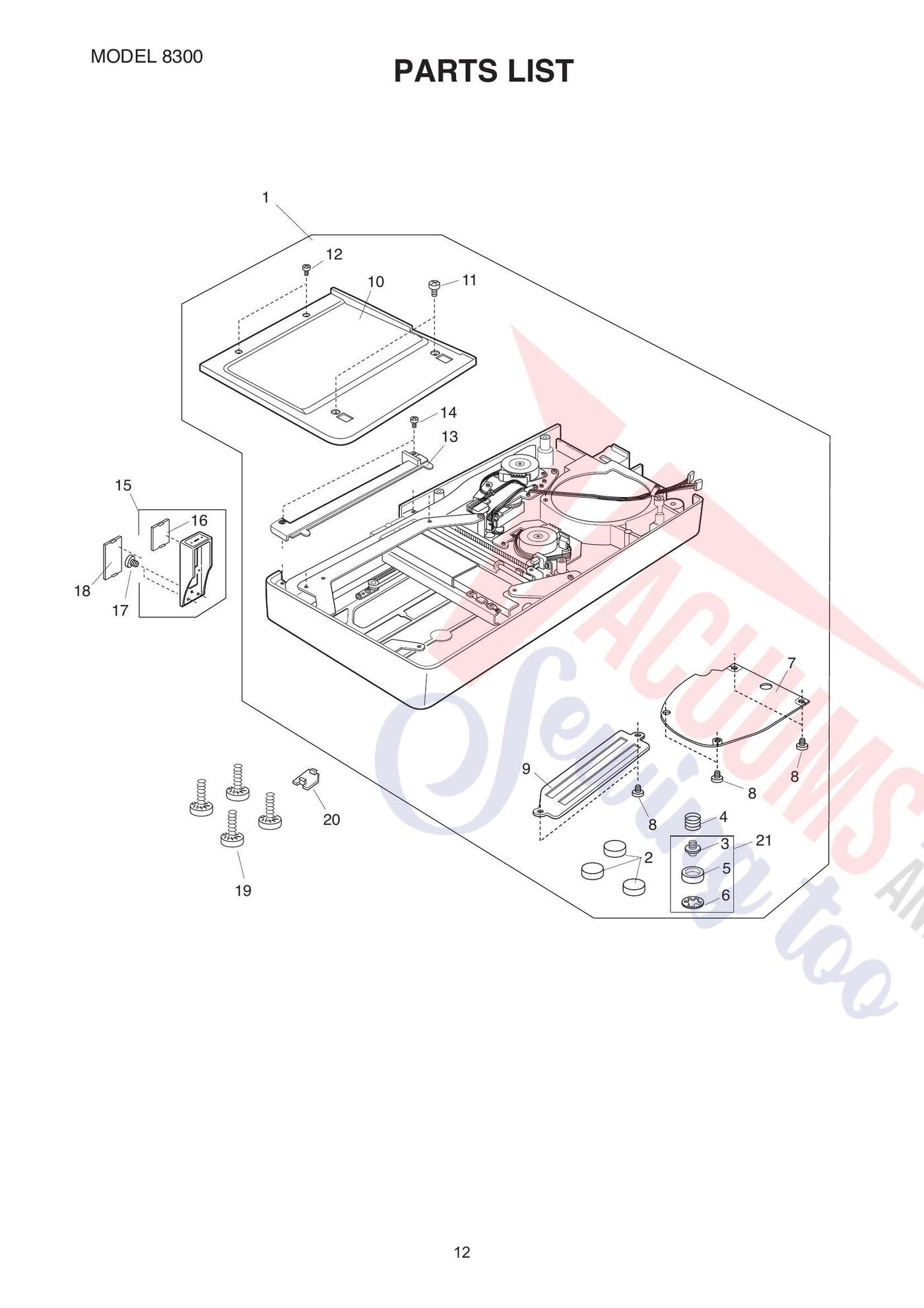

| # | Part image | Description | SKU | Price |

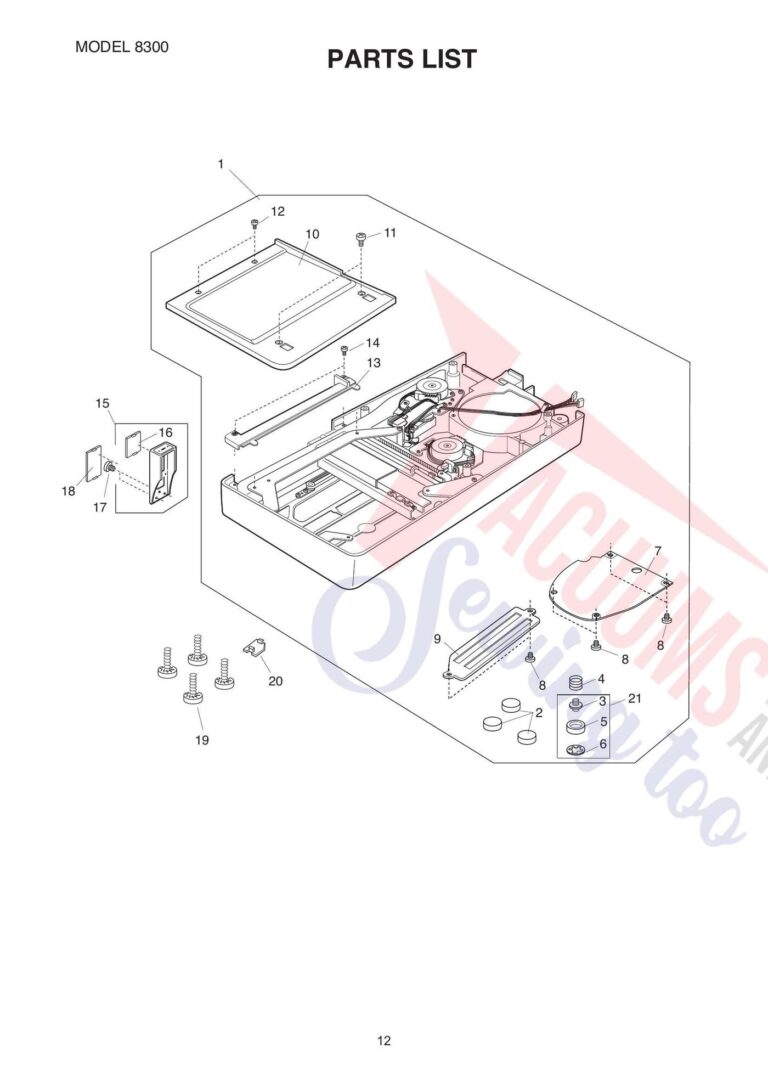

| 1 | | Genuine Janome/Elna BASE (UNIT) | 852617300 | $593.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | ADJUSTING SCREW 8/9/7/7500/6/5 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 003820350004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | ADJUSTER SCREW SPRING 8/9/7/75 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 003820351005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Base Lid sewing machine part or accessory For Janome Models: MC10001, MC300E, MC300E & 9500 B... | 850151017 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Base Cover sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNI... | 851053103 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Sheet Cover sewing machine part or accessory For Janome Models: MC10001, MC300E, MC350E | 850147205 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Carriage Plate Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 850627101 | $31.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Carriage Cover Plate (2) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850169007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Carriage cover lid sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, ... | 850156001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Base lid (3) sewing machine part or accessory | 851071015 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Adjusting screw unit sewing machine part or accessory For Janome Models: 1000CP, 900CP, MC11000, ... | 717618000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |

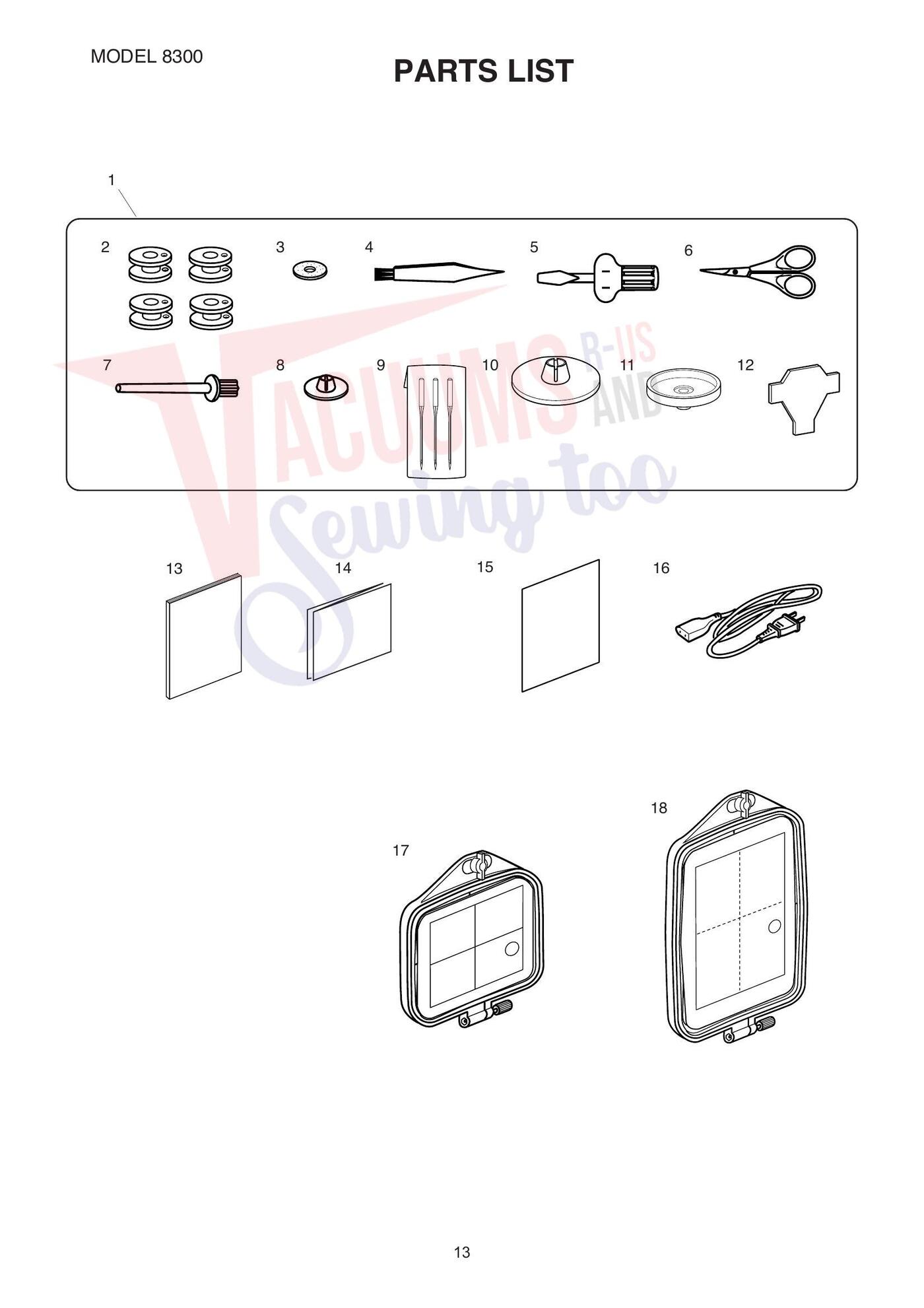

| # | Part image | Description | SKU | Price |
| 1 | | Accessory Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852801004 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screwdriver (large) | 820832005 | Not Available |
| 6 |  | Pink Scissors sewing machine part or accessory 3½" pink scissors - comes with most sewing machine... | 803813007 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna Needle set (unit) For: MC200E, MC350E, Necchi EC100 | 852802108 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna Instruction Manual 8300 | 852864005 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Template sheet sewing machine part or accessory For Janome Models: MC350E | 852852000 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Quick reference chart | 852854002 | Not Available |
| 16 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Embroidery Hoop A (125mm x 110mm) sewing machine part or accessory For Janome Models: MC300E, MC3... | 852807011 | $72.50Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Embroidery Hoop(200mm x 140mm) sewing machine part or accessory For Janome Models: MC10001, MC100... | 850802010 | $85.10Read more |

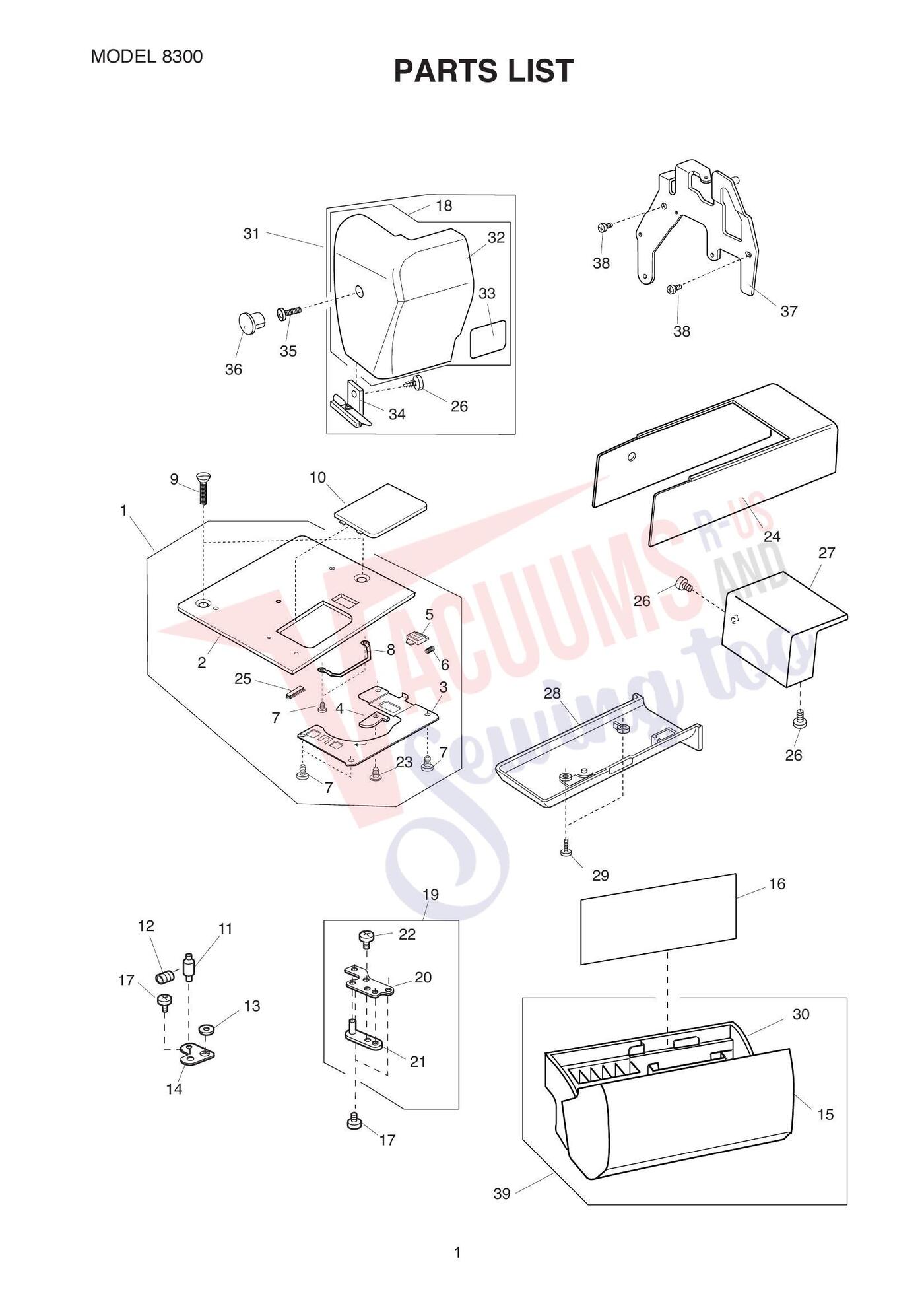

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: MC350E | 854621004 | $46.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | NEEDLE PLATE ELNA 8300 sewing machine part or accessory | 854104006 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Supporter sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC350E, MC6500P... | 846030005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | MC11000SE 11000 Special edition mc11000s se 11k 7700 MC7700 horizon MC7700QCP, 6300P, 7700QCP, 11... | 846222109 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Bobbin threader holder lever sewing machine part or accessory For Janome Models: 350E | 854105007 | $4.37Read more |
| 9 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hook cover plate sewing machine part or accessory For Janome Models: MC12000 Horizon, MC11000SE, ... | 846271103 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Compatible alternateJanome Hook Cover Plate More Product Details | 502017104 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle-plate-positioning-pin sewing machine part or accessory For Janome Models: MC350E, MC7700QCP | 860002002 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle plate nut set plate sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 ... | 003860003025 | $1.00Read more |
| 15 |  | Genuine Janome/Elna Extension table lid For: EL820 | 857001001 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Caution card For: EL820 | 852004010 | $0.60Read more |
| 17 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Genuine Janome/Elna Face plate (unit) For: EL8300 | 857612207 | $19.60Read more |
| 19 |  | Needle plate set plate (right) (unit) sewing machine part or accessory For Elna Models: EL820 | 825605013 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle plate set plate (right sewing machine part or accessory For Janome Models: MC10000, MC1000... | 825021019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Needle plate position adjusting plate | 825022009 | Not Available |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC350E, MC6500P,... | 000097613 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Free-arm-cover sewing machine part or accessory For Janome Models: MC350E | 852054004 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lint brush sewing machine part or accessory For Janome Models: 350E | 854138009 | $7.59Read more |
| 27 |  | Thread-cutter-cover sewing machine part or accessory For Janome Models: MC350E | 852056006 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Bed-cover sewing machine part or accessory For Janome Models: MC350E | 852055005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Janome/Elna Extension table For: EL820 | 857023009 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Genuine Janome/Elna Face plate (unit) For: EL8300 | 857611206 | $20.00Read more |
| 32 | | Genuine Janome/Elna Face plate For: EL8300 | 857003106 | $14.40Read more |
| 33 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Thread Cutter for Memory Craft 9000 sewing machine part or accessory For Janome Models: MB-4, MC1... | 832508006 | $15.42Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | +-Bind small screw 4X30 sewing machine part or accessory For Janome Models: MC11000, MC11000SE, M... | 000103200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Handle Set Plate sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500 | 834014202 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Genuine Janome/Elna Extension table box unit | 857505000 | $82.68Read more |
| # | Part image | Description | SKU | Price |

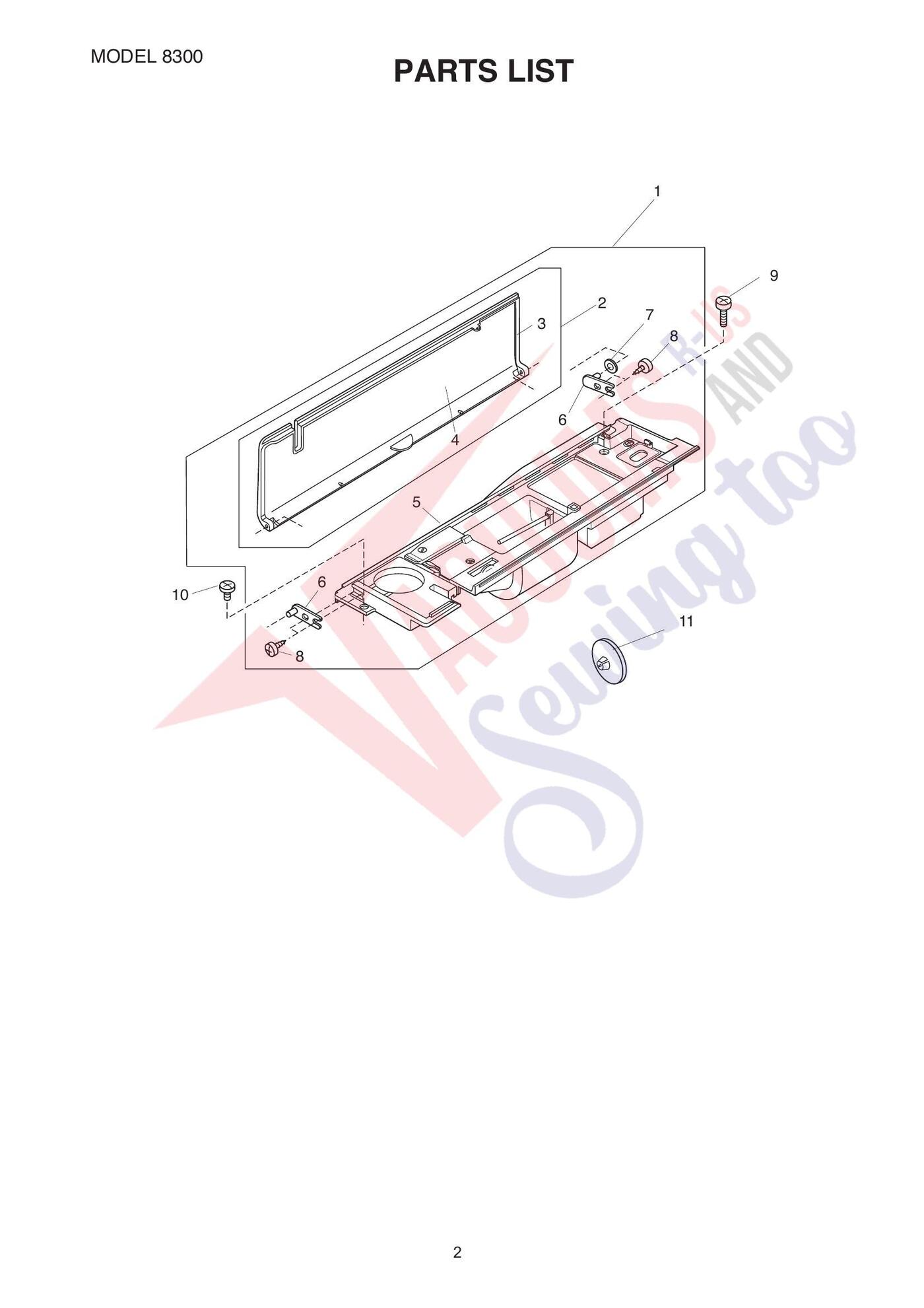

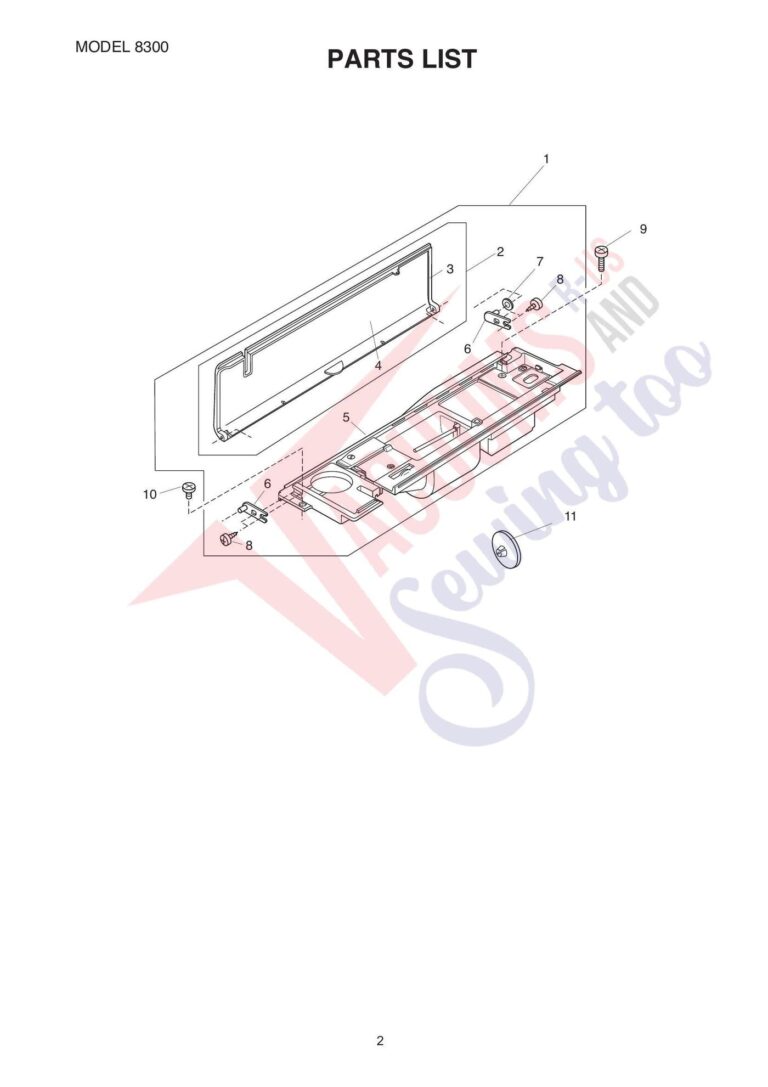

| 1 | | Genuine Janome/Elna Top cover (unit) For: EL8300 | 853601809 | $74.80Read more |
| 2 | | Genuine Janome/Elna Top cover (unit) For: EL8300 | 853602800 | $24.40Read more |
| 3 | | Top cover sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853005003 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna Reference chart For: EL8300 | 852068001 | $9.98Read more |
| 5 | | Genuine Janome/Elna Top cover compartment (unit) For: EL820 | 853603306 | $44.60Read more |
| 6 | | Top cover hinge sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC100... | 830013003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC10000, MC100... | 830190005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

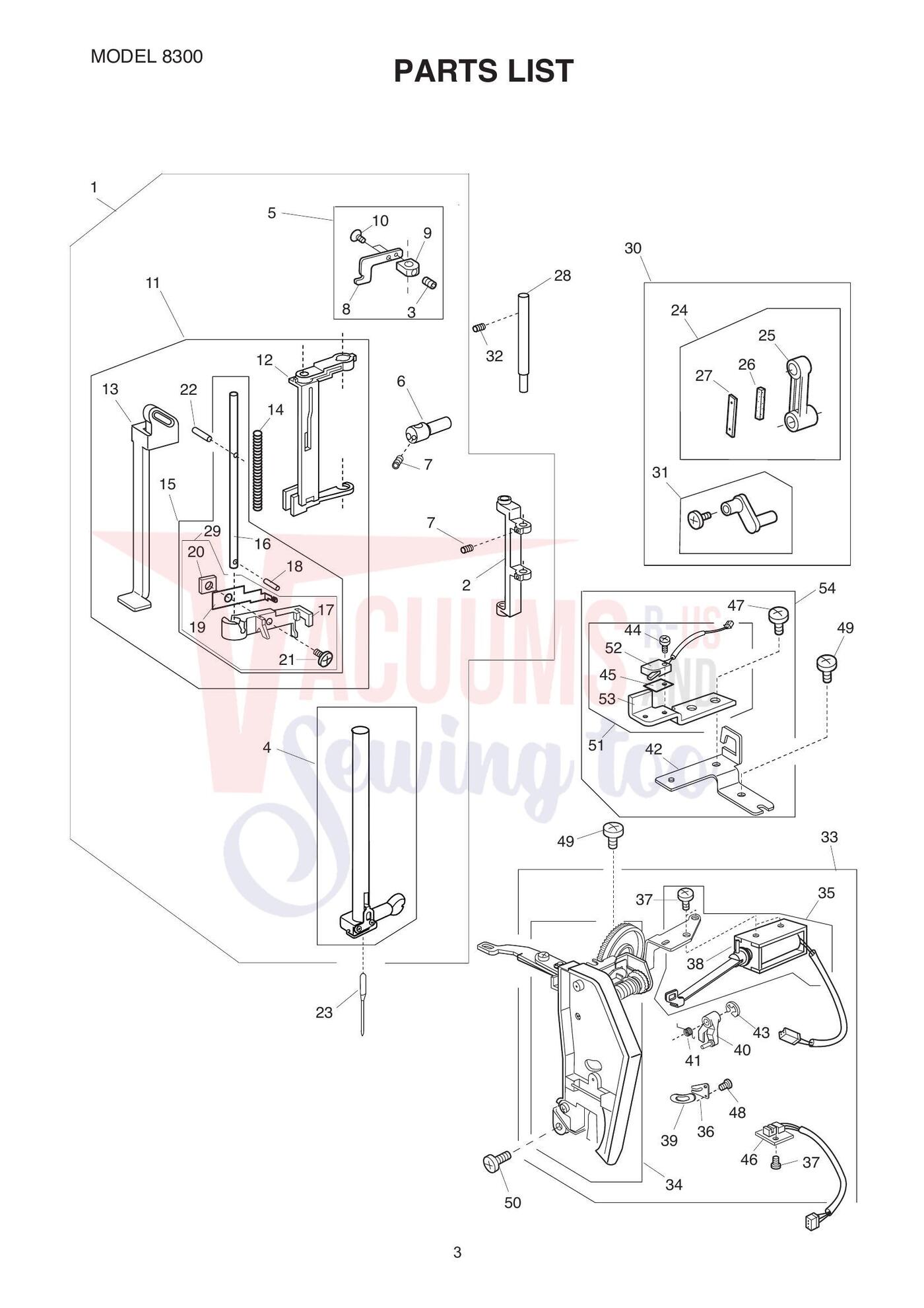

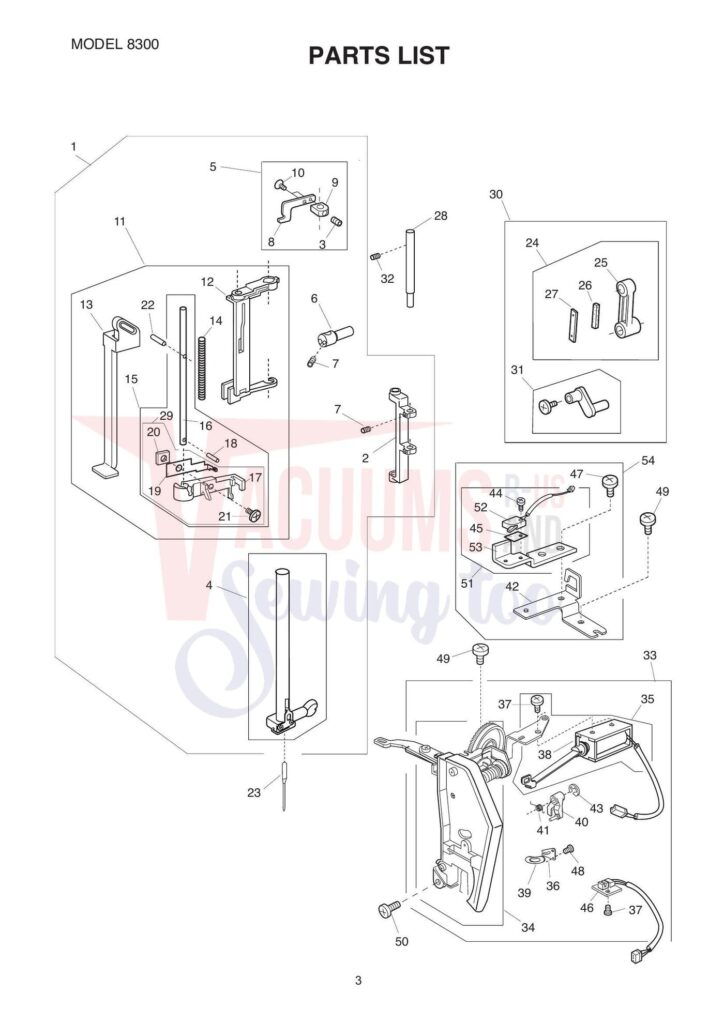

| 1 | | Genuine Janome/Elna Needle bar supporter (unit) For: EL820 | 852005154 | $67.20Read more |
| 2 |  | NEEDLE BAR SUPPORTER sewing machine part or accessory For Janome Models: 525S, 6147, 625E, DE5018... | 751014006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Needle bar (unit) sewing machine part or accessory For Janome Models: MC200E, Necchi EC100 | 830609703 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Threader guide plate unit sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857602008 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Threader guide plate sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857037006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Threader positioning holder sewing machine part or accessory For Janome Models: 525S, 6147, 625E,... | 751016008 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle-threader-(unit) sewing machine part or accessory For Janome Models: MC350E | 853509127 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Frame sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC9500, MC9... | 755062001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna NEEDLE THREADER LEVER | 853026011 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle threader spring sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC... | 755067006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna Threader shaft (unit) For: 350E | 857603021 | $8.60Read more |
| 16 |  | Threader Shaft sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC... | 755066005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Threader supporter sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857038007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Threader Plate | 857039101 | $5.60Read more |
| 20 | | Nut sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 755095003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Stretch needle (Blue) sewing machine part or accessory For Janome Models: 550E | 813404013 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 26 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Felt holder spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 003650041006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Needle Bar Supporter Shaft sewing machine part or accessory For Janome Models: MC300E, MC350E | 852007002 | $1.20Read more |
| 29 | | Threader-plate-(unit) sewing machine part or accessory For Janome Models: MC200E, MC350E, Necchi ... | 857604011 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Janome/Elna Needle crank (unit) For: EL820 | 850622005 | $12.00Read more |
| 31 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Genuine Janome/Elna Thread tension unit | 857618100 | $82.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Genuine Janome/Elna Thread tension (unit) For: EL820 | 857507105 | $45.40Read more |
| 35 | | Solenoid unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 834604102 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | CUSHION HOLDER 5700 sewing machine part or accessory For Janome Models: MC9500, MC9700 | 834173004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Solenoid unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 851516109 | $27.60Read more |
| 39 | | Cushion sewing machine part or accessory For Janome Models: MC200E, MC350E, MC9700, Necchi EC100 | 853037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Thread cutter sensor leverunit sewing machine part or accessory For Janome Models: MC200E, MC300E... | 830660001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | DECLUTCH LEVER SPRING 8000 sewing machine part or accessory For Janome Models: MC5700, MC8000, MC... | 830049008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Genuine Janome/Elna Presser foot lifter sensor bracket For: EL820 | 852077003 | $2.00Read more |
| 43 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Setscrew 1.7 x 6 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC5200, MO200 | 000041209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Insulating Paper sewing machine part or accessory | 852014002 | $0.48Read more |
| 46 |  | Printed Circuit Board G1 Unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 852502002 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 51 |  | Presser Bar Lifter Switch Unit sewing machine part or accessory For Janome Models: MC300E, MC350E... | 852621008 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 52 | | Micro Switch Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852510106 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 53 | Not Available | Switch fixing plate | 852013001 | Not Available |
| 54 | | Genuine Janome/Elna Presser foot lifter sensor (unit) For: EL820 | 852645008 | $12.40Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Clutch solenoid unit | 852638008 | $82.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Set plate | 852065008 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Genuine Janome/Elna Solenoid (unit) | 852646009 | $34.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna Clutch starting arm base unit | 852639009 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Genuine Janome/Elna Clutch base plate For: EL820 | 852069002 | $5.20Read more |
| 9 | | Genuine Janome/Elna Clutch starting lever For: EL820 | 852070006 | $3.00Read more |
| 10 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 11 | Not Available | Clutch arm 2 | 854113008 | Not Available |
| 12 | Not Available | Clutch arm | 854114009 | Not Available |
| 13 | Not Available | Clutch arm 2 spring | 854115000 | Not Available |
| 14 |  | Genuine Janome/Elna Connecting link rod | 852071007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna upper shaft sensor set plate | 852640003 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Upper shaft sensor set plate For: EL820 | 852073009 | $2.60Read more |
| 17 |  | Printed-circuit-board-P-(unit) sewing machine part or accessory For Janome Models: MC350E | 854506002 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Clutch arm | 852072008 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Janome/Elna Spring supporter | 852074000 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Genuine Janome/Elna Clutch spring | 852075001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Clutch-releasing-arm-guide sewing machine part or accessory For Janome Models: MC350E | 854120008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

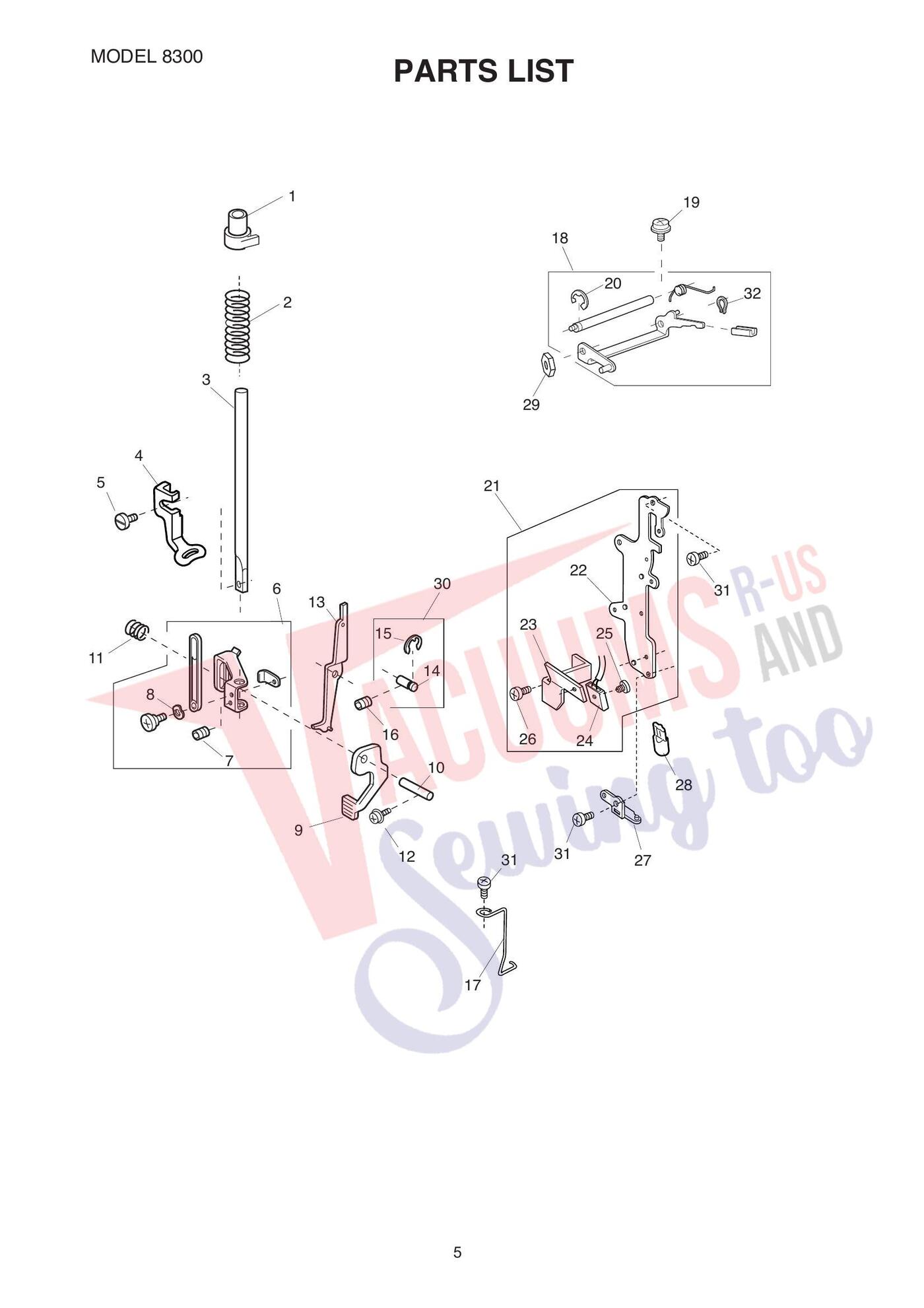

| 1 | | Presser Bar Bushing sewing machine part or accessory For Janome Models: MC300E, MC350E | 852009004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Embroidery Foot P (high shank) sewing machine part or accessory For Janome Models: MC350E, MC300E... | 830810042 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thumb Screw sewing machine part or accessory For Janome Models: 134D, 2018S, 203, 2041, 2041LX, 2... | 763048006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Presser bar supporter (unit) sewing machine part or accessory For Janome Models: MC10001, MC11000... | 830586035 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Presser bar lifter sewing machine part or accessory For Elna Models: EL820 | 830035115 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Pressure functioning arm unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 830585012 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Front set plate unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852608009 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Front Set Plate sewing machine part or accessory For Janome Models: MC300E, MC350E | 852015003 | $2.20Read more |
| 23 | | Lamp-set-plate sewing machine part or accessory For Janome Models: MC350E | 852039025 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Lamp socket unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 501509404 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Front cover setting plate (2) sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 851045009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | TENSION RELEASE LEVER PIN sewing machine part or accessory | 850546002 | $0.60Read more |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

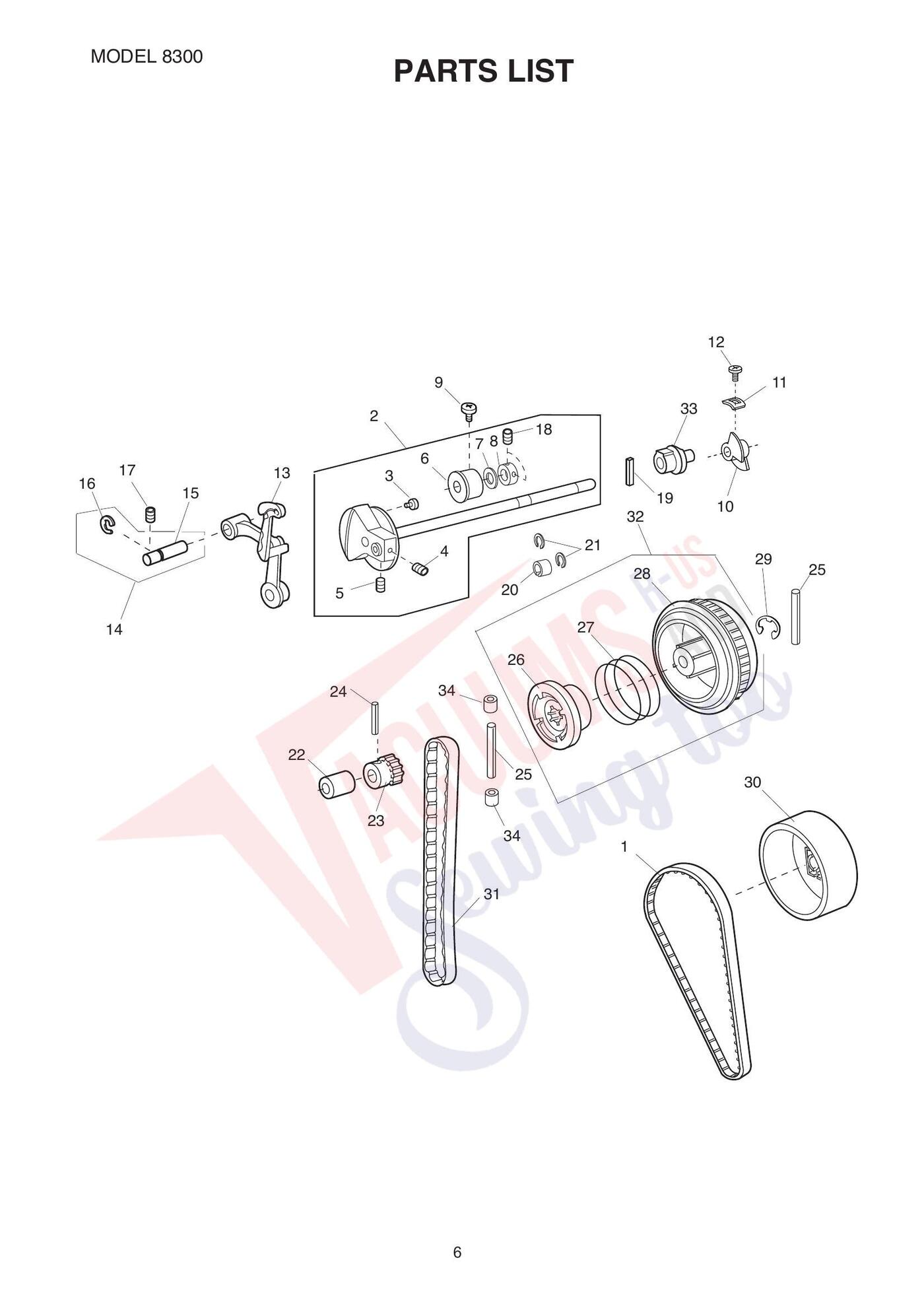

| 1 |  | Motor Belt for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, MC... | 850165003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna Upper shaft unit | 854639201 | $26.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Bushing sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem Gol... | 829042007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Thread take up lever unit sewing machine part or accessory For Janome Models: MC11000, MC11000SE,... | 820511201 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin Unit sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC300... | 650626001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 19 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Bearing sewing machine part or accessory For Janome Models: MC200E, MC350E, Necchi EC100 | 000208505 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring 5103-37 sewing machine part or accessory For Janome Models: 712T, MC200E, MC350E, S-750... | 000032609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Upper Shaft Bushing (Brass) sewing machine part or accessory For Janome Models: MC300E, MC350E, M... | 851062002 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | belt wheel sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, MC200E, MC30... | 303025009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Hand Wheel sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DE... | 502068007 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Belt wheel (unit) sewing machine part or accessory For Janome Models: 350E | 852629109 | $9.40Read more |
| 33 | | Upper-shaft-releasing-cam sewing machine part or accessory For Janome Models: MC350E | 854121009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Cushion sewing machine part or accessory For Janome Models: 350E | 854143007 | $0.23Read more |

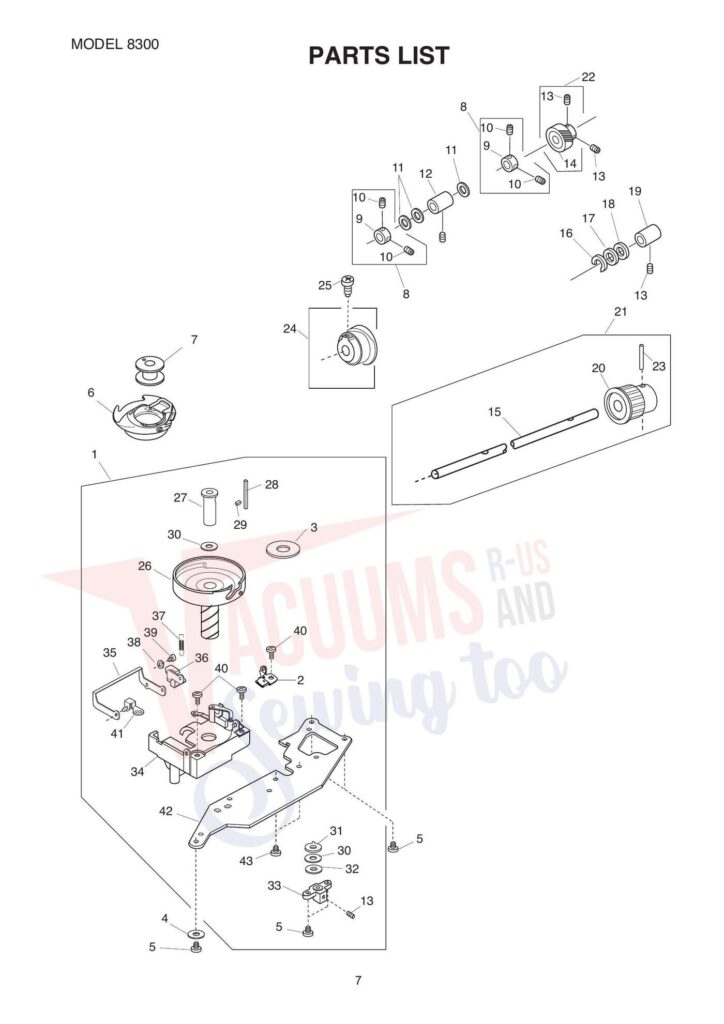

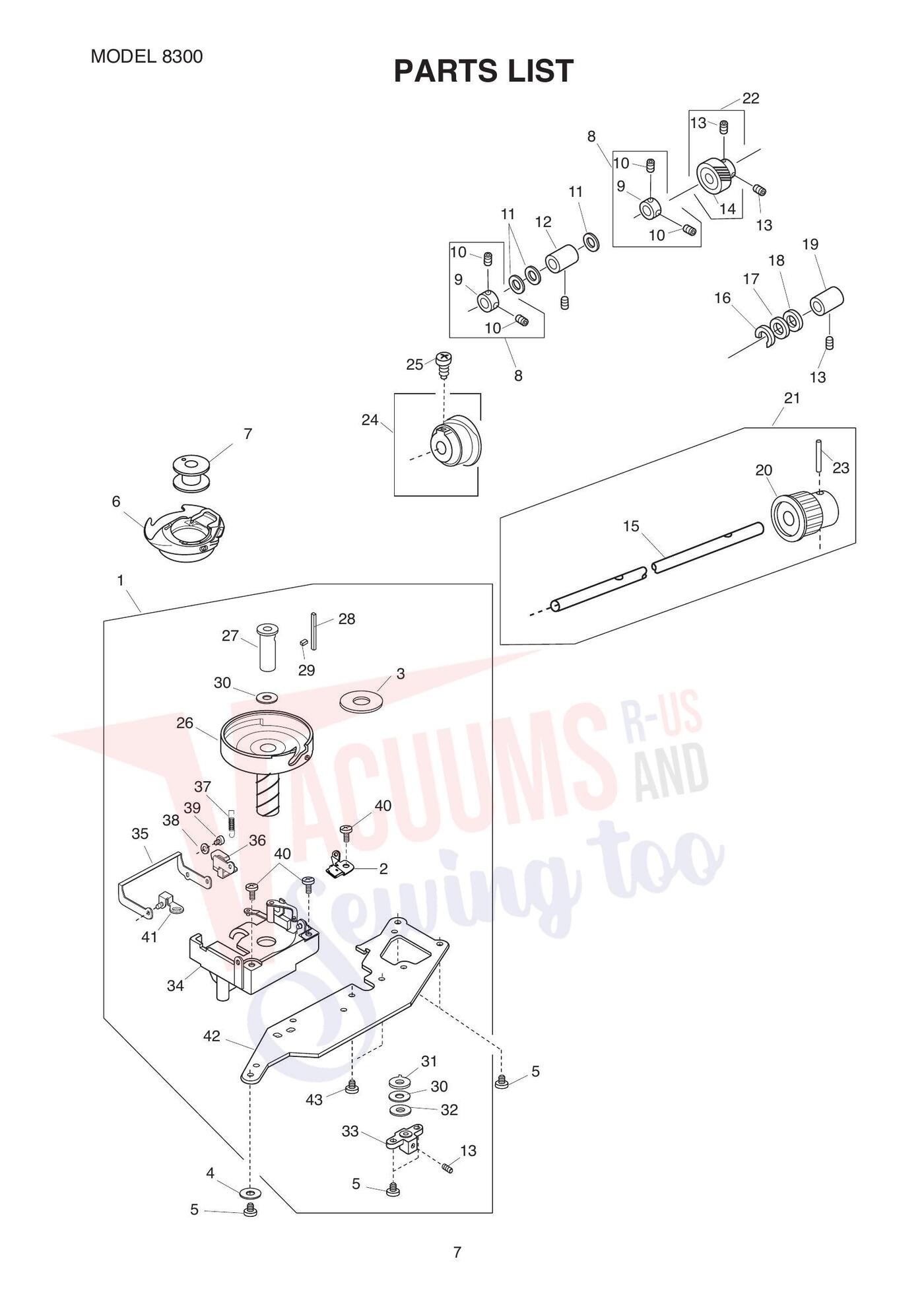

| # | Part image | Description | SKU | Price |
| 1 | | Hook-race-(unit) sewing machine part or accessory For Janome Models: MC350E | 854629002 | $85.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Bobbin Holder Stopper (Right) for Memory Craft 6500P sewing machine part or accessory For Janome ... | 846632003 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Bobbin holder (unit) sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC35... | 846652102 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Compatible alternateGenuine Janome/Elna Bobbin Holder for Memory Craft 6500P For: 3160QDC, MC6500P, MC6600P, MC7700... More Product Details | 846652009 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Compatible alternateBobbin holder sewing machine part or accessory For Janome Models: MC12000 , MC9900 Horizon, EL900... More Product Details | 846652504 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft ring (unit) sewing machine part or accessory 820672005 Lower shaft ring (unit) | 820672005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Lower shaft sewing machine part or accessory For Janome Models: 350E | 854122000 | $7.82Read more |
| 16 | | Felt holder (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 003822112008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Lower-shaft-(unit) sewing machine part or accessory For Janome Models: MC350E | 854627000 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Lower shaft gear (unit) sewing machine part or accessory 850687006 Lower shaft gear (unit) | 850687006 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Cam-(unit) sewing machine part or accessory | 854628012 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Tapping screw 4x12 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 11... | 000114802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Shuttle body (unit) sewing machine part or accessory | 650623307 | $62.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna Hook race shaft For: EL820 | 820123109 | $4.37Read more |
| 28 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Genuine Janome/Elna Cover (unit) For: EL820 | 854630006 | $44.60Read more |
| 35 | | Genuine Janome/Elna Thread drawing lever | 846111001 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Genuine Janome/Elna Thread drawing lever base | 854125003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Thread drawing spring sewing machine part or accessory Thread drawing spring | 854126004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Genuine Janome/Elna WASHER | 000072209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Screw sewing machine part or accessory For Janome Models: 888 COMPULOCK | 000099707 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set screw sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK, HF504D, JA1504... | 003810220106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Genuine Janome/Elna Lever plate | 846113003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Genuine Janome/Elna Hook race set plate For: EL820 | 832076103 | $2.80Read more |
| 43 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

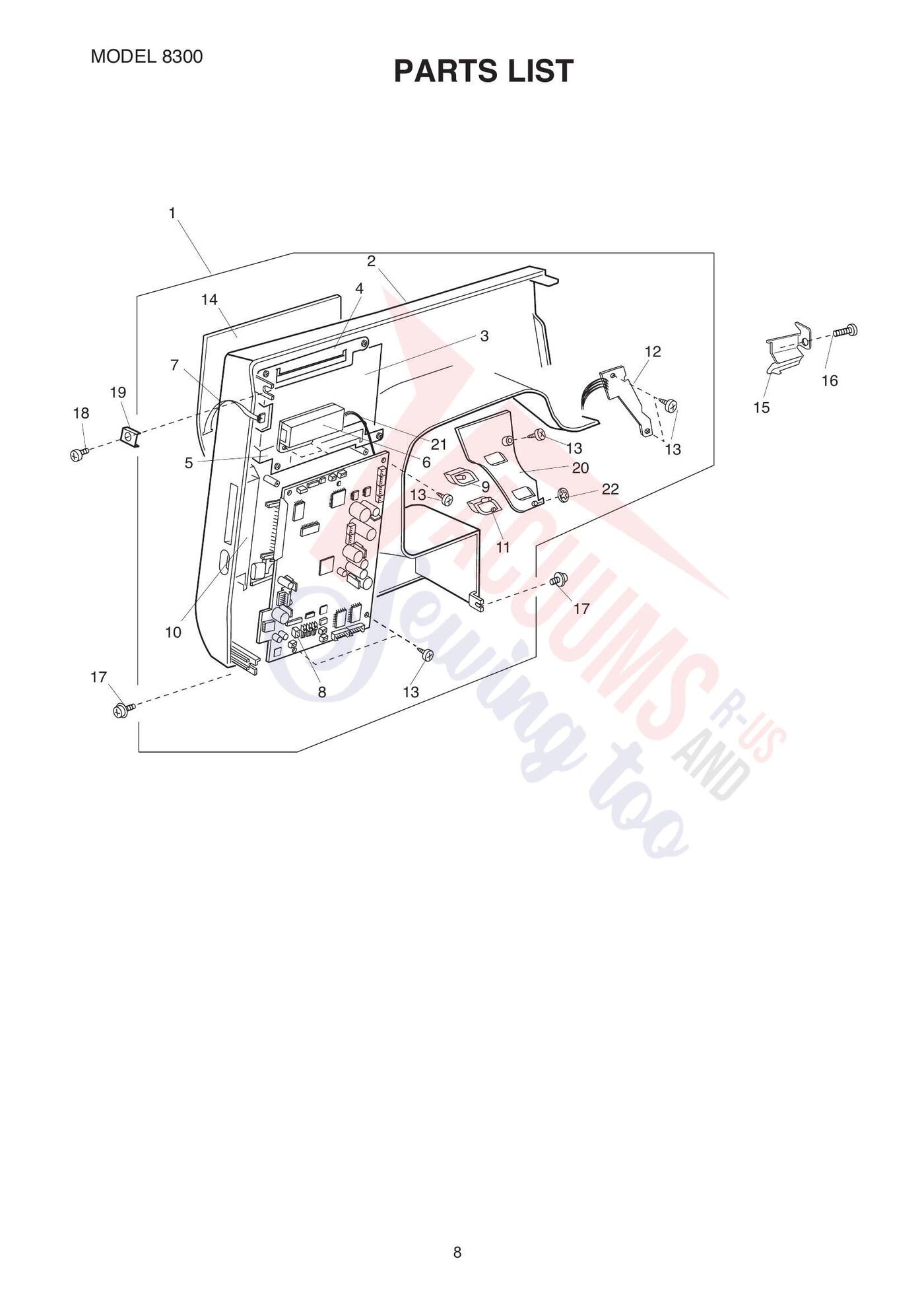

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Front cover (unit) For: EL8300 | 852641004 | $1,373.20Read more |
| 2 | | Genuine Janome/Elna Front cover | 857005706 | $29.00Read more |
| 3 | | Genuine Janome/Elna LCD UNIT ELNA 8300 | 852610107 | $364.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna LCD fixing plate | 857008008 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Genuine Janome/Elna LCD fixing plate (lower) (unit) For: EL8300 | 857621003 | $61.60Read more |
| 6 |  | Inverter Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 850612103 | $80.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | LCD Harness Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852505005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Genuine Janome/Elna PRINTED CIRCUIT BOARD A UNIT | 852633106 | $559.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna Button For: EL8300 | 852076105 | $2.60Read more |
| 10 | | Card guide sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852019007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna Start/stop button | 857010106 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna Printed circuit board F unit | 852521007 | $21.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Genuine Janome/Elna Ornamental plate For: EL8300 | 857006202 | $13.20Read more |
| 15 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Washer sewing machine part or accessory For Janome Models: 350E | 832177002 | $0.92Read more |
| 20 | | Genuine Janome/Elna Ornamental plate For: EL820 | 857007100 | $2.80Read more |
| 21 |  | Inverter harness unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300... | 850524004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
