Parts list and schematic for: Elna Models: el7100 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

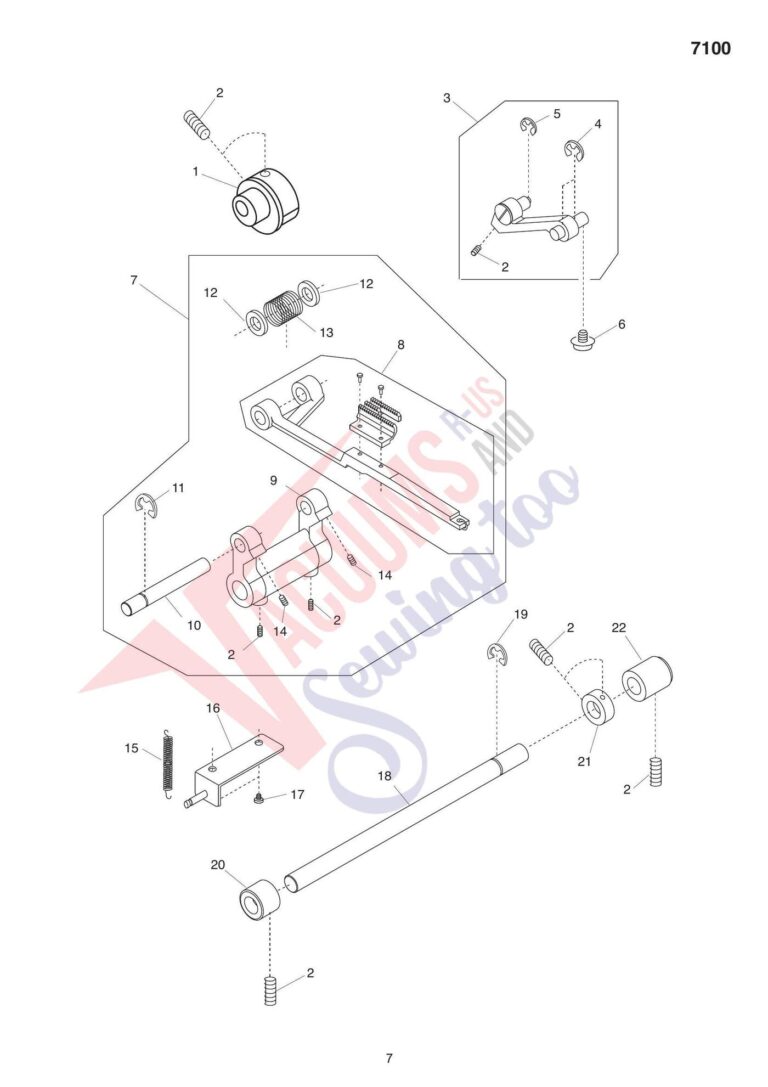

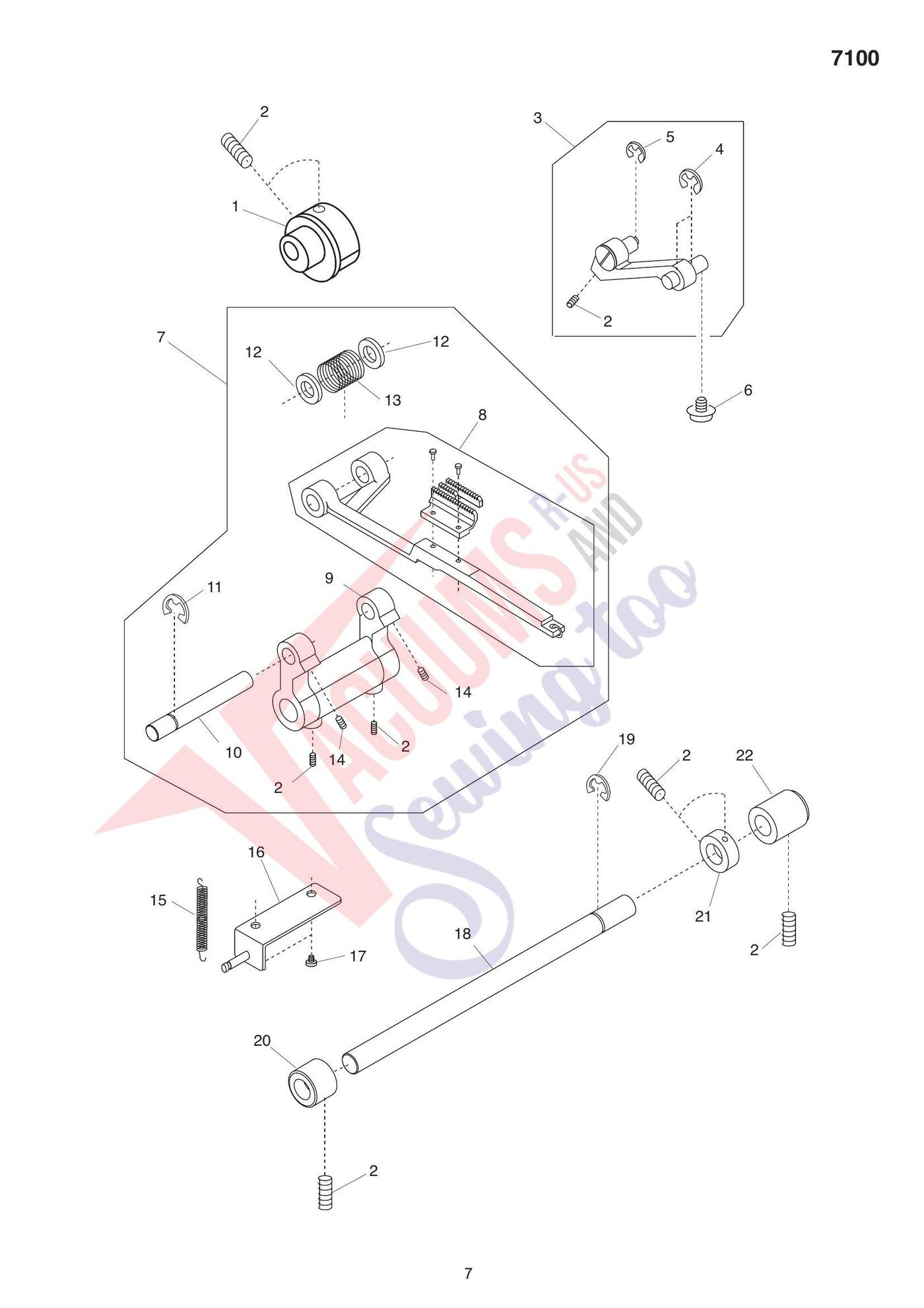

| # | Part image | Description | SKU | Price |
| 1 |  | Knee lifter bracket for 1600P/DB/DBX sewing machine part or accessory For Janome Models: 1600P, 1... | 767642008 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Knee lifter (1) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767057000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hexagon socket screw 5*20 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 000196107 | $1.80Read more |
| 4 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Knee lifter shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767058001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring E-10 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000030009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, M... | 003767059002 | $0.60Read more |
| 8 | | Knee lifter (2) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767060006 | $4.20Read more |
| 9 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Knee lifter (3) unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 767616003 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Knee lifter lever sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 846171009 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Knee lifter lever shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767062008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Knee lifter lever spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 846173001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Presser foot lifter rod sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767063009 | $2.00Read more |
| 16 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Upper shaft sensor (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 767631004 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Printed circuit board p unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 843505409 | $19.20Read more |
| 20 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Sensor fixing plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 767131009 | $2.00Read more |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Transformer (unit) (Eur) sewing machine part or accessory For Janome Models: HD9 | 767537009 | $81.20Read more |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Nylon clip acc-2.5 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 000188601 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Machine socket (unit) (Australia) (UK) (Continental Europe) sewing machine part or accessory For ... | 767666008 | $35.00Read more |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cord binder (1) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767237006 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Capacitor (unit) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767659008 | $60.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Capacitor | 767535007 | Not Available |
| 31 | Not Available | Capacitor case | 767279000 | Not Available |
| 33 | | Noise filter set plate sewing machine part or accessory For Janome Models: 1600P-QC | 767277008 | $3.20Read more |
| 34 | | Noise filter (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767538000 | $27.20Read more |
| 35 |  | Stopper sewing machine part or accessory For Janome Models: 1600P-QC | 767352008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Noise filter (unit) (Australia) (UK) (Continental Europe) sewing machine part or accessory For Ja... | 767667009 | $30.80Read more |
| # | Part image | Description | SKU | Price |

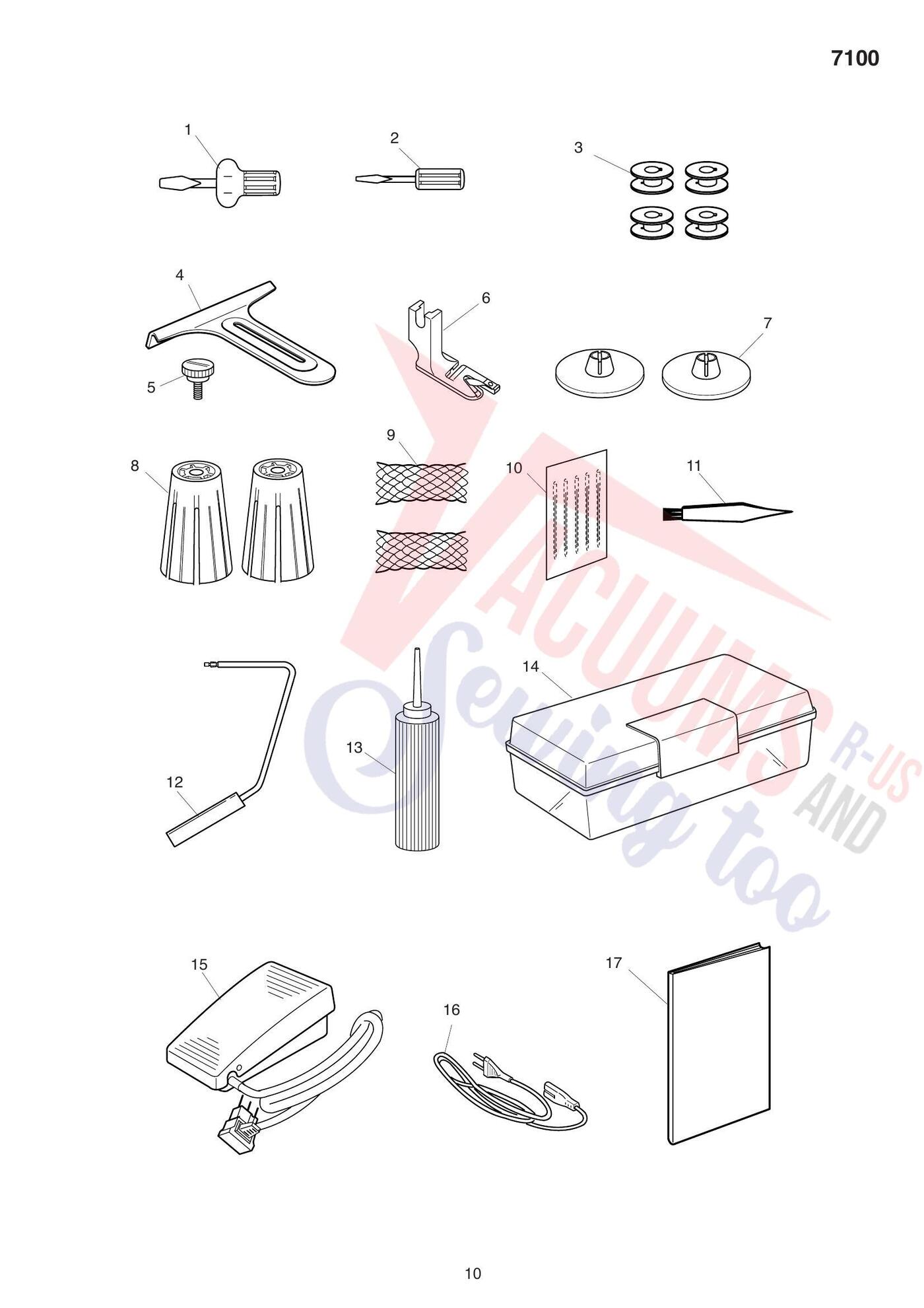

| 1 | Not Available | Large screwdriver | 820832005 | Not Available |
| 2 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Bobbin sewing machine part or accessory For Janome Models: 1600P-QC, 1600P-QC | 761094115 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Cloth guide Cloth guide unit, (screw not included). Works with any Janome top... | 200100801 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hemmer Foot (high shank-industrial) sewing machine part or accessory For Janome Models: 763, 806,... | 761172004 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Genuine Janome/Elna SPOOL HOLDER 784223002 For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P... | 784223105 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna Spool Net For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 624806006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Assorted Needle Set (DBx1) sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767801007 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Knee lifter MC11000 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 846811008 | $28.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Oil | 762456204 | Not Available |
| 14 | | EMPTY ACCESSORY BOX WHITE sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 16... | 366401400 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | FOOT CONTROLLER 1600P -DB 043670206 sewing machine part or accessory For Janome Models: 1600P, 16... | 043670206 | $80.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Power supply cord (230V) | 830335004 | Not Available |
| 17 | | Genuine Janome/Elna INSTRUCTION BOOK ELNA 7100 | 767800213 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

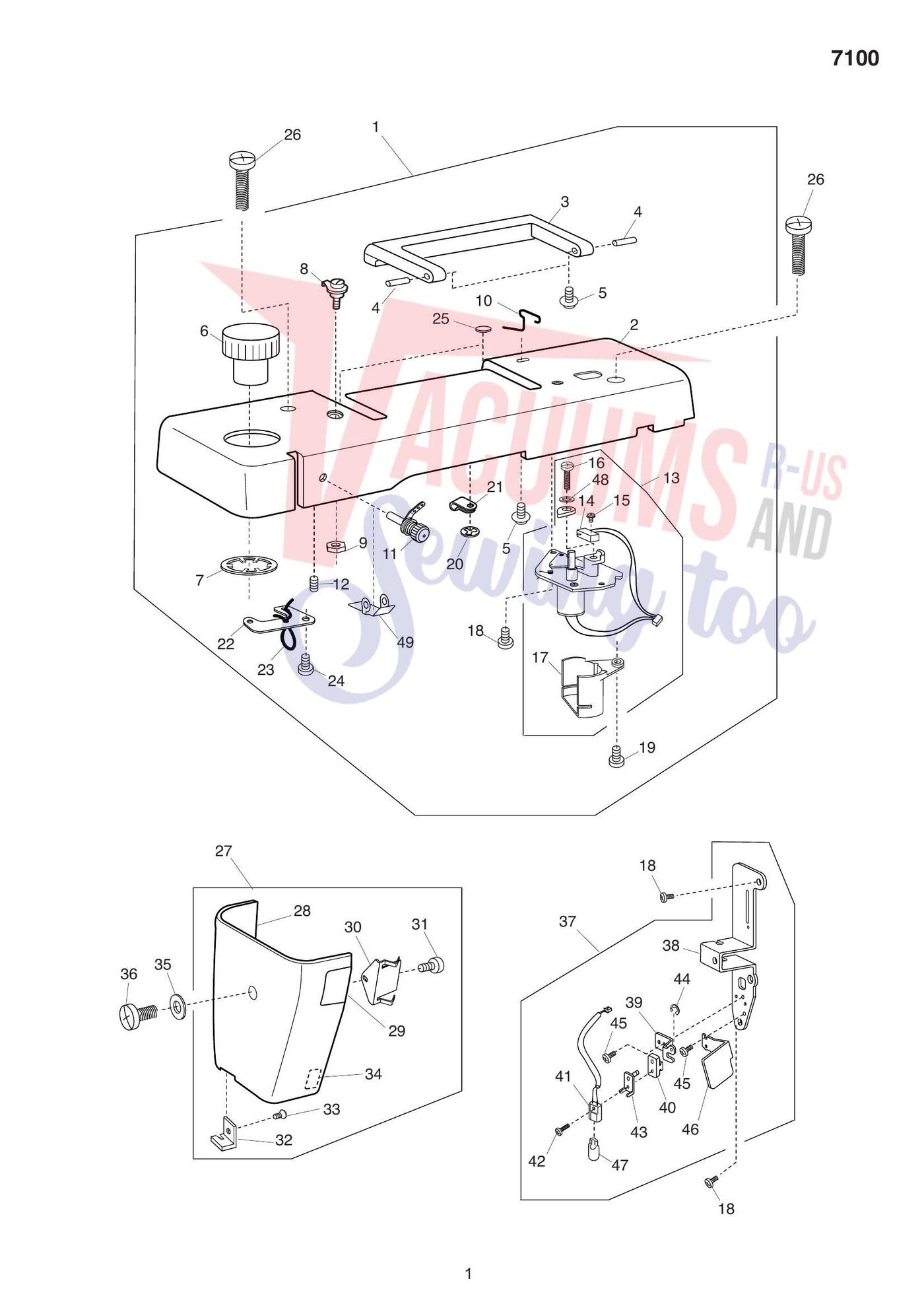

| 1 | | Genuine Janome/Elna Top cover (unit) For: EL7100 | 767603708 | $140.76Read more |
| 2 | | Genuine Janome/Elna Top cover For: EL7100 | 767007407 | $67.39Read more |
| 3 | | Handle sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 846015004 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC6... | 846016005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Foot pressure adjusting dial sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 767008006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap ring 22 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 000015101 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Thread guide (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 767639002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Thread guide sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 846021003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Pre-Tension(Unit) sewing machine part or accessory Pre-Tension(Unit) | 767514114 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna Bobbin winder (unit) For: EL7100 | 767604101 | $54.97Read more |
| 14 | | Micro switch sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 846514101 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Motor cover sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 846179007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Nylon clip ACC-2 sewing machine part or accessory For Janome Models: NQM2016 | 000188405-OLD | $0.80Read more |
| 22 | | Genuine Janome/Elna Oil wich fixing plate For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767152006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 763033204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767211004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Face cover unit sewing machine part or accessory For Janome Models: 1600P-DB | 767602109 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Face plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767005209 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Foot pressure indicating window sewing machine part or accessory For Janome Models: 1600P, 1600P-... | 767006107 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767197003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | BINDING HEAD SMALL SCREW 3.5X6 sewing machine part or accessory For Janome Models: 134D, 1600P, 1... | 000103004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Thread cutter unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 840602109 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Setscrew sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 000095105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Needle sticker sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767206006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Washer 4 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1200D, 1200D, 1600P, 1... | 000071024 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | SPOOL PIN SCREW 4X10 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900XP, ... | 000103510 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Supporter unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767611008 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Supporter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767016007 | $3.91Read more |
| 39 | | Lamp socket set plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767038005 | $1.00Read more |
| 40 | | Lamp cushion sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767174004 | $1.40Read more |
| 41 | | Lamp socket (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 501509703 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | TP setscrew 2X10 | 000114905 | Not Available |
| 43 | | Lamp set plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 767183006 | $1.40Read more |
| 44 | | Snap ring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 000001104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Lamp shield plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767146007 | $1.00Read more |
| 47 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Spring sewing machine part or accessory For Janome Models: 1600P-QC, MC6500P, MC6600P, Necchi QS60 | 846227001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

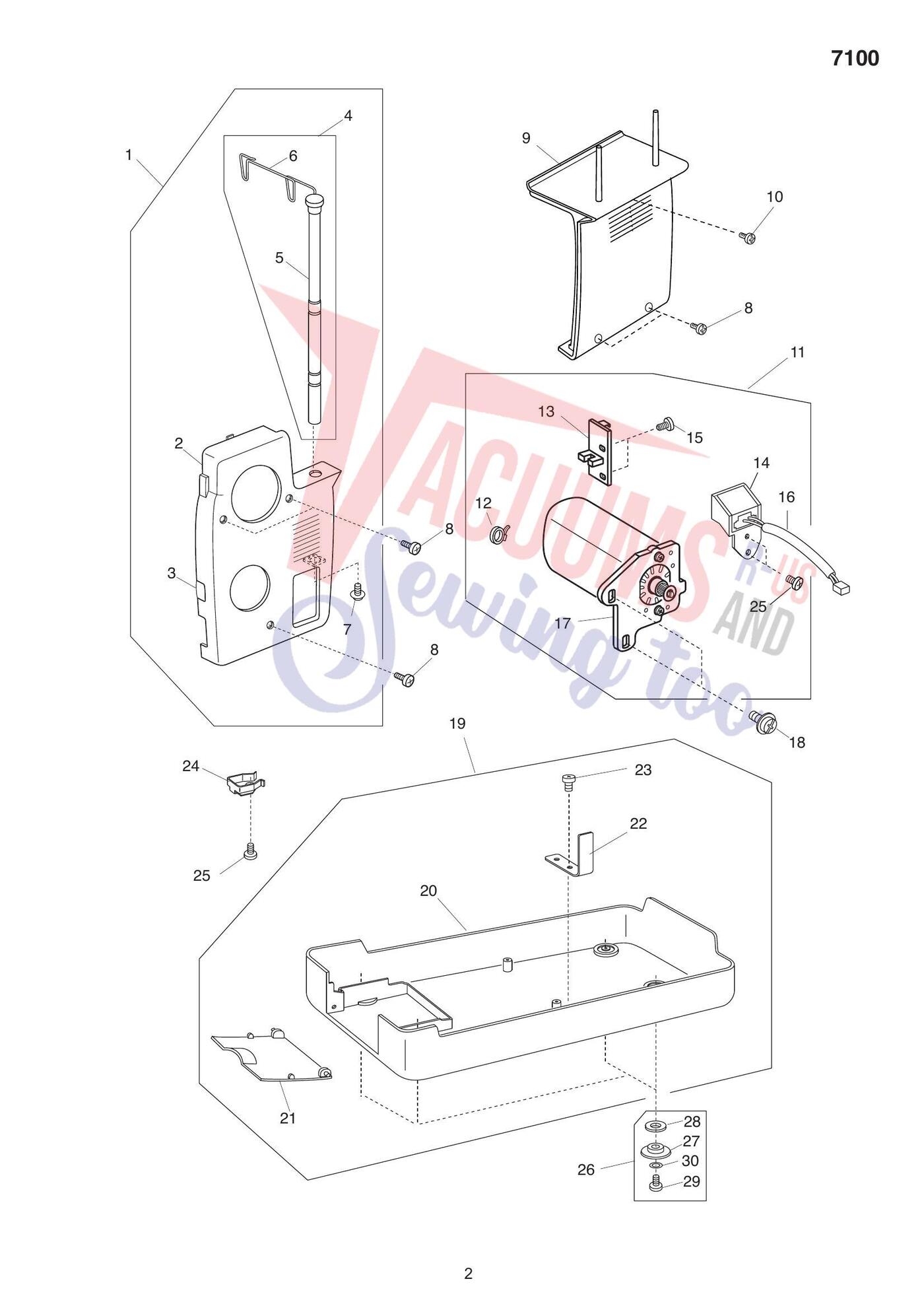

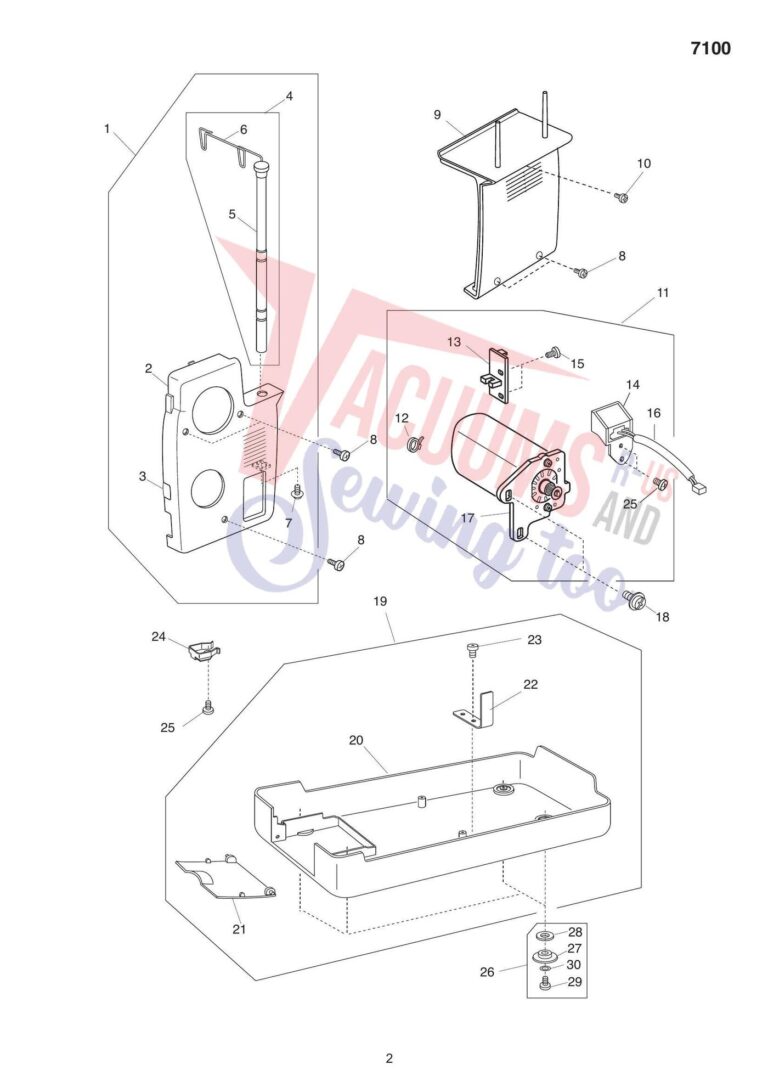

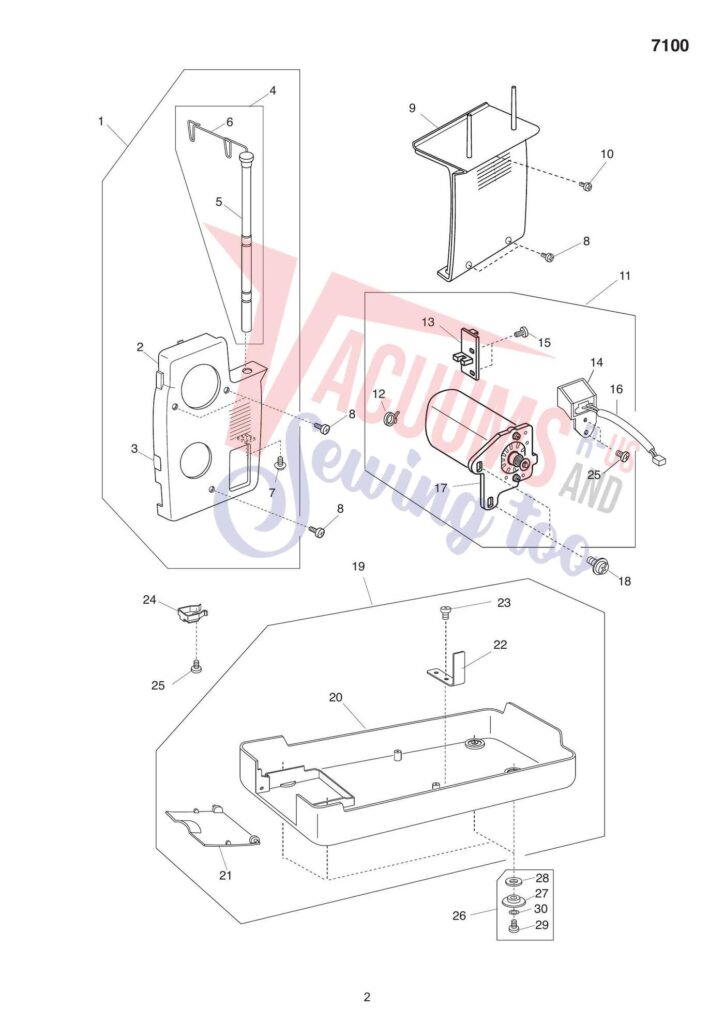

| # | Part image | Description | SKU | Price |
| 1 |  | Belt cover (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767605009 | $33.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Belt cover sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767011105 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Stitch length window sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767014108 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Thread guide unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767636009 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread guide bar sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 784177000 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Thread guide sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767015006 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | REAR COVER sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767010001 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SET SCREW 4 X 16-3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 000101806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Motor (unit) (230/240V) | 767665007 | Not Available |
| 12 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Printed circuit board v unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 767507000 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Genuine Janome/Elna Set plate For: EL7100 | 767194000 | $1.61Read more |
| 15 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Cord (unit) For: EL7100 | 767512008 | $9.43Read more |
| 17 | | Motor bracket sewing machine part or accessory For Janome Models: 1600P-QC | 767135003 | $2.60Read more |
| 18 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | BED COVER UNIT sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767606000 | $31.00Read more |
| 20 |  | BED COVER sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767012003 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Base lid sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767013004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Table latch spring (2) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767188001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | +bind tapping screw 4x8 (B) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, ... | 000171302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Table latch spring (1) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767187000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Bed rubber foor (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767643009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Serger Cushion sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB,... | 784135006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 785260004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Hinge screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 784169010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 000070300 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

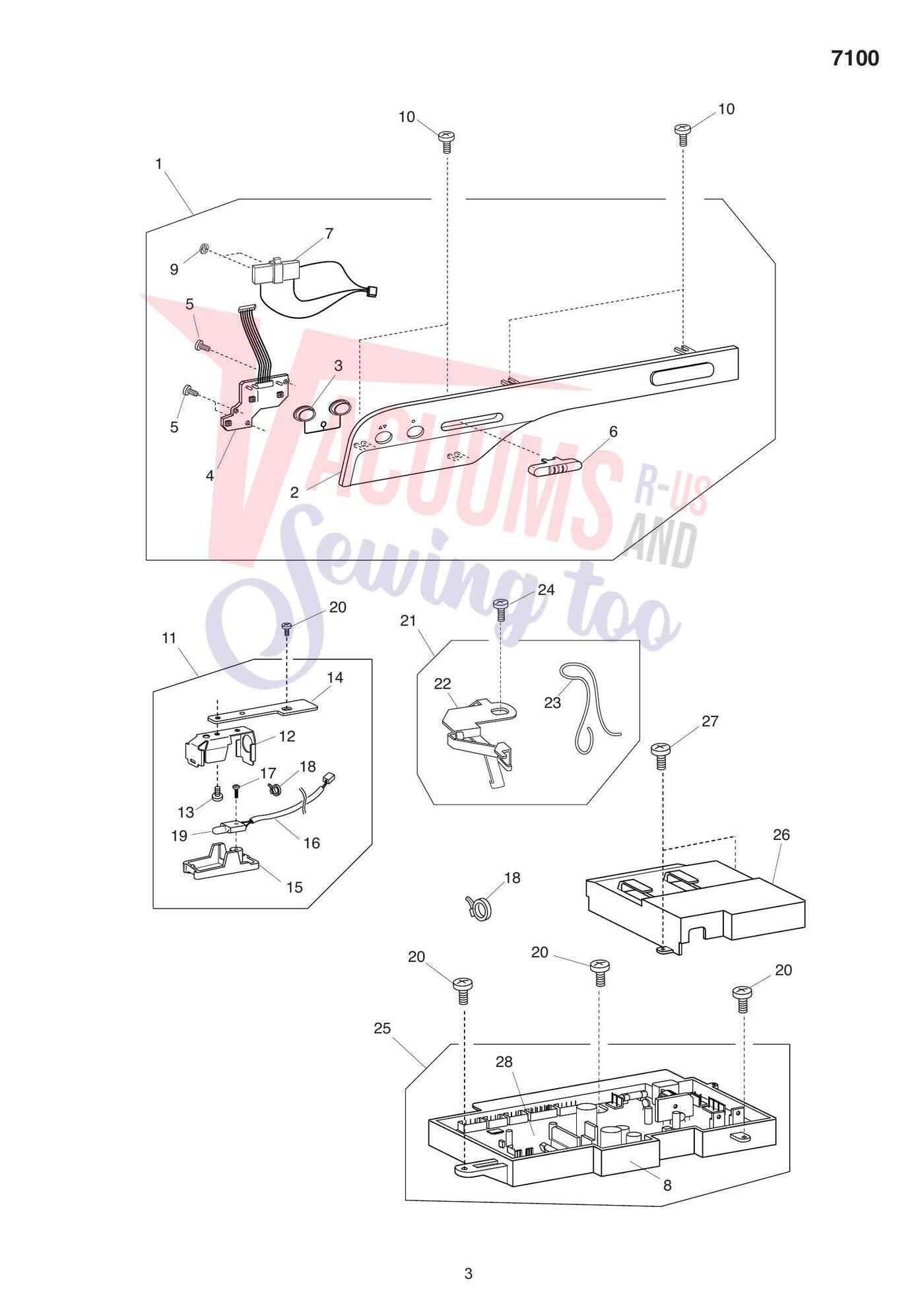

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Ornamental plate (unit) For: EL7100 | 767601108 | $63.94Read more |
| 2 |  | Ornamental plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767003207 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Button sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767004105 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Circuit board (F) unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767501004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Slide knob sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767140001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Slide volum sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767516002 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Printed circuit board acase (LOWER) sewing machine part or accessory For Janome Models: 1600P, 16... | 767129004 | $5.60Read more |
| 9 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Arm lamp (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767626006 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Reflector plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767126001 | $2.40Read more |
| 13 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Arm lamp set plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767127002 | $0.80Read more |
| 15 | | Lamp holder sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 767128003 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Lamp socket unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 501509806 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Screw 2.3x12b sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000225209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Oil wick fixing plate (2) (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P... | 767612009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Oil wich fixing plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767153007 | $2.00Read more |
| 23 | | Oil wick sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P... | 763033020 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Printed circuit board A (unit) (230V/240V) | 767627203 | Not Available |
| 26 | | Printed circuit board a case (UPPER) sewing machine part or accessory For Janome Models: 1600P, 1... | 767130008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Printed circuit board A (unit) (230V/240V) | 767536008 | Not Available |
| # | Part image | Description | SKU | Price |

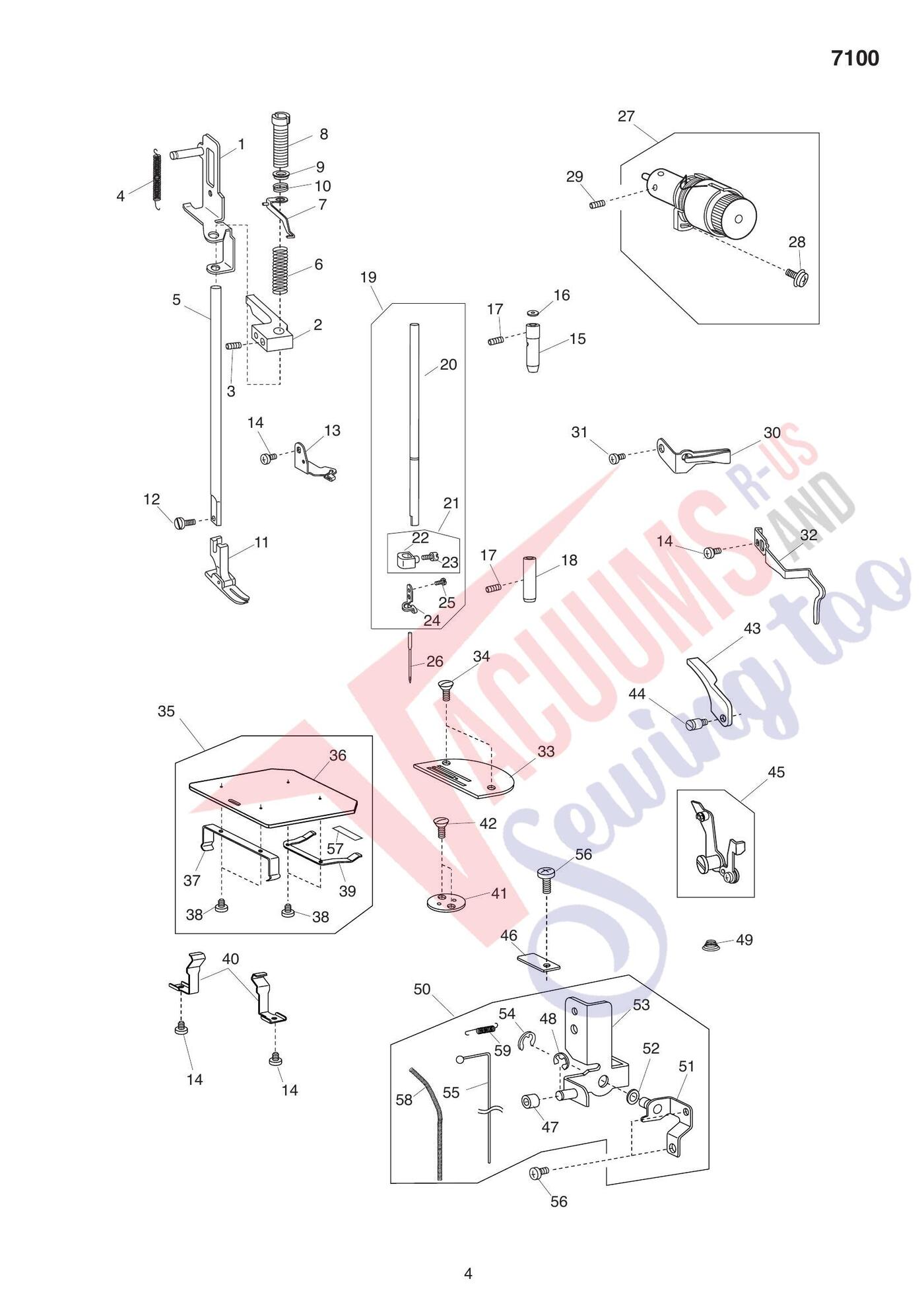

| 1 |  | Presser bar lifter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767026000 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser bar supporter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767027001 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 4 |  | Spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, MC6500P, N... | 846037002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Presser bar sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767028002 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Presser bar spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767029003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Foot pressure indicator | 767030100 | Not Available |
| 8 | | Presser regulating screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767031008 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Spacer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767173003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar sub-spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767172002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Presser foot (INDUSTRIAL) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 704511105 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 763048109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Arm thread guide (LOWER) sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767193009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle Bar Bushing (Upper) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767041001 | $23.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767042002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Needle Bar Bushing (Lower) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767091006 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Needle bar unit sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767641007 | $34.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle bar sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767040000 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna Needle clamp (unit) For: EL7100 | 761512000 | $12.88Read more |
| 22 | | Genuine Janome/Elna Needle clamp For: EL7100 | 761057002 | $0.00Read more |
| 23 |  | Genuine Janome/Elna Needle clamp screw Use with models: 1600P 1600P-DB 1600P-DBX | 761058003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle bar thread guide sewing machine part or accessory For Janome Models: 1600P-DB, 1600P-DBX | 767164104 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set screw sewing machine part or accessory For Janome Models: 1600P-DB | 761060008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Needle DB X 1–14 | 763402079 | Not Available |
| 27 |  | Thread tension regulator unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 767502005 | $39.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set screw 3x6 sewing machine part or accessory For Janome Models: 1110DX, 1600P, 1600P-DB, 1600P-... | 000114710 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Arm thread guide sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767054007 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Thread tension plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 767056009 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Needle plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767281108 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 102053007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Hook cover plate (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767609106 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Bobbin Cover Plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767018009 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Hook cover plate spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767019000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Hook cover plate supporter spring sewing machine part or accessory For Janome Models: 1600P, 1600... | 767020004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Hook cover plate retainer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 767017008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Attachment mount sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767021005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Presser bar lifter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767171001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Hinge screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 846033008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Genuine Janome/Elna Thread tension release lever (unit) For: EL7100 | 767650113 | $9.89Read more |
| 46 |  | Plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767233002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Roller sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 846210001 | $0.60Read more |
| 48 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 49 |  | Thread tension release spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 761045007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Thread tension release BS PLT sewing machine part or accessory For Janome Models: 1600P-QC | 767651103 | $35.80Add to cart Special order: ships in 2 to 4 weeks |
| 51 | Not Available | Thread tension release base plate | 767232001 | Not Available |
| 52 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 53 | Not Available | Thread tension release crank | 767231000 | Not Available |
| 54 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | Wire (unit) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767530002 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 56 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 57 | Not Available | Sticker | 767220006 | Not Available |
| 58 | Not Available | Spring | 767290007 | Not Available |
| 59 |  | Spring sewing machine part or accessory For Janome Models: 1600P-QC | 767222008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 16... | 767271002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Belt wheel sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767195001 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 6 | | Balance wheel sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767139007 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1600... | 556047007 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1... | 618070004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | IDLER (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767618005 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Upper shaft (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767617004 | $265.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Upper shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767064000 | $11.60Read more |
| 14 | | FELT sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767065001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Spring pin 4x25 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 000028107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 761102003 | $0.80Read more |
| 17 | | Ball bearing (7201A-DF) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767186009 | $247.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Plate (1) | 767227003 | Not Available |
| 19 | | Ring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC... | 003767077006 | $1.80Read more |
| 20 | | Ball bearing (6901ZZ) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 003767178008 | $35.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring 5103-46 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 000032702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Upper shaft timing gear sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767070009 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Timing belt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767071000 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread take-up lever (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, ... | 767638001 | $62.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Thread take-up lever (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, ... | 767503006 | $41.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Take up lever | 761088002 | Not Available |
| 28 | | Thread take-up supporter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 761089003 | $12.00Read more |
| 29 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Felt holder spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 003650041006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Needle bar conn. stud unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767073002 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Needle bar crank pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 761086000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, MC8000 | 761087001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Needle bar crank sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767072001 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 763033400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Thread take up lever shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 761091008 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Feed adjusting base (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767624004 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Indicating plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767118103 | $2.40Read more |
| 40 | | Reverse stitch lever sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767124102 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Stitch length dial sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX | 767115007 | $2.60Read more |
| 42 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Motor belt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767136004 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Genuine Janome/Elna Upper shaft (unit) For: EL7100 | 767646002 | $338.33Read more |
| # | Part image | Description | SKU | Price |

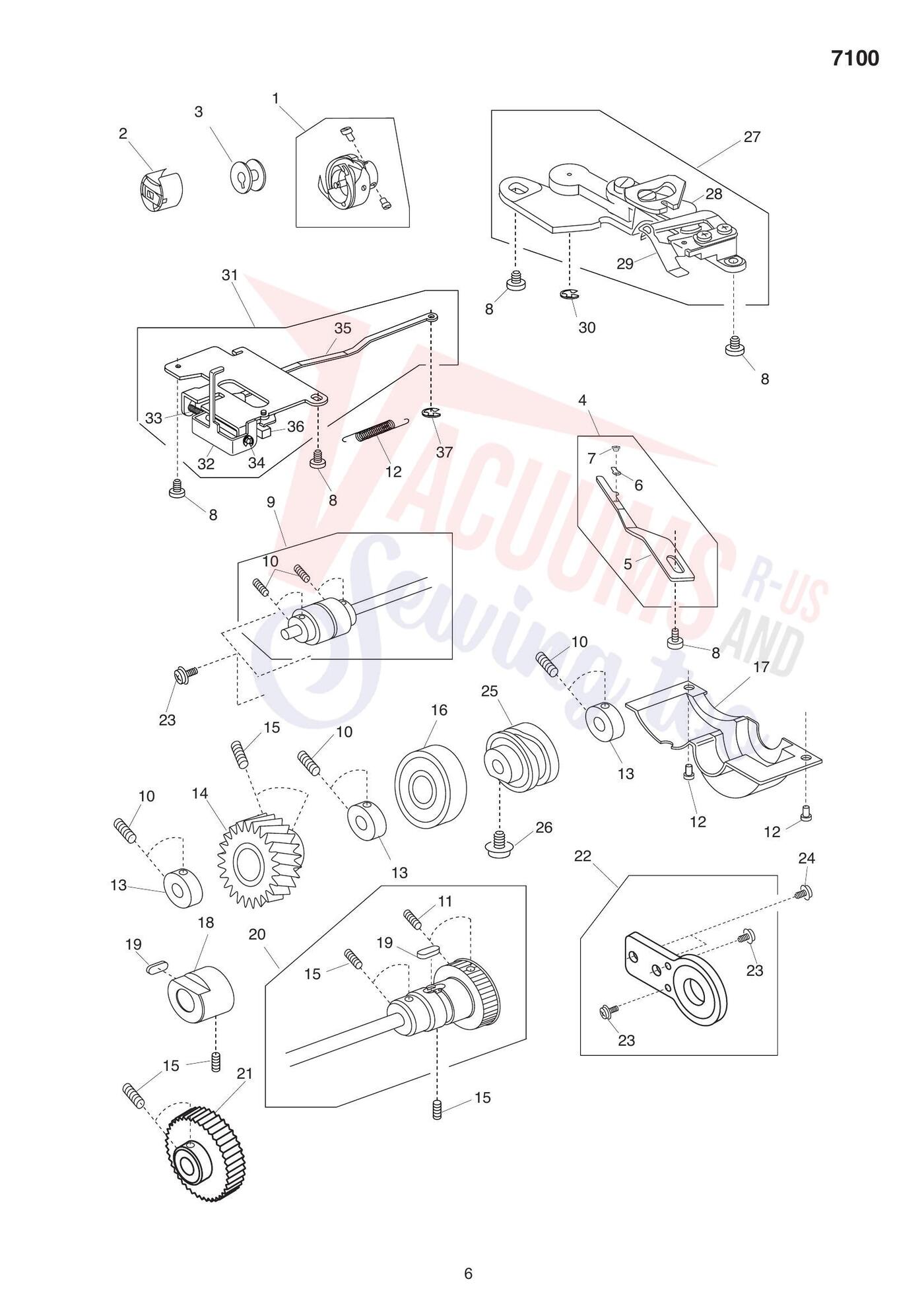

| 1 | | Genuine Janome/Elna Hook race (unit) For: ELEF1 | 761510101 | $130.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Bobbin case (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767510006 | $33.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Bobbin sewing machine part or accessory For Janome Models: 1600P-QC, 1600P-QC | 761094115 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hook race stopper (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767518004 | $20.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hook race stopper sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767079008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hook race stopper spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767201001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hook race shaft (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767698102 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767276007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Shuttle race gear sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767081003 | $37.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 16 | | Ball bearing (698ZZ) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 767182005 | $13.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Gear box cover sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 767084006 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Lower shaft front bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 767085007 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767067003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767644000 | $46.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 1600P-QC | 767221007 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Lower shaft supporter (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 767613000 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Tapping screw 4x12 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 11... | 000114802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | THREAD CUTTER CAM sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767241003 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Setscrew TP 3x14 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC, ... | 000114606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | AUTO THREAD CUTTER UNIT sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 160... | 767657006 | $132.20Read more |
| 28 | | THREAD CUTTER BLADE sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767264002 | $33.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | THREAD GUIDE PLATE sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767266004 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Thread drawing lever (unit) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX,... | 767658007 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Thread drawing lever | 767268006 | Not Available |
| 33 | Not Available | Spring | 767280004 | Not Available |
| 34 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 35 | | Link sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767251006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Cushion 3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767259004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Feed lifting cam sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767089001 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 3 | | FEED LIFTING CAM UNIT sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767620000 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Tapping screw 4x12 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 11... | 000114802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed base (unit) (1) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767619109 | $112.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Feed base (unit) (2) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767621104 | $103.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna Feed rock shaft For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767094009 | $8.05Read more |
| 10 | | Feed rock arm pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767095000 | $1.00Read more |
| 11 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | FELT (2)-9/8/7-7500/6/5500/412 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 822063003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Felt hodler spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767212005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed bar spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767120005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Spring attach plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 767121006 | $1.40Read more |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed rock shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767096001 | $5.80Read more |
| 19 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bushing (front) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767097002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC,... | 767099004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |

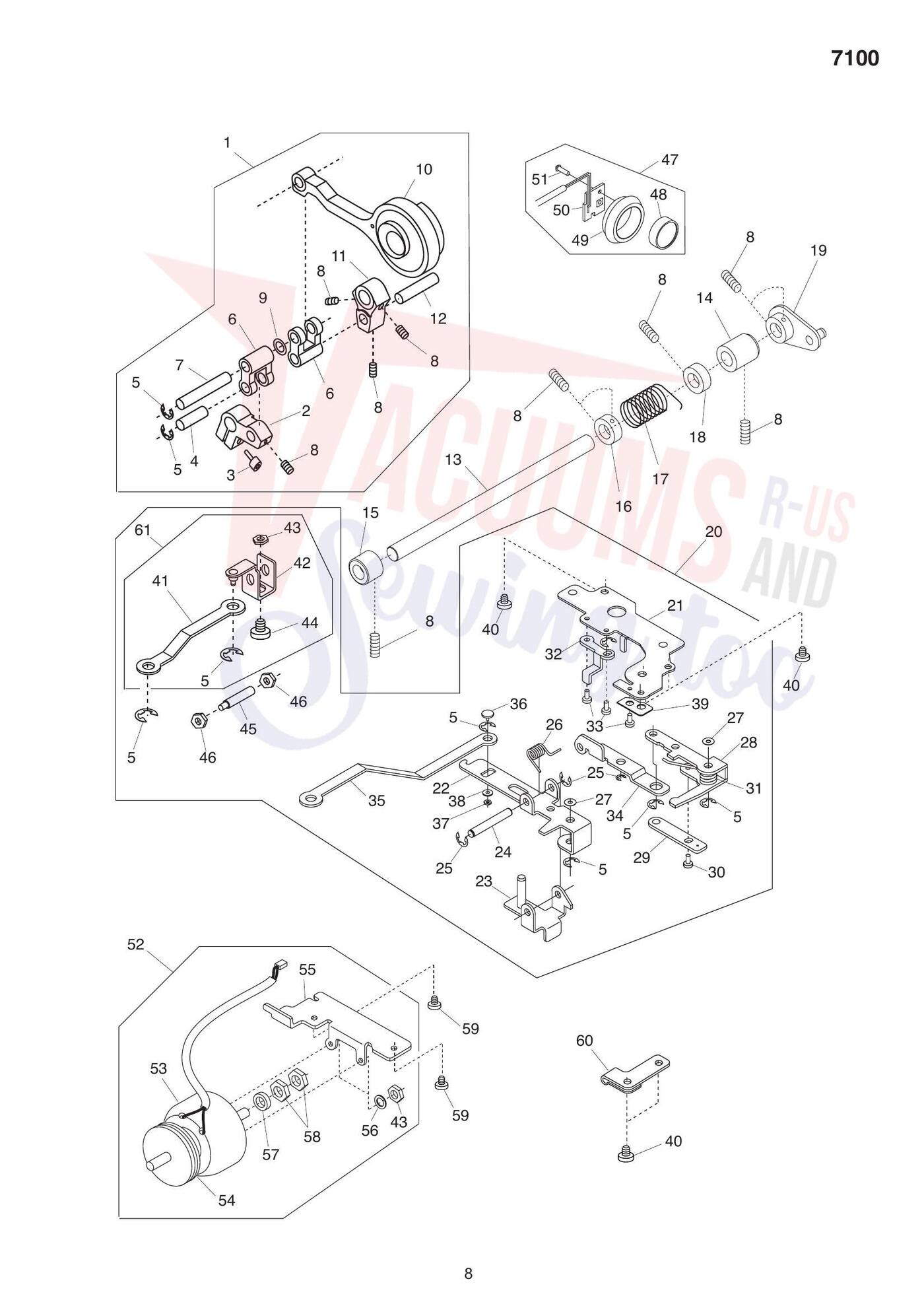

| # | Part image | Description | SKU | Price |
| 1 | | Feed regulator (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767663005 | $66.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Feed adjusting sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 767100009 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set screw 5*16 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000218106 | $0.60Read more |
| 4 | | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767101000 | $0.60Read more |
| 5 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Feed bar link sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 767102001 | $3.80Read more |
| 7 | | Feed ring pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 767106005 | $0.80Read more |
| 8 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 9 | | Plain washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767157001 | $0.60Read more |
| 10 | Not Available | Feed cam (unit) | 767664006 | Not Available |
| 11 | | Feed regulator arm sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767107006 | $3.80Read more |
| 12 | | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767159003 | $0.80Read more |
| 13 |  | Feed adjusting shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 767108007 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC,... | 767099004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Bushing (front) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767097002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed regulator spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767111003 | $2.80Read more |
| 18 | | Lower shaft ring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 639095103 | $1.61Read more |
| 19 | | Feed regulator shaft arm sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767112004 | $5.00Read more |
| 20 |  | Thread cutter driving base unt sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 767654003 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Driving arm base plate | 767242004 | Not Available |
| 22 | Not Available | Driving arm | 767244006 | Not Available |
| 23 | Not Available | Link | 767243005 | Not Available |
| 24 | Not Available | Driving arm pin | 767253008 | Not Available |
| 25 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Cam spring sewing machine part or accessory For Janome Models: HD9 | 767274005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | WASHER THRUST FT70 9 8 7 7500 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1... | 000036108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Driving lever | 767245007 | Not Available |
| 29 | Not Available | Thread drawing arm | 767252007 | Not Available |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Spring | 767275006 | Not Available |
| 32 | Not Available | Guard plate | 767282006 | Not Available |
| 33 | | BINDING HEAD SMALL SCREW 3.5X6 sewing machine part or accessory For Janome Models: 134D, 1600P, 1... | 000103004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Thread tension release arm | 767246008 | Not Available |
| 35 | Not Available | Thread cutter link | 767247009 | Not Available |
| 36 | | Hinge screw (3) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767248000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | NUT 5001 3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC, 234... | 000061102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Limitter plate | 767289003 | Not Available |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | Not Available | Link | 767249001 | Not Available |
| 42 | Not Available | Coupling | 767250005 | Not Available |
| 43 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | SET SCREW 5X10-DISCONTINUED sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX,... | 000102003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | Not Available | Wire joint | 767238007 | Not Available |
| 46 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Thread cutter button (unit) sewing machine part or accessory For Janome Models: 1600P SRV | 767661003 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Button (2) sewing machine part or accessory For Janome Models: 1600P SRV | 767283100 | $1.86Read more |
| 49 | Not Available | Button holder | 767284008 | Not Available |
| 50 | | Printed circuit board UD (unit) sewing machine part or accessory For Janome Models: HD9 | 753511107 | $5.80Read more |
| 51 |  | SETSCREW 2.3 X 5B sewing machine part or accessory | 000161701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 52 | Not Available | Solenoid (unit) | 767655107 | Not Available |
| 53 | | Genuine Janome/Elna Push-pull solenoid (unit) For: EL7100 | 767668000 | $291.41Read more |
| 54 | | PP sheet sewing machine part or accessory For Janome Models: 1600P SRV | 767288002 | $1.00Read more |
| 55 | Not Available | Set plate | 767254009 | Not Available |
| 56 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 000070300 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 57 | | Cushion 2 sewing machine part or accessory For Janome Models: 1600P SRV | 767258003 | $0.60Read more |
| 58 | | NUT sewing machine part or accessory | 000062907 | $0.80Read more |
| 59 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | Not Available | Plate (2) | 767235004 | Not Available |
| 61 | Not Available | Link (unit) | 767656005 | Not Available |
Report errors on this page HERE
