Parts list and schematic for: Elna Models: el654 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Feedregulateholderbushing | 396404-09 | Not Available |
| 1 | Not Available | 396404-09 Feedregulateholderbushing | A10411000 | Not Available |
| 1 |  | Genuine Janome/Elna HANDWHEEL DECORATE PLATE | 396404-21 | $0.60Read more |
| 2 | Not Available | Feedslideblock | 396405-20 | Not Available |
| 2 | Not Available | Setscrew 19 G1099 396405-20 Feedslideblock | 396406-96 | Not Available |
| 3 | Not Available | Feedslideholder | 396405-19 | Not Available |
| 3 | Not Available | Washer 20 G1098 396405-19 Feedslideholder | 396407-06 | Not Available |
| 4 | Not Available | Feedregulatelink | 396404-03 | Not Available |
| 4 | Not Available | 396404-03 Feedregulatelink | A10121000 | Not Available |
| 4 | | Genuine Janome/Elna HANDWHEEL EL683 EL686 | 396406-31 | $4.60Read more |
| 5 | Not Available | Feedregulatecam | 396405-18 | Not Available |
| 5 | Not Available | Cring 22 G1090 396405-18 Feedregulatecam | 396404-66 | Not Available |
| 6 | | Genuine Janome/Elna FEED REGULATE HOLDER EL683 686 | 396406-21 | $9.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Setscrew 23 G2031 396406-21 Feedregulateholder | 396406-81 | Not Available |
| 7 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Feeddrivelink 24 M04L08A06 396406-83 Setscrew | 396404-05 | Not Available |
| 7 | Not Available | 396404-05 Feeddrivelink 24 M04L08A06 396406-83 Setscrew | A10171000 | Not Available |
| 8 | Not Available | Locatingcollar | 396405-84 | Not Available |
| 8 | Not Available | Feeddrivelinkpin(A) 25 G1268 396405-84 Locatingcollar | 396404-13 | Not Available |
| 8 | Not Available | 396404-13 Feeddrivelinkpin(A) 25 G1268 396405-84 Locatingcollar | A10821000 | Not Available |
| 9 | Not Available | Locatingspring | 396405-75 | Not Available |
| 9 | Not Available | Feedlink 26 G1257 396405-75 Locatingspring | 396405-39 | Not Available |
| 10 | | Genuine Janome/Elna SET SCREW | 396406-90 | $0.80Read more |
| 10 | Not Available | Setscrew 27 M04L4.5A02 396406-90 Setscrew | 396406-94 | Not Available |
| 11 | Not Available | Stitchlengthdial | 396408-77 | Not Available |
| 11 | Not Available | Springwasher 28 G2047P002 396408-77 Stitchlengthdial | 396407-04 | Not Available |
| 12 | Not Available | Feedregulatelinkpin | 396404-11 | Not Available |
| 12 | Not Available | 396404-11 Feedregulatelinkpin | A10741000 | Not Available |
| 12 | Not Available | Feeddrivelinkpin(B) 29 A10741000 396404-11 Feedregulatelinkpin | 396404-14 | Not Available |
| 12 | Not Available | 396404-14 Feeddrivelinkpin(B) 29 A10741000 396404-11 Feedregulatelinkpin | A10831000 | Not Available |
| 13 | Not Available | Ering | 396404-73 | Not Available |
| 13 | Not Available | Washer 30 E06T08A04 396404-73 Ering | 396407-07 | Not Available |
| 14 | Not Available | Handwheelsettingcollar | 396404-62 | Not Available |
| 14 | Not Available | Feedcamslideblock 31 B1065-111 396404-62 Handwheelsettingcollar | 396404-04 | Not Available |
| 14 | Not Available | 396404-04 Feedcamslideblock 31 B1065-111 396404-62 Handwheelsettingcollar | A10161000 | Not Available |
| 15 | Not Available | Feedcam | 396402-97 | Not Available |
| 15 | Not Available | 396402-97 Feedcam | A10181000 | Not Available |
| 16 | Not Available | Feedregulateholdershaft | 396404-15 | Not Available |
| 16 | Not Available | 396404-15 Feedregulateholdershaft | A10861001 | Not Available |
| 17 |  | Genuine Janome/Elna E-RING EL683 EL686 | 396404-72 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Needlebarlocateboard | 396405-42 | Not Available |
| 1 | Not Available | Needlebarsettinglink 20 G1185 396405-42 Needlebarlocateboard | 396405-16 | Not Available |
| 2 | Not Available | Needlebarlocatesupport | 396405-43 | Not Available |
| 2 | Not Available | Setscrew 21 G1186 396405-43 Needlebarlocatesupport | 396406-92 | Not Available |
| 3 | Not Available | Needlebarlocatecam | 396405-44 | Not Available |
| 3 |  | Genuine Janome/Elna NEEDLE BAR | 396405-89 | $27.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Needlebarlocatepin | 396405-45 | Not Available |
| 4 | Not Available | Needleclampcompleteset 23 G1188 396405-45 Needlebarlocatepin | 396404-75 | Not Available |
| 5 | Not Available | Presserbardial | 396408-78 | Not Available |
| 5 |  | Genuine Janome/Elna NEEDLE CLAMP THREAD GUIDE | 396404-20 | $2.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | 396404-20 Needleclampthreadguide 24 G2046P002 396408-78 Presserbardial | A11101000 | Not Available |
| 6 | Not Available | Supportsettingboard | 396406-06 | Not Available |
| 6 |  | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-66 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Ering | 396404-70 | Not Available |
| 7 |  | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-68 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Ering | 396401-99 | Not Available |
| 8 |  | Genuine Janome/Elna SET SCREW | 396404-00 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | 396404-00 Setscrew 27 E06T08A04 396401-99 Ering | 010807 | Not Available |
| 9 | Not Available | Bulbholder | 396405-46 | Not Available |
| 9 | Not Available | Needle 28 G1191 396405-46 Bulbholder | 396404-27 | Not Available |
| 9 | Not Available | 396404-27 Needle 28 G1191 396405-46 Bulbholder | K034000 | Not Available |
| 10 | | Genuine Janome/Elna PRESSER BAR LIFTER EL683 EL686 PRESSER BAR LIFTER EL683 EL686 | 396406-14 | $11.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Washer 29 G2023 396406-14 Pressbarlifter | 396407-09 | Not Available |
| 11 | | Genuine Janome/Elna PRESSER BAR SETTING BOARD PRESSER BAR SETTING BOARD | 396406-08 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Presserbarspring 30 G2017-111 396406-08 Pressbarsettingboard | 396406-50 | Not Available |
| 12 | Not Available | Threadcuttingsettingboard | 396406-09 | Not Available |
| 12 | | Genuine Janome/Elna PRESSER BAR | 396405-83 | $9.60Read more |
| 13 | Not Available | Threadcutting | 396406-55 | Not Available |
| 13 | Not Available | Presserbarsettinglink 32 G2073 396406-55 Threadcutting | 396406-07 | Not Available |
| 14 | | Genuine Janome/Elna E-RING EL683 EL686 | 396404-72 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Genuine Janome/Elna PRESSER FOOT COMPL. | 396419-47 | $50.60Read more |
| 15 |  | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Genuine Janome/Elna PRESSER FOOT HOLDER EL683 | 396404-26 | $23.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | 396404-26 Presserfootholder 34 M03L06I04 396406-70 Setscrew | A021004 | Not Available |
| 16 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Genuine Janome/Elna PRESSER FOOT SPRING | 396405-76 | $2.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Genuine Janome/Elna SET SCREW | 396406-62 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Genuine Janome/Elna PRESSER FOOT EL683 EL686 | 396419-46 | $26.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Setscrew | 396406-81 | Not Available |
| 18 | Not Available | Presserbarlifterspring 37 M04L06E01 396406-81 Setscrew | 396406-11 | Not Available |
| 19 | Not Available | Pressbarlifterholder | 396406-04 | Not Available |
| 19 | | Genuine Janome/Elna SET SCREW | 396404-01 | $1.20Read more |
| 19 | Not Available | 396404-01 Setscrew 38 G2013 396406-04 Pressbarlifterholder | 096408 | Not Available |
| 39 | | Genuine Janome/Elna NEEDLE PLATE SCREW EL683 EL686 | 396405-87 | $1.20Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna WASHER EL683 EL686 | 396406-97 | $0.80Read more |
| 1 | Not Available | Upperlooperconnectingarm 16 W03F07A06 396406-97 Washer | 396406-22 | Not Available |
| 2 |  | Genuine Janome/Elna TWO THREAD CONVERTER EL683 | 396405-79 | $11.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Setscrew 17 G1262 396405-79 Twothreadconverter | 396406-81 | Not Available |
| 3 |  | Genuine Janome/Elna MOVING LEVER COVER EL683 EL686 | 396404-53 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | 396404-53 Movinglevercover | B10141567 | Not Available |
| 3 | Not Available | Slideshaft 18 B10141567 396404-53 Movinglevercover | 396405-80 | Not Available |
| 4 |  | Genuine Janome/Elna E RING EL683 EL686 | 396404-68 | $1.00Read more |
| 4 | | Genuine Janome/Elna SET SCREW | 396406-88 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Genuine Janome/Elna TWO THREAD CONVERTER SHAFT | 396405-81 | $3.00Read more |
| 5 | Not Available | Springwasher 20 G1264 396405-81 Twothreadconvertershaft | 396407-01 | Not Available |
| 6 | Not Available | Colorsticker(green) | 396406-99 | Not Available |
| 6 | Not Available | 396406-99 Colorsticker(green) | A11481250 | Not Available |
| 6 | | Genuine Janome/Elna UPPER LOOPER THREAD TAKE UP | 396405-69 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Colorsticker(yellow) | 396404-24 | Not Available |
| 7 | Not Available | 396404-24 Colorsticker(yellow) | A11481123 | Not Available |
| 7 | | Genuine Janome/Elna LOWER LOOPER THREAD TAKE UP | 396405-73 | $1.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Setscrew | 396406-80 | Not Available |
| 8 | | Genuine Janome/Elna MOTOR 120V repl. by 396407-20 | 396405-92 | $68.20Read more |
| 9 | | Genuine Janome/Elna SET SCREW | 396406-63 | $0.80Read more |
| 9 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Slideshaftholder | 396405-14 | Not Available |
| 11 | Not Available | Slideshaftholderbushing | 396405-15 | Not Available |
| 12 | Not Available | Settingcollar | 396404-16 | Not Available |
| 12 | Not Available | 396404-16 Settingcollar | A10941001 | Not Available |
| 13 |  | Genuine Janome/Elna UPPER LOOPER EL683 EL686 | 396405-78 | $62.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Genuine Janome/Elna UPPER LOOPER THREADING GUIDE | 396405-86 | $0.40Read more |
| 15 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-74 | $0.60Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Feeddogholderpin | 396404-95 | Not Available |
| 1 | Not Available | D.F.shaft 18 G1055 396404-95 Feeddogholderpin | 396406-25 | Not Available |
| 2 | Not Available | Settingcollar | 396404-18 | Not Available |
| 2 | Not Available | 396404-18 Settingcollar | A10961001 | Not Available |
| 2 | Not Available | D.F.locatingcollar 19 A10961001 396404-18 Settingcollar | 396405-74 | Not Available |
| 3 | Not Available | D.F.slideblockpin | 396404-12 | Not Available |
| 3 | Not Available | 396404-12 D.F.slideblockpin | A10791000 | Not Available |
| 3 | Not Available | D.F.diallocatingspring 20 A10791000 396404-12 D.F.slideblockpin | 396405-75 | Not Available |
| 4 | Not Available | D.F.linkpin | 396404-91 | Not Available |
| 4 | Not Available | D.F.regulatecam 21 G1050 396404-91 D.F.linkpin | 396404-93 | Not Available |
| 5 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | D.F.dialbushing 22 M04L08A06 396406-83 Setscrew | 396404-30 | Not Available |
| 5 | Not Available | 396404-30 D.F.dialbushing 22 M04L08A06 396406-83 Setscrew | A40101000 | Not Available |
| 6 | | Genuine Janome/Elna DIAL CUPW | 396406-45 | $0.80Read more |
| 6 | Not Available | D.F.linkbar 23 G2059-111 396406-45 Dialcup | 396404-88 | Not Available |
| 7 | | Genuine Janome/Elna SET SCREW | 396406-90 | $0.80Read more |
| 7 | | Genuine Janome/Elna E-RING EL683 EL686 | 396404-72 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Genuine Janome/Elna WASHER | 396407-11 | $1.20Read more |
| 8 | Not Available | Setscrew 25 W08T12A00 396407-11 Washer | 396406-81 | Not Available |
| 9 | | Genuine Janome/Elna WASHER EL683 EL686 | 396406-97 | $0.80Read more |
| 9 | Not Available | D.F.dialsupport 26 W03F07A06 396406-97 Washer | 396405-40 | Not Available |
| 10 | Not Available | D.F.dial | 396408-79 | Not Available |
| 11 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | D.F.regulateshaft | 396404-94 | Not Available |
| 13 | Not Available | Ering | 396404-73 | Not Available |
| 14 | Not Available | D.F.regulatesupport | 396404-92 | Not Available |
| 15 | Not Available | Setscrew | 396406-80 | Not Available |
| 16 | Not Available | D.F.slidesupport | 396404-86 | Not Available |
| 17 | Not Available | D.F.slideblock | 396404-87 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Feeddogcam | 396404-83 | Not Available |
| 2 | Not Available | Feeddogholder(rear) | 396404-85 | Not Available |
| 3 |  | Genuine Janome/Elna FEED DOG REAR EL683 EL686 | 396404-98 | $4.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Feeddogholder(front) | 396404-90 | Not Available |
| 5 |  | Genuine Janome/Elna FEED DOG FRONT EL683 EL686 | 396404-99 | $15.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Feeddogsupporterslideblock | 396404-84 | Not Available |
| 7 | Not Available | Feeddogsupporter(front) | 396405-03 | Not Available |
| 8 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-74 | $0.60Read more |
| 9 | Not Available | Washer | 396406-98 | Not Available |
| 10 | Not Available | Setscrew | 396406-81 | Not Available |
| 11 | Not Available | Setscrew | 396406-82 | Not Available |
| 12 | Not Available | Feeddogholderpin | 396404-96 | Not Available |
| 13 | Not Available | Feeddogshakingrodcompleteset | 396404-89 | Not Available |
| 14 | Not Available | Ering | 396404-74 | Not Available |
| 15 | | Genuine Janome/Elna SET SCREW | 396406-75 | $0.80Read more |
| 16 | Not Available | Washer | 396407-02 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna LOWER LOOPER EL683 EL686 | 396405-36 | $62.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna LOWER LOOPER SUPPORTER | 396405-34 | $34.20Read more |
| 3 | | Genuine Janome/Elna LOWER LOOPER PROTECT BOARD | 396405-77 | $2.60Read more |
| 4 | Not Available | Autothreadershaft | 396405-33 | Not Available |
| 5 | | Genuine Janome/Elna AUTO THREADER | 396405-31 | $13.80Read more |
| 6 | Not Available | Ering | 396404-70 | Not Available |
| 7 | Not Available | Autothreaderspring | 396404-29 | Not Available |
| 7 | Not Available | 396404-29 Autothreaderspring | A30051001 | Not Available |
| 8 | | Genuine Janome/Elna NUT EL683 EL686 | 396406-53 | $0.60Read more |
| 9 | | Genuine Janome/Elna SET SCREW | 396406-75 | $0.80Read more |
| 9 | | Genuine Janome/Elna SET SCREW | 396406-75 | $0.80Read more |
| 10 | Not Available | Washer | 396406-98 | Not Available |
| 11 | Not Available | Setscrew | 396406-95 | Not Available |
| 12 | Not Available | Springwasher | 396407-04 | Not Available |
| 14 |  | Genuine Janome/Elna AUTO THREADER COMPLETE SET | 396405-32 | $5.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Janome/Elna LOWER LOOPER SUPPORTER SET | 396405-35 | $9.80Read more |
| 16 | Not Available | Washer | 396405-90 | Not Available |
| 17 | Not Available | Lowerlooperthreadguide | 396405-85 | Not Available |
| # | Part image | Description | SKU | Price |

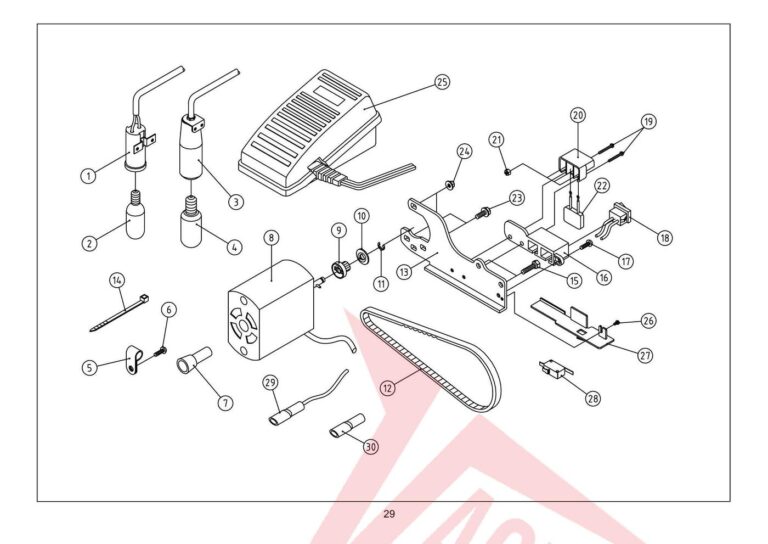

| 1 | Not Available | Nut | 396407-36 | Not Available |
| 1 | Not Available | 396407-36 Nut | 039003 | Not Available |

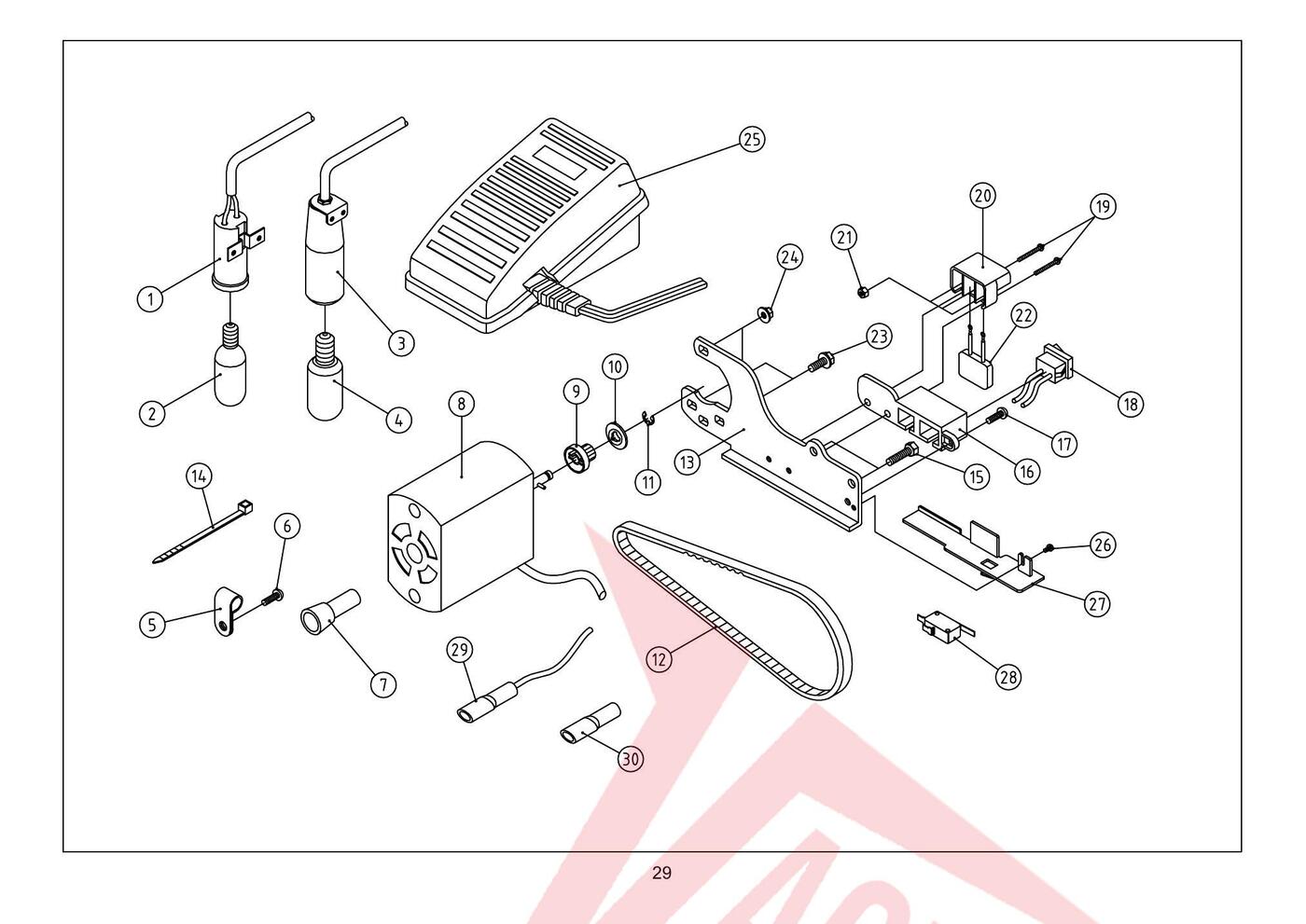

| 1 | | Genuine Janome/Elna LIGHTING SET 120V EL683 EL686 | 396407-15 | $11.60Read more |
| 2 | Not Available | Nut(new) | 396408-44 | Not Available |
| 2 |  | Genuine Janome/Elna BULB 683 686 654 | 396419-04 | $3.40Read more |
| 2 | Not Available | 396419-04 Bulb(120V) 21 M9828 396408-44 Nut(new) | E0171000 | Not Available |
| 3 | | Genuine Janome/Elna CONDENSER | 396407-37 | $9.60Read more |
| 3 | Not Available | 396407-37 Condenser | 169009 | Not Available |
| 3 | Not Available | Lightingset(240V)(Availablefor220V/230V/240V) 22 50-169009A 396407-37 Condenser | 396407-16 | Not Available |
| 4 | Not Available | Condenser(new) | 396408-45 | Not Available |
| 4 | | Genuine Janome/Elna BULB 230V | 396419-03 | $10.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | 396419-03 Bulb(240V)(Availablefor220V/230V/240V) 22 KC98-18A 396408-45 Condenser(new) | E0181000 | Not Available |
| 5 | Not Available | Setscrew | 396407-39 | Not Available |
| 5 | Not Available | 396407-39 Setscrew | 109057 | Not Available |
| 5 | Not Available | HW(1/4)cordclip 23 38-109057 396407-39 Setscrew | 396407-17 | Not Available |
| 5 | Not Available | 396407-17 HW(1/4)cordclip 23 38-109057 396407-39 Setscrew | E0201000 | Not Available |
| 6 | Not Available | Setscrew(new) | 396408-46 | Not Available |
| 6 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Nut | 396407-40 | Not Available |
| 7 | Not Available | 396407-40 Nut | 589006 | Not Available |
| 7 | Not Available | C4Endterminal 24 38-589006 396407-40 Nut | 396407-18 | Not Available |
| 7 | Not Available | 396407-18 C4Endterminal 24 38-589006 396407-40 Nut | E0191000 | Not Available |
| 8 | Not Available | Footcontroller(220V)(new) | 396408-49 | Not Available |
| 8 | Not Available | Motor(220V~230V)(new) 25 4C326C22CU 396408-49 Footcontroller(220V)(new) | 396408-40 | Not Available |
| 8 | Not Available | Footcontroller(220V)(new) | 396408-50 | Not Available |
| 8 | Not Available | Motor(240V)(new) 25 4C316C26CU 396408-50 Footcontroller(220V)(new) | 396408-41 | Not Available |
| 8 | | Genuine Janome/Elna FOOT CONTROL 120V ELNA 654 | 396407-42 | $143.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Motor(120V)(new) 25 4C316B202 396407-42 Footcontroller(120V) | 396408-39 | Not Available |
| 8 | Not Available | Footcontroller(220V) | 396407-43 | Not Available |
| 8 | | Genuine Janome/Elna MOTOR 230V | 396407-22 | $198.00Read more |
| 8 | Not Available | Footcontroller(120V)(new) | 396408-48 | Not Available |
| 8 | Not Available | Motor(220V) 25 4C316B22CU 396408-48 Footcontroller(120V)(new) | 396407-21 | Not Available |
| 8 | Not Available | Footcontroller(220V) | 396407-44 | Not Available |
| 8 | Not Available | Motor(240V) 25 4C316C406 396407-44 Footcontroller(220V) | 396407-23 | Not Available |
| 8 | Not Available | Nut(new) | 396408-47 | Not Available |
| 8 | Not Available | Motor(120V) 24 M6844A 396408-47 Nut(new) | 396407-20 | Not Available |
| 9 | Not Available | Footcontroller(220V) | 396407-45 | Not Available |
| 9 | | Genuine Janome/Elna MOTOR PULLEY | 396407-24 | $5.00Read more |
| 9 | Not Available | 396407-24 Timingbeltpulley 25 4C316C402 396407-45 Footcontroller(220V) | A11411000 | Not Available |
| 10 | Not Available | Footcontroller(220V)(new) | 396408-51 | Not Available |
| 10 | Not Available | Timingbeltpulleycover 25 4C316C28CU 396408-51 Footcontroller(220V)(new) | 396407-25 | Not Available |
| 10 | Not Available | 396407-25 Timingbeltpulleycover 25 4C316C28CU 396408-51 Footcontroller(220V)(new) | A11421000 | Not Available |
| 11 | | Genuine Janome/Elna FOOT CONTROL 230V CEE | 396407-46 | $172.20Read more |
| 11 | Not Available | Ering 25 4C316G202 396407-46 Footcontroller(230V) | 396407-26 | Not Available |
| 12 | Not Available | Footcontroller(230V)(new) | 396408-52 | Not Available |
| 12 | | Genuine Janome/Elna MOTOR BELT | 396407-27 | $22.80Read more |
| 12 | Not Available | 396407-27 Timingbelt 25 4C326G22CU 396408-52 Footcontroller(230V)(new) | O011000 | Not Available |
| 13 | | Genuine Janome/Elna FOOT CONTROL 240V UK | 396407-47 | $139.20Read more |
| 13 | Not Available | Motorsupporter 25 4C326C205 396407-47 Footcontroller(240V) | 396407-28 | Not Available |
| 13 | Not Available | 396407-28 Motorsupporter 25 4C326C205 396407-47 Footcontroller(240V) | A10881001 | Not Available |
| 14 | Not Available | Footcontroller(240V)(new) | 396408-53 | Not Available |
| 14 | Not Available | Cordclip 25 4C326C25CU 396408-53 Footcontroller(240V)(new) | 396407-29 | Not Available |
| 15 | | Genuine Janome/Elna FOOT CONTROL 240V AUS/NZ | 396407-48 | $146.80Read more |
| 15 | Not Available | SetScrew 25 4C326C203 396407-48 Footcontroller(240V) | 396407-30 | Not Available |
| 16 | Not Available | Footcontroller(240V)(new) | 396408-54 | Not Available |
| 16 | Not Available | Switchsupporter 25 4C326C23CU 396408-54 Footcontroller(240V)(new) | 396407-31 | Not Available |
| 16 | Not Available | 396407-31 Switchsupporter 25 4C326C23CU 396408-54 Footcontroller(240V)(new) | A11431567 | Not Available |
| 17 | Not Available | Setscrew | 396407-49 | Not Available |
| 17 | Not Available | Setscrew 26 M03L06A04 396407-49 Setscrew | 396407-32 | Not Available |
| 18 | Not Available | Microswitchinsulationplate | 396407-50 | Not Available |
| 18 | | Genuine Janome/Elna SWITCH EL683 EL686 | 396407-33 | $4.40Read more |
| 18 | Not Available | 396407-33 Switch 27 G1238-111 396407-50 Microswitchinsulationplate | E0112000 | Not Available |
| 19 | Not Available | Terminalw/transparentinsulationtube | 396407-52 | Not Available |
| 19 | Not Available | 396407-52 Terminalw/transparentinsulationtube | E0501000 | Not Available |
| 19 | Not Available | Setscrew(new) 29 EE0501000 396407-52 Terminalw/transparentinsulationtube | 396408-42 | Not Available |
| 19 | Not Available | Microswitch | 396407-51 | Not Available |
| 19 | Not Available | 396407-51 Microswitch | E0491000 | Not Available |
| 19 | Not Available | Setscrew 28 EE0491000 396407-51 Microswitch | 396407-34 | Not Available |
| 19 | Not Available | 396407-34 Setscrew 28 EE0491000 396407-51 Microswitch | 109059 | Not Available |
| 20 | Not Available | Machinesocket(new) | 396408-43 | Not Available |
| 20 | Not Available | Terminalw/un-transparentinsulationtub | 396407-53 | Not Available |
| 20 | Not Available | 396407-53 Terminalw/un-transparentinsulationtub | E0511184 | Not Available |
| 20 |  | Genuine Janome/Elna MACHINE SOCKET | 396407-35 | $21.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | 396407-35 Machinesocket 30 EE0511184 396407-53 Terminalw/un-transparentinsulationtub | 579033 | Not Available |
| # | Part image | Description | SKU | Price |

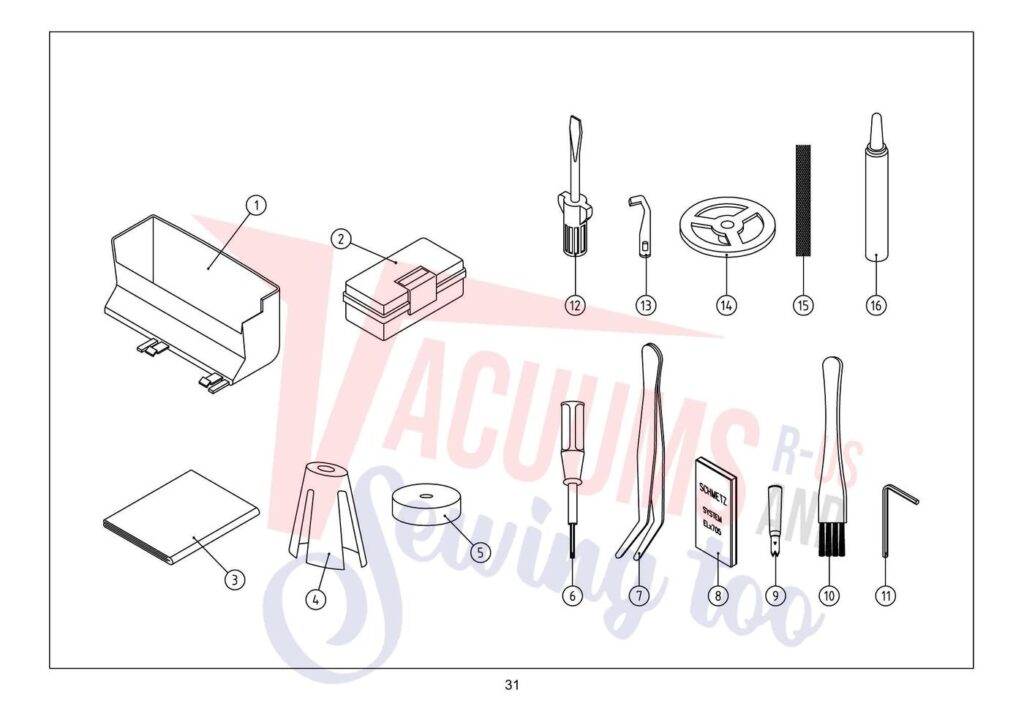

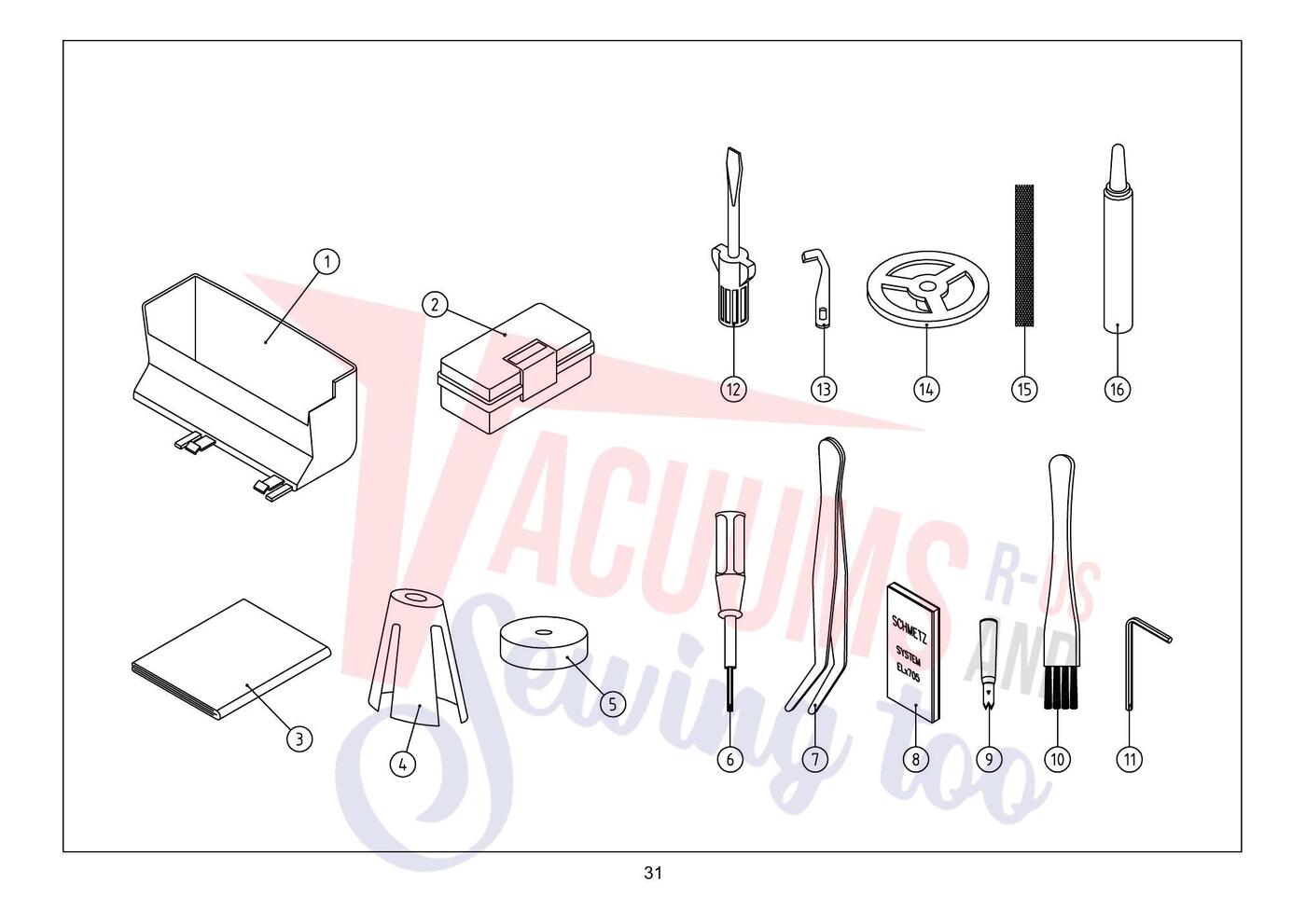

| 1 | | Genuine Janome/Elna CHIP BOX EL683 EL686 | 396419-40 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna ACCESSORIES BOX EL683 EL686 | 396419-41 | $3.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Genuine Janome/Elna DUST COVER EL683 EL686 | 396419-15 | $25.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | 396419-15 Dustcover | U011000 | Not Available |
| 4 | | Genuine Janome/Elna CONE HOLDER EL683 EL686 | 396419-42 | $2.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Genuine Janome/Elna FOAM PAD EL683 EL686 | 396419-43 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Genuine Janome/Elna HEXAGON DRIVER EL683 EL686 | 396419-44 | $4.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | 396419-44 Hexagondriver | H011001 | Not Available |
| 6 | Not Available | 396419-44 Hexagondriver | H011001 | Not Available |
| 7 |  | Genuine Janome/Elna TWEEZERS EL683 EL686 | 396419-08 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | 396419-08 Tweezers | G011000 | Not Available |
| 8 |  | Genuine Janome/Elna ASSORTMENT 5 NEEDLES MODEL 705 | 396002-27 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | 396002-27 Needle*3 | J033000 | Not Available |
| 9 | Not Available | Needlethreader | 494680-20 | Not Available |
| 10 | Not Available | Cleaningbrush | 396419-45 | Not Available |
| 11 | | Genuine Janome/Elna HEXAGON WRENCH EL683 EL686 | 396419-12 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Genuine Janome/Elna SCREW DRIVER EL683 EL686 | 396419-11 | $4.00Read more |
| 12 | Not Available | 396419-11 Screwdriver | F011211 | Not Available |
| 13 |  | Genuine Janome/Elna UPPER KNIFE EL683 EL686 | 396405-08 | $38.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Genuine Janome/Elna SPOOL CAPS EL683 EL686 | 396419-48 | $1.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Nut | 396419-07 | Not Available |
| 15 | Not Available | 396419-07 Nut | L011000 | Not Available |
| 16 | Not Available | Oiler | 396419-10 | Not Available |
| 16 | Not Available | 396419-10 Oiler | E011000 | Not Available |
| # | Part image | Description | SKU | Price |

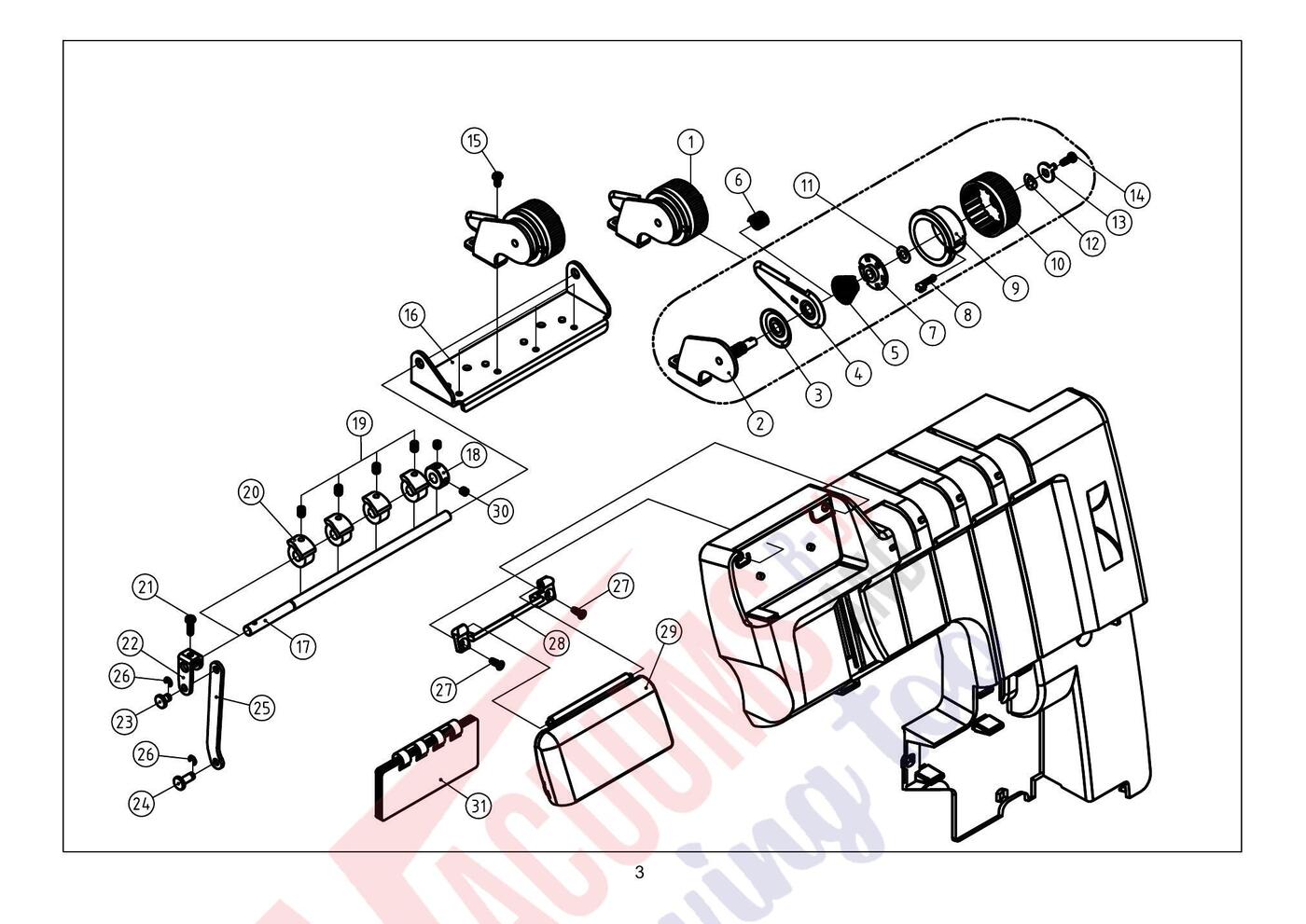

| 1 | Not Available | Tensionspring(rightneedle,leftneedle) | 396404-60 | Not Available |
| 1 | Not Available | 396404-60 Tensionspring(rightneedle,leftneedle) | B10491001 | Not Available |
| 1 | Not Available | 654Frontcover(No.1.2.3.4.5.6.9.10.11included) 20 B10491001 396404-60 Tensionspring(rightneedle,leftneedle) | 396408-60 | Not Available |
| 2 | Not Available | Tensionspring(upperlooper) | 396404-61 | Not Available |
| 2 | Not Available | 396404-61 Tensionspring(upperlooper) | B10501002 | Not Available |
| 2 | Not Available | Threadtake-upcover 20 B10501002 396404-61 Tensionspring(upperlooper) | 396406-38 | Not Available |
| 3 | Not Available | Tensionspring(lowerlooper) | 396404-65 | Not Available |
| 3 | Not Available | 396404-65 Tensionspring(lowerlooper) | C10081006 | Not Available |
| 3 |  | Genuine Janome/Elna THREAD GUIDE (B) ELNA 683 686 | 396406-05 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Tensionregulatenut | 396404-52 | Not Available |
| 4 | Not Available | 396404-52 Tensionregulatenut | B10131000 | Not Available |
| 4 | Not Available | Threadguide(C) 22 B10131000 396404-52 Tensionregulatenut | 396404-55 | Not Available |
| 4 | Not Available | 396404-55 Threadguide(C) 22 B10131000 396404-52 Tensionregulatenut | B10231004 | Not Available |
| 5 | Not Available | Washer | 396407-03 | Not Available |
| 5 |  | Genuine Janome/Elna THREAD GUIDE EL683 EL686 | 396404-64 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | 396404-64 Threadguide(F) 23 W05F10A03 396407-03 Washer | C10071004 | Not Available |
| 6 | | Genuine Janome/Elna TENSION DISC (GREEN) | 396404-47 | $2.80Read more |
| 6 | Not Available | 396404-47 Tensionregulatedisc(green) | B10051250 | Not Available |
| 6 | Not Available | Threadguide(D) 24 B10051250 396404-47 Tensionregulatedisc(green) | 396404-56 | Not Available |
| 6 | Not Available | 396404-56 Threadguide(D) 24 B10051250 396404-47 Tensionregulatedisc(green) | B10241004 | Not Available |
| 7 | Not Available | Tensionregulatedisc(yellow) | 396404-44 | Not Available |
| 7 | Not Available | 396404-44 Tensionregulatedisc(yellow) | B10051123 | Not Available |
| 7 | Not Available | Programcardcover 24 B10051123 396404-44 Tensionregulatedisc(yellow) | 396408-61 | Not Available |
| 8 | Not Available | Tensionregulatedisc(red) | 396404-46 | Not Available |
| 8 | Not Available | 396404-46 Tensionregulatedisc(red) | B10051235 | Not Available |
| 8 | Not Available | Setscrew 24 B10051235 396404-46 Tensionregulatedisc(red) | 396406-71 | Not Available |
| 9 | Not Available | Tensionregulatedisc(blue) | 396404-45 | Not Available |
| 9 | Not Available | 396404-45 Tensionregulatedisc(blue) | B10051184 | Not Available |
| 9 | Not Available | Stitchlenghtdisplaywindow 24 B10051184 396404-45 Tensionregulatedisc(blue) | 396408-62 | Not Available |
| 10 |  | Genuine Janome/Elna TENSION PIN (GREEN) | 396404-51 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | 396404-51 Tensionregulatepin(green) | B10061250 | Not Available |
| 10 | Not Available | Frontcoverfixingboard 25 B10061250 396404-51 Tensionregulatepin(green) | 396405-24 | Not Available |
| 11 |  | Genuine Janome/Elna TENSION PIN (YELLOW) | 396404-48 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | 396404-48 Tensionregulatepin(yellow) | B10061123 | Not Available |
| 11 |  | Genuine Janome/Elna SET SCREW | 396406-69 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Genuine Janome/Elna TENSION PIN (RED) | 396404-50 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | 396404-50 Tensionregulatepin(red) | B10061235 | Not Available |
| 12 | | Genuine Janome/Elna BULB COVER | 396404-76 | $9.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Genuine Janome/Elna TENSION PIN (BLUE) | 396404-49 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | 396404-49 Tensionregulatepin(blue) | B10061184 | Not Available |
| 13 | Not Available | Lampcoverheatoutplate 25 B10061184 396404-49 Tensionregulatepin(blue) | 396406-52 | Not Available |
| 14 | | Genuine Janome/Elna TENSION DIAL (GREEN) | 396404-41 | $6.20Read more |
| 14 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 15 | | Genuine Janome/Elna TENSION DIAL (YELLOW) | 396404-38 | $6.20Read more |
| 15 | Not Available | Tensiondialholder 26 B1004P003 396404-38 Tensiondial(2,3,4yellow) | 396406-27 | Not Available |
| 16 | | Genuine Janome/Elna TENSION DIAL (RED) | 396404-35 | $6.20Read more |
| 16 | | Genuine Janome/Elna TENSION DIAL SET LOWER LOOPER | 396404-42 | $5.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Genuine Janome/Elna TENSION KNOB BLUE | 396404-31 | $7.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Tensiondialset(upperlopper) 26 B1004P001 396404-31 Tensiondial(2,3,4blue) | 396404-39 | Not Available |
| 16 |  | Genuine Janome/Elna WAVE WASHER EL683 | 396407-05 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Genuine Janome/Elna TENSION DIAL SET RIGHT NEEDLE | 396404-36 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Tensiondialsettingplate | 396404-54 | Not Available |
| 16 | Not Available | 396404-54 Tensiondialsettingplate | B10181001 | Not Available |
| 16 |  | Genuine Janome/Elna TENSION DIAL SET LEFT NEEDLE | 396404-33 | $5.00Read more |
| 17 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Genuine Janome/Elna SET SCREW | 396406-90 | $0.80Read more |
| 18 | | Genuine Janome/Elna WASHER | 396407-00 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Tensiondialholderset 30 W04F10A06 396407-00 Washer | 396406-19 | Not Available |
| 19 | | Genuine Janome/Elna WASHER EL683 EL686 | 396406-97 | $0.80Read more |
| 19 | Not Available | Tensiondisc 31 W03F07A06 396406-97 Washer | 396404-10 | Not Available |
| 19 | Not Available | 396404-10 Tensiondisc 31 W03F07A06 396406-97 Washer | A10701004 | Not Available |
| 20 | Not Available | Colorsticker(green) | 396406-99 | Not Available |
| 20 | Not Available | 396406-99 Colorsticker(green) | A11481250 | Not Available |
| 20 | Not Available | Tensionspring(lowerlooper) 32 A11481250 396406-99 Colorsticker(green) | 396404-59 | Not Available |
| 20 | Not Available | 396404-59 Tensionspring(lowerlooper) 32 A11481250 396406-99 Colorsticker(green) | B10481006 | Not Available |
| 33 | Not Available | Colorsticker(yellow) | 396404-24 | Not Available |
| 33 | Not Available | 396404-24 Colorsticker(yellow) | A11481123 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Washer | 396407-03 | Not Available |
| 1 | | Genuine Janome/Elna TENSION DIAL SET LOWER LOOPER | 396404-43 | $5.00Read more |
| 1 | | Genuine Janome/Elna WAVE WASHER EL683 | 396407-05 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | | Genuine Janome/Elna TENSION DIAL SET UPPER LOOPER | 396404-40 | $5.00Read more |
| 1 | Not Available | Tensiondialsettingplate | 396404-54 | Not Available |
| 1 | Not Available | 396404-54 Tensiondialsettingplate | B10181001 | Not Available |
| 1 | | Genuine Janome/Elna TENSION DIAL SET RIGHT NEEDLE | 396404-37 | $5.00Read more |
| 1 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 1 | | Genuine Janome/Elna TENSION DIAL SET LEFT NEEDLE | 396404-34 | $5.00Read more |
| 2 | | Genuine Janome/Elna SET SCREW | 396406-90 | $0.80Read more |
| 2 | Not Available | Tensiondialholderset 15 M04L4.5A02 396406-90 Setscrew | 396406-19 | Not Available |
| 3 | Not Available | Tensiondialholder | 396406-20 | Not Available |
| 3 | Not Available | Tensiondisc 16 G2030 396406-20 Tensiondialholder | 396404-10 | Not Available |
| 3 | Not Available | 396404-10 Tensiondisc 16 G2030 396406-20 Tensiondialholder | A10701004 | Not Available |
| 4 | Not Available | Releasecamshaft | 396406-18 | Not Available |
| 4 | Not Available | Tensiondisc 17 G2027 396406-18 Releasecamshaft | 396406-10 | Not Available |
| 5 | Not Available | Releasecam | 396406-15 | Not Available |
| 5 | Not Available | Tensionspring(upperlooper) 20 G2024 396406-15 Releasecam | 396404-61 | Not Available |
| 5 | Not Available | Setscrew | 396406-81 | Not Available |
| 5 | Not Available | Tensionspring(rightneedle,leftneedle) 19 M04L06E01 396406-81 Setscrew | 396404-60 | Not Available |
| 5 | Not Available | Settingcollar | 396406-28 | Not Available |
| 5 | Not Available | Tensionspring(lowerlooper) 18 G2040 396406-28 Settingcollar | 396404-59 | Not Available |
| 5 | Not Available | 396404-59 Tensionspring(lowerlooper) 18 G2040 396406-28 Settingcollar | B10481006 | Not Available |
| 5 | Not Available | 396404-60 Tensionspring(rightneedle,leftneedle) 19 M04L06E01 396406-81 Setscrew | B10491001 | Not Available |
| 5 | Not Available | 396404-61 Tensionspring(upperlooper) 20 G2024 396406-15 Releasecam | B10501002 | Not Available |
| 6 | Not Available | Setscrew | 396406-78 | Not Available |
| 6 | Not Available | Tensionspring(lowerlooper) 21 M03L10I02 396406-78 Setscrew | 396404-65 | Not Available |
| 6 | Not Available | 396404-65 Tensionspring(lowerlooper) 21 M03L10I02 396406-78 Setscrew | C10081006 | Not Available |
| 7 | Not Available | Releaselinksupporter | 396406-13 | Not Available |
| 7 | Not Available | Tensionregulatenut 22 G2022 396406-13 Releaselinksupporter | 396404-52 | Not Available |
| 7 | Not Available | 396404-52 Tensionregulatenut 22 G2022 396406-13 Releaselinksupporter | B10131000 | Not Available |
| 8 | Not Available | ReleaselinkpinA | 396406-16 | Not Available |
| 8 | | Genuine Janome/Elna TENSION PIN (GREEN) | 396404-51 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Releaselink | 396406-12 | Not Available |
| 8 | | Genuine Janome/Elna TENSION PIN (RED) | 396404-50 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Genuine Janome/Elna E RING EL683 EL686 | 396404-68 | $1.00Read more |
| 8 | | Genuine Janome/Elna TENSION PIN (BLUE) | 396404-49 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | ReleaselinkpinB | 396406-17 | Not Available |
| 8 | | Genuine Janome/Elna TENSION PIN (YELLOW) | 396404-48 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | 396404-51 Tensionregulatepin(green) 23 G2025 396406-16 ReleaselinkpinA | B10061250 | Not Available |
| 8 | Not Available | 396404-48 Tensionregulatepin(yellow) 24 G2026 396406-17 ReleaselinkpinB | B10061123 | Not Available |
| 8 | Not Available | 396404-50 Tensionregulatepin(red) 25 G2021 396406-12 Releaselink | B10061235 | Not Available |
| 8 | Not Available | 396404-49 Tensionregulatepin(blue) 26 E03T06A04 396404-68 Ering | B10061184 | Not Available |
| 9 | Not Available | Setscrew | 396406-77 | Not Available |
| 9 | | Genuine Janome/Elna TENSION DISC (GREEN) | 396404-47 | $2.80Read more |
| 9 | Not Available | Programcardcover | 396408-61 | Not Available |
| 9 | Not Available | Tensionregulatedisc(red) 29 G2009P002 396408-61 Programcardcover | 396404-46 | Not Available |
| 9 | Not Available | Setscrew | 396406-80 | Not Available |
| 9 | Not Available | Tensionregulatedisc(blue) 30 M04L04E01 396406-80 Setscrew | 396404-45 | Not Available |
| 9 | Not Available | Programcardholder | 396408-63 | Not Available |
| 9 | Not Available | Tensionregulatedisc(yellow) 28 G2010-072 396408-63 Programcardholder | 396404-44 | Not Available |
| 9 | Not Available | 396404-47 Tensionregulatedisc(green) 27 M03L08K04 396406-77 Setscrew | B10051250 | Not Available |
| 9 | Not Available | 396404-44 Tensionregulatedisc(yellow) 28 G2010-072 396408-63 Programcardholder | B10051123 | Not Available |
| 9 | Not Available | 396404-46 Tensionregulatedisc(red) 29 G2009P002 396408-61 Programcardcover | B10051235 | Not Available |
| 9 | Not Available | 396404-45 Tensionregulatedisc(blue) 30 M04L04E01 396406-80 Setscrew | B10051184 | Not Available |
| 10 | Not Available | Programcardset | 396408-65 | Not Available |
| 10 | | Genuine Janome/Elna TENSION DIAL (GREEN) | 396404-41 | $6.20Read more |
| 10 | | Genuine Janome/Elna TENSION DIAL (YELLOW) | 396404-38 | $6.20Read more |
| 10 | | Genuine Janome/Elna TENSION DIAL (RED) | 396404-35 | $6.20Read more |
| 10 | | Genuine Janome/Elna TENSION DIAL (BLUE) | 396404-32 | $6.20Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Loopercoverhinge(A) | 396405-58 | Not Available |
| 2 | Not Available | Loopercoverhinge(B) | 396405-56 | Not Available |
| 3 | Not Available | Loopercoverhingeshaft | 396405-60 | Not Available |
| 4 | Not Available | Hingelocatingboard | 396405-59 | Not Available |
| 5 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Genuine Janome/Elna WASHER | 396407-00 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Genuine Janome/Elna SET SCREW | 396406-64 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Genuine Janome/Elna E RING EL683 EL686 | 396404-68 | $1.00Read more |
| 9 | Not Available | Loopercover(654) | 396408-66 | Not Available |
| 10 | Not Available | Loopercoversettingplate | 396404-57 | Not Available |
| 10 | Not Available | 396404-57 Loopercoversettingplate | B10271004 | Not Available |
| 11 | Not Available | Setscrew | 396406-85 | Not Available |
| 12 | Not Available | Setscrew | 396406-71 | Not Available |
| 13 | Not Available | Loopercoverhingespring | 396404-19 | Not Available |
| 13 | Not Available | 396404-19 Loopercoverhingespring | A11061001 | Not Available |
| 14 | Not Available | Connectingpressplate | 396405-63 | Not Available |
| 15 | | Genuine Janome/Elna CONE HOLDER EL683 EL686 | 396419-42 | $2.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Genuine Janome/Elna THREADING STICKER | 396406-51 | $2.40Read more |
| 17 | Not Available | Loopercoverattachedcover(A) | 396408-67 | Not Available |
| 18 | Not Available | Needlesticker | 396406-59 | Not Available |
| 19 | | Genuine Janome/Elna LOOPER COVER HINGE SET EL683 | 396405-57 | $7.20Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna THREAD GUIDE PLATE EL683 | 396406-40 | $39.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | | Genuine Janome/Elna SIDE COVER EL683 EL686 | 396405-96 | $6.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Genuine Janome/Elna THREAD GUIDE BAR EL683 EL686 | 396405-72 | $7.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna BASE PLATE EL683 EL686 | 396405-66 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Genuine Janome/Elna EXTENSION BAR EL683 EL686 | 396404-58 | $12.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | 396404-58 Extensionbar | B10422000 | Not Available |
| 3 | | Genuine Janome/Elna EXTENSION TABLE ELNA 654 | 396408-68 | $32.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Genuine Janome/Elna EXTENSION BAR SETTING EL683 | 396405-67 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Genuine Janome/Elna ACCESSORY TRAY FLAP ELNA 654 | 396408-69 | $16.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Setscrew | 396406-71 | Not Available |
| 5 |  | Genuine Janome/Elna BUILT IN ACCESSORY SETTING | 396406-56 | $7.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Genuine Janome/Elna SET SCREW EL683 | 396406-84 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | D.F.displaywindow 22 M04L08C04 396406-84 Setscrew | 396408-70 | Not Available |
| 7 | Not Available | Sidecoversettingboard | 396405-25 | Not Available |
| 7 | Not Available | Cuttingwidedisplaywindo 23 G1139 396405-25 Sidecoversettingboard | 396408-71 | Not Available |
| 8 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Genuine Janome/Elna EXTENSION TABLE CUP EL683 | 396406-00 | $1.00Read more |
| 9 | Not Available | Setscrew | 396406-87 | Not Available |
| 9 | Not Available | Upperknifepressboard 25 M04L12K04 396406-87 Setscrew | 396408-72 | Not Available |
| 10 | Not Available | Setscrew | 396406-89 | Not Available |
| 10 | | Genuine Janome/Elna UPPER KNIFE PRESS SHAFT EL683 | 396406-36 | $2.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Genuine Janome/Elna WASHER | 396407-00 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Upperknifepressspring 27 W04F10A06 396407-00 Washer | 396406-37 | Not Available |
| 12 | Not Available | Rubber | 396404-23 | Not Available |
| 12 | Not Available | 396404-23 Rubber | A11251000 | Not Available |
| 12 | | Genuine Janome/Elna SET SCREW | 396406-69 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Microswitchcontactorspring | 396405-62 | Not Available |
| 13 |  | Genuine Janome/Elna SET SCREW | 396406-86 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Microswitchcontactor | 396405-61 | Not Available |
| 14 |  | Genuine Janome/Elna SPOOL STAND EL683 EL686 | 396405-64 | $12.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Janome/Elna WAVE WASHER EL683 | 396407-05 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Janome/Elna CONE HOLDER EL683 EL686 | 396419-42 | $2.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Genuine Janome/Elna BACK COVER EL683 EL686 | 396405-95 | $36.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Janome/Elna LOCATING SPRING EL683 EL686 | 396405-91 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Machineframe 18 G1289 396405-91 Locatingspring | 396404-77 | Not Available |
| 2 |  | Genuine Janome/Elna MOVING LEVER HOLDER EL683 | 396405-21 | $2.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Genuine Janome/Elna NEEDLE PLATE SCREW EL683 EL686 | 396405-87 | $1.20Read more |
| 3 | | Genuine Janome/Elna SET SCREW | 396406-63 | $0.80Read more |
| 3 |  | Genuine Janome/Elna LOWER KNIFE EL683 EL686 | 396405-07 | $31.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Lowerknifesupport | 396405-71 | Not Available |
| 4 | Not Available | Lowerknifeholder 21 G1245 396405-71 Lowerknifesupport | 396405-04 | Not Available |
| 5 | | Genuine Janome/Elna SET SCREW | 396406-64 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Genuine Janome/Elna LOWER KNIFE HOLDER BUSHING | 396405-70 | $3.60Read more |
| 6 | Not Available | Needleplatelocatingboardsupport | 396405-38 | Not Available |
| 6 | Not Available | Cuttingwidthknobshaft 23 G1156 396405-38 Needleplatelocatingboardsupport | 396405-23 | Not Available |
| 7 | Not Available | Needleplatelocatingboard | 396405-37 | Not Available |
| 7 | | Genuine Janome/Elna WAVE WASHER EL683 | 396407-05 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Genuine Janome/Elna MOVING LEVER COVER EL683 EL686 | 396404-53 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | 396404-53 Movinglevercover | B10141567 | Not Available |
| 8 | Not Available | Cuttingwidthknob 25 B10141567 396404-53 Movinglevercover | 396406-41 | Not Available |
| 9 | Not Available | Needlebarbushing | 396404-08 | Not Available |
| 9 | Not Available | 396404-08 Needlebarbushing | A10371000 | Not Available |
| 9 | Not Available | Setscrew 26 A10371000 396404-08 Needlebarbushing | 396406-80 | Not Available |
| 10 | Not Available | Presserbarbushing | 396405-82 | Not Available |
| 10 | Not Available | Lowerknifedial 27 G1265 396405-82 Presserbarbushing | 396408-73 | Not Available |
| 11 | | Genuine Janome/Elna DIAL CUPW | 396406-45 | $0.80Read more |
| 11 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Stitchplateset(No.14.15.16.17.18.19. | 396408-76 | Not Available |
| 12 | Not Available | Frontfeeddogguideboard 29 G1067B 396408-76 Stitchplateset(No.14.15.16.17.18.19. | 396405-88 | Not Available |
| 13 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Genuine Janome/Elna Stitch Plate for 654 39640874 396408-74 Stitch Plate for 654 39640874 396408-74 | 396408-74 | $32.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Fixedlever | 396408-75 | Not Available |
| 16 | | Genuine Janome/Elna SET SCREW | 396406-62 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Genuine Janome/Elna MOVING LEVER EL683 EL686 | 396405-02 | $19.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

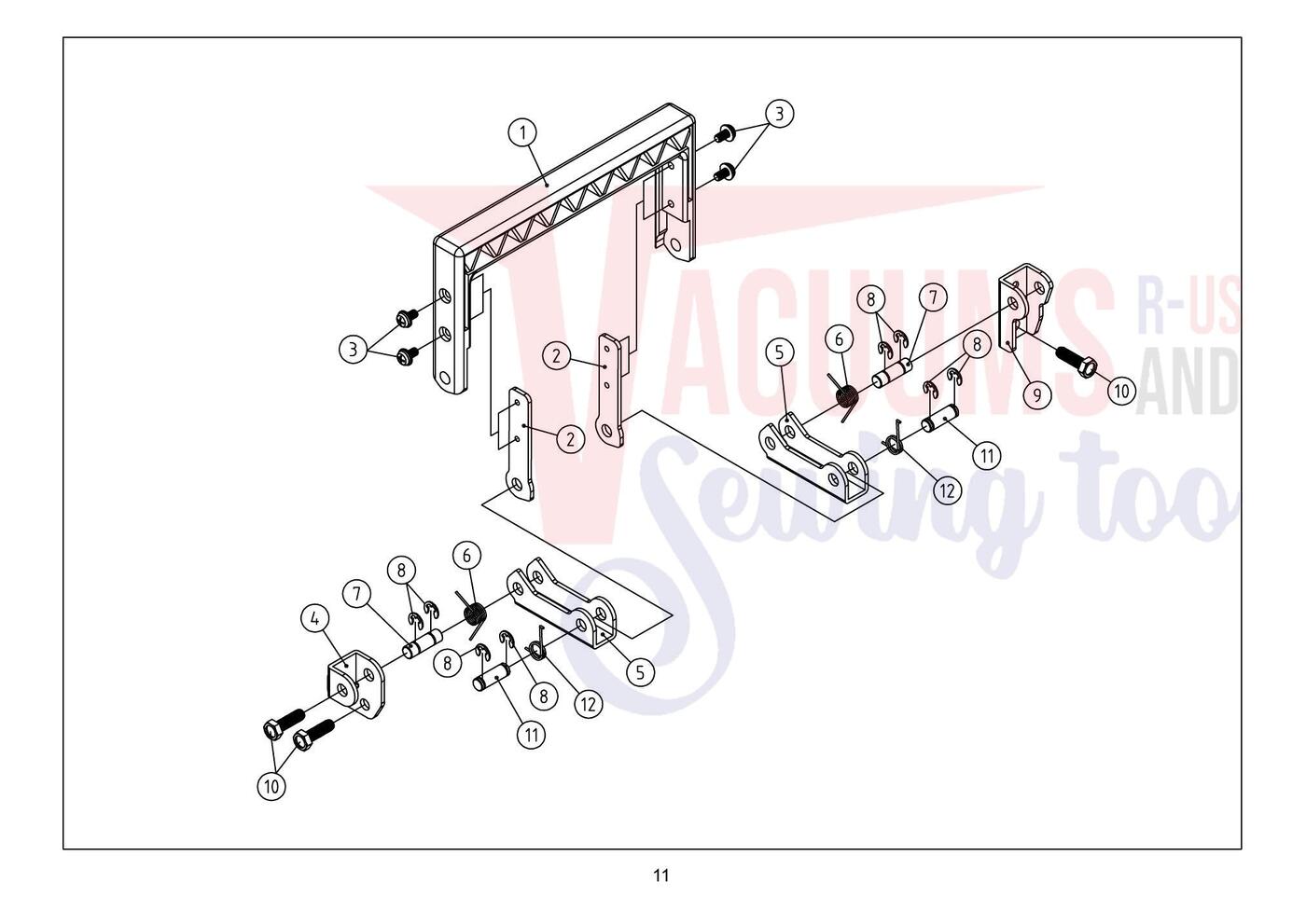

| 1 | | Genuine Janome/Elna HANDLE EL683 EL686 | 396405-50 | $4.40Read more |
| 2 | Not Available | Handleholder | 396405-49 | Not Available |
| 3 | Not Available | Setscrew | 396406-76 | Not Available |
| 4 | Not Available | Handlesupporter(A) | 396405-51 | Not Available |
| 5 | Not Available | Handlelink | 396405-47 | Not Available |
| 6 | | Genuine Janome/Elna HANDLE SPRING (B) | 396405-52 | $6.60Read more |
| 7 | Not Available | Handlelinkpin(B) | 396405-55 | Not Available |
| 8 | Not Available | Ering | 396404-70 | Not Available |
| 9 | Not Available | Handlesupporter(B) | 396405-48 | Not Available |
| 10 | Not Available | Setscrew | 396406-93 | Not Available |
| 11 | Not Available | Handlelinkpin(A) | 396405-53 | Not Available |
| 12 | | Genuine Janome/Elna HANDLE SPRING (A) | 396405-54 | $0.80Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Washer | 396407-12 | Not Available |
| 1 | Not Available | Loopershaftbushing 18 W10T15A00 396407-12 Washer | 396404-82 | Not Available |
| 2 | Not Available | Settingcollar | 396404-17 | Not Available |
| 2 | Not Available | 396404-17 Settingcollar | A10951001 | Not Available |
| 2 | Not Available | Needlebarlinkshaft 19 A10951001 396404-17 Settingcollar | 396405-41 | Not Available |
| 3 | | Genuine Janome/Elna LOOPER CAM (A) ELNA 683 686 | 396404-25 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | 396404-25 Loopercam(A) | A11571000 | Not Available |
| 3 | Not Available | Ering 20 A11571000 396404-25 Loopercam(A) | 396404-73 | Not Available |
| 4 |  | Genuine Janome/Elna LOOPER LINK ELNA 683 686 | 396404-02 | $3.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | 396404-02 Looperlink | A10071000 | Not Available |
| 4 | Not Available | Settingcollar 21 A10071000 396404-02 Looperlink | 396404-18 | Not Available |
| 4 | Not Available | 396404-18 Settingcollar 21 A10071000 396404-02 Looperlink | A10961001 | Not Available |
| 5 | Not Available | Loopershaftlink(A) | 396404-79 | Not Available |
| 5 | Not Available | Feeddrivelinkpin(B) 22 G1032 396404-79 Loopershaftlink(A) | 396404-14 | Not Available |
| 5 | Not Available | 396404-14 Feeddrivelinkpin(B) 22 G1032 396404-79 Loopershaftlink(A) | A10831000 | Not Available |
| 6 | Not Available | Loopershaftlinkpin | 396404-12 | Not Available |
| 6 | Not Available | 396404-12 Loopershaftlinkpin | A10791000 | Not Available |
| 6 | Not Available | Washer 23 A10791000 396404-12 Loopershaftlinkpin | 396407-07 | Not Available |
| 7 | | Genuine Janome/Elna BEARING EL683 EL686 | 396404-22 | $26.00Read more |
| 7 | Not Available | 396404-22 Bearing | A11241000 | Not Available |
| 7 | Not Available | Needlebarconnectingarm 24 A11241000 396404-22 Bearing | 396405-17 | Not Available |
| 8 | Not Available | Nut | 396406-91 | Not Available |
| 8 | Not Available | Needlebarcrank 25 M05H38A06 396406-91 Nut | 396406-39 | Not Available |
| 9 | Not Available | Setscrew | 396406-92 | Not Available |
| 9 | Not Available | Needlebarthreadtake-uplever 26 M05L06E01 396406-92 Setscrew | 396406-42 | Not Available |
| 10 | Not Available | Feeddogcam | 396404-83 | Not Available |
| 10 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Feeddogsupporterslideblock | 396404-84 | Not Available |
| 11 | Not Available | Needlebarconnectingbar 28 G1043 396404-84 Feeddogsupporterslideblock | 396404-81 | Not Available |
| 12 | Not Available | Looperlink(B) | 396404-78 | Not Available |
| 12 | Not Available | Needlebarcam 29 G1029 396404-78 Looperlink(B) | 396406-30 | Not Available |
| 13 | Not Available | Loopershaftlink(B) | 396406-29 | Not Available |
| 13 | Not Available | Setscrew 30 G2041 396406-29 Loopershaftlink(B) | 396406-81 | Not Available |
| 14 | Not Available | Lowerloppercam | 396404-80 | Not Available |
| 14 | Not Available | Washer 31 G1035 396404-80 Lowerloppercam | 396407-13 | Not Available |
| 15 | Not Available | Upperloopershaft | 396406-32 | Not Available |
| 15 | | Genuine Janome/Elna MAIN SHAFT SET ELNA 683 686 | 396404-97 | $12.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Lowerloppershaft | 396406-33 | Not Available |
| 16 | Not Available | Setscrew 33 G2045 396406-33 Lowerloppershaft | 396406-80 | Not Available |
| 17 | Not Available | Mainshaftbushing(B) | 396404-07 | Not Available |
| 17 | Not Available | 396404-07 Mainshaftbushing(B) | A10351000 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upperknifearmsupportbar | 396405-05 | Not Available |
| 1 | Not Available | Upperknifecam 18 G1073 396405-05 Upperknifearmsupportbar | 396405-13 | Not Available |
| 2 | Not Available | Upperknifearm | 396405-06 | Not Available |
| 2 | Not Available | Setscrew 19 G1074 396405-06 Upperknifearm | 396406-81 | Not Available |
| 3 | Not Available | Upperknifeholder | 396406-24 | Not Available |
| 3 | Not Available | Upperknifeshakelink 20 G2035 396406-24 Upperknifeholder | 396405-10 | Not Available |
| 4 | Not Available | Springwasher | 396407-01 | Not Available |
| 4 | | Genuine Janome/Elna UPPER KNIFE SHAKE ARM | 396405-11 | $7.00Read more |
| 5 | | Genuine Janome/Elna WASHER | 396407-00 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Washer 22 W04F10A06 396407-00 Washer | 396407-07 | Not Available |
| 6 | Not Available | Upperknifespring | 396405-26 | Not Available |
| 6 | Not Available | Feeddrivelinkpin(B) 23 G1140 396405-26 Upperknifespring | 396404-14 | Not Available |
| 6 | Not Available | 396404-14 Feeddrivelinkpin(B) 23 G1140 396405-26 Upperknifespring | A10831000 | Not Available |
| 7 | Not Available | Upperknifesettingcollar | 396405-27 | Not Available |
| 7 | Not Available | Upperknifeshakearmshaft 24 G11412 396405-27 Upperknifesettingcollar | 396405-65 | Not Available |
| 8 | Not Available | Upperknifeholdersupport | 396405-28 | Not Available |
| 8 | Not Available | Ering 25 G1142 396405-28 Upperknifeholdersupport | 396404-73 | Not Available |
| 9 | | Genuine Janome/Elna UPPER KNIFE SCREW EL683 EL686 | 396406-83 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Washer 26 M04L08A06 396406-83 Setscrew | 396407-09 | Not Available |
| 10 | Not Available | Nut | 396406-79 | Not Available |
| 10 | Not Available | Settingcollar 27 M04H30A03 396406-79 Nut | 396404-16 | Not Available |
| 10 | Not Available | 396404-16 Settingcollar 27 M04H30A03 396406-79 Nut | A10941001 | Not Available |
| 11 | Not Available | Upperknifearmsupportbarshaft | 396405-22 | Not Available |
| 11 | Not Available | Setscrew 28 G1133 396405-22 Upperknifearmsupportbarshaft | 396406-80 | Not Available |
| 12 | Not Available | Cring | 396404-63 | Not Available |
| 12 | Not Available | Upperknifelink 29 C07T08A01 396404-63 Cring | 396405-12 | Not Available |
| 13 | Not Available | Washer | 396407-08 | Not Available |
| 13 | Not Available | Upperknifelinkpin 30 W07F12A01 396407-08 Washer | 396405-68 | Not Available |
| 14 | | Genuine Janome/Elna SET SCREW EL683 EL868 | 396406-70 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Ering 31 M03L06I04 396406-70 Setscrew | 396404-70 | Not Available |
| 15 | Not Available | Upperknifearmdrivearm | 396405-09 | Not Available |
| 15 | | Genuine Janome/Elna CONE HOLDER EL683 EL686 | 396419-42 | $2.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Upperknifeshakearmshaft | 396405-30 | Not Available |
| 16 | Not Available | Upperknifearmshaft 33 G1146 396405-30 Upperknifeshakearmshaft | 396405-29 | Not Available |
| 17 | | Genuine Janome/Elna UPPER KNIFE EL683 EL686 | 396405-08 | $38.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Washer 34 G1076 396405-08 Upperknife | 396407-10 | Not Available |
| 35 | Not Available | Setscrew | 396406-65 | Not Available |
| 36 | Not Available | Upperknifesetcover | 396406-26 | Not Available |
Report errors on this page HERE
